1. Fully-Automated Sheartrac III System
Product Code
ShearTrac III
The ShearTrac IIITM system is capable of performing the consolidation and shear- ing phases of a 305 mm x 305 mm (12 x 12 in. by 200mm(8.0 in) height direct shear test under automatic control for soils and geosynthetics (geomembrane, geotextile, GCL, geogrid, etc.) as well as for deter- mining the interface frictional properties of soil and geosynthetics, and internal friction of GCLs.
The system consists of a computer con- trolled unit that utilizes a micro stepper motor to apply the horizontal loads. Ver- sions of the unit are available to test loads up to 50 kN (10,000 lbs). Builtin elec- tronics control test and display data in real time. The system is capable of applying a constant rate of strain or stress at any displacement rate up to 15mm (0.6 inch) per minute. The computer controlled program runs under latest Windows. It includes the capability to display the current status of latest and graphically portray the progress of the test in real time. The system also includes the capa- bility for the operator to alter the test process and conditions at any stage during the test.
This is a turnkey system that includes hardware and software for recording all test input data and settings of selected test parameters, performing standard engineering calculations on the data, and producing graphically plotted and printed output in the standard Corps format, in accordance with ASTM D5321, D6243 and BS 1377 standards.
Applicable Test Standards
- ASTM D-5321 and D-6243
- ASTM 3080/T236
- BS 1377
Features / Benefits
- Built-in end clamps for geosynthetics testing
- Optional grip plates for true internal friction determination for GCLs
- Linear bearings for minimum horizontal friction
- Two sets of limit switches to prevent over traveling
- Built-in 4-channel data acquisition with 16-bit resolution
- Two LCD display
- Two displacement transducers with 100 mm (4.00 in.) range and 0.002 mm (0.00008 in.) resolution
- Two universal shear web type load cells
- Accurate displacement rate control from 0.00003 to 10 mm per minute (0.000001 to 0.4 in. per minute)
- Built-in electronic controls for automatic display of data and control of test
- Windows XP, or Vista, 7 friendly user interface
- Fully incremental consolidation test capability
Technical Specifications
|
Capacity |
50 kN (10,500 lbs.) |
|
Vertical Motor |
Stepper motor with built-in controls for vertical load |
|
Horizontal Mot. |
Stepper motor with built-in controls for horizontal load |
|
Speed Range |
90 mm (3.5 in.) resolved to 0.002 mm (0.00008 inches) |
|
Vertical Travel |
90 mm (3.5 in.) resolved to 0.002 mm (0.00008 inches) |
|
Horizontal Travel |
90 mm (3.5 in.) resolved to 0.002 mm (0.00008 inches) |
|
Power |
110/220 V, 50/60 Hz, 1phase |
Models
|
ST-10000 |
50 kN (10,000 lbs.) frame capacity in both directions. |
Accessories
|
Geo-NETTM-PC |
Network card and cable to link ShearTrac III to PC |
|
Shear |
Software package to automatically run consolidation and direct shear test on ShearTrac III |
|
Shear.report |
Editing/reporting software package |
|
Gripping Plates |
Optional for GCL testing |

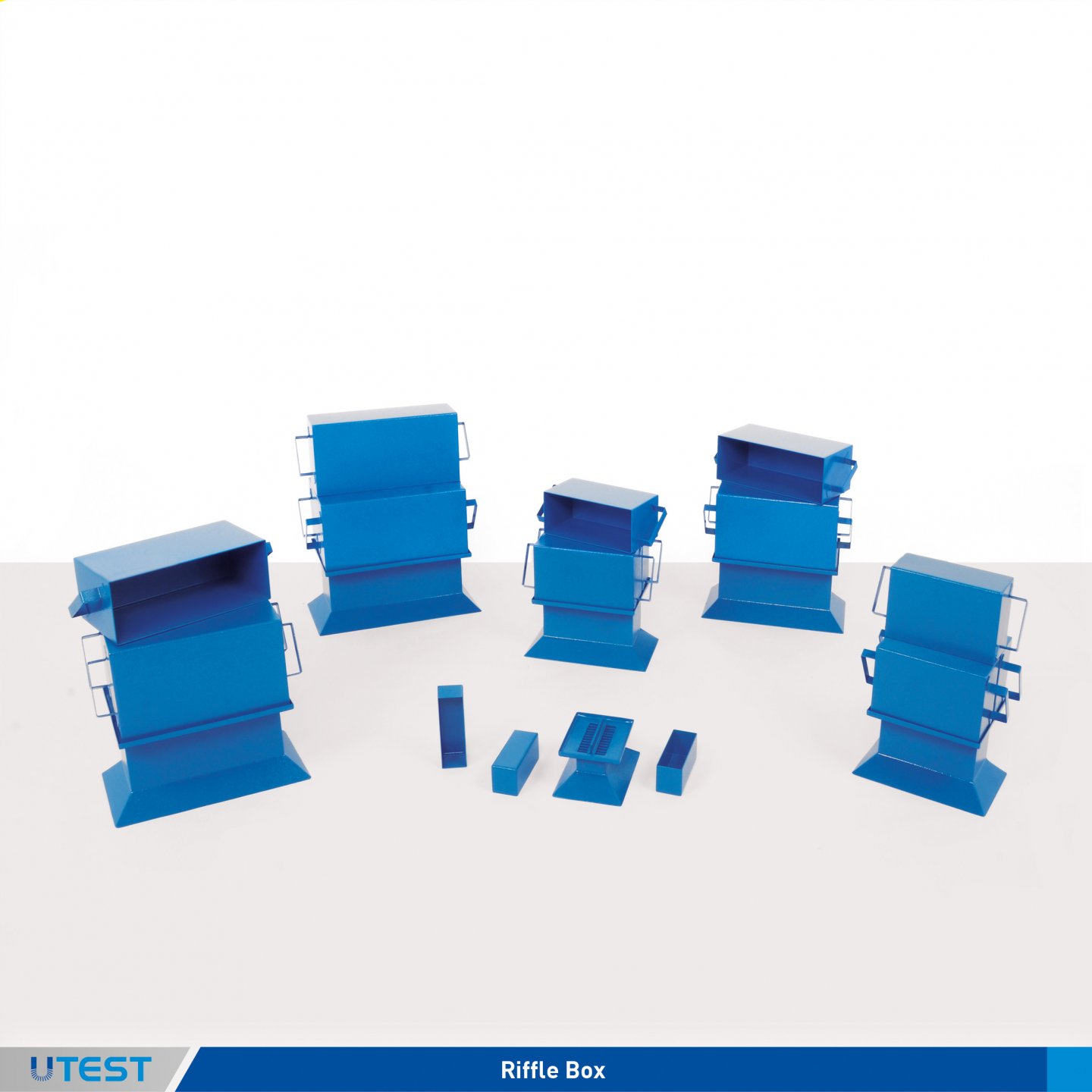

2. Riffle Boxes
Product Code
|
UTA-0338 |
Riffle Box 5 mm |
|
UTA-0340 |
Riffle Box 7 mm |
|
UTA-0341 |
Riffle Box 13 mm |
|
UTA-0342 |
Riffle Box 15 mm |
|
UTA-0343 |
Riffle Box 19 mm |
|
UTA-0344 |
Riffle Box 25 mm |
|
UTA-0345 |
Riffle Box 30 mm |
|
UTA-0346 |
Riffle Box 38 mm |
|
UTA-0347 |
Riffle Box 45 mm |
|
UTA-0348 |
Riffle Box 50 mm |
|
UTA-0349 |
Riffle Box 64 mm |
|
UTA-0350 |
Riffle Box 75 mm |
Standards
EN 932-2; ASTM C702; BS 812:1, 1377:1, 1924:1
Riffle boxes are used for dividing aggregates into 2 equal homogenous quantity for testing. The Riffle Box is electrostatically painted and manufactured to meet the relevant International standard both in the slot width and number of slots.
The Riffle Boxes are supplied complete with;
- Containers with Handles, 3 pcs
|
|
Aperture |
Number of Slots |
Weight |
Dimensions |
|
UTA-0338 |
5 mm |
16 |
12 kg |
100x130x120 mm |
|
UTA-0340 |
7 mm |
12 |
14 kg |
110x140x140 mm |
|
UTA-0341 |
13 mm |
12 |
33 kg |
190x260x330 mm |
|
UTA-0342 |
15 mm |
12 |
33 kg |
190x280x330 mm |
|
UTA-0343 |
19 mm |
10 |
36 kg |
220x280x360 mm |
|
UTA-0344 |
25 mm |
10 |
39 kg |
220x340x390 mm |
|
UTA-0345 |
30 mm |
10 |
40 kg |
220x390x400 mm |
|
UTA-0346 |
38 mm |
8 |
56 kg |
320x410x560 mm |
|
UTA-0347 |
45 mm |
8 |
57 kg |
410x480x570 mm |
|
UTA-0348 |
50 mm |
8 |
60 kg |
320x550x600 mm |
|
UTA-0349 |
64 mm |
8 |
60 kg |
350x640x600 mm |
|
UTA-0350 |
75 mm |
8 |
58 kg |
360x700x580 mm |
3. Laboratory Type Crusher and Grinder
Product Code
|
UTA-0360-C |
Laboratory Type Jaw Crusher, 380 V 50 Hz, 3ph |
|
UTA-0365-C |
Laboratory Type Vibrating Disc Mill, 380 V 50 Hz, 3ph |
UTA-0360 is used for crushing, UTA-0365 is used for grinding cement clinker, ceramics, basalt, chamotte, construction materials, alloys, coal, coke, feldspar, glass and various materials in the laboratory when smaller sample sizes are required for testing. Three models are available (see Technical Specifications) depending on different feed sizes, output grain sizes and capacity requirements.
|
Product Code |
UTA-0360-C |
UTA-0365-C |
|
Feed Size |
100 mm |
< 15 mm |
|
Output Grain Size |
< 500 μm 0-8 mm, adjustable |
38 μm max. 10 μm |
|
Capacity |
150 kg/h |
(*) |
|
Dimensions |
482x1044x1015 mm |
650x730x1150 mm |
|
Weight (approx.) |
250 kg |
330 kg |
|
Power |
4 HP |
1,5 HP |
(*) Dijital setting of grinding time from 0 up to 999 h or 999 min. or 999 seconds

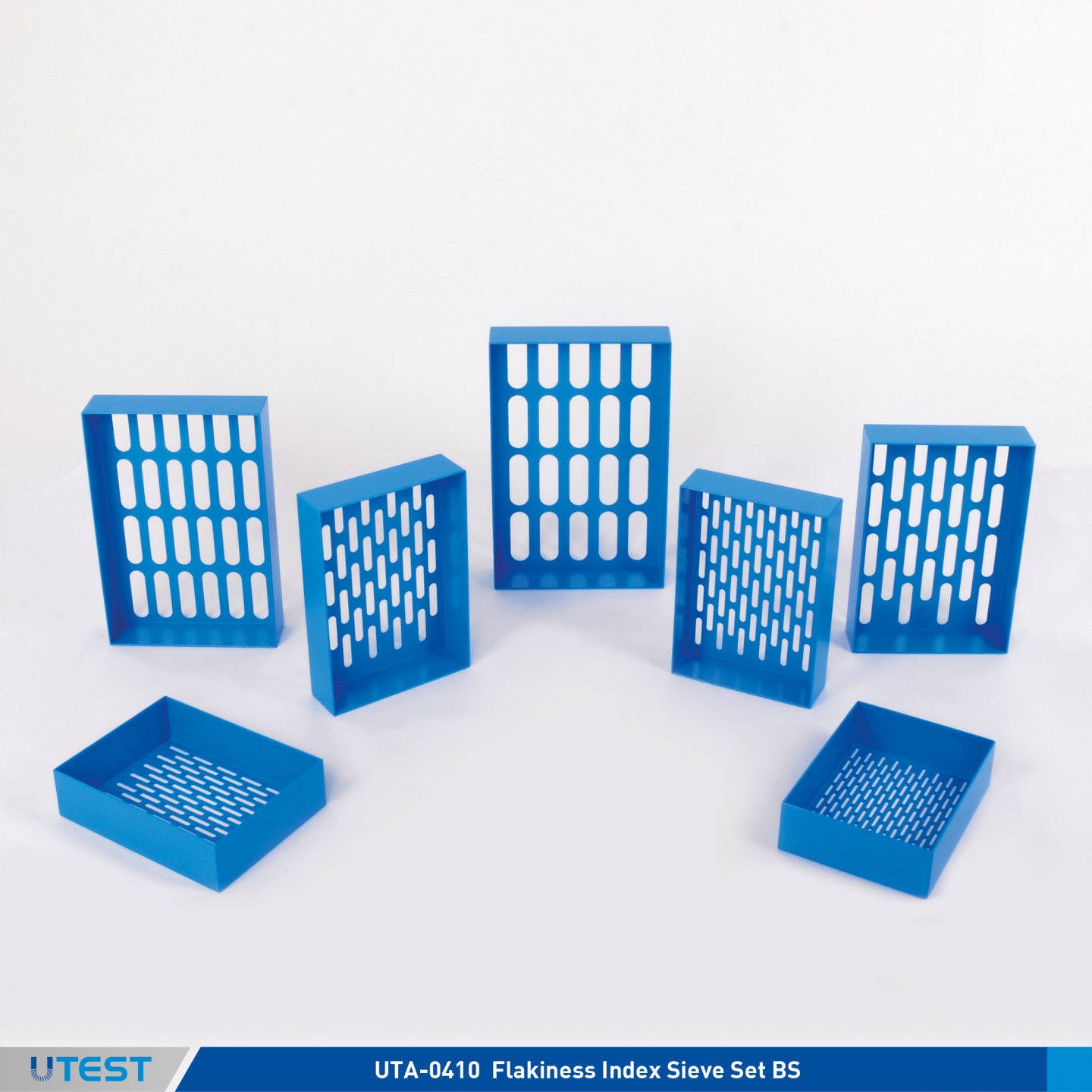

4. Flakiness Index Sieve Sets BS
Product Code
|
UTA-0410 |
Flakiness Index Sieve Set, BS |
|
UTA-0411 |
Flakiness Index Sieve BS 4.9x30 mm Slot Size |
|
UTA-0412 |
Flakiness Index Sieve BS 7.2x40 mm Slot Size |
|
UTA-0413 |
Flakiness Index Sieve BS 10.2x50 mm Slot Size |
|
UTA-0414 |
Flakiness Index Sieve BS 14.4x60 mm Slot Size |
|
UTA-0415 |
Flakiness Index Sieve BS 19.7x80 mm Slot Size |
|
UTA-0416 |
Flakiness Index Sieve BS 26.3x90 mm Slot Size |
|
UTA-0417 |
Flakiness Index Sieve BS 33.9x100 mm Slot Size |
Standards
BS 812-105.1
Aggregate particles are considered as flaky when their thickness is less than 0.6 of their mean sieve size. Aggregate to be classified is separated into seven sieve fractions from 6.3 to 63 mm and each fraction is examined separately. The dimensions of each sieve comply with the relevant International Standard, manufactured from heavy gauge steel sheet and coated with electrostatic paint. The accuracy of the slot size is better than 0.1 mm.
UTA-0410 Flakiness Index Sieve Set consists of 7 sieves.
For sample preperation 6.3, 10, 14, 20, 28, 37.5, 50 and 63 mm aperture sizes test sieves should be ordered seperately.
|
|
Slot Size (wxl) |
Weight (approx.) |
Dimensions |
|
UTA-0411 |
4.9x30 mm |
2 kg |
470x320x80 mm |
|
UTA-0412 |
7.2x40 mm |
2 kg |
220x300x80 mm |
|
UTA-0413 |
10.2x50 mm |
2 kg |
230x310x80 mm |
|
UTA-0414 |
14.4x60 mm |
2 kg |
250x330x80 mm |
|
UTA-0415 |
19.7x80 mm |
2 kg |
280x380x80 mm |
|
UTA-0416 |
26.3x90 mm |
3 kg |
290x420x80 mm |
|
UTA-0417 |
33.9x100 mm |
3 kg |
310x470x80 mm |

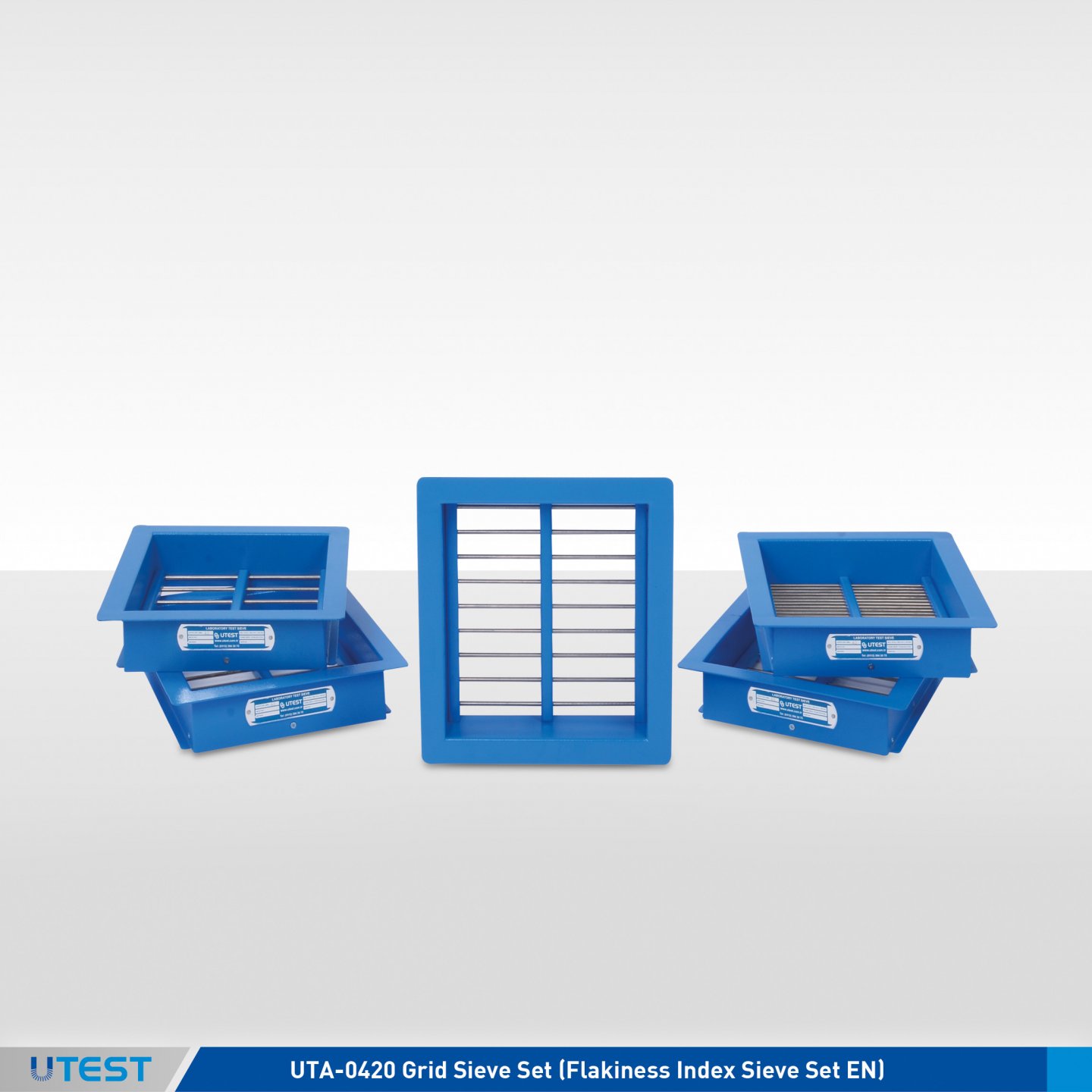

5. Grid Sieve Sets (Flakiness Index Sieve EN)
Product Code
|
UTA-0420 |
Grid Sieve Set (Flakiness Index Sieve Set EN) |
|
UTA-0421 |
Grid Sieve (Flakiness Index Sieve EN) 2.5 mm |
|
UTA-0422 |
Grid Sieve (Flakiness Index Sieve EN) 3.15 mm |
|
UTA-0423 |
Grid Sieve (Flakiness Index Sieve EN) 4 mm |
|
UTA-0424 |
Grid Sieve (Flakiness Index Sieve EN) 5 mm |
|
UTA-0425 |
Grid Sieve (Flakiness Index Sieve EN) 6.3 mm |
|
UTA-0426 |
Grid Sieve (Flakiness Index Sieve EN) 8 mm |
|
UTA-0427 |
Grid Sieve (Flakiness Index Sieve EN) 10 mm |
|
UTA-0428 |
Grid Sieve (Flakiness Index Sieve EN) 12.5 mm |
|
UTA-0429 |
Grid Sieve (Flakiness Index Sieve EN) 16 mm |
|
UTA-0430 |
Grid Sieve (Flakiness Index Sieve EN) 20 mm |
|
UTA-0431 |
Grid Sieve (Flakiness Index Sieve EN) 25 mm |
|
UTA-0432 |
Grid Sieve (Flakiness Index Sieve EN) 31.5 mm |
|
UTA-0433 |
Grid Sieve (Flakiness Index Sieve EN) 40 mm |
|
UTA-0434 |
Grid Sieve (Flakiness Index Sieve EN) 50 mm |
Standards
EN 933-3; NF P18-561; UNI 8520-18; NLT 354
Used for the determination of the flakiness index of the aggregate. Consisting of an electrostatically painted frame and 5 mm diameter stainless steel bars with apertures state below.
For sample preperation 4.5, 6.3, 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50, 63, 80 and 100 mm aperture sizes test sieves should be ordered seperately.
|
|
Aperture |
Weight |
Dimensions |
|
UTA-0421 |
2.5 mm |
3 kg |
320x340x80 mm |
|
UTA-0422 |
3.15 mm |
3 kg |
320x340x80 mm |
|
UTA-0423 |
4 mm |
3 kg |
320x340x80 mm |
|
UTA-0424 |
5 mm |
3 kg |
320x340x80 mm |
|
UTA-0425 |
6.3 mm |
3 kg |
320x340x80 mm |
|
UTA-0426 |
8 mm |
3 kg |
320x340x80 mm |
|
UTA-0427 |
10 mm |
3 kg |
320x340x80 mm |
|
UTA-0428 |
12.5 mm |
3 kg |
320x340x80 mm |
|
UTA-0429 |
16 mm |
3 kg |
320x340x80 mm |
|
UTA-0430 |
20 mm |
3 kg |
320x340x80 mm |
|
UTA-0431 |
25 mm |
3 kg |
320x340x80 mm |
|
UTA-0432 |
31.5 mm |
3 kg |
320x340x80 mm |
|
UTA-0433 |
40 mm |
3 kg |
320x340x80 mm |
|
UTA-0434 |
50 mm |
3 kg |
320x340x80 mm |
6. Thickness Gauge (Flakiness Index) BS
Product Code
|
UTA-0450 |
Thickness Gauge (Flakiness Index BS) |
Standards
BS 812-105.1
Thickness Gauge is used to determine if the aggregate particles are to be considered as flaky, i.e. their thickness is less than 0.6 of their nominal size.
The aggregate to be classified is separated into seven sieve fractions from 6.3 to 63 mm, and each fraction is examined separately. Slot sizes are 4.9 x 30 mm, 7.2 x 40 mm, 10.2 x 50 mm, 14.4 x 60 mm, 19.7 x 80 mm, 26.3 x 90 mm and 33.9 x 100 mm.
|
Dimensions |
310x130x10 mm |
|
Weight (approx.) |
0,4 kg |

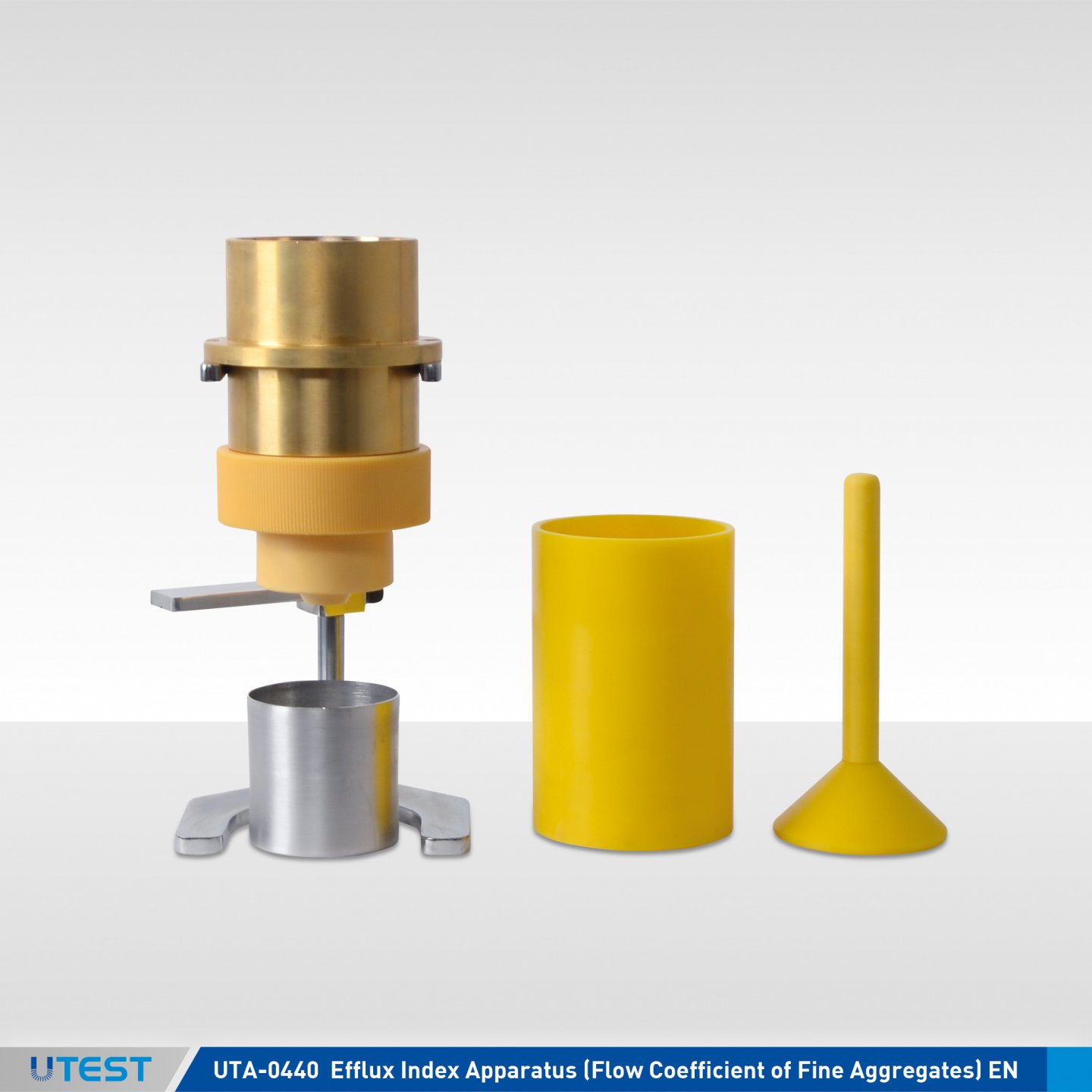

7. Efflux Index Apparatus (Flow Coefficient of Fine Aggregates)
Product Code
|
UTA-0440 |
Efflux Index Apparatus (Flow Coefficient of Fine Aggregates), EN |
Standards
EN 933-6
UTA-0440 Efflux Index (Flow Coefficient of Fine Aggregates) Apparatus is used to obtain information about the shape and the angularity of grains of fine aggregates.
The flow coefficient of an aggregate is the time, expressed in seconds, for a specified volume of aggregate to flow through a given opening, under specified conditions using a standard apparatus.
Efflux Index (Flow Coefficient of Fine Aggregates) Apparatus consist of a control shutter, acylindrical feed hopper, a cylindrical body, a cone and a metal stand.
|
Dimensions |
160x170x410 mm |
|
Weight (approx.) |
6 kg |
8. Length Gauge (Elongation Index BS)
Product Code
|
UTA-0455 |
Length Gauge (Elongation Index BS) |
Standards
BS 812-105.2
Length Gauge (Elongation Index BS), is used for determining the elongation index of aggregates. The particle is elongated when its length (longest dimension) is more than 1.8 o the midsize of the sieve fraction. The aggregate to be classified is separated into six sieve fractions from 6.3 to 50 mm and each fraction is examined separately.
|
Dimensions |
70x370x70 mm |
|
Weight (approx.) |
0,90 kg |
9. Shape Index Caliper
Product Code
|
UTA-0460 |
Shape Index Caliper |
Standards
EN 933-4; DIN 4226; CNR No.95; NLT 354
Shape Index Caliper is used for the determination of the shape factor of aggregates.
Measurement range is 200 mm and graduated with 0.05 mm increments.
|
Dimensions |
170x470x50 mm |
|
Weight (approx.) |
1 kg |
10. Sand Equivalent Test Sets
Product Code
|
UTA-0500E |
Sand Equivalent Test Set, EN Model |
|
UTA-0500A |
Sand Equivalent Test Set, ASTM Model |
|
UTA-0502E |
Sand Equivalent Measuring Two Graduated Cylinder, EN |
|
UTA-0502A |
Sand Equivalent Measuring Graduated Cylinder, ASTM |
|
UTGH-1425 |
Moisture Content Tin Sand Equivalent Measuring Tin with Lid, Aluminium, Ø:55 mm x h:35 mm |
|
UTA-0506 |
Sand Equivalent Siphon Assembly |
|
UTA-0507E |
Sand Equivalent Test Plunger Assembly, EN |
|
UTA-0507A |
Sand Equivalent Weighted Foot Assembly, ASTM |
|
UTA-0515 |
Washing and Flocculating Solution (Stock Solution), 1 lt |
Standards
EN 933–8; ASTM D2419; AASHTO T176; UNI 8520–15; UNE 83131; CNR No. 27
The Sand Equivalent test set is used to determine the fines of aggregates. The test set is supplied with 4 transparent acrylic plastic measuring cylinders, siphon assembly (irrigator tube with valve, solid rubber stopper, siphon tube and hose, blow tube) 5 lt. plastic can, weighted foot assembly, measuring can, wide-mouth funnel, and ruler.
UTA-0515 Washing and Flocculating (Stock Solution) should be ordered seperately.
The Sand Equivalent Test Set is supplied complete with;
- Transparent Graduated Acrylic Plastic Measuring Cylinder, 4 units for UTA-0500A
- Transparent Acrylic Plastic Measuring Cylinder - 4 units for UTA-0500E
- Solid rubber stopper, 2 pcs.
- Siphon Assembly (Irrigator Tube with Valve, Solid Rubber Stopper, Siphon Tube and Hose, Blow Tube, Plastic Can - 5 lt.)
- Weighted Foot/Plunger Assembly
- Measuring Tin
- Wide-Mouth Funnel
- Ruler
- Special Carrying Case
|
Dimensions |
380x500x120 mm |
|
Weight (approx.) |
4 kg |

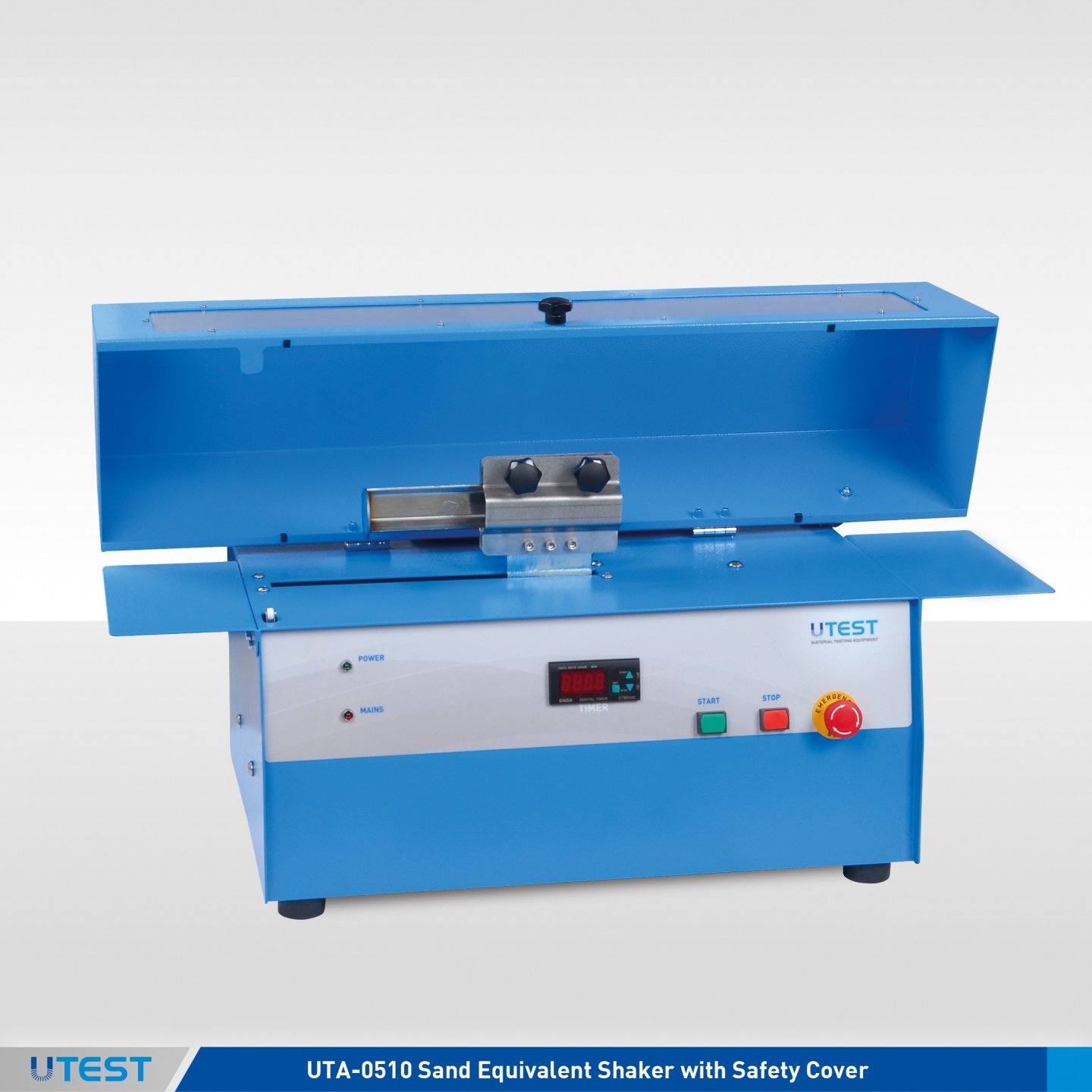

11. Sand Equivalent Shaker
Product Code
|
UTA-0510 |
Sand Equivalent Shaker with Safety Cover |
|
Models for 220-240V 50 Hz, 1 ph. |
UTC-0510-T |
|
Models for 110-120V 60 Hz, 1 ph. |
UTC-0510-N |
|
Models for 220-240V 60 Hz, 1 ph. |
UTC-0510-K |
Standards
EN 933–8; ASTM D2419; AASHTO T176; UNI 7446
UTA-0510 Sand Equivalent Shaker is used for the uniform shaking of Sand Equivalent Measuring Cylinders, at a specified rate and stroke.
The shaker is supplied complete with a timer. The horizontal movement, cycle and shaking time can easily be adjusted on the shaker to comply with EN or ASTM standards.
|
Horizontal Movement |
200 mm ± 10 mm (EN) 203.2 mm ± 1 mm (ASTM) |
|
Cycle |
90 ± 3 / 30 sec. (EN) 175 ± 2 / min. (ASTM) |
The Sand Equivalent Shaker is supplied complete with;
- Safety Cover (conforming with CE directives)
- Timer
|
Dimensions |
350x800x440 mm |
|
Weight (approx.) |
50 kg |
|
Power |
200 W |
12. Methylene Blue Test Set
Product Code
|
UTA–0530 |
Methylene Blue Test Set, 110-230V 50-60 Hz, 1ph |
|
UTA–0531Y |
Type A Filter Paper for Methylene Blue Test, Ø:125 mm, 100 pcs/pack |
|
UTA–0532 |
Type B Filter Paper for Methylene Blue Test, Ø:125 mm, 100 pcs/pack |
|
UTA–0533 |
Type C Filter Paper for Methylene Blue Test, Ø:125 mm, 100 pcs/pack |
|
UTGC-0885Y |
Type A Methylene Blue Powder, 100 g |
|
UTGC-0886 |
Type B Methylene Blue Powder, 100 g |
|
UTGC-0880 |
Kaolinite, 500 gr |
Standards
EN 933-9; NF P94-068; UNE 83 180; UNI 8520-15
The Test Set is used for determining the Methylene Blue value of 0/2 mm fraction in fine aggregates.
UTGC-0886 Type B methylene blue powder has a dye content ≥82 %(spectrophotometrically).
Filter paper, methylene blue powder and kaolinite should be ordered separately.
|
UTA–0531Y |
Ø:125 mm |
|
UTA–0532 |
Ø:125 mm, 100 g/m2, 0.20 mm thickness, filtration speed 75s(DIN 53137), pore size 4μm. |
|
UTA–0533 |
Ø:125 mm, Quantitive, ash free max. 0,007%, 95 g/m2, thickness nominal 0.210 μm, filtration speed 340s (Herzberg), pore size 8 μm. |
Set Consists of
- High Speed Agitator Motor, 400/600 r.p.m.
- Stirring Propeller, Ø 70 mm 4 flanks
- Glass Burette, 50 ml x 0.1 ml
- Burette Holder and Stand
- Glass Rod, Ø 8x300 mm
- Plastic Beaker, 1000 ml
UTGC-0885Y UTGC-0880 UTA-0531Y UTA-0532
|
Dimensions |
510x5870x270 mm |
|
Weight (approx.) |
13 kg |
13. Los Angeles Abrasion / Fragmentation Machine
Product Code
|
UTA–0600 |
Los Angeles Abrasion Machine |
|
UTA–0601 |
Los Angeles Abrasion Machine with Soundproof Safety Cabinet |
|
UTA–0602E |
Los Angeles Abrasion Charges EN, 12 pcs. |
|
UTA–0602A |
Los Angeles Abrasion Charges ASTM/AASHTO, 12 pcs. |
|
Models for 220-240V 50 Hz, 1 ph. |
UTA-0600-T |
UTA-0601-T |
|
Models for 110-120V 60 Hz, 1 ph. |
UTA-0600-N |
UTA-0601-N |
|
Models for 220-240V 60 Hz, 1 ph. |
UTA-0600-K |
UTA-0601-K |
Standards
EN 1097-2, 12697-17, 13450; ASTM C131, C535; AASHTO T96
The Los Angeles Abrasion Machine is used for determination of the aggregates resistance to fragmentation. The machine consists of an electronic control unit and a rolled steel drum having an inside diameter of 711 mm and internal length of 508 mm. The drum is rotated at a speed of 31-33 r.p.m. The internal shelf provided with the machine confirms to ASTM, AASHTO and EN standards. The machine is equipped with an automatic counter, when the preset revolution count is reached, the machine will stop automatically. The drum is equipped with an interlock device which allows the operator to lock the drum into position for easy loading/unloading of the sample.
A steel tray is supplied with the machine for easy discharge of specimen and abrasive charges.
The standard model can be supplied with a safety/noise reduction cabinet. The cabinet is lined internally with soundproofing material to reduce sound level conforming to CE directives. The cabinet must be ordered with the Los Angeles machine if required, as the electronic control unit will be installed on the safety cabinet at the time of manufacture. The cabinet is equipped with an electric safety device which automatically stops the rotation of the drum when the door is opened, conforming to CE directives.
- Abrasion balls and 1.6 mm, 10mm, 11.2mm (or 12.5mm), 14 mm sieves and guard sieves (2mm, 4mm and 6mm) acc. to EN standard
- Abrasion balls, 1.7 mm( No.12) sieve and other sieves which chance depending the grain size acc. to ASTM and AASHTO standards, should be ordered separately.
The Los Angeles Abrasion Machine is supplied complete with;
- Steel Tray
Control Panel Drum Position Lock with Safety Switch
|
|
UTA-0600 |
UTA-0601 |
|
Dimensions |
850x900x950 mm |
1060x1100x1210 mm |
|
Weight (approx.) |
361 kg |
528 kg |
|
Power |
800 W |
800 W |
14. Wide Wheel Abrasion Testing Machine
Product Code
|
UTA-0610 |
Wide Wheel Abrasion Testing Machine |
|
UTA-0611 |
Abrasive Corundum Sand 25 kg for UTA-0610 and UTA-0613 |
|
UTA-0612 |
Calibration Marble for UTA-0610 |
|
UTA-0613 |
Narrow Wheel Abrasion Testing Machine |
|
UTA-0614 |
Mould, EN 12808-2, Polyethylene, 100 ±1x100 ±1x10 ±1 mm, for UTA-0613 |
|
Models for 220-240V 50 Hz, 1 ph. |
UTC-0610-T |
UTC-0613-T |
|
Models for 110-120V 60 Hz, 1 ph. |
UTC-0610-N |
UTC-0613-N |
|
Models for 220-240V 60 Hz, 1 ph. |
UTC-0610-K |
UTC-0613-K |
Standards
Wide Wheel : EN 1338, 1339, 1340, 1341, 1342, 13748-1,13748-2, 14157
Narrow Wheel: 10545-6, 12808-2
UTA-0610 Abrasion Testing Machine is designed for determining the resistance to abrasion/wear of natural stones and concrete products used for paving. The abrasion wheel is 70 mm thick and rotates at a speed of 75 rpm. The machine is equipped with a digital counter which stops the machine at the end of a preset number of revolutions.
UTA-0613 Narrow Wheel Abrasion Testing Machine is designed for determining the resistance to abrasion of unglazed tiles, grouts used for tiles and clay pavers. The abrasion wheel is 10 mm thick. Abrasive corundum sand, calibration marble (boloneisse) and mould (for EN 12808-2) should be ordered separately.
|
Dimensions |
450x930x1100 mm |
|
Weigh (approx.) |
140 kg |
|
Power |
370 W |
15. Abrasion Testing Machine According to Böhme
Product Code
|
UTA-0615-T |
Abrasion Testing Machine According to Böhme, 220-240 V 50 Hz, 1 ph (60 Hz version is available upon request) |
|
UTA-0616 |
Abrasive Sand, 50 kg pack for UTA-0615 |
Standards
EN 1338, 1339, 1340
UTA-0615 the Abrasion Testing Machine according to Böhme is used for determining the abrasion resistance of concrete and natural stone products used for internal or external paving.
The machine consists of a grinding wheel of approx. 750 mm diameter, a removable testing weight of 30 kg and a clamping device for the sample. The machine is equipped with an adjustable counter (30 ± 1 r.p.m.) and an automatic cut-off system which stops the machine after 22 rotations.
UTA-0616 Abrasive Sand should be ordered separately.
|
Dimensions |
810x1460x1270 mm |
|
Weigh (approx.) |
210 kg |
|
Power |
750 W |

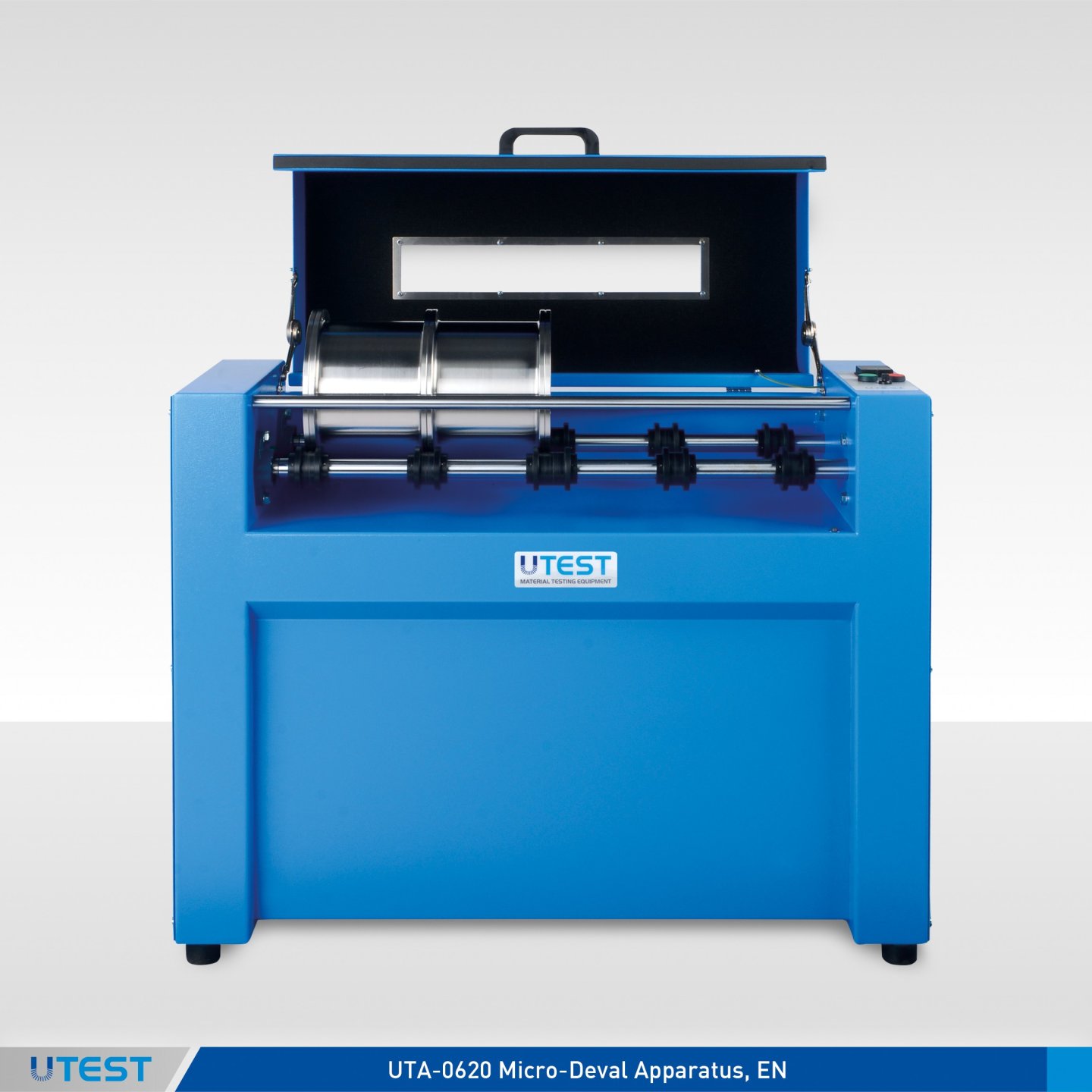

16. Micro-Deval Apparatus EN
Product Code
|
UTA-0620E |
Micro-Deval Apparatus, EN |
|
UTA-0621E |
Stainless Steel Drum, EN, Ø 200x154 mm ID for UTA-0620E |
|
UTA-0622E |
Stainless Steel Drum EN, Ø 200x400 mm ID for UTA-0620E |
|
UTA-0623E |
Micro-Deval Abrasion Charges, Stainless Steel, EN, Ø10 mm 20 kg Pack |
|
UTA-0624B |
Micro-Deval Abrasion Ball Set, BS, (3 pcs. balls) |
|
UTA-0626 |
Abrasive Steel Charges Collector |
|
Models for 220-240V 50 Hz, 1 ph. |
UTC-0620E-T |
|
Models for 220-240V 60 Hz, 1 ph. |
UTC-0620E-K |
Standards
EN 1097-1, 13450; BS 7533-3
The Micro Deval Testing Machine is used to determine the resistance to wear of aggregates. Automatic digital counter allows machine to stop automatically at the preset number of revolutions. The machine has electronic control unit with digital display,
Stainless steel drums are rotating at a speed of 100 ± 5 r.p.m.
The machine can accept up to 4 pcs. Ø 200x154 mm drums or 1 pcs. Ø 200x400 mm drums.
Stainless steel abrasion charges (UTA-0623) and Ø 200x154 mm steel drums (UTA-0621E) should be ordered separately.
Additionally, Ø200x400 mm stainless steel drum/s (UTA-0622E), abrasive steel charges collector (UTA-0626), BS Micro-Deval Abrasion Ball Set (UTA-0624B), the sieves (1,6 mm, 8 mm, 10 mm, 11,2 mm or 12,5 mm and 14,0 mm) the sieves for railway ballast (1,6 mm, 8 mm, 31.5 mm, 40.0 mm and 50.0 mm) should be ordered separately.
|
Dimensions |
450x1260x980 mm |
|
Weight (approx.) |
95 kg |
|
Power |
550 W |
17. Micro-Deval Apparatus ASTM
Product Code
|
UTA-0620A |
Micro-Deval Apparatus, ASTM, 220-240 V 50 Hz |
|
UTA-0621A |
Stainless Steel Jar, ASTM, for UTA-0620A |
|
UTA-0623A |
Micro-Deval Abrasion Charges, ASTM, Ø9,5 mm, 2 pcs. of 6 kg Packed |
|
UTA-0626 |
Abrasive Steel Charges Collector |
|
Models for 220-240V 50 Hz, 1 ph. |
UTC-0620A-T |
|
Models for 110-120V 60 Hz, 1 ph. |
UTC-0620A-N |
|
Models for 220-240V 60 Hz, 1 ph. |
UTC-0620A-K |
Standards
ASTM D6928, D7428; AASHTO T327
The Micro Deval Testing Machine is used to determine the resistance to wear of aggregates. The machine consists of a steel frame, two stainless steel jar stainless steel spheres (2 pcs) and an automatic digital counter which allows machine to stop automatically at the preset number of revolutions.
Stainless steel jars are rotating at a speed of 100 ± 5 r.p.m.
Sieves (19.0 mm,16.0 mm, 12.5 mm, 9.5 mm, 6.3 mm, 4.75 mm and 1.18mm) and abrasive steel charges collector (UTA-0626) should be ordered separately.
UTA-0620A Micro-Deval Apparatus is supplied complete with;
- Stainless Steel Jar, ASTM, 2 pcs.
- Abrasion Charges, ASTM, Ø9,5 mm, 2 pcs. of 6 kg packed
|
Dimensions |
385x680x1180 mm |
|
Weight (approx.) |
105 kg |
|
Power |
550 W |

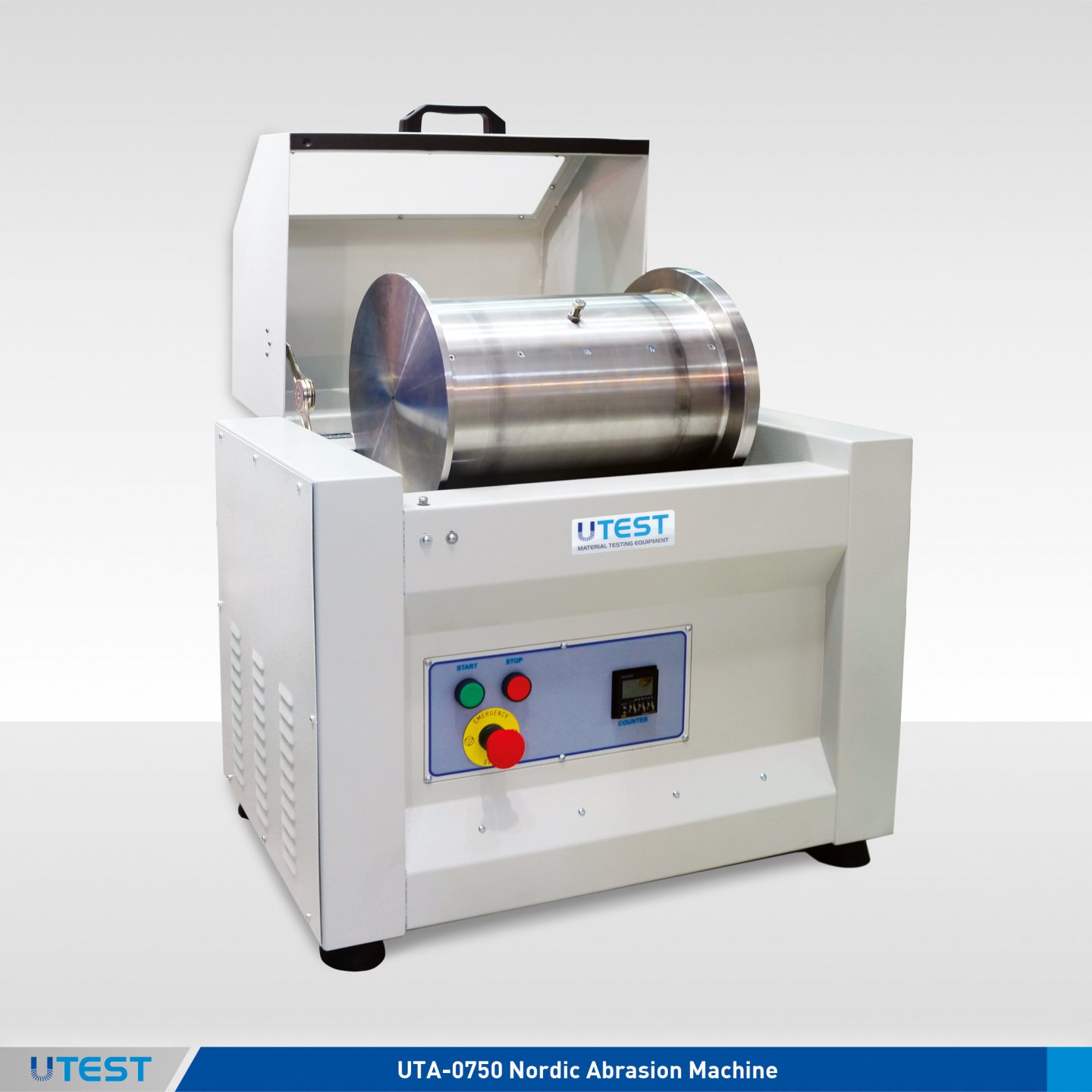

18. Nordic Abrasion Machine
Product Code
|
UTA-0750 |
Nordic Abrasion Machine |
|
UTA-0751 |
Steel Balls, Ø 15 mm dia, Stainless, 7 kg |
|
UTA-0752 |
Steel Balls, Ø 11.1 mm dia, Stainless, 3,5 kg |
|
UTA-0753 |
Stainless Steel Drum for UTA-0750 |
|
UTA-0626 |
Abrasive Steel Charges Collector |
|
Models for 220-240V 50-60 Hz, 1 ph. |
UTA-0750 |
|
Models for 110-120V 60 Hz, 1 ph. |
UTA-0750-N |
Standards
EN 1097-9; UNI 8520-13-16
UTA-0750 Nordic Abrasion Machine has been developed for testing the resistance of aggregates to wear by abrasion from studded tyres. The test is performed on natural or artificial stones and aggregates between 11.2 mm and 16.0 mm.
The test consists of a rotating aggregate in a drum containing steel abrasive balls and water. The machine consists of an electronic control unit and a rolled stainless steel drum having an internal diameter of 206.5 mm, internal length of 335 mm and thickness of 6 mm. The drum is rotated at a speed of 90 ± 3 r.p.m. 3 wings are installed inside of the drum to allow the balls and aggregates to be mixed properly.
The abrasion loss rate of aggregates is calculated after the specified number of revolutions stated in the relevant standard.
Sieves (2 mm, 11.2 mm, 14.0 mm and 16.0 mm), abrasive steel charges collector(UTA-0626) and also for aggregates between 8mm and 11,2 mm (Sieves 2 mm, 8 mm, 10 mm, 11.2 mm and Ø 11.1 mm steel balls UTA-0752) should be ordered separately.
The Nordic Abrasion Machine is supplied complete with;
- Stainless Steel Drum, 1 pcs.
- Steel Balls, Ø 15 mm, 7 kg
|
Dimensions |
450x700x750 mm |
|
Weight (approx.) |
70 kg |
|
Power |
600 W |
19. Aggregate Crushing Value (ACV) Sets
Product Code
|
UTA-0630 |
Aggregate Crushing Value (ACV) Set Ø 150 mm BS |
|
UTA-0631 |
Aggregate Crushing Value Cylinder Ø 150 mm for UTA-630 |
|
UTA-0632 |
Aggregate Crushing Value Base Plate for UTA-630 |
|
UTA-0633 |
Aggregate Crushing Value Plunger for UTA-630 |
|
UTA-0634 |
Aggregate Crushing Value Cylindrical Measure for UTA-630 |
|
UTC-0408 |
Tamping Rod Ø 16x600 mm |
|
UTA-0640 |
Aggregate Crushing Value (ACV) Set Ø 75 mm BS |
|
UTA-0641 |
Aggregate Crushing Value Cylinder Ø 75 mm for UTA-640 |
|
UTA-0642 |
Aggregate Crushing Value Base Plate for UTA-640 |
|
UTA-0643 |
Aggregate Crushing Value Plunger for UTA-640 |
|
UTA-0644 |
Aggregate Crushing Value Cylindrical Measure for UTA-640 |
|
UTA-0645 |
Tamping Rod Ø 8x300 mm |
Standards
BS 812:110, 812-11
The Aggregate Crushing Value (ACV) Test Set provides a relative measure of the resistance of an aggregate to crushing under a gradually applied compressive load. Each set consists of steel cylinder, plunger, base plate, cylindrical measure and tamping rod. All parts of the apparatus are powder coated or galvanized steel, heat treated and ground before manufacturing to make it durable and reliable. For aggregates smaller than 10 mm, a 75 mm diameter cylinder and associated equipment is available.
UTA-0630 and UTA-0640 Test Sets are also used for the Ten Percent Fines Value (TFV) of aggregates according to BS 812:111.
The Aggregate Crushing Value (ACV) Set is supplied complete with;
- Cylinder
- Base Plate
- Plunger
- Cylindrical Measure
- Tamping Rod
|
|
UTA-0630 |
UTA-0640 |
|
Dimensions |
220x220x310 mm |
110x110x150 mm |
|
Weight (approx.) |
29 kg |
5 kg |
20. Aggregate Impact Value (AIV) Test Machine
Product Code
|
UTA-0650 |
Aggregate Impact Value (AIV) Testing Apparatus |
Standards
BS 812:112
The Aggregate Impact Value Testing Apparatus, meets with BS 812, it is robustly designed to determine the Aggregate Impact Value (AIV) of aggregates which provides a relative measure of the resistance of an aggregate to sudden shock or impact. The counter fitted to the machine automatically records the number of blows delivered to the sample, manufactured from heavy duty plated steel to resist corrosion.
The Aggregate Impact Value (AIV) Apparatus is supplied complete with;
- Cylindrical Measure, Ø 75 mm,
- Steel Tamping Rod, Ø 16x600 mm
|
Dimensions |
310x310x840 mm |
|
Weight (approx.) |
54 kg |
21. Bulk Density Measures
Product Code
|
UTA-0701E |
Density (Unit Weight) Measure 1 lt. EN |
|
UTC-0603E |
Density (Unit Weight) Measure 3 lt. EN |
|
UTA-0705E |
Density (Unit Weight) Measure 5 lt. EN |
|
UTC-0607E |
Density (Unit Weight) Measure 7 lt. EN |
|
UTC-0610E |
Density (Unit Weight) Measure 10 lt. EN |
|
UTC-0615E |
Density (Unit Weight) Measure 15 lt. EN |
|
UTA-0720E |
Density (Unit Weight) Measure 20 lt. EN |
|
UTC-0630E |
Density (Unit Weight) Measure 30 lt. EN |
Standards
EN 1097–3, 12350-6
Density (Unit Weight) Measures are used to determine the weight per cubic meter of bulk or compacted agregates.
The Density Measures are manufactured from heavy duty steel complying with the related standard. Available in 1, 3, 5, 7, 10, 15, 20 and 30 lt capacity models to comply with the relevant standards. The measures are coated against corrosion.
|
|
Dimensions |
Weight (approx.) |
|
UTA-0701E |
170x100x150 mm |
2.8 kg |
|
UTC-0603E |
150x250x200 mm |
3.7 kg |
|
UTA-0705E |
170x250x250 mm |
5 kg |
|
UTC-0607E |
210x300x240 mm |
6.3 kg |
|
UTC-0610E |
210x300x310 mm |
7.7 kg |
|
UTC-0615E |
250x330x340 mm |
10 kg |
|
UTA-0720E |
370x360x370 mm |
12 kg |
|
UTC-0630E |
300x380x440 mm |
20 kg |
22. Specific Gravity Frame
Product Code
|
UTW-1000 |
Specific Gravity Frame |
|
UTW-1003 |
Plastic Water Tank |
|
UTW-1005 |
Cradle for Hardened Concrete Specimens |
|
UTW-1008 |
Density Basket, 120 mm dia x 160 mm deep, 3.35 mm stainless steel mesh |
|
UTW-1010 |
Density Basket Ø 200 mm x 200 mm 3.35 mm stainless steel mesh |
|
UTW-1012 |
Density Basket, 250 mm dia x 250 mm 3.35 mm (No.6) stainless steel mesh |
|
UTW-1015 |
Density Basket, 200 mm dia x 180 mm 2.00 mm (No:10) stainless steel mesh |
Standards
EN 1097-6, 12390-7; ASTM C127; AASHTO T85; BS 812-2
The UTW-1000 Specific gravity framework is used to find the volume occupied by the aggregate in various mixtures containing coarse aggregates, with the aid of a scale and a wire basket.It is also used to find the volume of irregularly shaped natural stone and similar materials.
The lower part of the frame incorporates a moving platform, which carries the water tank allowing the test specimens to be weighed in both air and water.
The frame can be used with any type of electronic balance fitted with under-bench weighing facility
Balance, cradle and density basket should be ordered separately.
The Specific Gravity Frame is supplied complete with;
- A water tank
UTW-1005 UTW-1010 UTW-1003
|
Dimensions |
400x560x1000 mm |
|
Weight (approx.) |
26 kg |
23. Pyknometer (Glass Jar Type)
Product Code
|
UTA-1120 |
Pyknometer (Glass Jar Type) |
Standards
BS 812:2, 1377-2; ASTM C128, D854; AASHTO T84
The Pyknometer is used for the determination of the relative density and water absorption for aggregates of 10 mm nominal size and smaller.
|
Dimensions |
Ø100x200 mm |
|
Weight (approx.) |
0,50 kg |
24. Pyknometers (Bottle Type)
Product Code
|
UTGG-1600 |
Pyknometer (Bottle Type) 250 ml |
|
UTGG-1605 |
Pyknometer (Bottle Type) 500 ml |
|
UTGG-1610 |
Pyknometer (Bottle Type) 1000 ml |
|
UTGG-1615 |
Pyknometer (Bottle Type) 2000 ml |
|
UTGG-1620 |
Pyknometer (Bottle Type) 3000 ml |
|
UTGG-1625 |
Pyknometer (Bottle Type) 5000 ml |
|
UTGG-1630 |
Double Edged and Capillary Tubed Funnel |
Standards
EN 1097-6
Bottle Type Pyknometers are used to determine the specific gravity of aggregates. 250 ml, 500 ml, 1000 ml, 2000 ml, 3000 ml and 5000 ml.
The Bottle Type Pyknometer is supplied complete with;
- Double Edged and Capillary Tubed Funnel
|
|
Dimensions |
Weight (approx.) |
|
UTGG-1600 |
Ø60x330 mm |
0,30 kg |
|
UTGG-1605 |
Ø80x360 mm |
0,50 kg |
|
UTGG-1610 |
Ø100x410 mm |
0,60 kg |
|
UTGG-1615 |
Ø130x450 mm |
0,90 kg |
|
UTGG-1620 |
Ø160x480 mm |
1 kg |
|
UTGG-1625 |
Ø180x510 mm |
2 kg |
|
UTGG-1630 |
Ø40x230 mm |
0,10 kg |
25. Sand Absorption (Abraham Cone) Sets
Product Code
|
UTA-0755 |
Sand Absorption (Abraham Cone) Set |
|
UTA-0756 |
Sand Absorption (Abraham) Cone |
|
UTA-0757 |
Tamping Rod Ø25 mm |
Standards
EN 1097-6; BS 812-2; UNI 8520-13-16; ASTM C128; NLT 154; DIN 12039
The Sand Absorption Abraham Cone Set is used in determining the specific gravity and water absorption of fine aggregates smaller than 10 mm. The apparatus is manufactured from plated steel for protection against corrosion.
The cone dimensions are:upper diameter of 40 mm, lower diameter of 90 mm and 75 mm height, and the tamping rod has a 25 mm base diameter and approx. 340 g in weight.
The abrasion loss rate of aggregates is calculated after the specified number of revolutions stated in the relevant standard.
|
Dimensions |
90x90x180 mm |
|
Weight (approx.) |
0,5 kg |
26. Microlance Instant Moisture And Temperature Tester
Product Code
|
UTA-0806 |
Microlance Instant Moisture and Temperature Tester |
UTA-0806 MICROLANCE Instant Moisture and Temperature Tester is used for the instant on-site determination of moisture and temperature of sands, aggregates, building materials, minerals and mixes from small quantities to hundreds of tons.
The instrument is reliable and easy to use, taking moisture readings up to 1 meter depth by simply inserting the lance into the test material. Instant readings are monitored on the digital display and the built-in computer allows the user to monitor a wide range of materials and water contents.
The UTA-0806 Microlance is supplied with standard calibration values for sands and aggregates but it can also be calibrated for different material or mixture with the Autocal functionality. The unit is supplied complete with a calibration certificate.
|
|
Range |
Resolution |
Accuracy |
|
Moisture |
0 to 25 % |
0.1 % |
better than 0.5 % |
|
Tempature |
-20 to 60°C |
0.1 °C |
better than 0.5 °C |
- Moisture measurement with temperature compensated electric field
- Temperature measurement according to BS 1904 and DIN 751
- Platinum resistance detector
- Works with 4 x 1.5 V AA cells (or equivalent)
|
Dimensions |
100x100x1200 mm |
|
Weight (approx.) |
2 kg |
27. Skid Resistance and Friction Tester
Product Code
|
UTA-0830E |
Skid Resistance and Friction Test Set (Skid Tester), EN 1097-8 |
|
UTA-0830A |
Skid Resistance and Friction Test Set (Skid Tester), ASTM E303 |
|
UTA-0832-TRL |
Mounted Rubber Slider, TRL rubber, 32 mm width for PSV test (PSV laboratory). Complete with conformity certificate. for UTA-0830 |
|
UTA-0833-TRL |
Mounted Rubber Slider,TRL rubber, 76 mm width for site use, complete with conformity certificate, for UTA-0830 |
|
UTA-0832-4S |
Mounted Rubber Slider, 4S rubber, 32 mm width |
|
UTA-0833-4S |
Mounted Rubber Slider, 4S rubber, 76 mm width |
|
UTA-0834 |
Metal Base Plate for Polished Stone Value Specimen Clamping, for UTA-0830 |
|
UTA-0835 |
Metal Base Plate for Surface Friction Properties for Natural Stones (EN 1341, EN 1342) and Concrete Paving, Blocks (EN 1338) |
Standards
EN 1097-8, 1338, 1341, 1342, 13036-4; ASTM E303
The Skid Resistance and Friction Testers are used for the measurement of surface friction properties. The apparatus is suitable for both site and laboratory applications and for Polished Stone Value tests using curved specimens from accelerated polishing tests with the Acelereted Polishing Machine (UTA-0810). UTA-0830E can also be used for testing Paving Stones (EN 1341, EN 1342) and Paving Blocks (EN 1338).
The apparatus consist of an adjustable pendulum arm, and a spring loaded rubber slider (see spare parts) mounted on the end of the arm.
Rubber sliders (UTA-0832-TRL, UTA-08332-TRL, UTA-0832-4S and UTA-0832-4S) should be ordered separately.
The Skid Resistance and Friction Testers are supplied complete with;
- Additional Scale, for Test on Polished Stone Value Specimens
- Thermometer, 0 to +220°C for Surface Temperature Measurement
- Washing Bottle, for Surface Wetting - 1 L
- Tool Set with case for machine assembly
- Rule for Sliding Length Verification
- Traceability Certificate of Conforming to EN 1097-8 or ASTM E303
- Carrying Case
|
Dimensions |
790x760x320 mm (case) |
|
Weight (approx.) |
34 kg |
28. Polished Stone Value / Resistance to Polishing
Product Code
|
UTA-0810 |

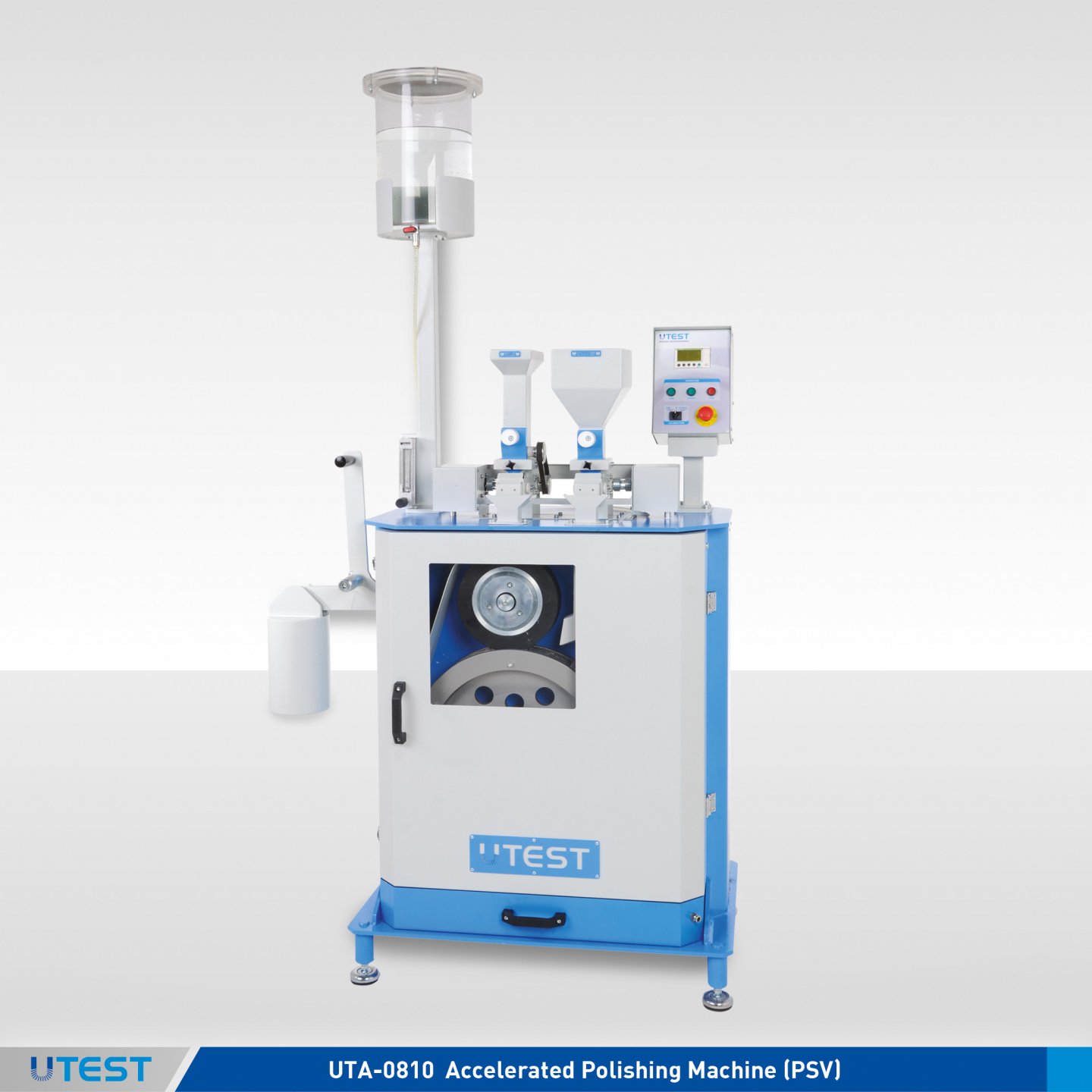

Accelerated Polishing Machine (PSV) |
|
UTA-0811 |
Specimen Mould with a Cover, for UTA-0810 |
|
UTA-0812 |
Corn Emery 5 kg, for UTA-0810 |
|
UTA-0813 |
Flour Emery 5 kg, for UTA-0810 |
|
Models for 220-240V 50-60 Hz, 1 ph. |
UTA-0810 |
|
Models for 110-120V 60 Hz, 1 ph. |
UTA-0810-N |
Standards
EN 1097-8; BS 812:114:1989
Accelerated Polishing Machine (PSV) is used to simulate the polishing action of vehicle tyres on a road surface, for coarse aggregate which is going to be used as asphalt road surface covers.
Abrasive Corn Emery is fed to the point of contact of the wheel on the test surface for 3 hours, followed by feeding Emery Flour to polish the surface being tested for a further 3 hours. Subsequent skid tests are carried out on the test samples using suitable portable skid test equipment.
UTA-0812 Corn Emery, UTA-0813 Flour Emery, additional Specimen Mould with a Cover (UTA-0811) should be ordered separately.
The Accelerated Polishing Machine is supplied complete with;
- Specimen Mould with a Cover ( 1 pcs.)
- Container - 2 pcs. For setting the mass ( one forflour and one for corn emery)
- Allen Key Set
- Rubber Tired Wheels (2 pcs.)
|
Road Wheel Speed |
315 to 325 r.p.m |
|
Dimensions |
480x950x1850 mm |
|
Weight (approx.) |
235 kg |
|
Power |
850 W |
29. Magnesium Sulphate / Sodium Sulphate Test Water Bath
Product Code
|
UTA-0840 |
Magnesium Sulphate/Sodium Sulphate Test Water Bath |
|
UTW-1008 |
Density Basket, Ø120 x 160 mm deep, 3,35 mm mesh, EN/ASTM |
|
UTGH-1460 |
Container for Density Basket, Ø160 x 200 mm deep, Aluminium, for UTW-1008, EN/ASTM |
|
UTW-1017 |
Density Basket, Ø230 x 260 mm deep, 4 mm stainless steel mesh, EN |
|
UTGH-1465 |
Container for Density Basket Ø270 x 300 mm deep, Aluminium, for UTW-1017, EN |
|
UTGG-2415 |
Hydrometer 1100-1200 g/ml, ASTM |
|
UTGG-2420 |
Hydrometer 1200-1300 g/ml, EN/ASTM |
|
UTGC-0850 |
Sodium Sulphate, 1 kg, ASTM |
|
UTGC-0915 |
Magnesium Sulphate, 1 kg, EN/ASTM |
|
Models for 220-240 V 50-60 Hz, 1ph. |
UTA-0840 |
|
Models for 110-120V 60 Hz, 1ph. |
UTA-0840-N |
Standards
EN 1367-2, 13450; ASTM C88; UNI 8520-10; UNE 7136
Magnesium Sulphate and Sodium Sulphate Tests are used for determining the soundness of aggregates when subjected toweathering action such as freezing and thawing in concrete or other applications. Only the specific products are listed above for the test. It should be noted that other equipment like ovens, sieves, balances etc. are also required to perform these tests.
Sodium Sulphate can be used instead of Magnesium Sulphate according to the ASTM standard. UTGG-2415 Hydrometer 1100-1200 g/ml is required for the test with Sodium Sulphate Test.
The temperature of test solution is automaticly adjusted to required temperature with a microprocessor type sensor placed in the water bath. The second sensor can be placed in the lever lid containers or stainless steel immersion container by user.The temperature data of water bath and the temperature test solution are displayed in real time on digital screen with 0.1°C resolution.
Homogenous temperature distribution can be obtain with water circulation pump that makes feedback.
Magnesium Sulfate / Sodium Sulfate Test Water Bath has (20±2) 0C accuracy and can be used as general purpose water bath that temperature is between 15-60 °C temperature
Supplied complete with the immersion container with the cover.
Density Baskets, Container for Density Basket, Hydrometer, Magnesium or Sodium Sulphate should be ordered seperately.
UTW-1008 UTGH-1460
|
|
Dimensions |
Weight |
|
UTA-0840 |
550x750x950 mm |
75 kg |
|
Chamber of Bath |
560x460x500 mm |
-- |
|
UTW-1008 |
Ø160x200 mm |
0,20 kg |
|
UTGH-1460 |
Ø160x200 mm |
0,50 kg |
|
UTW-1017 |
Ø230x260 mm |
0,80 kg |
|
UTGH-1465 |
Ø280x300 mm |
1 kg |
|
UTGG-2415 |
20x20x330 mm |
0,10 kg |
|
UTGG-2420 |
20x20x330 mm |
0,10 kg |
|
Immersion Container |
330x330x330 mm |
4 kg |
30. Freezing and Thawing Chamber for Slab Tests
Product Code
|
UTD-1440 |
Freezing and Thawing Chamber for Slab Tests 280 L |
|
UTD-1442 |
Freezing and Thawing Chamber for Slab Tests 500 L |
|
Models for 220-240 V 50-60 Hz, 1ph. |
UTD-1440 |
UTD-1442 |
|
Models for 110-120 V 60Hz, 1ph. |
- - - |
UTD-1442-N |
Standards
EN 1338, 1339, 1340, 1367-6, 13748-2; CEN/TS 12390-9 (Slab Test)
UTD-1440 and UTS-1442 are used for the determination of resistance to freezing and thawing of the construction materials.
The chambers are equipped with a user defined program including up to 16 steps. Time can be adjusted to 999 minutes for each step of the program. The temperature range of the cabinet is -30°C to +65°C.
The temperature is controlled by a sensor which can be immersed either into the sample, or into the water which the sample is placed into or into the salty water solution placed on the sample before starting the test. The calibration of the sensor is carried out using the user friendly menu.
The distribution of temperature in the cabinets are performed using an integral fan.
Free of charge Utest Software for transfering the data real-time to a computer is supplied complete with the cabinet and data can be monitored during the tests. Data can be converted to an excel report or to a graph.
The condenser of the cabinets are fitted with an air cooled hermetic cooler. The gas used for the cooler does not include CFC’s.
The chamber is controlled via the onboard digital unit. Additionally, real-time temperature data can be test recorded throughout the via a computer and the free Utest software.
The control unit is electronic and equipped with digital display with 0.1°C temperature resolution. The accuracy of cabin temperature distribution lower than 2°C.
The user can preset the time and target temperature of each ramp and the number of each set by using the control unit.
UTD-1440 and UTD-1442 Freezing and Thawing Chambers are supplied complete with 3 pcs. displaceable shelves and a Utest software (USOFT-1440).
The control unit is electronic and equipped with digital display with 0.1°C temperature resolution.
The user can preset the time and target temperature of each ramp and the number of each set by using the control unit.
|
Product Code |
UTD-1440 |
UTD-1442 |
|
Internal Dimensions |
460x480x1260 mm |
702x807x2050 mm |
|
External Dimensions |
600x600x1900 mm |
581x685x1500 mm |
|
Weight (approx.) |
100 kg |
150 kg |
31. Three Gang Prism Shrinkage Moulds
Product Code
|
UTA-0850E |

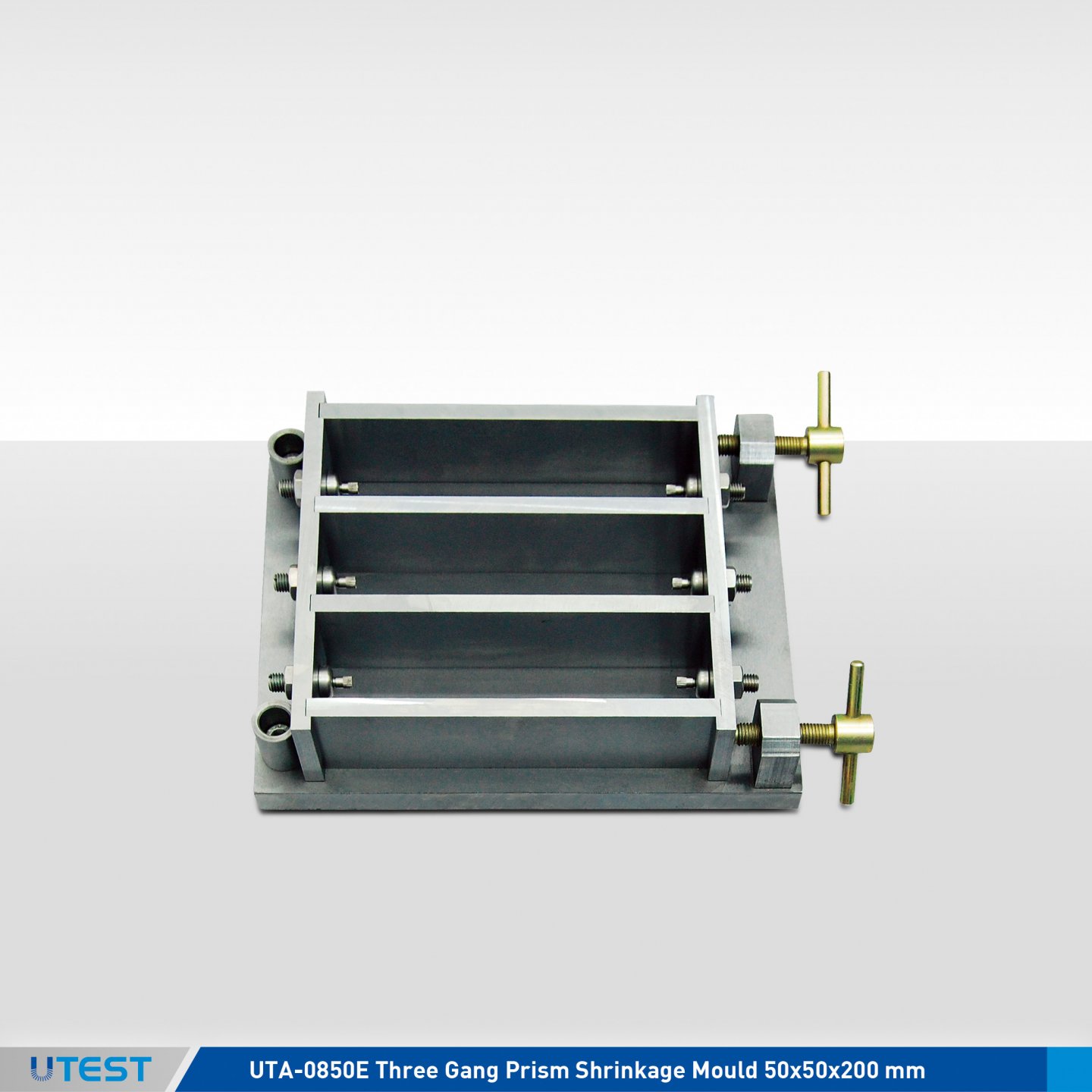

Three Gang Prism Shrinkage Mould 50x50x200 mm |
|
UTA-0851E |
Spare Steel Inserts for UTA-0850, 12 pcs. |
|
UTA-0856E |
Reference Rod, 205 mm Long with 6mm Tips |
|
UTA-0858 |
Reference Rod, 205 mm Long with 8mm Tips |
Standards
EN 1367-4; UNI 8520-22
The Three Gang Shrinkage Mould is used for the determination of the effect of aggregates on the drying, shrinkage and length change of hardened concrete when used together with the UTEST Length Comparators (UTCM-0200, UTCM-0210 or UTC-1170).
The mould is matchmarked and protected with anti-corrorion oil.
Reference rod and spare steel inserts should be ordered separately.
Shrinkage Mould is supplied complied with the steel inserts screwed on.
UTA-0856E
|
Dimensions |
220x330x70 mm |
|
Weight (approx.) |
15 kg |
32. Digital Length Comparator
Product Code
|
UTCM-0200 |

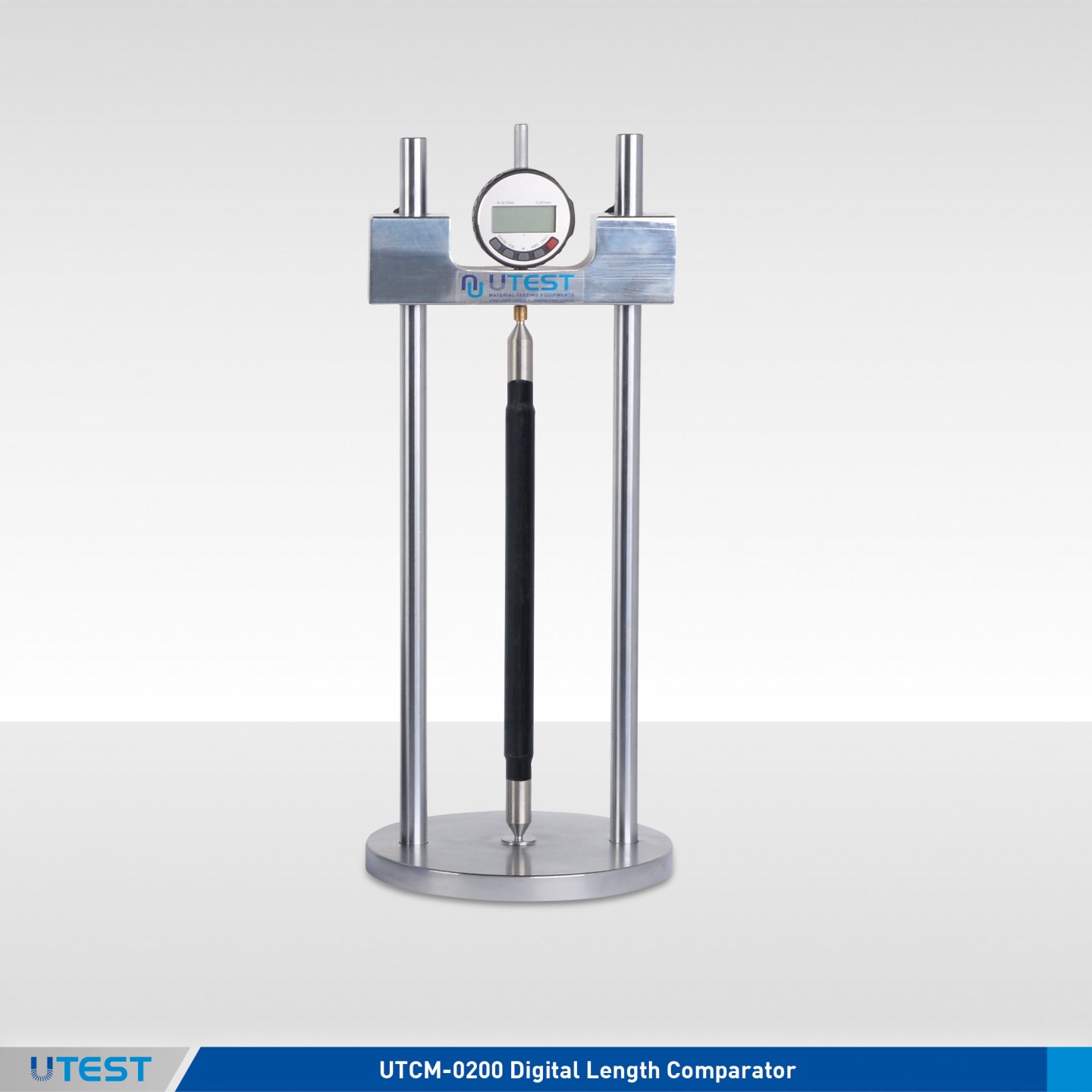

Digital Length Comparator |
|
UTC-1170 |
Large Type Digital Length Comparator |
|
UTCM-0210 |
Length Comparator with Heidenhain Length Measuring Sensor and Digital Readout Unit |
Standards
EN 1367–4, 12617–4, 12808-4; ASTM C151, C157, C227, C311, C341,
C342, C441,C452, C490, C531, C596, C806, C878; BS 1881:5, 6073
Length Comparators are used to determine the length changes on different type of hardened mortar and concrete prisms with different sized.
The sets consist of a length measuring frame with measuring device attached to it. The comparators comes with 3 different models, UTCM-0200 and UTC-1170 are with 0.001 mm x 12,7 mm digital dial gauge and UTCM-0210 is with special 0.0001 mm x 30 mm transducer and readout unit. Horizontal clearance of UTCM-0200 is 150mm and UTC-1170 is 220mm.
All information about shrinkage moulds, steel inserts and reference rods can be seen on pages of UTCM-0029, UTCM-0033, UTA-0850, UTC-1153, UTC-1155 and UTC-1161.
Reference rods and moulds should be ordered separately according to test to be performed.
|
Product Code |
Dimensions |
Weight (approx.) |
|
UTCM-0200 |
180x180x420 mm |
4,75 kg |
|
UTC-1170 |
150x150x300 mm |
4 kg |
|
UTCM-0210 |
250x250x500 mm |
8 kg |
33. Alkali Aggregate Reaction Bath
Product Code
|
UTA-0880 |

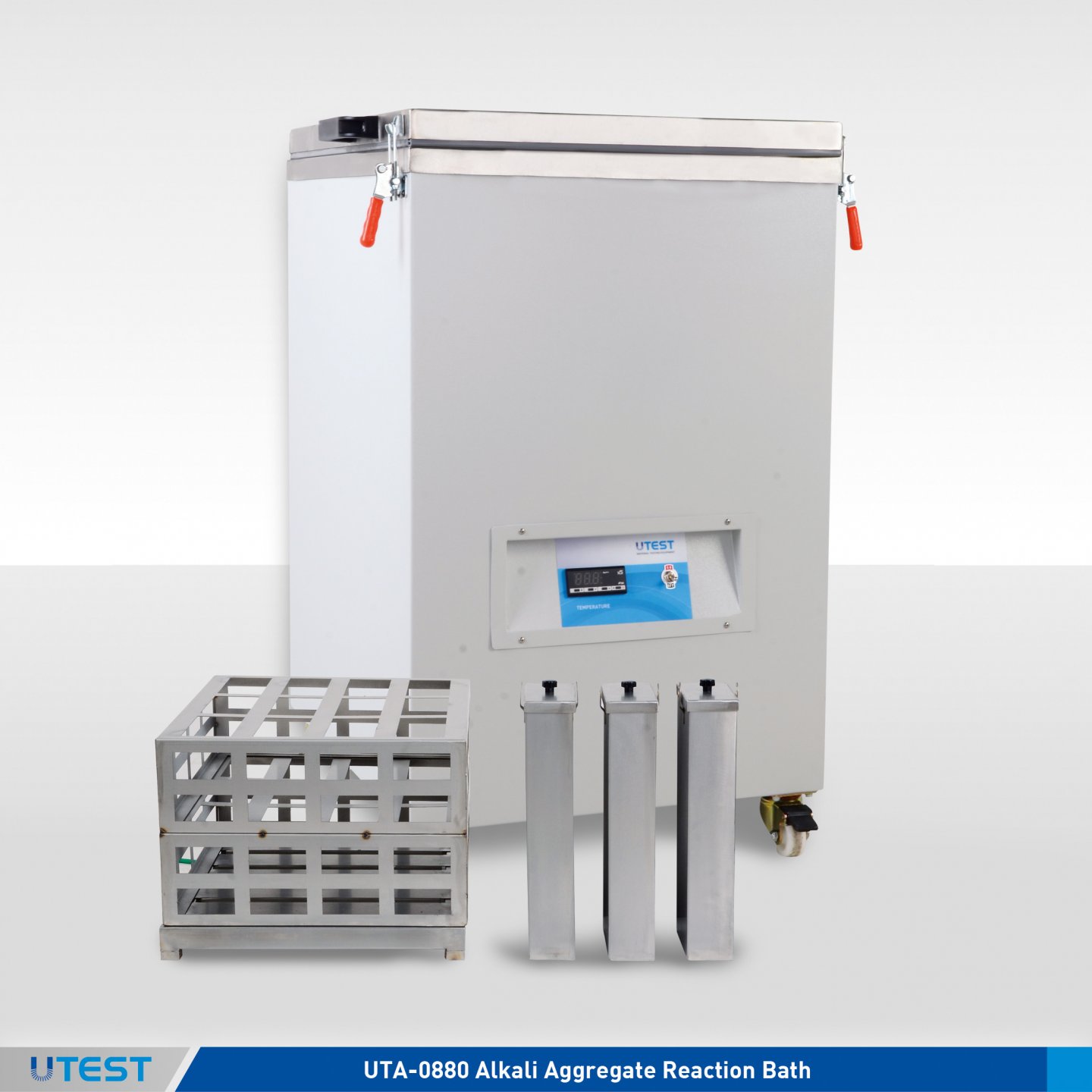

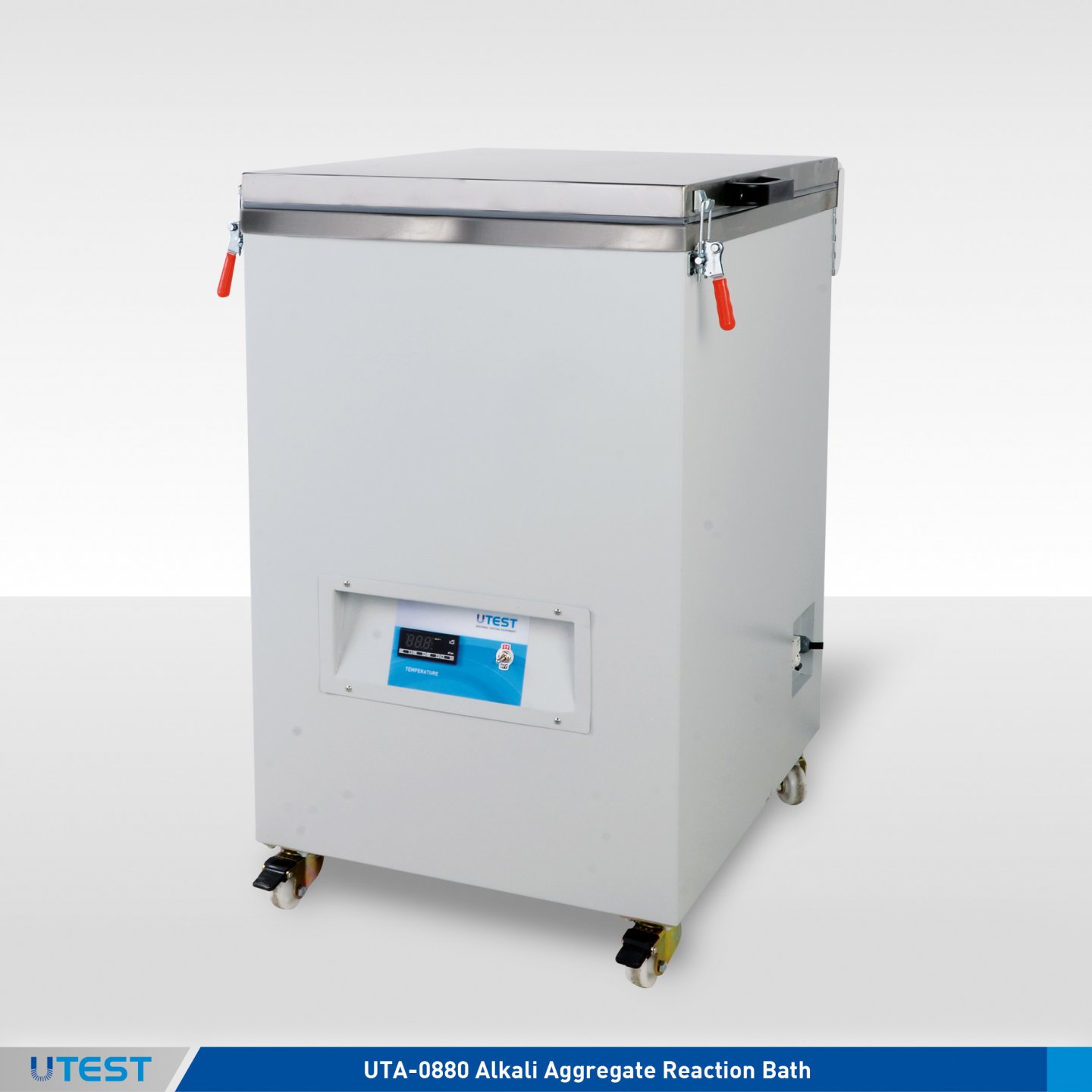

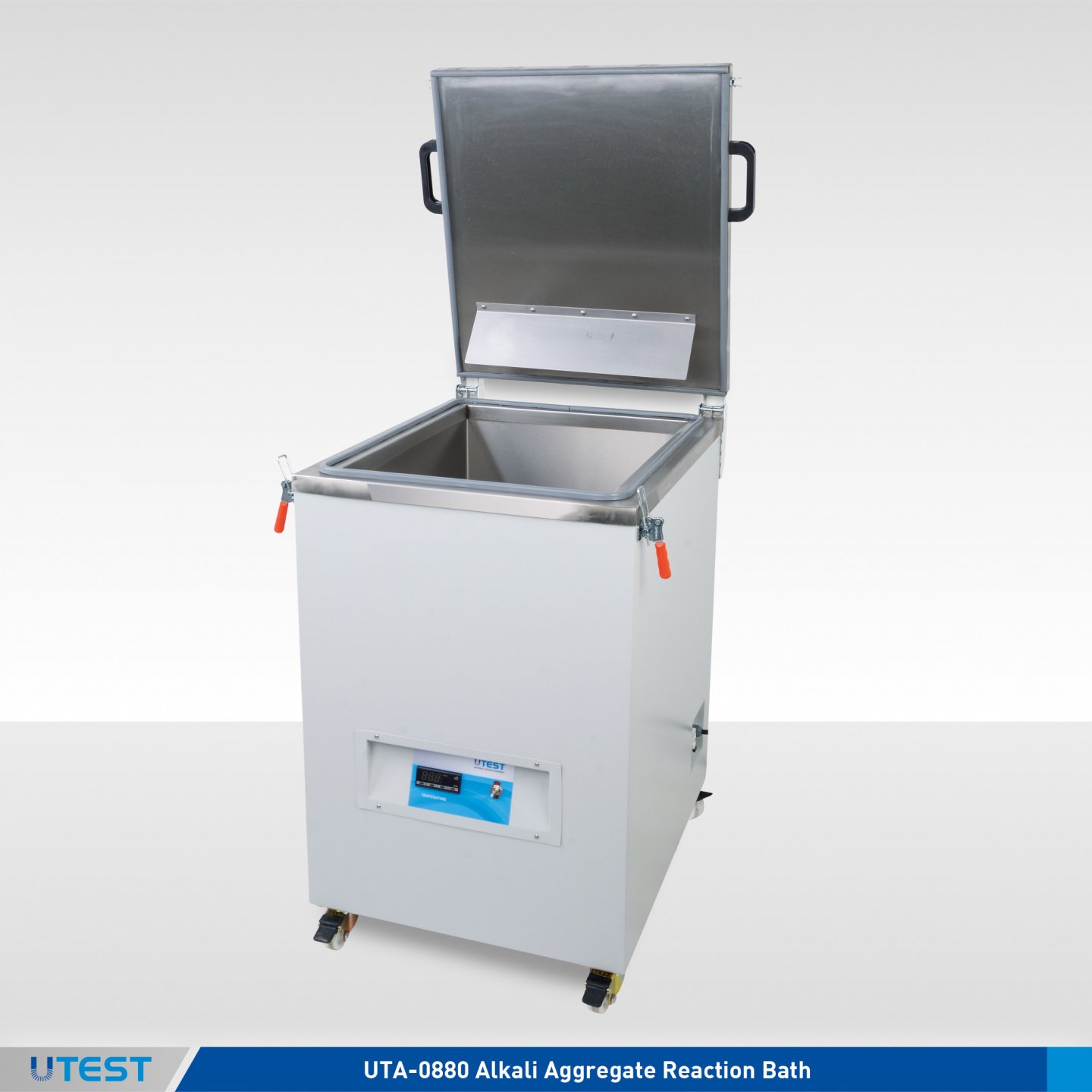

Alkali Aggregate Reaction Bath |
|
UTA-0882 |
Alkali Specimens Can, stainless steel, with an hanger which can hold 3 pcs. 25x25x285 mm specimens. |
|
UTCM-0033A |
Two Gang Prism Shrinkage Mould, 25x25x285 mm |
|
UTCM-0034 |
Steel Insert for ASTM C490, 12 pcs. |
|
UTCM-0035 |
Reference Rod 295 mm Long with Convex Hemispherical End |
|
UTCM-0200 |
Digital Length Comparator |
|
UTCM-0210 |
Length Comparator with Heidenhain Length Measuring Sensor and Digital Readout Unit |
|
UTC-1170 |
Large Type Digital Length Comparator |
|
Models for 220-240 V 50-60 Hz, 1ph. |
UTA-0880 |
|
Models for 110-120V 60 Hz, 1ph. |
UTA-0880-N |
Standards
CANADA CSA-A23.2-25A; For Moulds: ASTM C227, C490, C1260
The Alkali Aggregate Reaction Bath is used to keep 25x25x285 mm samples in NaOH (Sodium Hydroxide) or in any other solution at a specified temperature. The temperature can be adjusted between ambient to 80°C by using the digital controller.
The chamber of the bath is made of stainless steel and has a a capacity of 27 specimens (25x25x285 mm).
UTA-0880 is supplied complete with 3 pcs. stainless steel alkali specimens cans (UTA-0882). Each can has a stainless steel hanger which can hold 3 pcs. 25x25x285 mm specimens. Additional alkali specimens cans should be ordered separately.
UTCM-0033 is used to determine the potential alkali reactivity of cement-aggregate combinations (mortar-bar method). This mould is also used for determining the length change of hardened cement paste, mortar and concrete.
The test also requires UTCM-0200 or UTCM-0210 or UTC-1170 Length Comparators.
UTA-0880 Aggregate Reaction Bath can also be used as a general purpose water bath.
|
Dimensions |
560x700x950 mm |
|
Weight (approx.) |
63 kg |
|
Power |
2000 W |
34. Quantab Chloride Titrator Type
Product Code
|
UTGE-4320 |
Quantab Chloride Titrator Type 1175, 40 Strips |
|
UTGE-4322 |
Quantab Chloride Titrator Type 1176, 40 Strips |
Standards
BS 812:117 | BS 1377:3
The Quantab Chloride Titrators are used for quick determination of chloride content of fine aggregates. The determination is based on the reaction of the silver dichromate strip with the chloridein the sample solution, and the proportional content of chloride in the sample is indicated by the calibration chart which is supplied complete with the test kit.
Technical Specifications
|
|
Type 1175 |
Type 1176 |
|
Range |
0.005% to 0.1% NaCl |
0.05% to 1% NaCl |
|
Dimensions |
70x70x120 mm |
70x70x120 mm |
|
Weight (approx.) |
0,10 kg |
0,10 kg |
35. Reference Colours Glasses
Product Code
|
UTA-0885 |

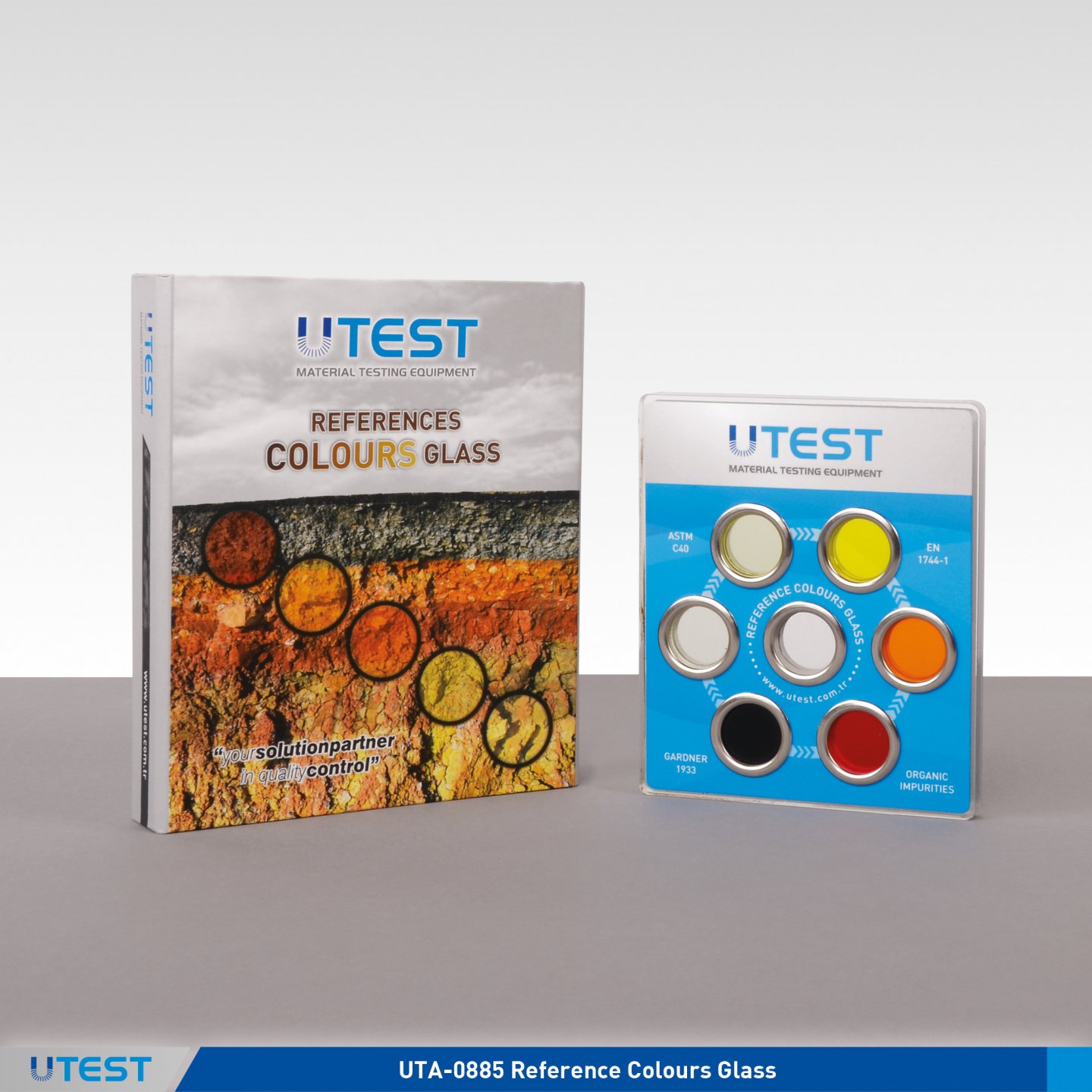

Reference Colours Glass |
|
UTGG-1705 |
Graduated Impurities Test, Glass Bottle 500 ml, ASTM |
|
UTGG-1710 |
Graduated Impurities Test, Glass Bottle 1000 ml, ASTM |
|
UTGG-1720 |
Cylindrical Glass Bottle with Cork Stopper, for Organic Impurities, 450 ml,EN |
|
UTGC-0840 |
Sodium Hydroxide 1 kg |
Standards
EN 1744-1; ASTM C40
The Reference Colour Glass consists of 5 organic glass scales mounted in a plastic holder, which is used for the comparison of the colour results from the relevant test.
UTGG-1720 450 ml Cylindrical Glass Bottle is used for determination of organic impurities as required in the EN standard.
UTGG-1705 and UTGG-1710 The 500 ml and 1000 ml capacity Graduated Glass Bottles are used for making reference standard colour and test solution according to the ASTM standard.
