1. Cement Samplers
Product Code
|
UTCM-0001 |
Packaged Cement Tube Sampler, Ø38x580 mm |
|
UTCM-0002 |
Bulk Cement Sampler, Ø38x1500 mm |
Standards
EN 196-7; ASTM C183; AASHTO T127
The UTCM-0001 Packaged Cement Tube Sampler is made of stainless steel and used for collecting cement samples from packages.
The UTCM-0002 Bulk Cement Sampler is made of stainless steel and used for collecting cement samples from bulk storage or bulk shipments.
UTCM-0002 Sampler consists of 2 concentric tubes, the inner tube rotates to close the slots and take the sample.
|
Product Code |
UTCM-0001 |
UTCM-0002 |
|
Number of Slots |
4 |
7 |
|
Length |
580 mm |
1500 mm |
|
Diameter (internal) |
30 mm |
30 mm |
|
Thickness (inner tube) |
1 mm |
1,5 mm |
|
Thickness (outer tube) |
1,5 mm |
2 mm |
|
Dimensions |
38x38x640 mm |
35x35x1520 mm |
|
Weight (approx.) |
1,1 kg |
3,5 kg |
2. Le Chatelier Flask
Product Code
|
UTCM-0003 |
Le Chatelier Flask |
Standards
EN 196-6, 450-1, 15617-1; ASTM C110, C128, C188; C989; AASHTO T133
The UTCM-0003 Le Chatelier Flask is used to determine the density of hydraulic cement, ground granulated blast-furnace slag and fly ash for concrete, filler aggregates and lime.The glass flask has a 250ml capacity. The neck is graduated from 0 to 1 ml and from 18 to 24 mL in 0.1-mL graduations.
|
Dimensions |
100x100x300 mm |
|
Weight (approx.) |
0.1 kg |
3. Le Chatelier Mould
Product Code
|
UTCM-0010 |

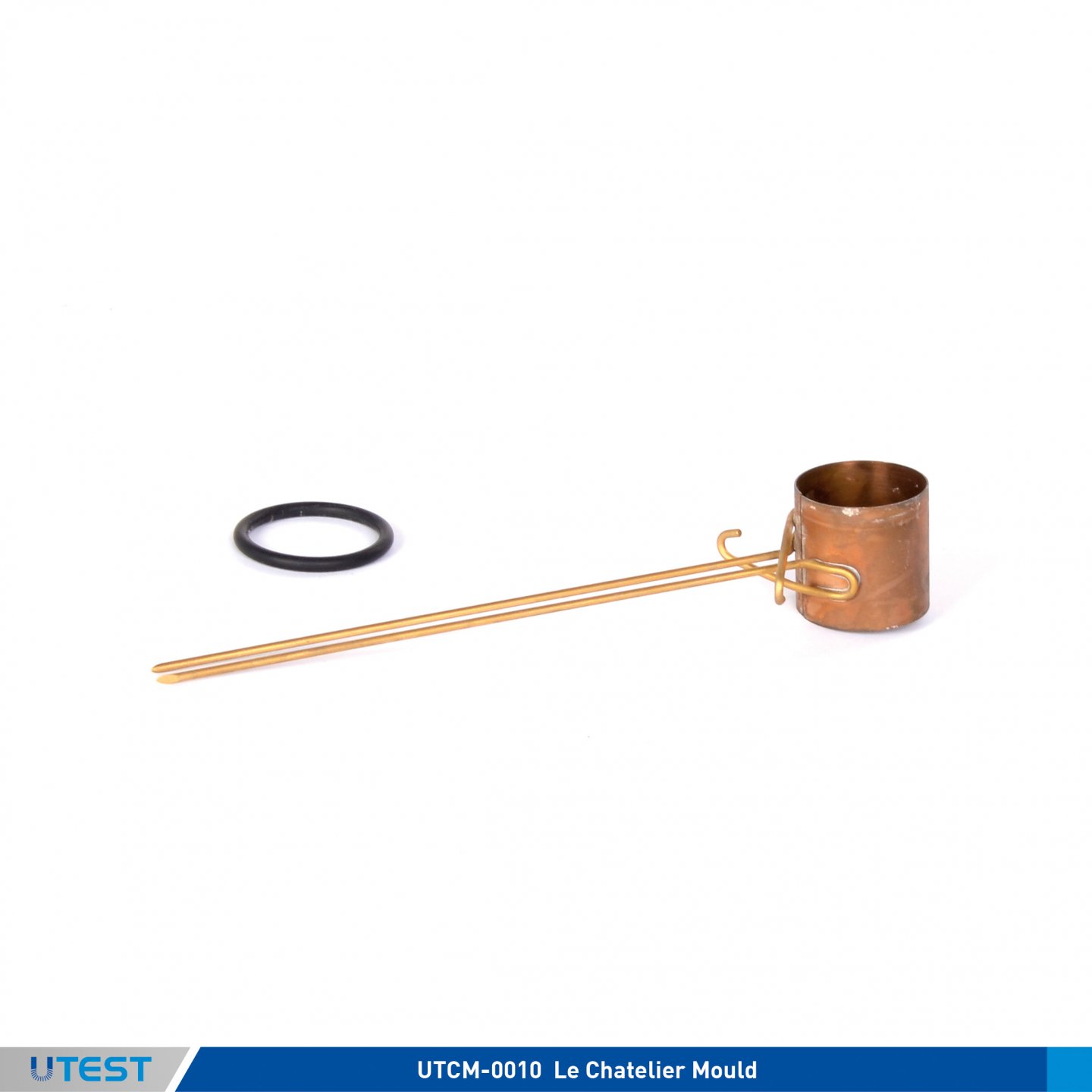

Le Chatelier Mould |
|
UTCM-0014 |
Le Chatelier Soundness Kit |
Standards
EN 196-3, 450-1, 459-2; EN ISO 9597
The soundness of cement, fly ash for concrete and lime is determined by using the Le Chatelier moulds and Le Chatelier Water Bath (UTCM-0016) according to the relevant standard.
The Le Chatelier Soundness Kit is supplied complete with;
- Le Chatelier moulds 3 pcs.
- 50x50 mm glass plates 6 pcs.
- 300 gr Weights 1 pcs.
- 100 gr Weight, 3 pcs.
- Tamping Rod 17 mm dia. x 70 gr
- Steel Ruler
- Plastic Carrying Case
|
Dimensions |
340x290x80 mm |
|
Weight (approx.) |
2 kg |
4. Le Chatelier Water Bath
Product Code
|
UTCM-0016 |
Le Chatelier Water Bath |
|
Models for 220-240 V 50-60 Hz, 1ph. |
UTCM-0016 |
|
Models for 110-120 V 60Hz, 1ph. |
UTCM-0016-N |
Standards
EN 196-3, 450-1, 459-2; EN ISO 9597
The UTCM-0016 Le Chatelier Water Bath is used with Le Chatelier moulds for the determination of the soundness of cement paste fly ash for concrete and lime. The internal chamber and the insulated exterior case of the bath are manufactured from stainless steel. The Bath is capable of reaching boiling point in 30 minutes by using two heater units. There is a timer on the UTCM-0016 Le Chatelier Water Bath which is used to set the time for reaching the boiling point. After that time the temperature of water is regulated by using one heater unit to conserve energy. Supplied complete with a removable rack to hold up to 12 moulds. A cover is also supplied as standard.
Le Chatelier Moulds are should be ordered separately.
|
Dimensions |
210x470x290 mm |
|
Weight (approx.) |
8 kg |
|
Power |
1250 W |
5. High Pressure Cement Autoclave
Product Code
|
UTCM-0020 |
High Pressure Cement Autoclave, 230 V 50-60 Hz, 1ph |
Standards
ASTM C151, C490; UNE 7207
The UTCM-0020 High Pressure Cement Autoclave is designed to perform expansion tests on cement specimens.10 specimens can simultaneously be tested in the high pressure steam vessel of 154 mm diameter and 430 mm height.
The Autoclave consists of a pressure gauge, pressure regulator, temperature regülatör, control switches safety valve and specimen rack. Certified conforming to INAIL procedure.
UTCM-0033A Two Gang Shrinkage mould and Length Comparators (UTCM-0200 or UTCM-0210) should be ordered separately.
The High Pressure Cement Autoclave is supplied complete with;
- Specimen Rack, 10 samples capacity
|
Dimensions |
450x475x1080 mm |
|
Weight (approx.) |
55 kg |
|
Power |
2600 W |
6. Length Change (Shrinkage And Expansion)
Product Code
|
UTCM-0029E |

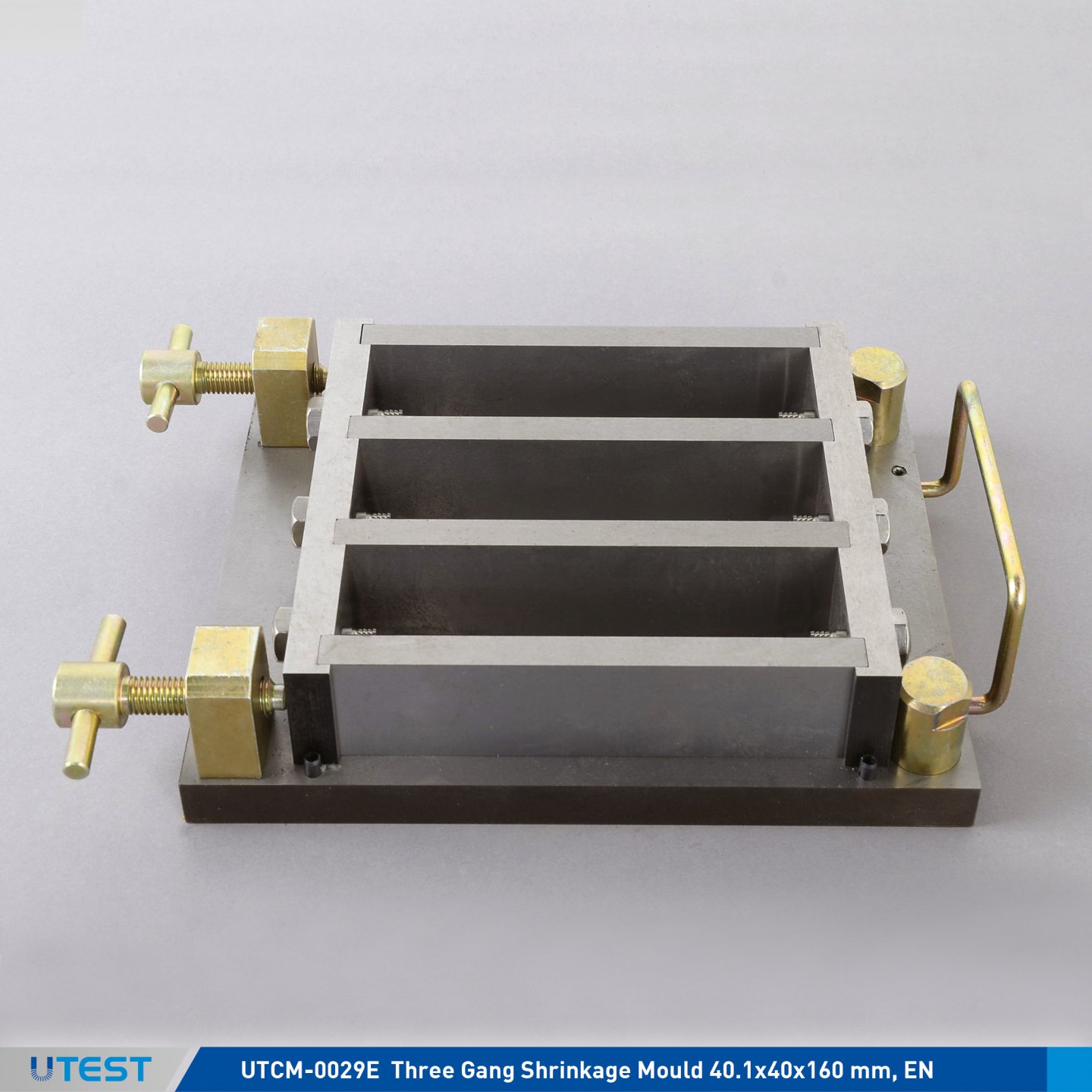

Three Gang Shrinkage Mould 40.1x40x160 mm, EN, Minimum Hardness HV 400 |
|
UTCM-0030E |
Spare Steel Insert, EN, for UTCM-0029E, 18 pieces/pack |
|
UTCM-0031E |
Reference Rod, 160 mm Long with 6mm Tips |
|
UTCM-0031A |
Reference Rod, 170 mm Long with 6mm Tips |
|
UTCM-0032E |
Tamper, Hardwood, 38x15x200mm, 250 g, EN |
|
UTCM-0033A |

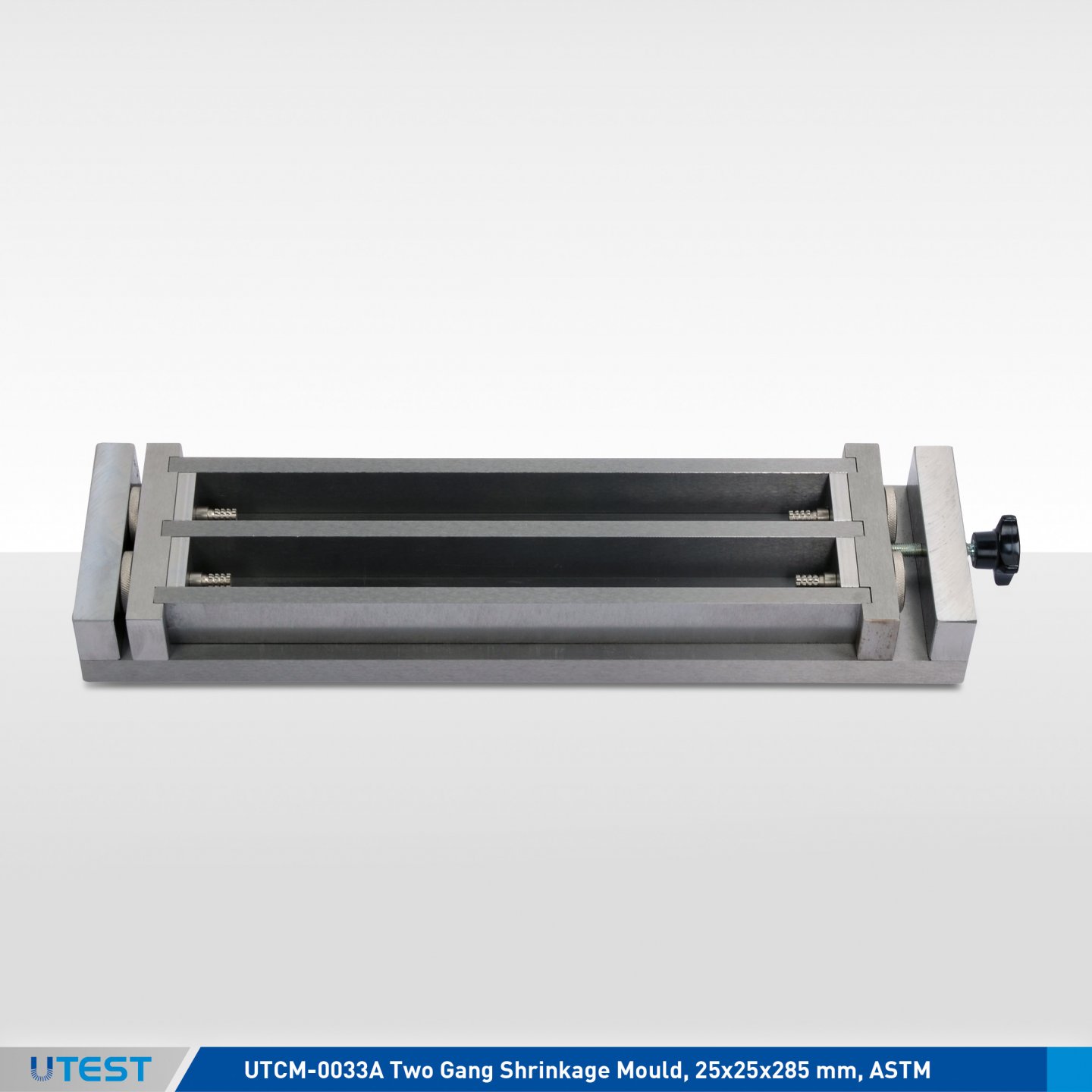

Two Gang Shrinkage Mould, 25x25x285 mm, ASTM |
|
UTCM-0034 |
Spare Steel Insert, ASTM C490, 12 pieces/pack |
|
UTCM-0035 |
Reference Rod, 295 mm Long with 6mm Tips |
|
UTCM-0140A |
Two Gang Expansion Mould, 50x50x285 mm |
|
UTCM-0154E |
Insert Set for UTCM-0029E, polyethylene (6 pcs.-15x40x160mm) |
|
UTCM-0662A |
Tamper, Hardwood, 13x25x150mm |
|
UTC-0410 |
Tamping Rod, Ø:10x300 mm |
Standards
ASTM C151, C452, C490, C596, C806, C1293; EN 12617-4, 12808-4
The moulds are used for preparpmg the specimens for the purpose of determining the length changes (shrinkage/expansion) in hardened hydraulic cement mortar and concrete.
According to all standardized test methods for determinig the length changes of hardened cement paste, mortar under different conditions, the muolds are used together with the any UTEST Length Comparators (UTCM-0200 or UTCM-0210) fit the specimens sizes.
Minimum surface hardness of UTCM-0029E is HV400 which is recommended by the EN standard.
All metal moulds surfaces are protected with anti-corrosion oil and all parts of them are matchmarked.
The moulds are supplied complied with the steel inserts screwed on.
Reference rod and other equipment be should ordered separately.
For the purpose of determining the length changes (shrinkage/expansion) in hardened concrete including aggregate which has larger sized Dmax, UTC-1153, UTC-1155 or UTC-1161 moulds are also used togerher with UTC-1170 Large type digital length comparator.
|
Product Code |
UTCM-0029E |
UTCM-0033A |
UTCM-0140A |
|
Dimensions |
300x190x70 mm |
390x100x45 mm |
390x160x70 |
|
Weight (approx.) |
12 kg |
7 kg |
18 kg |
7. Length Comparators
Product Code
|
UTCM-0200 |
Length Comparator with Digital Dial Gauge |
|
UTCM-0210 |
Length Comparator with Heidenhain Length Measuring Sensor and Digital Readout Unit |
|
UTC-1170 |
Large Type Length Comparator with Digital Dial Gauge |
|
UTC-1175 |
Large Type Length Comparator with Heidenhain Length Measuring Sensor and Digital Readout Unit |
Standards
EN 1367–4, 12617–4, 12808-4; ASTM C151, C157, C227, C311, C341,
C342, C441,C452, C490, C531, C596, C806, C878; BS 1881:5, 6073
Length Comparators are used to determine the length changes on different type of hardened mortar and concrete prisms with different sized.
The sets consist of a length measuring frame with measuring device attached to it. The comparators come with 4 different models, UTCM-0200 and UTC-1170 are with 0.001 mm x 12,7 mm digital dial gauge and UTCM-0210 and UTC-1175 are with special 0.0001 mm x 25 mm transducer and readout unit.
Horizontal clearance of UTCM-0200 is and UTCM-0210 are 145mm, UTC-1170 and UTC-1175 are is 220mm. Adjustable beam height (without digital dial gauge and adapter set) is 365 mm for all type.
All information about shrinkage moulds, steel inserts and reference rods can be seen on pages of UTCM-0029E, UTCM-0033A, UTA-0850, UTC-1153, UTC-1155 and UTC-1161.
The Length Comparators are supplied complete with 3 pcs. adapter sets (compatible with referance rods and inserts).
Reference rods and moulds should be ordered separately according to test to be performed.
UTCM-0210
|
Product Code |
Dimensions |
Weight (approx.) |
|
UTCM-0200 |
180x180x450 mm |
6 kg |
|
UTCM-0210 |
250x250x640 mm |
8 kg |
|
UTC-1170 |
250x250x650 mm |
8 kg |
|
UTC-1175 |
250x350x650 mm |
9 kg |
8. Automatic Blaine Air Permeability Apparatus
Product Code
|
UTCM- 0280 |
Automatic Blaine Air Permeability Apparatus, 110-230V, 50-60 Hz, 1ph |
|
UTCM- 0242 |
Manometer Liquid 250 ml |
|
UTCM- 0243 |
Cell with Perforated Disc and Plunger |
|
UTCM- 0244 |
Filter Paper 100 pcs. |
|
UTCM- 0245 |
Filter Paper 1000 pcs. |
|
UTCM- 0246 |
Reference Cement 5 g, ASTM |
|
UTCM- 0282 |
Reference Calibration Sand – Fine, Approx. 100g |
|
UTCM- 0284 |
Reference Calibration Sand - Coarse, Approx. 100g |
Standards
EN 196-6; ASTM C204; BS 4550
The UTCM- 0280 Automatic Blaine Air Permeability Apparatus perform the test for determining the fineness of cements, limes and similar powders expressed in terms of their specific surface according to the above testing standards. The fineness of cement can be automatically measured as specific surface by observing the time taken for a fixed quantity of air to flow through a compacted cement bed of specified dimensions and porosity.The method is comparative rather than absolute and therefore a reference sample of known specific surface is required for calibration of the apparatus.
Main Features
- The test is controlled on the touch screen.
- Automatic control of the movement of fluid until the upper line
- Automatic measurement of the air flow time
- Automatic measurement of temperature during the test
- Languages (English, Spanish, Russian, Turkish)
Reference Cement and Reference Calibration Sands should be ordered separately.
|
|
UTCM-0282 |
UTCM-0284 |
|
Specific surface (aporox. cm2/g) |
3890 |
2980 |
|
Density (aporox. 2,65 g/cm3) |
2,65 |
2,65 |
|
Porosity (aporox.) |
0,50 |
0,50 |

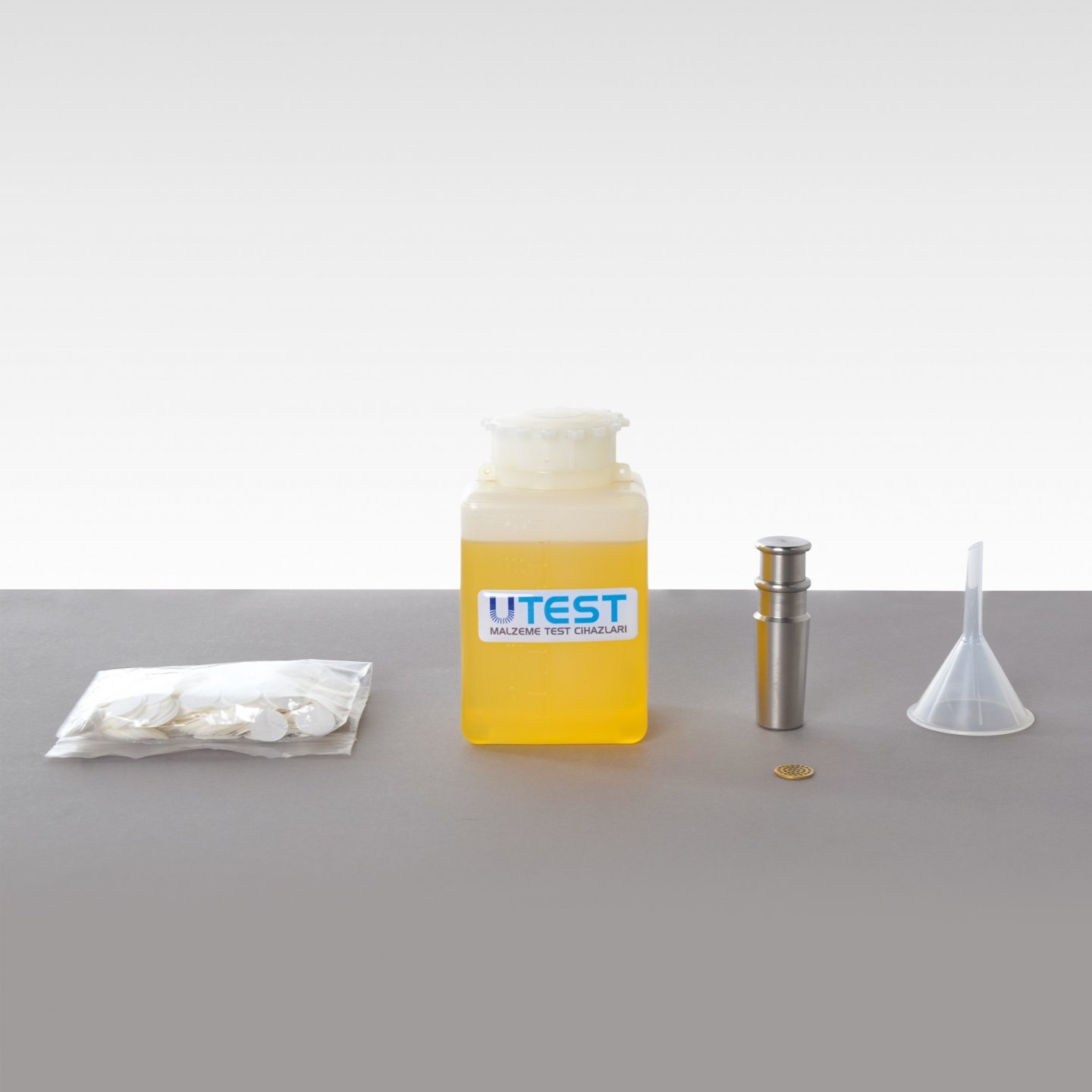

UTCM-0280 is supplied complete with;
- Manometer Liquid, 250 ml
- Cell with Perforated Disc and Plunger (with UTEST Certıfıcate of Cell And Plunger Dimensions for Calculation of Cell Specimen Volume)
- Plastic Funnel
- Filter Paper, 100 pcs
|
Dimensions |
240x420x450 mm |
|
Weight (approx.) |
16 kg |
9. Blaine Air Permeability Apparatus
Product Code
|
UTCM-0240 |
Blaine Air Permeability Apparatus |
|
UTCM-0241 |
U Manometer Tube |
|
UTCM-0242 |
Manometer Liquid 250 ml |
|
UTCM-0243 |
Cell with Perforated Disc and Plunger |
|
UTCM-0244 |
Filter Paper 100 pcs. |
|
UTCM-0245 |
Filter Paper 1000 pcs. |
|
UTCM-0246 |
Reference Cement 5 g, ASTM |
|
UTCM- 0282 |
Reference Calibration Sand – Fine, Approx. 100g |
|
UTCM- 0284 |
Reference Calibration Sand - Coarse, Approx. 100g |
Standards
EN 196-6; ASTM C204; AASHTO T153
The UTCM-0240 Blaine Air Permeability Apparatus is used to determine the fineness of Portland cement, limes and similar powders expressed in terms of their specific surface.
UTCM-0246 Reference cement, UTCM-0282 and UTCM-0284 reference calibration sands should be ordered separately.
The Blaine Air Permeability Apparatus is supplied complete with;
- U Manometer Tube
- Manometer Liquid, 250 ml
- Test Stand
- Rubber Aspirator
- Cell with Perforated Disc and Plunger (with UTEST Certıfıcate of Cell And Plunger Dimensions for Calculation of Cell Specimen Volume)
- Plastic Funnel
- Filter Paper, 100 pcs.
|
|
UTCM-0282 |
UTCM-0284 |
|
Specific surface (aporox. cm2/g) |
3890 |
2980 |
|
Density (aporox. 2,65 g/cm3) |
2,65 |
2,65 |
|
Porosity (aporox.) |
0,50 |
0,50 |
|
Dimensions |
300x540x210 mm (packed) |
|
Weight (approx.) |
7 kg (packed) |
10. Heat of Hydration Calorimeter with High Resolution D. Th.
Product Code
|
UTCM-0347 |
Heat of Hydration Calorimeter with High Resolution Digital Thermometer, 230 V, 50-60 Hz, 1 ph |
Standards
EN 196-8; ASTM C186
When Portland or hydraulic cement is mixed with water, heat is generated as a result of the exothermic reaction. The heat generated by cement’s hydration raises the temperature of concrete and this temperature rise causes expansion while concrete is hardening, especially under conditions when heat can not be readily released.
The UTCM-0347 Heat of Hydration Calorimeter is used for determining the heat of hydration of low heat Portland and hydraulic cement. The apparatus consists of a Dewar flask housed in an insulated box, an electric stirrer, a filler funnel and a high resolution battery operated electronic thermometer.
Features
- Displays, saves and prints ΔT, Min., Max. and Mean Values
- Audible alarm if limit values are exceeded
- Resolution 0.001°C
- PT100 Probe Measuring Range -40 to +300°C
- Protection class IP65
- Accuracy 0.05°C
- Memory 10.000
- Complete with resolution test certificate
- Supplied complete with MS EXCEL template for data processing
|
Dimensions |
300x200x650 mm |
|
Weight (approx.) |
13 kg |
11. Muffle Furnace
Product Code
|
UTD-1462 |
Muffle Furnace 6 lt. 1200°C Max. Temperature with Programmable Timer, 20-240 V 50-60 Hz |
Standards
EN 196-2; ASTM C25, C115
UTD-1462 Muffle Furnace is used for determining the loss on ignition and insoluble residue of cement and building lime.
Working temprature and time can be programmed with PID digital control system.
Digital Thermometer Features
|
Temperature Controller |
PC 442/2 |
|
Max. Temperature |
1200 °C |
|
Max. Continuous Temperature |
1150 °C |
|
Temperature Deviation at Set Point |
± 2°C |
|
Heat Up Time to Max. Temperature |
50. min |
|
Internal Volume |
6 L |
|
Phase |
1 |
|
Internal Dimension |
140x180x200 mm |
|
External Dimension |
650x550x580 mm |
|
Weight (approx.) |
56 kg |
|
Power |
2000 W |

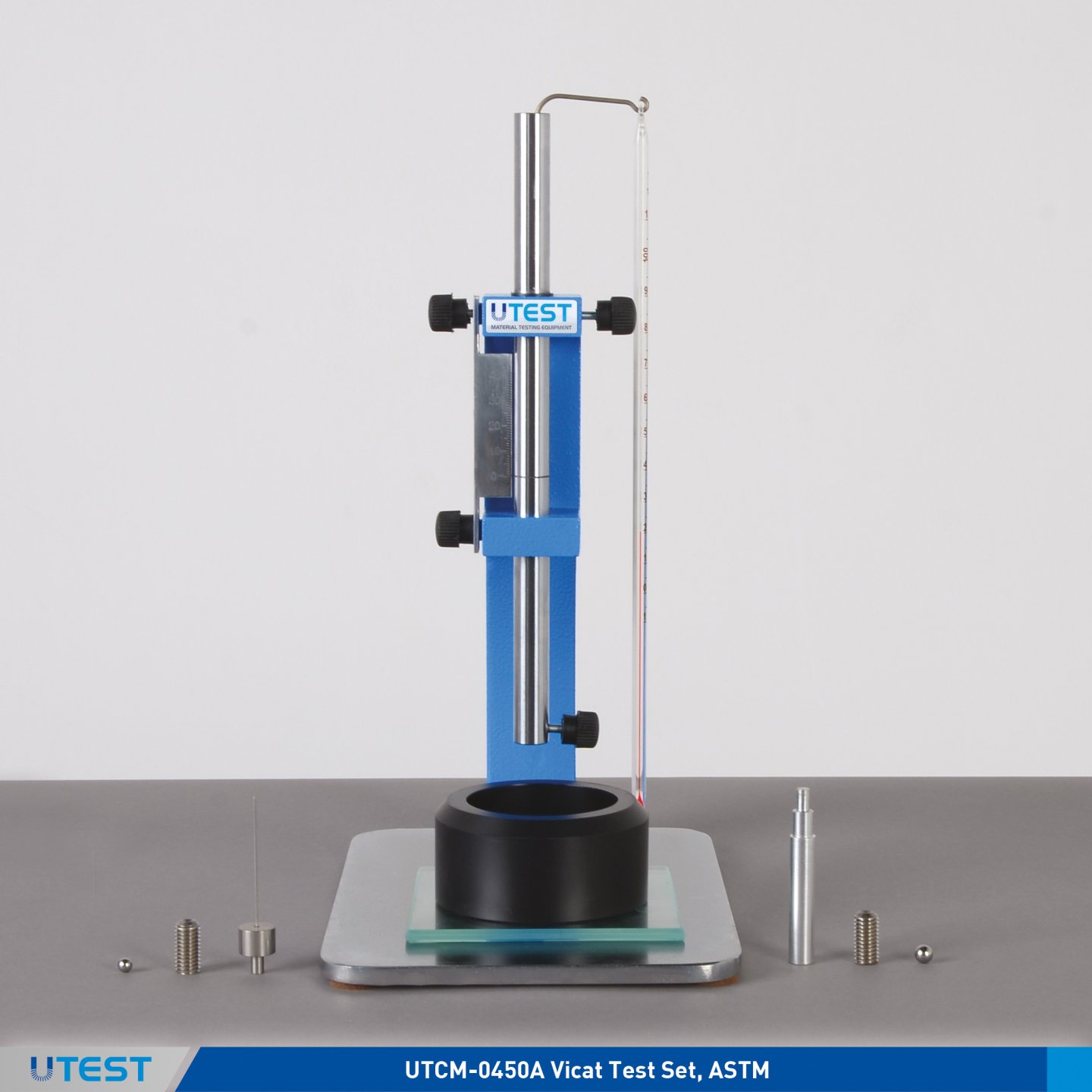

12. Vicat Test Sets
Product Code
|
UTCM-0451 |
Vicat Apparatus |
|
UTCM-0452E |
Vicat Mould EN Base ID 80 mm, Top ID 70 mm, Height 40 mm |
|
UTCM-0452A |
Vicat Mould ASTM Base ID 70 mm, Top ID 60 mm, Height 40 mm |
|
UTCM-0453E |
Initial Vicat Needle EN 1.13 mm dia. |
|
UTCM-0453A |
Vicat Needle ASTM 1 mm dia. |
|
UTCM-0454E |
Final Vicat Needle EN 1.13 mm dia. |
|
UTCM-0455 |
Consistency Plunger 10 mm dia. |
|
UTCM-0458E |
Transfer Dish for UTCM-0451 |
|
UTGT-1305 |
Glass Thermometer Max. 110°C |
|
UTCM-0457 |
Additiniol Weight, 700 gr, EN 480-2 |
Standards
EN 196-3, 480-2; ASTM C187, C191; AASHTO T129, T131
The Vicat test equipment is used for determining the setting time and consistency of cement by Vicat Method.
Vicat Apparatus consist of metal frame with a scale, Ø10mm consistency plunger and supporting glass plate.
The needle/s, mould, thermometer and transfer dish (for EN) should be ordered seperately.
UTCM-0453A UTCM-0455 UTCM-0453E UTCM-0454E
|
Dimensions |
150x190x318 mm |
|
Weight (approx.) |
3 kg |
13. Automatic Vicat Apparatus VICAMATIC-3
Product Code
|
UTCM-0550E |
Automatic Vicat Apparatus (VICAMATIC-3) EN, 110-240 V 50-60 Hz, 1ph |
|
UTCM-0550A |
Automatic Vicat Apparatus (VICAMATIC-3) ASTM, 110-240 V 50-60 Hz, 1ph |
Standards
EN 196-3, 13279-2, 480-2; ASTM C191, C187; AASHTO T131
The setting time determination of cement/mortar/gypsum is one of the most important parameter for the quality inspection and verification. The new generation automatic setting time tester is now available, featuring a large color 5.1” touch screen display, a needle (or a probe) drops freely into a cement sample at regular intervals and in fixed positions. Along with hardening process development the penetration depth decreases, when it matches some thresholds pre-defined by standards initial and final setting times are measured and recorded.
Main Features
• Advanced electronics technologies providing superior performances and total flexibility combined with simplicity in use
• Easy-to-use double interface: local mode, with large size 5,1" touch screen color display and remote mode with PC
• Supplied complete with PC software for data processing VICASOFT-BASIC
• With PC software VICASOFT-PREMIUM (optional) up to 32 indipendent units (includign VICAMATIC 2 models) can be connected to a single PC via LAN port and hub. All units are remotely controlled. Adopting the multi-test network concept laboratory productivity is maximized
• Integrated graphic printer is available as optional accessory showing both results in numerical format and setting time plot
• Easy setting and storage of user-defined test profiles allowing quick test start
• Large accessibility to the test space
• Complete with needle cleaning device
• Practical in-water testing accessory (optional)
• Automatic determination of initial and final setting time
• Penetration depth is measured by a sensor with 0,1 mm resolution.
Technical Specification
• Conforming to EN 196-3, 13279-2, 480-2, ASTM C191, C187
• 5.1”, 800 x 480 pixel, 16 M colors, icon-driven touchscreen graphic display, showing data and plots
• LAN port for direct connection to PC of a single unit or connection to a LAN hub for creating a network with up to 32 independent units all controlled by a single PC. 1 LAN cable is included
• USB port for data download to PC and easy firmware upgrade
• Unlimited storage capacity for test data on internal 16 GB SD card
• Test procedures can be customized and stored to match user-defined requirements
• Can incorporate an integrated graphic printer showing test result and setting time plot
• Large test space with easy accessibility
• Automatic calculation of initial and final setting time at programmable penetration depth limits
• Wide range of accessories including EN and ASTM/AASHTO parts, in-water testing kit, needle cleaning device, integrated printer, probes for testing consistency and gypsum
• Minimum penetrations rate: 10 seconds
• Penetration measurement by encoder
Firmware Specifications
• Easy programming of customized test profiles, recallable for future tests, including:
• adjustable test start delay
• penetration points positions
• manual or automatic penetration rate
• free or driven dropping mode
• holding intervals inside the sample
• automatic end - test detection
• automatic measurement of initial and final setting time
• Test data: test number, operator, client, date, hour, cement type, water percentage, delay
• Easy calibration menu
• Clock calendar
• Multi-language
Accessories
UTCM-0552 LAN hub for PC connection of up to 7 VICAMATIC- 2 units or up to 6 units in case of multi-hub network. LAN cable from hub to PC is included. Each VICAMATIC-2 unit is supplied complete with LAN cable.
UTCM-0553 Upgrading of a VICAMATIC-2 unit for incorporating a graphic printer into the head. Test settings and results are plotted both as numerical and graphical format including penetration depth/time diagram. The upgrading shall be factory installed.
UTCM-0559 VICASOFT-PREMIUM Software for PC connection of up to 32 VICAMATIC-2 and VICAMATIC-3 units including remote control of each unit, data acquisition - processing - filing, printout of test reports.
Communication via LAN port (each VICAMATIC-3 unit is supplied complete with LAN cable). The connection of one unit is direct via the PC LAN-port, for more units (up to 32) one or more LAN hubs are required with total number of ports equal (or bigger) to the number of units included in the network. LAN hubs are not included
Accessories to EN Standards
UTCM-0551 Accessory for Needle Cleaning and In-Water Testing
UTCM-0554 Needle for Final Setting Test EN 196-3
UTCM-0555 Cylindrical Probe for Consistency Test
UTCM-0556 Additional Weight 700 g to EN 480-2
UTCM-0557 Water thermostatic unit for VICAMATIC. Up to 2 units may be connected. 230 V, 50-60 Hz, 1 ph.
UTCM-0557-N Same as UTCM-0557, but 110 V, 60 Hz, 1 ph
UTCM-0558 Conical penetration probe 8 mm dia x 50 mm complete with 100g calibrated weight for gypsum testing to EN 13279
Accessories to ASTM Standards
UTCM-0555 Cylindrical Probe for Consistency
UTCM-0566 Cylindrical probe and addition weight for consistency test to ASTM C807.
UTCM-0567 2 mm dia. needle to ASTM C807
UTCM-0568 Brass cylindrical mould to ASTM C807
Spare Parts
UTCM-0560 1,13 mm dia. needle for initial setting time test to EN
UTCM-0561 1 mm dia. needle for setting time test to ASTM/AASHTO
UTCM-0562 Plastic mould to EN
UTCM-0563 Plastic mould to ASTM/AASHTO
UTCM-0564 Glass base plate
UTCM-0565 Spare base plate for in-water testing kit
UTCM-0571E Centering ring for EN vicat mould
UTCM-0571A Centering ring for ASTM vicat mould
- UTCM-0550E is supplied complete with EN 196-3 accessories: initial setting time needle 1.13 mm dia, mould and PC software VICASOFT-BASIC.
- UTCM- 0550A is supplied complete with ASTM C191 accessories: setting time needle mm dia, mould and PC software VICASOFT-BASIC.
Other accessories should be ordered separately for the tests.
|
Power |
50 W |
|
Dimensions (LxWxH) |
200x400x410 mm |
|
Weight (approx.) |
10 kg |
14. Gillmore Apparatus
Product Code
|
UTCM-0578 |
Gillmore Apparatus |
Standards
ASTM C266; AASHTO T154
The UTCM-0578 Gillmore Apparatus is used to determine the setting time of cement hydraulic hydrometer lime and mortar. Apparatus consists of two horizontally positioned arms, carrying weighted needles, initial needle has a 2.12 mm diameter and 113.4 g in weight and the final needle has a 1.06 mm diameter and 453.6 g in weight.
Supplied complete with two glass plates.
|
Dimensions |
300x100x300 mm |
|
Weight (approx.) |
2,5 kg |
15. Flow Table
Product Code
|
UTCM-0660A |
Cement Flow Table ASTM, Metric |
|
UTCM-0661A |
Cement Flow Mould ASTM, Metric |
|

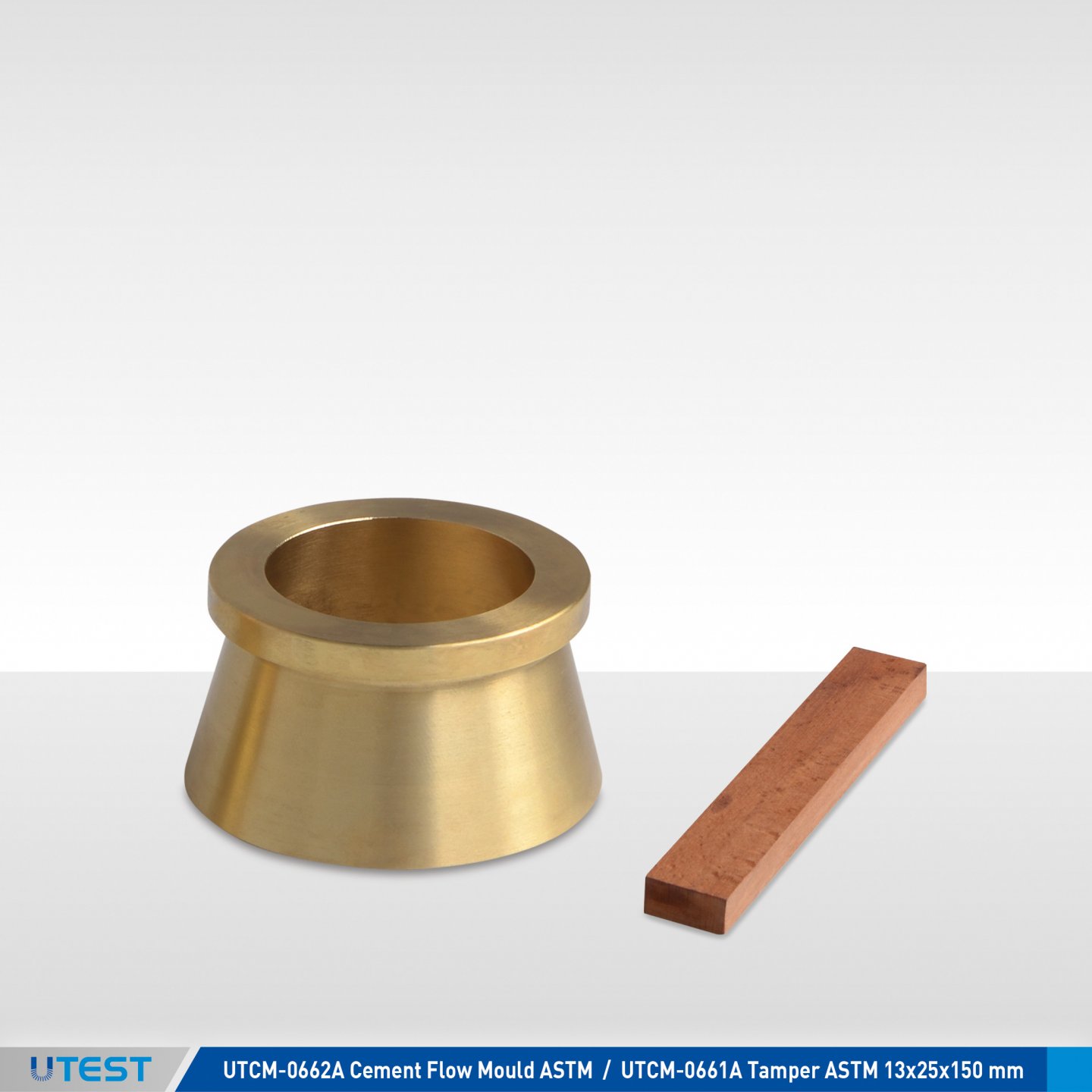

UTCM-0662A |
Tamper ASTM Hardwood 13x25x150 mm |
|
UTCM-0663A |

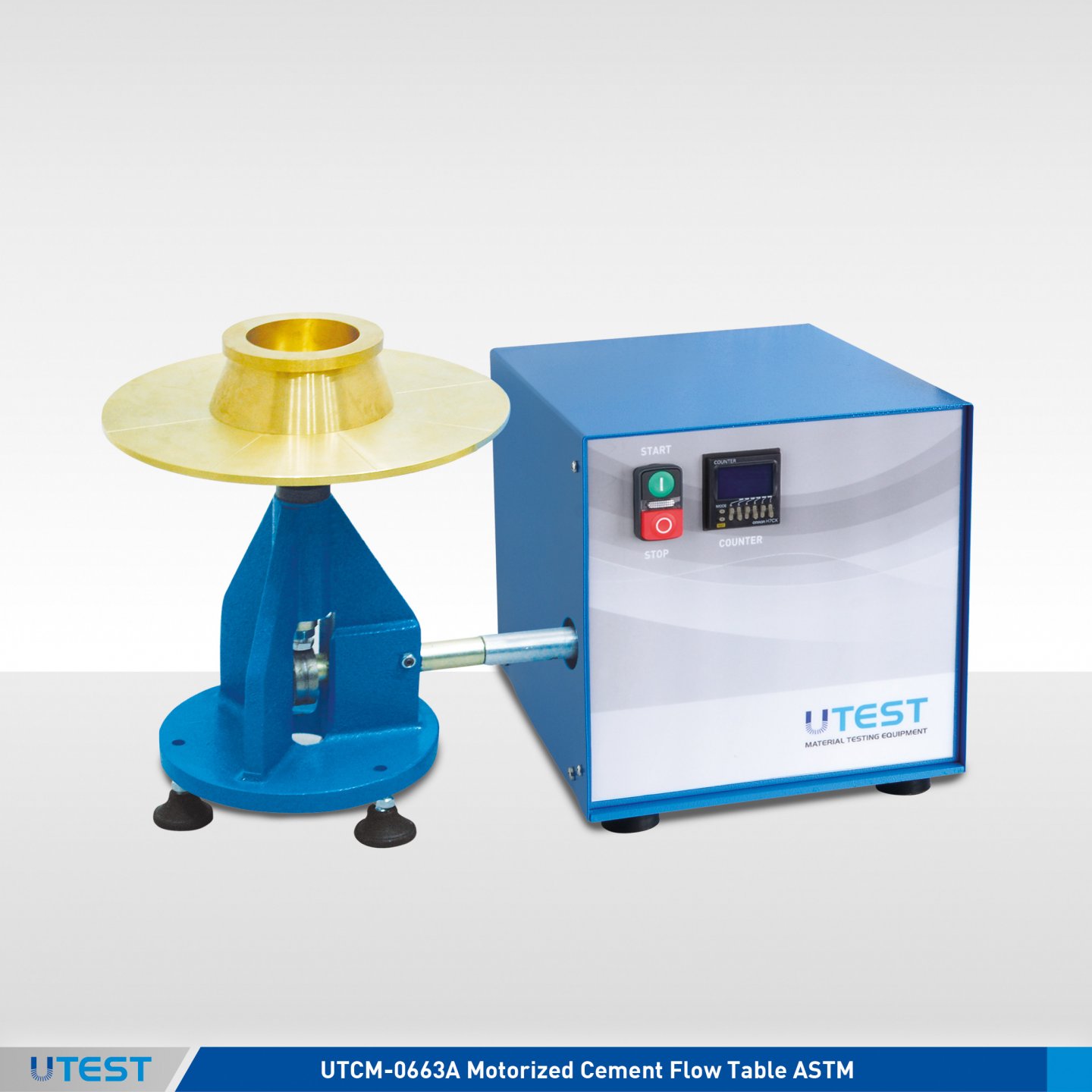

Motorized Cement Flow Table ASTM |
|
UTCM-0660E |
Cement Flow Table EN |
|
UTCM-0661E |

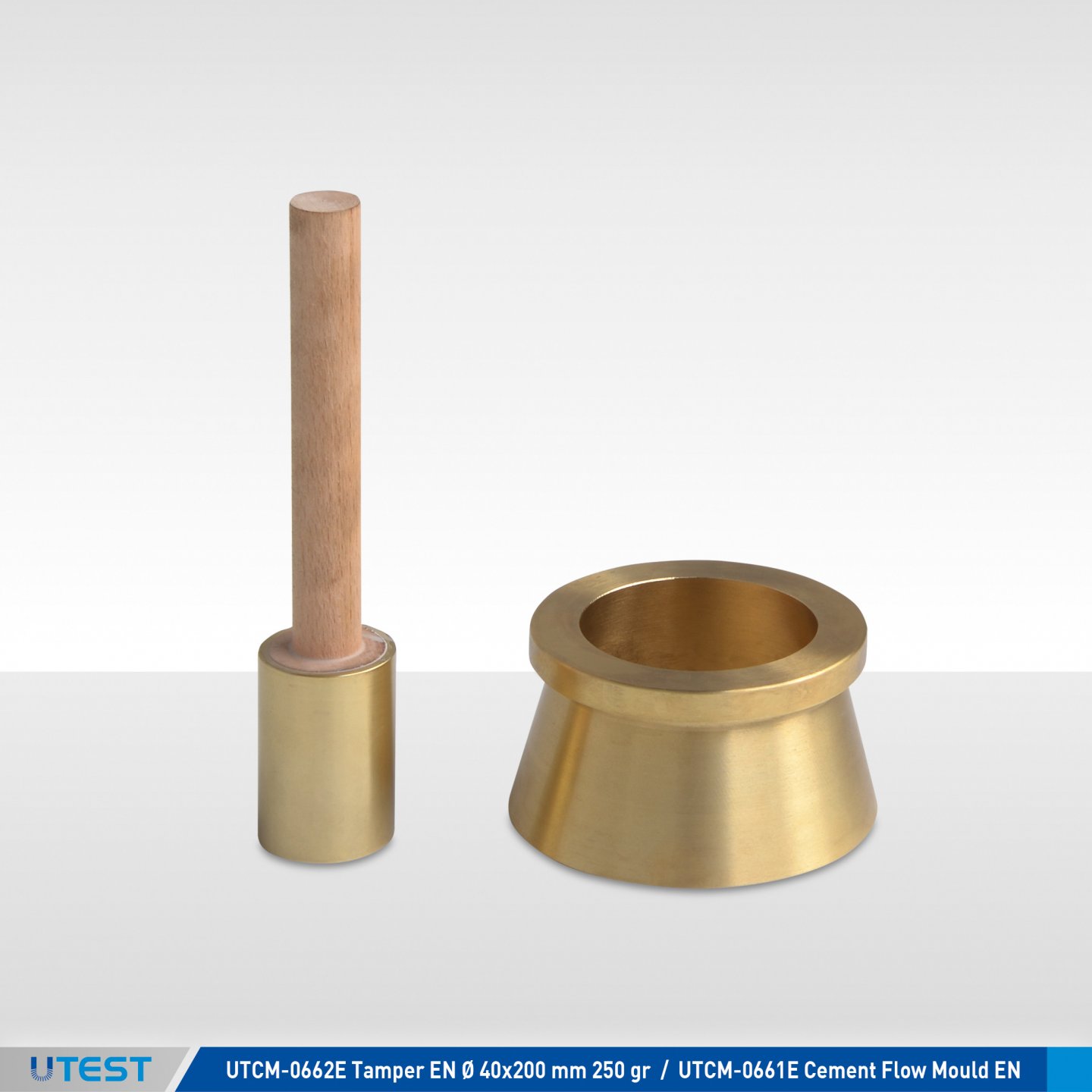

Cement Flow Mould EN |
|
UTCM-0662E |
Tamper EN Ø 40x200 mm 250 gr |
|
UTCM-0663E |
Motorized Cement Flow Table EN |
|
Models for 220-240V 50-60 Hz, 1 ph. |
UTC-0663A |
UTC-0663E |
|
Models for 110-120V 60 Hz, 1 ph. |
UTC-0663A-N |
|
Standards
ASTM C230; EN 459-2, 1015-3
There are two models of the Cement Flow Table according to ASTM and EN standard. Both are used for determining the consistency of mortar, lime and cement specimens. Also manual and motorized models are available.
The hand operated model is fitted with a hand wheel. The motor operated model is driven by a motor speed reducer through a mechanical coupling at the rate of 1 revolution per second. The number of drops is preset on a counter and the machine stops automatically at the end of the cycle.
EN model, the table is manufactured from stainless steel and has a 300 mm diameter table. The conical mould is made of stainless steel and has dimensions of 100 mm base dia. x 70 mm top dia. x 60 mm height.
ASTM model; the table is manufactured from bronze and has 254 mm diameter. The conical mould is made of brass has dimensions of 100 mm base dia. X 70 mm top dia. X 50 mm height.
Both models are supplied complete with mould and tamper. EN model also has a stainless steel hopper.
UTCM-0660E UTCM-0660A UTCM-0662A - UTCM-0661A UTCM-0662E - UTCM-0661E
|
|
UTCM-0660A UTCM-0663A ASTM |
UTCM-0660E UTCM-0663E EN |
|
Table Diameter |
254 mm |
300 mm |
|
Cone Base/Top Diameter |
100.0 mm /70.0 mm |
100.0mm /70.0 mm |
|
Cone Height |
50.0 mm |
60.0 mm |
|
Drop Height |
12.7 mm |
10.0 mm |
|
Power |
180 W ( Motorized ) |
|
|
Product Code |
Dimensions |
Weight (approx.) |
|
UTCM-0660A |
250x360x350 mm |
12,5 Kg |
|
UTCM-0660E |
300x400x350 mm |
20 |
|
UTCM-0663A |
400x450x400 mm |
35 |
|
UTCM-0663E |
450x560x300 mm |
34 |
16. Workable Life, Stiffening Time & Setting Time
Product Code
|
UTCM-0664 |
Workable Life, Stiffening Time and Concrete Setting Time Apparatus |
|
UTW-0637 |
Digital Balance, 30 kg / 5 g. |
|
UTC-0705 |
Needle Set (645, 323, 161, 65, 32, 16 mm²) for UTCM-0064 |
|
UTW-0654 |
Digital Balance, 60 kg x10 gr |
Standards
EN 1015-9, 13294; ASTM C 403
The apparatus is used for determining the stiffening time of repair products and systems comprising hydraulic based mortar and concrete (CC), including those modified by the addition of polymers (PCC) and workable life of fresh mortar after the mixing procedures.
The Apparatus consist of a vertical loading pillar with a base. Supplied complete with a brass penetration rod with washer and a sample container (Ø80x80 mm aluminum).
UTC-0705 Needle Set for concrete setting time test acc.to ASTM should be ordered separately
UTW-0637 Digital Balance for the initial setting time, workable life and stıffening time should be ordered separately, as well.
Also, for determining concrete final setting time, instead of UTW-0637, UTW-0654 should be ordered separately.
|
Dimensions |
400x400x600 mm |
|
Weight (approx.) |
10 kg |
17. Manuel Mortar Mixers
Product Code
|
UTCM-0875E |
Manuel Mortar Mixer, EN |
|
UTCM-0875A |
Manuel Mortar Mixer, ASTM |
|
UTCM-0876 |
Spare Bowl, 5 L |
|
UTCM-0878E |
Spare Beater, EN |
|
UTCM-0878A |
Spare Beater, ASTM |
|
Models for 220-240 V 50-60 Hz, 1ph. |
UTCM-0875E |
UTCM-0875A |
|
Models for 110-120 V 60Hz, 1ph. |
UTCM-0875E-N |
UTCM-0875A-N |
Standards
EN 196-1, 196-3, 413-2, 459-2, 480-1, 1015-2, 12617-4;
ASTM C187, C305, AASHTO T129, T131, T162
The UTCM-0875 Manual Mortar Mixer has a 5 liter (approx.) capacity, they have been designed to mix mortars and cement pastes primarily to the requirements of standards.
The mixing paddles revolve at a rate of 140 rpm. with a planetary motion of 62 rpm. in low speed. In high speed, the paddles revolve at the rate of 285 rpm. with a planetary motion of 125 rpm.
The user can choose the speeds easily by using the switch fitted to the machine. There is a sand filling apparatus on the mixers to pour sand easily. The bowl and beater are easily fitted and removed from mixer.
The Manual Mortar Mixers are supplied complete with;
- Bowl, 5 L (approx.)
- Beater
UTCM-0878E UTCM-0876
|
Dimensions |
300x555x610 mm |
|
Weight (approx.) |
54 kg |
|
Power |
200 W |
18. Automatic Programmable Mortar Mixer
Product Code
|
UTCM-0885E |
Automatic Programmable Mortar Mixer |
|
UTCM-0885A |
Automatic Programmable Mortar Mixer |
|
UTCM-0876 |
Spare Bowl, 5 L |
|
UTCM-0878E |
Spare Beater, EN |
|
UTCM-0878A |
Spare Beater, ASTM |
|
Models for 220-240 V 50-60 Hz, 1ph. |
UTCM-0885E |
UTCM-0885A |
|
Models for 110-120 V 60Hz, 1ph. |
UTCM-0885E-N |
UTCM-0885A-N |
Standards
EN 196-1, 196-3, 413-2, 459-2, 480-1, 1015-2, 12617-4; ASTM C187, C305; AASHTO T129, T131, T162
The mixers have been designed to mix mortars and cement pastes primarily to the requirements of standards. The mixing paddles have a planetary motion and is driven by a motor with a microprocessor based speed and preset programs to meet all listed EN and ASTM standards, custom designed programs or manual mode. The mode button is used for the fast selection of different programs.
The mixing paddles revolve at a rate of 140 rpm. with a planetary motion of 62 rpm. in low speed. In high speed, the paddles revolve at the rate of 285 rpm. with a planetary motion of 125 rpm. An automatic sand dispenser is supplied with the machine and the sand is automatically discharged. In custum mode, motor speed (62 rpm or 125 rpm), sand dispenser position and duration of the mix can be set by the operator. On the display the user can see the mix time and the machine is equipped with lamp in order to warn the user for critical time periods.
The Automatic Programmable Mortar Mixers are supplied complete with;
- Bowl, 5 lt (approx.)
- Beater
UTCM-0878E UTCM-0876
|
Dimensions |
300x555x610 mm |
|
Weight (approx.) |
56 kg |
|
Power |
200 W |
19. CEN Standard Sand
Product Code
|
UTCM-0880 |
CEN Standard Sand, 1350 gr |
Standards
EN 196-1
CEN Standard Sand CEN Standard Sand CEN Standard Sand CEN Standard Sand CEN Standard Sand
|
Dimensions |
300x190x70 mm |
|
Weight (approx.) |
1350 gr |
20. Jolting Table
Product Code
|
UTCM-0890 |
Jolting Table, EN |
|
UTCM-0891 |
Jolting Table with Soundproof Safety Cabinet, EN |
|
UTCM-0892.2 |
Three Gang Mould for 40x40x160 mm, HV200 |
|
UTCM-0892.4 |
Three Gang Mould for 40x40x160 mm, HV400 |
|
UTCM-0893 |
Feed Hopper for UTCM-0892 |
|
UTCM-0894 |
Short and Long Spreaders and Straightedge, for UTCM-0892 |
|
Models for 220-240 V 50 Hz, 1ph. |
UTCM-0890-T |
UTCM-0891-T |
|
Models for 220-240 V 60 Hz, 1ph. |
UTCM- 0890-K |
UTCM- 0891-K |
Standards
EN 196-1; ISO 679
Jolting Table is used for compacting of cement specimens in 40x40x160 mm mould and consists of mould table seated on a rotating cam driven at 60 r.p.m. The falling height is 15 mm conforming to EN 196-1. The machine is equipped with a counter which provides automatic shut off at end of preset drop numbers.
Weight and dimensions of the jolting table fully comply with the requirements of EN 196-1 standard. When used with UTCM-0892 Three Gang Mould and UTCM-0893 Feed Hopper, the total weight of the moving part is 20 kg ± 0.5 kg. Without UTCM-0892 and UTCM-0893 the weight of the moving parts is 6.85 kg. Rapid mould lock and release system allows easy and quick operation.
The supporting frame of the machine has been designed to ensure precise dimensions, table flatness, correct centering of the three gang mould on the table.
The motor and gearbox assembly is enclosed in a protective housing, which promotes user safety (the moving parts are inaccessible) and long life for the gearbox.

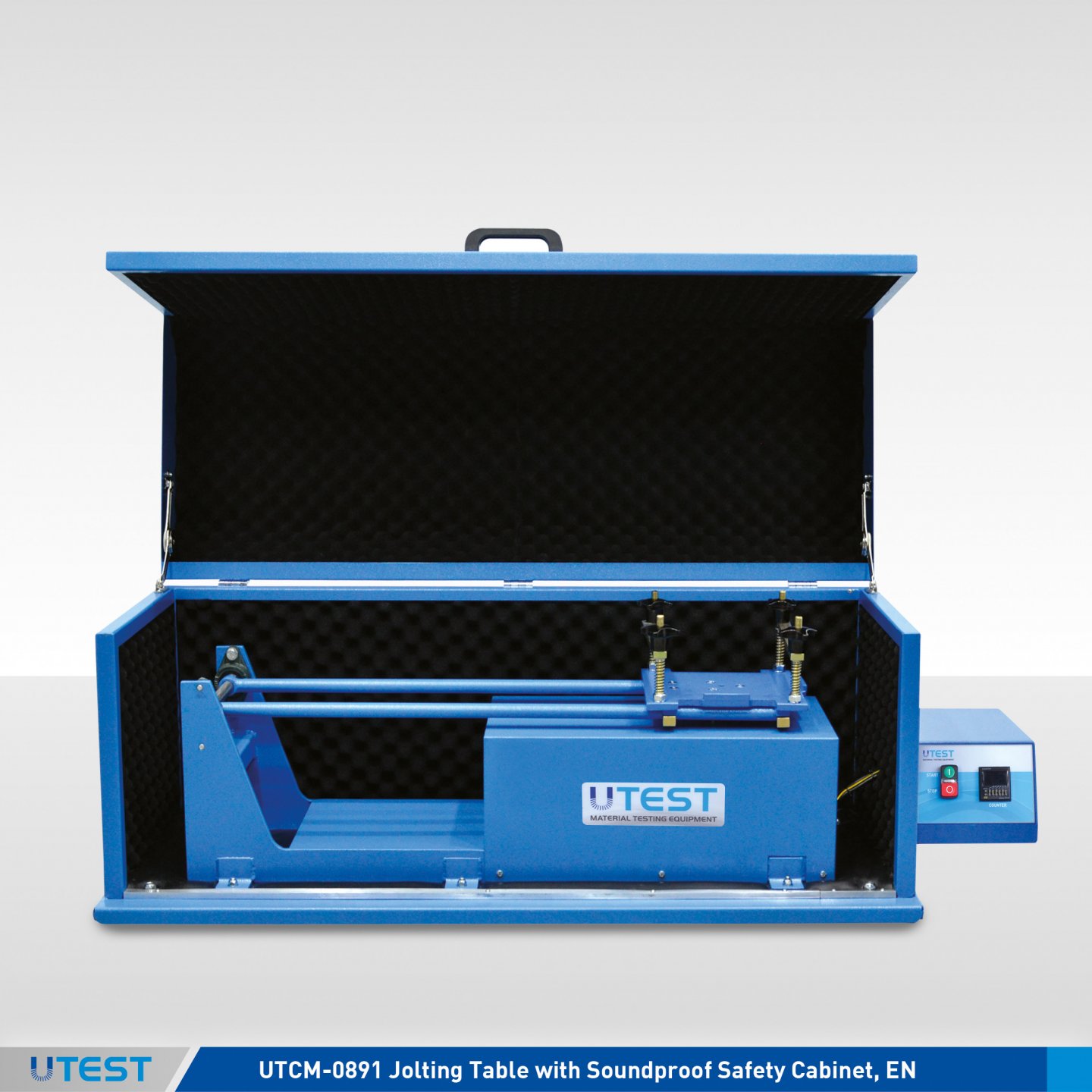

The standard model can be supplied with a safety/noise reduction cabinet. The cabinet is lined internally with soundproofing material to reduce sound level conforming to CE directives.
UTCM-0893 Feed Hopper is used for filling UTCM-0892 Three Gang Moulds placed on the Jolting Table.
UTCM-0892 Three Gang Mould, UTCM-0893 Feed Hopper, UTCM-0894 Short and Long Spreaders and Straightedge should be ordered separately.
|
|
UTCM-0890 |
UTCM-0891 |
|
Dimensions |
1050x350x500 mm |
1440×500×575 mm |
|
Weight (approx.) |
55 kg |
125 kg |
|
Motor Speed |
60 r.p.m |
|
|
Drop Height |
15 mm |
|
|
Power |
250 W |
|
21. Three Gang Mould
Product Code
|
UTCM-0892.2 |

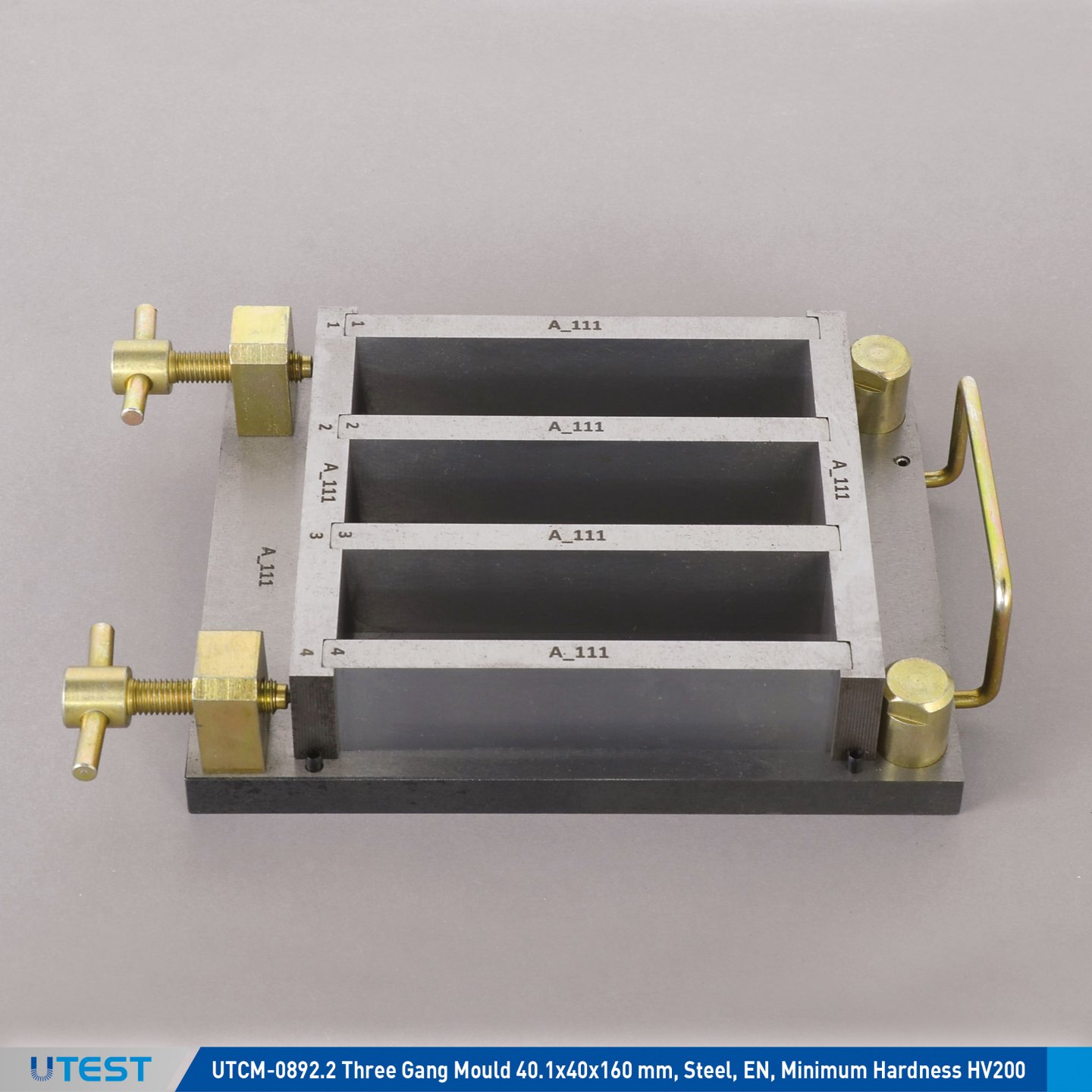

Three Gang Mould 40.1x40x160 mm, Steel, EN, Minimum Hardness HV200. |
|
UTCM-0892.4 |
Three Gang Mould 40.1x40x160 mm, Steel, EN, Minimum Hardness HV400. |
|
UTCM-0893 |
Feed Hopper for UTCM-0892 |
|
UTCM-0894 |
Short and Long Spreaders and Straightedge for UTCM-0892 |
|
UTCM-0895 |

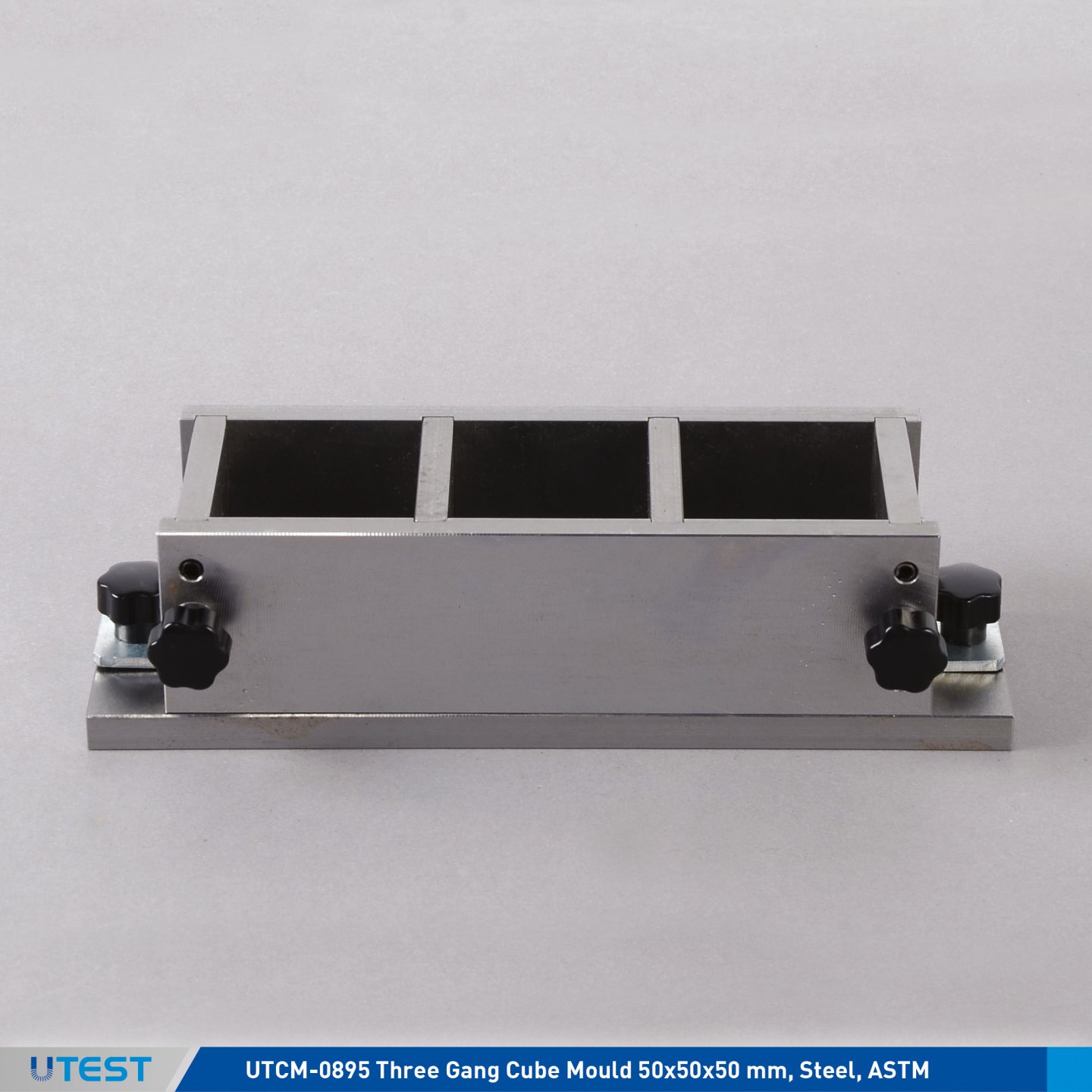

Three Gang Cube Mould 50x50x50 mm, Steel, ASTM |
|
UTCM-0898 |

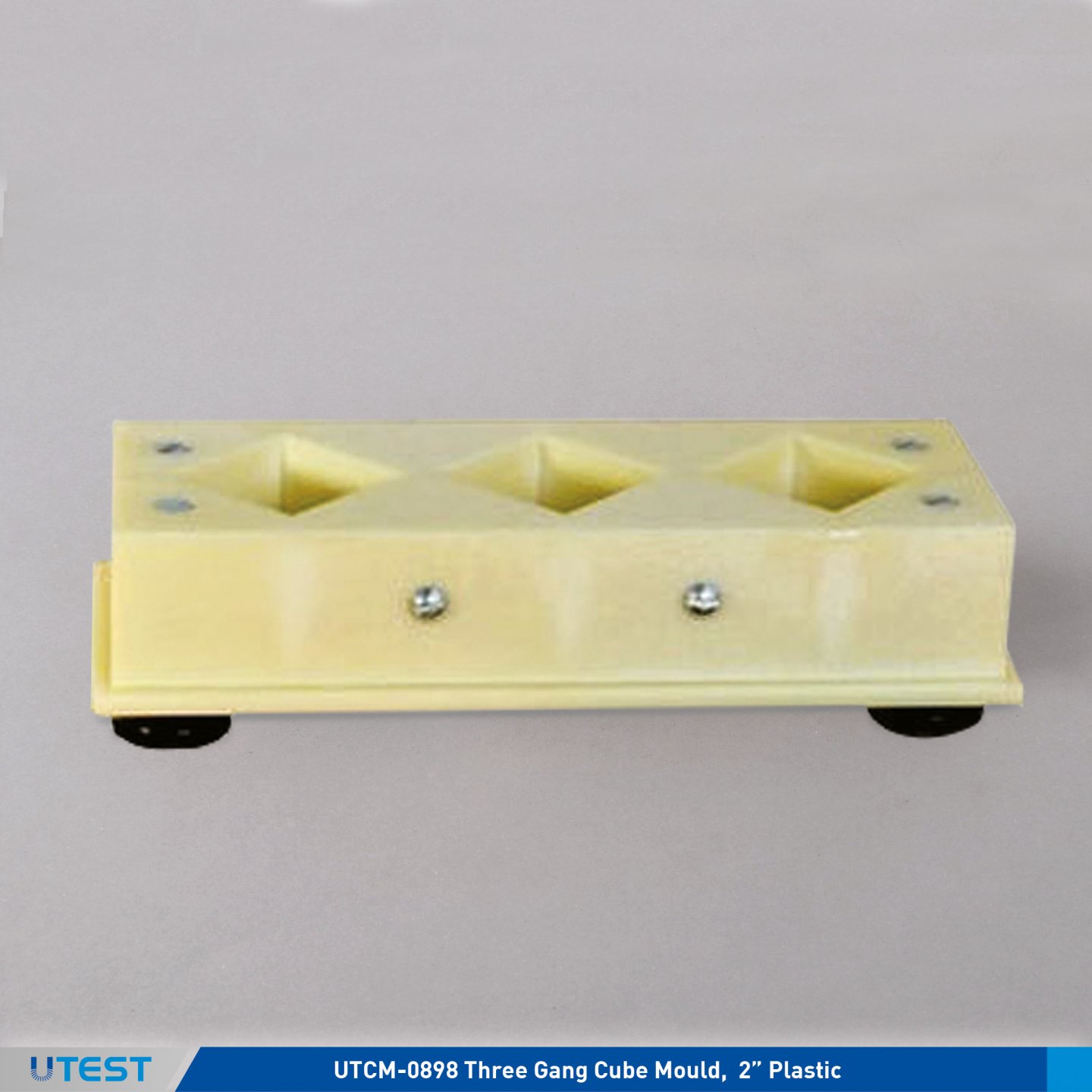

Three Gang Cube Mould, 2” Plastic |
|
UTCM-0899A |
Three Gang Mould 40x40x160 mm, Steel, ASTM |
|
UTCM-0926 |

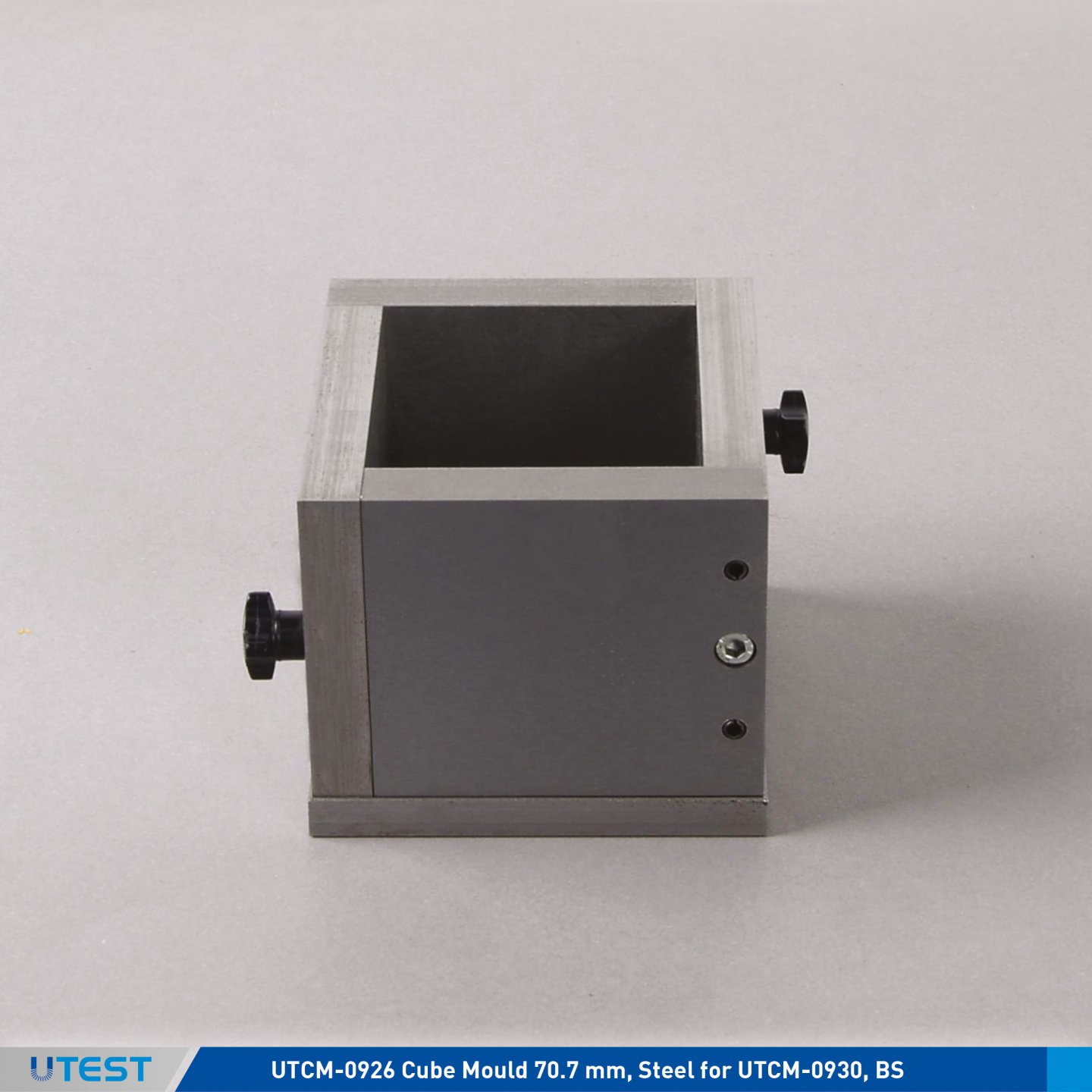

Cube Mould 70.7 mm, Steel, for UTCM-0930, BS |
Standards
EN 196-1, 413-2, 459-2, 1744-1, 1015-10, 1015-11, 13454-2; ASTM C109, C348; BS 4550
All moulds have been manufactured from steel except UTCM-0898 molded using engineered plastic and all internal surfaces are machined.
Minimum surface hardness of UTCM- 0892.4 is HV400 which is recommended by the EN standard. All moulds surfaces are protected with anti-corrosion oil. The webs of UTCM- 0892.4 and UTCM-0899A are matchmarked.
Minimum surface hardness of UTCM-0892.2 is HV200.
|
|
Dimensions |
Weight (approx.) |
|
UTCM-0892.4 |
300x190x70 mm |
10,5 kg (Packed) |
|
UTCM-0893 |
210x200x40 mm |
1 kg |
|
UTCM-0895 |
110x230x60 mm |
3 kg |
|
UTCM-0898 |
110x250x70 mm |
1 kg |
|
UTCM-0899A |
300x190x70 mm |
12 kg (Packed) |
|
UTCM-0926 |
100x125x90 mm |
3,5 kg |
22. Vibrating Machine
Product Code
|
UTCM-0930 |
Vibrating Machine for 70.7 mm Cube Moulds, BS |
|
UTCM-0926 |
Cube Mould 70.7 mm, BS |
|
Models for 220-240 V 50 Hz, 1ph. |
UTCM-0930-T |
|
Models for 220-240V 60 Hz, 1 ph. |
UTCM-0930-K |
Standards
BS 4550
The UTCM-0930 Vibrating Machine is used for the preparation and compaction of 70.7 mm mortar cube specimens. The mould table is mounted on four springs attached to an eccentric shaft which allows each sample to be vibrated at 12000 cycles per minute. There is a timer on it to preset time and it stops automatically in every 120 seconds.
70.7 mm cube mould (UTCM-0926) should be ordered separately.
UTCM-0926
|
Dimensions |
450x650x850 mm |
|
Weight (approx.) |
80 kg |
|
Eccentric Shaft Rotation |
12000 r.p.m |
|
Power |
1100 W |
23. Curing Cabinet
Product Code
|
UTCM-1100 |
Curing Cabinet 1000 L |
|
Models for 220-240 V 50-60 Hz, 1ph. |
UTCM-1100 |
|
Models for 110-120 V 60Hz, 1ph. |
UTCM-1100-N |
Standards
EN 196-1; ISO 679
UTCM-1100 Curing Cabinet, 1000 Liters, for cement based mortar specimens, 20.0 ± 1.0°C temperature and min. 90% Rh and over humidity. The humidity and temperature can be controlled and monitored by a digital unit. Stainless steel interior. 220-240V, 50-60Hz, 1ph.
The humidity and temperature can be controlled and monitored on the digital control unit.
UTCM-1100 Curing Cabinet is also supplied complete with six displaceable shelves.
In order to record temperature, humidity and time data simultaneously, the communication module (UTCU-4940) should be ordered separately.
|
Internal Dimension |
1140x680x1370 mm |
|
External Dimension |
1400x800x2100 mm |
|
Weight (approx.) |
200 kg |
|
Power |
1200 W |
24. Compression and Flexural Frames
Product Code
|
UTCM-3722 |

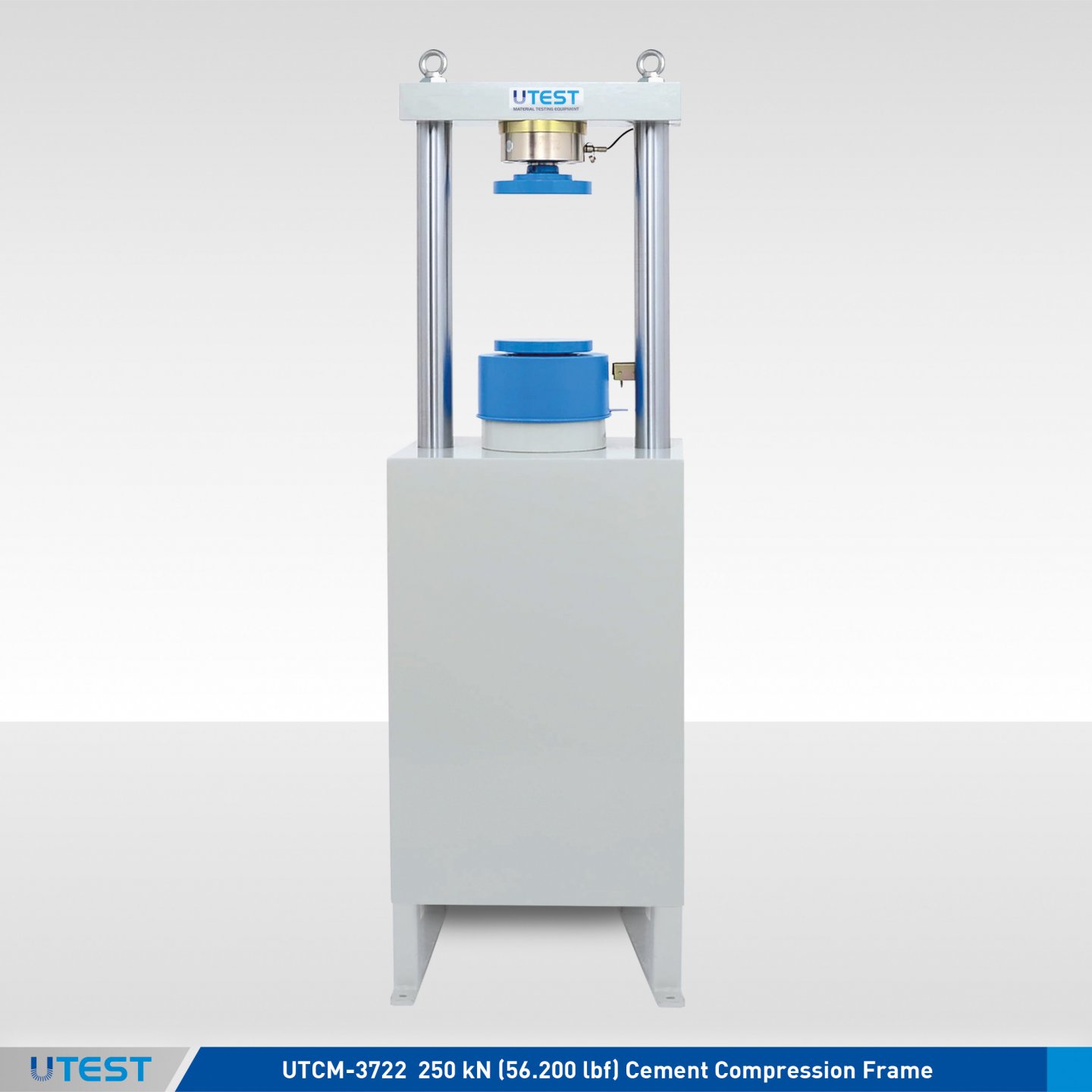

250 kN (56.200 lbf) Cement Compression Frame |
|
UTCM-3742 |

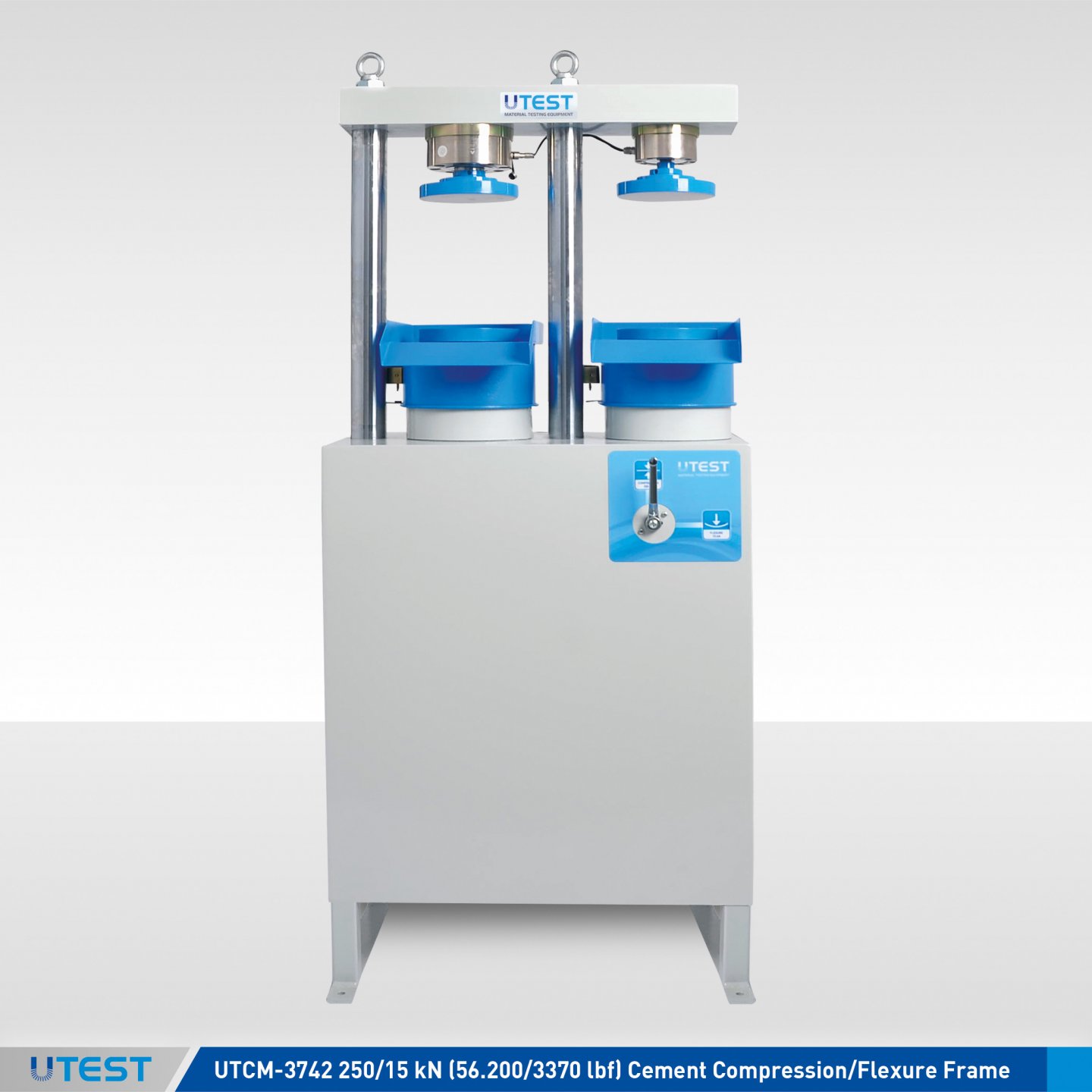

250/15 kN (56.200/3370 lbf) Cement Compression/Flexure Frame |
|
UTCM-3724 |

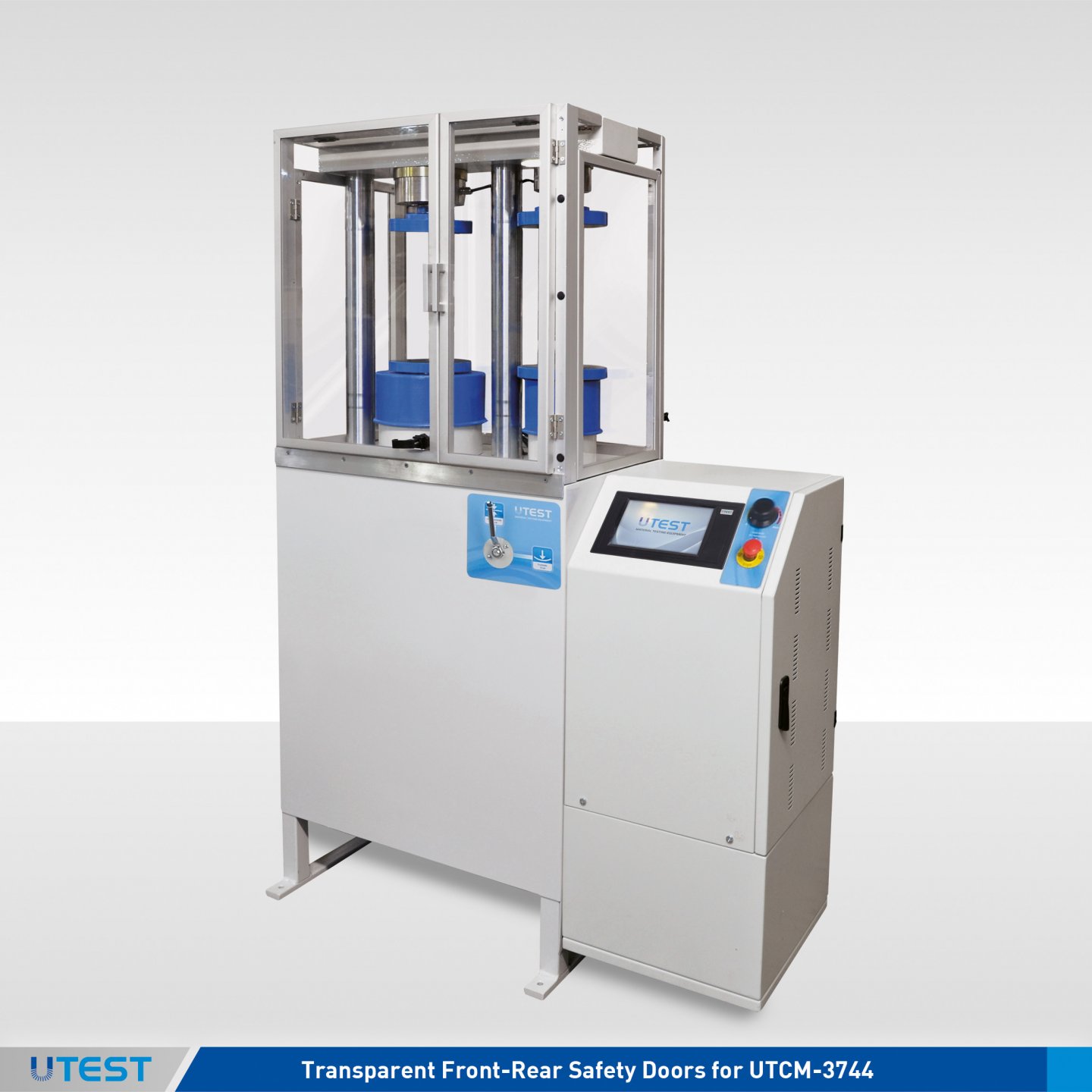

Transparent Front-Rear Safety Doors for UTCM-3722 |
|
UTCM-3744 |
Transparent Front-Rear Safety Doors for UTCM-3742 |
Standards
EN 196-1, 459-2, 1015-11, 13454-2, 13892-2; ASTM C109, C348, C349;BS 4550-3.4
The UTCM-3722 and UTCM-3742, very rigid two column frames have been designed for compression and/or flexure testing of mortar prisms and cubes specimens. Load cells are used on both frames to provide high accuracy in load measuring. Both frames are fitted with round platens with 165 mm diameter and these should be used together with suitable flexure and compression devices.
Distance pieces and transparent front-rear safety doors (should be factory insttalled) should be ordered separately.
Loading Cylinder Assembly & Limit Switch
All frames have a single acting up stroking ram. The diameter of piston changes with regard to the capacity.
The maximum ram stroke is 20 mm, a limit switch is fitted to prevent over travel of the ram which cuts the power to the pump. There is a low friction coaxial bronze seal between the cylinder and the piston fitted to the cylinder.
Dimensions
|
|
UTCM-3722 |
UTCM-3742 |
|
A |
460 mm (18,1”) |
650 mm (25,6”) |
|
B |
300 mm (11,8”) |
266 mm (10,47”) |
|
C |
Ø165 mm (6,5”) |
Ø165 mm (6,5”) |
|
D |
237 mm (9,3”) |
237 mm (9,3”) |
|
E |
500 mm (19,7”) |
500 mm (19,7”) |
|
F |
1580 mm (62,2”) |
1580 mm (62,2”) |
|
Weight |
185 kg (408 lbs) |
280 kg (617 lbs) |
25. Distance Pieces and Platens for Frames for Cement & Mortar
Product Code
|
UTC-4630 |
Distance Piece Ø165mm x 15mm (Ø6,5”x0,59”) |
|
UTC-4631 |
Distance Piece Ø165mm x 30mm (Ø6,5”x1,18”) |
|
UTC-4633 |
Distance Piece Ø165mm x 50mm (Ø6,5”x1,97”) |
|
UTC-4634 |
Distance Piece Ø165mm x 100mm (Ø6,5”x3,93”) |
|
UTCM-4116 |

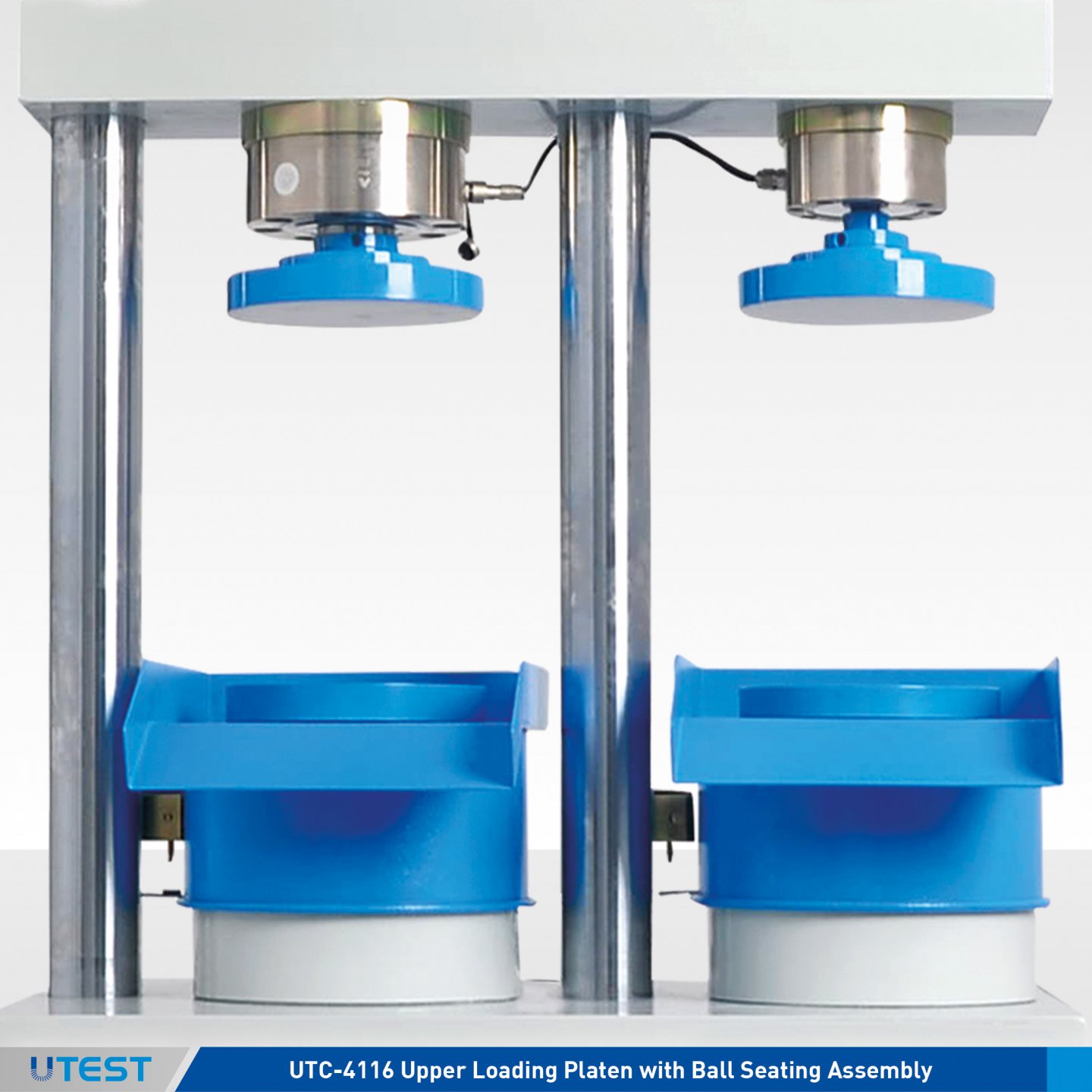

Lower and Upper Loading Platen with Ball Seating Assembly |
Distance Pieces for Frame
Due to the modular design of the frames any sample with suitable size, load and pace rate can be test on both chambers by decreasing the distance between platens.
Loading Platens
UTCM-4116 Lower and Upper (spherical seated) Loading Platens are manufactured from high quality steel smoothed and finished.
The roughness value for the surface texture of machine and auxiliary platens are 3.2 μm.
26. Hand Operated Hydraulic Power Pack
Product Code
|
UTC-4810 |
Hand Operated Hydraulic Power Pack |
|
UTC-4920LP |
LPI Battery Operated Digital Read-Out Unit |
|
UTC-4810MLP |
Hand Operated Hydraulic Power Pack with LPI Battery Operated Digital Read-Out Unit |

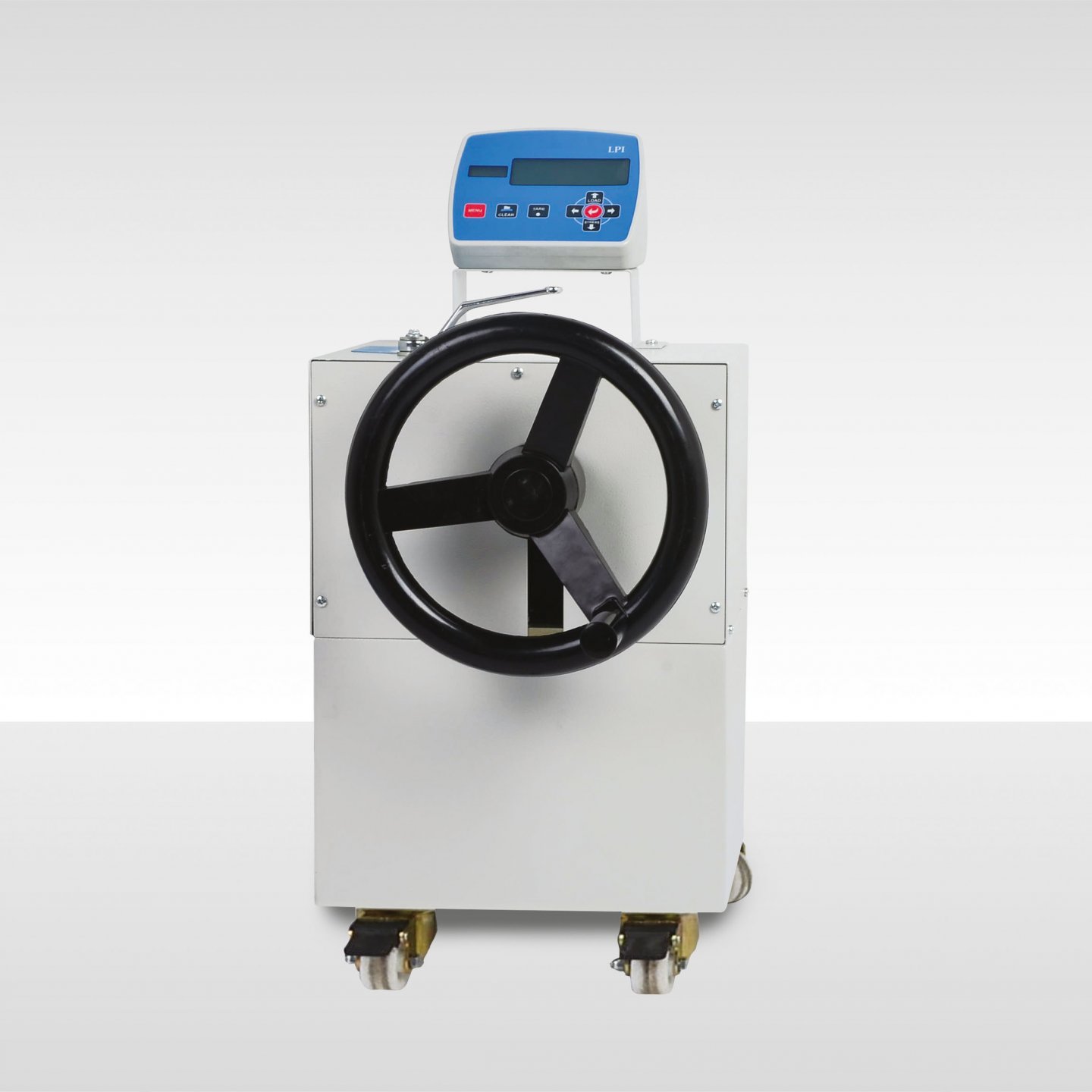

The UTC-4810 Hand Operated (Manual) Hydraulic Power Pack has been designed to be used with range of UTEST compression and flexural frames to use on site and/or where electricity is not available.
The pump is equipped with a radial piston pump so that the loading is continuous as long as the user turns the wheel installed on the pump. The loading is uniform as on an automatic machine. The user can easily load up to 400 bars with minimal effort. Maximum working pressure of system is 400 bar.
UTC-4810MLP consists of UTC-4810 and UTC-4920LP. In this application UTC-4920LP is used for reading the applied load by UTC-4810 in any frame.
The specifaications of the LPI Battery Operated Digital Read-Out Unit can be seen on UTC-4920LP page.
|
Dimensions |
300x250x500 mm |
|
Weight (approx.) |
50 kg |

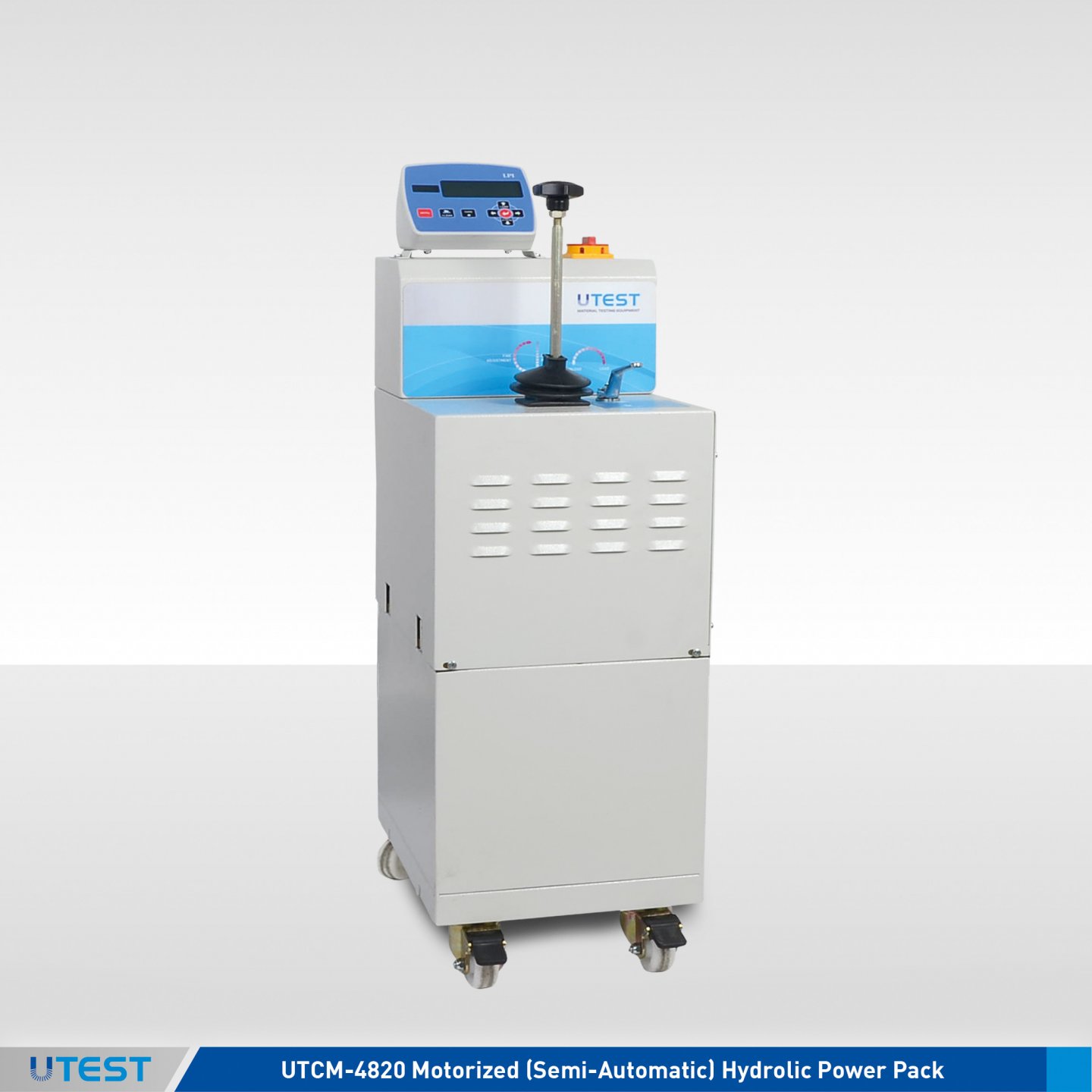

27. Motorized (Semi-Automatic) Hydrolic Power Pack
Product Code
|
UTC-4820SLP |
Semiautomatic (Motorized) Hydraulic Power Pack With LPI Battery Operated Digital Readout Unit |
|
UTC-4820 |
Motorized (Semi-Automatic) Hydrolic Power Pack |
|
UTC-4920LP |
LPI Battery Operated Digital Read-Out Unit |
|
Models for 220-240 V 50-60 Hz, 1ph. |
UTC-4820 |
|
Models for 110-120V 60 Hz, 1ph. |
UTC-4820-N |
The UTC-4820SLP Motorized (Semi-Automatic) Power Pack, controlled by a pressure rate control valve is designed to supply the required oil to the load frames for loading. The power pack can load different frames with required pace rates. A rapid approach pump is supplied as standard. The power pack is equipped with a safety valve (maximum pressure valve) to avoid machine overloading. Maximum working pressure of the system is 400 bar.
UTC-4920LP is used with UTC-4820 Motorized (Semi-Automatic) Hydrolic Power Pack for reading the applied load by pressure transducer during the compression tests.Plase see the page of UTC-4920LP “LPI Battery Operated Digital Read-Out Unit” for details of the properties.
If the UTC-4820SLP is supplied stand-alone, it comes with the UTC-4822 (Equipment Set to make UTC-4820 and UTC-4820SLP mobile).
UTC-4820 and UTC-4920LP should be ordered separately for the supply of UTC-4920.SLP.
DUAL STAGE PUMP
- Low pressure gear pump
- High pressure durable variable output pump
On the dual stage pump, a high delivery low pressure gear pump is used for rapid approach, while a low delivery high pressure durable variable output pump is used for test execution. Rapid approach property of the machine shortens the time interval from when the piston starts moving until the upper platen touches the specimen and helps to save a great amount of time in a busy test laboratory.
MOTOR
- Dual pump is driven by an AC motor
- 220 V (110 V), 50-60 Hz single phase and 550 W
DISTRIBUTION BLOCK
- Safety valve (maximum pressure valve)
- Pressure relief valve
A distribution block is used to control the oil flow direction supplied by the dual stage pump which has the safety valve and pressure relief valve mounted upon it.
OIL TANK
The tank (20 L capacity) includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil temperature can be seen on the indicator fitted to the tank. Hydraulic motor oil number 46, must be used.
SAFETY FEATURES
- Maximum pressure valves to avoid machine overloading
|
Dimensions |
300x420x850 mm |
|
Weight (approx.) |
70 kg |
|
Power |
550 W |

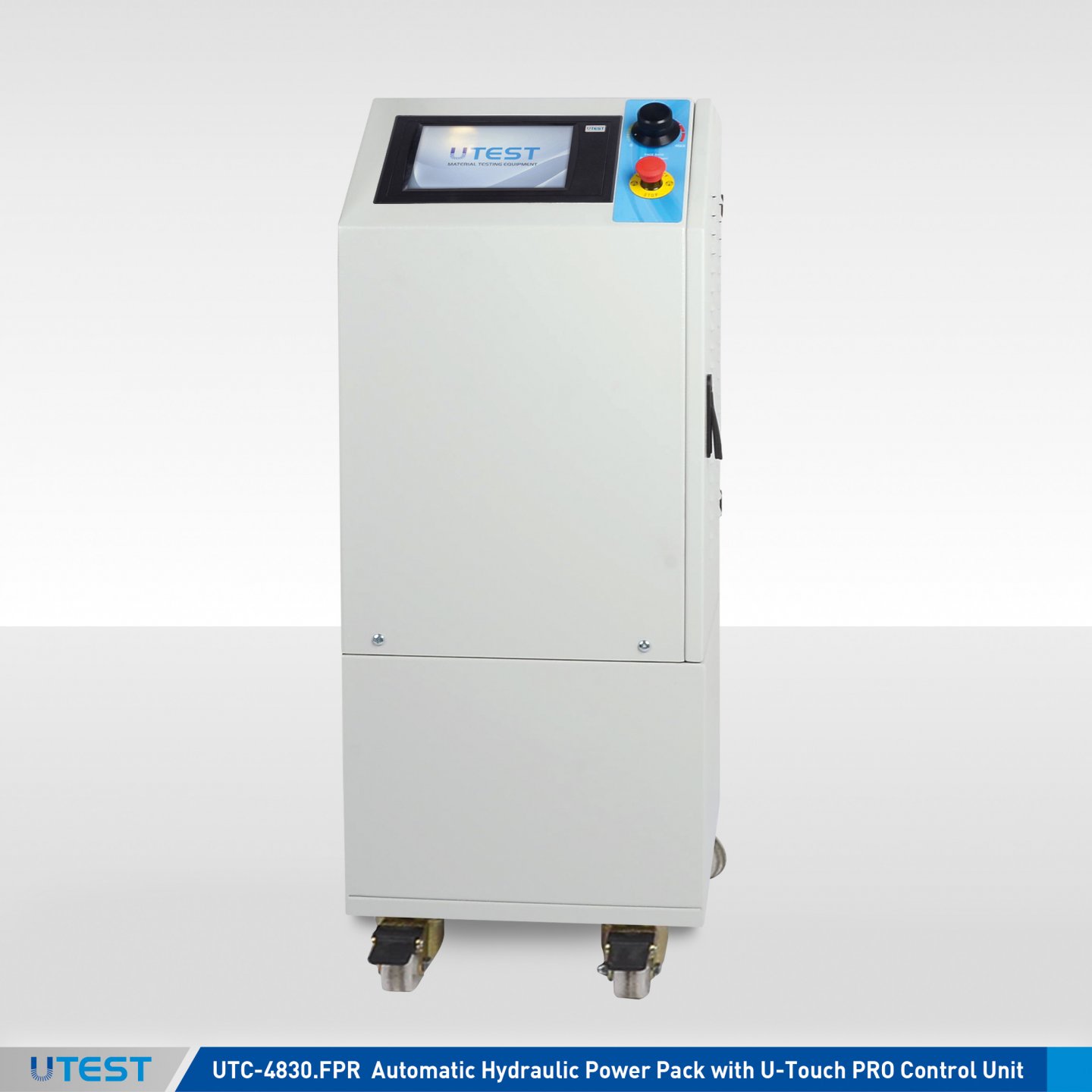

28. Automatic Hydraulic Power Pack with U-Touch PRO Control Unit
Product Code
|
UTC-4830.FPR |
Automatic Hydraulic Power Pack with U-Touch PRO Control Unit |
|
UTC-4840.FPR |

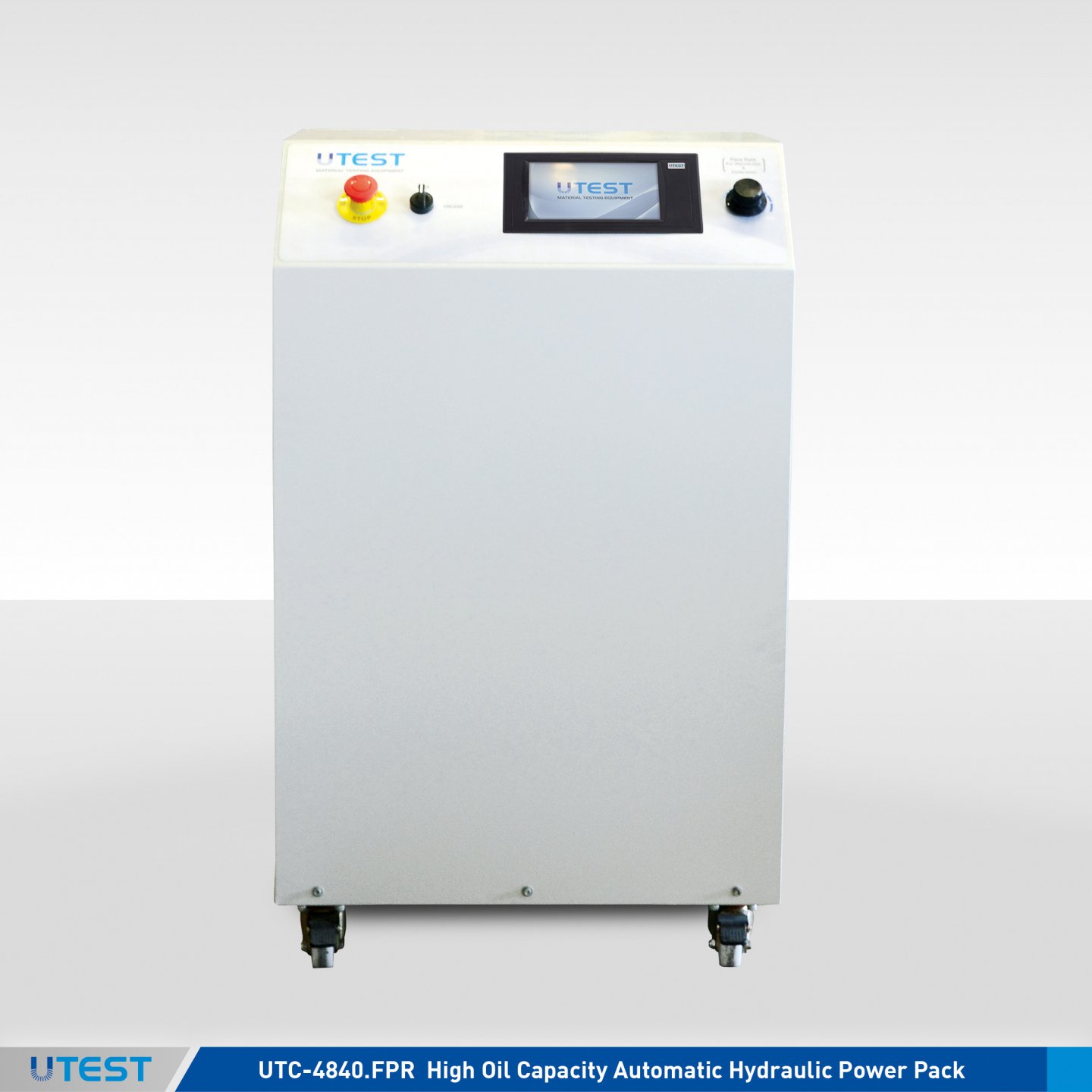

High Oil Capacity Automatic Hydraulic Power Pack with U-Touch PRO Control Unit for the Frames with Double Ended Pistons |
|
UTC-4841.FPR |
High Oil Capacity Automatic Hydraulic Power Pack with U-Touch PRO Control Unit for the Frames with Single Ended Pistons |
|
Models for 220-240V 50-60 Hz, 1ph. |
UTC-4830.FPR |
UTC-4840.FPR |
UTC-4841.FPR |
|
Models for 110-120V 60 Hz, 1ph. |
UTC-4830.FPR-N |
UTC-4840.FPR-N |
UTC-4841.FPR-N |
The UTC-4830FPR Automatic Hydraulic Power Pack, dual stage, controlled by U-Touch PRO Control Unit is designed to supply the required oil to the load frames for loading. The power pack is very silent, even at full load A rapid approach pump is supplied as standard. A safety valve (maximum pressure valve) is used to avoid machine overloading.
The UTC-4840FPR and UTC-4841FPR have the same specifications with UTC-4830FPR except for high oil capacity. As the name suggests, UTC-4840FPR is used with the frames with double ended pistons and UTC-4841FPR is used with the frames with single ended pistons.
If the UTC-4830.FPR or UTC-4840.FPR or UTC-4841.FPR is supplied stand-alone, it comes with the UTC-4832 (Equipment Set to make UTC-4820 and UTC-4820SLP mobile).
DUAL STAGE PUMP
- Low pressure gear pump
- High pressure durable variable output pump
On the dual stage pump, a high delivery low pressure gear pump is used for rapid approach, while low delivery high pressure radial piston pump is used for test execution. Rapid approach facility of the machine shortens the time interval from when the piston starts moving until the upper platen touches to the specimen, this facility saves a great amount of time in a busy test laboratory.
MOTOR
The motor which drives the dual pump is a 0.75 kW AC motor which is controlled by an Omron J7 motor inverter. The variation in the oil flow is executed with the variation of the rotation speed of the motor.
DISTRIBUTION BLOCK
Distribution block is used to control the oil flow direction supplied by the dual stage pump and the following hydraulic components are fitted to it:
a - Solenoid valve
b - Safety valve (maximum pressure valve)
c - Transducer
d - Low pressure gear pump
e - High pressure radial piston pump
OIL TANK
The tank includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil temperature can be seen on the indicator fitted to the tank. The oil capacity of the tank is 20 lt. for UTC-4830FPR and and 32 lt. for UTC-4840 FPR. Hydraulic motor oil, number 46, must be used.

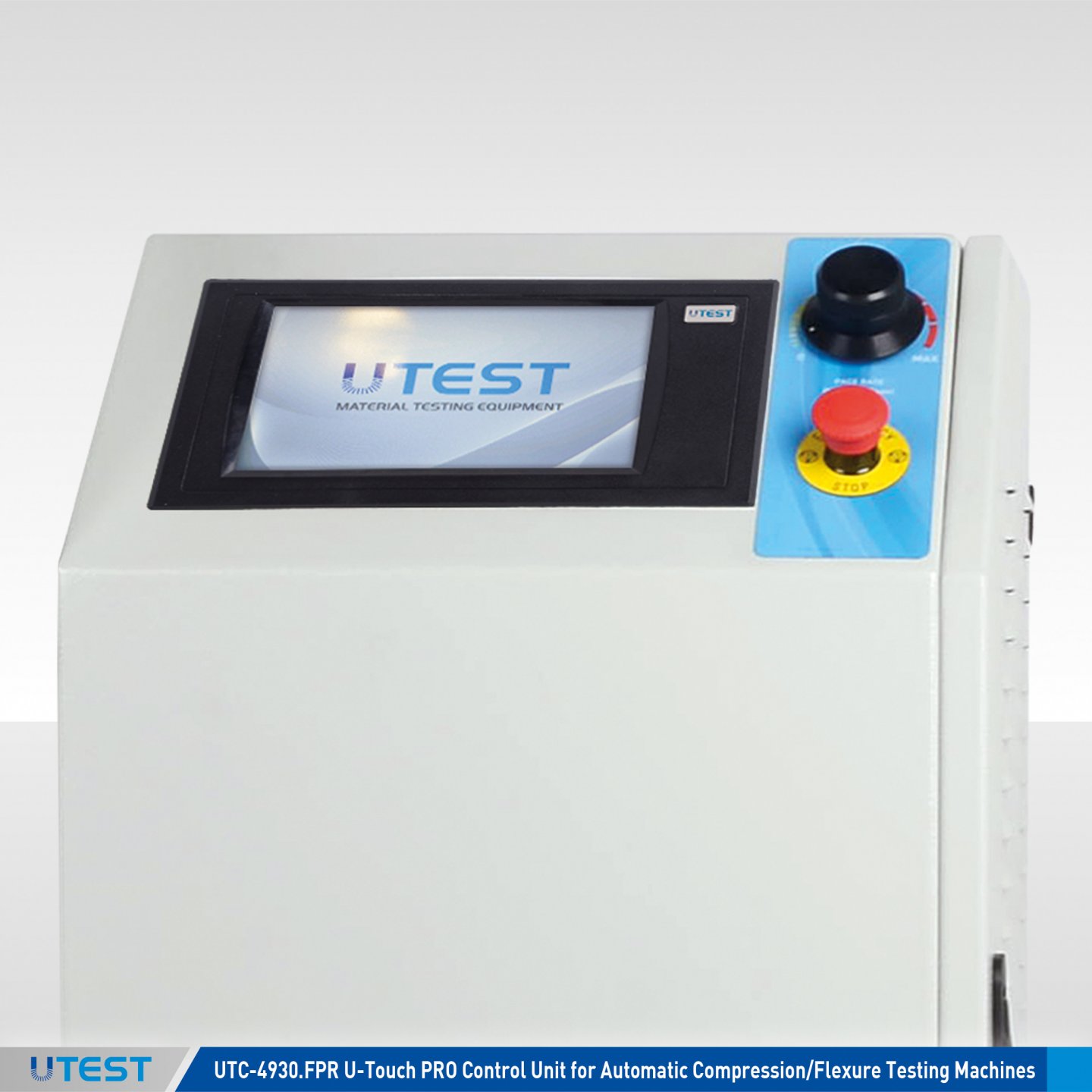

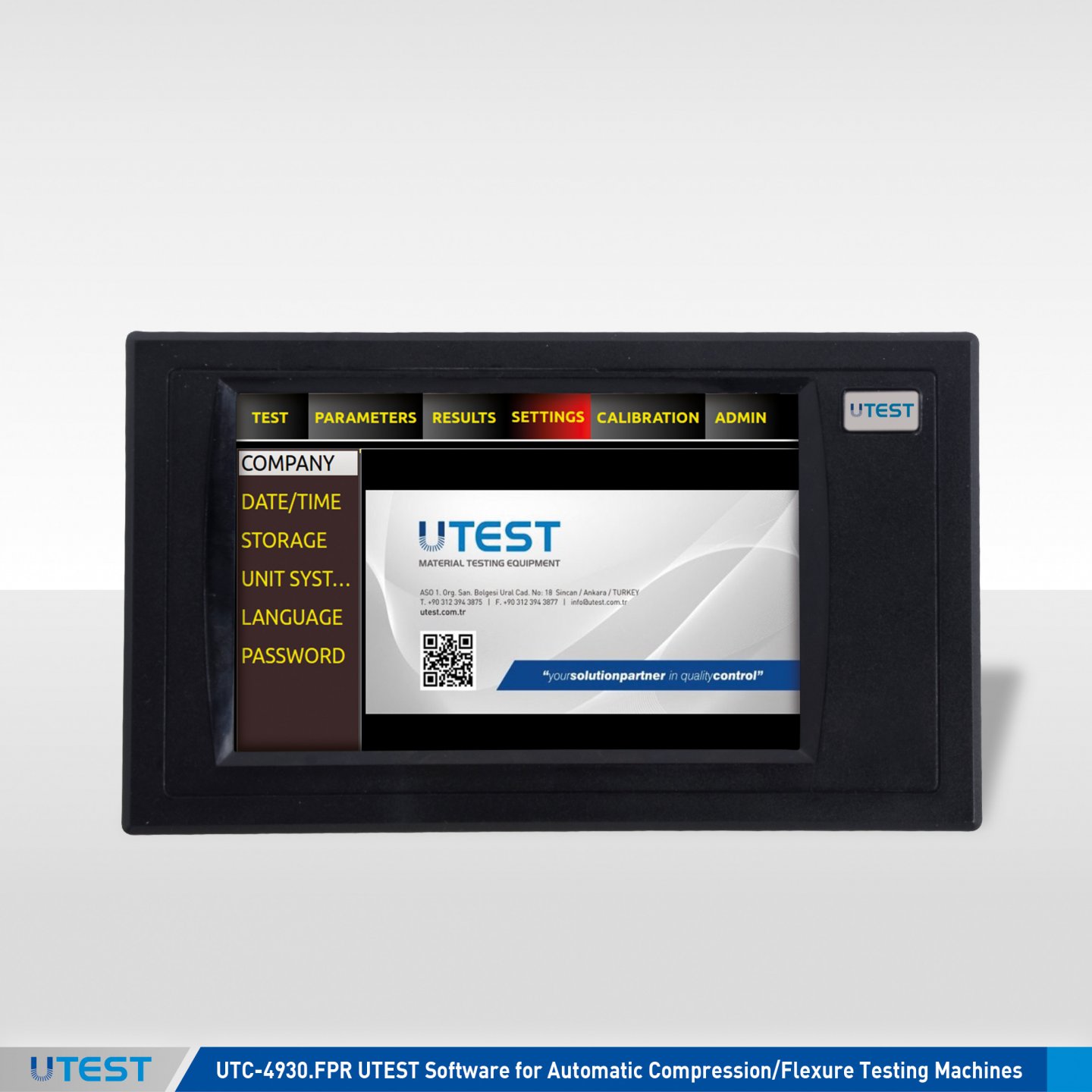

PLEASE see the pages of “U-Touch PRO Control Unit UTC-4930.FPR” for details of the properties.
UTC-4830FPR UTC-4840FPR
|
|
UTC-4830FPR |
UTC-4840FPR |
|
Dimensions |
370x400x920 mm |
605x455x1015 mm |
|
Weight (approx.) |
85 kg |
150 kg |
|
Power |
1000 W |
1000 W |

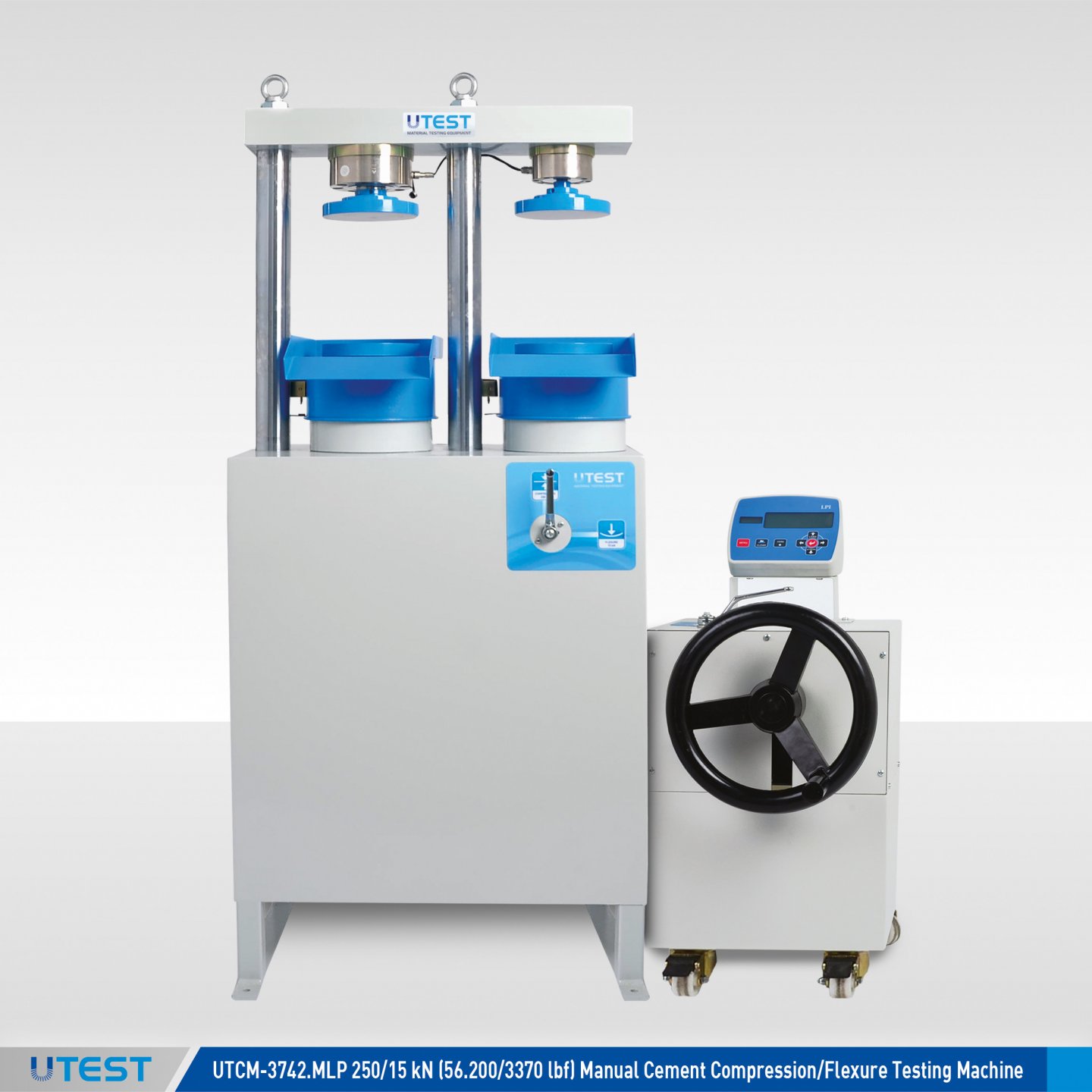

29. MANUEL Cement Compression & Flexure Testing Machines
Product Code
|

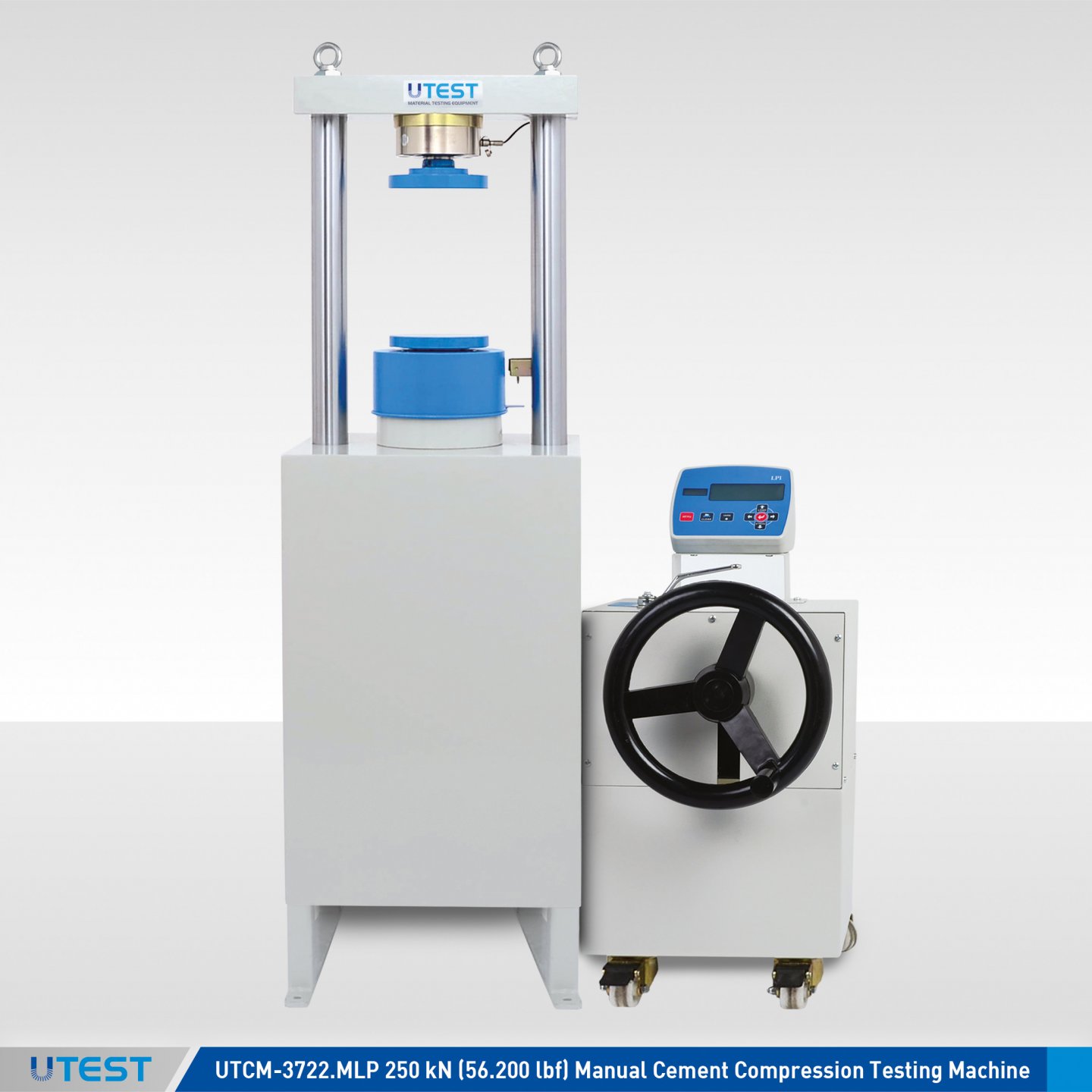

UTCM-3722.MLP |
250 kN (56.200 lbf) Manual Cement Compression Testing Machine |
|
UTCM-3742.MLP |
250/15 kN (56.200/3370 lbf) Manual Cement Compression/Flexure Testing Machine |
|
UTCM-4200A |

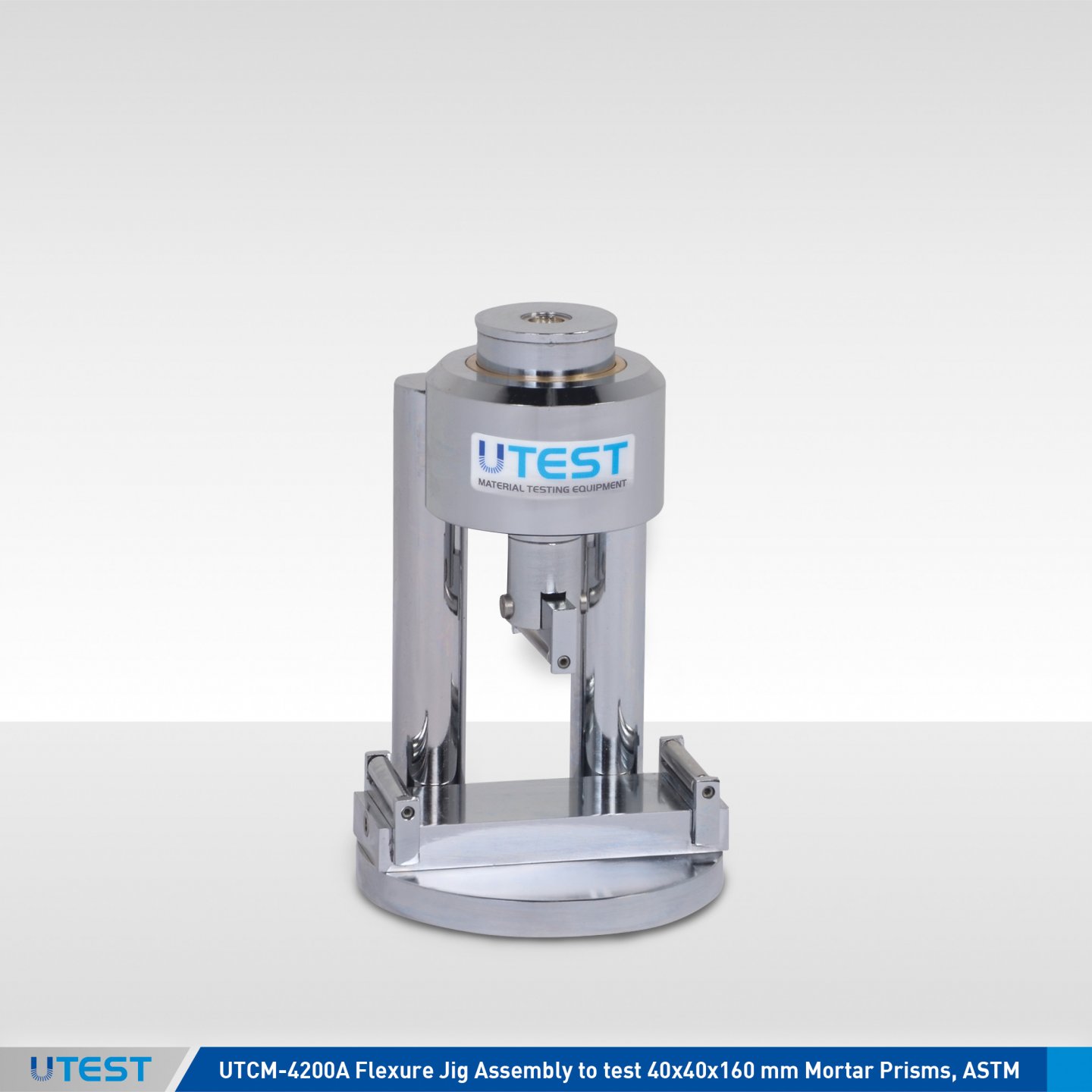

Flexure Jig Assembly to test 40x40x160 mm prisms, ASTM |
|
UTCM-4200E |
Flexure Jig Assembly to test 40.1x40x160 mm prisms, EN |
|
UTCM-4210A |
Compression Jig Assembly to test 50 mm (2”) cubes |
|
UTCM-4210E |

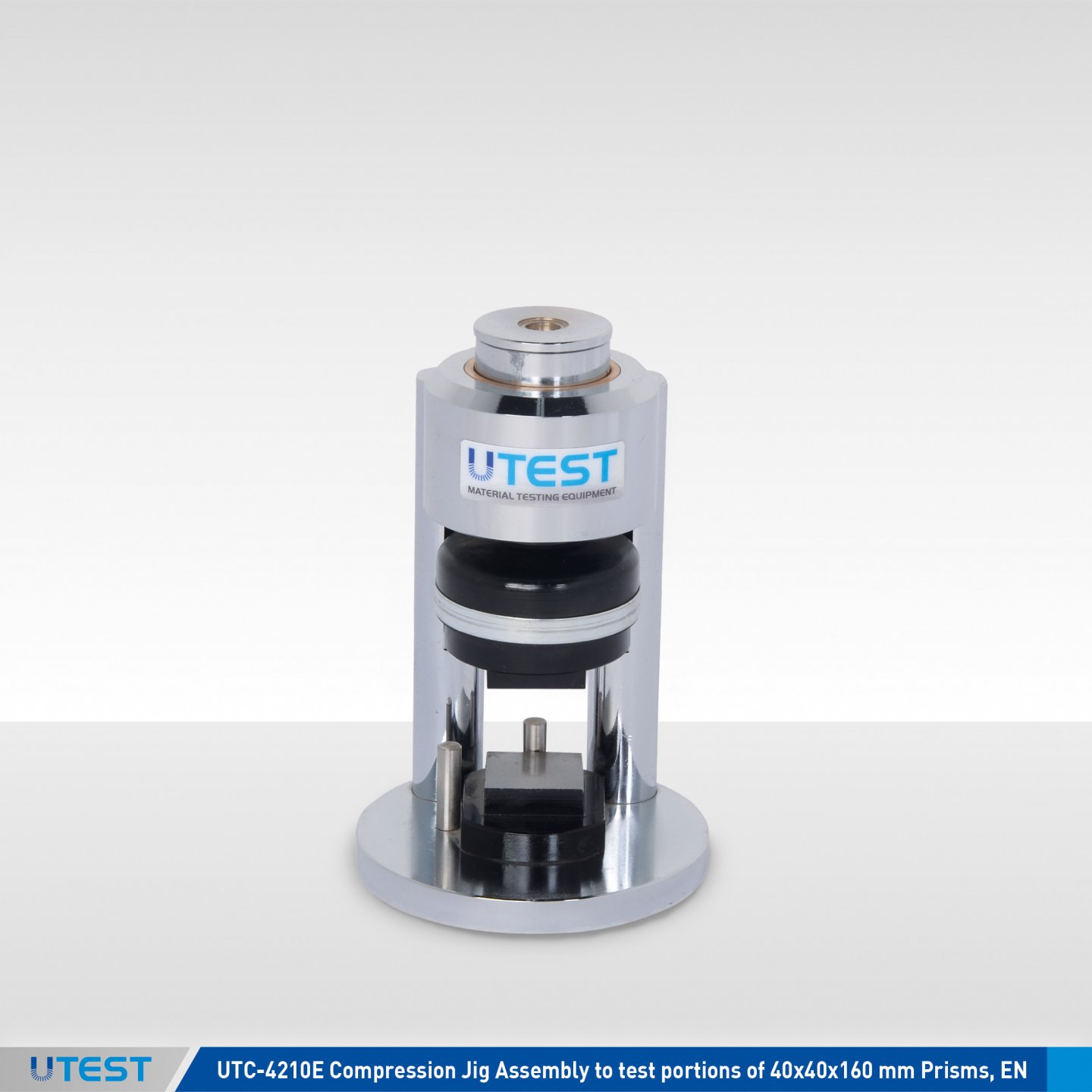

Compression Jig Assembly to test portions of 40.1x40x160 mm prisms, EN |
|
UTCM-4210B |
Compression Jig Assembly BS, to test 70,7 mm cubes |
|
UTCM-3724 |
Transparent Front-Rear Safety Doors for UTCM-3722 |
|
UTCM-3744 |
Transparent Front-Rear Safety Doors for UTCM-3722 |
Standards
EN 196-1, 459-2, 1015-11, 13454-2, 13892-2; ASTM C109, C348, C349; BS 4550-3.4
The UTCM-3722.MLP and UTCM-3742.MLP single and double testing chamber Manual compression and flexure testing machines are designed to perform reliable strength and flexure tests on mortar specimens. The manual machines are especially suitable for on-site applications when electric power supply is not available.
Being a low cost alternative, UTEST manual testing series combine precision and simplicity with the unique design of the manual power pack which enables even an inexperienced operator to perform excellent compression and flexure tests on-site.
These manual testing machines conform to the standards EN 196-1, 459-2, 1015-11, 13454-2; ASTM C 109, C348, C349 by using suitable accessories. They also meet with the requirements of CE norms with respect to operator health and safety.
The UTEST manuel cement compression and flexure testing machines consist of very rigid two column single or double chamber frame, manuel power pack and data acquisition system LPI.
Compression and flexture jigs, distance pieces, and also removable transparent front-rear safety doors (should be factory installed) should be ordered separately.
Manuel Power Pack
The Hand Operated (Manual) Hydraulic Power Pack has been designed to be used with range of UTEST Compression machines and flexural frames to use on site and/or where electricity is not available.
The pump is equipped with a radial piston pump so that the loading is continuous as long as user turns the wheel installed on the pump. The loading is uniform as on an automatic machine.

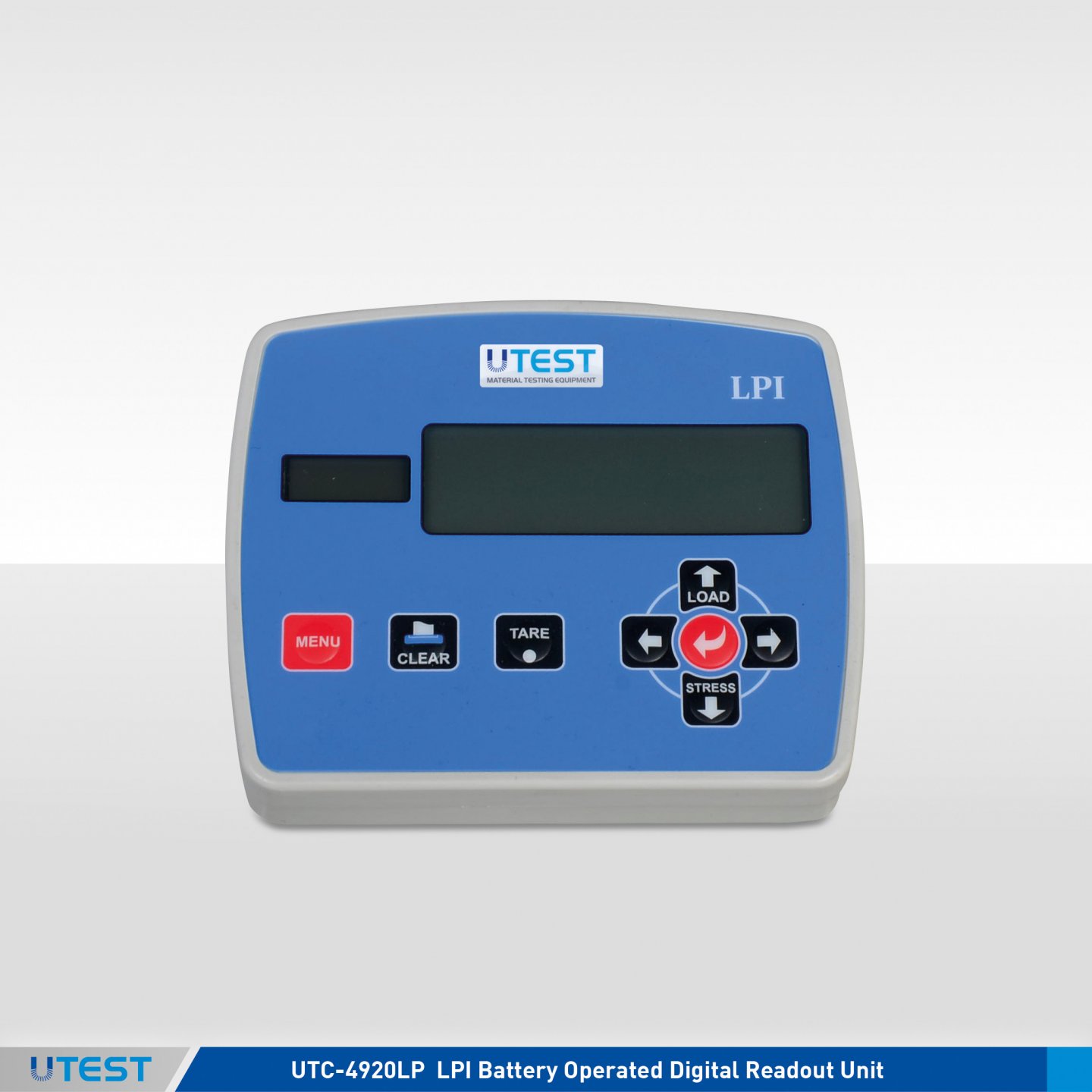

LPI Battery Operated Digital Readout Unit
The LPI Battery Operated Digital Readout Unit (UTC-4920LP) has been designed to use with load cells or pressure transducers on different material test applications.
The unit is operates with DC voltage source of -1,5 to 1,5 volts.
- Real time numeric display of load and load rate
- 1 channel with two different calibration table (by changing the sensor belong to other frame, the unit can be control for second test frame)
- Peak hold property
- Multi-point calibration
- Can operate with 2 x AA batteries
- Easy preload zeroing
- Serial port for PC or printer
- 8 keys keyboard
Technical Specifications
|
Model |
UTCM-3722 |
UTCM-3742 |
|
|
Test Type |
Compression |
Flexure |
Compression |
|
Capacity |
250 kN (56.200 lbf) |
15 kN (3370 lbf) |
250 kN(56.200 lbf) |
|
Class 1 Measuring Range |
1 % for 250 kN |
1 % for 15 kN |
1 % for 50 kN |
|
The Roughness Value for Texture of Loading Platens |
≤3.2 μm |
≤3.2 μm |
≤3.2 μm |
|
Lower Platen Dimensions |
165 mm (6,5”) |
165 mm (6,5”) |
165 mm (6,5”) |
|
Upper (spherical seated) Platen Dimensions |
165 mm (6,5”) |
165 mm (6,5”) |
165 mm (6,5”) |
|
Maximum Vertical Clearance Between Platens |
237 mm (9,3”) |
237 mm (9,3”) |
237 mm (9,3”) |
|
Piston Diameter |
Ø160 mm (6,3”) |
Ø160 mm (6,3”) |
Ø160 mm (6,3”) |
|
Maximum Piston Movement with Limit Switch |
20 mm (1,18”) |
20 mm (1,18”) |
20 mm (1,18”) |
|
Horizontal Clearance |
300 mm (11,8”) |
274 mm (10,8”) |
266 mm (10,47”) |
|
Oil Capacity |
13 L |
13 L |
|
|
Rapid Approach Rate |
50 mm/min 2 inc/min |
80 mm/min 3,15 inc/min |
50 mm/min 2 inc /min |
|
Dimensions (WxLxH) |
760x500x1580 mm (30”x19,7”x62,2”) |
950x500x1580 mm ( 37,4”x19,7”x62,2”) |
|
|
Weight |
230 kg (518 lbs) |
320 kg (705 lbs) |
|
The Maximum horizontal clearance for placing the sample is limited by the border of the platens. Sample must be placed such that its ends will not overlap the ends of platens and it must be centered perfectly.The minimum vertical clearance for the specimen can be adjusted using the distance pieces.

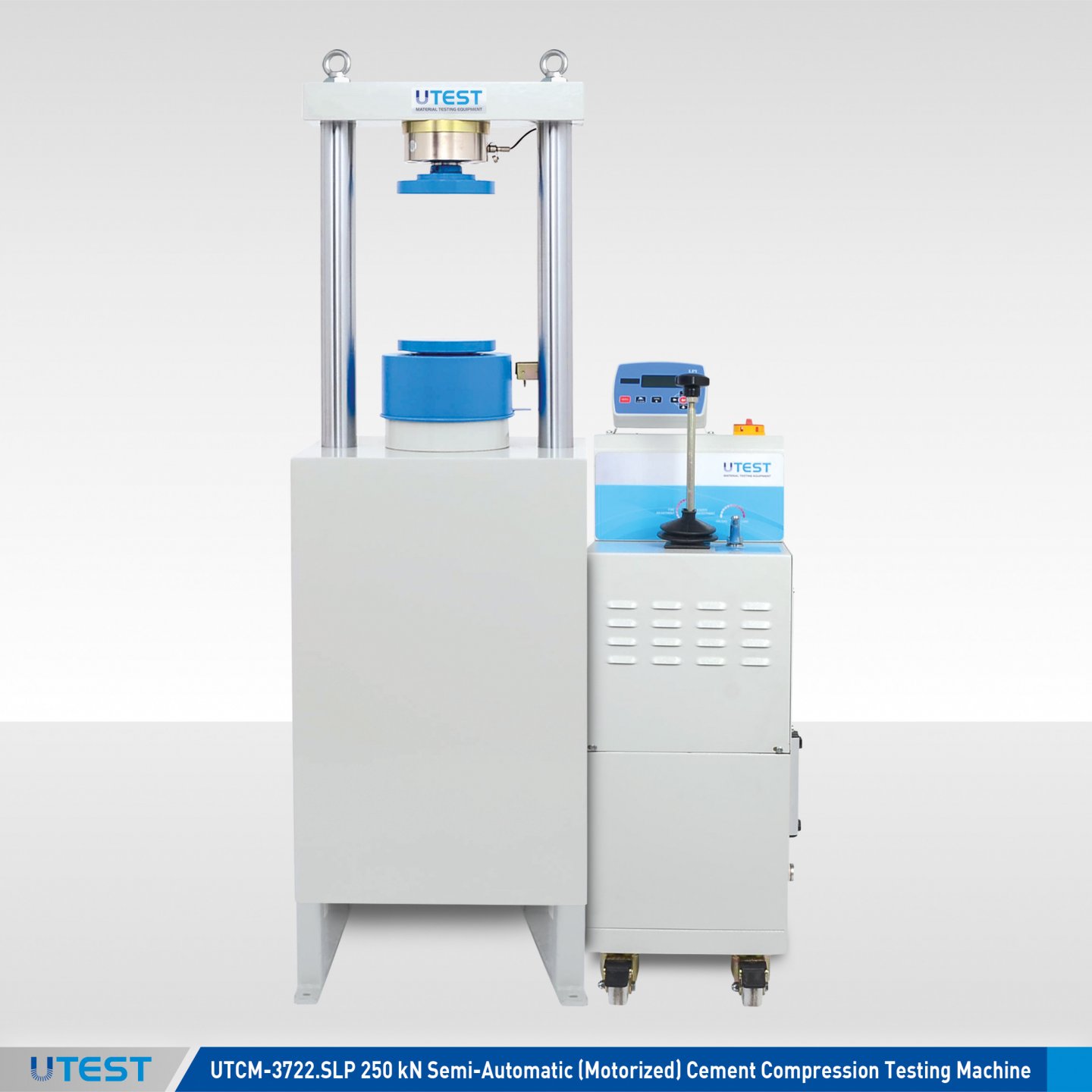

30. SEMI-AUTOMATIC (Motorized) Cement Compression & Flexure Testing Machines
Product Code
|
UTCM-3722.SLP |
250 kN (56.200 lbf) Semi-Automatic (Motorized) Cement Compression Testing Machine |
|
UTCM-3742.SLP |
15/250 kN ( 56.200/3370 lbf) Semi-Automatic (Motorized) Cement Flexure Compression Testing |
|
UTCM-4200E |
Flexure Jig Assembly to test 40,1x40x160 mm prisms, EN |
|
UTCM-4200A |
Flexure Jig Assembly to test 40x40x160 mm prisms, ASTM |
|
UTCM-4210E |
Compression Jig Assembly to test portions of 40.1x40x160 mm prisms, EN |
|
UTCM-4210A |
Compression Jig Assembly to test 50 mm (2”) cubes |
|
UTCM-4210B |
Compression Jig Assembly BS, to test 70,7 mm cubes |
|
UTCM-3724 |
Transparent Front-Rear Safety Doors for UTCM-3722 |
|
UTCM-3744 |
Transparent Front-Rear Safety Doors for UTCM-3742 |
|
Models for 220-240V 50-60 Hz, 1ph. |
UTCM-3722.SLP |
UTCM-3742.SLP |
|
Models for 110-120V 60 Hz, 1ph. |
UTCM-3722.SLP-N |
UTCM-3742.SLP-N |
Standards
EN 196-1, 459-2, 1015-11, 13454-2, 13892-2; ASTM C109, C348, C349; BS 4550-3.4
The UTEST Semi-Automatic (Motorized) range of single testing chamber and double testing chamber compression and flexure testing machines have been designed for reliable and consistent testing of mortar samples. These compression and flexure testers are the results of continuous applications and research studies to upgrade the machines with the latest technologies and conform with current standards EN 196-1, 459-2, 1015-11, 13454-2; ASTM C 109, C348, C349 and BS 3892-1, 4551-1 in terms of its technical properties taking into account client requirements by using suitable accessories. These testers also meet the requirements of CE norms for safety and health of the operator.
The UTEST Semi-Automatic cement compression and flexure testing machines allow operators who have minimal experience to perform the tests.
The UTEST Semi-Automatic cement compression and flexure testing machines consist of a very rigid two column single or double chamber frame and UTC-4820SLP hydraulic powerpack with LPI Battery Operated Digital Readout Unit.
Compression and flexure jigs, distance pieces, and also removable transparent front-rear safety doors (should be factory installed) should be ordered separately.
Power Pack
The Power Pack of the Semi-Automatic (Motorized) Cement Compression Testing Machine controlled by a pressure rate control valve, is designed to supply the required oil to the load frames for loading. The power pack can load different frames with required pace rates. A rapid approach pump is supplied as standard. The power pack is equipped with a safety valve (maximum pressure valve) to avoid machine overloading.
The dual stage pump is formed by two groups, one is low pressure gear pump and second high pressure radial piston pump.
On the dual stage pump, high delivery low pressure gear pump is used for rapid approach, while low delivery high pressure durable variable output pump is used for test execution. Rapid approach property of the machine shortens the time interval from the piston starts moving until the upper platen touches to the specimen and helps to save a great amount of time in case of numerous specimens are going to be tested.
The motor which drives the dual pump is an AC motor and 0.55 kW.
A distribution block is used to control the oil flow direction supplied by the dual stage pump and those are are fitted to solenoid valve, safety valve (maximum pressure valve), low pressure gear pump and high pressure radial piston pump
The tank (20 L capacity) includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil temperature can be seen on the indicator fitted to the tank. Hydraulic motor oil number 46, must be used in the tank.
LPI Battery Operated Digital Readout Unit
The LPI Battery Operated Digital Readout Unit (UTC-4920LP) has been designed to use with load cells or pressure transducers on different material test applications.
The unit is operates with DC voltage source of -1,5 to 1,5 volts.
- Real time numeric display of load and load rate
- 1 channel with two different calibration table (by changing the sensor belong to other frame, the unit can be control for second test frame)
- Peak hold property
- Multi-point calibration
- Can operate with 2 x AA batteries
- Easy preload zeroing
- Serial port for PC or printer
- 8 keys keyboard
Main Features
- Class A (ASTM) starting from with the 1 % of the 250 kN and 15 kN capacity Multi-point calibration
- Multi-point calibration
- 2 channels for load-cell or pressure transducer with two different calibration table (LPI Battery Operated Digital Readout Unit (UTC-4920LP)
- Real time numeric display of load and load pressure
- Peak hold property
- RS232 Serial port for PC or thermal or dot matrix printer
- Free of charge Utest software for compression/flexture testing machines(USOFT-4820.SLP) for compression, flexture, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonary units
Safety Features
- Maximum pressure valves to avoid machine overloading
- Piston travel limit switch
- Removable transparent front-rear safety doors (Should be factory installed and ordered separately)
Utest Software for Semi-Automatic Cement Compression/Flexure Tests (USOFT-3722.SLP)
USOFT-3722.SLP Test Software is improved for semi-automatic cement compression and flexural testing machineswith LPI Battery Operated Digital Readout Unit durring the test to collect and record data and to prepare the report containing the results obtained.Before the test, a PC which the Utest software is installed is connected to RS232 port of LPI reading unit, the data obtained in the test can be monitored and recorded in real time. The advanced functions for data base management provide an easy navigation of all saved data. Test report including the test results and user defined test information (names and the Company details, test type, specimen type, user info and other knowledge required) can be print out.
Technical Specifications
|
Model |
UTCM-3722.SLP |
UTCM-3742.SLP |
|
|
Test Type |
Compression |
Flexure |
Compression |
|
Capacity |
250 kN (56.200 lbf) |
15 kN (3370 lbf) |
250 kN (56.200 lbf) |
|
Class 1 Measuring Range |
1 % for 250 kN |
1 % for 15 kN |
1 % for 50 kN |
|
The Roughness Value for Texture of Loading Platens |
≤ 3.2 µm |
≤ 3.2 µm |
≤ 3.2 µm |
|
Lower Platen Dimensions |
Ø165 mm (6,5”) |
Ø165 mm (6,5”) |
Ø165 mm (6,5”) |
|
Upper Platen Dimensions |
Ø165 mm (6,5”) |
Ø165 mm (6,5”) |
Ø165 mm (6,5”) |
|
Maximum Vertical Clearance Between Platens |
237 mm (9,3”) |
237 mm (9,3”) |
237 mm (9,3”) |
|
Piston Diameter |
Ø160 mm (6,3”) |
Ø160 mm (6,3”) |
Ø160 mm (6,3”) |
|
Maximum Piston Movement with Limit Switch |
20 mm (1,18”) |
20 mm (1,18”) |
20 mm (1,18”) |
|
Horizontal Clearance |
300 mm (11,8”) |
274 mm (10,8”) |
266 mm (10,47”) |
|
Power |
550 W |
550 W |
|
|
Oil Capacity |
20 L (0,7 ft3) |
20 L (0,7 ft3) |
|
|
Maximum Working Pressure |
125 bar |
30 - 125 bar |
|
|
Rapid Approach Rate |
50 mm/min 2 inc/min |
80 mm/min 3,15 icn/min |
50 mm/min 2 inc /min |
|
Dimensions (WxLxH) |
760x500x1580 mm (30”x19,7”x62,2”) |
950x500x1580 mm ( 37,4”x19,7”x62,2”) |
|
|
Weight |
255 kg (562 lbs) |
350 kg (772 lbs) |
|
The Maximum horizontal clearance for placing the sample is limited by the border of the platens. Sample must be placed such that its ends will not overlap the ends of platens and it must be centered perfectly. The suitable vertical clearance for the specimen can be adjusted using the distance pieces.
31. AUTOMATIC Cement Compression & Flexure Testing Machines
Product Code
|
UTCM-3722.FPR |
250 kN (56.200 lbf) Automatic Cement Compression Testing Machine |
|
UTCM-3742.FPR |
15/250 kN ( 56.200/3370 lbf) Automatic Cement Flexure/Compression Testing Machine |
|
UTCM-4200A |
Flexure Jig Assembly to test 40x40x160 mm prisms, ASTM |
|
UTCM-4200E |
Flexure Jig Assembly to test 40.1x40x160 mm prisms, EN |
|
UTCM-4210A |
Compression Jig Assembly to test 50 mm (2”) cubes |
|
UTCM-4210E |
Compression Jig Assembly to test portions of 40.1x40x160 mm prisms, EN |
|
UTCM-4210B |
Compression Jig Assembly BS, to test 70,7 mm cubes |
|
UTCM-3724 |
Transparent Front-Rear Safety Doors for UTCM-3722 |
|
UTCM-3744 |
Transparent Front-Rear Safety Doors for UTCM-3742 |
|
Models for 220-240 V 50-60 Hz, 1ph. |
UTCM-3722.FPR |
UTCM-3742 FPR |
|
Models for 110-120 V 60Hz, 1ph. |
UTCM-3722.FPR-N |
UTCM-3742.FPR-N |
Standards
EN 196-1, 459-2, 1015-11, 13454-2, 13892-2; ASTM C109, C348, C349; BS 4550-3.4

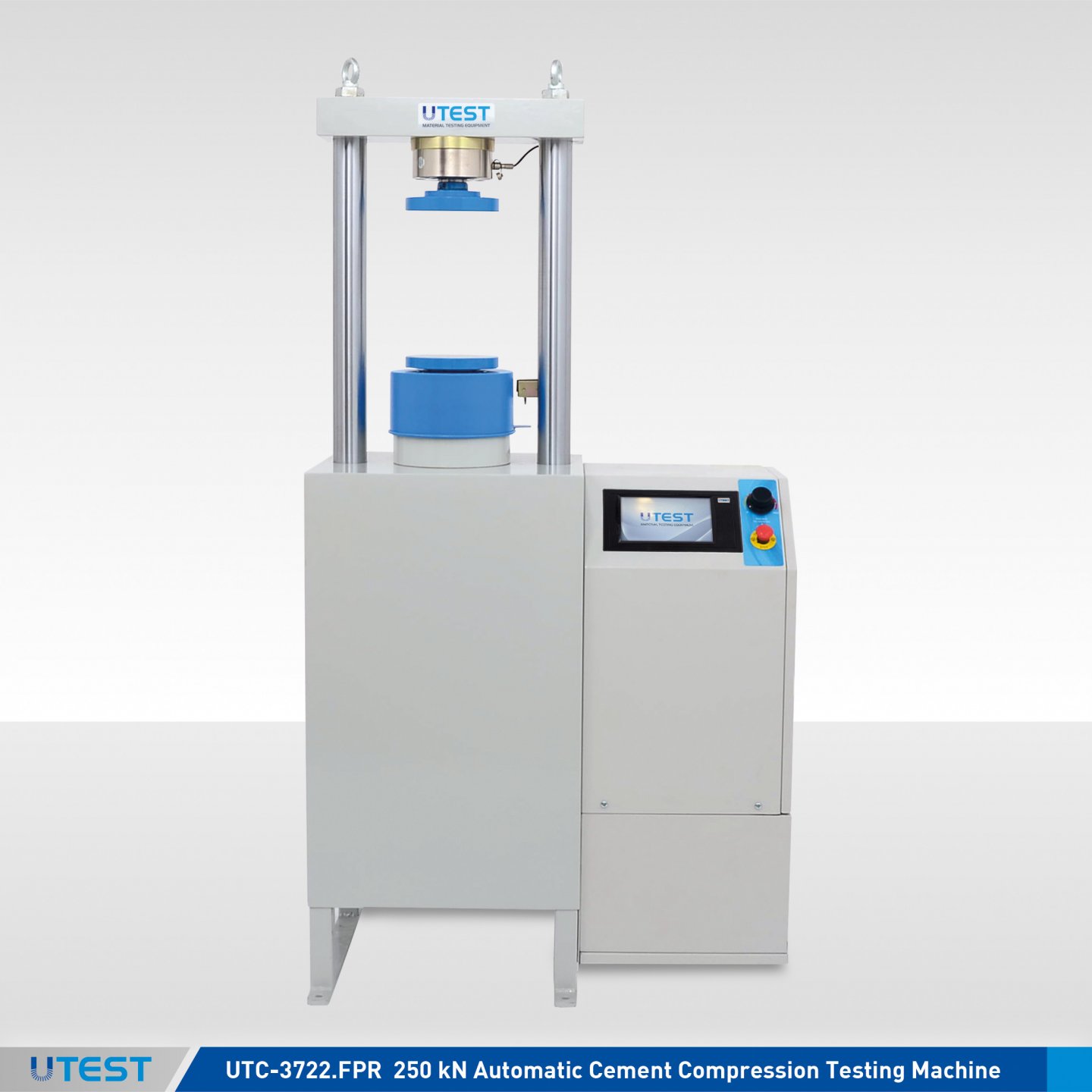

The UTEST Automatic range of single testing chamber and double testing chamber compression and flexure testing machines have been designed for reliable and consistent testing of mortar samples. These compression and flexure testers are the results of continuous applications and research studies to upgrade the machines with the latest technologies and conform the current standards EN 196-1, 459-2, 1015-11, 13454- 2; ASTM C 109, C348, C349 in terms of its technical properties taking into account client requirements by using suitable accessories. These machines also meet the requirements of CE norms for safety and health of the operator.
Tests can be performed by either on UTC-4930.FPR U-Touch Control Unit or on a computer with using USOFT-4830.FPR Software which is provided free of charge with the machines. The advantages of performing tests on computer with using UTEST Software, such as reporting, graphical output, etc. can be seen in detail at the USOFT-4830.FPR pages. (The UTEST Software for Automatic Compression / Flexure Testing Machines with UTC-4830FPR Hydrolic Power Pack)
Compression and flexture jigs, distance pieces, and also removable transparent front-rear safety doors (should be factory installed) should be ordered separately.
The UTEST automatic cement compression and flexure testing machines allow less experienced operators to perform the tests. Once the machine has been switched on and the specimen is positioned and centered by the help of centering apparatus. The only required operations are;
- Setting test parameters, including pace rate (only required when the specimen type is changed.)
- Choosing the compression or flexure frame by using the changeover valve.
- Pressing the START button on the control unit.
- The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure.
- Automatically saves the test parameters and test results.
The UTEST automatic cement compression and flexure testing machines consist of very rigid two column single or double chamber frames (see table) and an automatic hydraulic power pack with U-Touch Control Unit
Main Features
- Pace rate control from 50 N/sec (flexture) to 2,4 kN/sec (compression)
- Load measurement accuracy Class 1 acc.to EN ISO 7500-1) and Class A acc to ASTM E74 starting from with the 1 %. for 250 kN and 15 kN capacity
- Supplied with factory calibration certificate for load measurement
- Closed loop control with automatic test procedure.
- Can make the test with load control
- Stand-Alone control or computer control
- Free of charge Utest software(USOFT-4830.FPR) for the tests
- Load measurment with the load cell.
- Hydrolic pump with dual stage for rapid approach
- Piston return at the end of test automatically
- Adjustable rapid approach rate
U-Touch Control Unit for Automatic Compression/Flexure Testing Machines
U-Touch Control Unit UTC-4930.FPR is designed to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as cement mortar, concrete, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.
All the operations of U-Touch are controlled from the front panel touch screen display.
U-Touch Control Unit has easy to use menu options. It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters. Digital graphic display is able to draw real-time "Load vs. Time", or "Stress vs. Time" graphics
PLEASE see the pages of “U-Touch Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.
UTEST Software for Automatic Compression / Flexure Testing Machines
UTEST software USOFT-4830.FPR provides to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.
The advantages of performing tests on computer with using UTEST Software, such as reporting, graphical output, etc. can be seen in detail at the pages of UTEST Software for Automatic Compression / Flexure Testing Machines.
Safety Features
- Maximum pressure valves to avoid machine overloading
- Piston travel limit switch
- Emergency stop button
- Software controlled maximum load value
- Removable transparent front-rear safety doors (Should be factory installed and ordered separately)
Technical Specifications
|
Model |
UTCM-3722.FPR |
UTCM-3742.FPR |
|
|
Test Type |
Compression |
Flexure |
Compression |
|
Capacity |
250 kN (56.200 lbf) |
15 kN (3370 lbf) |
250 kN (56.200 lbf) |
|
The Roughness Value for Texture of Loading Platens |
≤3.2 μm |
≤3.2 μm |
≤3.2 μm |
|
Lower Platen Dimensions |
Ø165 mm (6,5”) |
Ø165 mm (6,5”) |
Ø165 mm (6,5”) |
|
Upper Platen Dimensions |
Ø165 mm (6,5”) |
Ø165 mm (6,5”) |
Ø165 mm (6,5”) |
|
Maximum Vertical Clearance Between Platens |
237 mm (9,3”) |
237 mm (9,3”) |
237 mm (9,3”) |
|
Piston Diameter |
Ø160 mm (6,3”) |
Ø160 mm (6,3”) |
Ø160 mm (6,3”) |
|
Maximum Piston Movement |
20 mm (1,18”) |
20 mm (1,18”) |
20 mm (1,18”) |
|
Horizontal Clearance |
300 mm (11,8”) |
274 mm (10,8”) |
266 mm (10,47”) |
|
Power |
750 W |
750 W |
|
|
Oil Capacity |
20 L (0,7 ft3) |
20 L (0,7 ft3) |
|
|
Maximum Working Pressure |
125 bar |
30 - 125 bar |
|
|
Rapid Approach Rate |
50 mm/min 2 inc/min |
80 mm/min 3,15 icn/min |
50 mm/min 2 inc /min |
|
Dimensions (WxLxH) |
830x500x1580 mm (32,7”x19,7”x62,2”) |
1020x500x1580 mm (40,2”x19,7”x62,2”) |
|
|
Weight |
270 kg (595 lbs) |
365 kg (805 lb) |
|
32. U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines
Product Code
|
UTC-4930.FPR |
U-Touch PRO Control Unit for Automatic Concrete&Cement Compression/Flexure Testing Machines 110-220V 50-60 Hz. 1 ph |
UTC-4930.FPR U-Touch PRO Control Unit,for Automatic Concrete&Cement Compression/Flexure Testing Machines designed to control the automatic compression/flexure testing machines for compression, flexure, splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks.
All the operations of UTC-4930.FPR Control Unit are controlled from the front panel color resistive touch screen display and function keys. The unit can be configured as using for two frames or one frame with three dispalacement transducers.
The Control Unit has easy to use menu options. It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters. Its specimen setting sub-menu lists different specimen types including but not limited to cube, cylinder, block, beam, beam double upper bearers, cube splitting tensile, cylinder splitting tensile, paving block splitting tensile and kerb flexure. Digital graphic display of the unit is able to draw real-time "Load vs. Time" or "Stress vs. Time" graphics.
UTC-4930.FPR Unit offers many addition unique features.Thanks to its built-in internet protocol suite, every aspect of the device can be controlled remotely from anywhere around the world.
Following tests can be perform by on UTC-4930.FPR control unit ( also with appropriate hydraulic power pack, testing frame and accessories);
- Compressive Strength of Concrete Cylinders / Cubes
- Flexural Strength of Concrete Beams
- Flexural Strength of Concrete Kerbs
- Tensile Splitting Strength of Concrete Cylinders / Cubes
- Tensile Splitting Strength of Concrete Paving Blocks
- Compressive Strength of Masonry Units/Blocks
- Flexural Strength of Concrete Flagstones/Slabs
- Compressive Strength of Hydraulic-Cement Mortars
- Flexural Strength of Hydraulic-Cement Mortars
Main Features:
- Two analog channels which provides load control of two load-cells or/and pressure transducers
- Also two additional channel inputs for displacement measurement (Activated only by the Utest technical service)
- Multi-Point calibration function for the channels
- Programmable digital gain adjustment for load voltage and current transmitters
- Provides load control of two seperate testing frames with closed-loop P.I.D control with automatic test procedure by using selector valve and selectimg channel
- Real time numeric display of load and load pressure with test graph.
- 3 different unit system selection; kN, kgf and lbf
- Backup and recall option for device settings
- Easy recall of embedded test parameters for different types of tests and sample sizes
- Real time and adjustable date/ time
- Multi-language support (English, French, Spanish, Turkish, Russian)
- Ethernet port for connecting to a PC or network and for instantaneous transfer of test data to PC
- USB port support for transfer of test data to a flash drive
- Optionally supplied-integrated thermal printer (If requested, must be specified in the order)
PLEASE see the pages of “General Properties of U-Touch PRO Control Units” for details of the properties of software and hardware of the Unit.
33. UTEST Software for Automatic Compression/Flexure Testing Machines
Product Code
|
USOFT-4930.FPR |
UTEST Software for Automatic Concrete&Cement Compression/Flexure Testing Machines |
Utest USOFT-4930.FPR Software has been designed for data acquisition, processing controlling, presentation and reporting compression, flexure, splitting tensile strength tests of construction materials such as concrete, cement, masonry units/blocks with appropriate Automatic Compression/Flexure Testing Machines and also with a computer.
This software provides data acquisition and management for compression, flexure and splitting tensile tests of construction materials such as concrete, cement, bricks.
The advanced functions for data base management provide an easy navigation of all saved data.
The test results certificate includes all descriptive information.
Therefore, test parameters can be set and details about the test carried out such as client details, test type, specimen type, user info and other information required can be entered and printed out as well as test report and graph.
Following tests can be done with the USOFT-4930.FPR Software;
- Compressive Strength of Concrete Cylinders / Cubes
- Flexural Strength of Concrete Beams
- Flexural Strength of Concrete Kerbs
- Tensile Splitting Strength of Concrete Cylinders / Cubes
- Tensile Splitting Strength of Concrete Paving Blocks
- Compressive Strength of Masonry Units/Blocks
- Flexural Strength of Concrete Flagstones/Slabs
- Compressive Strength of Hydraulic-Cement Mortars
- Flexural Strength of Hydraulic-Cement Mortars
Detailed information of the following properties of USOFT-4930.FPR software, please look at the “General Properties of Utest USOFT Series Softwares Softwares” pages.
- Multi-language support and customizable user interface
- User identification and authorization
- Unlimited test result storage capacity in one test file
- Exporting test results to database
- Advanced test graphical interface
- Option to store and recall test information
- Modification of test machine parameters using the software
- Able to save frequently used texts in memory and recall them when necessary
- Exporting reports and graphs
- Flexible report and graph formats
- Help and user manual display
34. Jigs for Compression and Flexure Tests
Product Code
|
UTCM-4200A |
Flexure Jig Assembly to test 40x40x160 mm Mortar Prisms, ASTM |
|
UTCM-4200E |
Flexure Jig Assembly to test 40x40x160 mm Mortar Prisms, EN |
|
UTCM-4210A |
Compression Jig Assembly to test 50 mm (2”) Mortar Cubes, ASTM |
|
UTCM-4210E |
Compression Jig Assembly to test portions of 40x40x160 mm Prisms, EN |
|
UTCM-4210B |
Compression Jig Assembly to test 70,7 mm Cube, BS |
Standards
EN 196-1, 459-2, 1015-11, 13454-2; ASTM C109, C348, BS 4550-3.4
35. Plunger Penetration Apparatus
Product Code
|
UTCM-0665 |
Plunger Penetration Apparatus |
|
UTCM-0662E |
Tamper EN Ø 40x200 mm 250 gr |
Standards
EN 413-2, 459-2, 1015-4

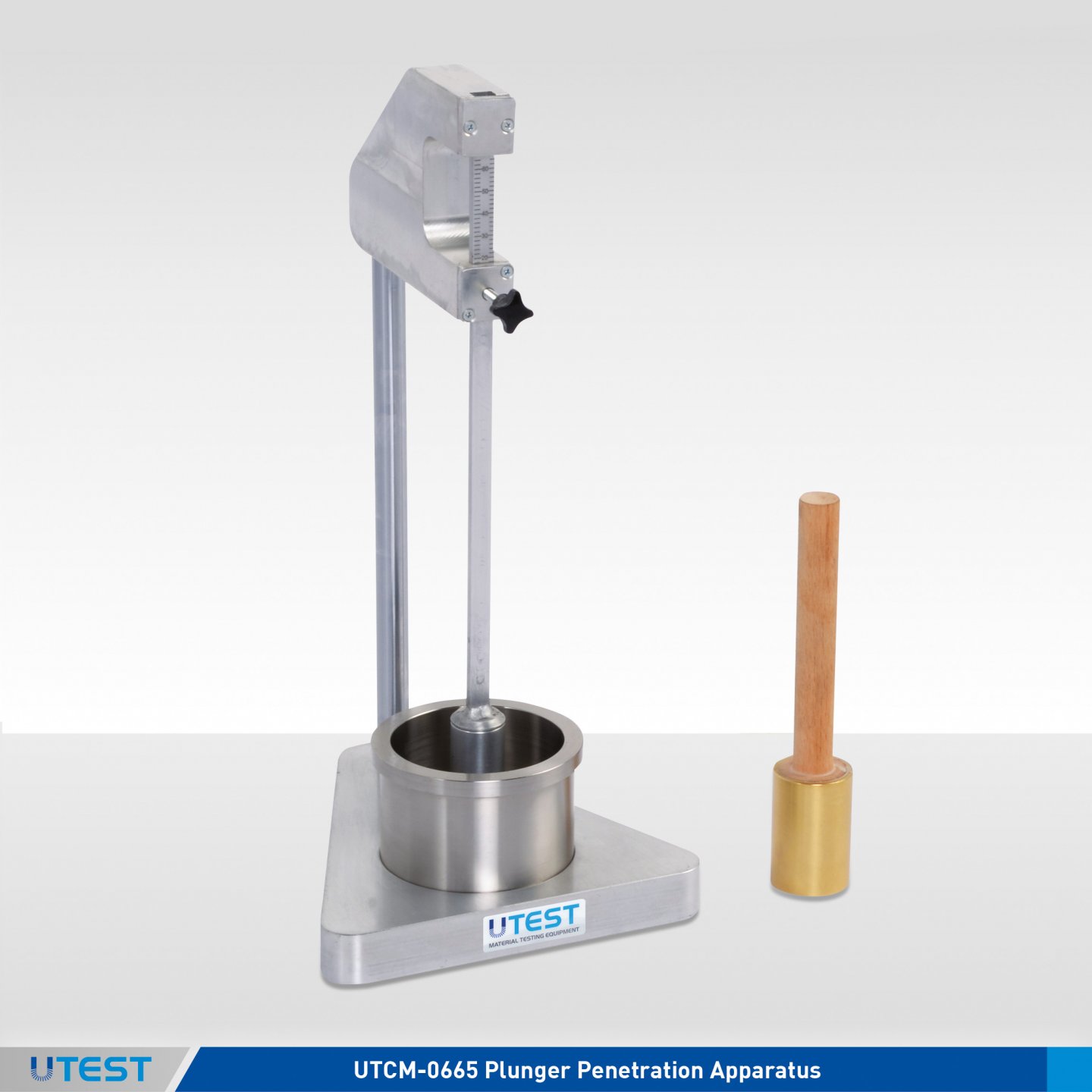

The UTEST Plunger Penetration Apparatus is used to determine the consistency of fresh mortar, building lime and masonry cement. The test apparatus consists of a base to place the test cup and a vertical column holding the penetration plunger assembly. The drop default height is adjusted to 100 mm. The plunger assembly weight is 90 g.
The Plunger Penetration Apparatus is supplied complete with;
- Test cup, Ø80 mm x 70 mm
- Tamper
|
Dimensions |
200x200x600 mm |
|
Weight (approx.) |
6 kg |
36. Air Entrainment Meter for Mortar
Product Code
|
UTCM-0666 |
Air Entrainment Meter for Mortar 1 lt. |
|
UTCM-0662E |
Tamper EN Ø 40x200 mm 250 gr |
Standards
EN 413-2, 459-2, 1015-7

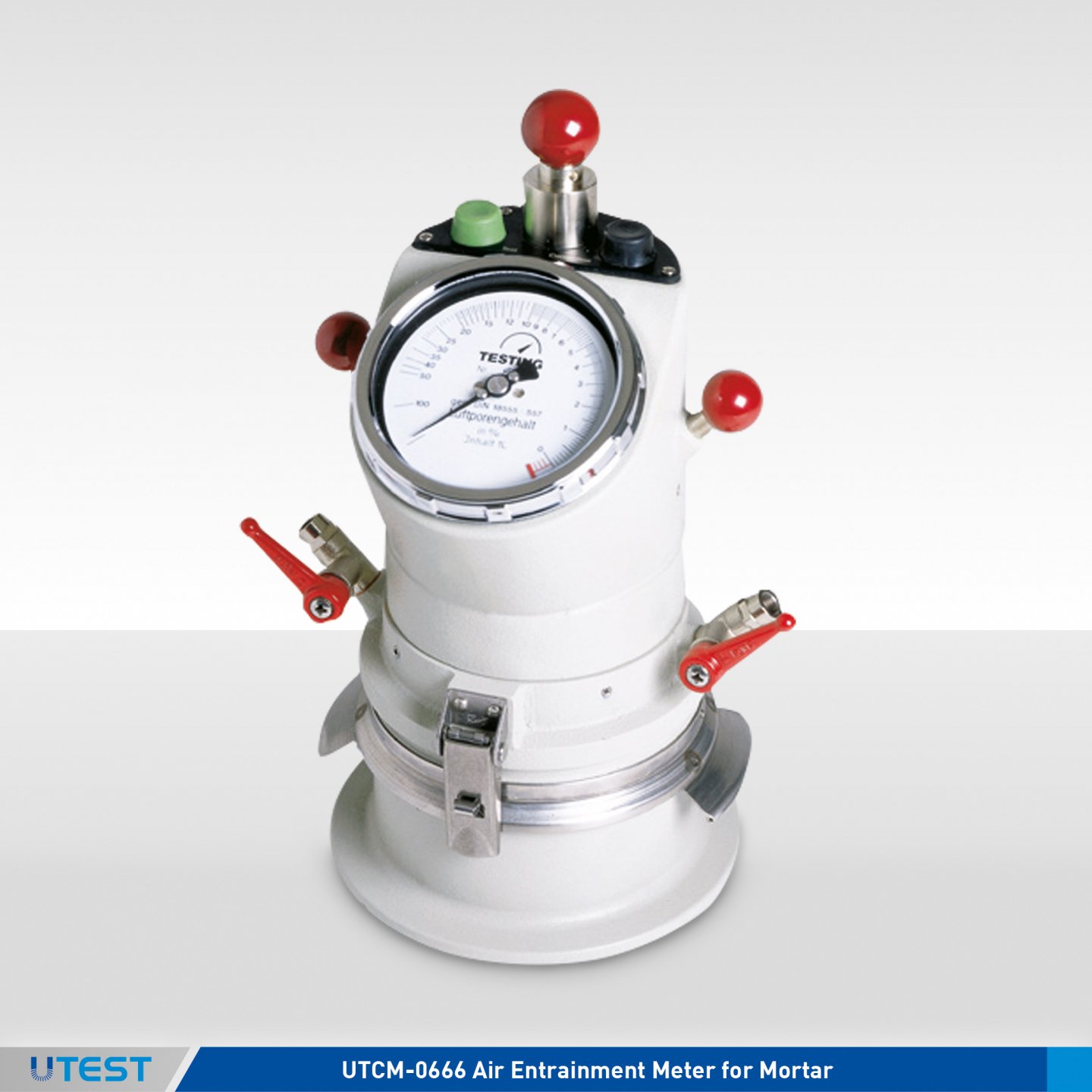

The UTCM-0666 Air Entrainment Meter for Mortar is used for determining the air content of cement paste, cement mortar and lime mortar.
The air entrainment meter is manufactured from cast aluminum, the upper part and the lower test pot are held together with an air-tight seal which are easily adjusted by using the two spring clamps.
The pressure gauge is installed in the head of the meter and the scale works in the 0-20 volumetric % range. The air is compressed with a hand pump installed in the system and the smart configuration of the test and correction buttons enables fast and simple testing.
|
Dimensions |
200x200x320 mm |
|
Weight (approx.) |
3,5 kg |

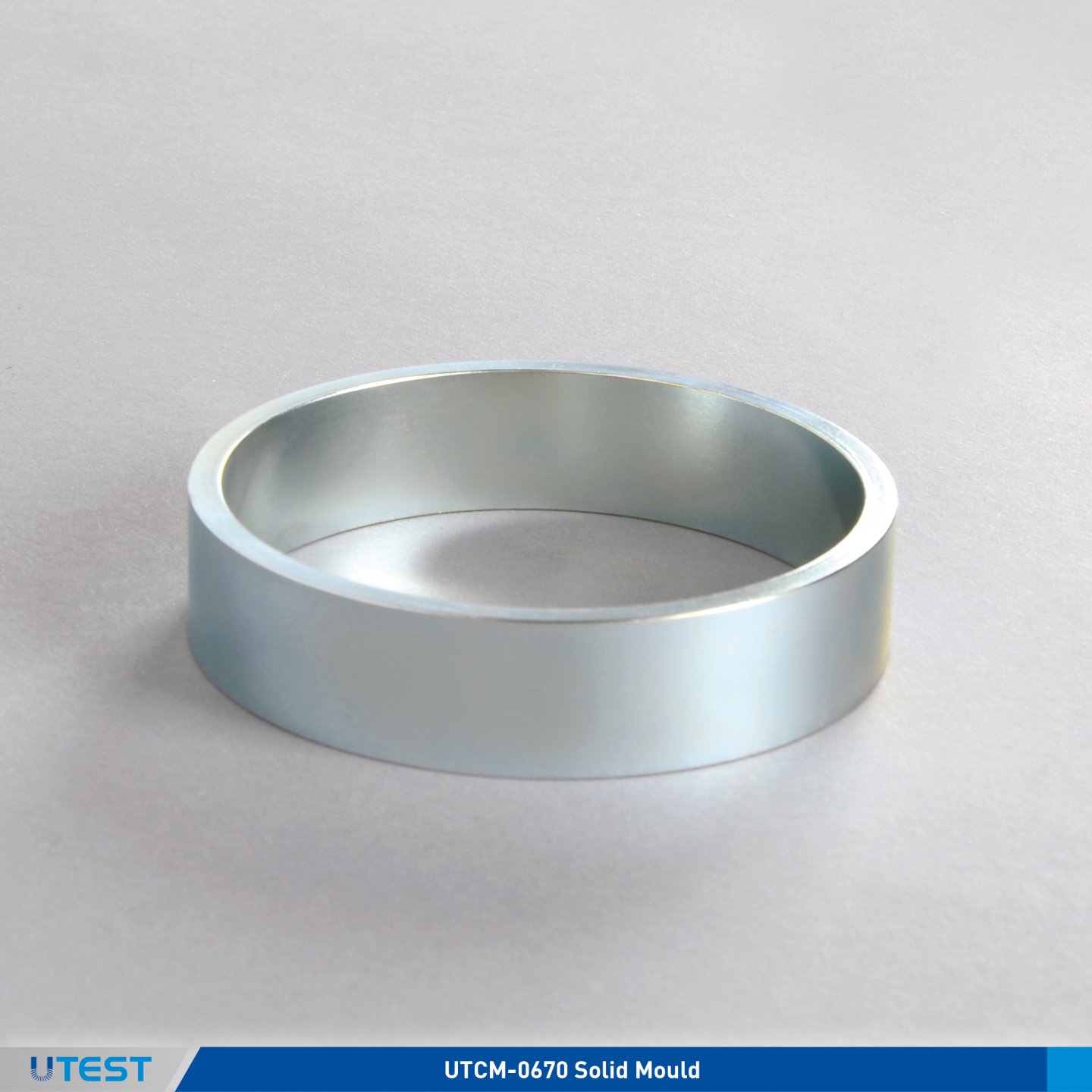

37. Solid Mould
Product Code
|
UTCM-0670 |
Solid Mould |
Standards
EN 413-2
The UTCM-0670 Solid Mould is used to determine the water retention of masonry cement specimens. Supplied with a glass plate.
|
Dimensions |
150x150x40 mm |
|
Weight (approx.) |
0,2 kg |
38. Apparatus For Reactivity of Quicklime
Product Code
|
UTCM-0678 |
Apparatus For Reactivity of Quicklime, 220-240 V 50-60 Hz |
|
UTCM-0679 |
Apparatus For Reactivity of Quicklime with Advanced Datalog Thermometer EN 459-2, 110-240 V 50-60 Hz 1 ph |
Standards
EN 459-2
The UTCM-0678 and UTCM-0679 Reactivity of Quicklime Apparatus are used to determine the reactivity of ground quicklime on slaking.
These Apparatus consist essentially of a Dewar vessel, 1000 ml cap, stirring motor, calibrated thermometer, stand and accessories.
Two models are available:
- UTCM-0678 is supplied with digital thermometer
- UTCM-0679 is supplied with advanced datalog thermometer, temperature probe, serial cable for PC connection and dedicated software for download data
|
Dimensions |
350x300x800 mm |
|
Weight (approx.) |
9,5 kg |

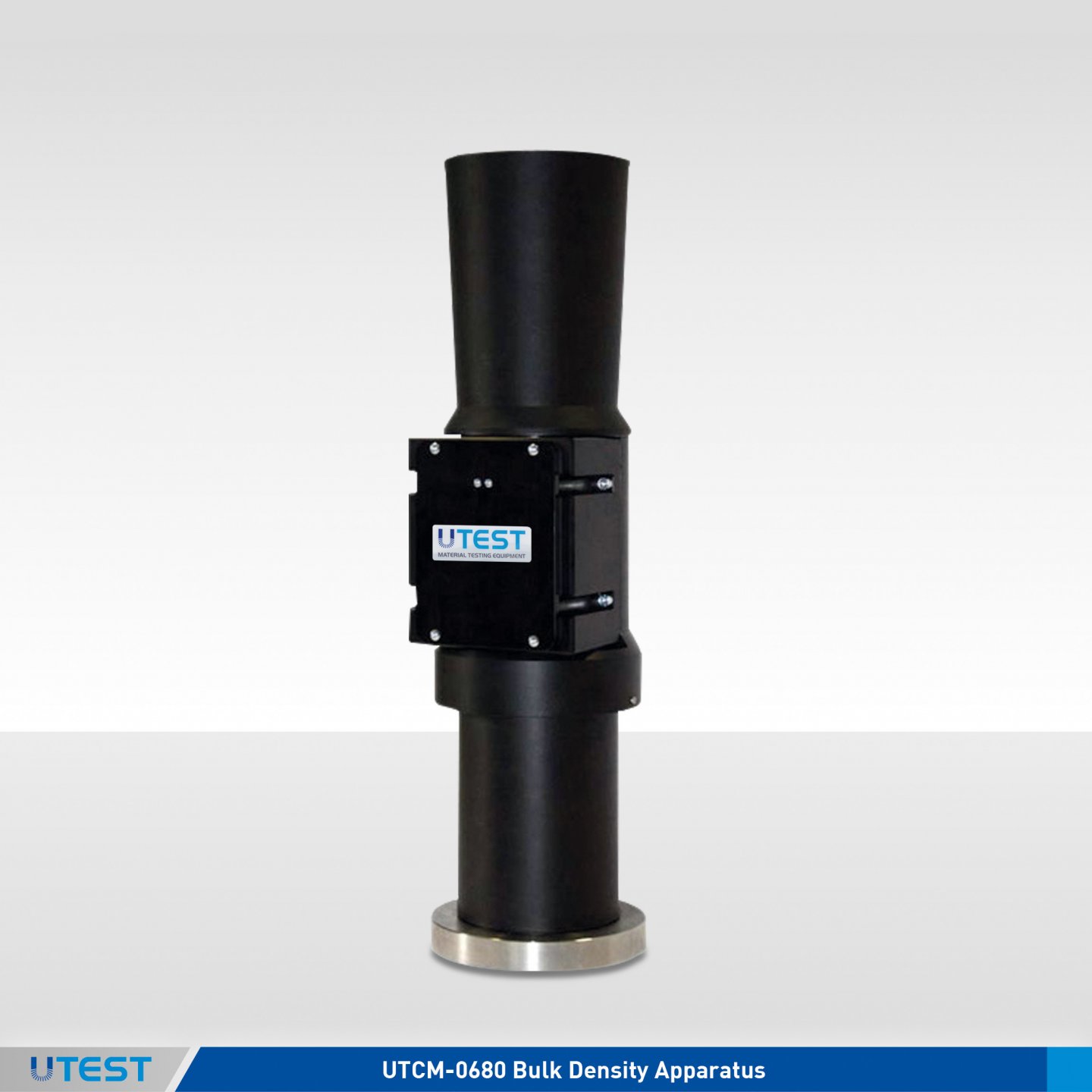

39. Bulk Density Apparatus
Product Code
|
UTCM-0680 |
Bulk Density Apparatus |
Standards
EN 459-2
The bulk density of lime is of interest for storage and packaging and for determining volume and capacity of mixing equipment necessary for processing the material.
The UTCM-0680 Bulk Density Apparatus is designed to determine bulk density of lime by allowing a sample to fall from a standard height into a volumetric container.
The apparatus consists of a hopper, 1 liter capacity cylindrical container and a spring-loaded yoke.
|
Dimensions |
250x250x750 mm |
|
Weight (approx.) |
2 kg |

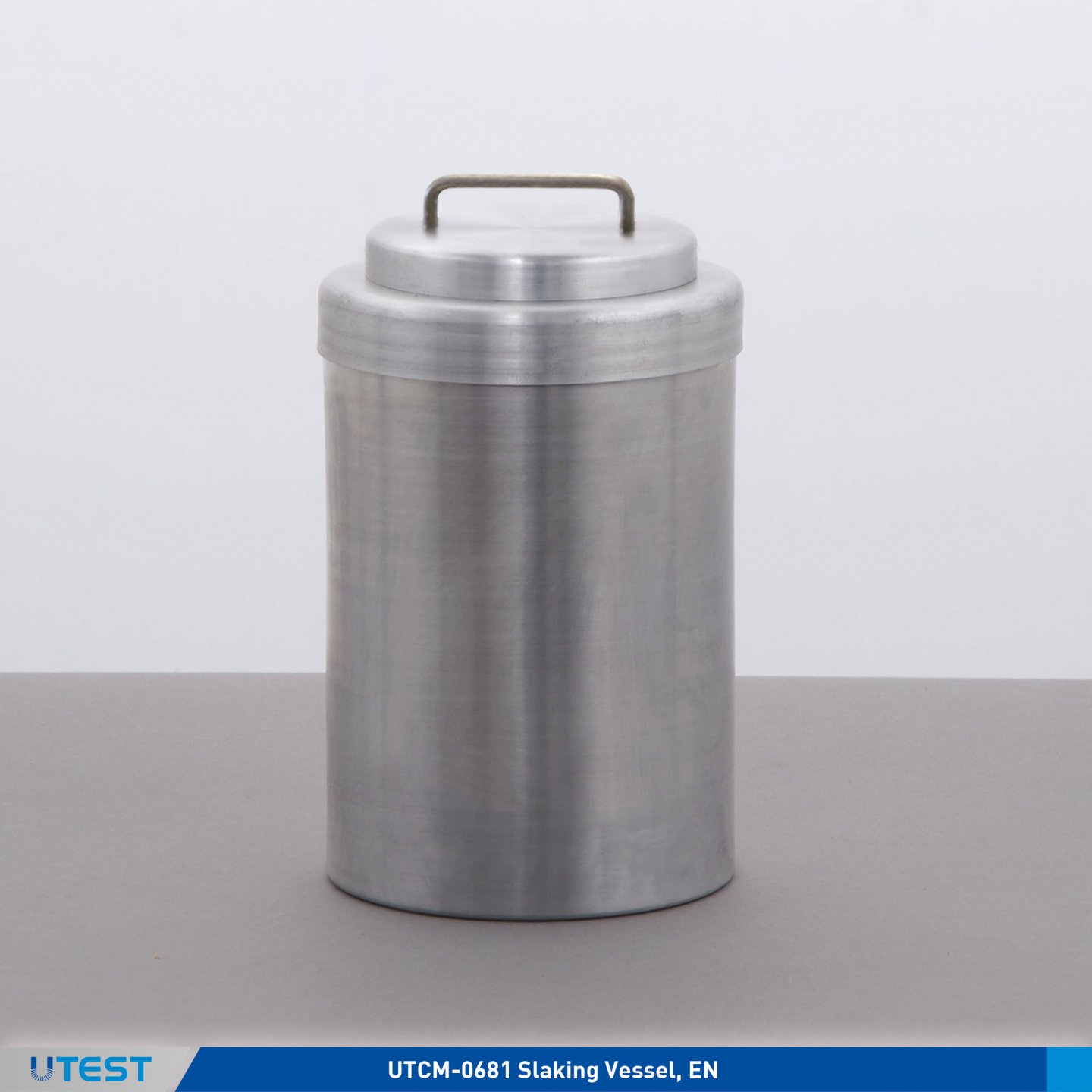

40. Slaking Vessel
Product Code
|
UTCM-0681 |
Slaking Vessel, EN |
Standards
EN 459-2
UTCM-0681 Slaking Vessel is used to determine the yield of lime by leaving the lime sample to slake into. Stainless steel made and double walled insulated. The cylinder has inside dimensions dia. 113 mm by 120 mm deep without cover. Supplied complete with cover.
|
Dimensions |
160x160x200 |
|
Weight (approx.) |
4 kg |

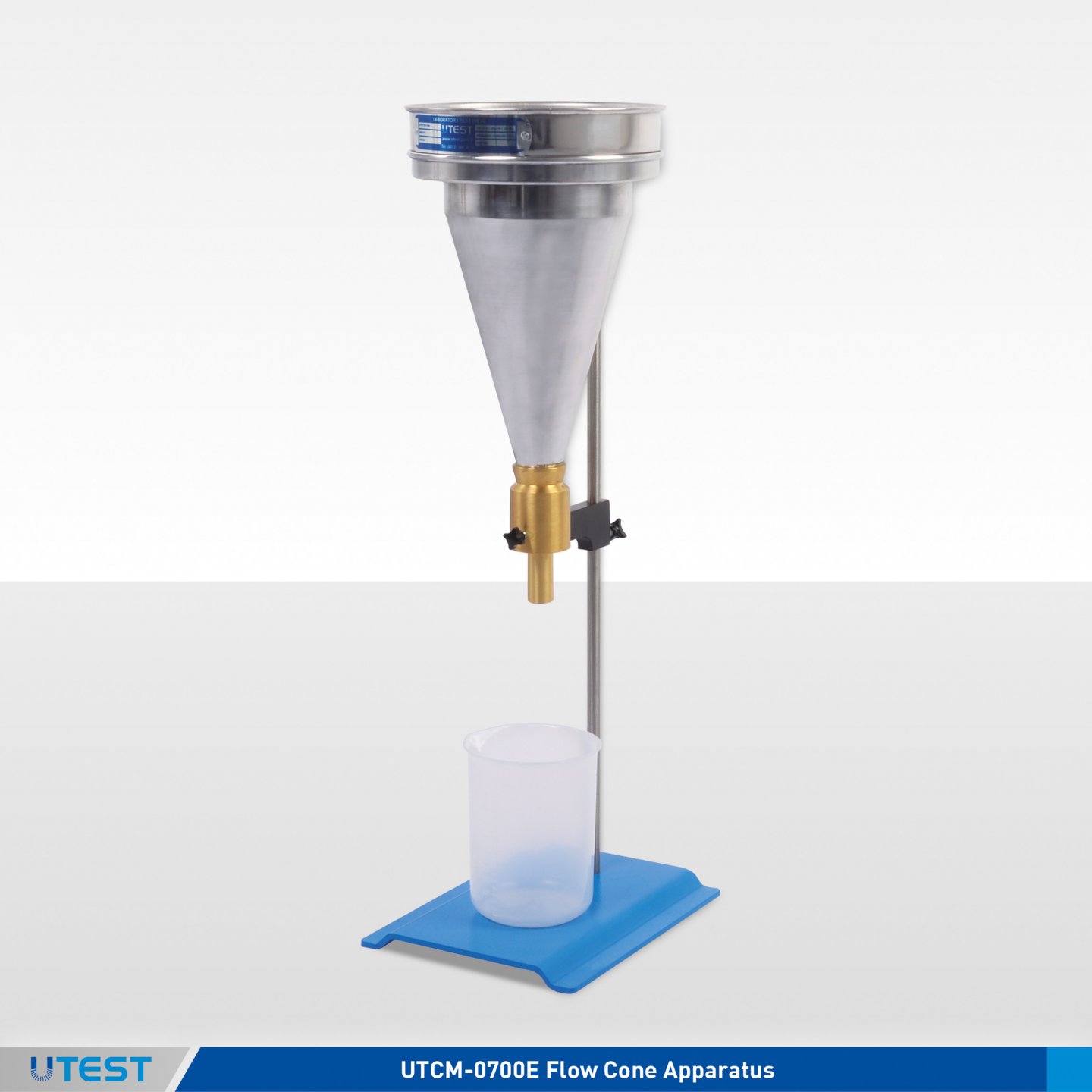

41. Flow Cone Apparatus
Product Code
|
UTCM-0700E |
Flow Cone Apparatus |
|
UTCM-0701E |
Flow Cone |
|
UTCM-0702E |
Ø:8 mm Nozzle |
|
UTCM-0703E |
Ø:9 mm Nozzle |
|
UTCM-0704E |
Ø:10 mm Nozzle |
|
UTCM-0705E |
Ø:11 mm Nozzle |
|
UTCM-0706E |
Ø:13 mm Nozzle |
Standards
EN 445
UTCM-0700E Flow Cone Apparatus is used for determining the flow properties of grouts, mortars, muds and other fluid materials.
The Flow Cone Appratus is supplied complete with;
- Cone, Sieve 1,5 mm
- Cup 1 lt
- Nozzle 10 mm
- Fitting Bush
- Stand
Ø:8, 9, 10, 11, 13 mm Nozzle
|
Dimensions |
250x250x600 mm |
|
Weight (approx.) |
10 kg |
42. Marsh Funnel Viscometer
Product Code
|
UTCM-0750 |
Marsh Funnel Viscometer |
Standards
ASTM D6910, API Recommended Practice 13B-1
The UTCM-0750 Marsh Funnel Viscometer is used for the determination of flow time by the use of flow cups of fluid materials such as paint, varnish etc. Manufactured from breakresistant rugged plastic to avoid deformations on temperature changes so the volumetric accuracy is maintained. Accurate measurements are taken using the metal orifice.
To avoid the operator’s hands coming into contact with the test material, a handle is provided. Supplied complete with 1 liter capacity plastic measuring cup.
|
Top Diameter |
150 mm |
|
Nozzle Length |
50 mm |
|
Internal Diameter |
5 mm |
|
Total Length |
355 mm |
|
Weight (approx.) |
0,5 kg |

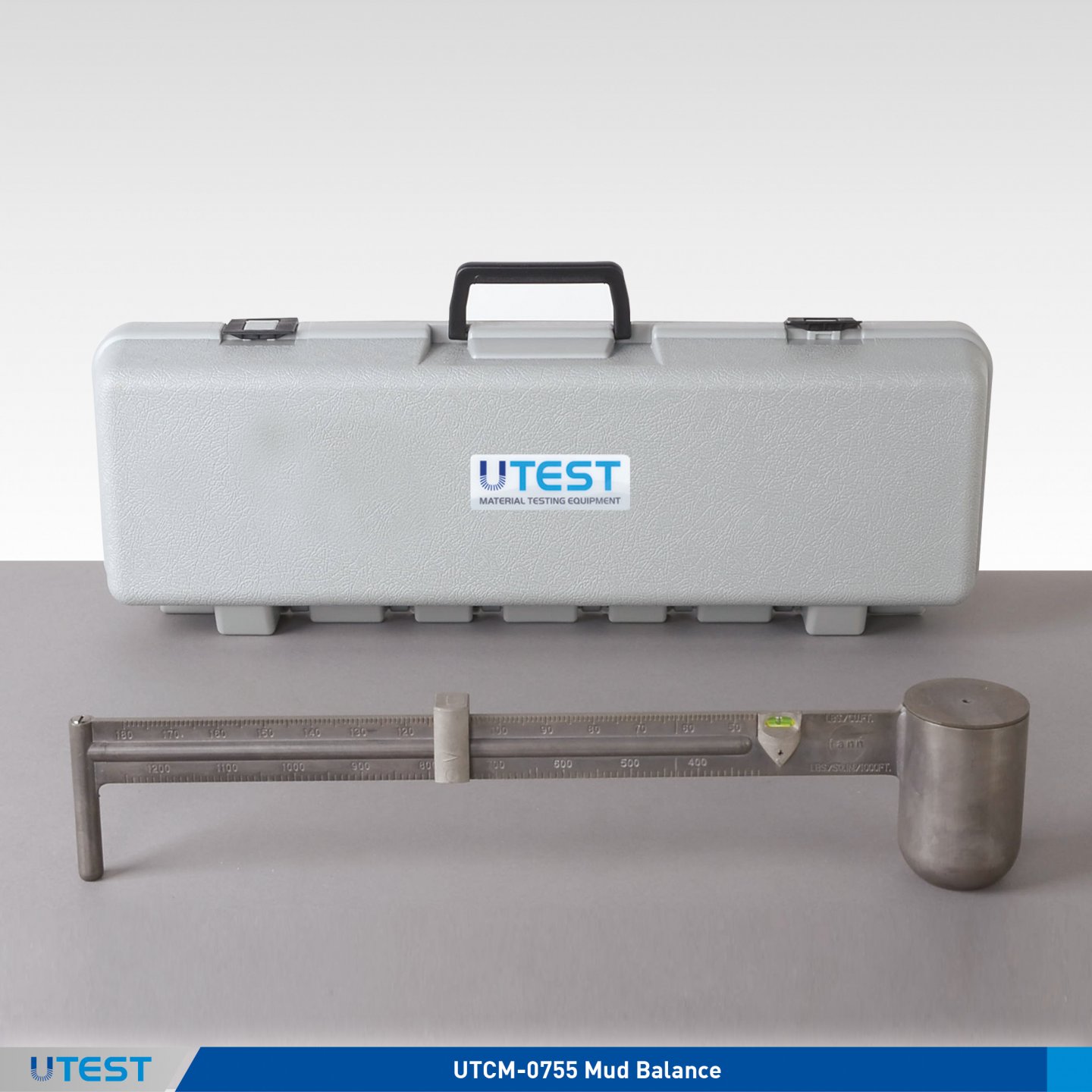

43. Mud Balance
Product Code
|
UTCM-0755 |
Mud Balance |
Standards
API Recommended Practice Procedure
The UTCM-0755 Mud Balance, an ideal equipment for site applications, provides an accurate and easy method for determining the mud density. The accuracy of the readings is not affected by the temperature of the drilling mud.
The equipment consists of a base and a graduated arm with an integral spirit level, counter weight, cup, lid, rider, knife-edge. Supplied with a special plastic carrying case which can be used to stabilize the equipment at the working position.
|
Dimensions |
550x110x100 mm |
|
Weight (approx.) |
1 kg |

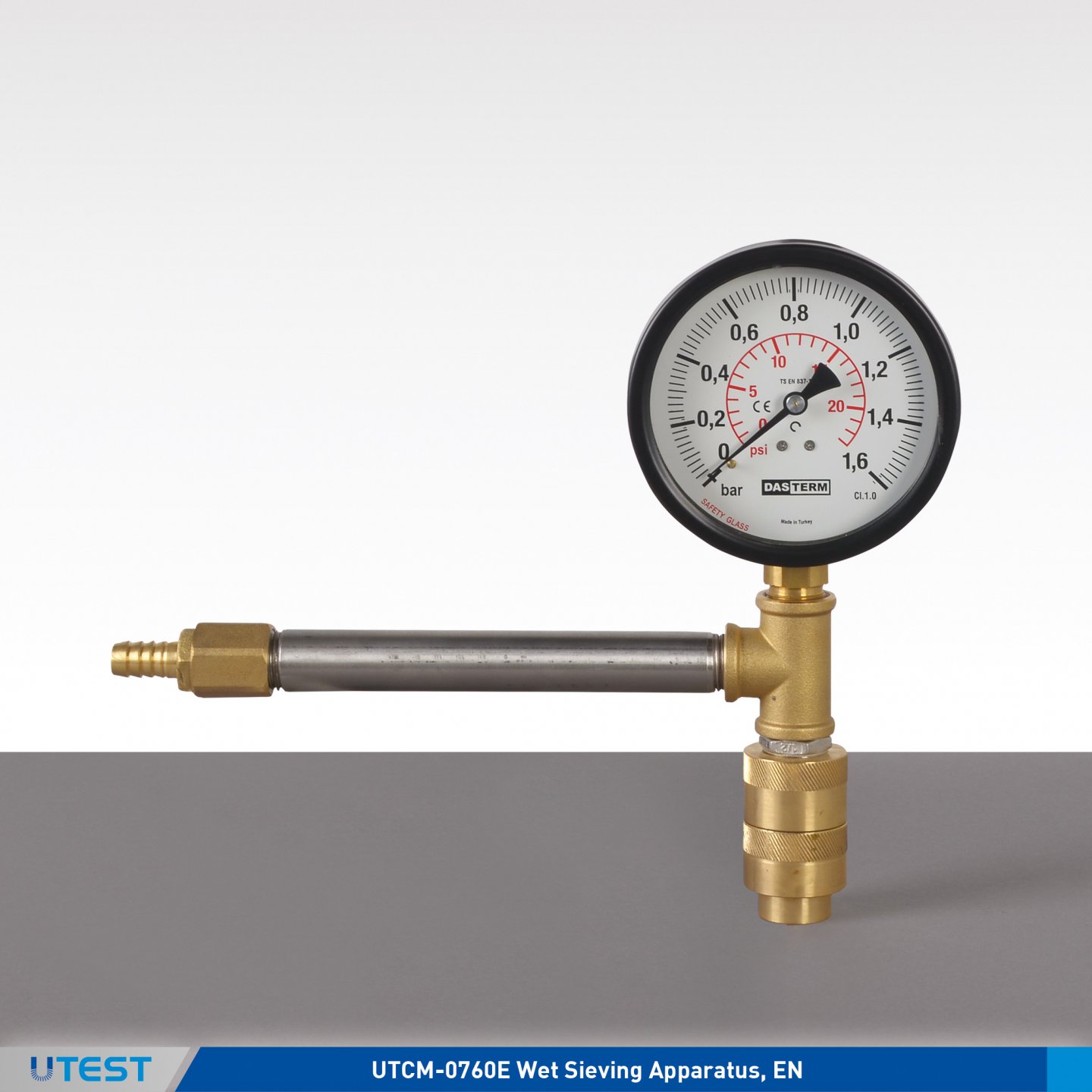

44. Wet Sieving Apparatus
Product Code
|
UTCM-0760E |
Wet Sieving Apparatus, EN |
Standards
EN 451-2; ASTM C430, D1514; AASHTO T192
The UTCM-0760E Wet Sieving Apparatus is used for determining the fineness of fly ash. The apparatus comprises of a special stainless steel sieve, 0.045 mm opening, a spray nozzle Ø 17.5 mm with 17 holes Ø 0.5 mm oriented and spaced to conform to the standards. Supplied complete with a pressure gauge Ø 80 mm and fittings for connection to the water supply.
|
Dimensions |
250x150x150 mm |
|
Weight (approx.) |
2 kg |
