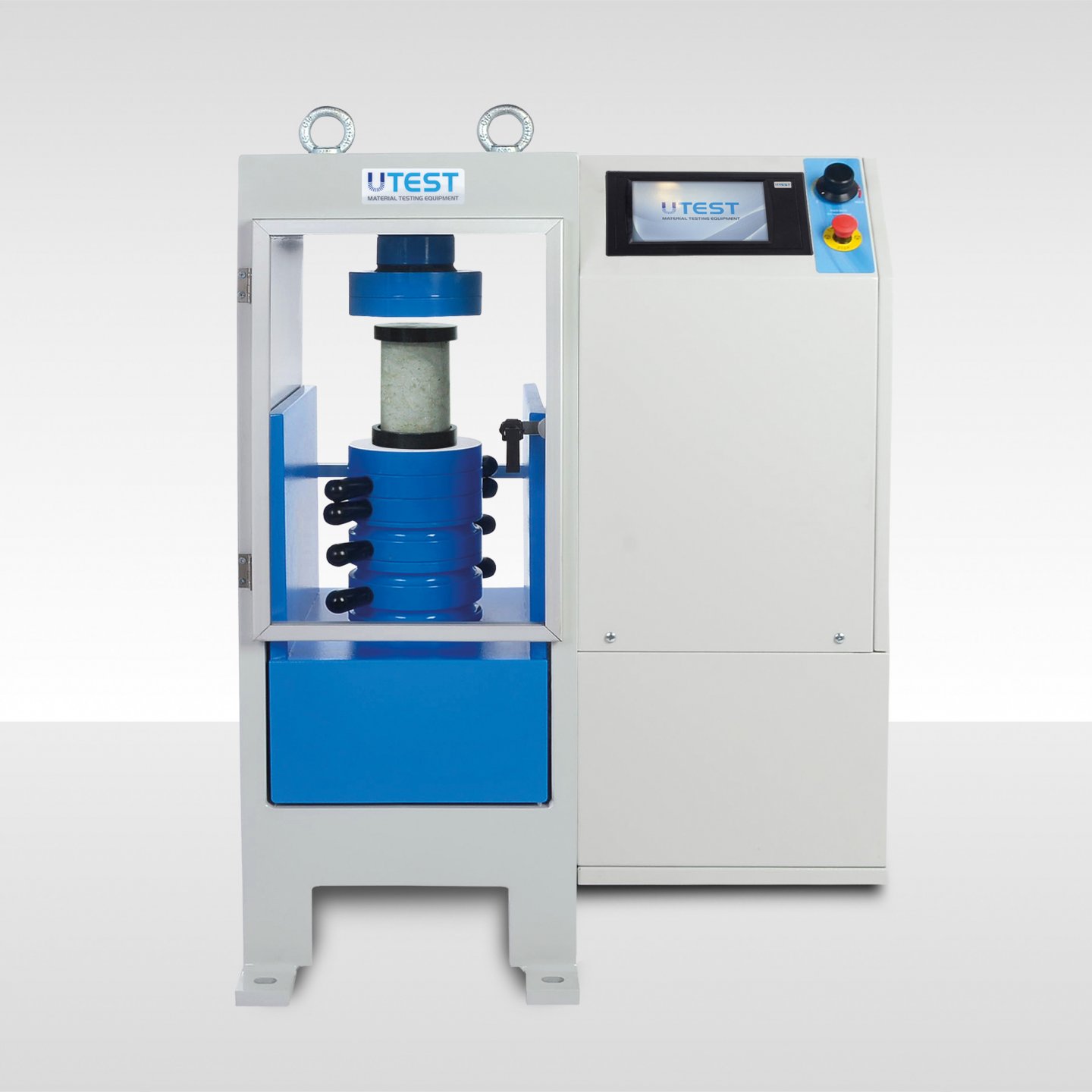

1. ASTM & AASTHO - Automatic Compression Testing Machines for Cylinders

Product Code

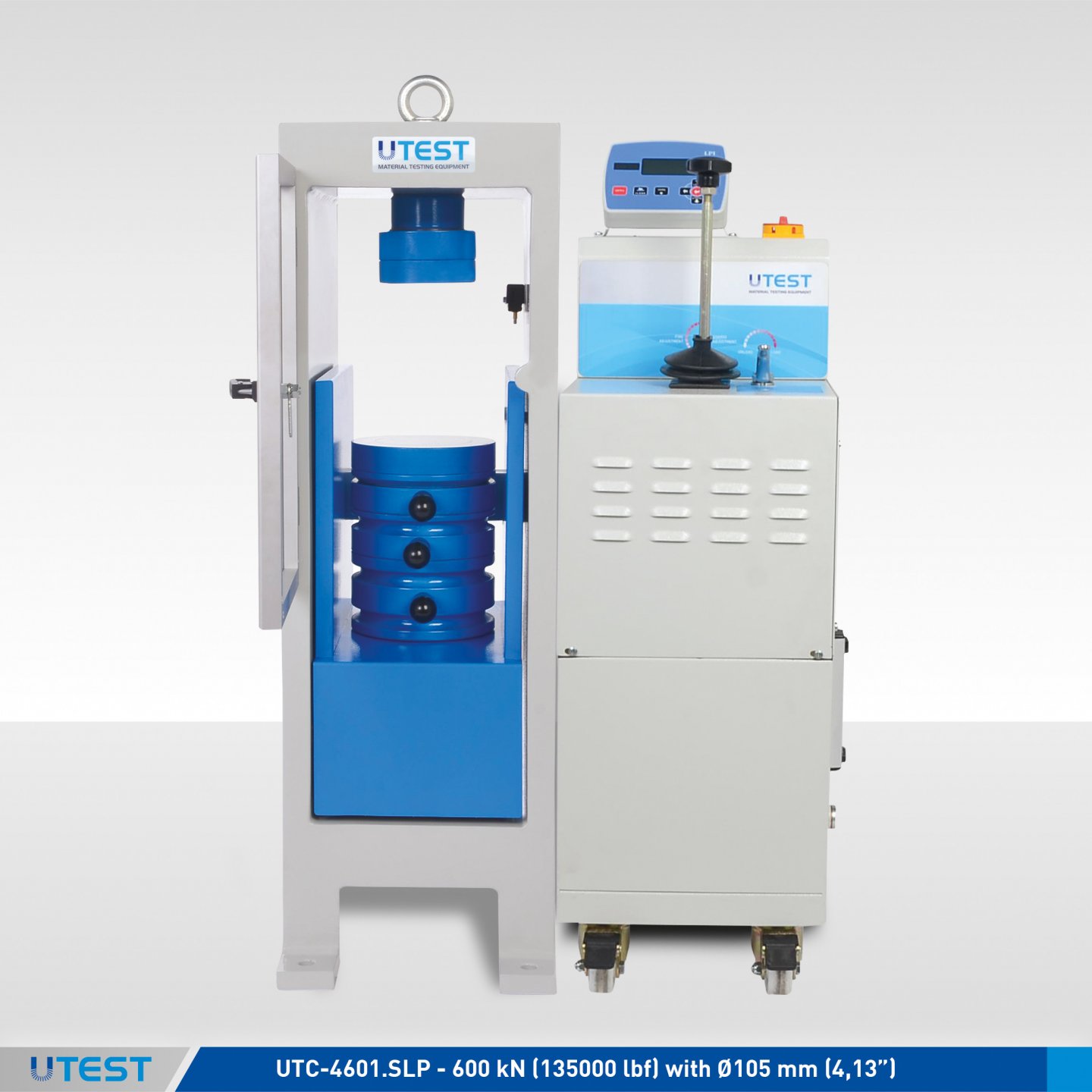

UTC-4601.FPR	600kN (135000 lbf) Automatic Compression Testing Machines with Ø105 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4701.FPR	1100kN (245000lbf) Automatic Compression Testing Machines with Ø105 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4602.FPR	600 kN (135000 lbf) Automatic Compression Testing Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO

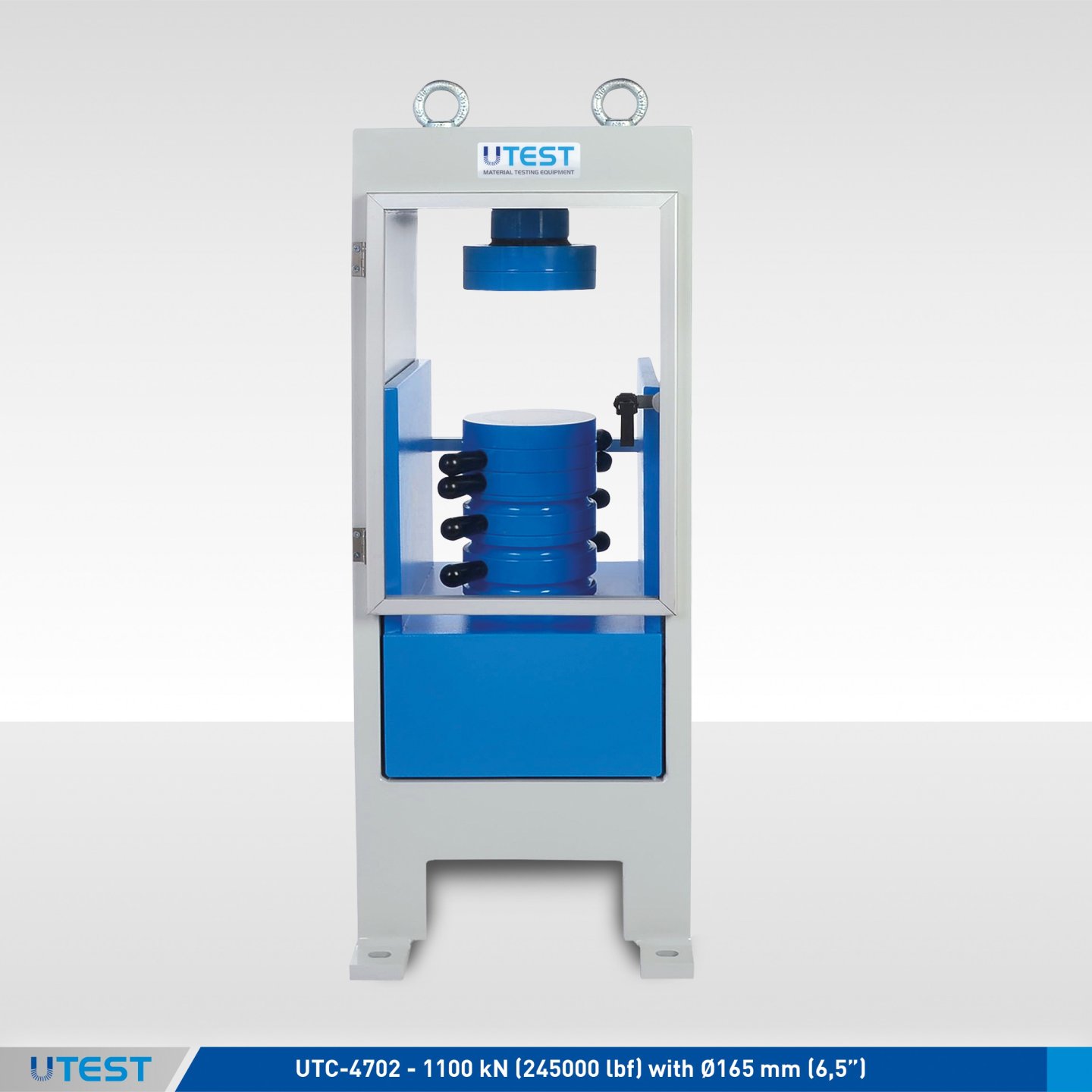

UTC-4702.FPR	1100kN (245000lbf) Automatic Compression Testing Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO

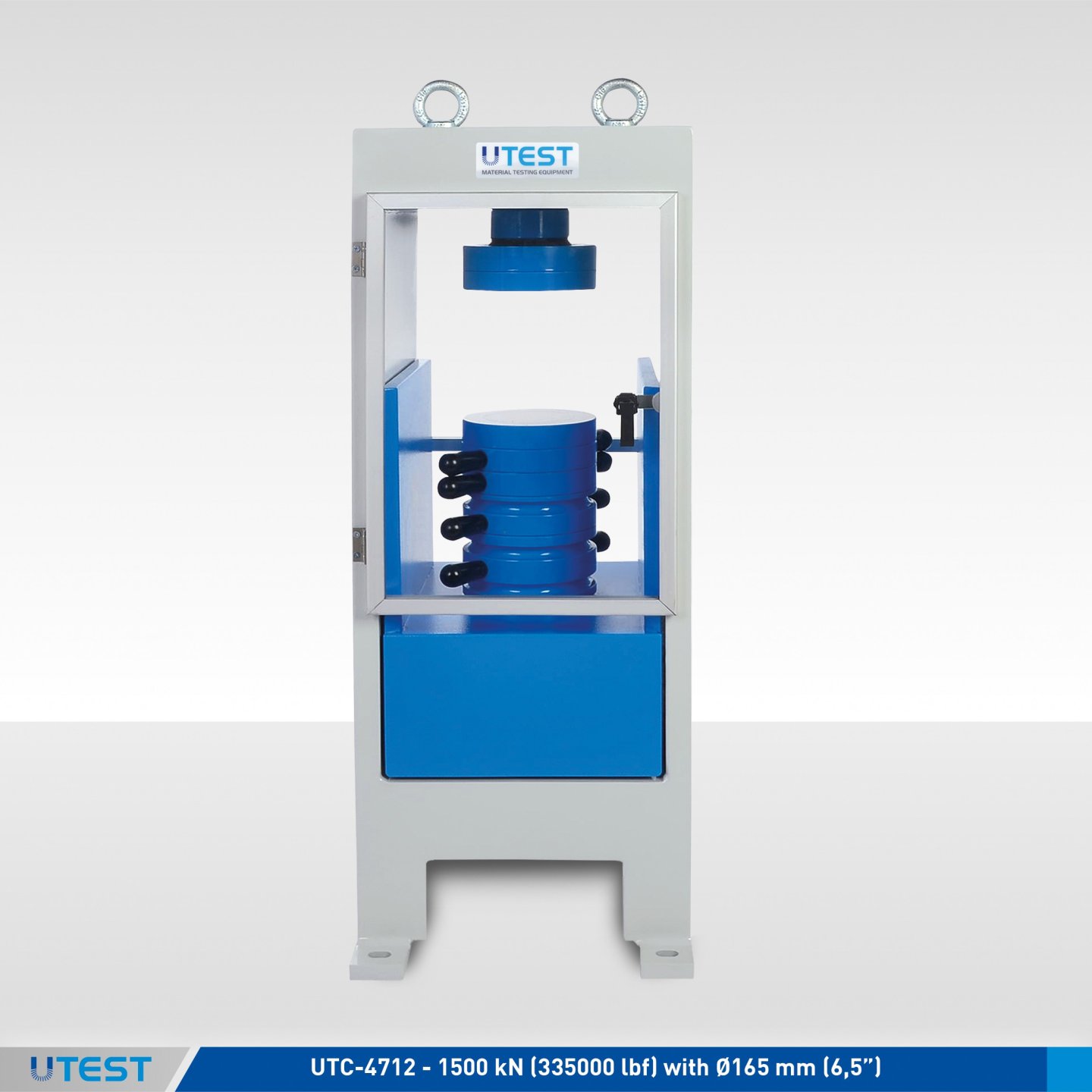

UTC-4712.FPR	1500 kN(335000 lbf) Automatic Compressıon Testıng Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO

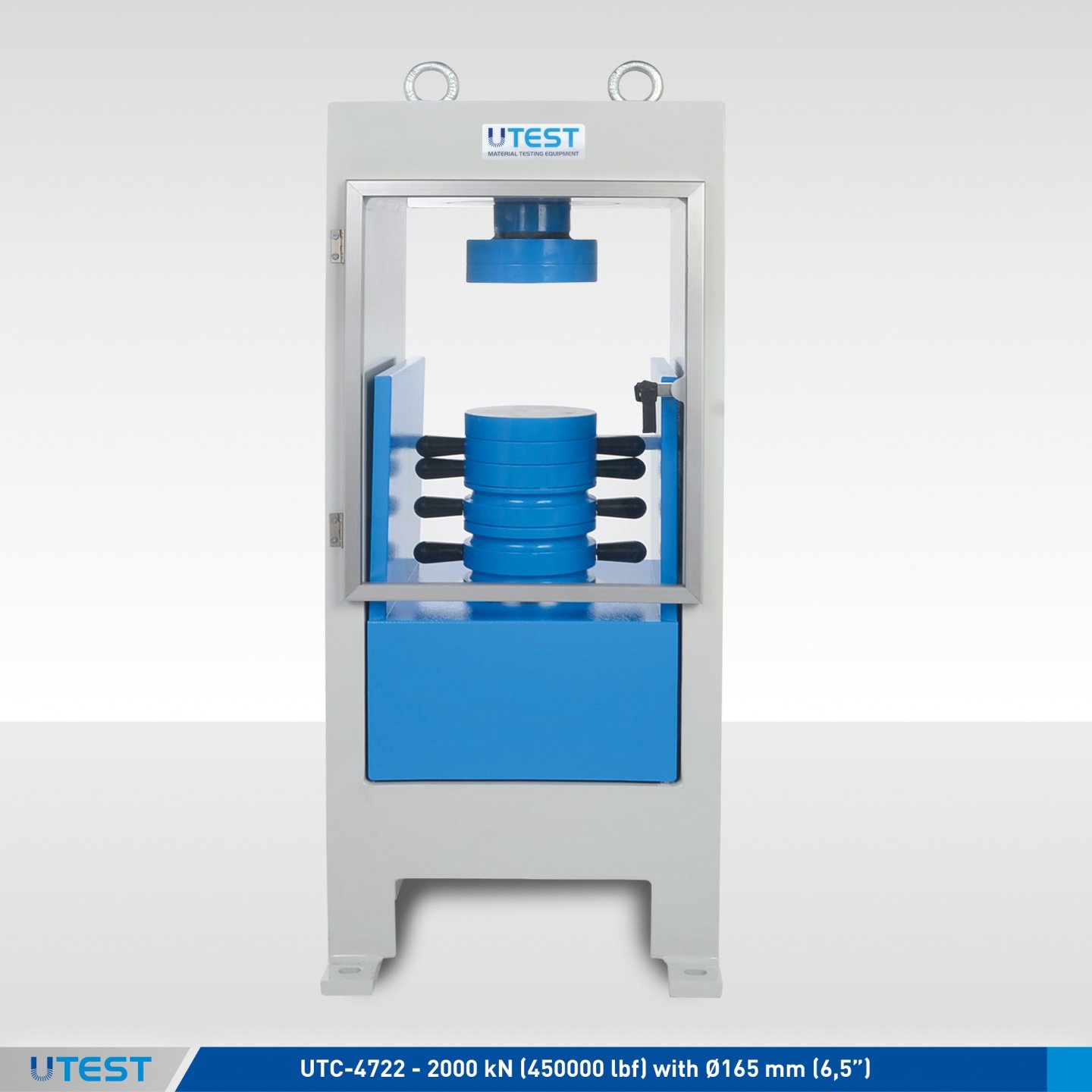

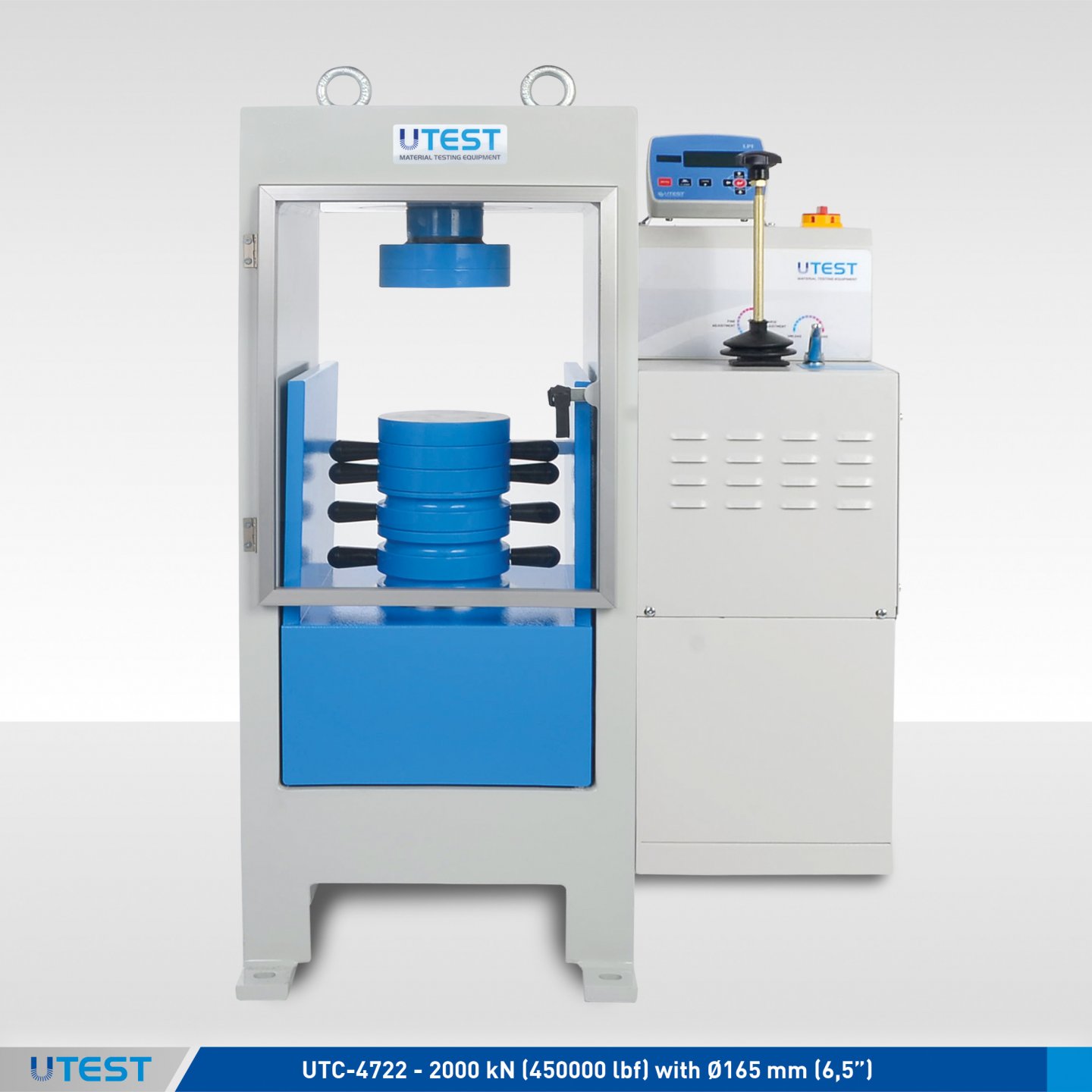

UTC-4722.FPR	2000 kN (450000 lbf) Automatic Compressıon Testıng Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO

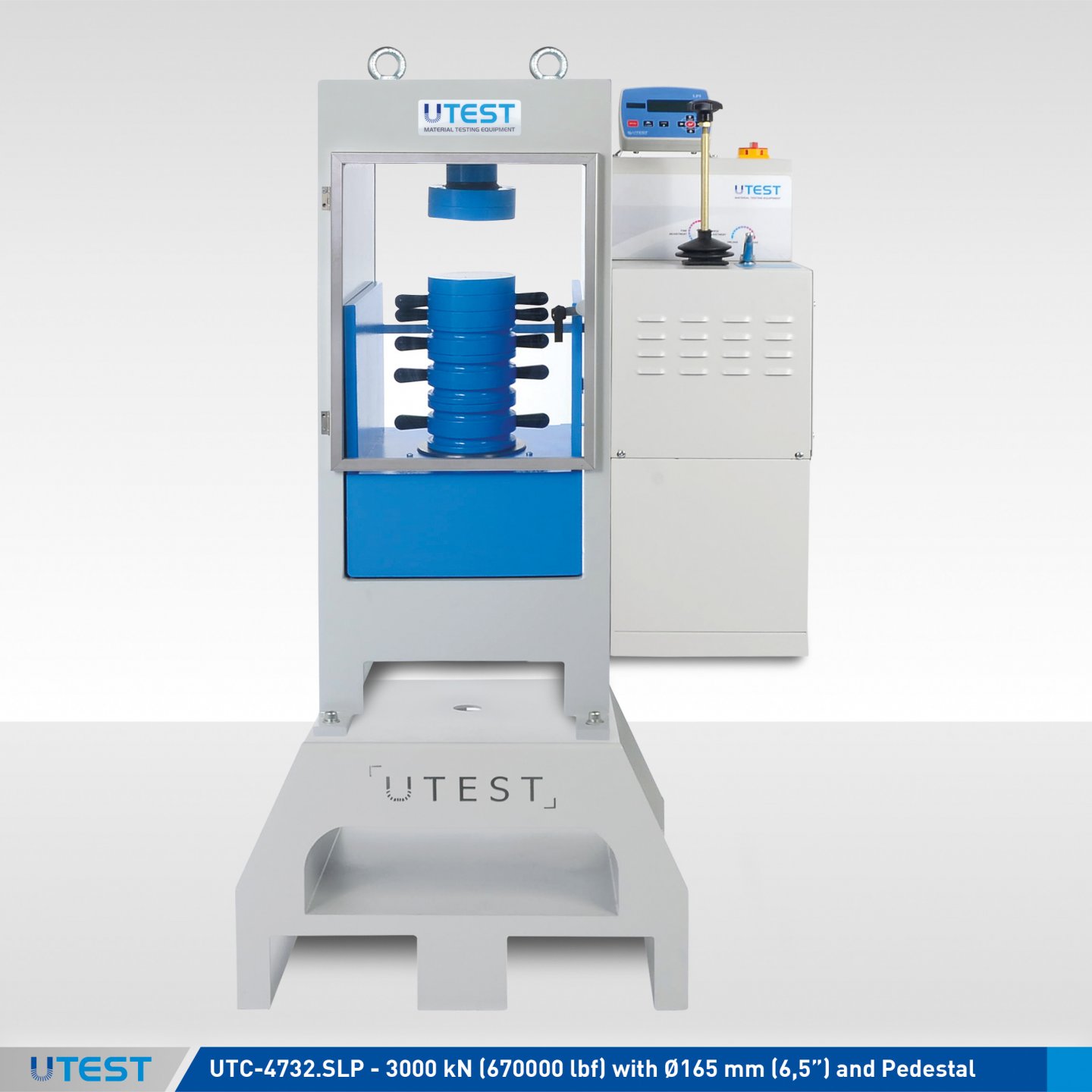

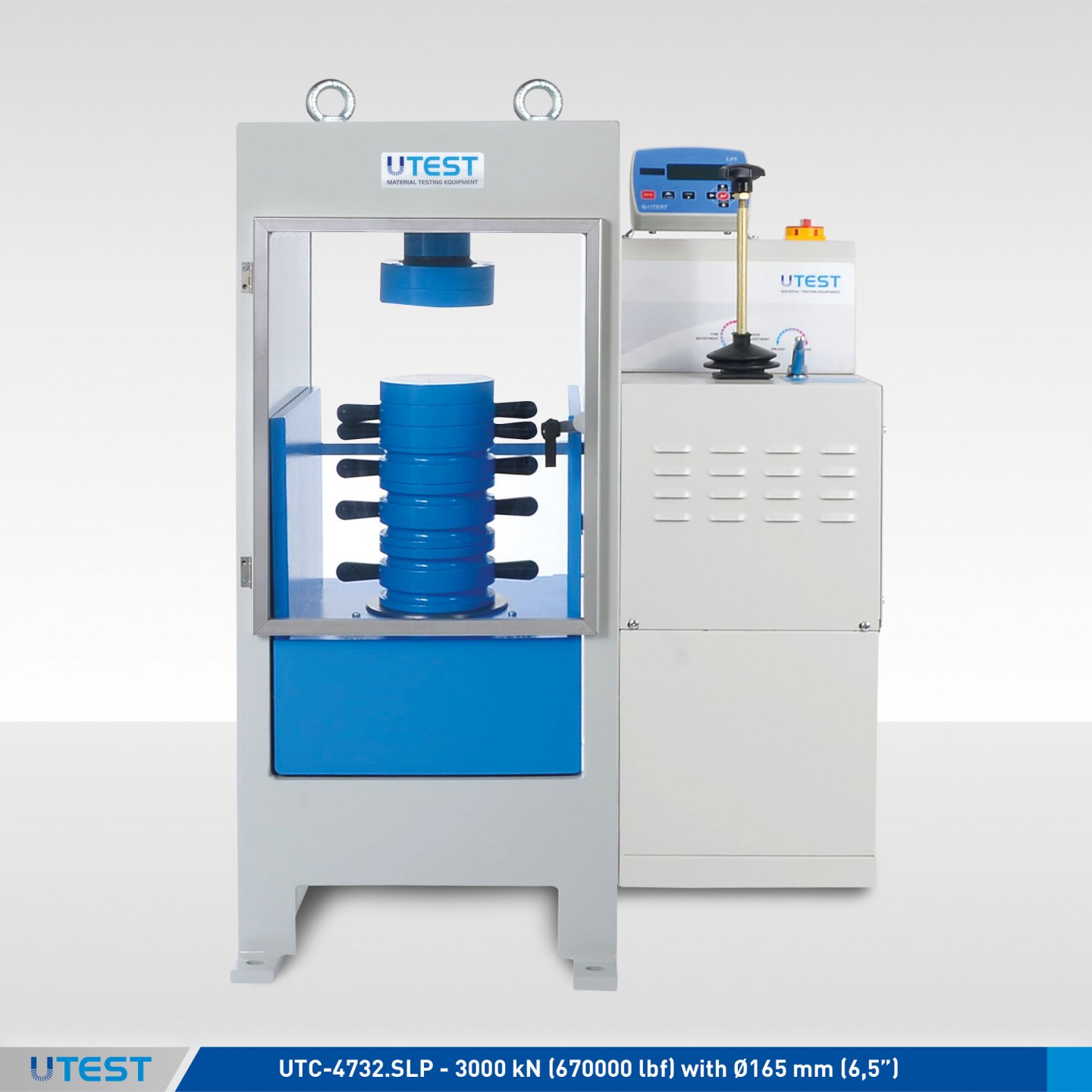

UTC-4732.FPR	3000 kN (670000 lbf) Automatic Compressıon Testıng Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls
UTC-0220	Serial Printer, Thermal Type

Models for 220-240V 50-60 Hz, 1ph.
UTC-4601.FPR	UTC-4701.FPR	UTC-4602.FPR	UTC-4702.FPR	UTC-4712.FPR	UTC-4722.FPR	UTC-4732.FPR

Models for 110-120V 60 Hz, 1ph.
UTC-4601.FPR-N	UTC-4701.FPR-N	UTC-4602.FPR-N	UTC-4702.FPR-N	UTC-4712.FPR-N	UTC-4722.FPR-N	UTC-4732.FPR-N

Standards

ASTM C39; AASHTO T22

UTC-4701.FPR, UTC-4701.FPR, UTC-4602.FPR, UTC-4702.FPR, UTC-4712, UTC-4722.FPR and UTC-4732.FPR models Automatic Compressıon Testıng Machines are manufactured for compression testing of acc. to ASTM & AASHTO standards. These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

The machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of concentric centering line/s of lower bearing block (except Ø105 mm), the only required operations are;

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

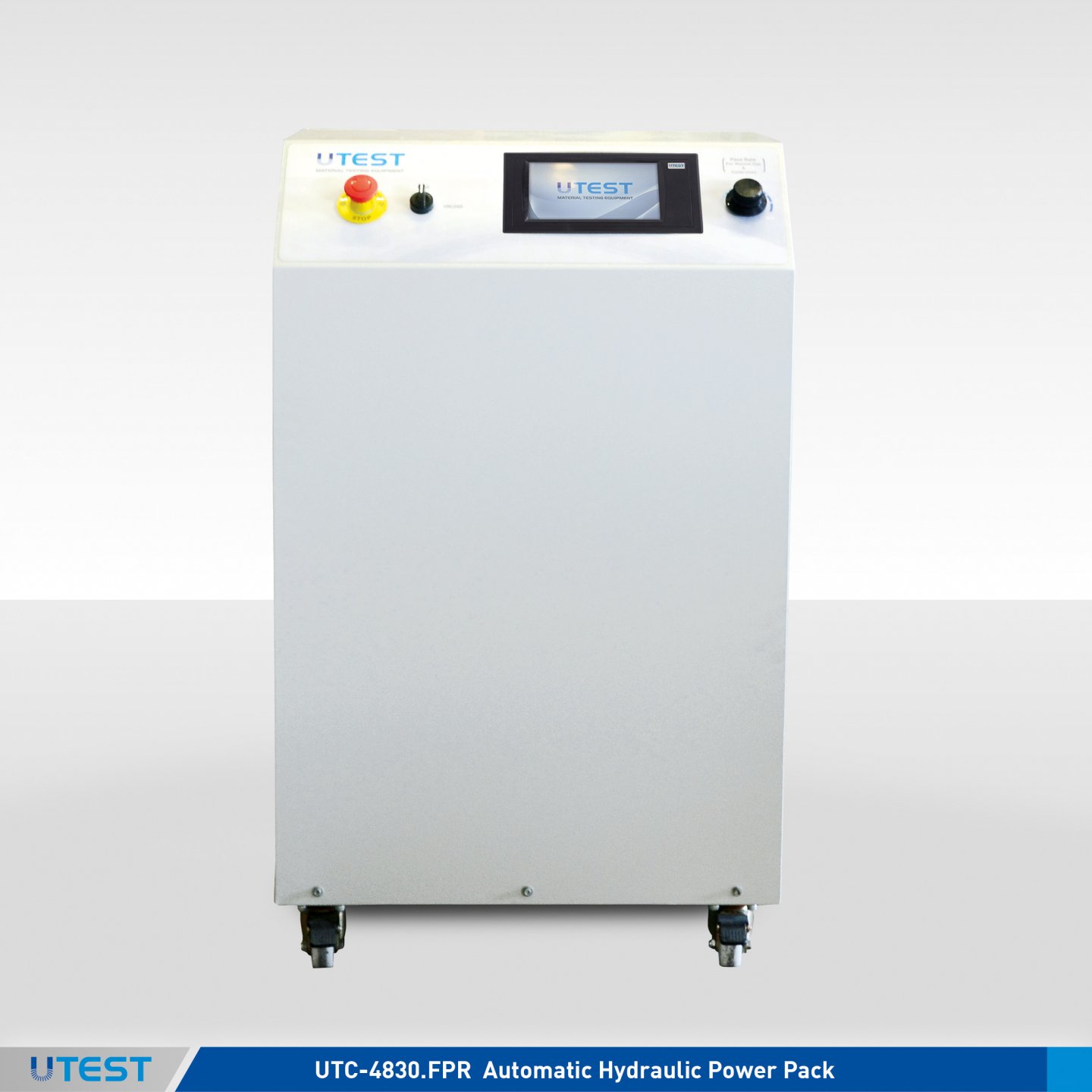

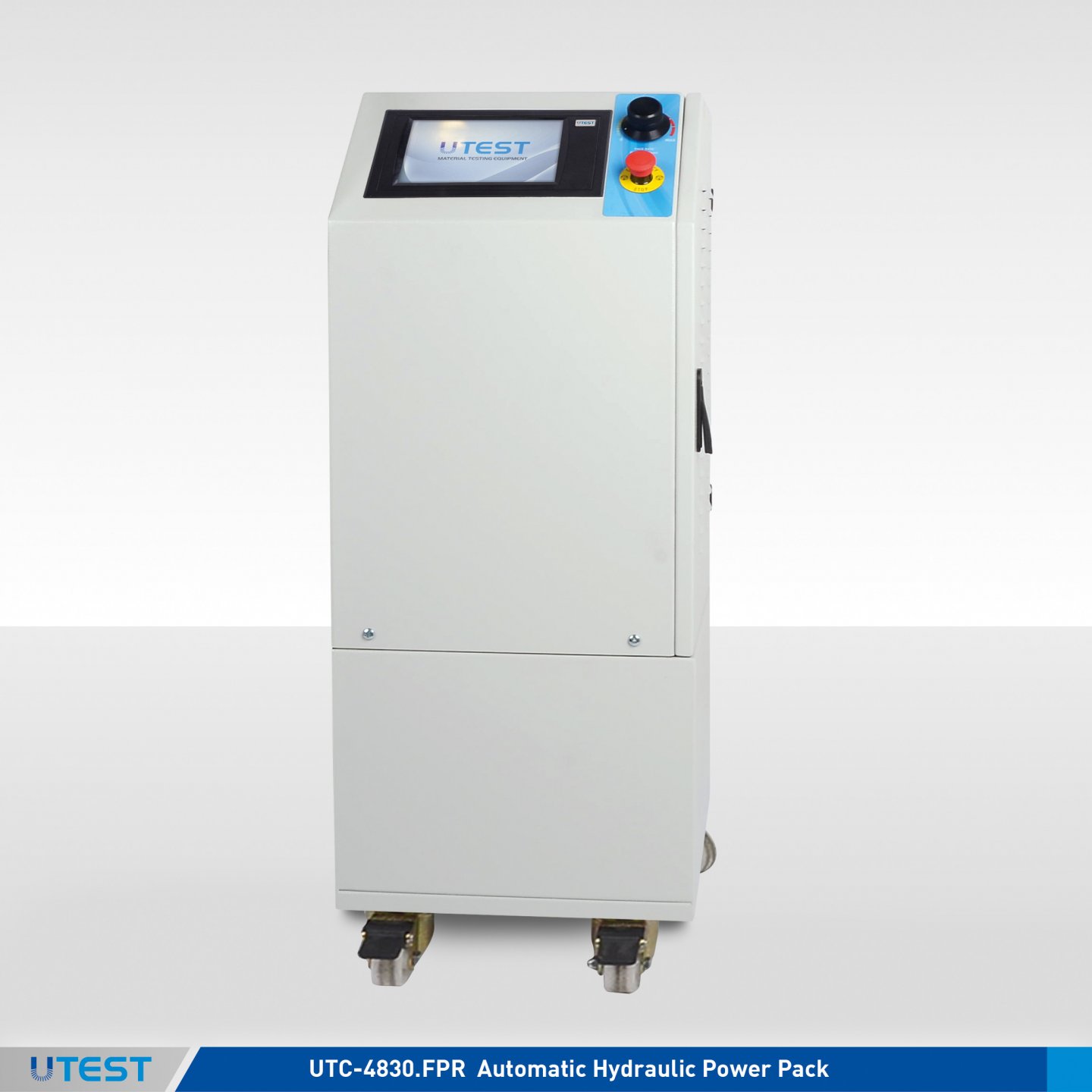

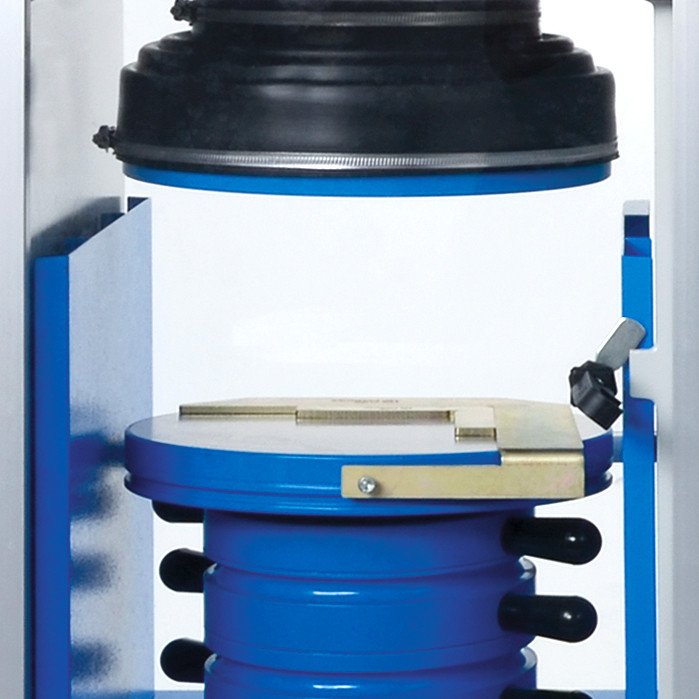

The Machines consist of a welded steel frame (see table) and UTC-4830FPR automatic hydraulic power pack with U-Touch PRO Control Unit.

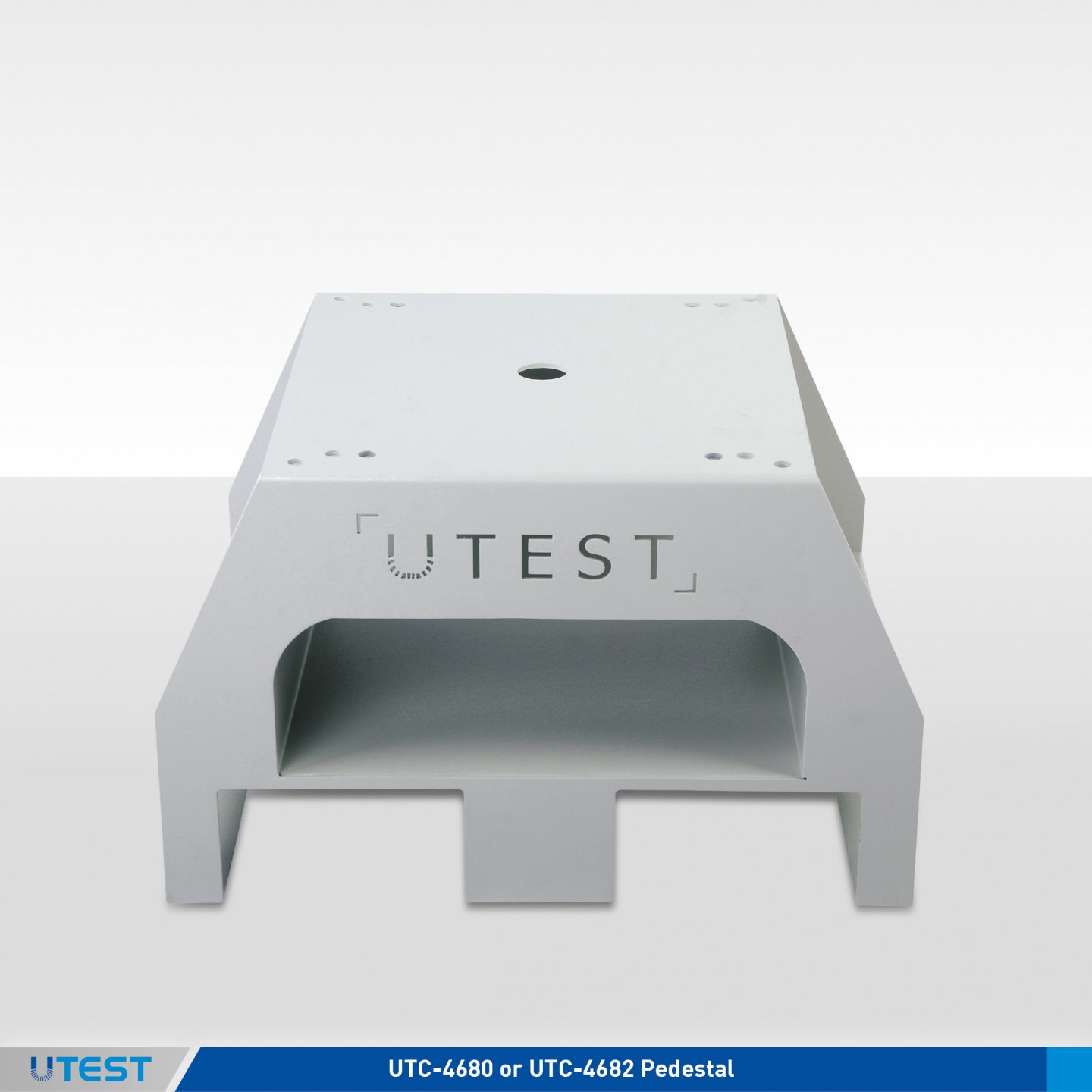

UTC-4680A or UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Pace Rate control between 1 kN to 25 kN

Accuracy Class A acc. to E74 and Class 1 acc. to ISO 7500-1 starting from with the 5% of the machine capacity (Special calibration option Class A starting from 1% of the full range with UTC-0210)

Supplied with factory calibration certificate for load measurement
Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.

Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

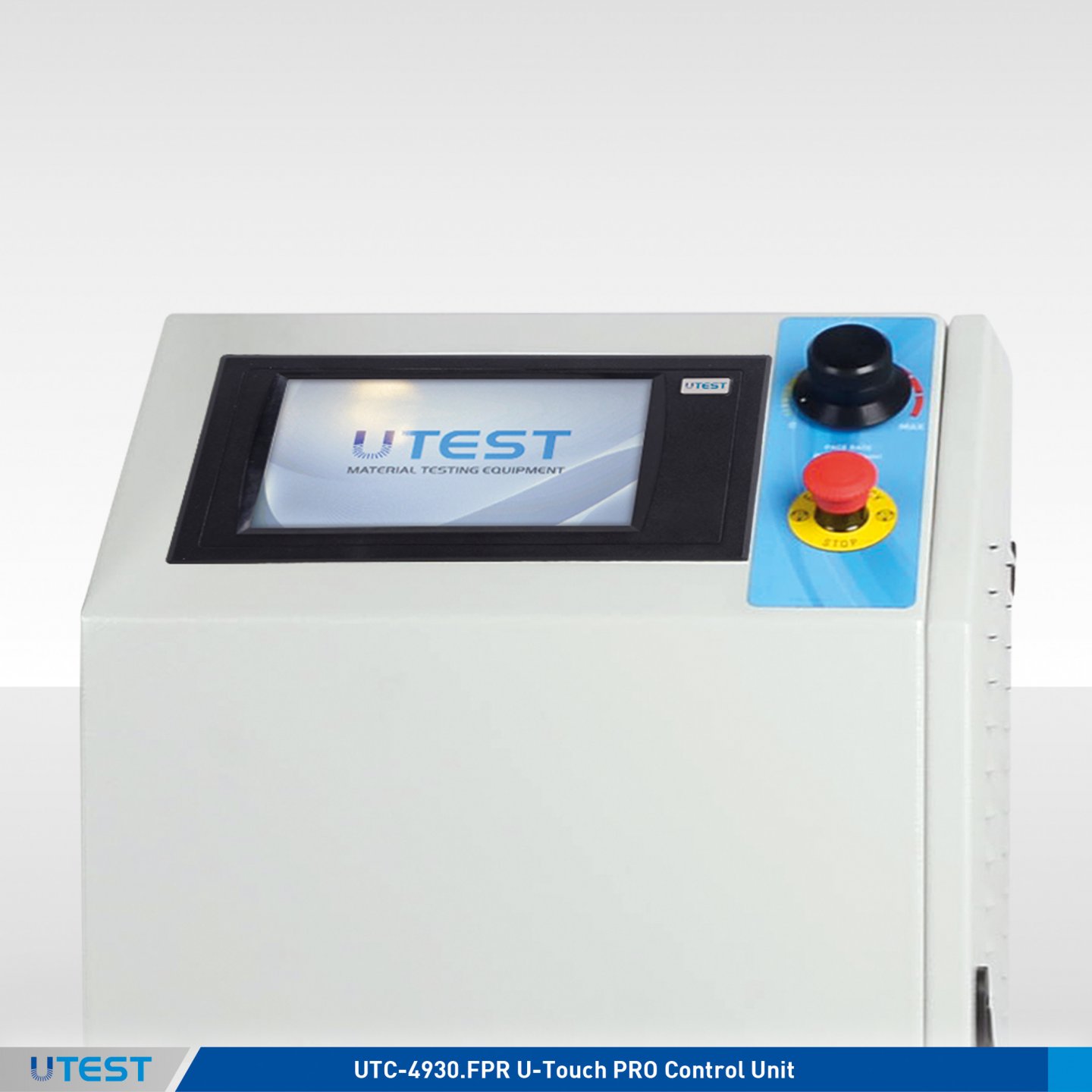

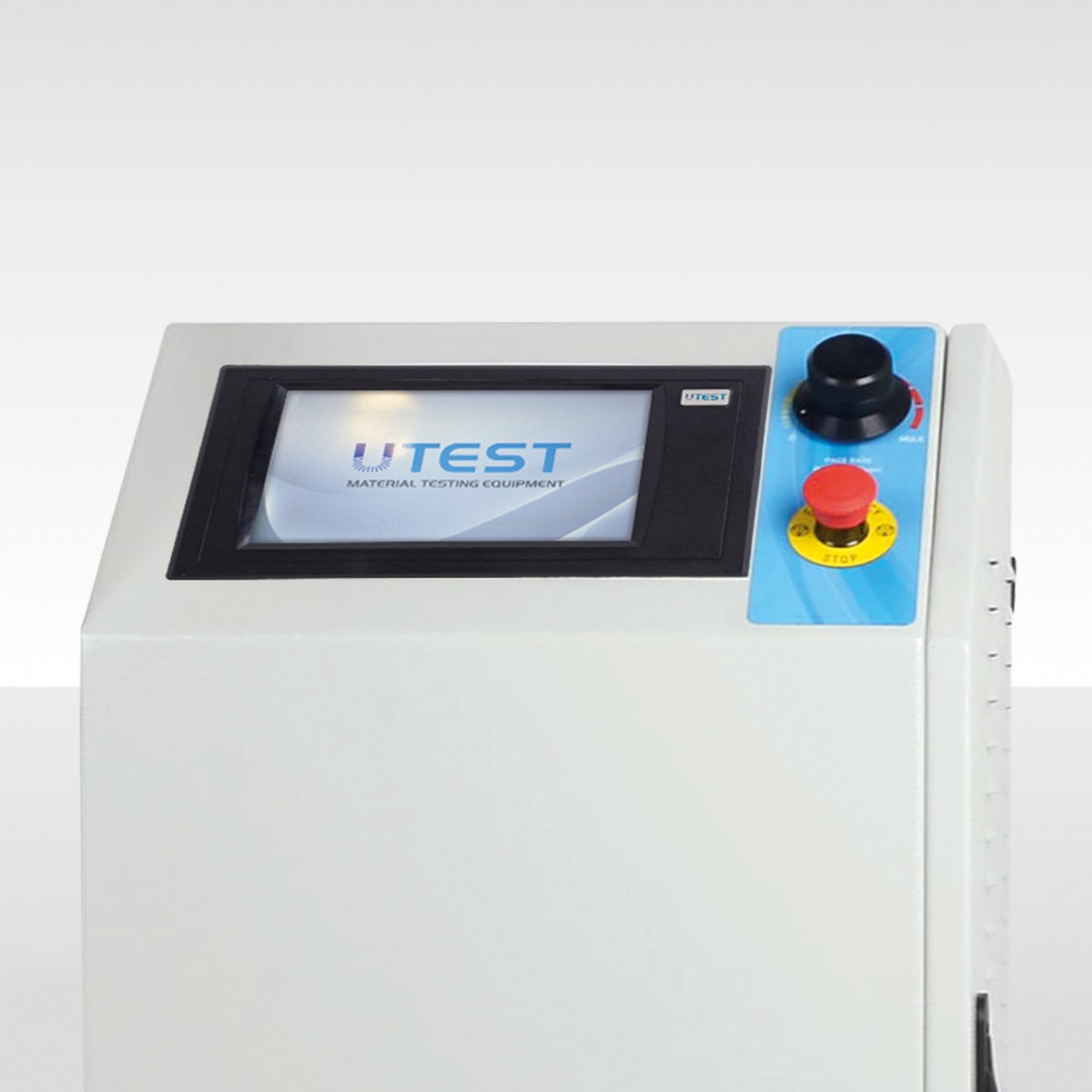

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

U-Touch PRO Control Unit UTC-4930.FPR is designed to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

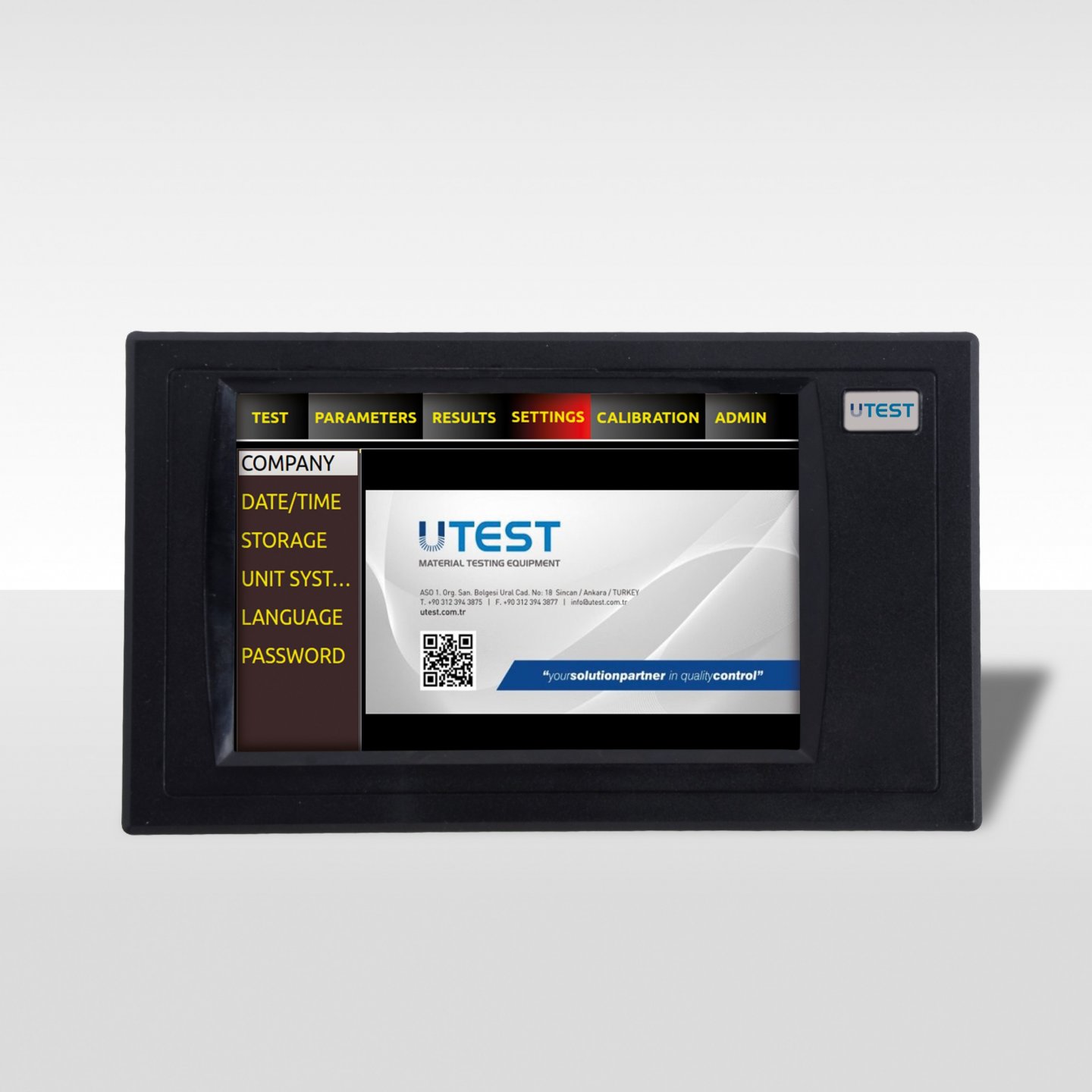

U-Touch PRO Control Unit has easy to use menu options. It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters. Digital graphic display is able to draw real-time "Load vs. Time", or "Stress vs. Time" graphics.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

UTEST software USOFT-4830.FPR provides to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines

The advantages of performing tests on computer with using UTEST Software, such as reporting, graphical output, etc. can be seen in detail at the pages of UTEST Software for Automatic Compression / Flexure Testing Machines.

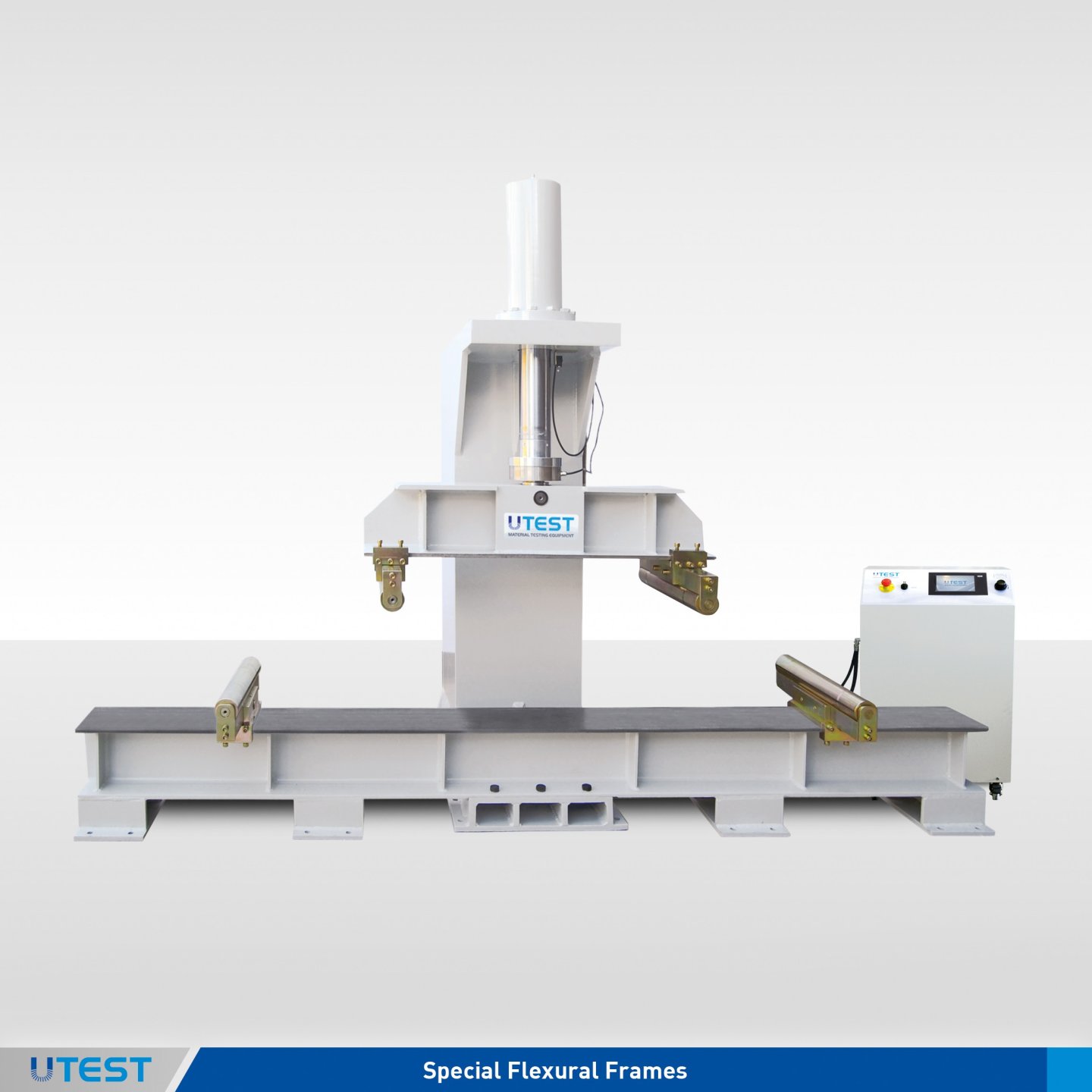

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

In this case, the machines provide load control of two seperate testing frames with closed-loop P.I.D control with automatic test procedure by using selecting test channel and additional selector valve.

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

ASTM & AASHTO LOW CAPACITY AUTOMATIC COMPRESSION TESTING MACHINES FOR CYLINDERS

Models

UTC-4601.FPR

UTC-4701.FPR

UTC-4602.FPR

UTC-4702.FPR

Product


Capacity

600kN (135000 lbf)

1100 kN (245000 lbf)

600kN (135000 lbf)

1100 kN (245000 lbf)

Frame Type

Welded Steel

Lower Bearing Block, Dimensions (D)

Ø105 mm (4,13”)

Ø 165 mm (6,50")

Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)

Ø 165 mm (6.5”)

Ø 165 mm (6,50")

Surface Hardness of Bearing Blocks

≥ 55 HRC

Flatness Tolerance

0,02 mm / 150 mm (0,001”/6”)

0,02 mm / 15 0mm (0,001”/6”)

0,02 mm / 150 mm (0,001”/6”)

Piston Diameter

150 mm (5,9”)

190 mm (7,48”)

150 mm (5,9”)

190 mm (7,48”)

Piston Stroke

Instrumentation amplifiers for sensor excitation and amplification

1/65.000 resolution and 1.000 Hz control for each channel
Ethernet port for connecting to computer
240x320 pixel LCD display
Touchscreen operator panel
Can control 2 frames (UTC-4850 and UTC-4870) or 4 frames (UTC-4860 and UTC-4880)
Can execute load, displacement or strain controlled tests.

For post peak applications UTC-4870 or UTC-4880 must be selected.

Free of charge PC software for test control and advanced report printout
Pace rate control from 0.01 kN/s to 100 kN/s (depend on the specimen stiffeness)
Multiple language support
Real time clock/date

Data Acquisition & PC Software

Advanced Testing Systems can be controlled (Start, Stop commands) by a computer with the software (given free of charge by UTEST). This software provides data acquisition and management for compression, flexure and splitting tensile test throughout the test execution for UTC-4850, UTC-4860, UTC-4870 and UTC-4880 advanced power packs.

The software is capable of running the machine in load control, displacement or strain control. The type of graph or test rate can be changed on the fly. The user can set load or displacement values for making machine to wait until the next command. Engineering functions of elasticity modulus, poisson ratio, yield value and energy ( for UTC-4870 and UTC-4880) is automatically calculated. The software can adjust the axes of graphs, supports different type of graphs and calculates 3 different type of elasticity modulus called tangent, linear and secant moduluses. It also calculates poisson ratio. It can set the gains of the closed loop control, make calibration to the pressure transducer or loadcell. It has an easy calibration check facility such as machine waits at %2, %5, %10 of its maximum capacity for easy check of calibration.

Test speed or mode ( displacement and load control) can be changed by user-friendly buttons during the test.

The advanced functions for data base management provide an easy navigation of all saved data. The test results certificate includes all descriptive information. Therefore, test parameters can be set and details about the test carried out such as client details, test type, specimen type, user info and other information required can be entered and printed out as well as test report and graph. The results are exported to Microsoft Excel for advanced research purposes. The data can also be filtered for obtainining intuitive results. The software prepares a summary report.

Following tests can be done with The UTEST Software with proper test machines.are prepares a summary report.

Standard Code	Description
EN 12390-3	Compressive Strength of Concrete Cylinders or Cubes
EN 12390-5	Flexural Strength of Concrete Beams
EN 1340	Flexural Strenght of Concrete Kerbs
EN 12390-6	Tensile Splitting Strenght of Concrete Cylinders or Cubes
EN 1338	Tensile Splitting Strenght of Concrete Paving Blocks
EN 772-1	Compressive Strenght of Masonry Units (Clay, Concrete with Dense and light – weight, aggregates and Autoclaved aerated, Natural and Manufactured Stone, Calcium silicate)
EN 13748-1	Breaking Strength/Load of Terrazzo Tiles for Internal Use
EN 13748-2	Breaking Strenght/Load of Terazzo Tiles for External Use
EN 538 and EN 491	Flexural Strenght of Clay or Concrete Roofing Tiles
EN 196-1	Compressive Strenght of Hydraulic-Cement Mortars
EN 196-1	Flexural Strenght of Hydraulic-Cement Mortars
EN 12504-1 and EN 12390-3	Compressive Strenght of Cored Concrete Specimens

Foreign Language Support and Customizable User Interface
Capability to Save 24 test results of different specimens in one test folder
Graphical data on the screen is refreshed simultaneously during test procedure
Able to save frequently used texts in memory and recall them when necessary
Capable to Access and use previously done test data
Able to edit test parameters of the testing equipment through Software
Graphical outputs and reports can be saved as a MS Excel worksheet
Maximum Flexibility to edit report and graph templates

Standard Code	Description
BS-1881 part 121	Static Modulus of Elasticity
ASTM C 469	Static Modulus of Elasticity and Poisson's Ratio of Concrete in Compression
ASTM C 1609	Flexural Performance of Fiber-Reinforced Concrete (Using Beam With Third-Point Loading)
EN 14651	Test method for metallic fibre concrete - Measuring the flexural tensile strength (limit of proportionality (LOP), residual)
EN 14488-3	Flexural strengths (first peak, ultimate and residual) of fibre reinforced beam specimens
ISO 1920-9	Testing of concrete -- Part 9: Determination of creep of concrete cylinders in compression
ISO 1920-10	Testing of concrete -- Part 10: Determination of static modulus of elasticity in compression
EN ISO 6892-1	Tensile Test of Metallic Materials
EN 12390-13	Testing hardened concrete - Part 13: Determination of secant modulus of elasticity in compression

53. ACCESSORIES for Flexural Testing Frames

Request Catalog

Product Code

UTC-5501	Flexural Testing Assembly for Concrete Beams, Set of 2 upper and 2 lower rollers of 38 mm dia and 160 mm length
UTC-5502	Flexural Testing Assembly for Concrete Kerbs, Set of 2 lower roller of 38mm dia.x620mm lenght and upper loading arm with Ø 40 mm swivel jointed steel pad.

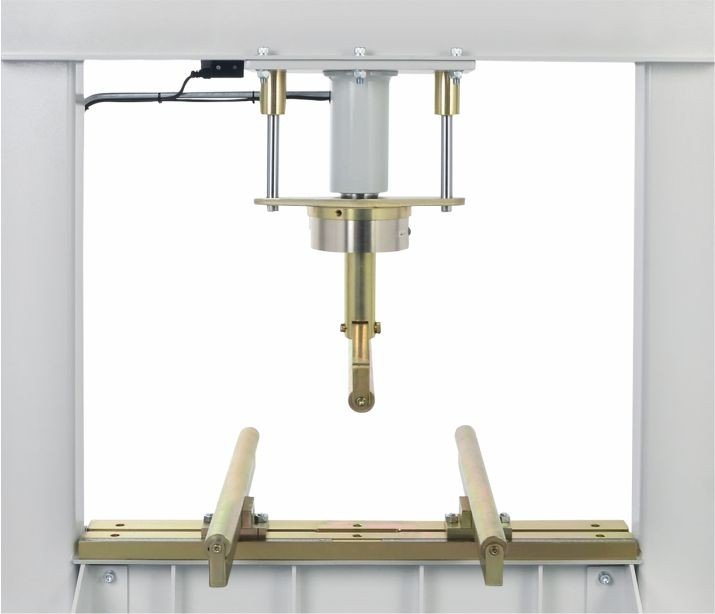

UTC-5503	Upper Loading Arm with Ø40mm Swivel Jointed Steel Pad. EN 1340 (lower rollers are not included). To be used with lower rollers of UTC-5504.
UTC-5504	Flexural Testing Assembly, Set of 2 lower and 1 upper roller of 38 mm dia.and 620 mm lenght.
UTC-5507	Auxiliary Testing Frame for The Measurement of Deflection on Beams
UTM-8516	Lower and Upper (spherical seating Loading Platens Ø165 mm

Standard

EN 1338, 1339, 1340, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C496, UNI10834

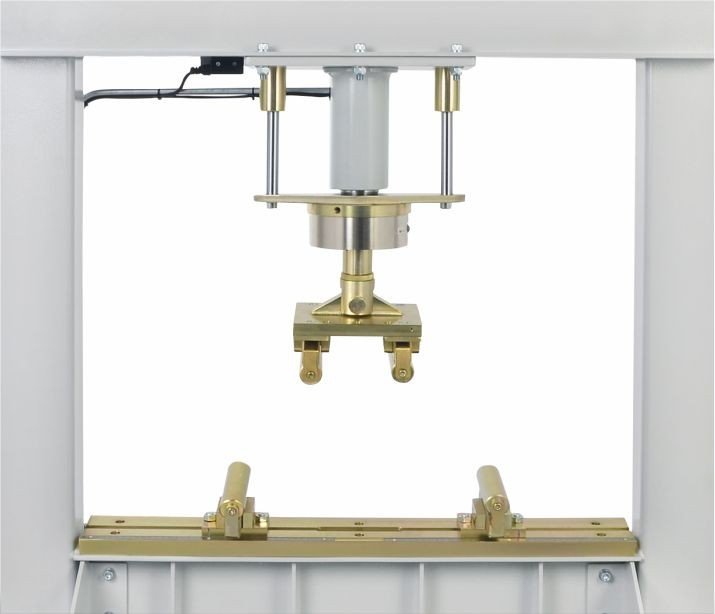

UTC-5501 Flexural Testing Assembly for Concrete Beams

The test assembly, conforming with EN 12390-5, ASTM C78, ASTM C293, BS 1881:118, is used for center or two-point (third-point loading-ASTM) loading flexural tests on 100 mm or 150 mm concrete beams.

Can be used with all UTEST flexural testing frames. The distance of lower rollers can be adjusted between 100 mm to 800 mm. The distance between upper rollers can be set to 100 mm or 150 mm. For center-point loading flextural test one of the rollers can be removed and the other placed in the center. The rollers dimensions are 38 mm dia.x 160 mm length.

Dimensions	200x200x200 mm
Weight (approx.)	16 kg

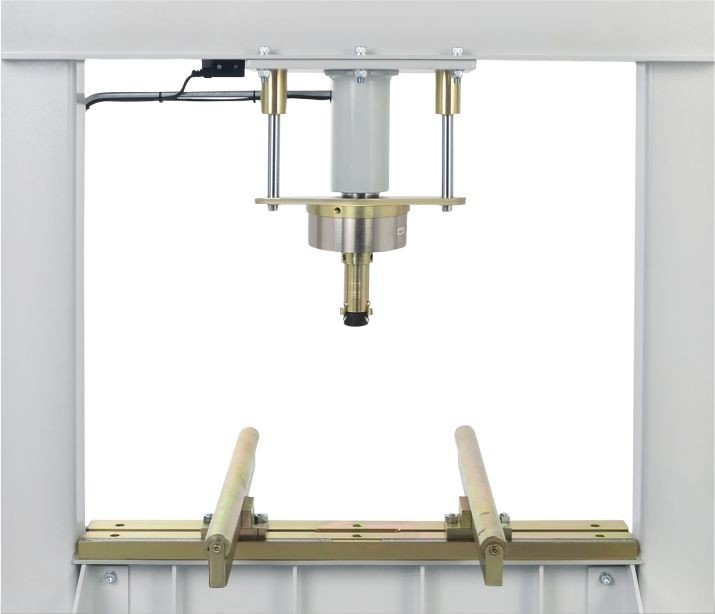

UTC-5502 Flexural Testing Assembly for Concrete Kerbs

The testing assembly, conforming with EN 1340, is used for flexural tests on concrete kerbs. The set consists of two lower rollers 38 mm dia. x 620 mm long and 40 mm dia. upper loading piston with ball seating assembly.

Can be used with all UTEST flexural testing frames. The distance of lower rollers can be adjusted between 100 mm to 800 mm.

Dimensions	620x250x100 mm
Weight (approx.)	17 kg

UTC-5504 Flexural Test Assembly

UTC-5504 Flexural Testing Assembly consist of two lower rollers and one upper roller of 38 mm dia. and 620 mm length is used for flexural tests on concrete paving flags and concrete terrazo tiles, natural stone kerbs and slabs. The distance of lower rollers can be adjusted between 100 mm to 800 mm. Conform with EN 1339, EN 1343, EN 12372.

A user with the UTC-5004 Flexure Test Assembly for flexural strenght tests of concrete paving slabs and concrete terrazo tiles, natural stone curbs and slabs, additionally it is possible to carry out flexural strenght test of concrete curb according to EN 1340 by supplying only UTC-5003.

Dimensions	620x260x150 mm
Weight (approx.)	25 kg

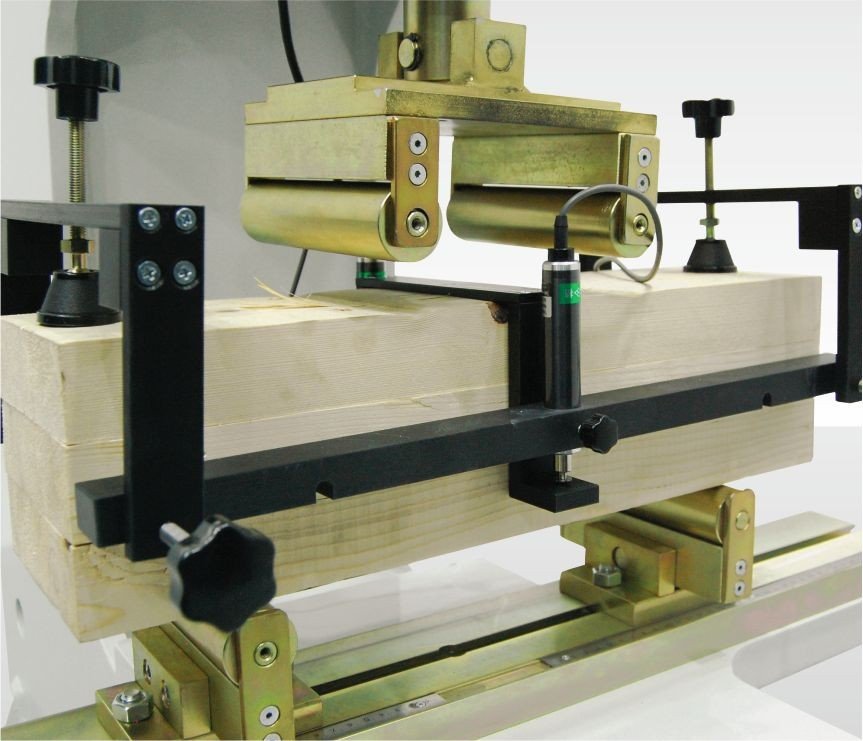

UTC-5507 Auxiliary Testing Frame for The Measurement of Deflection on Concrete Beams

The Auxiliary testing frame UTC-5507 is used for the measurement of flexural performance of fiber-reinforced concrete (FRC) acc. to ASTM C1609 especially 100x100x400/500 mm and 150x150x500/600 mm beams.

For testing in accordance with ASTM C1609, in addition to UTC-5507, the following equipment should be supplied.

UTGM-0072L	High Accurate Strain Gauge Based Displacement Transducer with Elbow Type Connecting Cable.10mm (2 pieces)
UTC-5501	Flexural Testing Assembly for Concrete Beams. Consist of two upper and two lower rollers of Ø38mm and 160mm length.
UTC-5621.SVD2.2M	200 kN All Purpose Servo Controlled Bending Test Machine For Shotcrete and FRC. EN, ASTM.

Dimensions	500x320x180 mm
Weight (approx.)	7 kg

Spilitting Tensile Test for Concrete Paving Blocks and Compressive Strength Test with Flexural Testing Frames

For splitting tensile test on concrete paving blocks (EN 1338) in addition to any Utest Flexural frame the following accesories should be ordered.

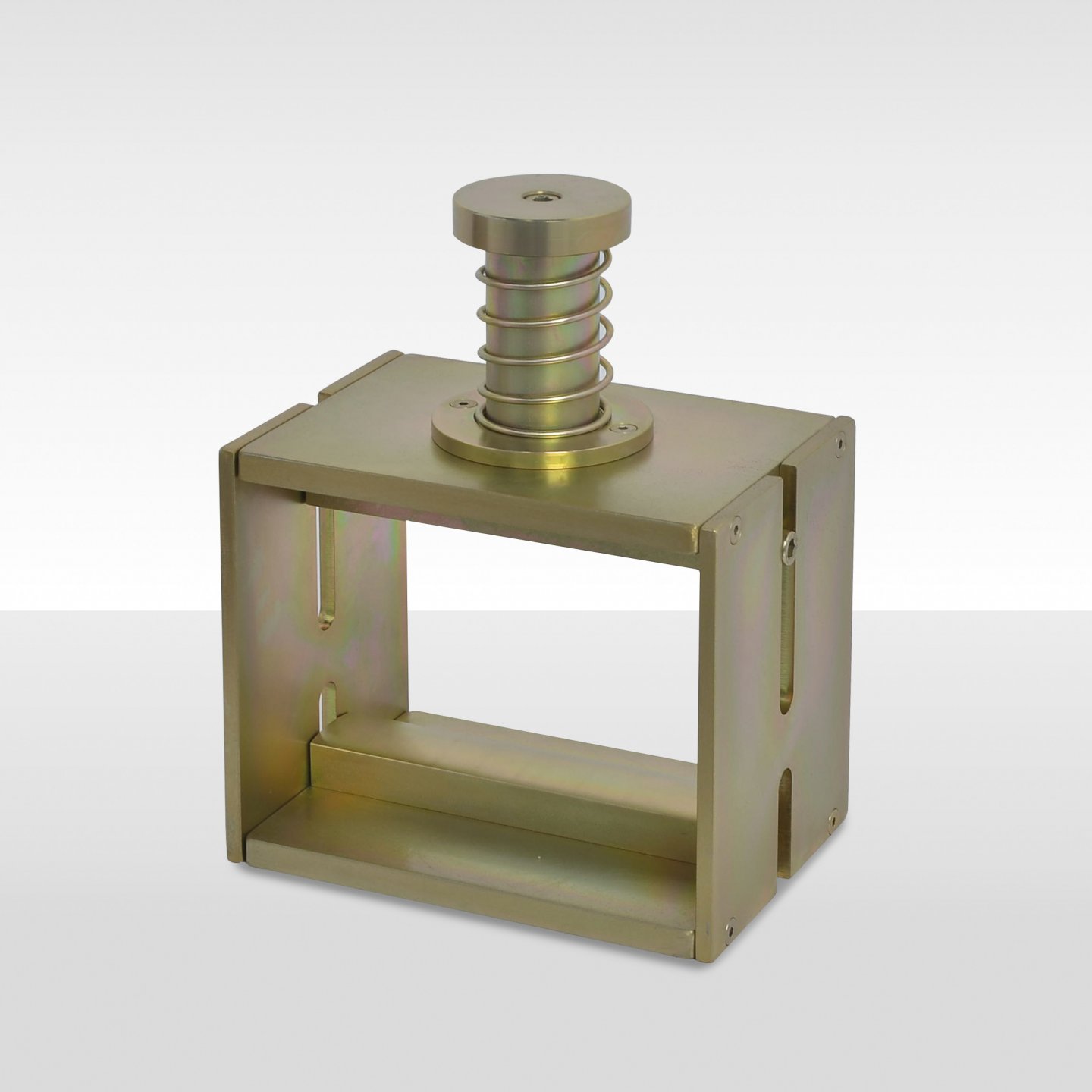

Splitting tensile test device (UTC-0355 or UTC-0356)
Lower and upper (spherical seating) Loading Platens (UTM-8516 / Ø165 mm)

For the compressive strength test in addition to any Utest flexural testing frame the following accesories should be ordered

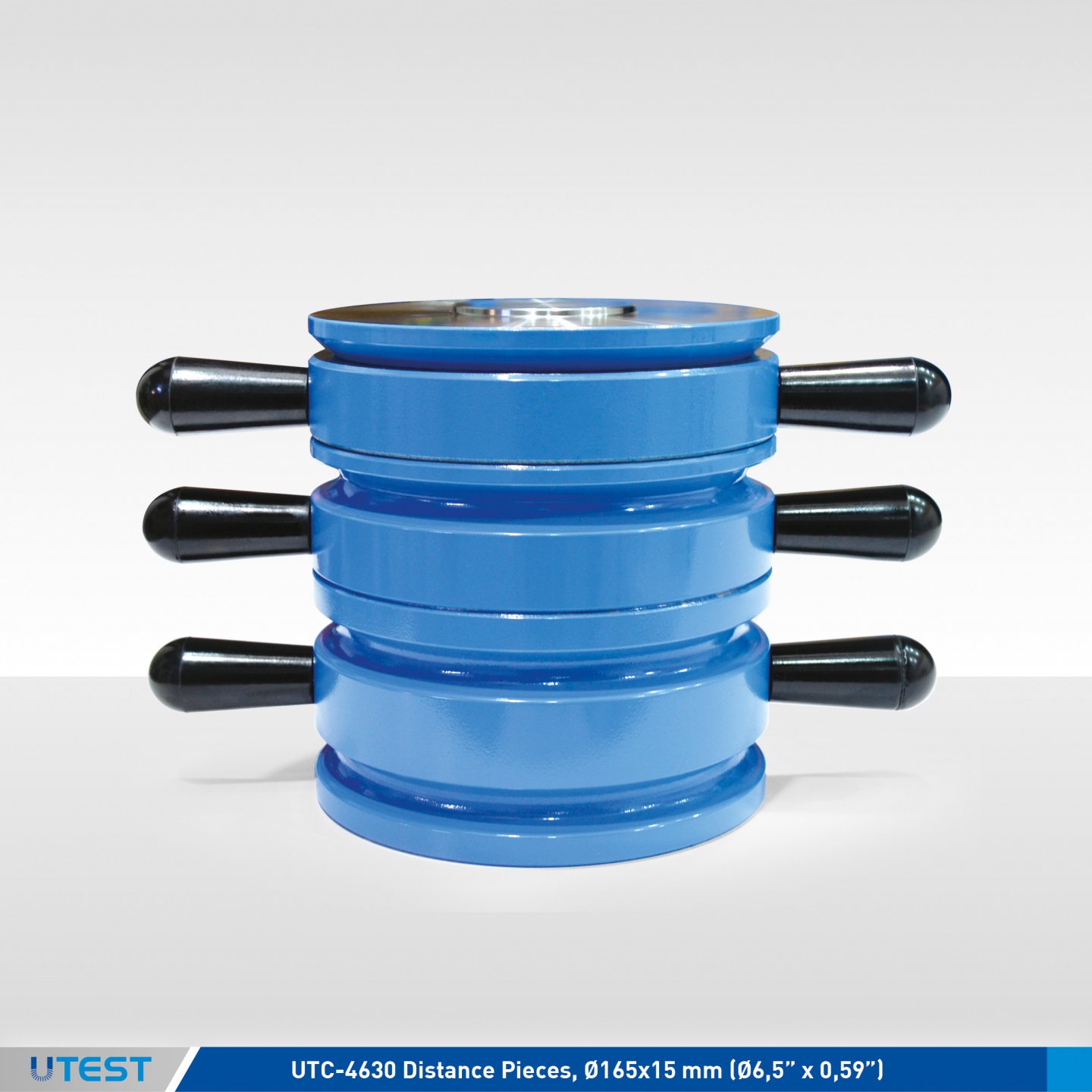

Depending on the height of the specimens to be tested, distance pieces (15 mm: UTC-4630, 30 mm:UTC-4631, 50 mm: UTC-4633, 100 mm: UTC-4634),
Lower and Upper (spherical seating) Loading Platens (UTM-8516 / Ø165 mm)

Proıduct Code	Dimensions	Weight (approx.)
UTM-8516	170x170x145 mm	9 kg
UTC-0355	240x160x320 mm	17,5 kg
UTC-0356	280x160x340 mm	25 kg
UTC-4630	165x285x20 mm	2,5 kg
UTC-4631	165x285x35 mm	5 kg
UTC-4633	165x285x55 mm	8 kg
UTC-4634	165x285x95 mm	14 kg

54. Slump Test Set, EN

Request Catalog

Product Code

UTC-0398E	Portable Slump Test Set, EN
UTC-0400E	Slump Test Set, EN
UTC-0402E	Slump Cone, EN
UTC-0404E	Slump Base Plate 500x500x60 mm with Handle, EN
UTC-0406	Slump Cone Funnel, Galvanized Steel
UTC-0408	Tamping Rod Ø 16x600 mm
UTC-0409E	Tamping Rod, Graduated (cm), Ø 16x600 mm
UTC-0410	Tamping Rod Ø10x300 mm
UTGH-1605	Round Scoop, Medium
UTGM-0380	Steel Ruler 300x1 mm

Standards

EN 12350-2

The Slump test method is used for the determination of the consistency and workability of fresh concrete.

UTC-0398E and UTC-0400E Slump Test Sets are supplied galvanized to prevent corrosion.

All parts of the Portable Slump Test Set (UTC-0398E) can be carried together easily.

The Slump Test Set are supplied complete with;

Slump Cone Top Dia: 100 ±2 mm / Base Dia: 200 ±2 mm / Height: 300 ±2 mm / Thickness 1,5mm
Slump Base Plate 500x500x60 mm with Handle (with UTC-0400E)
Slump Base Plate with Handle and Clamps( with UTC-0398E)
Slump Funnel, Galvanized Steel
Tamping Rod Ø16x600 mm (UTC-0408)
Round Scoop, medium
Steel Ruler 300x1 mm

Dimensions	550x560x310 mm
Weight (approx.)	9 kg

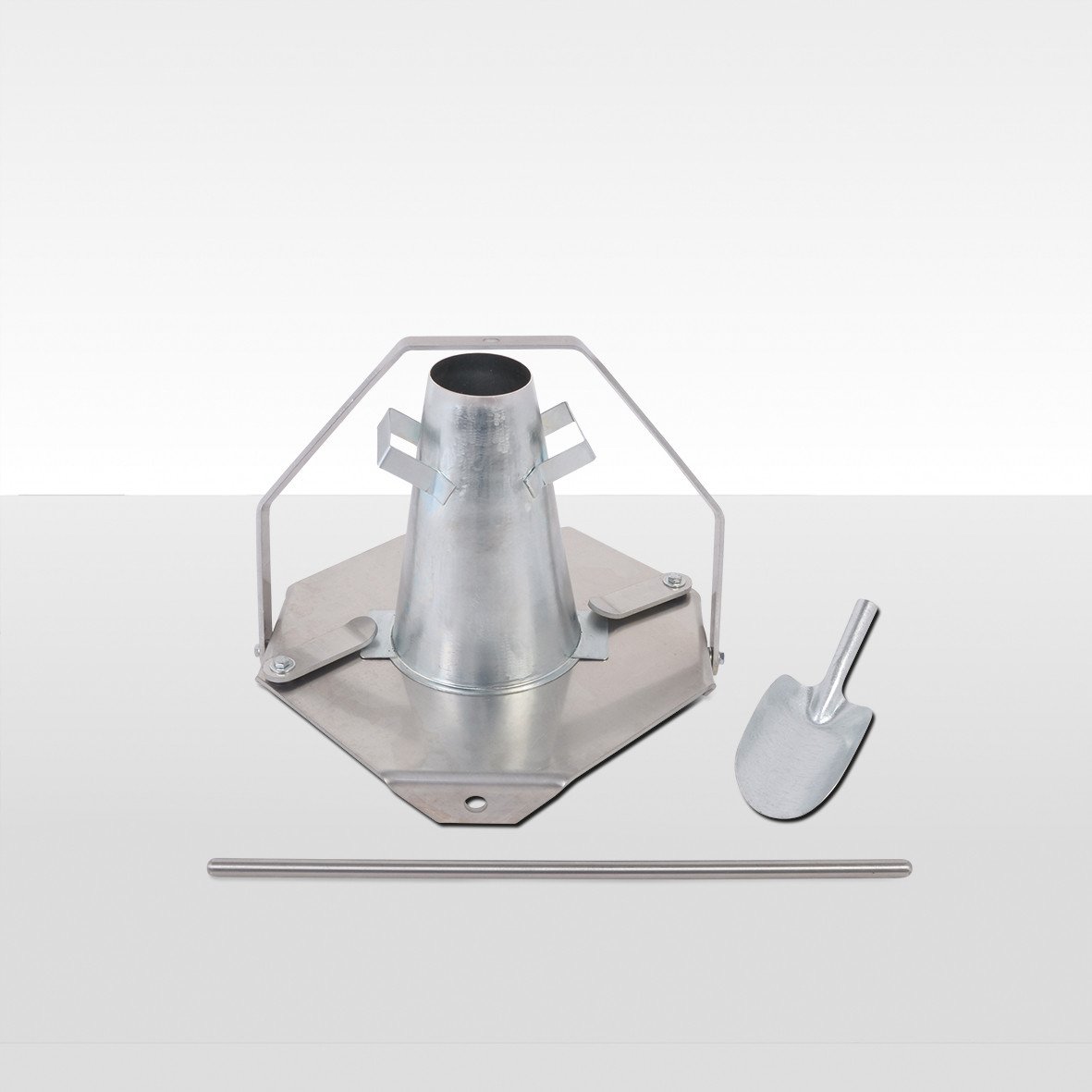

55. Slump Test Set, ASTM

Request Catalog

Product Code

*UTC-0400A ()**	Slump Test Set, ASTM
*UTC-0402A ()**	Slump Cone, Seemless Spun Metal, ASTM
*UTC-0404A ()**	Aluminium Base Plate with clamps and measuring bridge for UTC-0400/A
UTC-0406	Slump Cone Funnel, Galvanized Steel
UTC-0409A	Tamping Rod, Graduated
*UTGH-1618A ()**	Scoop, Flat Bottom, 24 oz.
UTGH-1620	Scoop, Cast Aluminum, 38 oz.

(*) Only available for sale in America

Standards

ASTM C143; AASHTO T119

The Slump test method is used for the determination of the consistency and workability of fresh concrete.

UTC-0406 Slump Cone Funnel should be ordered separately.

UTC-0400A Slump Test Set are supplied complete with;

Slump Cone, Seemless spun metal
Aluminium Base Plate with clamps and measuring bridge
Tamping Rod, Graduated
Scoop, cast aluminum 38 oz.

Dimensions	220x230x310 mm
Weight (approx.)	9 kg

56. Concrete Flow Table Test Set

Request Catalog

Product Code

UTC-0510	Concrete Flow Table Test Set
UTC-0512	Flow Cone for UTC-0510
UTC-0513	Wooden Tamper 40x40x335 mm

Standards

EN 12350-5

The test set is used for concrete mixes of high workability and determines flow index as an arithmetic mean of the diameter of the specimen after working on a flow table.

The apparatus consists of a double steel table, an upper table measuring 700x700 mm and hinged at one side to the lower table. The top table is inscribed and all parts are protected against corrosion.

The stainless steel cone has a 130 ±2 mm top diameter, 200 ±2 mm base diameter and 200 ±2 mm height and 1.5 mm thickness.

The Concrete Flow Table is supplied complete with;

Flow Cone
Wooden Tamper

Dimensions	700x850x300 mm
Weight (approx.)	40 kg

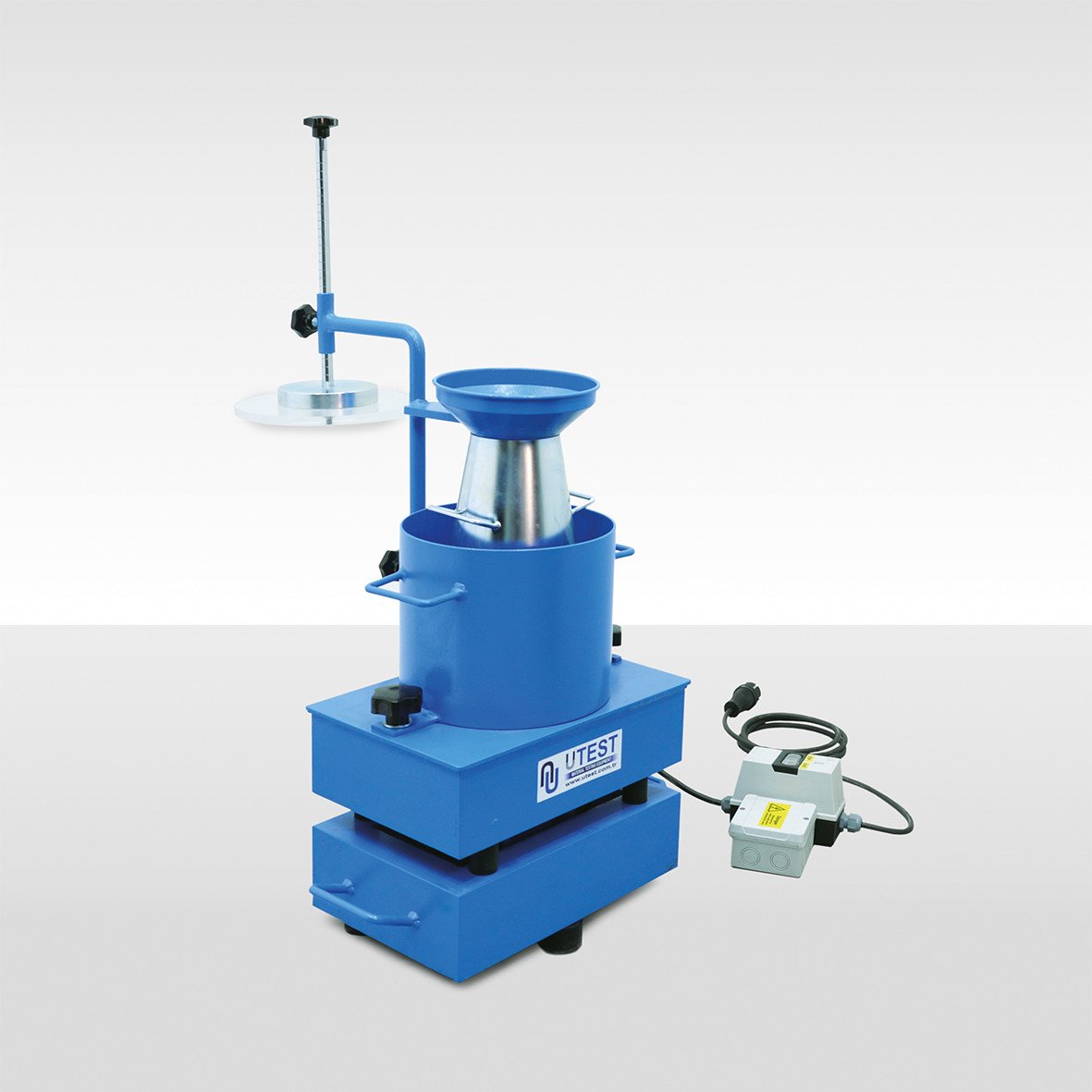

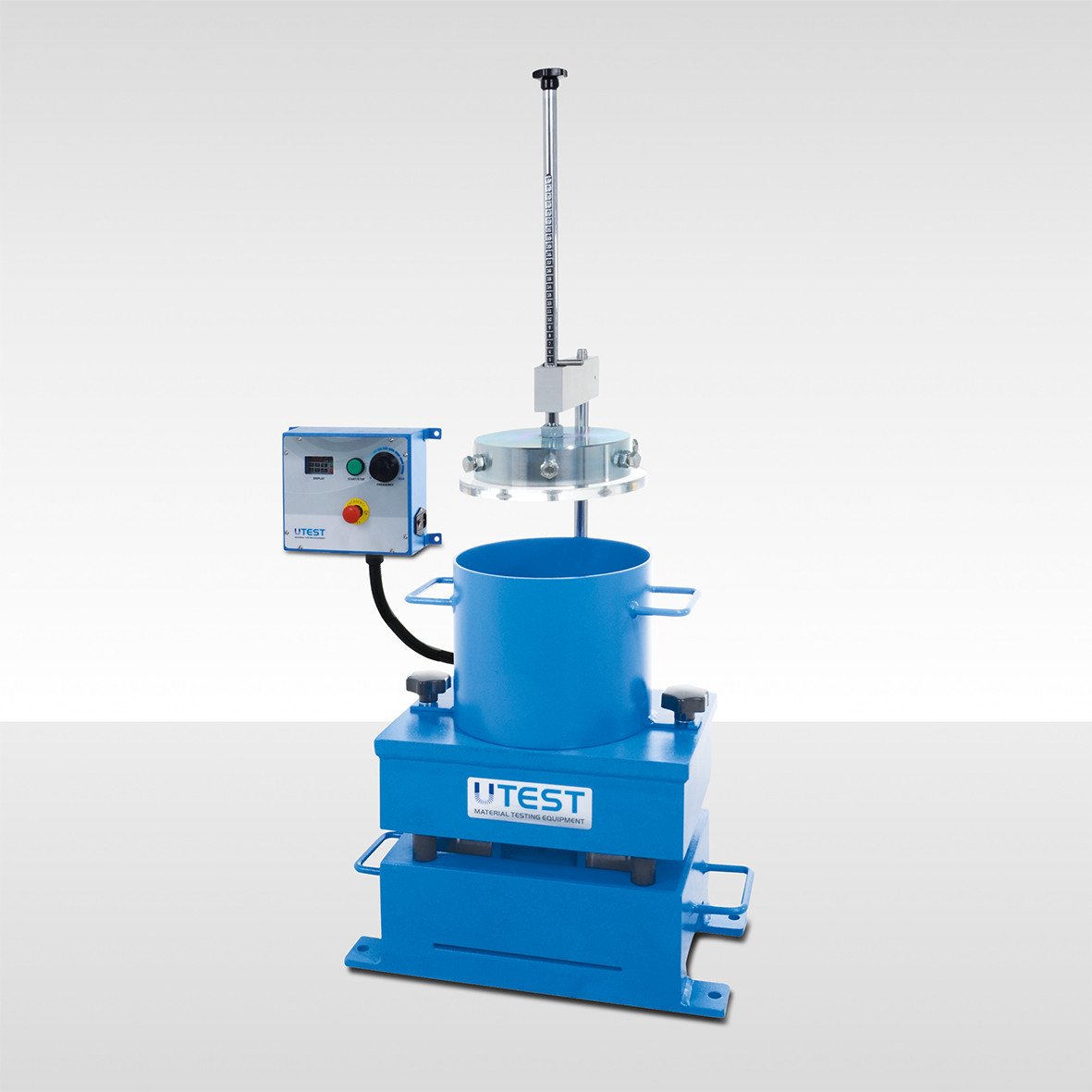

57. Vebe Consistometer

Request Catalog

Product Code

UTC-0560E	Vebe Consistometer, EN
UTC-0560A	Vebe Consistometer, ASTM C 1170
UTC-0562A	Vebe Consistometer, ASTM C 1176
UTC-0563A	Mass of Calibration for UTC-0560A, UTC-0562A and UTC-0566A, ASTM
UTC-0565A	Accessories Set to make UTC-0560A conform to ASTM C1176
UTC-0566A	Vebe Consistometer conforming to ASTM C1170 and C1176
UTC-0567A	Plastic Cylinder Mold Fixing Assembly for UTC-0560A, UTC-0562A and UTC-0566A

Models for 110-120V 60 Hz, 1 ph.	UTC-0560A-N	UTC-0562A-N	UTC-0566A-N
Models for 220-240V 60 Hz, 1 ph.	UTC-0560A-K	UTC-0562A-K	UTC-0566A-K
Models for 220-240V 50-60 Hz, 1 ph.	UTC-0560E

Standards

EN 12350-3, ASTM C 1170, C 1176

UTC-0560E model consistometer conforms to EN 12350-3 for determining the consistency of fresh concrete by means of the Vebe time. The unit consists of a vibrating table, cylindrical bucket, slump cone, thick transparent disc complete with filling funnel and tamping rod.

UTC-0560A model consistometer conforms to ASTM C 1170 for Determining Consistency and Density of Roller-Compacted Concrete. The unit consists of a vibrating table, swing arm with guide sleeve, test mold, surcharge assembly with 12,5 kg (27,5 lb) and 22,7 kg (50 lb) weihgts.

UTC-0562A model consistometer conforms to ASTM C 1176 for preparing and making roller-compacted concrete in cylinder molds intended for use in testing.The unit consists of a vibrating table, swing swivel arm with guide sleeve, surcharge assembly with 9 kg (20 lb) weihgt and steel type A mold.

UTC-0567A is used for preparing and making roller-compacted concrete specimen in plastik cylinder molds.

UTC-0563A Mass of Calibration for UTC-0560A or UTC-0562A or UTC-0566A should be ordered seperately.

Product Code	UTC-0560E	UTC-0560A	UTC-0562A	UTC-0565A
Dimensions	460x520x710 mm	305x490x890 mm 12”x19,3”x35,1”	305x490x730 mm 12”x19,3”x28,7”	254x460x340 mm 10”x18,1”x13,4
Weight (approx.)	47 kg	150 kg (331 lbs)	135 kg (298 lbs)	25 kg (55 lbs)
Power	170 W	170 W	170 W	---

58. Degree of Compactability (Waltz) Container

Request Catalog

Product Code

UTC-0550

Degree of Compactability (Waltz) Container

Standards

EN 12350-4

The UTC-0550 Degree of Compactability (Waltz) Container is used to measure the degree of compactability of fresh concrete.

It consists of a 200x200x400 mm (width x depth x height) metal container with two carrying handles. Coated against corrosion.

Dimensions	290x210x400 mm
Weight (approx.)	5 kg

59. Kelly Ball Apparatus

Request Catalog

Product Code

UTC-0570

Kelly Ball Apparatus

Standards

ASTM C360

The Kelly Ball test was developed in the 1950’s in the United States as a fast alternative to the slump test. The simple and inexpensive test can be quickly performed on in-place concrete and the results can be correlated to slump.

The UTC-0570 Kelly Ball Apparatus consists of a 6 inch (152 mm) diameter ball which slides through a frame that rests on the fresh concrete.

Dimensions	150x340x300 mm
Weight (approx.)	15 kg

60. Compacting Factor Apparatus

Request Catalog

Product Code

UTC-0580

Compacting Factor Apparatus

Standards

BS 1881-103, 5075

The UTC-0580 Compacting Factor Apparatus is used to determine the compaction factor of concrete with low, medium and high workability.

Comprising two conical hoppers having a hinged trap door attached to the lower end of each hopper, allowing the concrete sample to flow freely into the cylindrical mould.

The hoppers and the mould are mounted onto a rigid steel frame and are easily removable for cleaning.

Dimensions	260x610x1300 mm
Weight (approx.)	33 kg

61. SCC - Sieve Segregation Test Set

Request Catalog

Product Code

UTC-0518	Sleve Segregation Test Set
UTG-4PC0050/Y	Sieve Ø 300x75 mm 5 mm Square Aperture
UTG-4002/Y	Pan Ø300x75 mm

Standards

EN 12350-11

The UTC-0518 Sieve Segregation Test Set is used for determining the resistance to sieve segregation of Self Compacting Concrete.

The Sieve has 5 mm square apertures with a frame diameter of 300 mm conforming to ISO 3310-2 standard.

Supplied complete with a Pan.

Dimensions	320x320x300 mm
Weight (approx.)	2 kg

62. SCC - Slump - Flow Test

Request Catalog

Product Code

UTC-0420E	Slump Cone, EN
UTC-0402A	Slump Cone, Seemless Spun Metal, ASTM
UTC-0524	Base Plate, Stainless Steel, for J-Ring and Slump-Flow Tests
UTC-0526E	Steel Weighted Collar, 9 kg, EN for Slump Cone On J-Ring or Slump Flow Test
UTGH-1605	Round Scoop, Medium
UTGT-1580	Digital Stop Watch

Standards

EN 12350-8, 12350-2; ASTM C 1611, C143

The Slump-Flow test is performed for determining the slump-flow and t500 time for self-compacting/consolidation concrete (SCC).

This test method is considered applicable to self-consolidating concrete having coarse aggregate;

up to 25 mm in size acc. to ASTM standard
up to 40 mm in size acc. to EN standard

The UTC-0524 Base Plate 920x920 mm is made of stainless steel with engraved circles of 210 mm and 500 mm diameter conforming to EN 12350-8.

Product Code	Dimensions	Weight (approx.)
UTC-0402E	200x260x300 mm	2 kg
UTC-0402A	220x270x300 mm	1,5 kg
UTC-0524	920x990x10 mm	21 kg
UTC-0526E	230x230x40 mm	9 kg

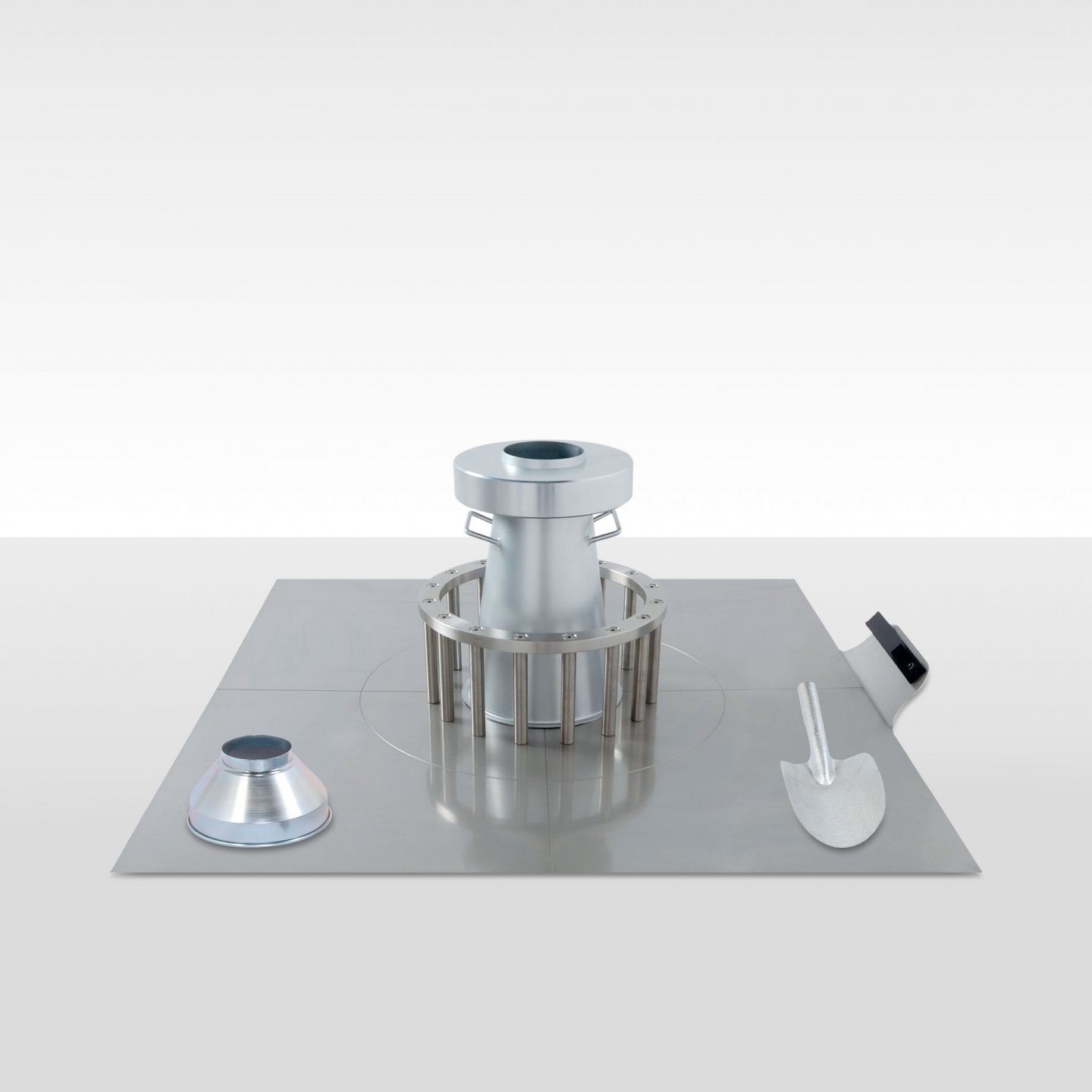

63. SCC - J-Ring, Narrow Gap, EN

Request Catalog

Product Code

UTC-0520E	J-Ring, Narrow Gap, EN
UTC-0522E	Slump Cone for UTC-0520E
UTC-0406	Slump Funnel, Galvanized Steel
UTC-0524	Base Plate, Stainless Steel, for J-Ring and Slump-Flow Tests
UTC-0526E	Steel Weighted Collar, 9 kg, EN for Slump Cone On J-Ring or Slump Flow Test
UTGH-1605	Round Scoop, Medium

Standards

EN 12350-12, 12350-8, 12350-2

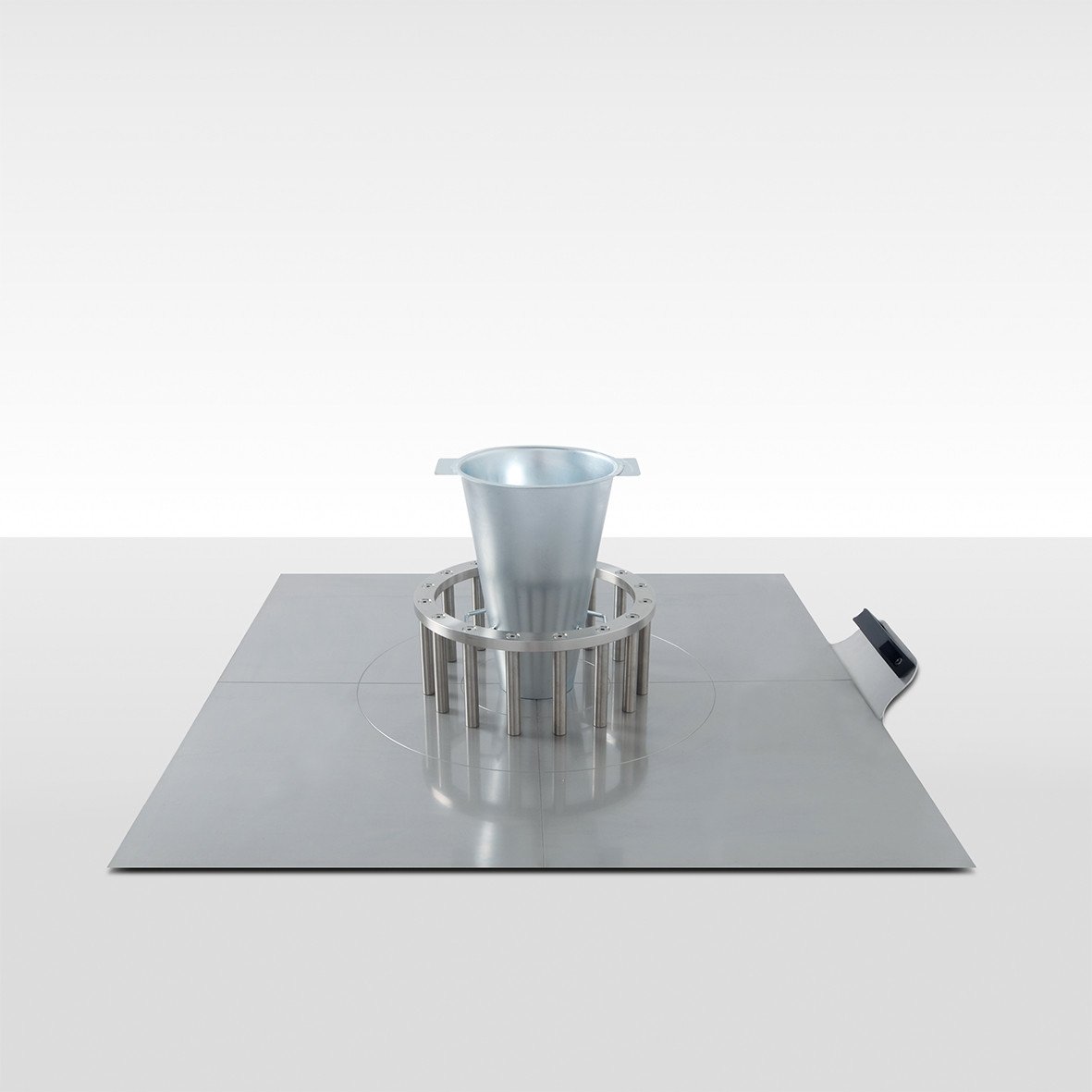

The J-Ring Test is used for determining the passing ability, the flow spread and the T500_Jflow time of self compacting concrete as the concrete flows through the J-Ring Apparatus.

The UTC-0520E J-Ring Narrow Gap with Ø18mm x 16 smooth bars is manufactured from stainless steel.

The UTC-0522E Slump Cone is made from sheet steel protected against corrosion, with diameters; top 100 mm, base 200 mm and with a height of 300 mm.

The UTC-0524 Base Plate for J ring and slump-flow test acc. to EN, ASTM is made of stainless steel, 920x920mm with engraved Ø210mm and Ø500mm circles.

The UTC-0526E Steelweighted collar is used to stabilize the slump cone.

Minimum apparatus for the J-Ring Test are J-Ring with narrow gap ( UTC-0520E) and slump cone (UTC-0522E)

Product Code	Dimensions	Weight (approx.)
UTC-0520E	330x330x130 mm	7 kg
UTC-0522E	220x220x300 mm	2 kg
UTC-0406	190x190x100 mm	0,20 kg
UTC-0524	920x990x10 mm	21 kg
UTC-0526E	230x230x40 mm	9 kg

64. SCC - J-Ring, ASTM

Request Catalog

Product Code

50 mm (1,97”)

Weight (approx.)

18 kg

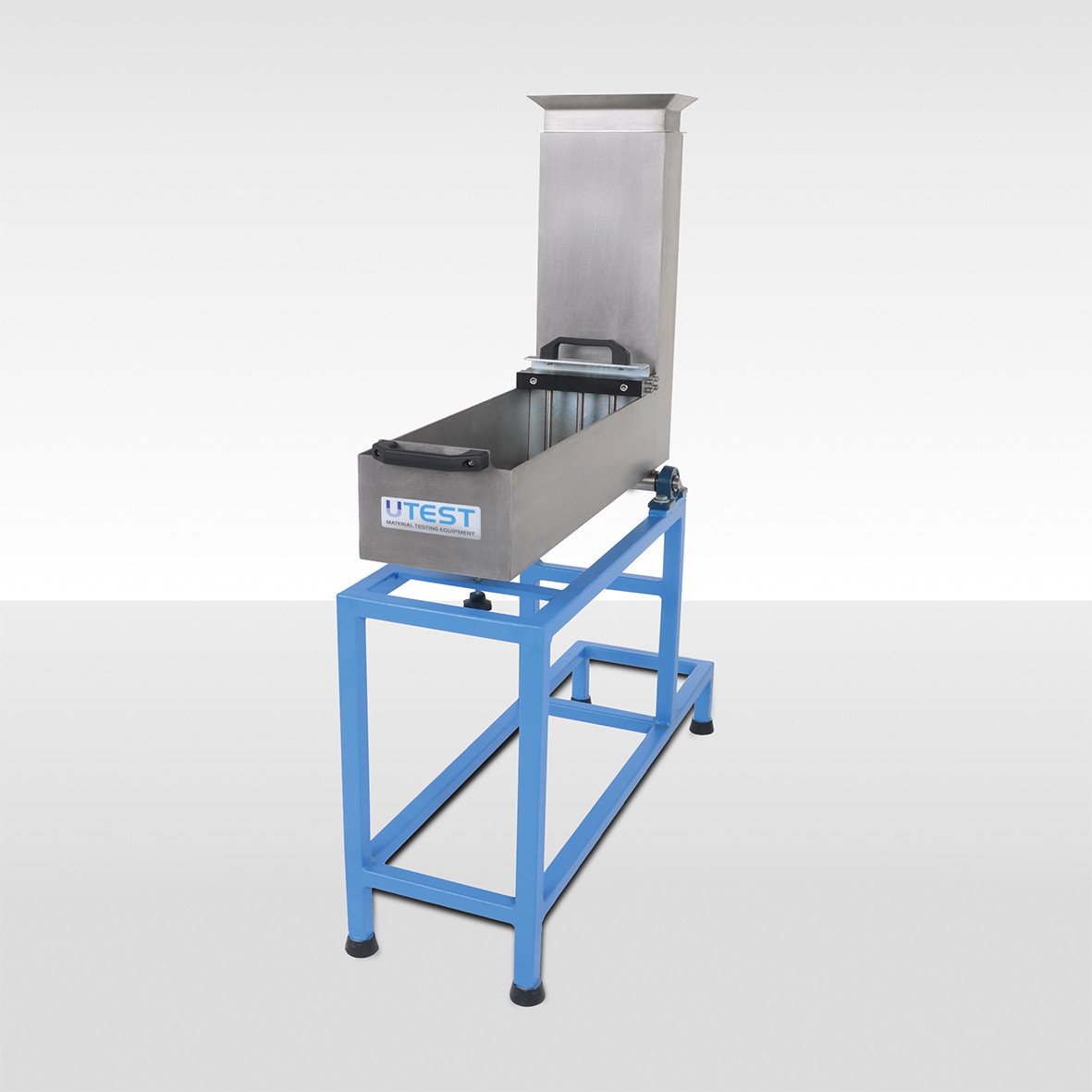

66. SCC - L Shape Box Apparatus

Request Catalog

Product Code

UTC-0545

L Shape Box Apparatus

Standards

EN 12350-9

The UTC-0545 L Shape Box is used for determining the passing ability rate of freshly mixed self compacting concrete. The distance between 12 mm diameter bars can be set between 41±1 mm or 59±1 mm.

L Shape Box is designed for ease of cleaning the vertical and horizontal hoppers.

The L Shape Box Apparatus is supplied complete with;

Filling Hopper
Base

Dimensions	290x950x1320 mm
Weight (approx.)	41 kg

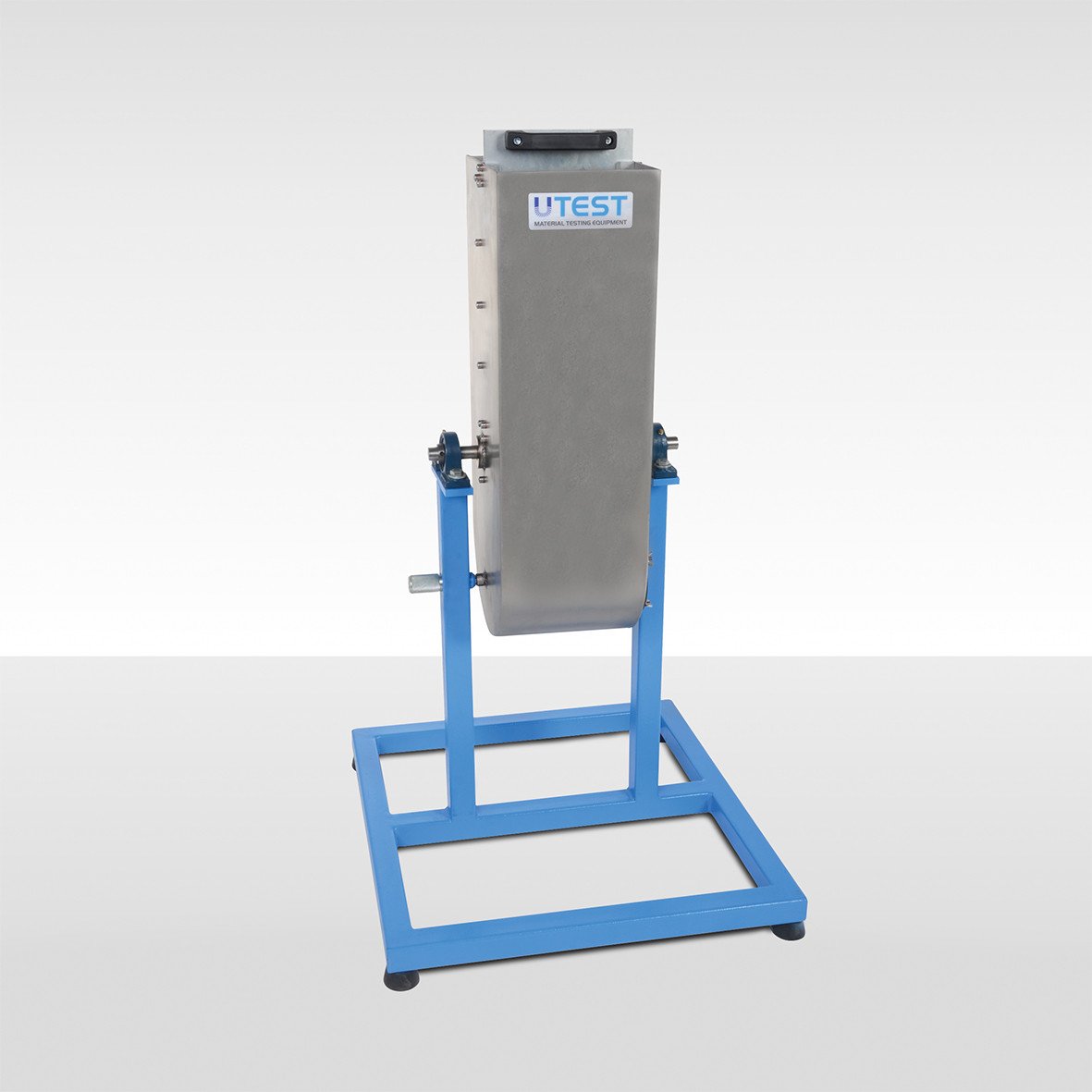

67. SCC - U Shape Box Apparatus

Request Catalog

Product Code

UTC-0547

U Shape Box Apparatus

Standards

UNI 11044; Rilem report No. 23

The UTC-0547 U Shape Box Apparatus is used to determine the filling and passing ability of self-compacting concrete (SCC). The U box is made of stainless steel consisting of three 12 mm dia. rebars.

The U box is mounted on a frame with a fixing mechanism.

Dimensions	600x600x1150 mm
Weight (approx.)	63 kg

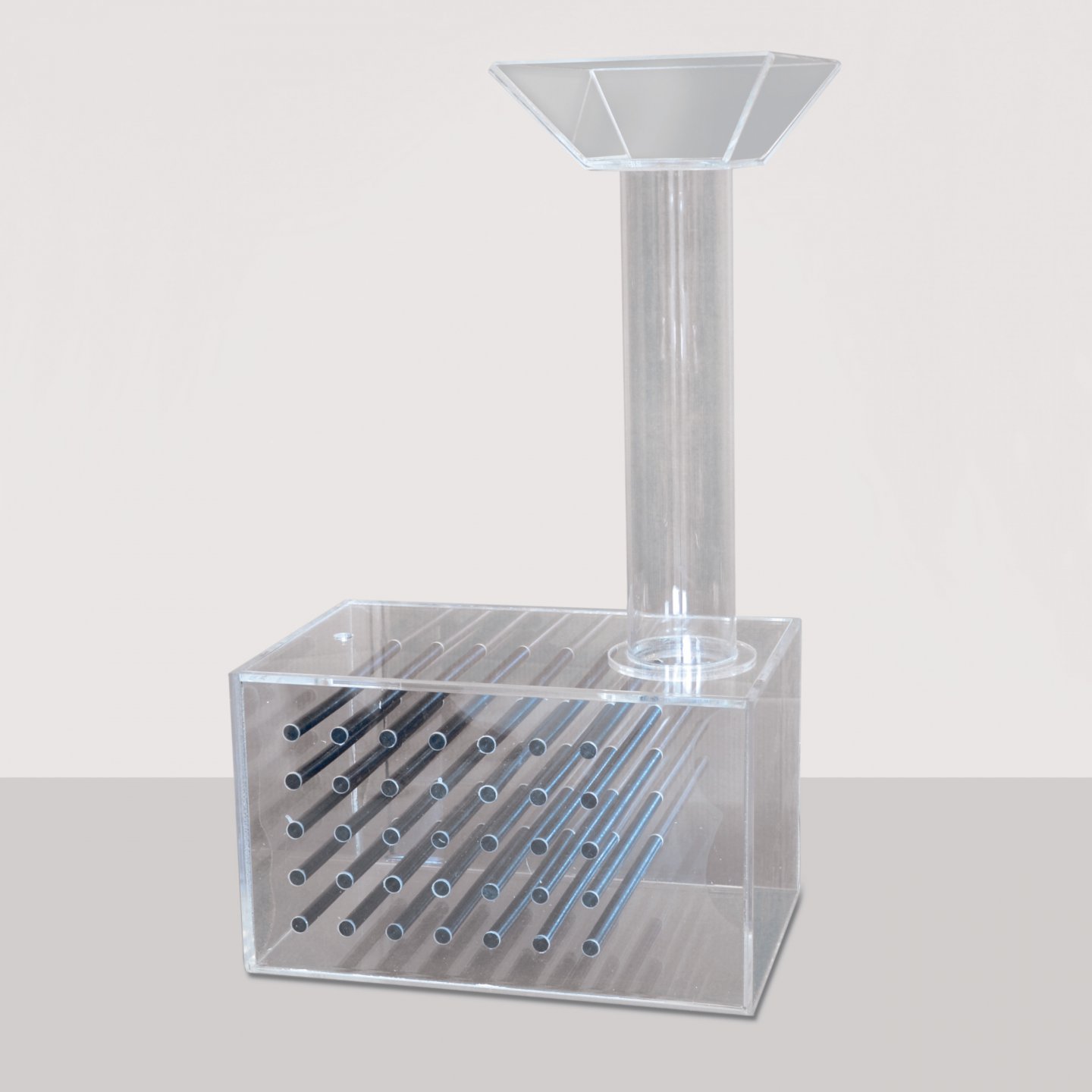

64. SCC - Fill Box Apparatus (Kajima Test)

Request Catalog

Product Code

UTC-0548

Fill Box Apparatus (Kajima Test)

The UTC-0548 Fill Box Apparatus is used to measure the filling ability of self-compacting concrete with a maximum aggregate size of 20 mm.

The apparatus is also known as “Kajima Test” Apparatus consists of a container (transparent) with a flat and smooth surface.

Dimensions	330x520x900 mm
Weight (approx.)	22 kg

65. Density (Unit Weight) Measure

Request Catalog

Product Code

UTC-0701E	Density (Unit Weight) Measure 1 lt. Capacity, EN
UTC-0603E	Density (Unit Weight) Measure 3 lt. Capacity, EN
UTA-0705E	Density (Unit Weight) Measure 5 lt. Capacity, EN
UTC-0607E	Density (Unit Weight) Measure 7 lt. Capacity, EN
UTC-0610E	Density (Unit Weight) Measure 10 lt. Capacity, EN
UTC-0615E	Density (Unit Weight) Measure 15 lt. Capacity, EN
UTA-0720E	Density (Unit Weight) Measure 20 lt. Capacity, EN
UTC-0630E	Density (Unit Weight) Measure 30 lt. Capacity, EN

Standards

EN 1097-3, 12350-6

Density (Unit Weight) Measures are used to determine the weight per cubic meter of bulk or compacted agregates.

The Density Measures are manufactured from heavy duty steel complying with the related standard. Available in 1, 3, 5, 7, 10, 15, 20 and 30 lt capacity models to comply with the relevant standards. The measures are coated against corrosion.

Product Code	Dimensions	Weight (approx.)
UTC-0603E	100x170x150 mm	2.8 kg
UTC-0603E	150x210x210 mm	3,7 kg
UTA-0705E	170x240x250 mm	5 kg
UTC-0607E	190x260x270 mm	6.3 kg
UTC-0610E	250x290x310 mm	7,7 kg
UTC-0615E	250x340x330 mm	10 kg
UTA-0720E	270x370x380 mm	12 kg
UTC-0630E	310x410x430 mm	20 kg

66. Air Contents

Request Catalog

Product Code

UTC-0650	Air Entrainment Meter, 7 Liter, B Type
UTC-0651	Air Entrainment Meter, 8 Liter, B Type
UTC-0652	Manometer for UTC-0650
UTC-0408	Tamping Rod Ø16x600 mm
UTC-0412B.E	Compacting Bar (Square Section, 25×25mm), Steel, approx. 380mm
UTC-0656	Calibration Vessel for UTC-0650, Brass, (%5)
UTC-0657	Calibration Vessel for UTC-0650, Aluminium, (%5), for UTC-0650
UTC-0658	Calibration Vessel for UTC-0651, Brass, (%5)
UTC-0659	Calibration Vessel for UTC-0651, Calibration Vessel, Aluminium, (%5)
UTS-0714	Straight Edge 300x30x3 mm

Standards

EN 12350–7; ASTM C231; AASHTO T152; BS 1881:108

The UTC-0650 and UTC-0651 Air Entrainment Meters are used for determining the air content of fresh concrete.They consist of a flanged 7 or 8 liter capacity cylindrical vessel and cover assembly incorporating a pressure gauge, air pump and valves.They have a quick action clamping system. Direct pressure gauge reading to the nearest 0.1% up to 6% air, 0.2% from 6 to 8% air and % 0.5 from 8 to 15%air. It is not affected by changes in barometric pressure.

Calibration vessels and compacting bar with square section should be ordered seperately.

The Air Entrainment Meters are supplied complete with;

Straight Edge
Tamping Rod, Ø16x600 mm
Wash Bottle. 250cc
An inner and an outer (J-Type) calibration pipes
Special Carrying Case

Product Code	UTC-0650	UTC-0651
Capacity	7 litres	8 litres
Graduations	0.1% up to 6% air 0.2% from 6 to 8%; air 0.5% from 8 to 15%
Dimensions (all supplied items)	320x330x630 mm	320x330x630 mm
Weight (all supplied items)	19 kg	20 kg

67. Mass Concrete Temparature Measurement

Request Catalog

Product Code

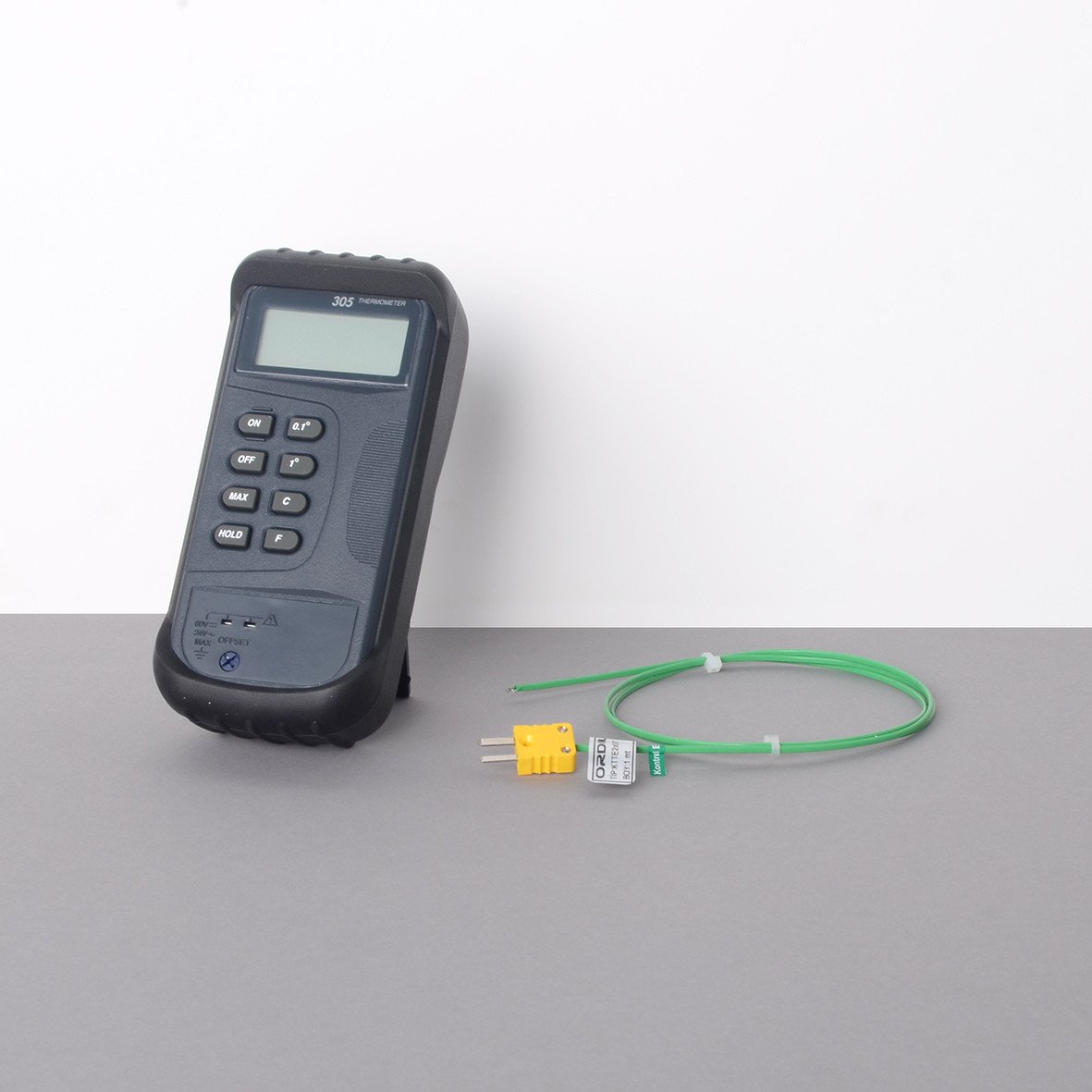

UTGT-1350	Hand Type Digital Thermometer, -50° C to 1350° C
UTGT-1355	Connector
UTGT-1360	Cable, 1 Meter
UTGT-1352	4 Channel Digital Display Temperature Datalogger

The products are used for monotoring of temperature development of mass concrete. The number of measurement points for connectors and the cable length needed for each measurement point should be indicated. The products should be ordered seperately.

UTGT-1352 House for Thermocouple Connectors

UTGT-1352 4 Channel Digital Display Temperature Datalogger is an alternative to UTGT-1350 and can record continuously in the time interval selected by the user. The datalogger has -195˚C to +1000˚C temp. measurement range for K Type sensors, 1s–24h data record range and 2 million data recording capacity. Battery operated data logger is supplied comğplete with acceessories such as cable for connecting to PC, software, SD card (for collecting the measurement).

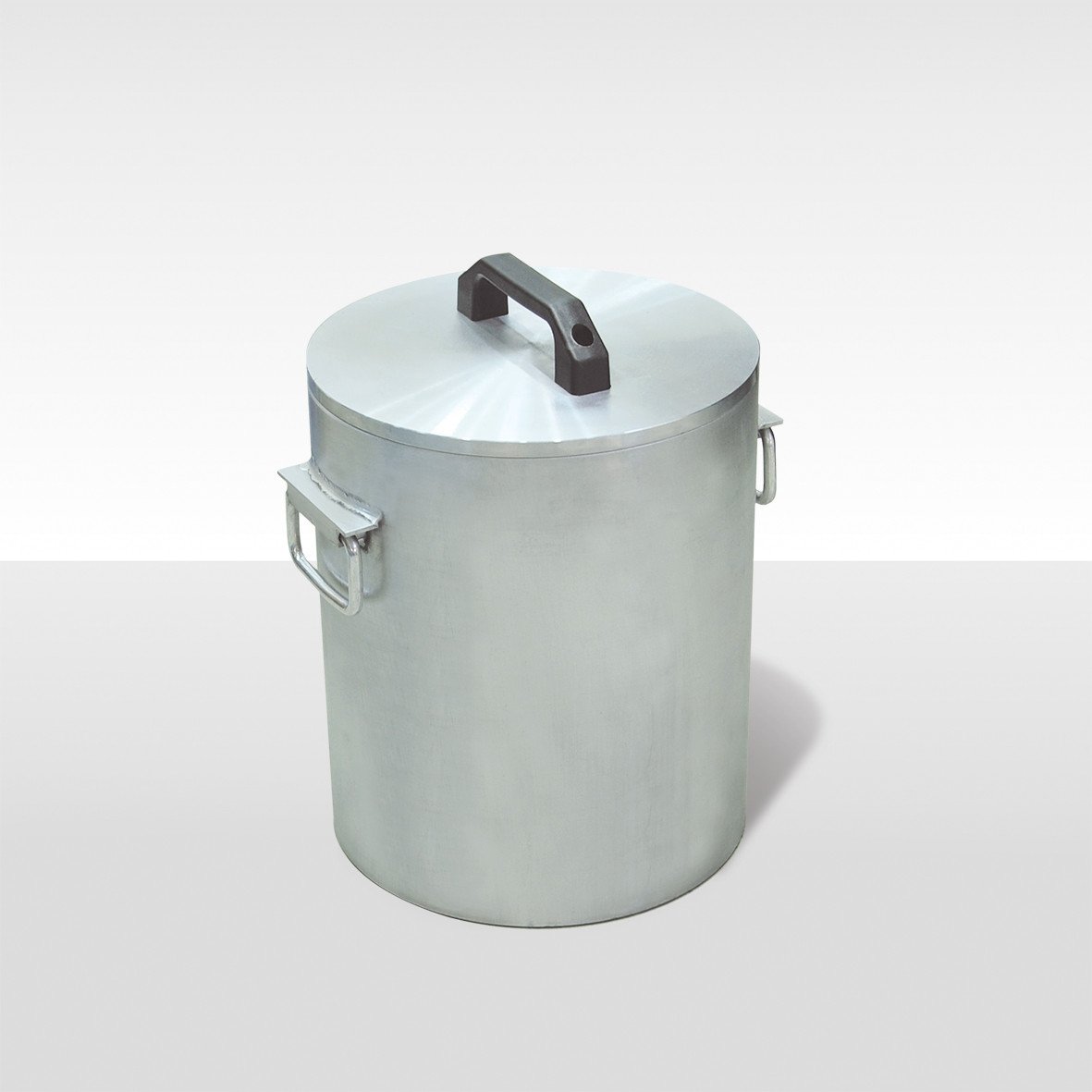

68. Bleeding of Freshly Mixed Concrete

Request Catalog

Product Code

UTC-0720

Cylindirical Container

Standards

ASTM C 232; EN 480-4

UTC-0720 is used for determination of the relative quantity of mixing water that will bleed from a sample of freshly mixed concrete.

Dimensions	Weight (approx.)
310x310x350 mm	6 kg

69. Concrete Mortar Penetrometer

Request Catalog

Product Code

UTC-0700	Concrete Mortar Penetrometer with Pound Reading Scale
UTC-0701	Concrete Mortar Penetrometer with Newton Reading Scale
UTC-0705	Needle Set For Concrete Mortar Penetrometer
UTC-0706	Penetration Needle, Ø 3mm, for UTC-0701

Standards

ASTM C403; AASHTO T197

The UTC-0700 and UTC-0701 Concrete Mortar Penetrometers are used for the determination of setting time of the mortar fraction of fresh concrete.

The apparatus consist of a spring loading device.

UTC-0700 is graduated from 10 to 150 lbf in 2 lbf divisions.

UTC-0701 is graduated from 40 to 600 N in 10 N divisions. A sliding ring indicates the load reached.

The Concrete Mortar Penetrometers are supplied complete with;

Set of interchangeable needle points of 645, 323, 161, 65, 32, 16 mm² area
A steel adaptor for needles
Carrying case

Dimensions	250x570x70 mm (packed)
Weight (approx.)	4,50 kg

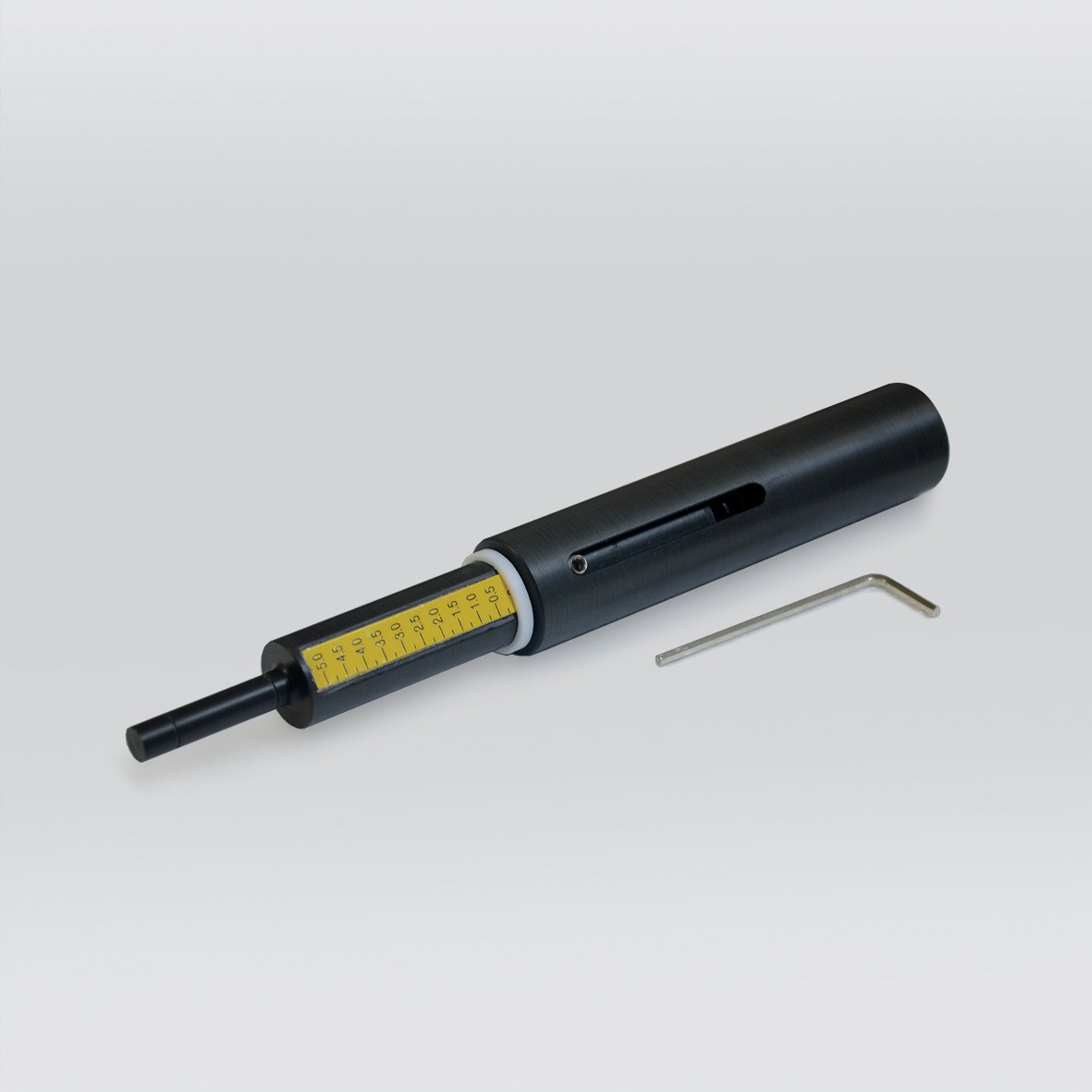

70. Concrete Pocket Penetrometer

Request Catalog

Product Code

UTC-0715

Concrete Pocket Penetrometer

Standards

AASHTO T197; ASTM C403

The UTC-0715 is designed for the determination of initial setting time of fresh concrete for field and laboratory use.

Stainless steel plunger has 32.3 mm² (1/20 in²) area and 0-5 MPa measuring range.

The plunger graduated 0,5 MPa.

Dimensions	20x20x200 mm
Weight (approx.)	0,30 kg

71. Concrete Mixer with Double Acting

Request Catalog

Product Code

UTC-0742	Concrete Mixer with Double Acting, Pan Type, Frequency Controlled, 42 L.
UTC-0752	Concrete Mixer with Double-Acting, Pan Type, Frequency Controlled, 100 L.

Models for 220-240V 50-60 Hz, 1ph.

UTC-0742

UTC-0752

Standards

TS EN 1766

The difference of UTC-0742 and UTC-0752 from conventional mixers (UTC-0750, UTC-0751) is their ability of preparing more homegenous mixture in a short time through the second motor that rotates the mixing beater in the opposite direction of the mixing drum

To find out the effects of the different type constituents on the concrete properties requires the preparation of numerous and smaller volume of concrete batches in the laboratory. Concrete Mixer, UTC-0742, designed for this purpose has 42 liters dimensional volume of the mixing pan and 15/12 liters effective mixing capacity.

UTC-0752 Concrete Mixer is 100 liters but the effective capacity of the mixer are is 56/40 liters.

The turning speed of the mixers can be adjusted by a frequency controller.

The shutter of the mixers are designed to open 120 degrees for easy access to the pan and keeps the beater in a certain height during mixing. There is a small observation window on the shutter which enables the user to monitor the process.

The mixing pan can be tilted to empty the mixture without hassle and it can be removed for easy cleaning on completion of the mixing operation. Also the mixers are equipped with rubber wheels which provide high mobility.

All parts of the mixer are galvanized or painted with non-corrosive paint. The protection class of mixers are IP55.

Product Code	UTC-0742	UTC-0752
Dimensions	850x940x1100 mm	900x1010x1300 mm
Weight (approx.)	240 kg	312 kg
Power	4000 W	4000 W

72. Concrete Mixer Pan Type

Request Catalog

Product Code

UTC-0750	Concrete Mixer Pan Type, 100L
UTC-0751	Concrete Mixer Pan Type, Frequency Controlled, 100 L.

Models for 220-240V 50 Hz, 1ph.	UTC-0750-T	UTC-0751-T
Models for 220-240V 60 Hz, 1ph.	UTC-0750-K	UTC-0751-K

Standards

EN 1766

The efficient mixing of concrete is essential if quality specimens are to be manufactured. Pan Type Concrete Mixers are designed to give efficient mixing of both dry and wet materials.

The mixing pans are removable and tilts for easy access to the pan and emptying on completion of the mixing operation. The total volume of the pans are 100 liters but the effective capacity of the mixers are 56/40 liters.

The turning speed of the pan of UTC- 0751 can be adjusted by a frequency controller.

The mixer head lifts clear to provide maximum access to the pan and holds the mixing blades at a constant depth during the mixing operation. The pan type mixers are also equipped with rubber wheels which provide high portability.

All parts of the mixers are galvanized or painted with non-corrosive paint. The protection class of the mixers are IP55.

	UTC-0750	UTC-0751
Dimensions	850x940x1100 mm	850x940x1100 mm
Weight (approx.)	240 kg	240 kg
Power	1500 W	1500 W

73. Large Volume Concrete Mixer with Double Acting

Request Catalog

Product Code

UTC-0762-C

Large Volume Concrete Mixer with Double Acting,

Pan Type, 150 L, 380V 50Hz, 1ph

Standards

TS EN 1766

To find out the effects of the different type constituents on the concrete properties requires the preparation of numerous and higher volume of concrete batches such as RCC (Roller Compacted Concrete) and Mass Concrete which have bigger sizes coarse aggregate in the laboratory. Double Acting UTC-0762 Concrete Mixer is designed for this purpose.

Dimensional volume of the mixing pans are 150 liters and the effective mixing capacity is 80/60 liters. The difference of UTC-0762 from conventional mixer is their ability of mixing higher volume of mixtures with the help of second engine which rotates the stirring beater in the opposite direction of the mixing pan’s rotation direction with high performance.

The shutter of the mixer is designed to open 120 degrees for easy access to the pan and keeps the beater in a certain height during mixing. There is a observation window on the shutter which enables the user to monitor the process. Transaction of opening and closing the shutter is done by a motor.

The mixing pan can be tilted to empty the mixture by a motor for easy cleaning on completion of the mixing operation. The height of the blades from the base of pan can be adjustable to suit the difference of coarse aggregate sizes. UTC-0762 is equipped with rubber wheels which provide high mobility.

All parts of the mixer is galvanized or painted with non-corrosive paint. The protection class of the mixer is IP55.

Dimensions	1400x1600x1400 mm
Weight (approx.)	700 kg
Power	4500 W

74. Concrete Mixer Drum Type

Request Catalog

Product Code

UTC-0790

Concrete Mixer Drum Type,125 L

220-240 V 50-60 Hz

The UTC-0790 mixer is used for efficient mixing of concrete, plaster and mosaic. 125 L and 2-3 m3/h lightweight mixer is equipped with rubber wheels which provide high portability.

Technical Specifications

Drum Volume	125 lt.
Mixing Volume	100 lt.
Mixing Capacity	1-2 m3 /h

Dimensions	1020x670x1150 mm
Weight (approx.)	39 kg
Power	700 W

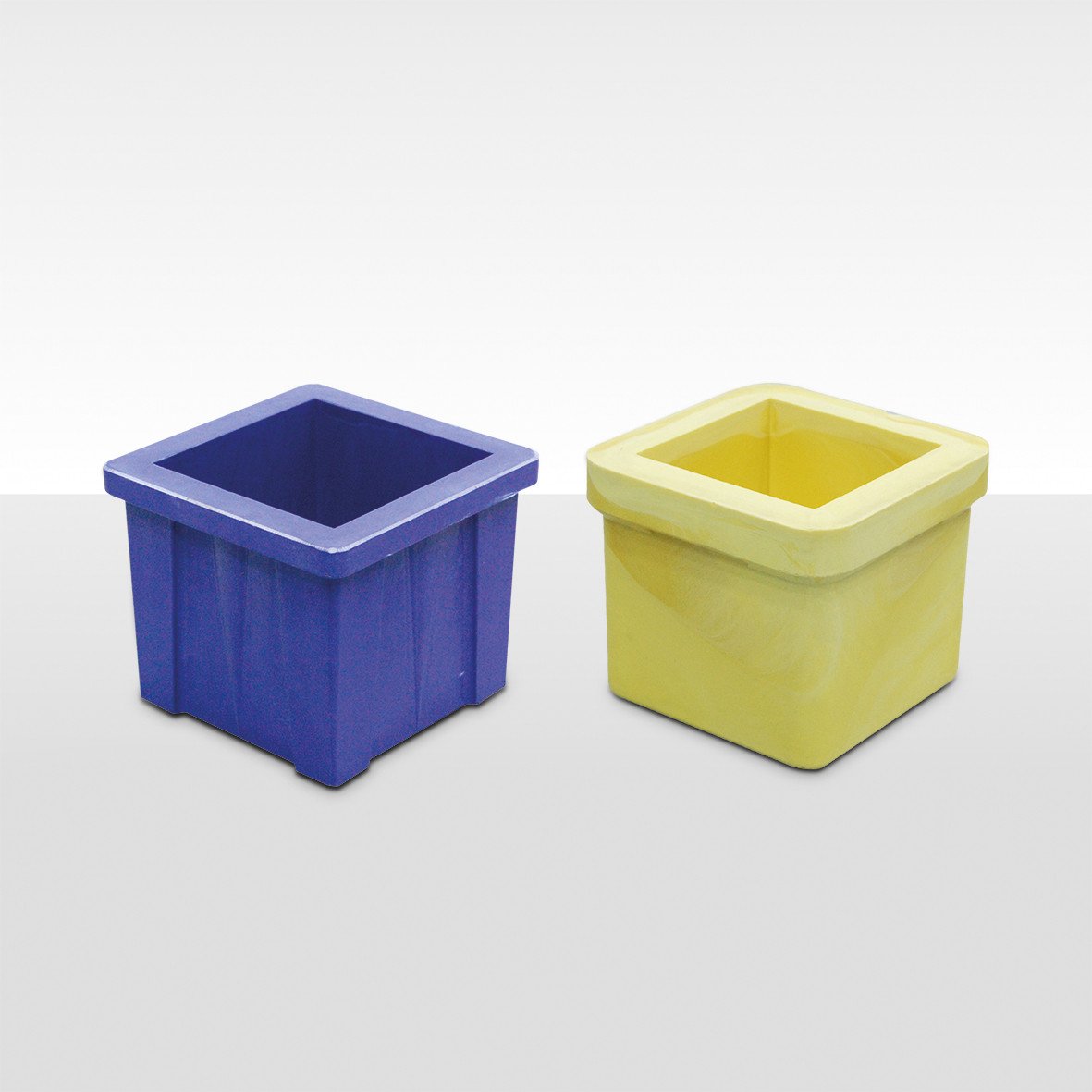

75. Cube Moulds

Request Catalog

Product Code

UTC-0810	Cube Mould 100 mm, Cast Iron

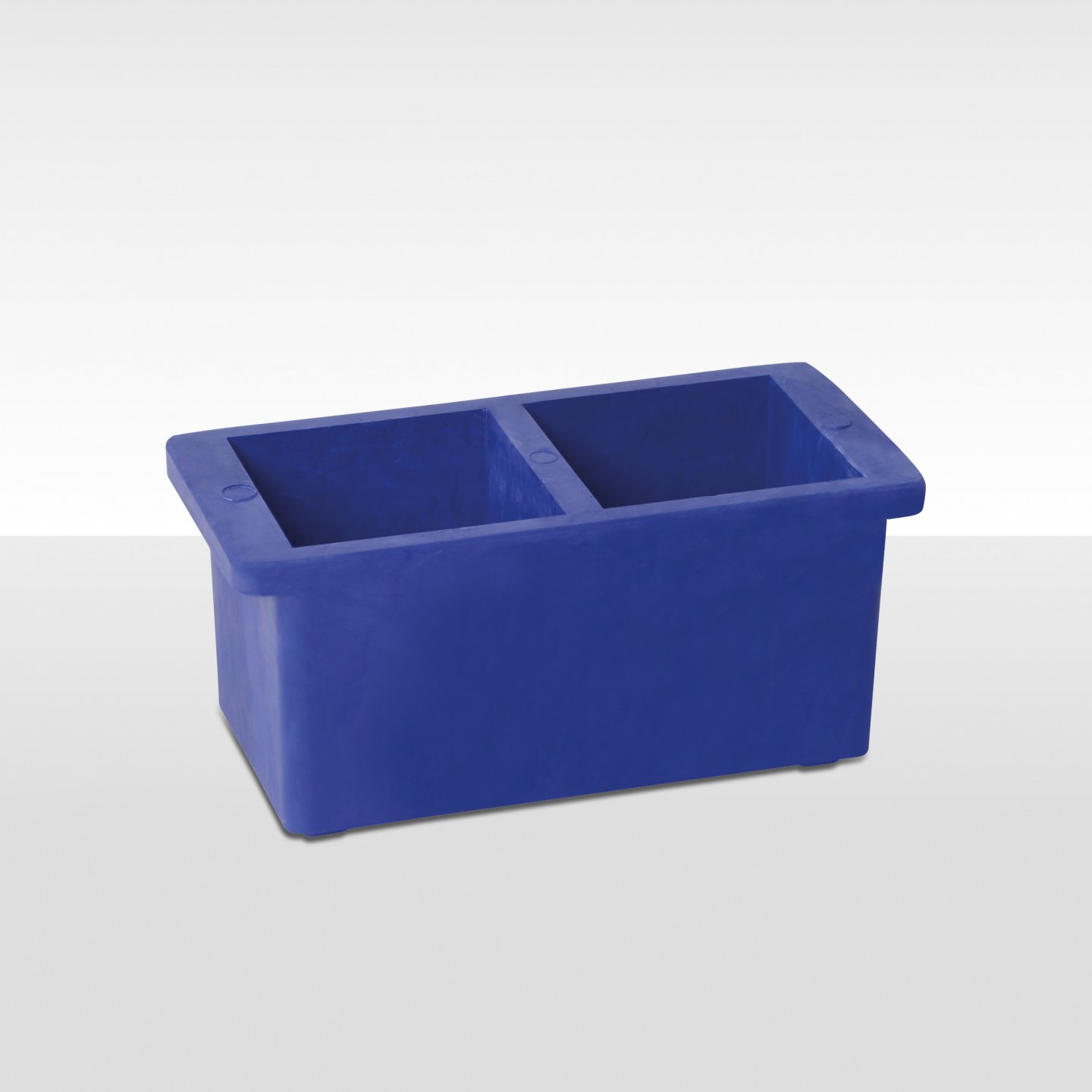

UTC-0812	Cube Mould 100 mm, Two Gang Plastic
UTC-0815	Cube Mould 150 mm, Cast Iron
UTC-0820	Cube Mould 150 mm, Plastic
UTC-0821	Cube Mould 150 mm, High Quality Plastic
UTC-0825	Cube Mould 200 mm, Cast Iron
UTC-0408	Tamping Rod Ø16x600 mm
UTC-0410	Tamping Rod Ø10x300 mm
UTC-0412B.E	Compacting Bar (Square Section, 25×25 mm), Steel, 380 mm
UTGH-1605	Round Scoop, Medium
UTGH-1695	Rubber Mallet
UTGH-1645	Trowel

Standards

EN 12390-1, 12390-2; BS 1881

Cast iron and hard plastic moulds are manufactured in accordance with dimensions and tolerances stated in the relevant standard. Four part body and attached to the base with a robust clamp, the cast iron moulds are designed to be durable, corrosion resistant and easy to clean.

UTC-0820 plastic moulds manufactured from robust plastic are one piece and easy for field use, the specimens are ejected from the moulds by compressed air.

Product Code	Dimensions	Weight (approx.)
UTC- 0810	170x230x120 mm	7 kg
UTC- 0812	120x260x120 mm	2 kg
UTC- 0815	220x280x180 mm	15 kg
UTC- 0820	220x280x180 mm	3 kg
UTC- 0821	220x280x180 mm	1 kg
UTC- 0825	220x280x180 mm	17 kg

76. Beam Moulds

Request Catalog

Product Code

UTC-0830	Beam Mould 100x100x400 mm, Steel
UTC-0832	Beam Mould 100x100x500 mm, Steel

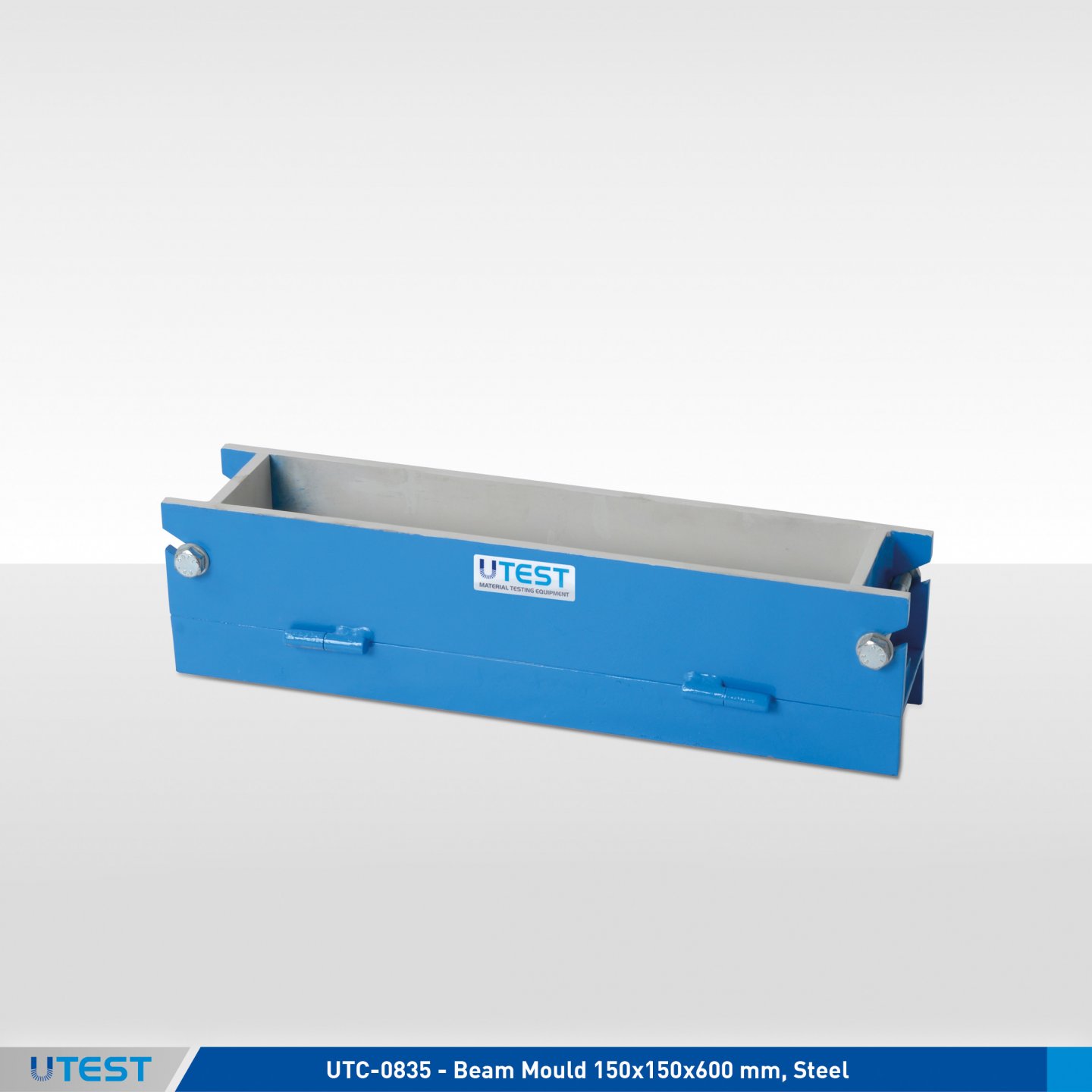

UTC-0835	Beam Mould 150x150x600 mm, Steel
UTC-0838	Beam Mould 150x150x750 mm, Steel

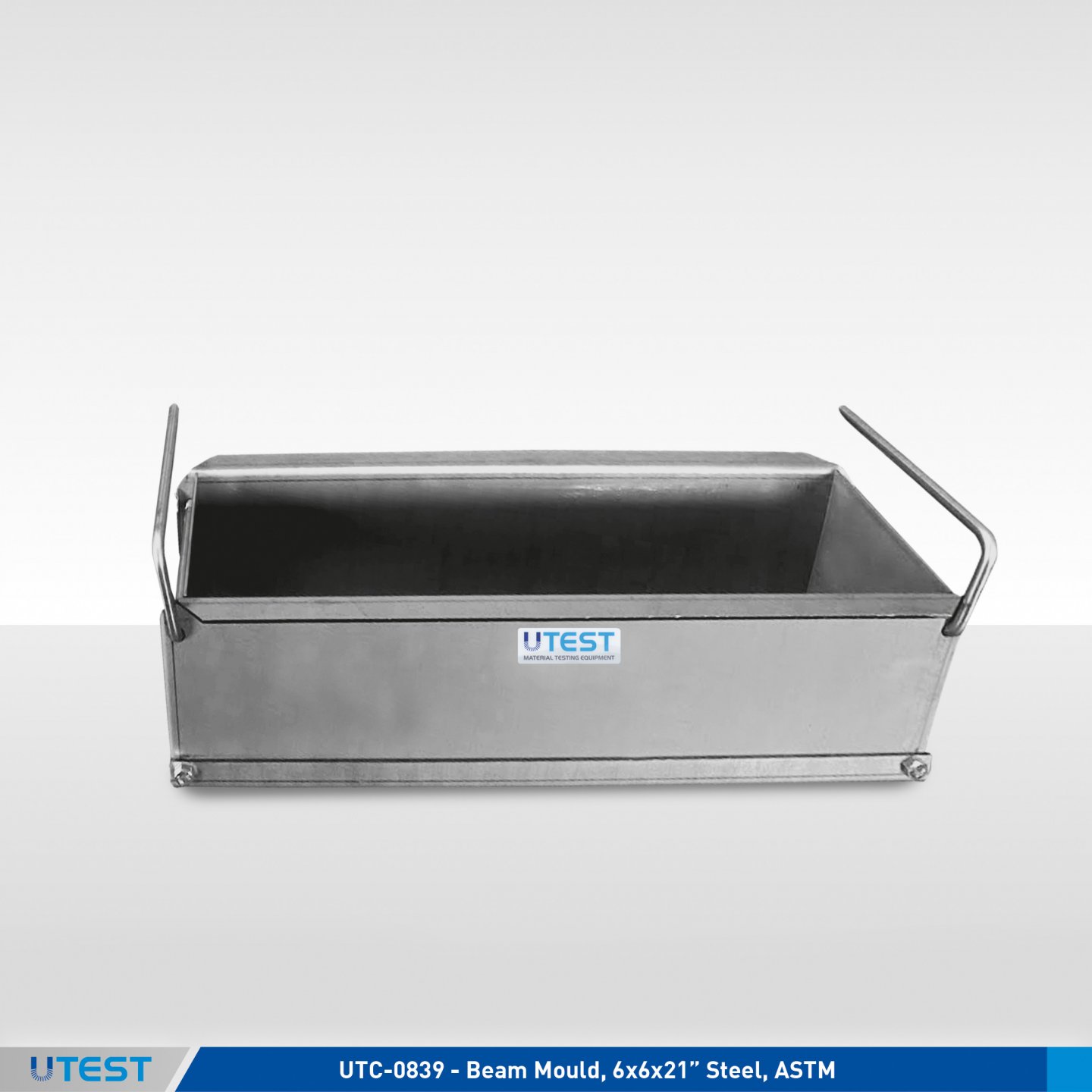

UTC-0839	Beam Mould, 6x6x21”, Steel, ASTM

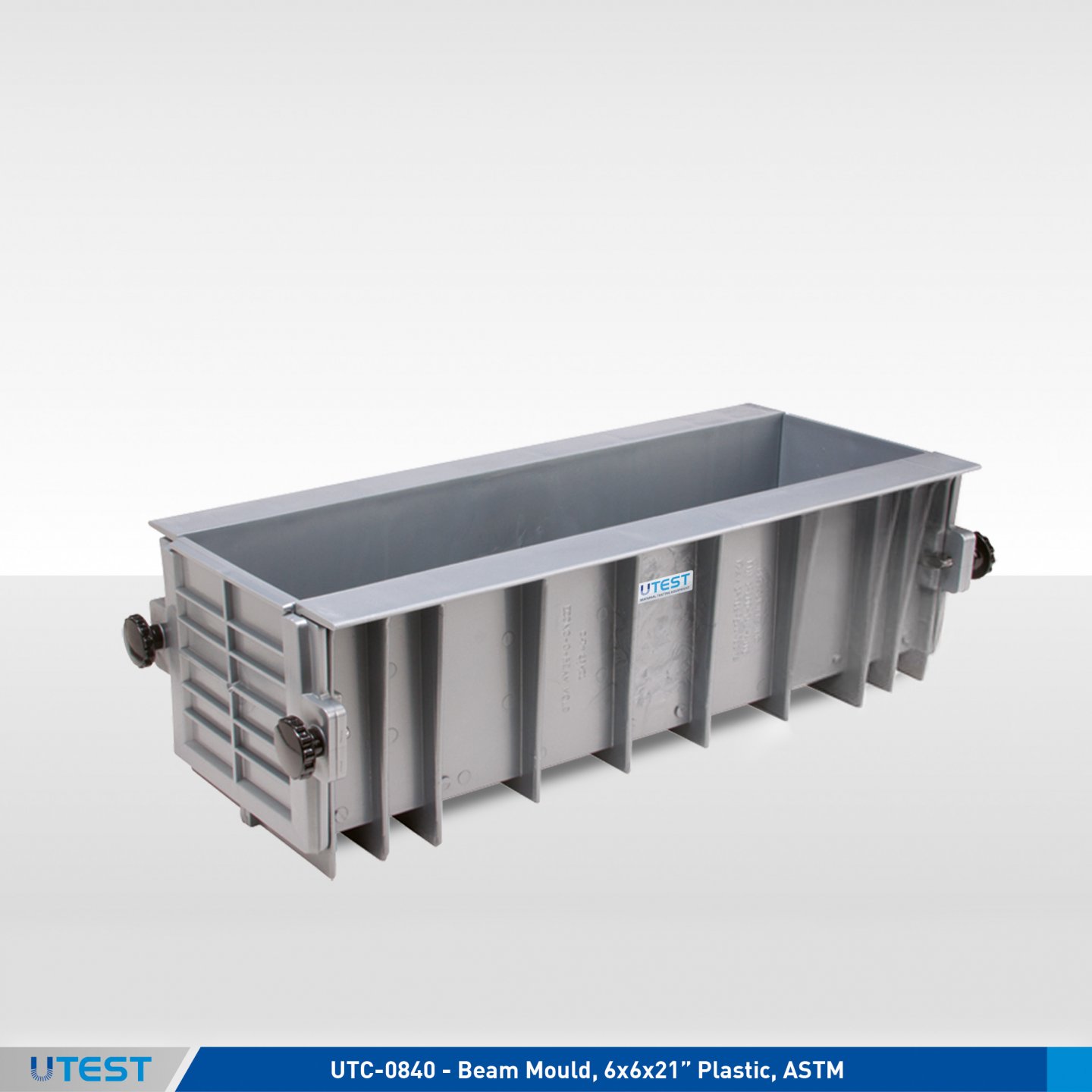

UTC-0840	Beam Mould, 6x6x21”, Plastic, ASTM
UTC-0408	Tamping Rod Ø 16x600 mm
UTC-0410	Tamping Rod Ø 10x300 mm
UTC-0412B.E	Compacting Bar (Square Section, 25×25mm), Steel, 380 mm
UTGH-1605	Round Scoop, Medium
UTGH-1695	Rubber Mallet
UTGH-1645	Trowel

Standards

EN 12390-1, 12390-2; BS 1881; ASTM C31, C78, C192, C293; AASHTO T97, T177, R100, R39

Steel beam moulds are manufactured in accordance with dimensions and tolerances stated in the related standards.

Product Code

Dimensions

Product Code

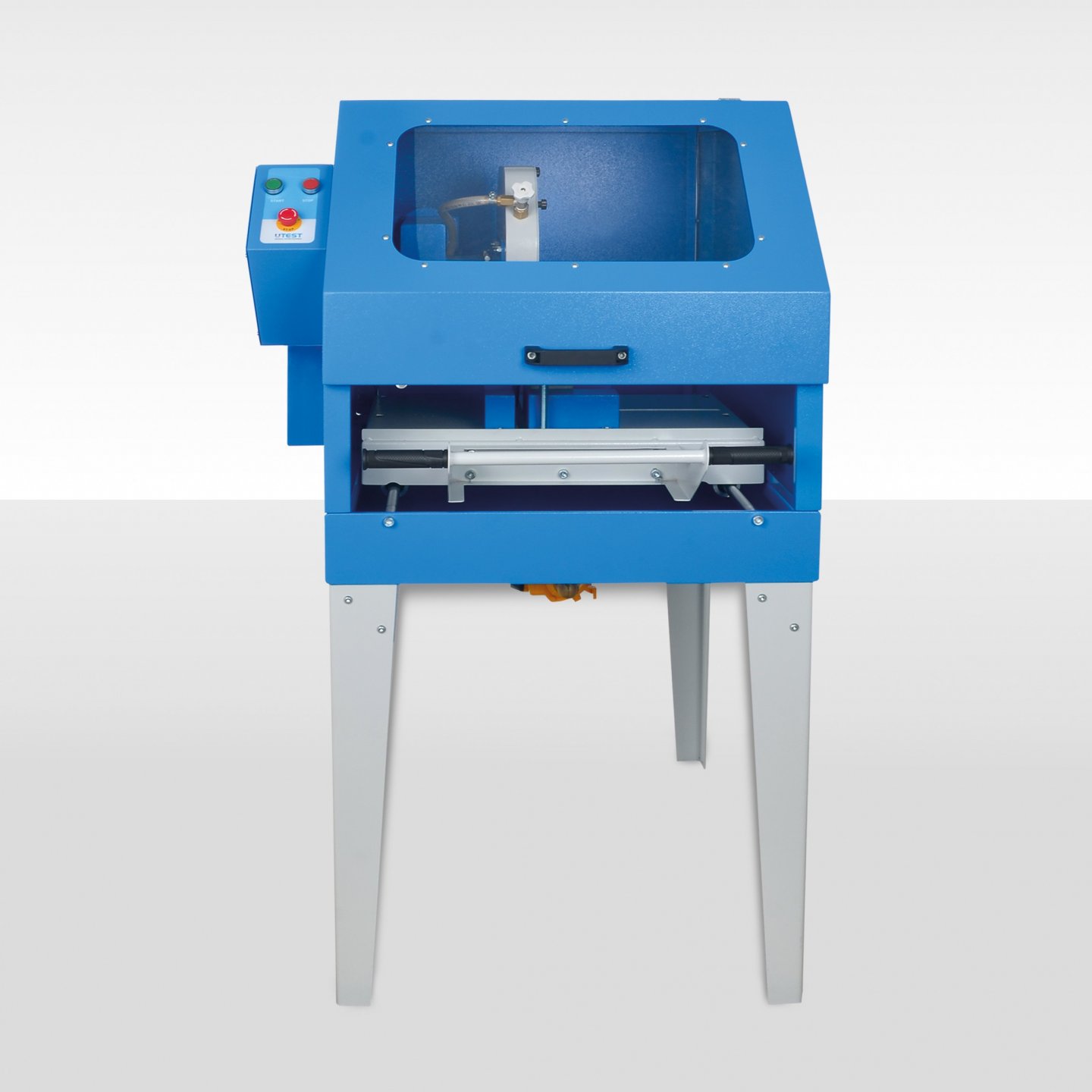

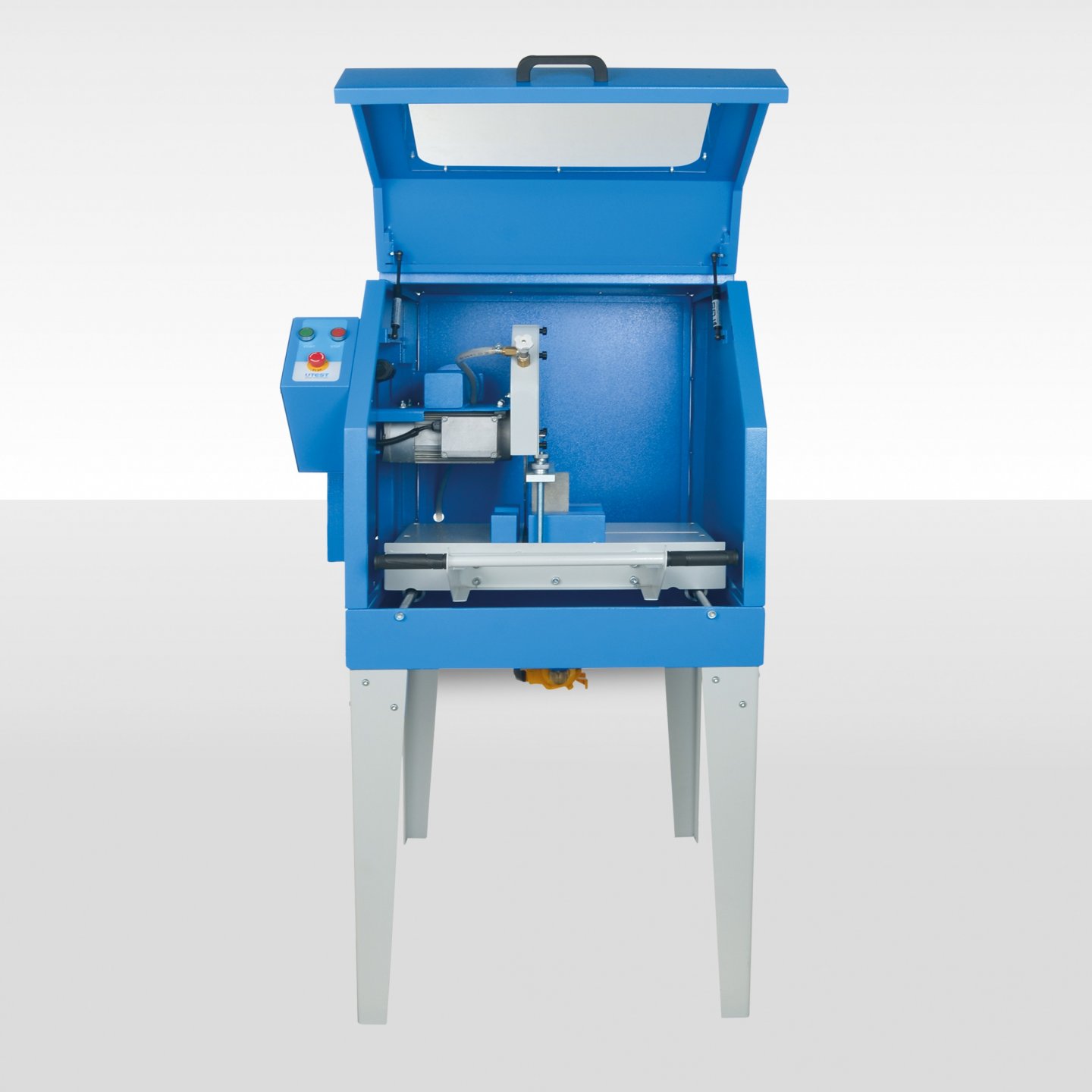

UTC-1020	Universal Cutting Machine with Safety Cabinet Junior, 220-240V 50-60 Hz, 1 ph
UTC-1022	Cutting Blade Ø450 mm
UTC-1024	V Shaped Holder with Fixing Mechanism between Ø110mm to Ø160mm diameter specimens for UTC-1020

Standards

EN 12390–3, 12504-1; ASTM C42

The Universal Cutting Machine has been developed to cut for preparing concrete, rock or natural stone, cores for compressive strengt test.

Special clamp assembly allows specimens to be held during cutting operation. The machine is supplied complete with “V shaped holder with fixing mechanism between Ø38mm to Ø110mm diameter specimens and a water circulation pump.

Cutting Blade and V shaped holder with fixing mechanism for Ø110mm to Ø160mm specimens should be ordered separately.

UTC-1020 Universal Cutting Machine is used for cutting process of compressive strength test samples to ensure the length-diameter ratio required according to the relevant test standards.

According to the relevant compressive strength test standards, in addition to the length to diameter ratio limits, tolerances regarding the flatness of the sample surfaces that will contact the pressure press loading plates and the perpendicularity of these surfaces to the sample axis must also be provided.

In order to ensure tolerances for the flatness of the potential load-bearing surfaces (the ends of the pressure test samples) and the perpendicularity of the end faces to the side faces, the samples must be subjected to an abrasion process with UTC-1040 or UTC-1060 type machines, following the cutting process performed with UTC-1020.

UTC-1020 Junior
Blade Diameter	450 mm
Power	2,2 kW
Max. Cutting Height	185 mm
Cooling	Wayer recirculation pump
Dimensions (lxwxh)	1100x900x1550 mm
Weight	196 kg

86. Automatic Grinding Machine

Request Catalog

Product Code

UTC-1040	Automatic Grinding Machine
UTC-1042	Grinding Wheel for UTC-1060 and UTC-1040
UTC-1044	Water Restraint Panel Set for Cylinder Specimens for UTC-1040
UTC-1047	Cradle and Water Restraint Panel for three units of 100 mm cube specimens for UTC-1040
UTC-1048	Water Restraint Panel for Ø160 mm Cylinder specimen for UTC-1040
UTC-1049	Cradle and Water Restraint Panel for one unit of 150 mm Cube Specimens for UTC-1040
UTC-1064	Water Tank with Filtration and Circulation System for 1040 and UTC-1060.110-220V, 50-60 Hz, 1ph

Models for 220-240V 50-60 Hz, 1ph.	Weight (approx.)
UTC- 0830	150x490x150 mm	16 kg
UTC -0832	160x590x150 mm	22 kg
UTC- 0835	200x690x220 mm	33 kg
UTC- 0838	200x840x220 mm	44 kg
UTC- 0839	250x630x160 mm	20 kg
UTC- 0840	170x600x160 mm	12 kg

77. Cylinder Moulds

Product Code

UTC-0842	Cylinder Mould Ø 100x200 mm, Steel
UTC-0843	Cylinder Mould Ø 100x200 mm, Plastic Body with Steel Plate
UTC-0844	Cylinder Mould, Ø100x200 mm, Plastic
UTC-0845	Cylinder Mould Ø150x300 mm, Steel
UTC-0846	Cylinder Mould Ø150x300 mm, Plastic Body with Steel Plate
UTC-0847	Cylinder Mould, Ø150x300 mm, Plastic
UTC-0850	Cylinder Mould Ø160x320 mm, Steel
UTC-0851	Cylinder Mould Ø160x320 mm, Plastic Body with Steel Plate
UTC-0860	Cylinder Mould Ø250x500 mm, Steel
UTC-0408	Tamping Rod Ø16x600 mm
UTC-0410	Tamping Rod Ø10x300 mm
UTC-0412B.E	Compacting Bar (Square Section, 25×25mm), Steel, 380 mm
UTGH-1605	Round Scoop, Medium
UTGH-1695	Rubber Mallet
UTGH-1645	Trowel

Standards

EN 12390-1, 12390-2; BS 1881; ASTM C39; AASHTO R100, R39

Hard plastic and steel cylinder moulds are manufactured in accordance with dimensions and tolerances stated in the related standards.

Two part and clamp attached base plate cast iron, plastic and steel moulds are designed to be durable, corrosion resistant and easy to clean.

Product Code	Dimensions	Weight (approx.)
UTC-0842	180x140x210 mm	4 kg
UTC-0843	150x150x200 mm	0,70 kg
UTC-0845	220x230x310 mm	9 kg
UTC-0846	220x220x310 mm	2 kg
UTC-0850	250x250x330 mm	13 kg
UTC-0851	210x210x340 mm	2 kg
UTC-0860	150x150x250 mm	3 kg

78. Vibrating Tables

Request Catalog

Product Code

UTC-0900E	Vibrating Table Small, EN
UTC-0910E	Vibrating Table Large, EN
UTC-0920E	Vibrating Table, Site Type, Portable, EN
UTC-0900A	Vibrating Table Small, ASTM
UTC-0910A	Vibrating Table Large, ASTM

Models for 220-240V 50 Hz, 1ph.	UTC-0900E-T	UTC-0910E-T	UTC-0900A-T	UTC-0910A-T
Models for 110-120V 60 Hz, 1ph.	UTC-0900E-N	UTC-0910E-N	UTC-0900A-N	UTC-0910A-N
Models for 220-240V 60 Hz, 1ph.	UTC-0900E-K	UTC-0910E-K	UTC-0900A-K	UTC-0910A-K

Standards

EN 12390–2; ASTM C192

The UTEST fixed amplitude vibrating tables are compact units providing controlled vibro-compaction forcube or cylinder moulds. Vibrating tables consist of vibrating motor, command unit and clamping assembly.

For laboratory use the table is availablein two alternative model. The small table accepts 2, large table accepts 6 cube or cylinder moulds by using clamping assembly.

UTC-0900 and UTC-0910 tables can also be used for beam moulds.

For on site applications, portable UTC-0920 Vibrating Table is designed for preparing the cube or cylinder specimens by vibration. 1 or 2 pcs. cube or cylinder mould can be clamped on the table depending on outer size of the mould to be used.

UTC-0920 Vibration Tables are supplied complete with a converter (DC 12 to 220V) which should be connected to vehicle battery.

Product Code	Dimensions	Weight	Power
UTC-0900	380x640x790 mm	58 kg	180 W
UTC-0910	500x1000x1050 mm	124 kg	180 W
UTC-0920	500x500x730 mm	20 kg	180 W

79. Poker Vibrator

Product Code

UTC-0928	Poker Vibrator Ø 22 mm Hand-Held, 220-240 V 50-60 Hz
UTC-0930	Poker Vibrator Ø 22 mm, 220-240 V 50-60 Hz
UTC-0932	Poker Vibrator Ø 27 mm, 220-240 V 50-60 Hz
UTC-0935	Poker Vibrator Ø 32 mm, 220-240 V 50-60 Hz
UTC-0938	Cordless Concrete Vibrator, 18 V, Ø:25x1200 mm, 12.500 vpm.

Standards

EN 12390–2; ASTM C31, C192; AASHTO R100, R39

The Poker Vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar, especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip diameter can be selected from the four available products.

Product Code	Type&Shaft	Frequency
UTC- 0928	Ø22x350 mm tip-1 m shaft	10.000 vib/min
UTC- 0930	Ø22x350 mm tip-2 m shaft	12.000 vib/min
UTC- 0932	Ø27x370 mm tip-2 m shaft	12.000 vib/min
UTC- 0935	Ø32x400 mm tip-2 m shaft	12.000 vib/min
UTC-0938	Ø25-1,2 m shaft	12.500 vib/min

Product Code	Dimensions	Weight (approx.)
UTC- 0928	100x750x350 mm	8 kg
UTC- 0930	160x850x360 mm	14 kg
UTC- 0932	160x850x360 mm	14 kg
UTC- 0935	160x850x360 mm	14 kg
UTC-0938	300x300x350 mm	10 kg

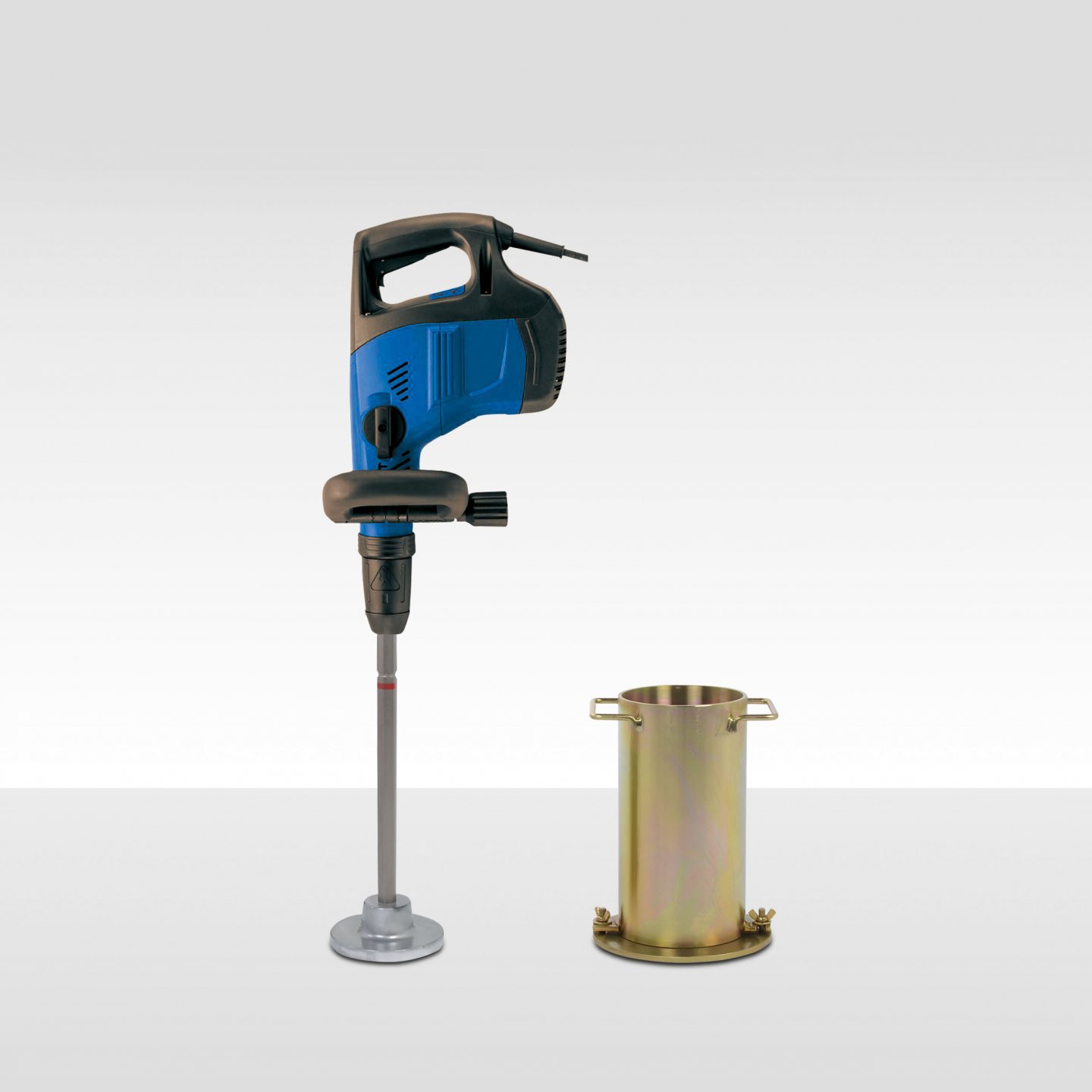

80. Vibrating Compaction Hammer for RCC

Request Catalog

Product Code

UTC-0944	Vibrating Compaction Hammer for RCC. 220-240 V 50-60 Hz, 1ph
UTC-0945	Shank for UTC-0944
UTC-0946	Tamping Plate, Ø146 mm, for UTS-0945
UTC-0947	Tamping Plate, 146x146 mm, for UTS-0945

Standards

ASTM C1435

UTC-0944 Vibrating Compaction Hammer with the shank and tamping plate is used for molding cylindrical test specimens which are used for testing compressive or tensile strength of concrete when the standard procedures of rodding and internal vibration are not practicable. This compaction method is applicable to freshly-mixed concrete, prepared in the laboratory and the field.

Tamping plate and the shank should be ordered separatelly.

Full Hammering Frequency	1890 impacts/minute
Rated Power Input	1,850 W
Weight (without tamping plate and shaft)	11 kg
Dimensions (LxWxH)	600x150x330 mm

81. Large Curing Tanks

Request Catalog

Product Code

UTC-0950	Large Metal Curing Tank
UTC-0952	Set of Removable Upper Racks for UTC-0950, (6 pieces)
UTC-0953	Curing Tank Heater for UTC-0960 and UTC-0970 (5,5-6,5 cm connecting channel and 50 cm resistance length)
UTC-0954	Curing Tank Heater for UTC-0950 and UTC-0965 (3 cm connecting channel and 50 cm resistance length)
UTC-0955	Circulating Pump
UTC-0960	Large Plastic Curing Tank
UTC-0962	Wide Plastic Curing Tank
UTC-0956	Curing Tank Heater for UTC-0962 (6,5 cm connecting channel and 70 cm resistance length)

Models for 220-240V 50-60 Hz, 1ph.	UTC-0953	UTC-0954
Models for 110-120V 60 Hz, 1ph.	UTC-0953-N	UTC-0954-N

Models for 220-240V 50-60 Hz, 1ph.	UTC-0955	UTC-0956
Models for 110-120V 60 Hz, 1ph.	UTC-0955-N	UTC-0956-N

Standards

EN 12390–2; ASTM C31, C192, C511; AASHTO R100, R39

The UTC-0950 steel, UTC-0960 and UTC-0962 Plastic Curing Tanks are designed for curing concrete cubes and cylinders. The temperature can be adjusted and can be kept constant by an electric resistance incorporating a digital thermo regulator which maintains the set temperature between ambient to 40 ºC with ± 2 ºC accuracy.

The UTC-0950 is manufactured from powder coated sheet steel. Set of removable upper racks (6 pieces) for UTC-0950 to hold concrete cubes are available on request. UTC-0960 and UTC-0962 plastic tanks are reinforced with a metal carcass.

Running temperature for UTC-0955 Circulating Pump is max. 30⁰C.

Appropriate curing tank heater, circulating pump and UTC-0952 for UTC-0950 (in case of need ) should be ordered separately.

UTC-0950, UTC-0960 and UTC-0962 Curing Tanks are supplied complete with a bottom metal racks.

UTC-0960

UTC-0954 UTC-0952 UTC-0955

		UTC-0950	UTC-0960	UTC-0962
Dimensions (WxLxH)	External	870x1600x610 mm	930x1980x835 mm	1150x2150x900 mm
Dimensions (WxLxH)	Internal	800x1500x550 mm (Clear Depth 500 mm)	750x1800x690 mm (Clear Depth 650 mm)	950x1950x780 mm (Clear Depth 740 mm)
Specimens Capacity	Cube 150 mm	Max. 135 pcs	Max. 220 pcs	Max. 312 pcs
Specimens Capacity	Cylindrical Ø150x300 mm	Max. 52 pcs	Max. 110 pcs	Max. 156 pcs
Weight (approx.)		94 kg	120 kg	120 kg

All Curing Tanks are supplied complete with;

A Base Metal Rack

82. Small Curing Tanks

Request Catalog

Product Code

UTC-0965	Small Metal Curing Tank
UTC-0953	for UTC-0960 and UTC-0970 (5,5-6,5 cm connecting channel
UTC-0954	Curing Tank Heater for UTC-0950 and UTC-0965 (3 cm connecting channel and 50 cm resistance length)
UTC-0955	Circulating Pump
UTC-0970	Small Plastic Curing Tank

Models for 220-240V 50-60 Hz, 1ph.	UTC-0953	UTC-0954	UTC-0955
Models for 110-120V 60 Hz, 1ph.	UTC-0953-N	UTC-0954-N	UTC-0955-N

Standards

EN 12390–2; ASTM C31, C192, C511; AASHTO R100, R39

The UTC-0965 Steel and UTC-0970 Polyurethane Small Curing Tanks are designed for curing concrete cubes and cylinders. The temperature can be adjusted to the required value and can be kept constant by an electric resistance incorporating a thermo regulator which maintains the set temperature between ambient to 40 ºC with ± 2 ºC accuracy.

Running temperature for UTC-0955 Circulating Pump is max. 30^°C.

The UTC-0965 is manufactured from powder coated sheet steel. Appropriate curing tank heater and circulating pump should be ordered separately.

All Curing Tanks are supplied complete with;

A Base Metal Rack

UTC-0970

UTC-0954 UTC-0955

		UTC-0965	UTC-0970
Dimensions ( WxLxH )	External	710x710x610 mm	915x1250x660 mm
Dimensions ( WxLxH )	Internal	650x650x550 mm (Clear Depth 500mm)	800x1100x550 mm (Clear Depth 500mm)
Specimens Capacity	Cube 150 mm	Max. 48 pcs	Max. 84 pcs
Specimens Capacity	Cylindrical Ø150x300 mm	Max. 24 pcs	Max. 42 pcs
Weight (approx.)		55 kg	60 kg

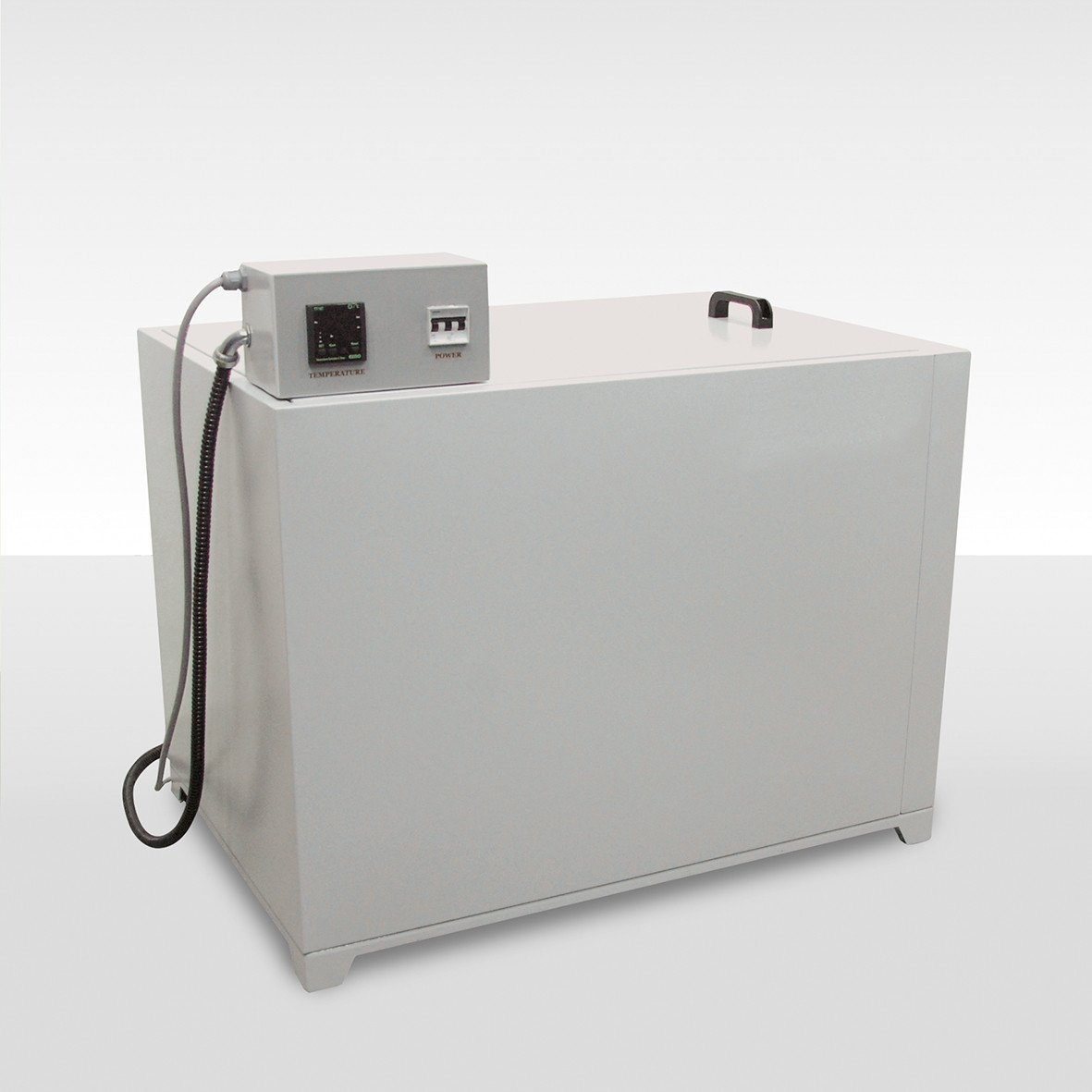

83. Accelerated Curing Tanks

Request Catalog

Product Code

UTC-0980

Accelerated Curing Tank, Ambient to +60°C

Models for 380 V 50 Hz, 3 ph	UTC-0980-C
Models for 220-240V 60 Hz, 3ph.	UTC-0980-NC

Standards

ASTM C 684, C 1768 (Procedure A - Warm Water Method)

BS 1881:Part 112 (35°C Method and 55°C Method)

UTC-0980 Accelerated Curing Tank is designed for curing concrete specimens according to ASTM C1768 (Procedure A - Warm Water Method) and BS 1881:Part 112 (35°C Method and 55°C Method).

The Tank consists of an insulated rectangular double walled metal chamber inside lined with stainless steel outer powder coated, an insulated lid with lifting handle to cover the chamber and an stainless steel perforated platform for circulation of water and to support the concrete specimens.

The tank works ambient to +60°C temperature. The temperature is controlled with closed loop PID controlled digital thermoregulator with accuracy of ±2°C. Curing temperature and curing time can also be set.

External Dimensions	820x1180x1000 mm
Internal Dimensions	640x900x700 mm
Weight (approx.)	210 kg
Power	4500 W
Current (UTC-0980)	20 Ampere

84. Universal Coring Machines

Request Catalog

Product Code

UTGD-0290	Universal Coring Machine, Coring max. Ø 200 mm, 220-240 V 50-60 Hz
UTGD-0310	Universal Coring Machine, Coring Range 25-202 mm, 220-240 V 50-60 Hz
UTGD-0320	Coring Bit for Concrete Sampling 50 mm dia. 400 mm Length
UTGD-0320-S	Coring Bit for Concrete Sampling 50 mm dia. 220 mm Length
UTGD-0322	Coring Bit for Concrete Sampling 75 mm dia. 400 mm Length
UTGD-0322-S	Coring Bit for Concrete Sampling 75 mm dia. 320 mm Length
UTGD-0324	Coring Bit for Concrete Sampling 94 mm dia. 400 mm Length
UTGD-0324-S	Coring Bit for Concrete Sampling 94 mm dia. 320 mm Length
UTGD-0326	Coring Bit for Concrete Sampling 150 mm dia. 400 mm Length
UTGD-0326-S	Coring Bit for Concrete Sampling 150 mm dia. 320 mm Length
UTGD-0328	Coring Bit for Concrete Sampling 200 mm dia. 400 mm Length

The UTGD-0290 (2500 W) and UTGD-0310 (2200 W) Universal Coring Machines are powerful diamond drilling units serve for shock free wet drilling into concrete, natural stone and asphalt with coring diameter max. 200 mm for UTGD-0290 and coring diameter ranges 25-202 mm for UTGD-0310 respectively. Both models are optimal complements to handheld diamond drilling machines.

Coring bit should be ordered separately.

The Universal Coring Machine consists of

Drilling Motor
Drill Stand with Motor Cradle
Mounting Apparatus (between drilling motor and the cradle)

UTGD–0326 UTGD–0324 UTGD–0322 UTGD–0320

SPECIFICATIONS	UTGD - 0290	UTGD - 0310
Power	2500 W	2200 W
Class of Protection	I	I
Drilling Diameter	max. 200 mm	25-202 mm
Speed (No-Load)	675 r.p.m.	460/760/1690 r.p.m.
Dimension	500x300x1150 mm	500x300x1150 mm
Weight (approx.)	15,5 kg	16 kg

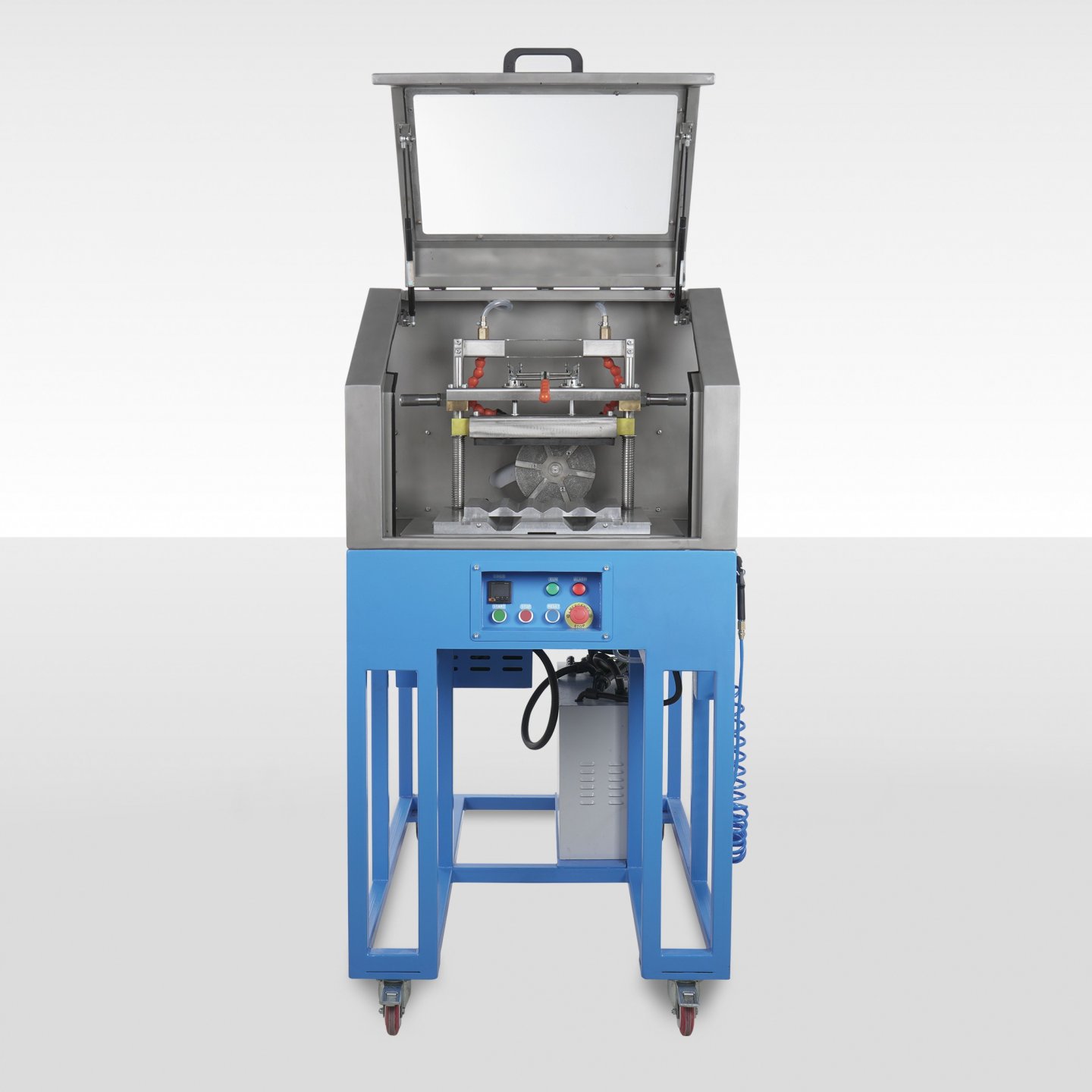

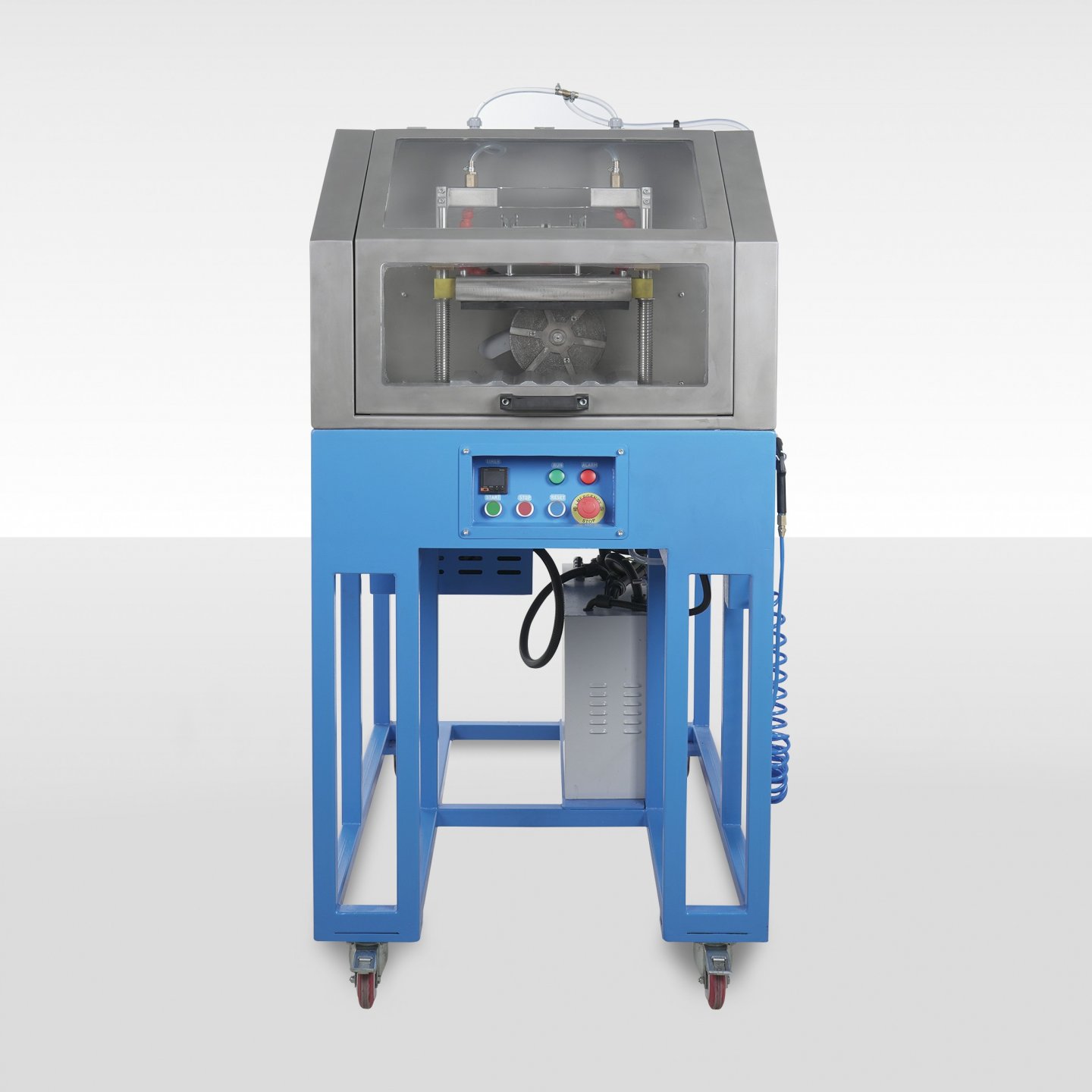

85. Universal Cutting Machine

Request Catalog

50 mm (1,97”)

Maximum Vertical Clearance

Between Bearing Blocks (E)

340 mm (13,4”)

380 mm (15”)

340 mm (13,4”)

380 mm (15”)

Horizontal Clearance (B)

230 mm (9,06”)

270 mm (10,6”)

230 mm (9,06”)

270 mm (10,6”)

For Cylinder

Specimens Sizes

Ø100x200 mm

(4”x8”)

Ø100x200 mm

(4”x8”)

Ø100x200 mm (4”x8”)
Ø150x300mm(6”x12”)

(**)

Ø100x200 mm (4”x8”)
Ø150x300mm(6”x12”)

Ø160x320 mm

Power

550 W

Oil Capacity

20 L (0,7 ft³)

Maximum Working Pressure

340 Bar

390 Bar

340 Bar

390 Bar

Dimensions (wxlxh) (Axd*xF)

640x454x922mm

(25,2”x17,87”x36,3”)

680x454x1042mm

(26,77”x17,87”x41,02”)

640x454x922mm

(25,2”x17,87”x36,30”)

680x454x1042mm

(26,77”x17,87”x41,02”)

Weight

365 kg (805 lbs)

463 kg (1020 lbs)

376 kg (830 lbs)

474 kg (1045 lbs)

Pedestal (Optional)

UTC-4680

(d*) depth

(**) Limited by capacity of the frame

The Machines are supplied complete with;

• UTC-4601.FPR and UTC-4602.FPR : 100 mm (3,93”), 50 mm (1,97”), 30 mm (1,2”) height x Ø165 mm (Ø 6,5”) distance pieces

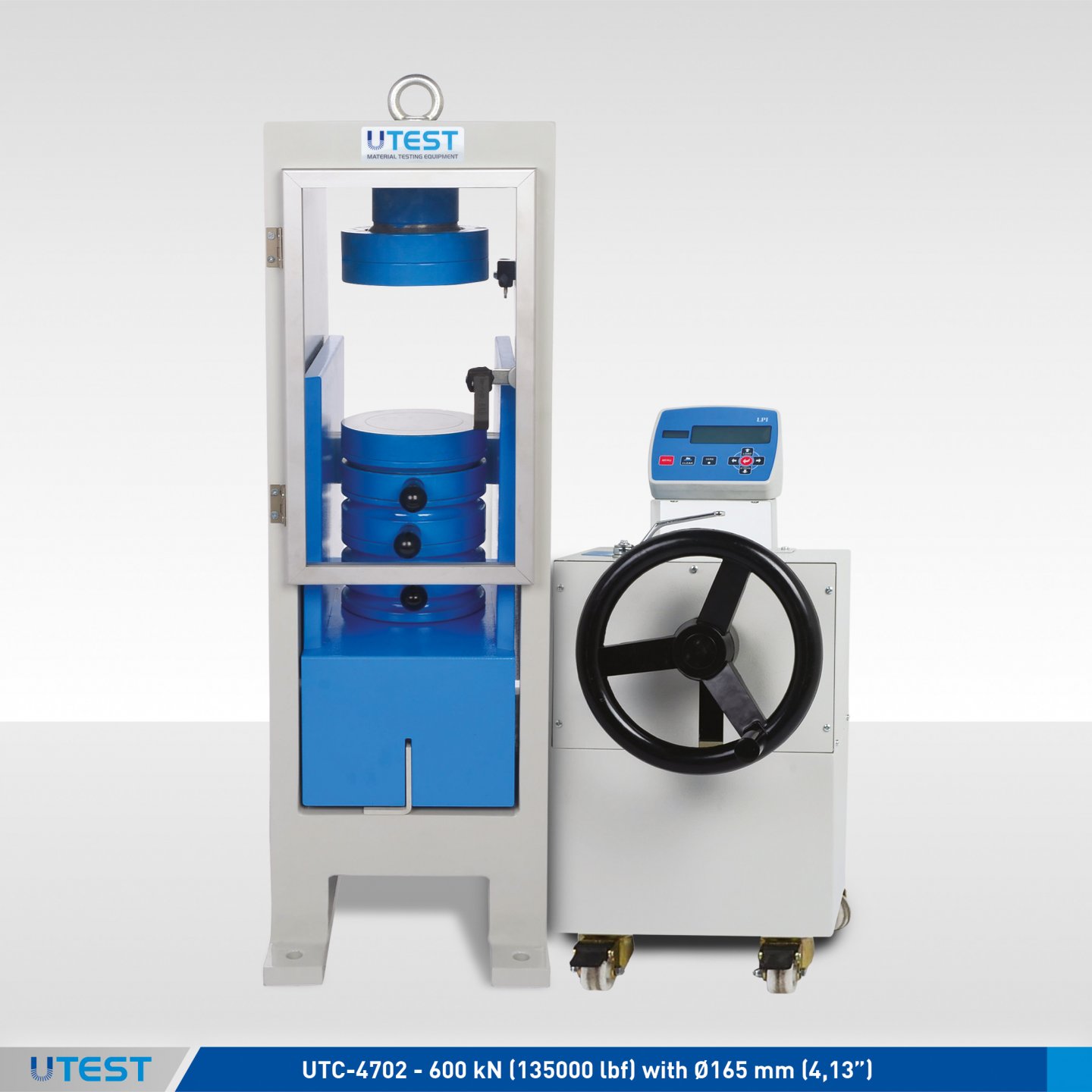

• UTC-4701.FPR and UTC-4702.FPR: 100 mm (3,93”), 50 mm (1,97”), 2 pcs. 30 mm (1,2”) height x Ø165 mm

(Ø 6,5”) distance pieces

• Removable transparent front and rear safety doors

• The front safety doors have an automatic safety device to stop the machine if the door is opened during a test

ASTM & AASHTO AUTOMATIC COMPRESSION TESTING MACHINES FOR CYLINDERS
Models	UTC-4712.FPR	UTC-4722.FPR	UTC-4732.FPR
Product Photo
Capacity	1500 kN (335000 lbf)	2000 kN (450000 lbf)	3000 kN (670000 lbf)
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)
Surface Hardness of Bearing Blocks	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC
Flatness Tolerance	0,02 mm/150 mm (0,001”/6”)	0,02 mm/150 mm (0,001”/6”)	0,02 mm/150 mm (0,001”/6”)
Piston Diameter	230 mm (9,06”)	250 mm (9,84”)	300 mm (11,8”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	380 mm (15”)	380 mm (15”)	380 mm (15”)
Horizontal Clearance (B)	320 mm (12,6”)	360 mm (14,17”)	415 mm (16,34”)
For Cylinder Specimens Sizes	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320 mm	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320 mm	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320 mm
Power	550 W	550 W	550 W
Oil Capacity	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)
Maximum Working Pressure	370 Bar	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF) (d* depth)**	750x451x1104 mm (29,53”x17,76”x43,86”)	790x453x1144 mm (31,10”x17,83”x45,04”)	845x497x1204mm (33,27”x19,57”x47,4”)
Weight	613 kg (1350 lbs)	700 kg (1545 lbs)	922 kg (2030 lbs)
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
*The Machines are supplied complete with;* *• Ø100 mm (3,93”), 50 mm (1,97”), 2 pcs. 30 mm (1,2”) mm height x Ø165 mm (Ø 6,5”) distance pieces* *• Removable transparent front and rear safety doors* *• The front safety doors have an automatic safety device to stop the machine if the door is opened during a test*

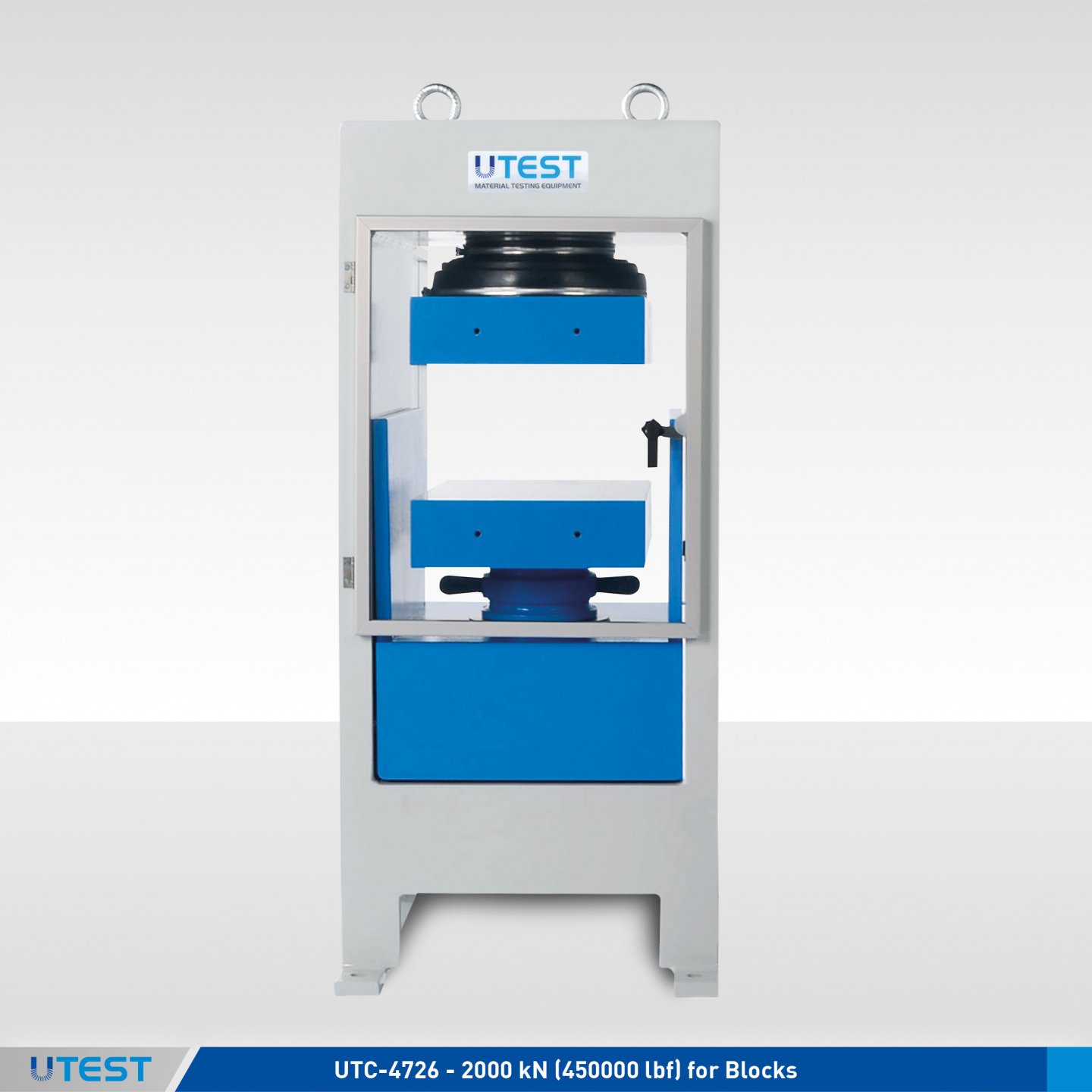

2. ASTM - Automatic Compression Testing Machines for Blocks

Product Code

UTC-4706.FPR	1100 kN (245000 lbf) Automatic Compression Testing Machines for Blocks, ASTM
UTC-4716.FPR	1500 kN (335000 lbf) Automatic Compression Testing Machines for Blocks, ASTM

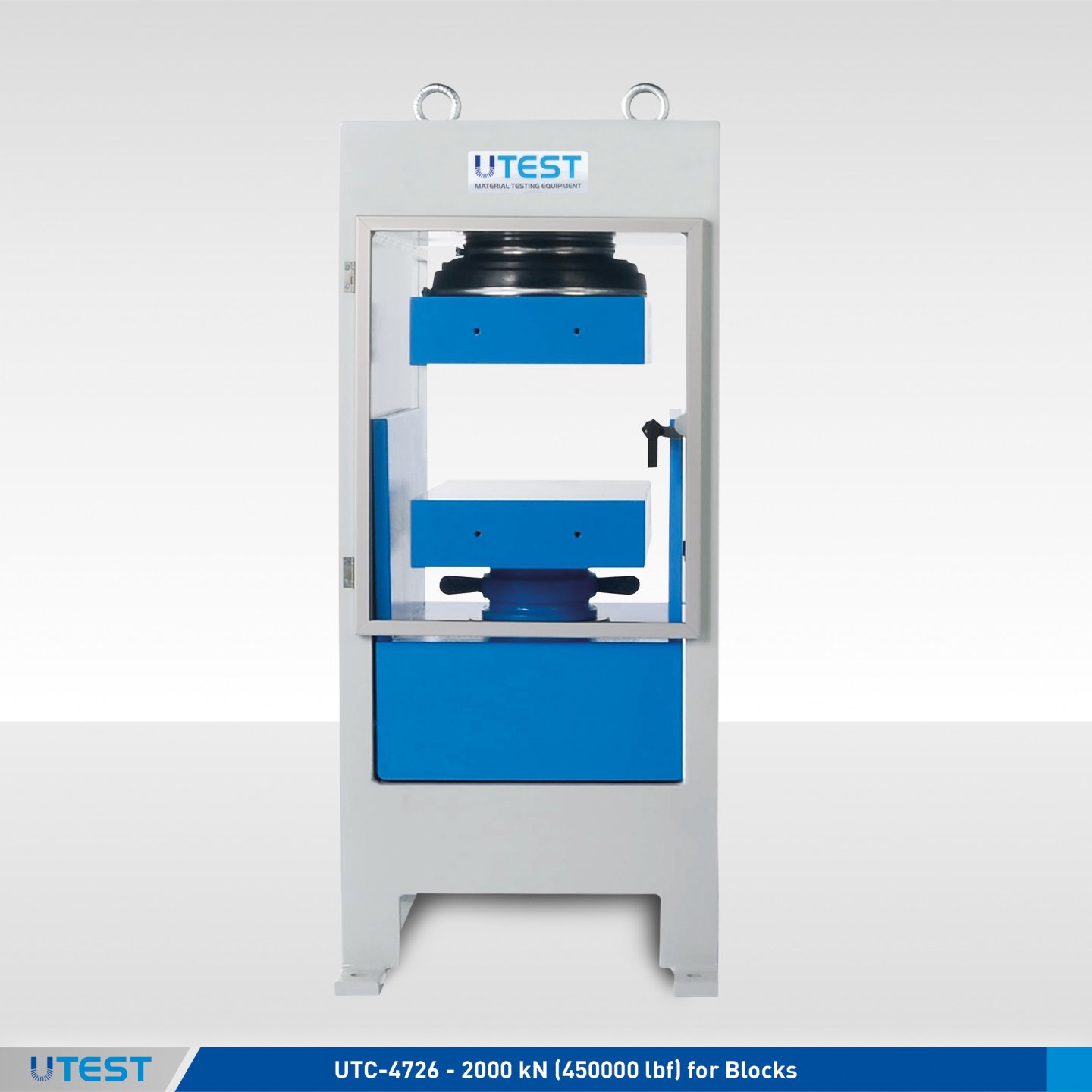

UTC-4726.FPR	2000 kN (450000 lbf) Automatic Compression Testing Machines for Blocks, ASTM
UTC-4736.FPR	3000 kN (670000 lbf) Automatic Compression Testing Machines for Blocks, ASTM
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Models for 220-240V, 50-60Hz, 1ph	UTC-4706.FPR	UTC-4716.FPR	UTC-4726.FPR	UTC-4736.FPR
Models for 110V 60 Hz	UTC-4706.FPR -N	UTC-4716.FPR -N	UTC-4726.FPR -N	UTC-4736.FPR -N

Standards

ASTM C140, C1314

UTC-4706.FPR, UTC-4716.FPR, UTC-4726.FPR and UTC-4736.FPR models Automatic Compressıon Testıng Machines have been designed for compression testing of blocks acc. to ASTM standards. These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

The machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of centering lines of lower bearing platen, the only required operations are;

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

The Machines consist of a welded steel frame (see table) and UTC-4830FPR automatic hydraulic power pack with U-Touch PRO Control Unit.

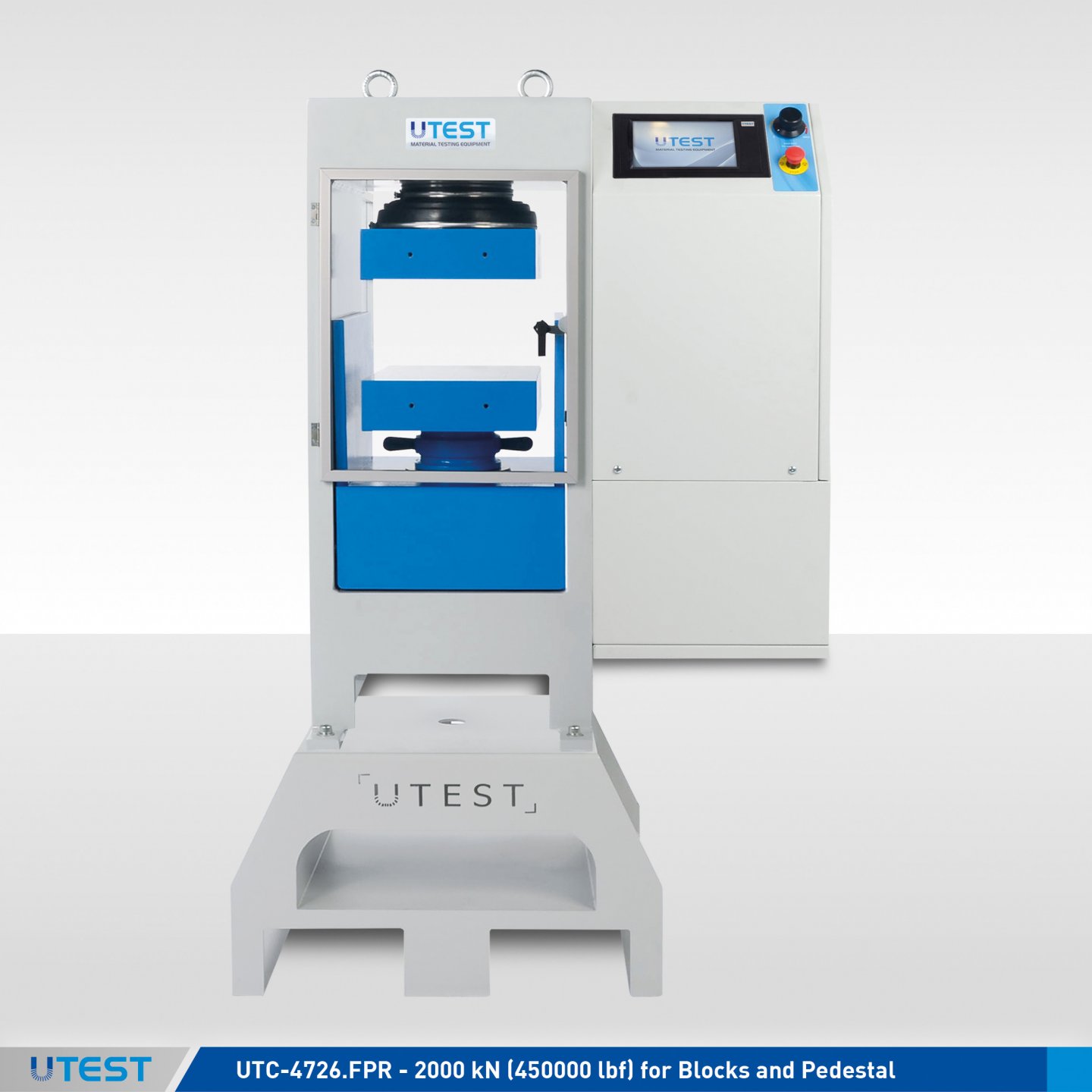

UTC-4680A or UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Pace Rate control between 1 kN to 25 kN

Accuracy Class A acc. to E74 and Class 1 acc. to ISO 7500-1 starting from with the 5% of the machine capacity (Special calibration option Class A starting from 1% of the full range with UTC-0210)

Supplied with factory calibration certificate for load measurement

Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.

Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

In this case, the machines provide load control of two seperate testing frames with closed-loop P.I.D control with automatic test procedure by using selecting test channel And additional selector valve.

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

ASTM & AASHTO LOW CAPACITY AUTOMATIC COMPRESSION TESTING MACHINES FOR BLOCKS
Models Photo
Models	UTC-4706.FPR	UTC-4716.FPR	UTC-4726.FPR	UTC-4736.FPR
Capacity	1100 kN (245000 lbf)	1500 kN (335000 lbf)	2000 kN (450000 lbf)	3000 kN (670000 lbf)
Frame Type	Welded Steel	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)
Surface Hardness of Bearing Blocks	60 HRC	60 HRC	60 HRC	60 HRC
Flatness Tolerance	0,025 mm / 150 mm (0,001”/6”)	0,025 mm / 150 mm (0,001”/6”)	0,025 mm / 150 mm (0,001”/6”)	0,025 mm / 150 mm (0,001”/6”)
Piston Diameter	230 mm (9,06”)	230 mm (9,06”)	250 mm (9,84”)	300 mm (11,8”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	250 mm (9,84”)	250 mm (9,84”)	250 mm (9,84”)	250 mm (9,84”)
Horizontal Clearance (B)	320 mm (12,6”)	320 mm (12,6”)	360 mm (14,17”)	415 mm (16,34”)
Power	550 W	550 W	550 W	550 W
Oil Capacity	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)
Maximum Working	390 Bar	370 Bar	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	750x451x1104 mm (29,53”x17,76”x43,86”)	750x451x1104 mm (29,53”x17,76”x43,86”)	790x453x1144 mm (31,1”x17,83”x45,04”)	845x497x1204mm (33,27”x19,57”x47,4”)
Weight	808 kg (1780 lbs)	808 kg (1780 lbs)	895 kg (1975 lbs)	1117 kg (2465 lbs)
Pedestal (Optional)	UTC-4680	UTC-4680	UTC-4682	UTC-4682
*(d) depth The ASTM Machines for blocks are supplied complete with; • 50 mm (1,97”), 30 mm (1,2”), 15 mm (0,59”) height x Ø205 mm (Ø8,07”) distance pieces • Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629) • Removable transparent front and rear safety doors**

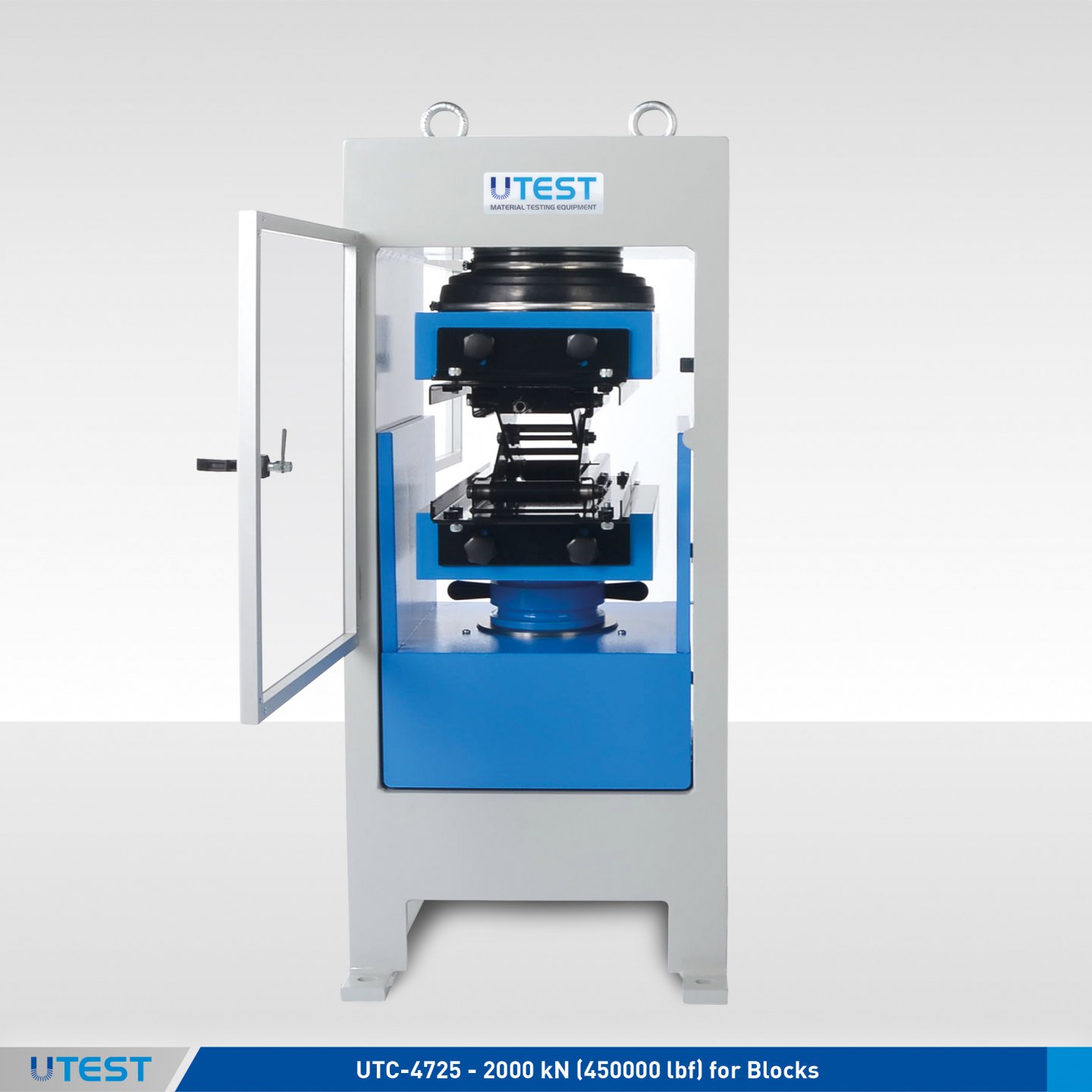

3. ASTM - Automatic Compression Testing Machines for Blocks and Cylinders

Request Catalog

Product Code

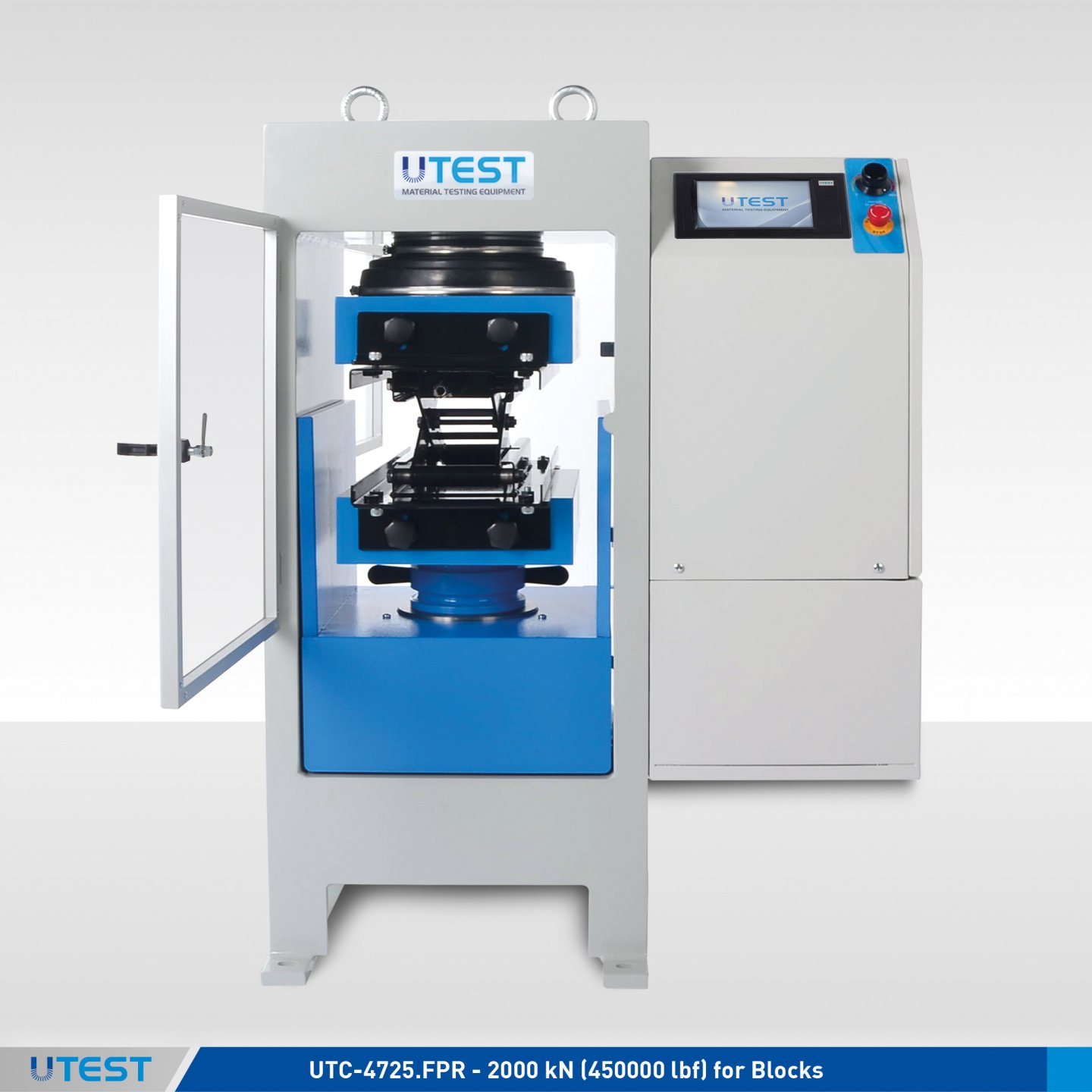

UTC-4725.FPR	2000 kN (450000 lbf) Automatic Compression Testing Machines for Blocks and Cylinders, ASTM
UTC-4735.FPR	3000 kN (670000 lbf) Automatic Compression Testing Machines for Blocks and Cylinders, ASTM

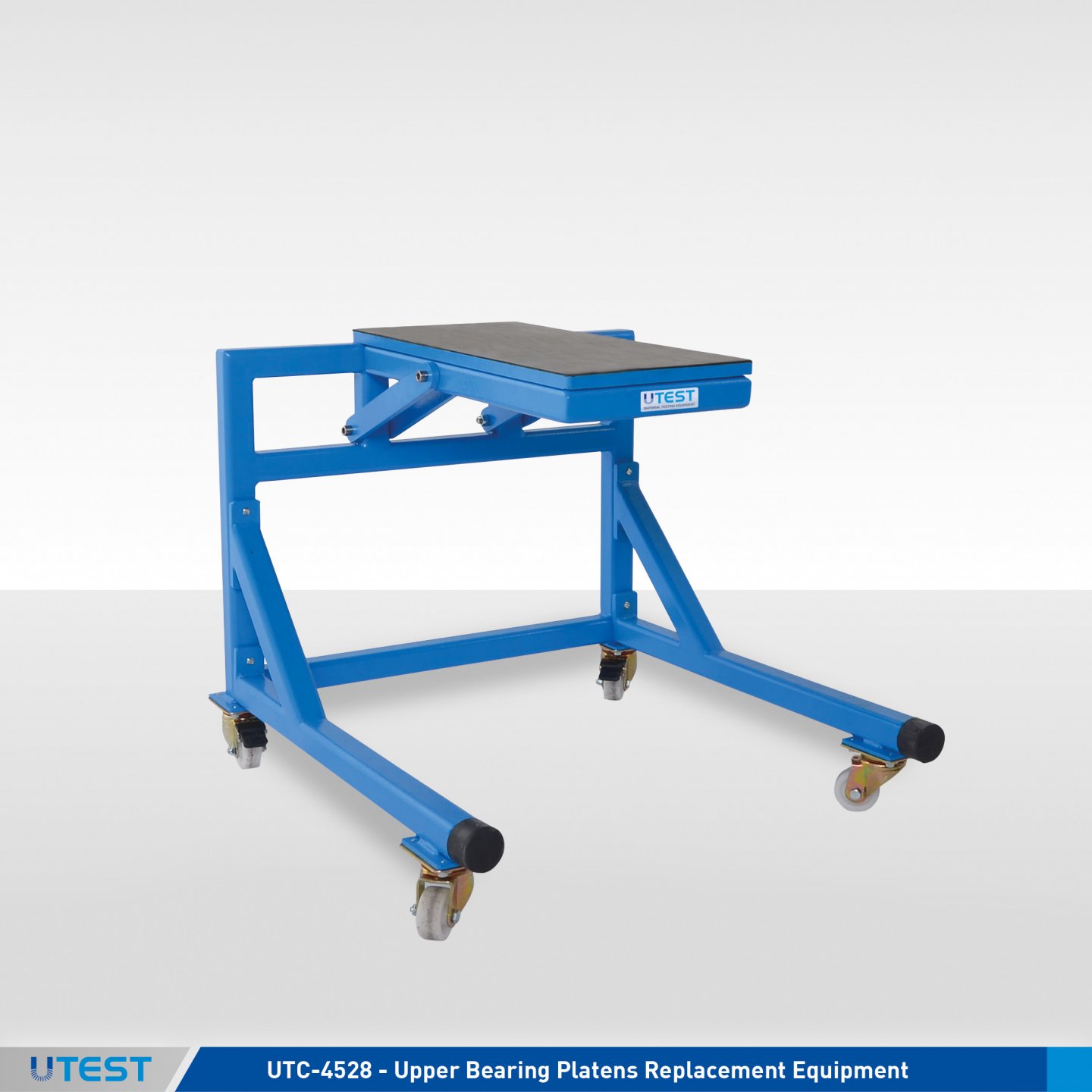

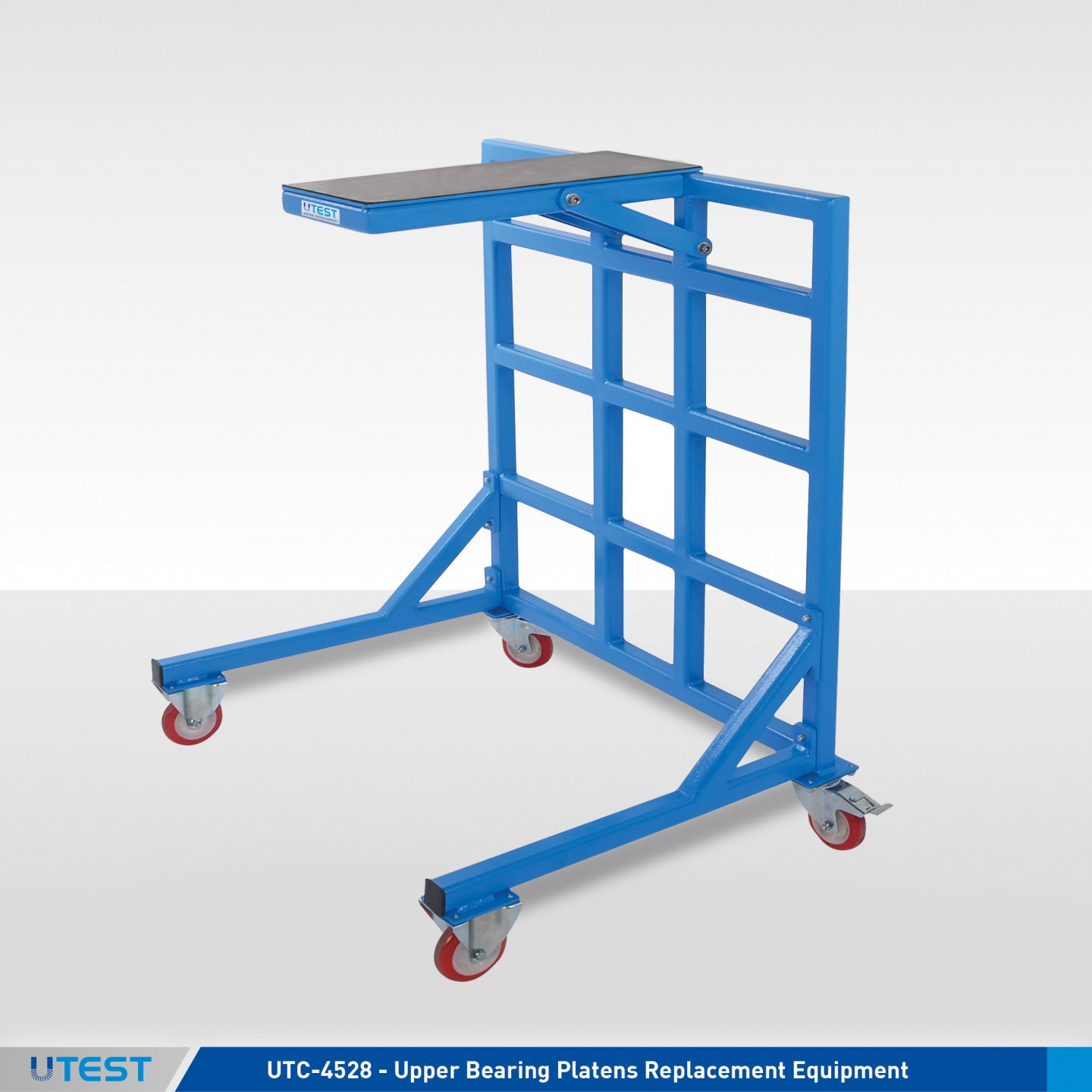

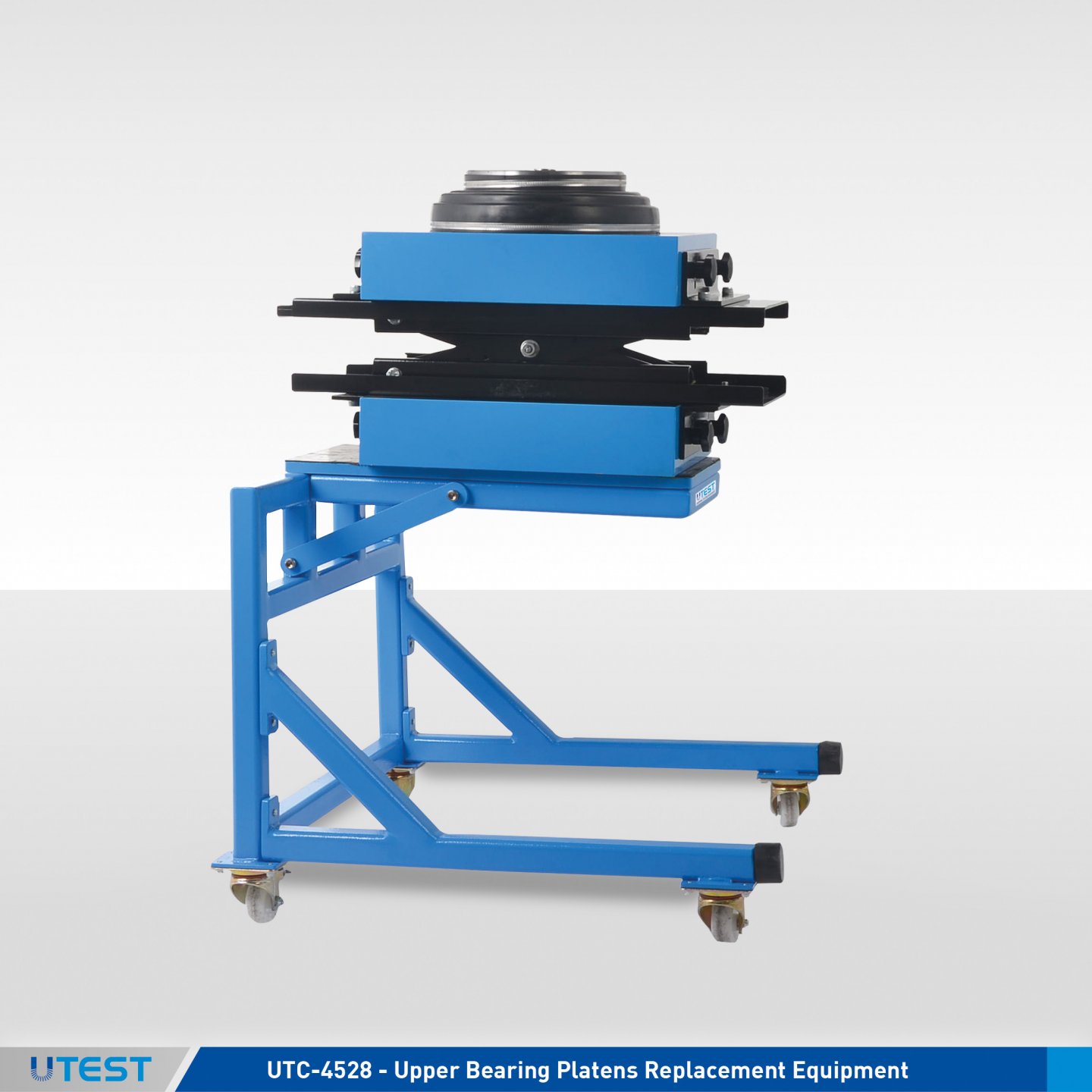

UTC-4528	Upper Bearing Platens Replacement Console for UTC-4725 and UTC-4735
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Models for 220-240V, 50-60Hz, 1ph	UTC-4725.FPR	UTC-4735.FPR
Models for 110V, 60 Hz, 1ph	UTC-4725.FPR-N	UTC-4735.FPR-N

Standards

ASTM C39, C140, C1314

UTC-4725.FPR and UTC-4735.FPR models Automatic Compressıon Testıng Machines have been designed for testing both blocks and cylinders specimens with the same frame according to ASTM standards. These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

The frames of the machines have a rectangular and a circular bearing platen set (each consists of a lower and a shperically-seated upper platen). Depending on the type of specimen to be tested, the upper the bearing platens of the frames can be easily switched with each other by users with help of UTC-4528 and 4629.

The machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of concentric centering lines of lower bearing platen. The only required operations are;

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

The Machines consist of a welded steel frame (see table) and UTC-4830FPR automatic hydraulic power pack with U-Touch PRO Control Unit.

UTC-4682A Pedestal that is made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Pace Rate control between 1 kN to 25 kN

Accuracy Class A acc. to E74 and Class 1 acc. to ISO 7500-1 starting from with the 5% of the machine capacity (Special calibration option Class A starting from 1% of the full range with UTC-0210)

Supplied with factory calibration certificate for load measurement

Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.

Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

ASTM - AUTOMATIC COMPRESSION TESTING MACHINES FOR BLOCKS AND CYLINDERS
Models Photo
Models	UTC-4725.FPR	UTC-4735.FPR
Capacity	2000 kN (450000 lbf)	3000 kN (670000 lbf)
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	(Block) 310x410x90mm (12.2”x16.1”x3.5”) (Circular) Ø165 mm (6.5")	(Block) 310x410x90mm (12.2”x16.1”x3.5”) (Circular) Ø165 mm (6.5")
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	(Block) 310x410x90mm (12.2”x16.1”x3.5”) (Circular) Ø165 mm (6.5")	(Block) 310x410x90mm (12.2”x16.1”x3.5”) (Circular) Ø165 mm (6.5")
Surface Hardness of Bearing Platens	(Block) 60 HRC (Circular) 55 HRC	(Block) 60 HRC (Circular) 55 HRC
Flatness Tolerance	(Block) 0,025 mm/150 mm (0,001”/6”) (Circular) 0,02 mm/150 mm (0,001”/6”)	(Block) 0,025 mm/150 mm (0,001”/6”) (Circular) 0,02 mm/150 mm (0,001”/6”)
Maximum Vertical Clearance Between Bearing Blocks (E)	(Block) 250 mm (9,84”) (Circular) 380 mm (15”)	(Block) 250 mm (9,84”) (Circular) 380 mm (15”)
Piston Diameter	250 mm (9,84”)	300 mm (11,8”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)
Horizontal Clearance (B)	360 mm (14,17”)	415 mm (16,34”)
*Dimensions (wxlxh) (AxdxF)**	790x453x1144 mm (31,1x17,83”x45,04”)	845x497x1204 mm 33,27”x19,57”x47,4”)
Weight	993 kg (2190 lb)	1215 kg (2680 lb)
Pedestal (Optional)	UTC-4682	UTC-4682
*(d) depth The ASTM machines for blocks and cylinders are supplied complete with; • 310x410x90 mm (12.2”x16.1”x3.54”) lower and upper (spherically seated) bearing platens (comes with mounted to the frame) • Ø165 mm (6.5") lowerand upper ( spherically seated) bearing blocks • Upper Bearing Platens Replacement Console (UTC-4528) • Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629) • 100mm (3,93”), 50mm (1,97”), 2 pcs. 30 mm (1,2”), 15 mm (0,59”) height x Ø205 mm (Ø8,07”) distance pieces • Removable transparent front and rear safety doors**

4. EN 12390-4 Automatic Compression Testing Machines with Welded Walls for Cubes and Cylinders

Request Catalog

Product Code

UTC-5727.FPR	2000 kN EN 12390-4 Automatic Compressıon Testıng Machines for Cubes and Cylinders
UTC-5737.FPR	3000 kN EN 12390-4 Automatic Compressıon Testıng Machines for Cubes and Cylinders
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4682E	Pedestal for EN 1550 kN, 2000 kN, 2200 kN and 3000 kN Compression Testing Frames with Welded Walls

Models for 220-240V 50-60 Hz, 1ph	UTC-5727.FPR	UTC-5737.FPR
Models for 110-120V 60 Hz, 1ph	UTC-5727.FPR-N	UTC-5737.FPR-N

Standards

EN 12390-4, EN 12390-3

UTC-5727.FPR and UTC-5737.FPR models Automatic Compressıon Testıng Machines are manufactured for compression testing of cubes and cylinders acc. to EN 12390-4. These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

The machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of fixtures or/and concentric centering lines of lower loading platen, the only required operations are;

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

UTC-4682E Pedestal that is made of steel to facilitate the user’s placement of specimens in the frame for compression test should be ordered separately.

Main Features

Pace Rate control between 1 kN to 25 kN

Accuracy Class 1 acc. to EN 12390-4 and ISO 7500-1 starting from with the 5% of the machine capacity (Special calibration option Class 1 starting from 1% of the full range with UTC-0210)

Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4

Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.

Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

Multi-Point calibration function for the channels
Optionally supplied-integrated thermal printer (If requested, must be specified in the order)

Real time numeric display of load and load pressure with test graph.

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

EN 12390-4 AUTOMATIC COMPRESSION TESTING MACHINES FOR CUBES AND CYLINDERS
Models	UTC-5727.FPR	UTC-5737.FPR

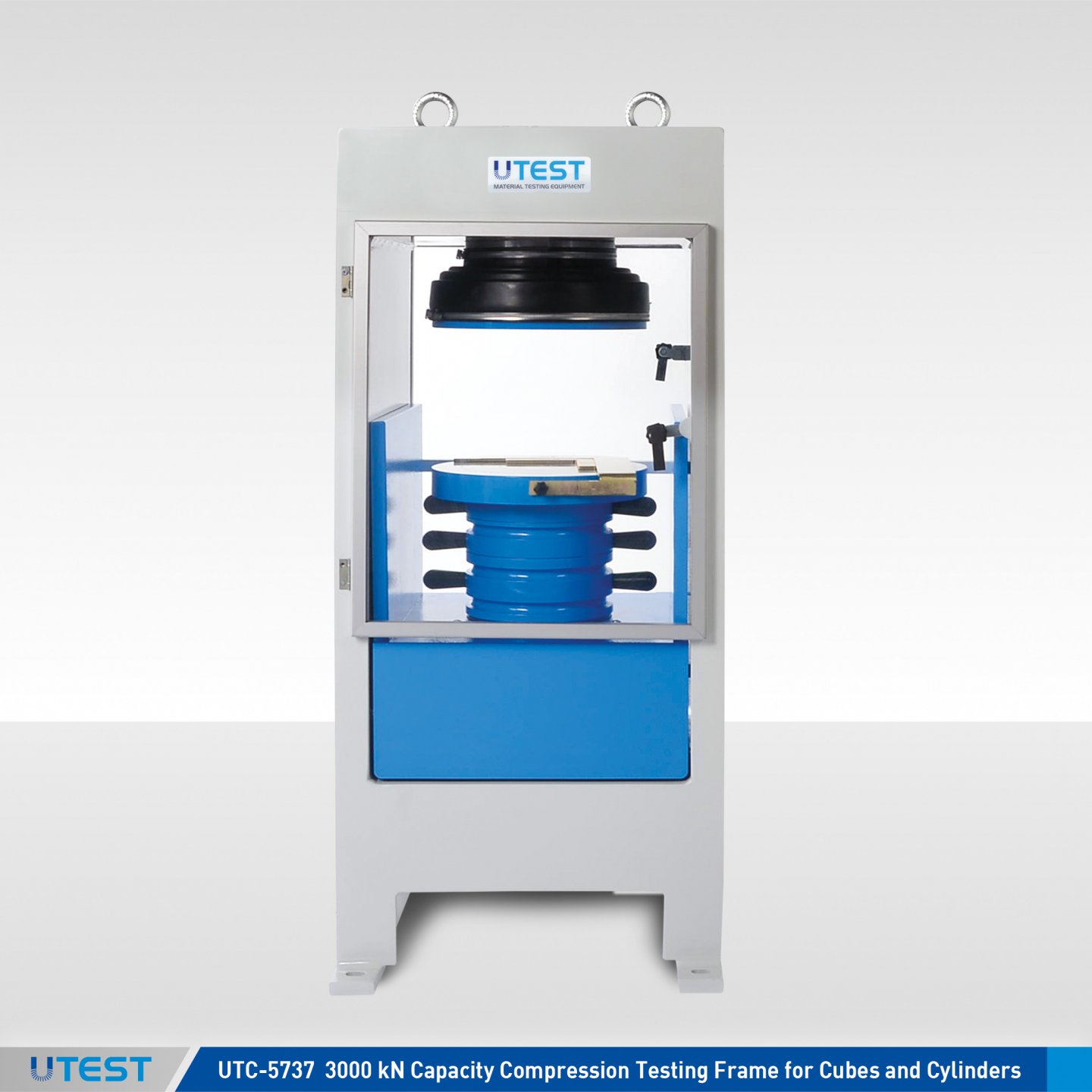

Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 300 mm	Ø 300 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	Ø 300 mm	Ø 300 mm
Surface Hardness of Bearing Blocks	53 HRC	53 HRC
Flatness Tolerance	0,03 mm	0,03 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	350 mm	350 mm
Horizontal Clearance (B)	360 mm	415 mm
Sizes of Specimens For Cubes (up to)	200 mm (**)	200 mm (**)
Sizes of Specimens For Cylinders (up to)	Ø160x320 mm	Ø160x320 mm
Power	550 W	550 W
Oil Capacity	20 L	20 L
Maximum Working Pressure	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	530x810x1150 mm	540x870x1240 mm
Weight	852 kg	1050 kg
Pedestal (Optional)	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The machines for cubes and cylinders are supplied complete with;* *• 100 mm, 50 mm, 30 mm height x Ø205 mm distance pieces* *• Fixture for centering specimens, compatible with Ø300 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders (UTC-4622E)* *• Removable transparent front and rear safety doors* *Appropriate Distance piece/s for the cylinder and cube specimens with the height of lower than 150mm should be ordered separately.*

5. EN 12390-4 Automatic Four Column Compression Testing Machines for Cubes and Cylinders

Request Catalog

Product Code

UTC-6727.FPR	2000 kN EN 12390-4 Capacity Four Column Compression Testing Frame, for Cubes and Cylinders, EN
UTC-6737.FPR	3000 kN 12390-4 Capacity Four Column Compression Testing Frame, for Cubes and Cylinders, EN

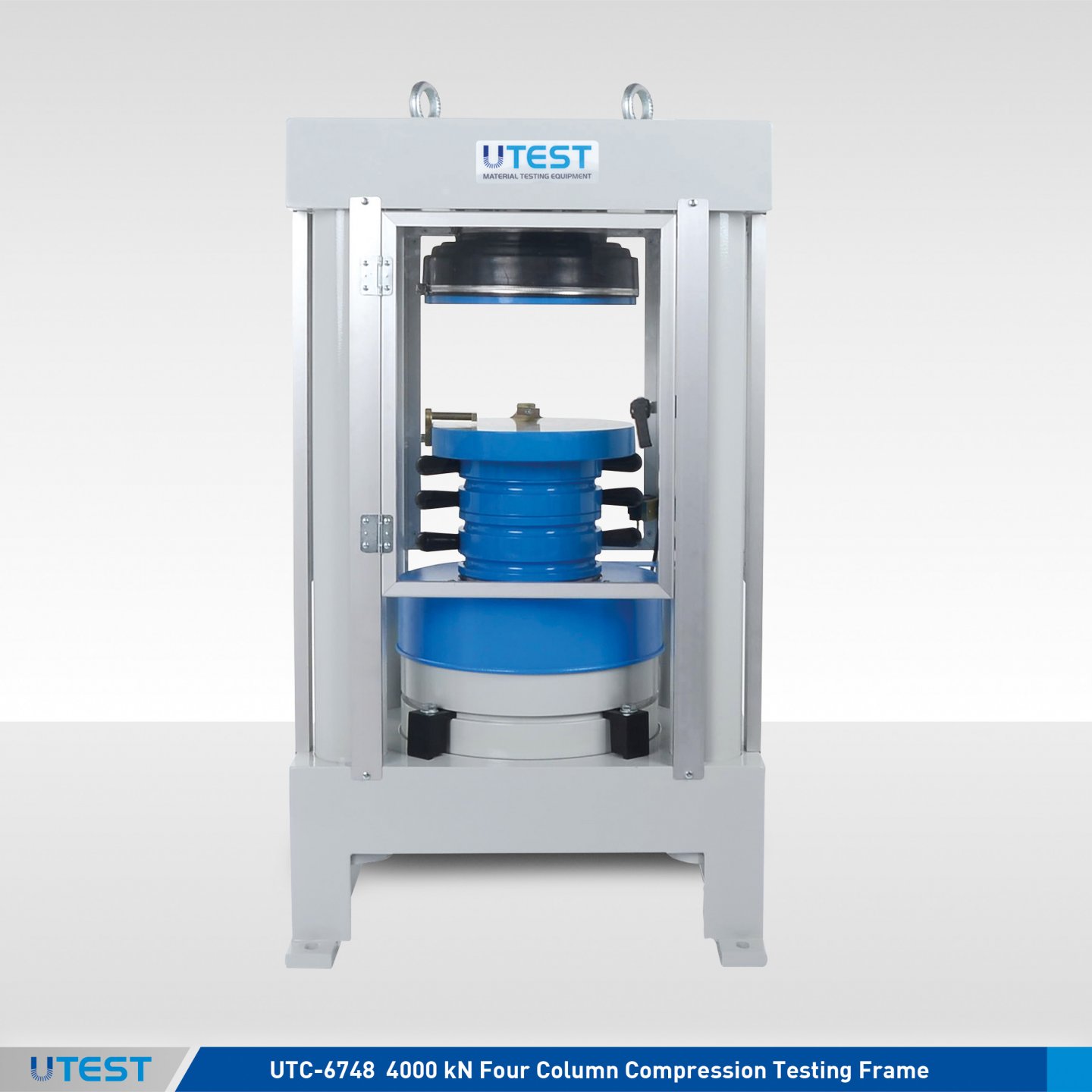

UTC-6748.FPR	4000 kN 12390-4 Capacity Four Column Compression Testing Frame, for Cubes and Cylinders, EN
UTC-6758.FPR	5000 kN 12390-4 Capacity Four Column Compression Testing Frame, for Cubes and Cylinders, EN
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4684	Pedestal for 2000 kN and 300 kN Four Column Compression Testing Frames
UTC-4686	Pedestal for 4000 kN and 5000 kN Four Column Compression Testing Frames

Models for 220-240V, 50-60Hz, 1ph	UTC-6727.FPR	UTC-6737.FPR	UTC-6747.FPR	UTC-6757.FPR
Models for 110V 60 Hz	UTC-6727.FPR -N	UTC-6737.FPR -N	UTC-6747.FPR -N	UTC-6757.FPR -N

Standards

EN 12390-4, EN 12390-3

UTC-6727.FPR, UTC-6737.FPR UTC-6747.FPR and UTC-6757.FPR models Automatic Four Column Compressıon Testıng Machines are manufactured for compression testing of cubes and cylinders acc. to EN. These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

The Machines consist of a welded steel frame (see table) and UTC-4830FPR automatic hydraulic power pack with U-Touch PRO Control Unit.

UTC-4684 and UTC-4686 Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Pace Rate control between 1 kN to 25 kN

Accuracy Class 1 acc. to EN 12390-4 and ISO 7500-1 starting from with the 5% of the machine capacity (Special calibration option Class 1 starting from 1% of the full range with UTC-0210)

Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4

Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.

Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

EN 12390-4 AUTOMATIC FOUR COLUMN COMPRESSION TESTING MACHINES FOR CUBES AND CYLINDERS
Models	UTC-6727.FPR	UTC-6737.FPR	UTC-6748.FPR	UTC-6758.FPR

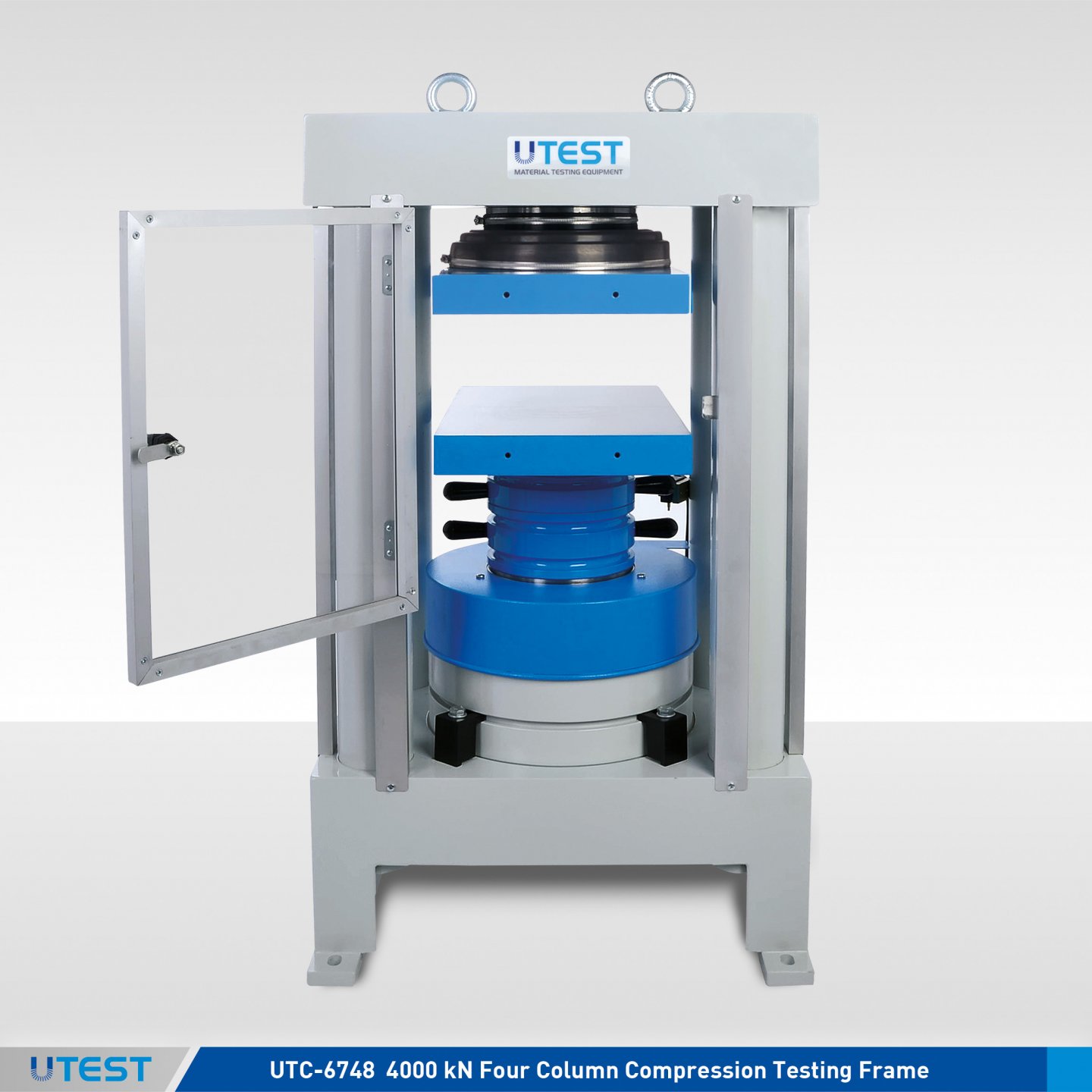

Product Photo
Capacity	2000 Kn	3000 kN	4000 kN	5000 kN
Frame Type	Four Column	Four Column	Four Column	Four Column
Lower Platens Dimensions (D)	Ø 300 mm	Ø 300 mm	Ø 360 mm	Ø 360 mm
Upper Platens With Ball Seating Assembly Dimensions (C)	Ø 300 mm	Ø 300 mm	Ø 360 mm	Ø 360 mm
Surface Hardness of Loading Platens	≥ 53 HRC	≥ 53 HRC	≥ 53 HRC	≥ 53 HRC
Flatness Tolerance	0,03 mm	0,03 mm	0,03 mm	0,03 mm
Piston Diameter	300 mm	350 mm	400 mm	450 mm
Piston Stroke	50 mm	50 mm	100 mm	100 mm
Maximum Vertical Clearance Between Platens (E)	350 mm	350 mm	520 mm	520 mm
Sizes of Specimens For Cubes	200 mm (**)	200 mm (**)	200 mm (**)	200 mm (**)
Sizes of Specimens For Cylinders (up to)	Ø160x320 mm	Ø160x320 mm	Ø250x500 mm (**)	Ø250x500 mm (**)
Power	750 W	750 W	750 W	750 W
Oil Capacity	20 L	20 L	20 L	20 L
Maximum Working Pressure	410 Bar	410 Bar	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxG)**	960x560x1100 mm	1050x690x1150 mm	1145x825x1540 mm	1145x825x1570 mm
Weight	1020 kg	1520 kg	2570 kg	2625 kg
Pedestal (Optional)	UTC-4684	UTC-4684	UTC-4686	UTC-4686
	(d) depth () Limited by capacity of the frame The machines for cubes and cylinders are supplied complete with;* •100 mm, 50 mm, 30 mm height x Ø205 mm distance pieces (two pcs. each for UTC-6748 and UTC-6758) •UTC-4622E - Fixture for Centering Specimens, compatible with Ø300 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders(for UTC-6727 and UTC-6737) •UTC-4624E - Fixture for centering specimens, compatible with Ø360 mm lower loading platen for 150 mm and 250 mm cubes, Ø150 mm and 250 mm cylinders (for UTC-6748 and UTC-6758) •Removable transparent front and rear safety doors. • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test Appropriate distance piece/s for the cylinder and cube specimens with the height of lower than 150 mm should be ordered separately.

6. EN 12390-4 - EN 772-1 Automatic Compression Testing Machines with Welded Walls for Masonary Units, Cubes and Cylinders

Request Catalog

Product Code

UTC-5729.FPR	2000 kN EN 12390-4 and EN 772-1 Compression Testing Machine for Masonary Units, Cubes and Cylinders
UTC-5739.FPR	3000 kN EN 12390-4 and EN 772-1 Compression Testing Machine for Masonary Units, Cubes and Cylinders
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4682E	Pedestal for EN 1550 kN, 2000 kN, 2200 kN and 3000 kN Compression Testing Frames with Welded Walls

Standards

EN 12390-4, EN 772-1

UTC-5729.FPR and UTC-5739.FPR models Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units, cubes and cylinders acc. to EN standards .These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

The Machines consist of a welded steel frame (see table) and UTC-4830FPR automatic hydraulic power pack with U-Touch PRO Control Unit.

UTC-4682E Pedestal that is made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Pace Rate control between 1 kN to 25 kN
Accuracy Class 1 acc. to EN 12390-4 and ISO 7500-1 starting from with the 5% of the machine capacity (Special calibration option Class 1 starting from 1% of the full range with UTC-0210)
Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4
Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties .

UTEST Software for Automatic Compression / Flexure Testing Machines

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

EN 12390-4 and EN 772-1 COMPRESSION TESTING MACHINES FOR CONCTERE CUBES AND CYLINDERS AND MASONARY UNITS
Models	UTC-5729.FPR	UTC-5739.FPR

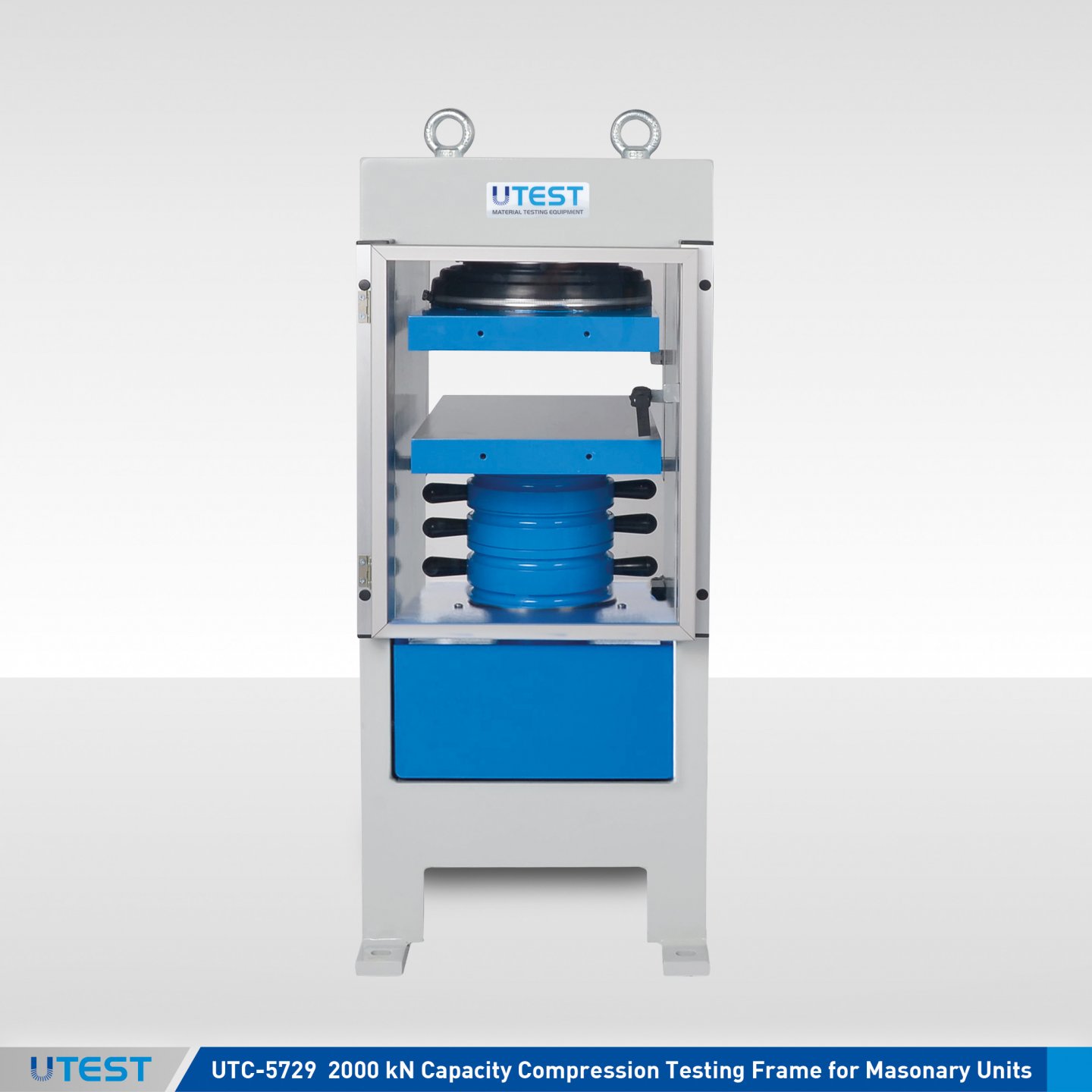

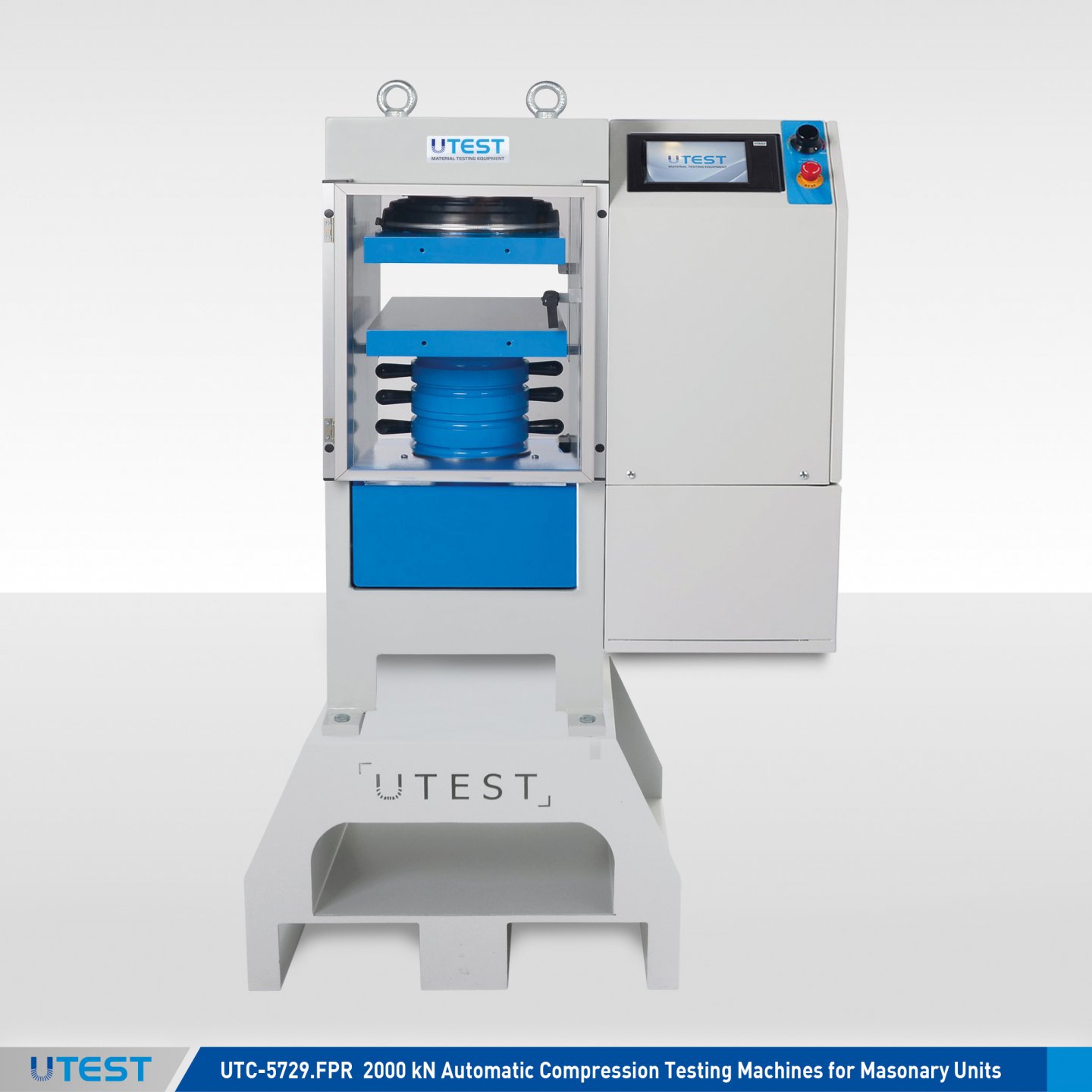

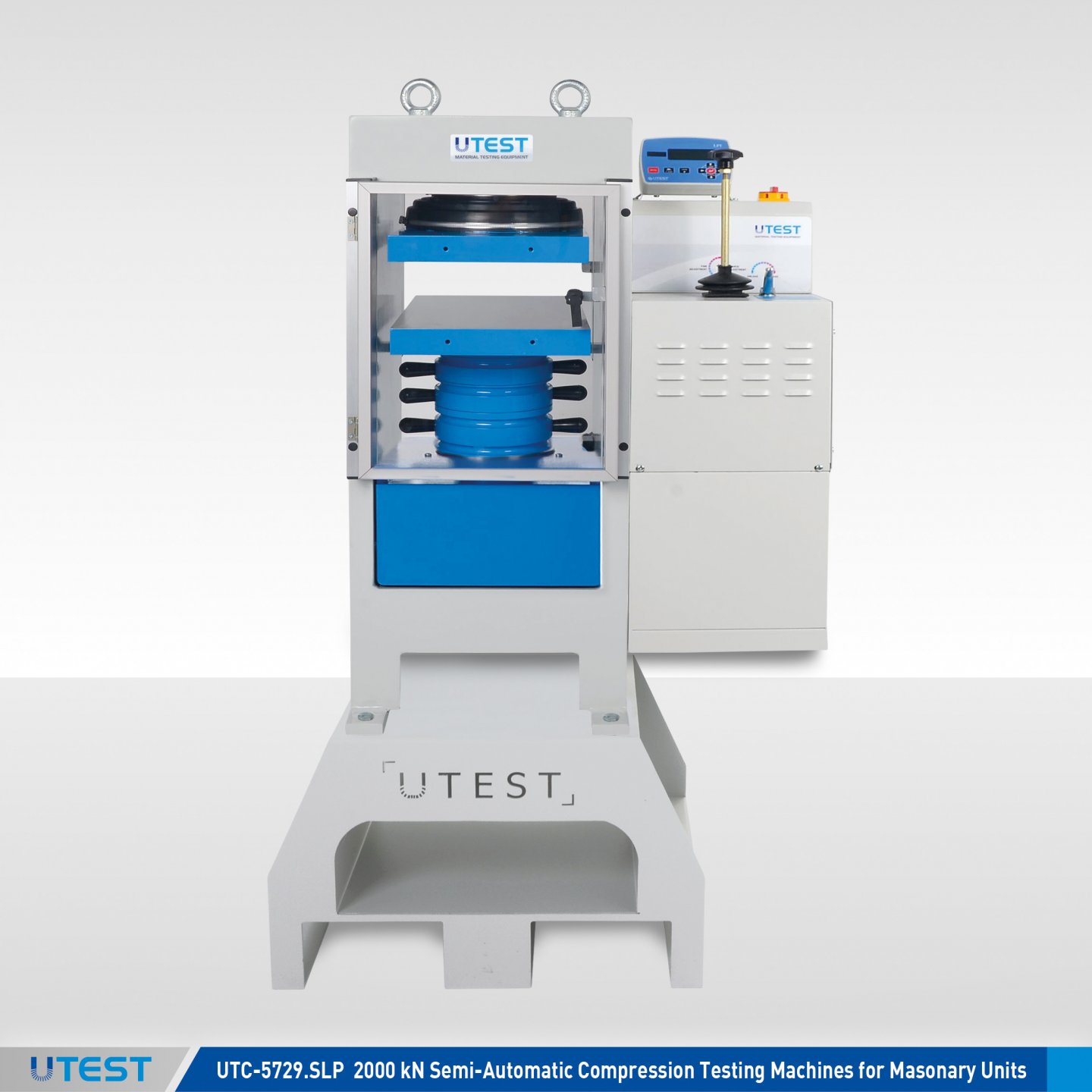

Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC
Flatness Tolerance	0,03 mm	0,03 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	330 mm	330 mm
Horizontal Clearance (B)	360 mm	415 mm
Sizes of Specimens For Cylinders (up to)	Ø160x320 mm	Ø160x320 mm
Sizes of Specimens For Cubes (up to)	300 mm (**)	300 mm (**)
Sizes of Specimens For Masonary Units (up to)	300x500 mm (**)	300x500 mm (**)
	750 W	750 W
	20 L	20 L
	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	820x550x1145 mm	875x550x1205 mm
Weight	965 kg	1205 kg
Pedestal (Optional)	UTC-4682	UTC-4682
	*(d) depth () Limited by capacity of the frame *The machines for masonary units, cubes and cylindrs are supplied complete with;* *• 100 mm, 50 mm, 2x30 mm height x Ø205 mm distance pieces.* *• Fixture for Centering Specimens, compatible with 310x510x50 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders (UTC-4626E)* *• Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629)* *• Removable transparent front and rear safety doors* *Appropriate Distance piece/s for the cylinder and cube specimens with the height of lower than 150 mm should be ordered separately.*

7. EN 12390-4 - EN 772-1 Automatic Four Columns Compression Testing Machines for Masonary Units, Cubes and Cylinders

Request Catalog

Product Code

UTC-6729.FPR	2000 kN EN 12390-4 and EN 772-1 Four Column Compression Testing Frame for Masonary Units, Cubes and Clinders
UTC-6739.FPR	3000 kN EN 12390-4 and EN 772-1 Four Column Compression Testing Frame for Masonary Units, Cubes and Clinders
UTC-6749.FPR	4000 kN EN 12390-4 and EN 772-1 Four Column Compression Testing Frame for Masonary Units, Cubes and Clinders
UTC-6759.FPR	5000 kN EN 12390-4 and EN 772-1 Four Column Compression Testing Frame for Masonary Units, Cubes and Clinders
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4684	Pedestal for 2000 kN and 3000 kN Four Column Compression Testing Frames
UTC-4686	Pedestal for 4000 kN and 5000 kN Four Column Compression Testing Frames

Models for 220-240V, 50-60Hz, 1ph	UTC-6729.FPR	UTC-6739.FPR	UTC-6749.FPR	UTC-6759.FPR
Models for 110V 60 Hz	UTC-6729.FPR -N	UTC-6739.FPR -N	UTC-6749.FPR -N	UTC-6759.FPR -N

Standards

EN 12390-4, EN 772-1

UTC-6729.FPR, UTC-6739.FPR, UTC-6749.FPR and UTC-6759.FPR models Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units, cubes and cylinders acc. to EN standards .These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

The Machines consist of a welded steel frame (see table) and UTC-4830FPR automatic hydraulic power pack with U-Touch PRO Control Unit.

UTC-4684 and UTC-4886 Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Pace Rate control between 1 kN to 25 kN
Accuracy Class 1 acc. to EN 12390-4 and ISO 7500-1 starting from with the 5% of the machine capacity (Special calibration option Class 1 starting from 1% of the full range with UTC-0210)
Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4
Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

EN 12930-4 and EN 772-1 AUTOMATIC FOUR COLUMNS COMPRESSION TESTING MACHINES FOR MASONARY UNITS, CUBES AND CYLINDERS
Models	UTC-6729.FPR	UTC-6739.FPR	UTC-6749.FPR	UTC-6759.FPR

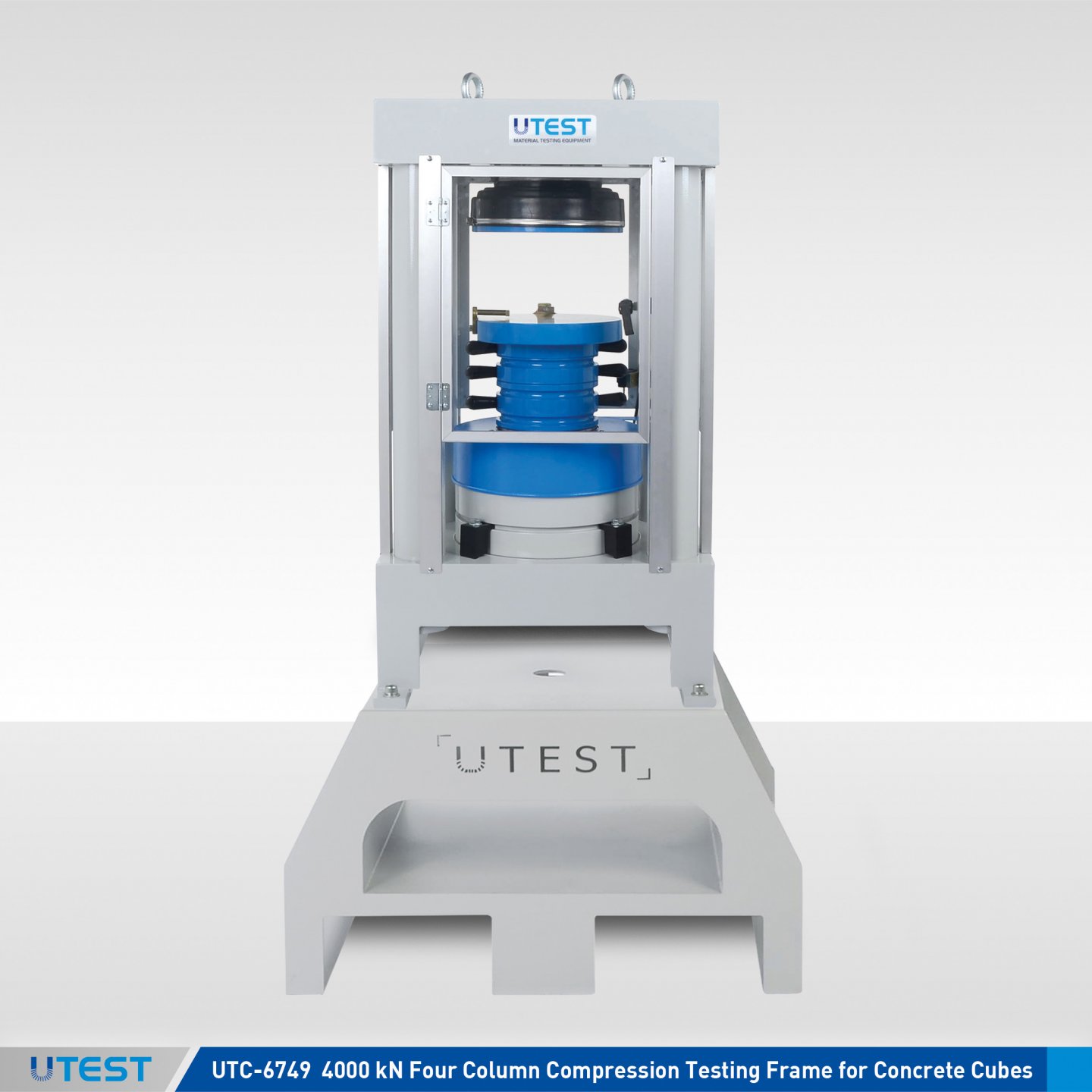

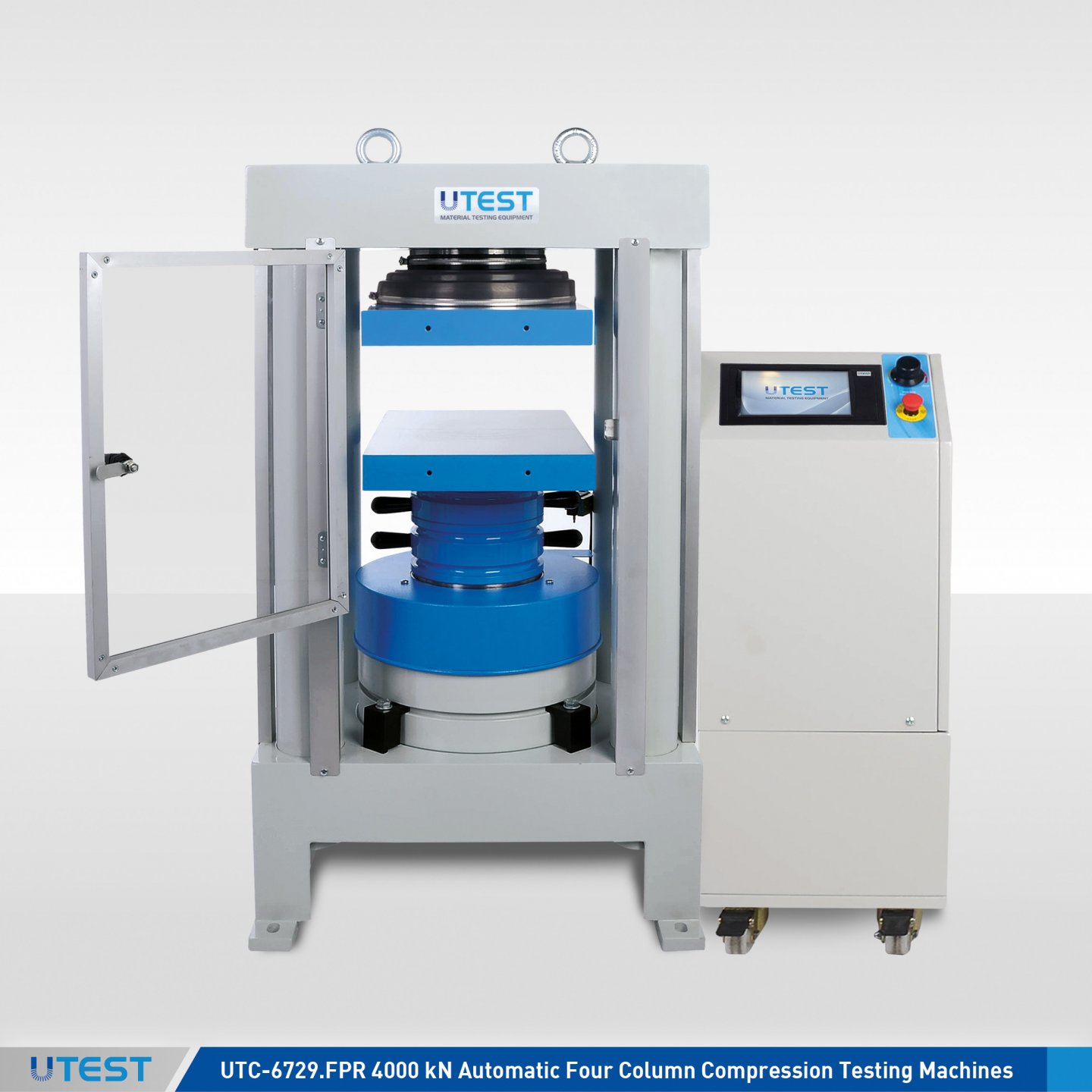

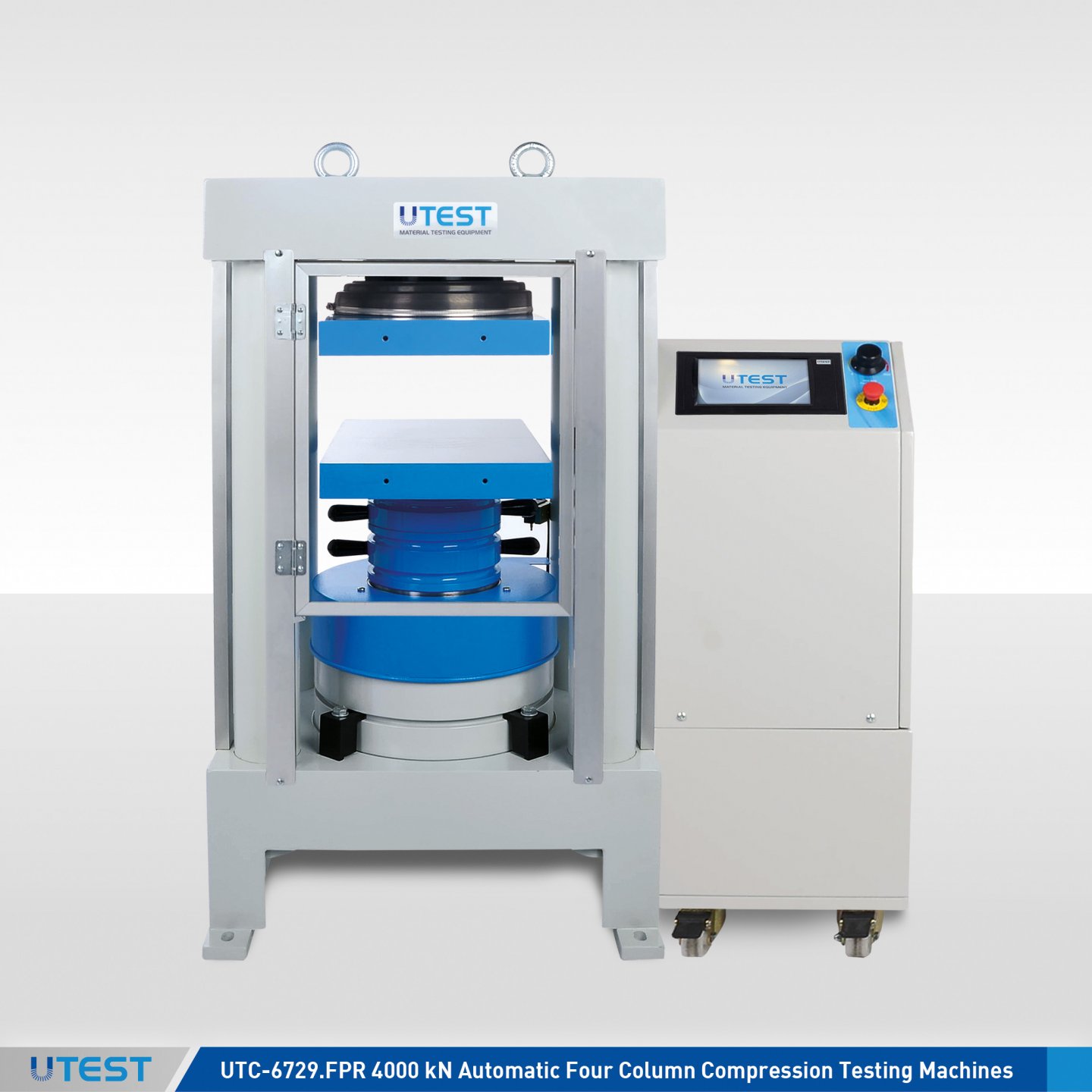

Product Photo
Capacity	2000 kN	3000 kN	4000 kN	5000 kN
Frame Type	Four Column	Four Column	Four Column	Four Column
Lower Platens Dimensions (D)	310x510x50 mm	310x510x50 mm	310x510x50 mm	310x510x50 mm
Upper Platens With Ball Seating Assembly Dimensions (C)	310x510x50 mm	310x510x50 mm	310x510x50 mm	310x510x50 mm
Surface Hardness of Loading Platens	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC
Flatness Tolerance	0,03 mm	0,03 mm	0,03 mm	0,03 mm
Piston Diameter	300 mm	350 mm	400 mm	450 mm
Piston Stroke	50 mm	50 mm	100 mm	100 mm
Maximum Vertical Clearance Between Platens (E)	330 mm	330 mm	520 mm	520 mm
Sizes of Specimens For Cylinders (up to)	Ø160x320 mm	Ø150x300 mm	Ø150x300 mm	Ø150x300 mm
Sizes of Specimens For Cubes (up to)	300 mm (**)	300 mm (**)	300 mm (**)	300 mm (**)
Sizes of Specimens For Masonary Units (up to)	300x500 mm (**)	300x500 mm (**)	300x500 mm (**)	300x500 mm (**)
Power	750 W	750 W	750 W	750 W
Oil Capacity	20 L	20 L	20 L	20 L
Maximum Working Pressure	410 Bar	410 Bar	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxG)**	960x560x1100 mm	1050x690x1150 mm	1145x825x1540 mm	1235x640x1555 mm
Weight	1110 kg	1625 kg	2640 kg	3345 kg
Pedestal (Optional)	UTC-4684	UTC-4684	UTC-4686	UTC-4686
*(d) depth () Limited by capacity of the frame *The machines for masonary units,cubes and cylindrs are supplied complete with;* *• 100 mm, 50 mm, 2x30 mm height x Ø205 mm distance pieces (two pcs. each for UTC-6749 and UTC-6759)* *• UTC-4626E - Fixture for centering specimens, compatible with 310x510x50 mm lower loading platen, for 100 mm and 150mm cubes and Ø100 mm and Ø150 mm cylinders (for UTC-6729 and UTC-6739)* *• UTC-4627E - Fixture for centering specimens, compatible with 310x510x50 mm lower loading platen, for 150mm and 250mm cubes, Ø150mm and Ø250mm cylinders for UTC-6749 and UTC-6759* • Scissor Jack for Loading Platens/Bearing Blocks (UTC-4629) • Removable transparent front and rear safety doors *Appropriate distance piece/s for the cylinder and cube specimens with the height of lower than 150 mm should be ordered separately for UTC-6729.FPR and UTC-6739.FPR*

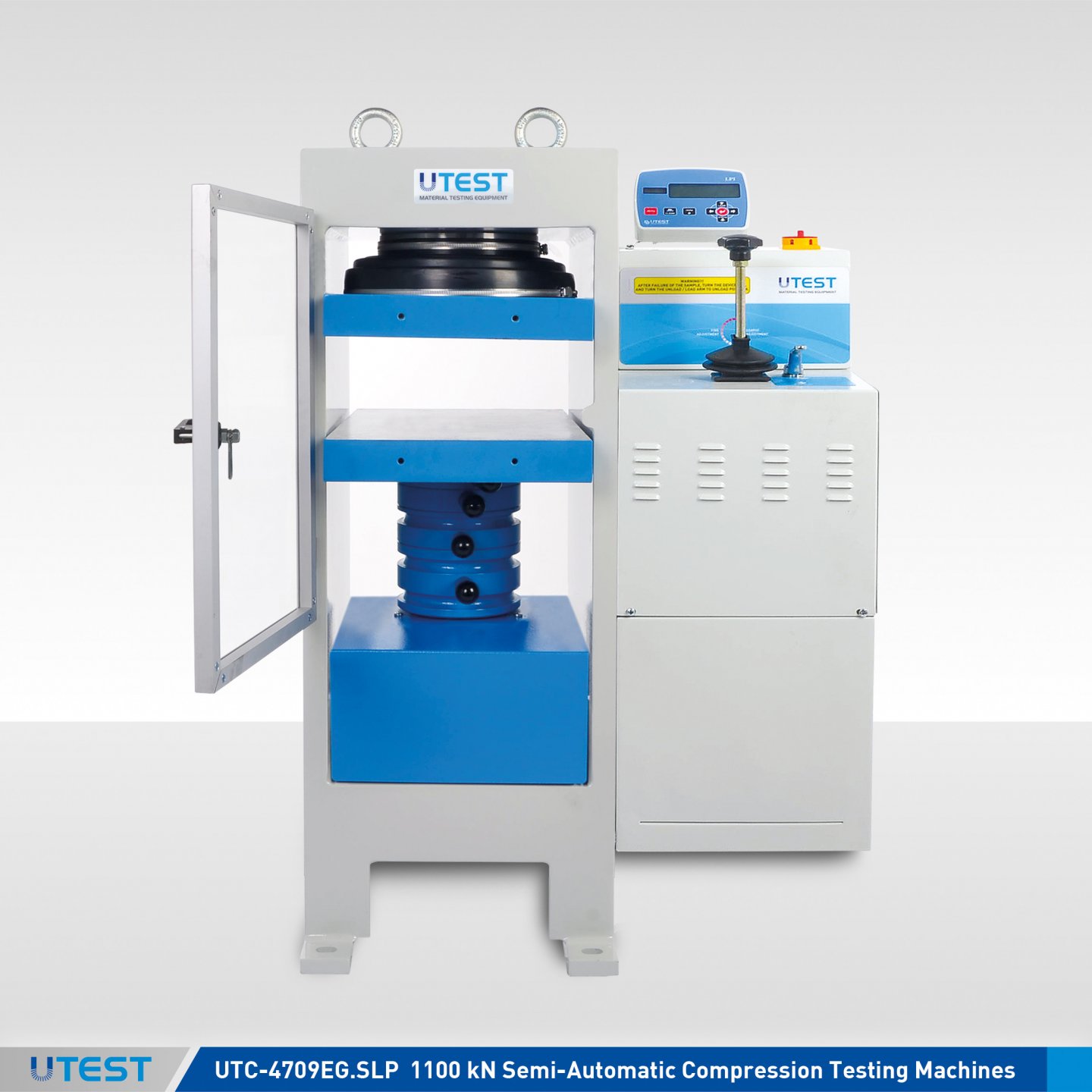

8. EN 772-1 and General Purpose Automatic Compression Testing Machines for Masonary Units/Blocks, Cylinders And Cubes

Request Catalog

Product Code

UTC-4609EG.FPR	600 kN EN 772-1 and General Purpose Automatic Compression Testing Machines for Masonary Units/Blocks, Cylinders And Cubes

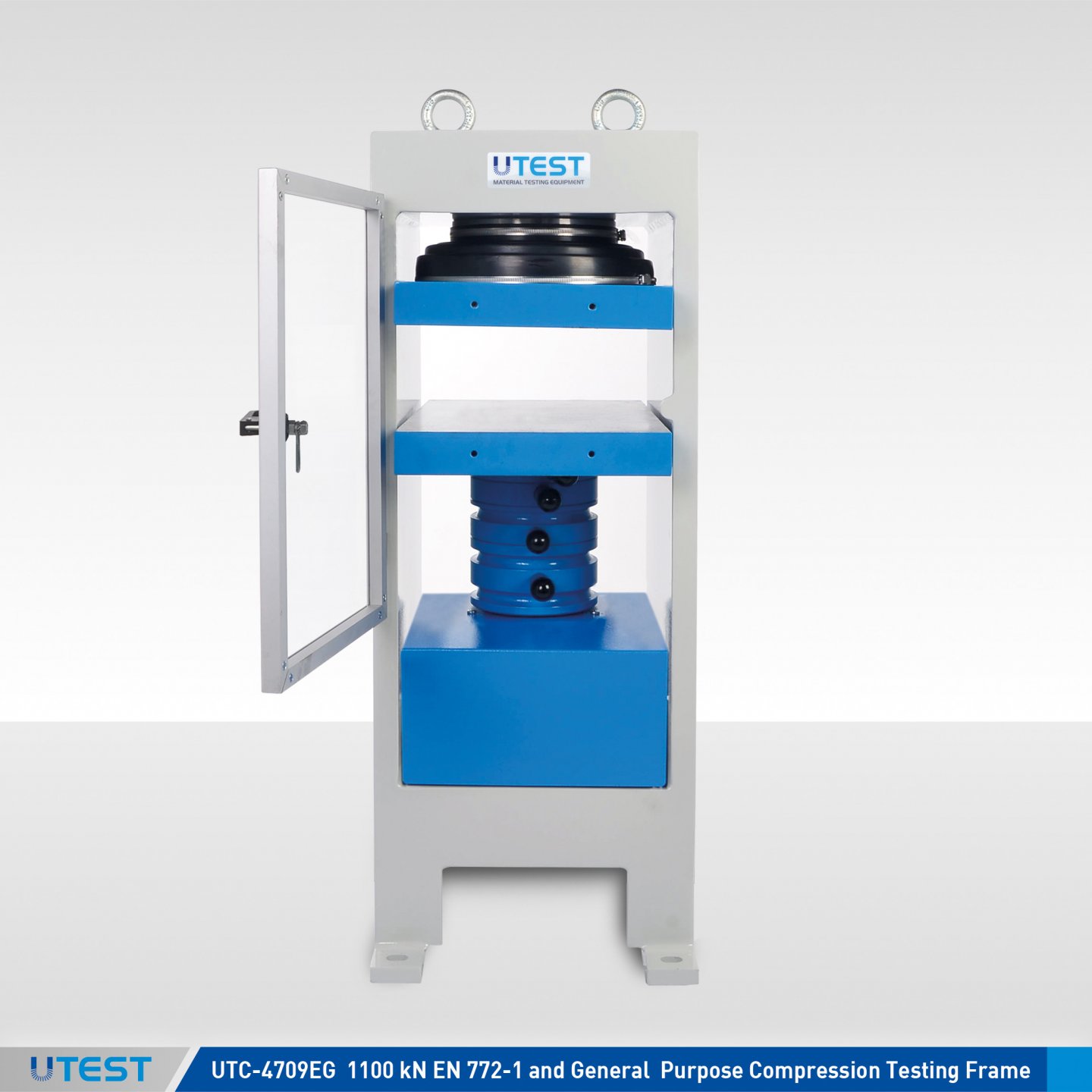

UTC-4709EG.FPR	1100 kN EN 772-1 and General Purpose Automatic Compression Testing Machines for Masonary Units/Blocks, Cylinders And Cubes
UTC-4719EG.FPR	1500 kN EN 772-1 and General Purpose Automatic Compression Testing Machines for Masonary Units/Blocks, Cylinders And Cubes
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4680A	Pedestal for 600kN, 1100 kN and 1500 kN Compression Testing Frames

Models for 220-240V 50-60 Hz, 1ph

UTC-4609EG.FPR

UTC-4709EG.FPR

UTC-4709E.FPR, UTC-4719E.FPR and UTC-4719.FPR Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units/ blocks, cylinders and cubes.. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

The Machines consist of a welded steel frame ( see table), hydraulic power pack with UTouch Control Unit.

UTC-4680A Pedestal that is made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

Main Features

Pace Rate control between 1 kN to 25 kN
Accuracy Class 1 acc. to EN 12390-4 and ISO 7500-1 starting from with the 5% of the machine capacity (Special calibration option starting from 1% of the full range with UTC-0210)
Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

UTouch Control Unit for Automatic Compression / Flexure Testing Machines

UTouch Control Unit UTC-4930.FPR is designed to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.

All the operations of UTouch are controlled from the front panel touch screen display.

UTouch Control Unit has easy to use menu options. It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters. Digital graphic display is able to draw real-time "Load vs. Time", or "Stress vs. Time" graphics

PLEASE see the pages of “UTouch Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

EN 772-1 and GENERAL PURPOSE AUTOMATIC COMPRESSION TESTING MACHINES FOR MASONARY UNITS/BLOCKS, CYLINDERS AND CUBES
Models	UTC-4609EG.FPR	UTC-4709EG.FPR	UTC-4719EG.FPR
Product Photo
Capacity	600 kN	1100 kN	1500 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	310x510x50 mm	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	310x510x50 mm	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm	0,05 mm
Piston Diameter	230 mm	230 mm	230 mm
Piston Stroke	50 mm	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	330 mm	330 mm	330 mm
Horizontal Clearance (B)	320 mm	320 mm	320 mm
For Masonary Units/Blocks Specimens Sizes (up to)	up to 300x500 mm masonary units/blocks	up to 300x500 mm masonary units/blocks	up to 300x500 mm masonary units/blocks
For Cylinder Specimens Sizes (up to)	up to Ø160x320 mm cylinders	up to Ø160x320 mm cylinders	up to Ø160x320 mm cylinders
For Cubes Specimens Sizes (up to)	200 mm	200 mm	200 mm
Power	550 W	550 W	550 W
Oil Capacity	20 L	20 L	20 L
Maximum Working Pressure	150 Bar	280 Bar	280 Bar
*Dimensions (wxlxh) (AxdxF)**	750x550x750 mm	750x550x750 mm	750x550x750 mm
Weight	775 kg	775 kg	775 kg
Pedestal (Optional)	UTC-4680A	UTC-4680A	UTC-4680A
*(d) depth () Limited by capacity of the frame *The machines are supplied complete with;* *• 100 mm, 50 mm, 30mm height x Ø205 mm distance pieces* *• Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629)* *• Removable transparent front and rear safety doors*

9. GENERAL Purpose Automatic Compression Testing Machines for Cubes and Cylinders

Request Catalog

Product Code

UTC-4713G.FPR	1500 kN General Purpose Automatic Compression Testing Machine with Ø216 mm Loading Platens for Cubes and Cylinders
UTC-4723G.FPR	2000 kN General Purpose Automatic Compression Testing Machine with Ø216 mm Loading Platens for Cubes and Cylinders
UTC-4733G.FPR	3000 kN General Purpose Automatic Compression Testing Machine with Ø216 mm Loading Platens for Cubes and Cylinders
UTC-4727G.FPR	2000 kN General Purpose Automatic Compression Testing Machine with Ø300 mm Loading Platens for Cubes and Cylinders
UTC-4737G.FPR	3000 kN General Purpose Automatic Compression Testing Machine with Ø300 mm Loading Platens for Cubes and Cylinders
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Models for 220-240V

50-60 Hz, 1ph.

UTC-4713G.FPR

UTC-4723G.FPR

UTC-4733G.FPR

UTC-4727G.FPR

UTC-4737G.FPR

Models for 110-120V

60 Hz, 1ph.

UTC-4713G.FPR-N

UTC-4723G.FPR-N

UTC-4733G.FPR-N

UTC-4727G.FPR-N

UTC-4737G.FPR-N

UTC-4713G.FPR, UTC-4723G.FPR, UTC-4733G.FPR, UTC-4727G.FPR and UTC-4737G.FPR model Automatic Compressıon Testıng Machines are manufactured for compression testing of cubes and cylinders by taking into account user requests for general purposes. UTC-4727.FPR ve UTC-4737.FPR model products are designed for compressive-strength testing of larger size specimens. These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

UTC-4680A and UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

The Machines consist of a welded steel frame ( see table), hydraulic power pack with U-Touch PRO Control Unit.

Main Features

Pace Rate control between 1 kN to 25 kN
Load Accuracy Class 1 acc. to EN 12390-4 and acc. to E74 starting from with the 5% of the machine capacity (Special calibration option starting from 1% of the full range with UTC-0210)
Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

GENERAL PURPOSE AUTOMATIC COMPRESSION TESTING MACHINES WITH Ø216mm FOR CUBES AND CYLINDERS
Models	UTC-4713G.FPR	UTC-4723G.FPR	UTC-4733G.FPR
Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 216 mm	Ø 216 mm	Ø 216 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 216 mm	Ø 216 mm	Ø 216 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm	0,05 mm
Piston Diameter	230 mm	250 mm	300 mm
Piston Stroke	50 mm	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	380 mm	380 mm	380 mm
Horizontal Clearance (B)	320 mm	360 mm	415 mm
For Cylinder Specimens Sizes (up to)	Ø160x320 mm	Ø160x320 mm	Ø160x320 mm
For Cubes Specimens Sizes (up to)	150 mm	200 mm (**)	200 mm (**)
Power	550 W	550 W	550 W
Oil Capacity	20 L	20 L	20 L
Maximum Working Pressure	370 Bar	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	750x451x1104 mm	790x453x1144 mm	845x497x1204 mm
Weight	625 kg	715 kg	935 kg
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The frames are supplied complete with;* *• 100 mm, 50 mm and 2 pcs. 30 mm x Ø165 mm distance pieces* *• Removable transparent front and rear safety doors*

GENERAL PURPOSE AUTOMATIC COMPRESSION TESTING MACHINES WITH Ø300 mm FOR CUBES AND CYLINDERS

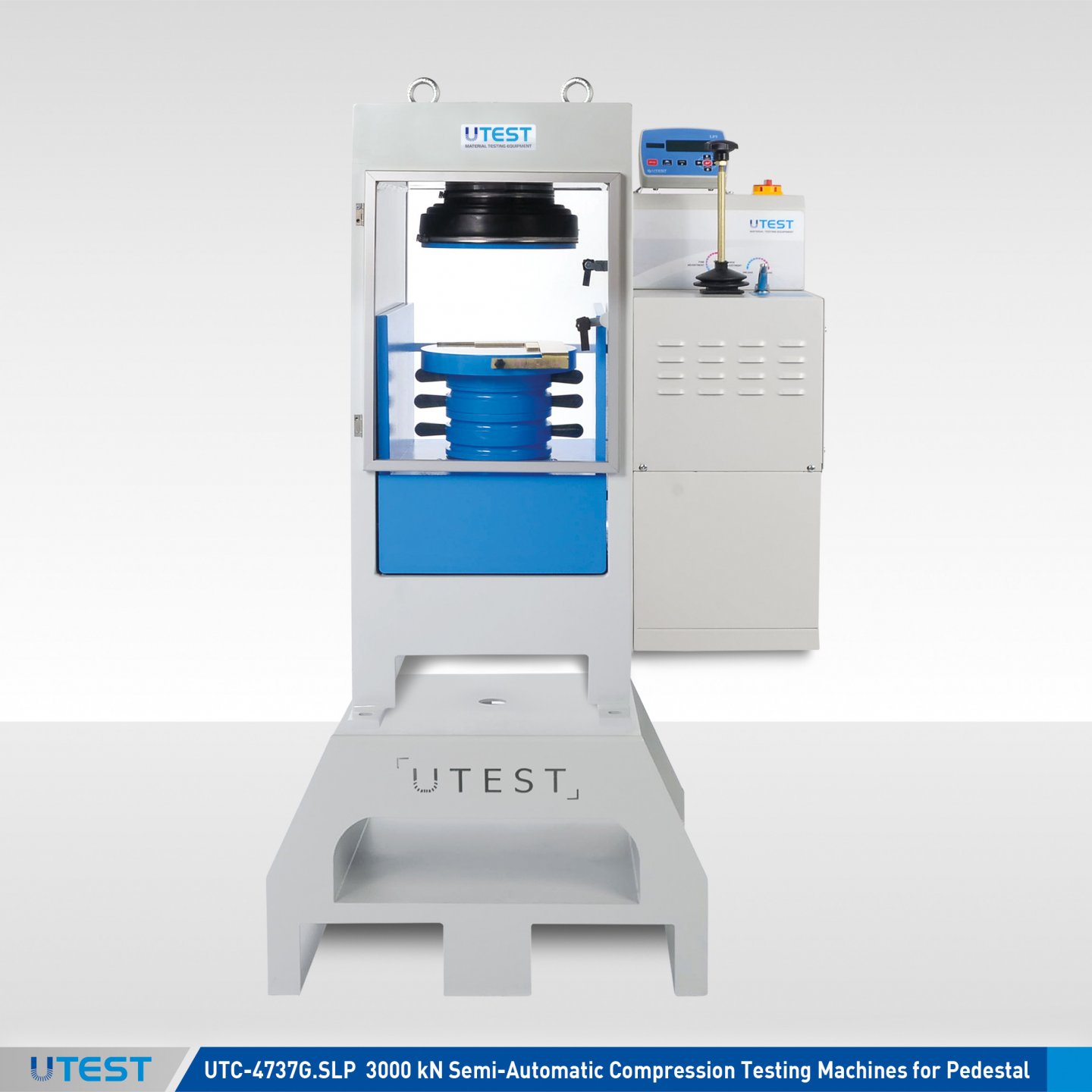

Models	UTC-4727G.FPR	UTC-4737G.FPR
Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø300 mm	Ø300 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø300 mm	Ø300 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	350 mm	350 mm
Horizontal Clearance (B)	360 mm	415 mm
For Cylinder Specimens Sizes (up to)	Ø160x320 mm	Ø160x320 mm
For Cubes Specimens Sizes (up to)	200 mm (**)	200 mm (**)
Power	550 W	550 W
Oil Capacity	20 L	20 L
Maximum Working Pressure	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	790x453x114 mm	845x497x1204 mm
Weight	750 kg	975 kg
Pedestal (Optional)	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The machines are supplied complete with;* *• 100 mm, 50 mm and 30 mm x Ø205 mm distance pieces* *• Removable transparent front and rear safety doors*

10. GENERAL Purpose and EN 772-1 Automatic Compressıon Testing Machines for Masonary Units/Blocks, Cubes and Cylinders

Request Catalog

Product Code

UTC-4714GE.FPR	1500 kN General Purpose and EN 772-1 Automatic Compression Testing Machine for Masonary Units/Blocks, Cubes and Cylinders
UTC-4729GE.FPR	2000 kN General Purpose and EN 772-1 Automatic Compression Testing Machine for Masonary Units/Blocks, Cubes and Cylinders
UTC-4739GE.FPR	3000 kN General Purpose and EN 772-1 Automatic Compression Testing Machine for Masonary Units/Blocks, Cubes and Cylinders
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Models for 220-240V 50-60 Hz, 1ph

UTC-

4714GE.FPR

UTC-

4729GE.FPR

UTC-

4739GE.FPR

Models for 110V 60 Hz

UTC-

4714GE.FPR-N

UTC-

4729GE.FPR-N

UTC-

4739GE.FPR-N

UTC-4714GE.FPR, UTC-4729GE.FPR and UTC-4739GE.FPR model Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units/blocks, cubes and cylinders by taking into account user requests for general purposes (see below table).These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

Setting test parameters, including pace rate (only required when the specimen type is changed).
Pressing the START button on the control unit.
The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
Automatically saves the test parameters and test results.

The Machines consist of a welded steel frame ( see table), hydraulic power pack with U-Touch PRO Control Unit.

UTC-4680A and UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

Main Features

Pace Rate control between 1 kN to 25 kN
Load Accuracy Class 1 acc. to EN 12390-4 and acc. to E74 starting from with the 5% of the machine capacity (Special calibration option starting from 1% of the full range with UTC-0210)
Tests automatically with closed loop control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
Load measurment with a pressure transducer
Hydraulic pump with dual stage for rapid approach
Welded steel walled frame with a single acting piston
Piston return at the end of test automatically

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Emergency stop button
Removable transparent front and rear safety doors
Software controlled maximum load value
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

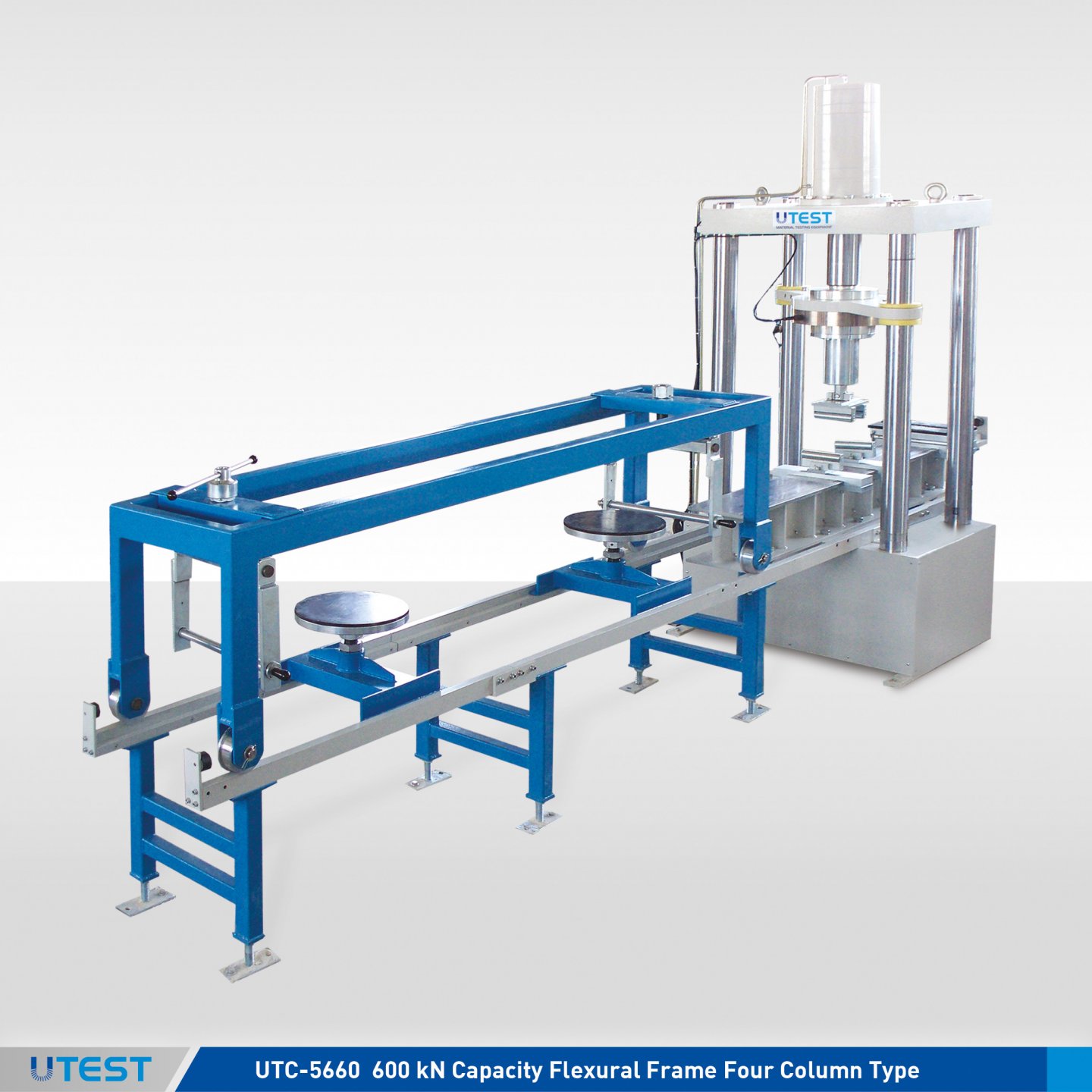

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

GENERAL PURPOSE AUTOMATIC COMPRESSION TESTING MACHINE FOR BLOCKS, CUBES AND CYLINDERS
Models	UTC-4714GE.FPR	UTC-4729GE.FPR	UTC-4739GE.FPR
Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	220x410x50 mm	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	220x410x50 mm	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm	0,05 mm
Piston Diameter	230 mm	250 mm	300 mm
Piston Stroke	50 mm	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm	330 mm	330 mm
Horizontal Clearance (B)	320 mm	360 mm	415 mm
For Masonary Units/Blocks Specimens Sizes (up to)	up to 200x400 mm masonary units/blocks	up to 300x5000 mm masonary units/blocks	up to 300x5000 mm masonary units/blocks
For Cylinder Specimens Sizes (up to)	up to Ø160x320 mm cylinders	up to Ø160x320 mm cylinders	up to Ø160x320 mm cylinders
For Cubes Specimens Sizes (up to)	200 mm	200 mm	200 mm
Power	550 W	550 W	550 W
Oil Capacity	20 L	20 L	20 L
Maximum Working Pressure	370 Bar	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	750x451x1104 mm	790x600x1144 mm	45x600x1204 mm
Weight	705 kg	845 kg	1085 kg
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The frames are supplied complete with;* *• 100 mm, 50 mm30mm and 15mm height x Ø165mm distance pieces for UTC-4714GE.FPR* *• 100 mm, 50 mm30mm height x Ø205mm distance pieces for UTC-429GE.FPR and UTC-439GE.FPR)* **• Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629) • Removable transparent front and rear safety doors**

11. U-Touch PRO Control Unit for Automatic Concrete&Cement Compression/Flexure Testing Machines

Request Catalog

Product Code

UTC-4930.FPR

U-Touch PRO Control Unit for Automatic Concrete&Cement Compression/Flexure Testing Machines 110-220V 50-60 Hz. 1 ph

UTC-4930.FPR U-Touch PRO Control Unit, for Automatic Concrete&Cement Compression/Flexure Testing Machines designed to control the automatic compression/flexure testing machines for compression, flexure, splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks.

All the operations of UTC-4930.FPR Control Unit are controlled from the front panel color resistive touch screen display and function keys. The unit can be configured as using for two frames or one frame with three dispalacement transducers.

The Control Unit has easy to use menu options. It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters. Its specimen setting sub-menu lists different specimen types including but not limited to cube, cylinder, block, beam, beam double upper bearers, cube splitting tensile, cylinder splitting tensile, paving block splitting tensile and kerb flexure. Digital graphic display of the unit is able to draw real-time "Load vs. Time" or "Stress vs. Time" graphics.

UTC-4930.FPR Unit offers many addition unique features.Thanks to its built-in internet protocol suite, every aspect of the device can be controlled remotely from anywhere around the world.

Following tests can be perform by on UTC-4930.FPR control unit ( also with appropriate hydraulic power pack, testing frame and accessories).

Compressive Strength of Concrete Cylinders / Cubes
Flexural Strength of Concrete Beams
Flexural Strength of Concrete Kerbs
Tensile Splitting Strength of Concrete Cylinders / Cubes
Tensile Splitting Strength of Concrete Paving Blocks
Compressive Strength of Masonry Units/Blocks
Flexural Strength of Concrete Flagstones/Slabs
Compressive Strength of Hydraulic-Cement Mortars
Flexural Strength of Hydraulic-Cement Mortars

Main Features:

Two analog channels which provides load control of two load-cells or/and pressure transducers
Also two additional channel inputs for displacement measurement (Activated only by the Utest technical service)

Multi-Point calibration function for the channels

Programmable digital gain adjustment for load voltage and current transmitters

Provides load control of two seperate testing frames with closed-loop P.I.D control with automatic test procedure by using selector valve and selectimg channel

Real time numeric display of load and load pressure with test graph.

3 different unit system selection; kN, kgf and lbf
Backup and recall option for device settings
Easy recall of embedded test parameters for different types of tests and sample sizes
Real time and adjustable date/ time
Multi-language support (English, French, Spanish, Turkish, Russian…)
Ethernet port for connecting to a PC or network and for instantaneous transfer of test data to PC

USB port support for transfer of test data to a flash drive
Optionally supplied-integrated thermal printer (If requested, must be specified in the order)

PLEASE see the pages of General Properties of U-Touch PRO Control Units” for details of the properties of software and hardware of the Unit.

12. UTEST SOFTWARE for Automatic Concrete&Cement Compression/Flexure Testing Machines

Request Catalog

Product Code

USOFT-4930.FPR

UTEST Software for Automatic Concrete&Cement Compression/Flexure Testing Machines

Utest USOFT-4930.FPR Software has been designed for data acquisition, processing controlling, presentation and reporting compression, flexure, splitting tensile strength tests of construction materials such as concrete, cement, masonry units/blocks with appropriate Automatic Concrete&Cement Compression/Flexure Testing Machines and also with a computer.

This software provides data acquisition and management for compression, flexure and splitting tensile tests of construction materials such as concrete, cement, bricks.

The advanced functions for data base management provide an easy navigation of all saved data.

The test results certificate includes all descriptive information.

Therefore, test parameters can be set and details about the test carried out such as client details, test type, specimen type, user info and other information required can be entered and printed out as well as test report and graph.

Following tests can be done with the USOFT-4930.FPR Software;

Compressive Strength of Concrete Cylinders / Cubes
Flexural Strength of Concrete Beams
Flexural Strength of Concrete Kerbs
Tensile Splitting Strength of Concrete Cylinders / Cubes
Tensile Splitting Strength of Concrete Paving Blocks
Compressive Strength of Masonry Units/Blocks
Flexural Strength of Concrete Flagstones/Slabs
Compressive Strength of Hydraulic-Cement Mortars
Flexural Strength of Hydraulic-Cement Mortars

Detailed information of the following properties of USOFT-4930.FPR software, please look at the “General Properties of Utest USOFT Series Softwares” pages.

Multi-Language Support and Customizable User Interface
User Identification and Authorization
Unlimited Test Result Storage Capacity in One Test File
Exporting Test Results to Database
Advanced Test Graphical Interface
Option to Store and Recall Test Information
Modification of Test Machine Parameters Using the Software
Exporting Reports and Graphs
Flexible Report and Graph Formats
Help and User Manual Display

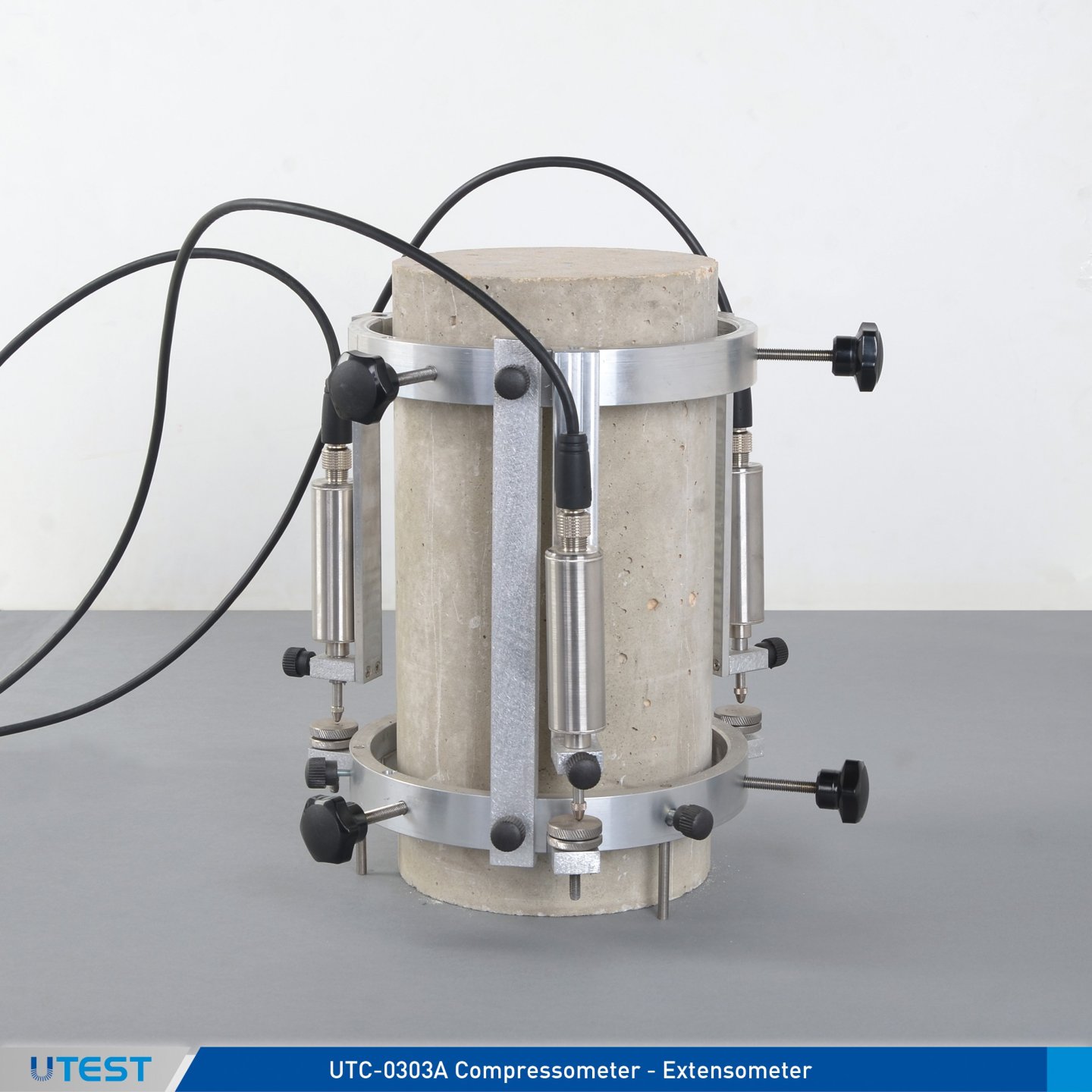

13. Compressometer-Extensometer/Modulus of Elasticity

Request Catalog

Product Code

UTC-0300A.YG	Compressometer for Ø101x203 mm (Ø4"x8") cylinders with 1pcs. for vertical 12,7 x 0.001 mm digital dial gauges, ASTM C469)
UTC-0301A.YG	Compressometer for Ø152x305 mm (Ø6"x12") cylinders with 1pcs. for vertical l 12,7 x 0.001mm digital dial gauges, ASTM C469)
UTC-0303A.YGP	Compressometer-Extensometer for Ø101x203 mm (Ø4"x8") cylinders with 1pcs. for vertical and 1pcs. horizontal 12,7 x 0.001mm digital dial gauges, ASTM C469)
UTC-0304A.YGP	Compressometer-Extensometer for Ø152x305 mm (Ø6"x12") cylinders with 1pcs. for vertical and 1pcs. horizontal 12,7 x 0.001mm digital dial gauges, ASTM C469)
UTC-0313A.YGP	Compressometer-Extensometer for Ø101x203 mm (Ø4"x8") cylinders with 1pcs. for vertical and 1pcs. horizontal 10mm high accurate strain gauge based displacement transducers, ASTM C469
UTC-0314A.YGP	Compressometer-Extensometer for Ø152x305 mm (Ø6"x12") cylinders with 1pcs. for vertical and 1pcs. horizontal 10mm high accurate strain gauge based displacement transducers, ASTM C469
UTC-0320E.S2	Compressometer for Ø100x200mm and Ø110x220mm cylinders with 2 pcs. 10mm high accurate strain gauge based displacement transducers, for two vertical displacement measurements. EN, ISO
UTC-0321E.S2	Compressometer for Ø150x300mm and Ø160x320mm cylinders with 2 pcs. 10mm high accurate strain gauge based displacement transducers, for two vertical displacement measurements. EN, ISO
UTC-0323E.S3	Compressometerfor Ø100x200mm and Ø110x220mm cylinders with 3 pcs. 10 mm high accurate strain gauge based displacement transducers, for three vertical displacement measurements. EN, ISO
UTC-0324E.S3	Compressometer for Ø150x300mm and Ø160x320mm cylinders with 3pcs. 10 mm high accurate strain gauge based displacement transducers, for three vertical displacement measurements. EN, ISO
UTC-0327.S2P	Compressometer-Extensometer for Ø100x200mm and Ø110x220mm cylinders with 3 pcs. 10mm high accurate strain gauge based displacement transducers (2pcs. vertical/EN, ISO and 1pcs. diametrical. ASTM)
UTC-0328.S2P	Compressometer-Extensometer for Ø150x300mm and Ø160x320mm cylinders with 3 pcs. 10 mm high accurate strain gauge based displacement transducers (2pcs. vertical/EN, ISO and 1pcs. diametrical/ASTM)
UTGM-0152	Digital Dial Gauge, 12,7 x 0.001 mm, LCD Display
UTGM-0072	High Accurate Strain Gauge Based Displacement Transducer, 10 mm

Standards

ASTM C469; EN 12390-13; ISO 1920-10

UTC-0300A.YG and UTC-0301A.YG model Compressometers are used for determination of Young’s Modulus, UTC-0303A.YGP, UTC-0304A.YGP, UTC-0313A.YGP and UTC-0314A.YGP model Compressometers-Extensometers are used for determination of Young’s Modulus and Poisson’s Ratio of molded concrete cylinders or diamond-drilled concrete cores when under longitudinal compressive stress acc. to ASTM C469.

UTC-0320E.S2, UTC-0321E.S2, UTC-0323E.S3 and UTC-0324E.S3 model concrete compressometers are used determination of secant modulus of elasticity or for determination of static modulus of elasticity in compression of hardened concrete on test specimens which may be produced or taken from a structure acc. to EN 12390-13 or ISO 1920-10

UTC-0327.S2P and UTC-0328.S2P model concrete compressometers-extensometer are used determination of secant modulus of elasticity acc.to EN 12390-13 elasticity or determination of static modulus of elasticity acc.to ISO 1920-10 and also Poisson’s ratio acc.to ASTM C469

When it is mandatory to carry out loading / unloading operations consecutively for the tests of elasticity in compression with the compressometers, it is recommended to use the equipment specified in the table below.

THE RECOMMENDED EQUIPMENT FOR TESTS OF ELASTICITY UNDER COMPRESSION WITH THE UTEST COMPRESSOMETERS
Test	Compression Testing Machines	Compressometers	Additional Equipment
Young Modulus and Poisson’s Ratio	Utest Any ASTM Servo Controlled Compression Testing Machines below table	UTC-0313A.YGP	UTC-4906 (2 pcs.)	UTC-4904
		UTC-0314A.YGP
Secant Modulus or Static Modulus	Any Utest EN Servo Controlled Compression Testing Machines below table for secant modulus acc. to EN 12390-13 OR Any Utest Servo Controlled ASTM or EN Compression Testing Machines below table for static modulus acc. to ISO 1920-10	UTC-0320E.S2
		UTC-0321E.S2
		UTC-0323E.S3	UTC-4906 (3 pcs.)
		UTC-0324E.S3
Secant Modulus or Static Modulus and Poisson’s Ratio		UTC-0327.S2P
		UTC-0328.S2P
Young Modulus	Utest Any ASTM Servo Controlled Compression Testing Machines below table	UTC-0300A.YG	----	----
		UTC-0301A.YG
Young Modulus and Poisson’s Ratio		UTC-0303A.YGP
		UTC-0304A.YGP
( * ) Can be used for cubes, prisms and cylindrical specimens. The others are for cylindrical specimens.

Servo Controlled Compression Testing Machines with Proportional Valve		Servo Controlled Compression Testing Machines with Servo Valve
Load controlled tests		Load and displacement controlled tests
ASTM C469; ISO 1920-10	ISO 1920-10	EN 12390-13; ISO 1920-10
UTC-4712.PVD1.2 1550 kN	UTC-5717.PVD1.2 1550 kN	UTC-5717.SVD2.2 1550 kN
UTC-4722.PVD1.2 2200 kN	UTC-5727.PVD1.2 2200 kN	UTC-5727.SVD2.2 2200 kN
	UTC-6727.PVD1.2 2000 kN	UTC-6727.SVD2.2 2000 kN
	UTC-6737.PVD1.2 3000 kN	UTC-6737.SVD2.2 3000 kN
Loading/Unloading control start at 2 % of their capacity of machines		Loading/Unloading control start at 1 % of their capacity of machines

UTGM-0152 the digital dial gauge/s on the compressometer ( UTC-0300A.YG, UTC-0301A.YG, UTC-0303A.YG and UTC-0304A.YG) can be disassembled and assembled to the our models.For this reason, second or third different type compressometer that you want to purchase, only frame/s which are listed in the table below, can be ordered.

UTC-0300A.YG.F	Compressometer Frame, ASTM. For.Ø101x203mm (Ø4"x8") cylindes, used with one UTGM-0152
UTC-0301A.YG.F	Compressometer Frame, ASTM. For Ø152x305mm (Ø6"x12") cylinders, used with two UTGM-0152
UTC-0303A.YGP.F	Compressometer Frame, ASTM. For.Ø101x203mm (Ø4"x8") cylindes, used with two UTGM-0152
UTC-0304A.YGP.F	Compressometer Frame, ASTM. For Ø152x305mm (Ø6"x12") cylinders, used with two UTGM-0152

UTGM-0072 (High Precision Strain Gauge Based Displacement Transducer, 10 mm) on the compressometer ( UTC-0320E.S2, UTC-0321E.S2, UTC-0323E.S3, UTC-0324E.S3, UTC-0327.S2P and UTC-0328.S2P) can be disassembled and assembled to the our models.For this reason second or third different type compressometer that you want to purchase, only frame/s which are listed in the table below, can be ordered.

UTC-0313A.YGP.F	Compressometer-Extensometer Frame. ASTM.For Ø101x203mm (Ø4"x8") cylindes, used with two UTGM-0072
UTC-0314A.YGP.F	Compressometer-Extensometer Frame. ASTM.For Ø152x305mm Ø6"x12") cylindes, used with two UTGM-0072
UTC-0320E.S2.F	Compressometer Frame. EN. For Ø100x200mm and Ø110x220mm cylindes, used with two UTGM-0072
UTC-0321E-S2.F	Compressometer Frame. EN. For Ø150x300mm and Ø160x320mm cylindes, used with two UTGM-0072
UTC-0323E S3.F	Compressometer Frame. EN. For Ø100x200mm and Ø110x220mm cylindes, used with three UTGM-0072
UTC-0324E.S3.F	Compressometer Frame. EN. For Ø150x300mm and Ø160x320mm cylinders, used with three UTGM-0072
UTC-0327.S2P.F	Compressometer-Ekstansometer Frame. EN.For Secant, Poisson rate ASTM. Ø100x200mm and Ø110x220 cylinders, used with three UTGM-0072
UTC-0328.S2P.F	Compressometer-Ekstansometer Frame. EN.For Secant, Poisson rate ASTM. Ø150x300mm and Ø160x320 cylinders, used with three UTGM-0072

The Compressometers/Extensometers are supplied complete with a hard cardboard box and UTC-0334 “Universal Electronic Compressometer” with plastic bag.

Product Code	Dimensions	Weight (approx.)
Compressometers (Except UTC-0334)	330x570x330 mm (packed)	2 kg
UTC-0334	380x250x120 mm (packed)	2 kg

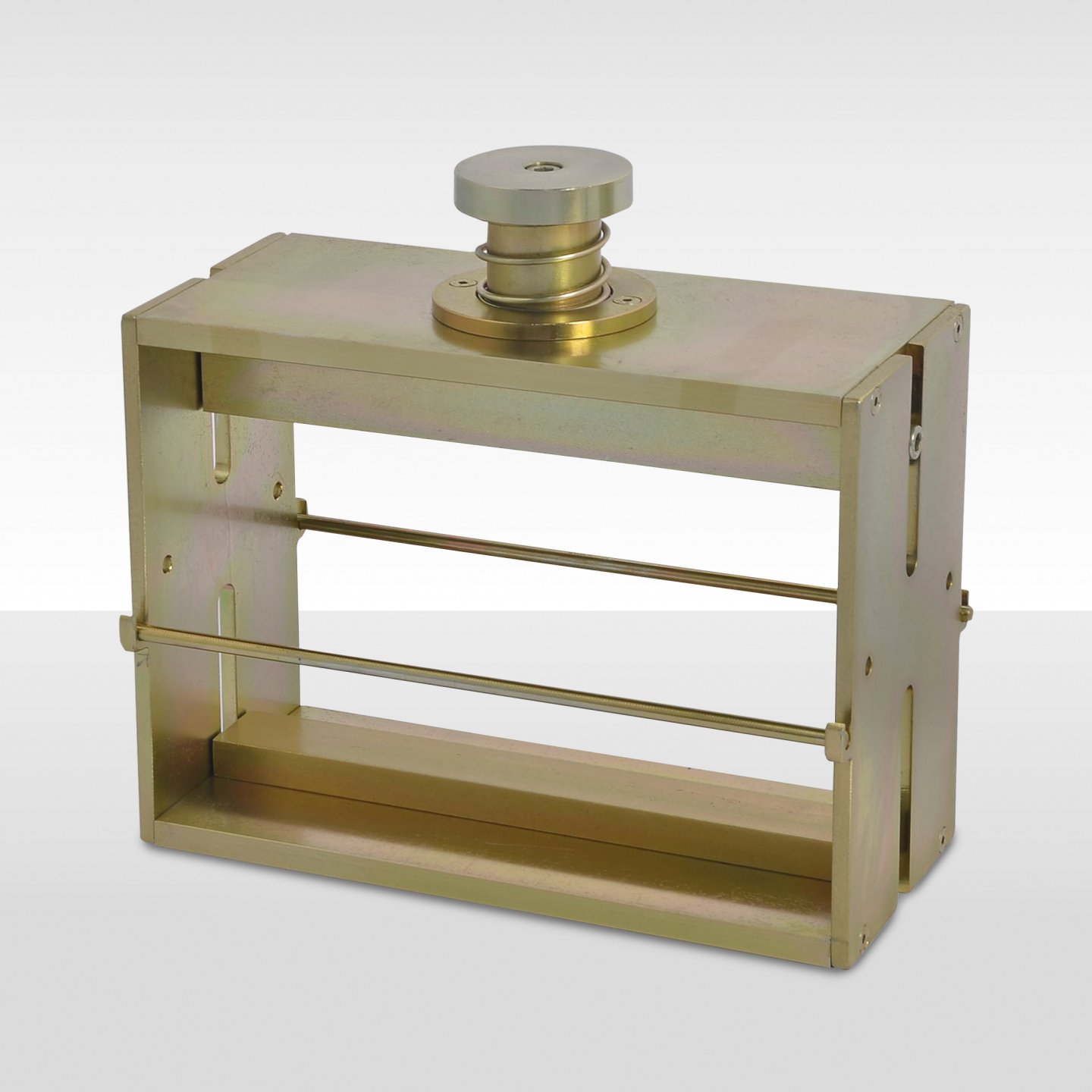

14. Splitting Tensile Test Device

Request Catalog

Product Code

UTC-0350	Splitting Tensile Test Device for Ø150x300 mm (Ø6x12") and Ø160x320 mm Cylindrical Specimens
UTC-0351	Distance Piece for UTC_0350 for Ø100x200mm (Ø4x8") and Ø110x220mm Cylindrical Specimens
UTC-0355	Splitting Tensile Test Device for 60-100 mm height x 210 mm length Concrete Block Pavers, EN
UTC-0356	Splitting Tensile Test Device for 60-150 mm height x 250 mm length Concrete Block Pavers, EN

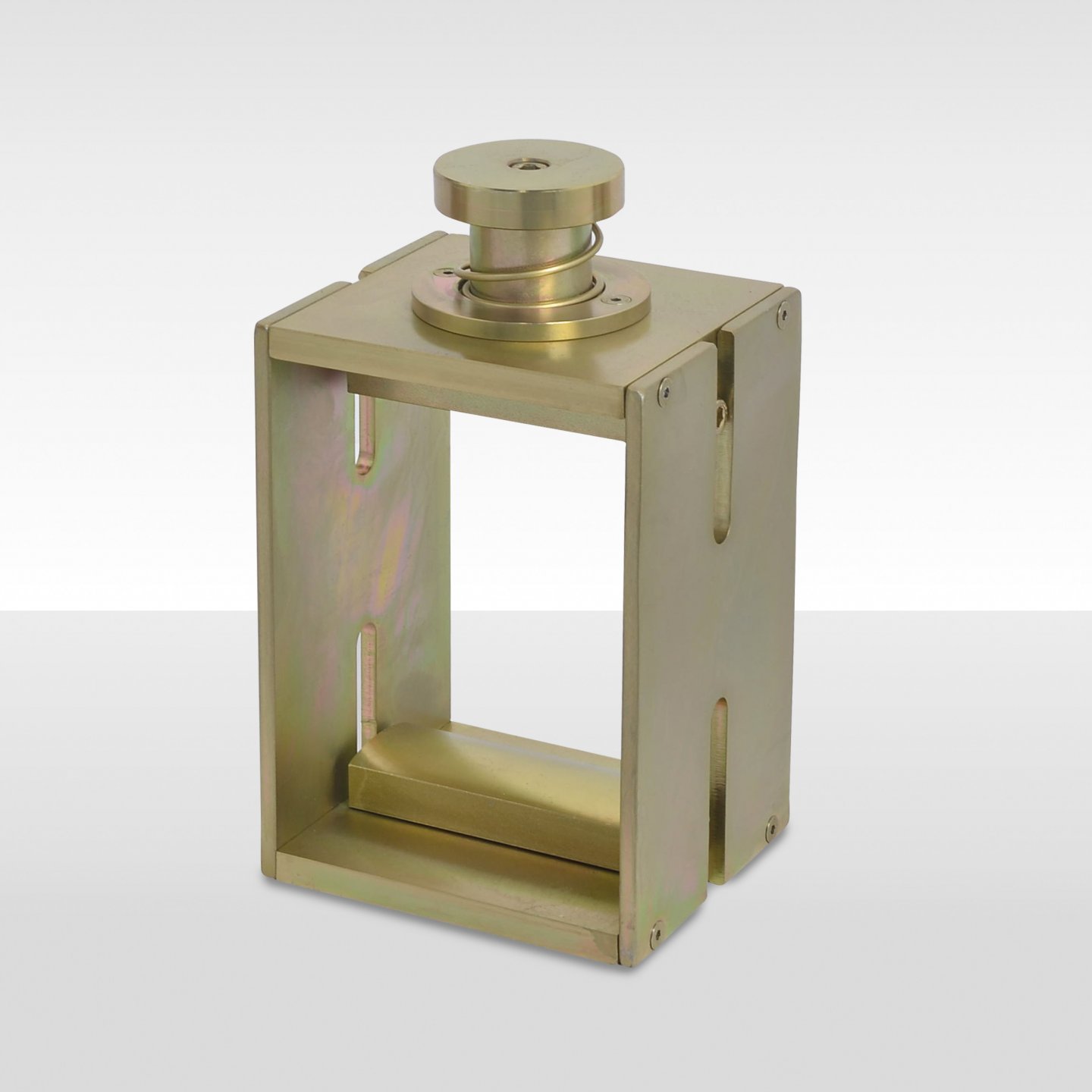

UTC-0360	Splitting Tensile Test Device for 150x150 mm Concrete Cubes, EN
UTC-0361	Distance Piece for UTC-360 for 100x100 Concrete Cubes, EN
UTC-0365	Wood Fibre Boards, 4x15x345 mm, Pack of 50
UTC-0365A	Plywood Bearing Strips. 3x25x345 mm. Pack of 50, ASTM

Standards

EN 1338, 12390-6; ASTM C496

The UTC Series Splitting Tensile Test Devices are accessories for compression machines for measuring the splitting tensile.

UTC-0351 Distance piece for Ø100x200 mm cylindrical specimens and UTC-0361 distance piece for 100 mm cube concrete specimens should be ordered seperately.

All the accessories can easily be fitted to the machine without the removal of the upper platen and spherical seat.

Product Code	UTC-0350	UTC-0355	UTC-0356	UTC-0360
Specimen	Ø150x300 mm (6”x12”) Ø160x320 mm Ø100x200 mm (4”x8”) Ø110x220 mm	Concrete Block Pavers 60-100 mm height 220 mm lenght	60-150mm height 250 mm lenght	Concrete Cubes 150 mm 100 mm (with UTC-0361)
Related Standards	EN 12390-6; ASTM C496	EN 1338	EN 1338	EN 12390-6
Dimensions	340x150x338 mm	240x160x311 mm	160x281x338 mm	180x150x310 mm
Weight (approx.)	25 kg	17,5 kg	17,5 kg	15 kg

15. Flexural Test Device For Concrete Beams

Request Catalog

Product Code

UTC-0370

Flextural Test Device for Flexural Tests

on Concrete Beams

Standards

EN 12390-5; ASTM C78, C293; AASHTO T 97

Flexural test device for center-point or two-point (third-point- ASTM) loading flexural tests on concrete beams of 100x100x400-500 mm,150x150x600-750 mm. Consist of two upper rollers and two lower rollers of 25 mm dia. and 160 mm lenght.

Capacity : 150 kN
Total height : 365 mm with 150mm beam, 290 mm with 100 mm beams.
Distance between upper roller: 100 mm or 150 mm
Distance between lower rollers: 300 mm or 450 mm
Max vertical daylight: 160 mm for 150mm beam
Min vertical daylight: 110 mm for 100mm beam
Max travel: 40 mm
Total width: 310 mm

Usable with all Utest compression testing machines by replacing UTC-0370 with lower platen.

Dimensions	600x365x310 mm
Weight (approx.)	41 kg

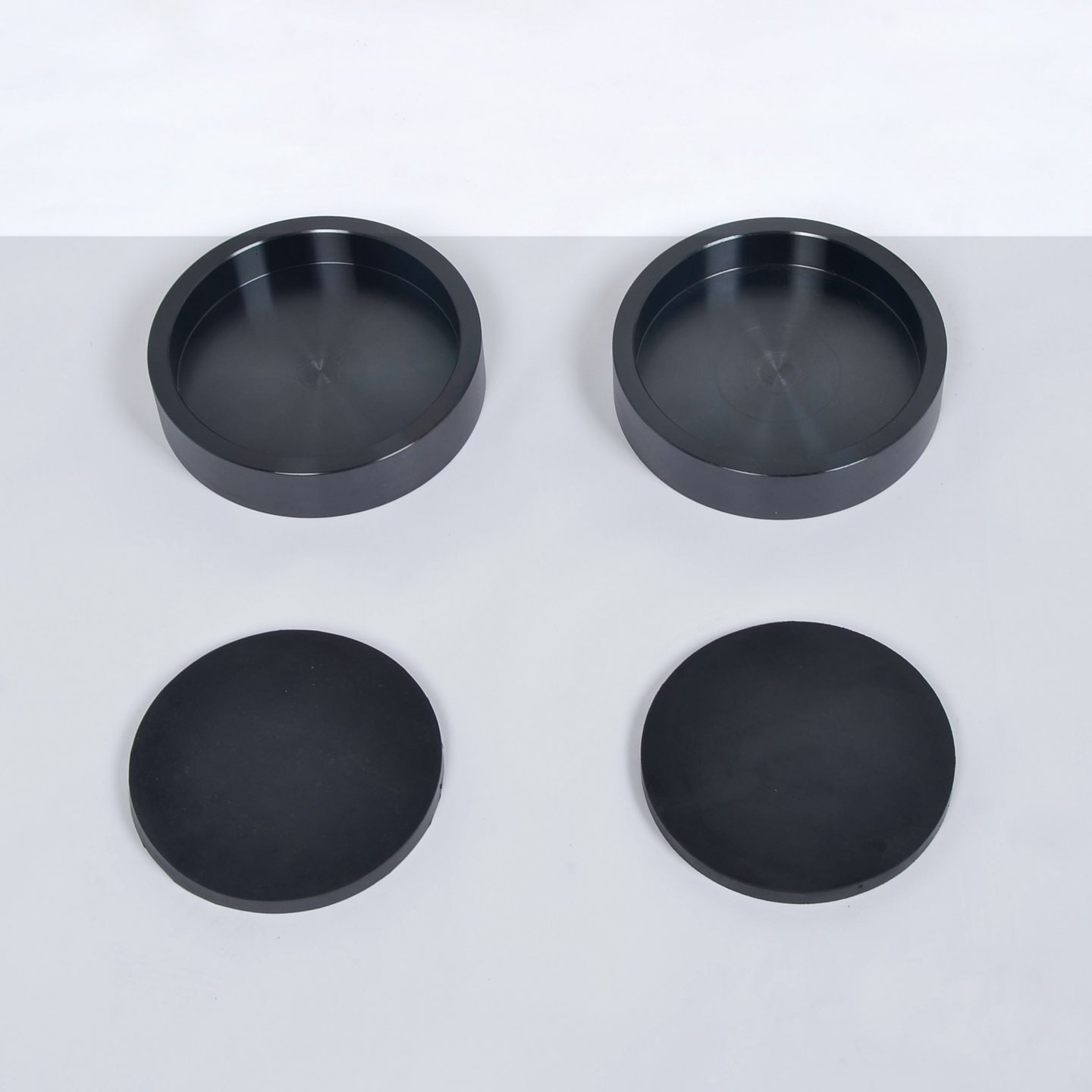

16. Capping Retainers

Request Catalog

Product Code

UTC-0372A	Capping Retainers for Ø2" Cylinders, Set of Two
UTC-0373A.SH50	Neoprene Pads for Ø2" Cylinders, 50 Shore A, Set of Two
UTC-0373A.SH60	Neoprene Pads for Ø2" Cylinders, 60 Shore A, Set of Two
UTC-0373A.SH70	Neoprene Pads for Ø2" Cylinders, 70 Shore A, Set of Two
UTC-0374A	Capping Retainers for Ø3" Cylinders, Set of Two
UTC-0375A.SH50	Neoprene Pads for Ø3" Cylinders, 50 Shore A, Set of Two
UTC-0375A.SH60	Neoprene Pads for Ø3" Cylinders, 60 Shore A, Set of Two
UTC-0375A.SH70	Neoprene Pads for Ø3" Cylinders, 70 Shore A, Set of Two
UTC-0376A	Capping Retainers for Ø4” (100 mm) Cylinders, Set of Two
UTC-0378A.SH50	Neoprene Pads for Ø4" Cylinders, 50 Shore A, Set of Two
UTC-0378A.SH60	Neopran Pads for Ø4” (100 mm) Cylinders, 60 Shore A, Set of Two
UTC-0378A.SH70	Neoprene Pads for Ø4" Cylinders, 70 Shore A, Set of Two
UTC-0380A	Capping Retainers for Ø6” (150 mm) Cylinders Set of Two
UTC-0382A.SH50	Neoprene Pads for Ø6" Cylinders, 50 Shore A, Set of Two
UTC-0382A.SH60	Neopran Pads for Ø6” (150 mm) Cylinders, 60 Shore A, Set of Two
UTC-0382A.SH70	Neoprene Pads for Ø6" Cylinders, 70 Shore A, Set of Two
UTC-0390	Capping Retainers for Ø160 mm Cylinders Set of Two
UTC-0392A.SH50	Neoprene Pads for Ø160 mm Cylinders, 50 Shore A, Set of Two
UTC-0392A.SH60	Neopran Pads for Ø160 mm Cylinders, 60 Shore A, Set of Two
UTC-0392A.SH70	Neoprene Pads for Ø160 mm Cylinders, 70 Shore A, Set of Two

Standards

ASTM C1231; AASHTO T22,T851

Unbounded Cap is usedfor determining of compressive strength of hardened concrete cylinders as alternative method to the sulphur hot capping of concrete cylinder specimens. The pads even out irregularities, distributing the test load uniformly to ensure reliable strength results. Pads are reusable for limited number of tests acc. to the standards.

17. ASTM & AASTHO - Semi-Automatic Compression Testing Machines for Cylinders

Request Catalog

Product Code

UTC-4601.SLP	600kN (135000 lbf) Semi-Automatic Compression Testing Machines with Ø105 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4701.SLP	1100kN (245000lbf) Semi-Automatic Compression Testing Machines with Ø105 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4602.SLP	600 kN (135000 lbf) Semi –Automatic Compression Testing Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4702.SLP	1100kN (245000lbf) Semi -Automatic Compression Testing Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4712.SLP	1500 kN(335000 lbf) Semi -Automatic Compressıon Testıng Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4722.SLP	2000 kN (450000 lbf) Semi-Automatic Compressıon Testıng Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4732.SLP	3000 kN (670000 lbf) Semi-Automatic Compressıon Testıng Machines with Ø165 mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Models for 220-240V 50-60 Hz, 1ph.
UTC-4601.SLP	UTC-4701.SLP	UTC-4602.SLP	UTC-4702.SLP	UTC-4712.SLP	UTC-4722.SLP	UTC-4732.SLP

Models for 110-120V 60 Hz, 1ph.
UTC-4601.SLP-N	UTC-4701.SLP-N	UTC-4602.SLP-N	UTC-4702.SLP-N	UTC-4712.SLP-N	UTC-4722.SLP-N	UTC-4732.SLP-N

Standards

ASTM C39; AASHTO T22

UTC-4601.SLP, UTC-4701.SLP, UTC-4602.SLP, UTC-4702.SLP, UTC-4712.SLP, UTC-4722.SLP and UTC-4732.SLP Semi-Automatic Compressıon Testıng Machines for compression testing of cylinders are manufactured acc. to ASTM & AASHTO standards

These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

The Machines consist of a welded frame ( see below table), hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-4920LP).

UTC-4680A or UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Class A starting from with the 5% of the machine capacity, (Special calibration option starting from 1% of the full range with UTC-0210)

1 channel with two different calibration table, test parameters and specimen information (by changing the sensor belong to other frame, the unit can be control for second test frame)

Multi-point calibration
Real time numeric display of load and load pressure
Peak hold property
Welded steel walled frame with lower and upper (shperically-seated) loading platens
Load measurment with a pressure transducer
Hydrolic pump with dual stage for rapid approach
RS232 Serial port for PC or thermal or dot matrix printer
Free of charge Utest software for compression/flexture testing machines(USOFT-4820.SLP) for compression, flexture, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonary units

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Removable transparent front and rear safety doors
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

USOFT-4820.SLP Test Software is improved for semi-automatic concrete compression and flexural testing machines with LPI Battery Operated Digital Readout Unit durring the test to collect and record data and to prepare the report containing the results obtained.Before the test, a PC which the Utest software is installed is connected to RS232 port of LPI reading unit, the data obtained in the test can be monitored and recorded in real time. The advanced functions for data base management provide an easy navigation of all saved data. Test report including the test results and user defined test information (names and the Company details, test type, specimen type, user info and other knowledge required) can be print out.

ASTM & AASHTO LOW CAPACITY SEMI-AUTOMATIC COMPRESSION TESTING MACHINES FOR CYLINDERS
Models	UTC-4601.SLP	UTC-4701.SLP	UTC-4602.SLP	UTC-4702.SLP
Product Photo
Capacity	600kN (135000 lbf)	1100 kN (245000 lbf)	600kN (135000 lbf)	1100 kN (245000 lbf)
Frame Type	Welded Steel	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø105 mm (4,13”)	Ø105 mm (4,13”)	Ø 165 mm (6,50")	Ø 165 mm (6,50")
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6,50")	Ø 165 mm (6,50")
Surface Hardness of Bearing Blocks	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC
Flatness Tolerance	0,02 mm / 150 mm (0,001”/6”)	0,02 mm / 150 mm (0,001”/6”)	0,02 mm / 15 0mm (0,001”/6”)	0,02 mm / 150 mm (0,001”/6”)
Piston Diameter	150 mm (5,9”)	190 mm (7,48”)	150 mm (5,9”)	190 mm (7,48”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm (13,4”)	380 mm (15”)	340 mm (13,4”)	380 mm (15”)
Horizontal Clearance (B)	230 mm (9,06”)	270 mm (10,6”)	230 mm (9,06”)	270 mm (10,6”)
For Cylinder Specimens Sizes	Ø100x200 mm (4”x8”)	Ø100x200 mm (4”x8”)	Ø100x200 mm (4”x8”) Ø150x300mm(6”x12”) (**)	Ø100x200 mm (4”x8”) Ø150x300mm(6”x12”) Ø160x320 mm
Power	550 W	550 W	550 W	550 W
Oil Capacity	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)
Maximum Working Pressure	340 Bar	390 Bar	340 Bar	390 Bar
*Dimensions (wxlxh) (AxdxF)**	570x454x922 mm (22,44”x17,87”x36,3”)	610x454x1042 mm (24,02”x17,87”x41,02”)	570x454x922 mm (22,44”x17,87”x36,30”)	610x454x1042 mm (24,02”x17,87”x41,02”)
Weight	350 kg (770 lbs)	448 kg (990 lbs)	361 kg (795 lbs)	459 kg (1010 lbs)
Pedestal (Optional)	UTC-4680	UTC-4680	UTC-4680	UTC-4680
*(d) depth () Limited by capacity of the frame *The Machines are supplied complete with;* *• UTC-4601.SLP and UTC-4602.SLP : Ø100mm(3,93”), 50mm(1,97”), 30mm(1,2”) height x Ø165mm(Ø 6,5”) distance pieces* *• UTC-4701.SLP, UTC-4702.SLP and UTC-4712.SLP : Ø100mm(3,93”), 50mm(1,97”), 2 pcs. 30m(1,2”)mm height x Ø165mm(Ø 6,5”) distance pieces* • Removable transparent front and rear safety doors

ASTM & AASHTO SEMI-AUTOMATIC COMPRESSION TESTING MACHINES FOR CYLINDERS
Models	UTC-4712.SLP	UTC-4722.SLP	UTC-4732.SLP
Product Photo
Capacity	1500 kN (335000 lbf)	2000 kN (450000 lbf)	3000 kN (670000 lbf)
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)
Surface Hardness of Bearing Blocks	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC
Flatness Tolerance	0,02 mm/150 mm (0,001”/6”)	0,02 mm/150 mm (0,001”/6”)	0,02 mm/150 mm (0,001”/6”)
Piston Diameter	230 mm (9,06”)	250 mm (9,84”)	300 mm (11,8”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	380 mm (15”)	380 mm (15”)	380 mm (15”)
Horizontal Clearance (B)	320 mm (12,6”)	360 mm (14,17”)	415 mm (16,34”)
For Cylinder Specimens Sizes	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320 mm	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320 mm	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320 mm
Power	550 W	550 W	550 W
Oil Capacity	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)
Maximum Working Pressure	370 Bar	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF) (d) depth*	680x451x1104 mm (26,77”x17,76”x43,86”)	720x453x1144 mm (28,35”x17,83”x45,04”)	775x497x1204 mm (30,51”x19,57”x47,4”)
Weight	59 8kg (1320 lbs)	685 kg (1510 lbs)	907 kg (2000 lbs)
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
*The Machines are supplied complete with;* *• Ø100 mm (3,93”), 50 mm (1,97”), 2 pcs. 30 mm (1,2”) mm height x Ø165 mm (Ø 6,5”) distance pieces* *• Removable transparent front and rear safety doors*

18. ASTM - Semi-Automatic Compression Testing Machines for Blocks

Request Catalog

Product Code

UTC-4706.SLP	1100 kN (245000 lbf) Semi-Automatic Compression Testing Machines for Blocks, ASTM
UTC-4716.SLP	1500 kN (335000 lbf) Semi-Automatic Compression Testing Machines for Blocks, ASTM
UTC-4726.SLP	2000 kN (450000 lbf) Semi-Automatic Compression Testing Machines for Blocks, ASTM
UTC-4736.SLP	3000 kN (670000 lbf) Semi-Automatic Compression Testing Machines for Blocks, ASTM
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Models for 220-240V 50-60 Hz, 1ph.	UTC-4706	UTC-4716	UTC-4726	UTC-4736
Models for 110-120V 60 Hz, 1ph.	UTC-4706-N	UTC-4716-N	UTC-4726-N	UTC-4736-N

Standards

ASTM C140, C1314

UTC-4716.SLP, UTC-4726.SLP and UTC-4736.SLP Semi-Automatic Compressıon Testıng Machines for compression testing of blocks are manufactured acc. to ASTM standards

These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

The Machines consist of a welded frame ( see below table), hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-4920LP).

UTC-4680A or UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Class A starting from with the 5% of the machine capacity, (Special calibration option starting from 1% of the full range with UTC-0210)

1 channel with two different calibration table, test parameters and specimen information (by changing the sensor belong to other frame, the unit can be control for second test frame)

Multi-point calibration
Real time numeric display of load and load pressure
Peak hold property
Welded steel walled frame with lower and upper (shperically-seated) loading platens
Load measurment with a pressure transducer
Hydrolic pump with dual stage for rapid approach
RS232 Serial port for PC or thermal or dot matrix printer
Free of charge Utest software for compression/flexture testing machines(USOFT-4820.SLP) for compression, flexture, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonary units

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke

Removable transparent front and rear safety doors
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

ASTM SEMI-AUTOMATIC COMPRESSION TESTING MACHINES FOR BLOCKS
Models Photo
Models	UTC-4706.SLP	UTC-4716.SLP	UTC-4726.SLP	UTC-4736.SLP
Capacity	1100 kN (245000 lbf)	1500 kN (335000 lbf)	2000 kN (450000 lbf)	3000 kN (670000 lbf)
Frame Type	Welded Steel	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)
Surface Hardness of Bearing Blocks	60 HRC	60 HRC	60 HRC	60 HRC
Flatness Tolerance	0,025 mm / 150 mm (0,001”/6”)	0,025 mm / 150 mm (0,001”/6”)	0,025 mm / 150 mm (0,001”/6”)	0,025 mm / 150 mm (0,001”/6”)
Piston Diameter	230 mm (9,06”)	230 mm (9,06”)	250 mm (9,84”)	300 mm (11,8”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	250 mm (9,84”)	250 mm (9,84”)	250 mm (9,84”)	300 mm (11,8”)
Horizontal Clearance (B)	320 mm (12,6”)	320 mm (12,6”)	360 mm (14,17”)	415 mm (16,34”)
Power	550 W	550 W	550 W	550 W
Oil Capacity	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)
Maximum Working Pressure	390 Bar	370 Bar	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	680x451x1104 mm (26,77”x17,76”x43,86”)	680x451x1104 mm (14,96”x17,76”x43,86”)	720x453x1144 mm (16,54”x17,83”x45,04”)	775x497x1204 mm (18,7”x19,57”x47,4”)
Weight	793 kg (1750 lbs)	793 kg (1750 lbs)	880 kg (1940 lbs)	1102kg (2430 lbs)
Pedestal (Optional)	UTC-4680	UTC-4680	UTC-4682	UTC-4682
*(d) depth The Machines are supplied complete with; • 50 mm (1,97”), 30 mm (1,2”), 15 mm (0,59”) height x Ø205 mm (Ø8,07”) distance pieces. • Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629) • Removable transparent front and rear safety doors**

19. EN 12390-4 EN SEMI-AUTOMATIC Compression Testing Machines for Cubes and Cylinders

Request Catalog

Product Code

UTC-5727.SLP	2000 kN EN 12390-4 Capacity Compression Testing Machines, for Cubes and Cylinders, EN
UTC-5737.SLP	3000 kN EN 12390-4 Capacity Compression Testing Machines, for Cubes and Cylinders, EN
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4682E	Pedestal for EN 1550 kN, 2000 kN, 2200 kN and 3000 kN Compression Testing Frames with Welded Walls

Models for 220-240V 50-60 Hz, 1ph	UTC-5727.SLP	UTC-5737.SLP
Models for 110-120V 60 Hz, 1ph	UTC-5727.SLP-N	UTC-5737.SLP-N

Standards

EN 12390-4, EN 12390-3

UTC-5727.SLP and UTC-5737.SLP models Semi-Automatic Compressıon Testıng Machines are manufactured for compression testing of cubes and cylinders acc. to EN standards.

These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

The Semi-Automatıc Compression Machines consist of a welded frame (see table), hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-4920LP).

UTC-4682E Pedestal that is made of steel to facilitate the user’s placement of specimens in the frame for compression test should be ordered separately.

Main Features

Class A starting from with the 5% of the machine capacity, (Special calibration option starting from 1% of the full range with UTC-0210)
1 channel with two different calibration table, test parameters and specimen information (by changing the sensor belong to other frame, the unit can be control for second test frame)
Multi-point calibration
Real time numeric display of load and load pressure
Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4
Welded steel walled frame with lower and upper (shperically-seated) loading platens
Load measurment with a pressure transducer
Hydrolic pump with dual stage for rapid approach
RS232 Serial port for PC or thermal or dot matrix printer
Free of charge Utest software for compression/flexture testing machines (USOFT-4820.SLP) for compression, flexture, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonary units

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Removable transparent front and rear safety doors
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

EN 12390-4 SEMI-AUTOMATIC COMPRESSION TESTING MACHINES FOR CUBES AND CYLINDERS
Models	UTC-5727.SLP	UTC-5737.SLP
Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 300 mm	Ø 300 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	Ø 300 mm	Ø 300 mm
Surface Hardness of Bearing Blocks	53 HRC	53 HRC
Flatness Tolerance	0,03 mm	0,03 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	350 mm	350 mm
Horizontal Clearance (B)	360 mm	415 mm
Sizes of Specimens For Cubes (up to)	200 mm (**)	200 mm (**)
Sizes of Specimens For Cylinders (up to)	Ø160x320 mm	Ø160x320 mm
Power	550 W	550 W
Oil Capacity	20 L	20 L
Maximum Working Pressure	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	750x455x1145 mm	805x500x1205 mm
Weight	820 kg	1060 kg
Pedestal (Optional)	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The machines for cubes and cylinders are supplied complete with;* *• 100 mm, 50 mm, 30 mm height x Ø205 mm distance pieces* *• UTC-4622E - Fixture for Centering Specimens, compatible with Ø300 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders* *• Removable transparent front and rear safety doors* *Appropriate Distance piece/s for the cylinder and cube specimens with the height of lower than 150mm should be ordered separately.*

20. EN 12390-4 and EN 772-1 EN SEMI-AUTOMATIC Compression Testing Frame for Masonary Units, Cubes and Cylinders

Request Catalog

Product Code

UTS-5729.SLP	2000 kN EN 12390-4 and EN 772-1 Semi-Automatic Compressıon Testıng Machines for Masonary Units, Cubes and Cylinders
UTC-5739.SLP	3000 kN EN 12390-4 and EN 772-1 Semi-Automatic Compressıon Testıng Machines for Masonary Units, Cubes and Cylinders
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4682E	Pedestal for EN 1550 kN, 2000 kN, 2200 kN and 3000 kN Compression Testing Frames with Welded Walls

Models for 220-240V 50-60 Hz, 1ph	UTC-5729.SLP	UTC-5739.SLP
Models for 110-120V 60 Hz, 1ph	UTC-5729.SLP-N	UTC-5739.SLP-N

Standards

EN 12390-4, EN 12390-3, EN 772-1

UTC-5729.SLP and UTC-5739.SLP models Semi-Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units, cubes and cylinders acc. to EN standards. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

The machines are supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4.

The Semi-Automatıc Compression Machines consist of a welded frame ( see table), hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-UTC-4920LP).

UTC-4682E Pedestal that is made of steel to facilitate the user’s placement of specimens in the frame for compression test should be ordered separately.

Main Features

Class A starting from with the 5% of the machine capacity, (Special calibration option starting from 1% of the full range with UTC-0210)
1 channel with two different calibration table, test parameters and specimen information (by changing the sensor belong to other frame, the unit can be control for second test frame)
Multi-point calibration
Real time numeric display of load and load pressure
Peak hold property
Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4
Welded steel walled frame with lower and upper (shperically-seated) loading platens
Load measurment with a pressure transducer
Hydrolic pump with dual stage for rapid approach
RS232 Serial port for PC or thermal or dot matrix printer
Free of charge Utest software for compression/flexture testing machines(USOFT-4820.SLP) for compression, flexture, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonary units

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Removable transparent front and rear safety doors
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

EN 12390-4 and EN 772-1 EN SEMI-AUTOMATIC COMPRESSION TESTING MACHINES FOR MASONARY UNITS, CUBES AND CYLINDERS
Models	UTC-5729.SLP	UTC-5739.SLP
Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC
Flatness Tolerance	0,03 mm	0,03 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	330 mm	330 mm
Horizontal Clearance (B)	360 mm	415 mm
Sizes of Specimens For Cylinders (up to)	Ø160x320 mm	Ø160x320 mm
Sizes of Specimens For Cubes (up to)	300 mm (**)	300 mm (**)
Sizes of Specimens For Masonary Units (up to)	300x500 mm (**)	300x500 mm (**)
Power	550 W	550 W
Oil Capacity	20 L	20 L
Maximum Working Pressure	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	740x550x1040 mm	805x550x1145 mm
Weight	885 kg	1185 kg
Pedestal (Optional )	UTC-4682	UTC-4682
	*(d) depth () Limited by capacity of the frame *The machines for masonary units, cubes and cylindrs are supplied complete with;* *• 100 mm, 50 mm, 2x30 mm height x Ø205 mm distance pieces* *• Fixture for Centering Specimens, compatible with 310x510x50 mm lower loading platen for 100mm and 150mm cubes, Ø100mm and Ø150mm cylinders(UTC-4626E)* **• Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629 • Removable transparent front and rear safety doors. Appropriate Distance piece/s for the cylinder and cube specimens with the height of lower than 150mm should be ordered separately.**

21. EN 772-1 and General Purpose Semi-Automatic Compressıon Testing Machines for Masonary Units/Blocks, Cylinders And Cubes

Request Catalog

Product Code

UTC-4609EG.SLP	600 kN EN 772-1 and General Purpose Semi-Automatic Compressıon Testing Machines for Masonary Units/Blocks, Cylinders And Cubes
UTC-4709EG.SLP	1100 kN EN 772-1 and General Purpose Semi-Automatic Compressıon Testing Machines for Masonary Units/Blocks, Cylinders And Cubes
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4680E	Pedestal for EN 600 kN and 1000 kN Compression Testing Frames with Welded Walls

Models for 220-240V 50-60 Hz, 1ph	UTC-4609EG.SLP	UTC-4709EG.SLP
Models for 110-120V 60 Hz, 1ph	UTC-4609EG.SLP-N	UTC-4709EG.SLP-N

UTC-4609EG.SLP and UTC-4709EG.SLP models Semi-Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units/ blocks, cylinders and cubes. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

The Semi-Automatıc Compression Machines consist of a welded frame ( see table), hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-4920LP).

UTC-4680E Pedestal that is made of steel to facilitate the user’s placement of specimens in the frame for compression test should be ordered separately.

Main Features

Load Accuracy Class 1 starting from with the 5% of the machine capacity 1 channel with two different calibration table, test parameters and specimen information (by changing the sensor belong to other frame, the unit can be control for second test frame)
Multi-point calibration
Real time numeric display of load and load pressure
Peak hold property
Welded steel walled frame with lower and upper (shperically-seated) loading platens
Load measurment with a pressure transducer
Hydrolic pump with dual stage for rapid approach
RS232 Serial port for PC or thermal or dot matrix printer
Free of charge Utest software for compression/flexture testing machines(USOFT-4820.SLP) for compression, flexture, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonary units

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Removable transparent front and rear safety doors
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

EN 772-1 and GENERAL PURPOSE SEMI-AUTOMATIC COMPRESSION TESTING MACHINES FOR MASONARY UNITS/BLOCKS, CYLINDERS AND CUBES
Models	UTC-4609EG.SLP	UTC-4709EG.SLP
Product Photo
Capacity	600 kN	1100 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm
Piston Diameter	230 mm	250 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	330 mm	330 mm
Horizontal Clearance (B)	320 mm	320 mm
For Masonary Units/Blocks Specimens Sizes (up to)	up to 300x500 mm masonary units/blocks	up to 300x500 mm masonary units/blocks
For Cylinder Specimens Sizes (up to)	up to Ø160x320 mm cylinders	up to Ø160x320 mm cylinders
For Cubes Specimens Sizes (up to)	200 mm	200 mm
Power	550 W	550 W
Oil Capacity	20 L	20 L
Maximum Working Pressure	150 Bar	280 Bar
*Dimensions (wxlxh) (AxdxF)**	680x550x750 mm	680x550x750 mm
Weight	690 kg	690 kg
Pedestal (Optional)	UTC-4680	UTC-4680
*(d) depth () Limited by capacity of the frame *The machines are supplied complete with;* *• 100 mm, 50 mm, 30mm height x Ø205 mm distance pieces* *• Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629* *• Removable transparent front and rear safety doors*

22. GENERAL PURPOSE SEMI-AUTOMATIC Compression Testing Machines for Cubes and Cylinders

Request Catalog

Product Code

UTC-4713G.SLP	1500 kN Capacity General Purpose Semi-Automatic Compression Testing Machine with Ø216 mm Loading Platens for Cubes and Cylinders
UTC-4723G.SLP	2000 kN Capacity General Purpose Semi-Automatic Compression Testing Machine with Ø216 mm Loading Platens for Cubes and Cylinders
UTC-4733G.SLP	3000 kN Capacity General Purpose Semi-Automatic Compression Testing Machine with Ø216 mm Loading Platens for Cubes and Cylinders
UTC-4727G.SLP	2000 kN Capacity General Purpose Semi-Automatic Compression Testing Machine with Ø300 mm Loading Platens for Cubes and Cylinders
UTC-4737G.SLP	3000 kN Capacity General Purpose Semi-Automatic Compression Testing Machine with Ø300 mm Loading Platens for Cubes and Cylinders
UTC-0210	High Precision Pressure Transducer and Electronic
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Models for 220-240V

50-60 Hz, 1ph.

UTC-4713G.SLP

UTC-4723G.SLP

UTC-4733G.SLP

UTC-4727G.SLP

UTC-4737G.SLP

Models for 110-120V

60 Hz, 1ph.

UTC-4713G.SLP-N

UTC-4723G.SLP-N

UTC-4733G.SLP-N

UTC-4727G.SLP-N

UTC-4737G.SLP-N

UTC-4713G.SLP, UTC-4723G.SLP, UTC-4733G.SLP, UTC- UTC-4727G.SLP and UTC- UTC-4737G.SLP model Semi-Automatic Compressıon Testıng Machines are manufactured for compression testing of cubes and cylinders by taking into account user requests for general purposes. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

UTC- UTC-4727G.SLP ve UTC- UTC-4737G.SLP model products are designed for compressive-strength testing of larger size specimens.

The Machines consist of a welded frame ( see below table) and hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-4920LP).

UTC-4680A or UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Load Accuracy Class 1 starting from with the 5% of the machine capacity (Special calibration option starting from 1% of the full range with UTC-0210)
1 channel with two different calibration table, test parameters and specimen information (by changing the sensor belong to other frame, the unit can be control for second test frame)
Multi-point calibration
Real time numeric display of load and load pressure
Welded steel walled frame with lower and upper (shperically-seated) loading platens
Load measurment with a pressure transducer
Hydrolic pump with dual stage for rapid approach
RS232 Serial port for PC or thermal or dot matrix printer
Free of charge Utest software for compression/flexture testing machines(USOFT-4820.SLP) for compression, flexture, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonary units

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Removable transparent front and rear safety doors
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

GENERAL PURPOSE SEMI-AUTOMATIC COMPRESSION TESTING MACHINES WITH Ø216mm FOR CUBES AND CYLINDERS
Models	UTC-4713G.SLP	UTC-4723G.SLP	UTC-4733G.SLP
Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 216 mm	Ø 216 mm	Ø 216 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 216 mm	Ø 216 mm	Ø 216 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm	0,05 mm
Piston Diameter	230 mm	250 mm	300 mm
Piston Stroke	50 mm	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	380 mm	380 mm	380 mm
Horizontal Clearance (B)	320 mm	360 mm	415 mm
For Cylinder Specimens Sizes (up to)	Ø160x320 mm Ø150x300 mm (Ø6"x12")	Ø160x320 mm Ø150x300 mm (Ø6"x12")	Ø160x320 mm Ø150x300 mm (Ø6"x12")
For Cubes Specimens Sizes (up to)	150 mm	200 mm (**)	200 mm (**)
*Dimensions (wxlxh) (AxdxF)**	680x451x1104 mm	720x453x1144 mm	775x497x1204 mm
Weight	610 kg	700 kg	920 kg
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The frames are supplied complete with;* *• 100 mm, 50 mm and 2 pcs. 30 mm x Ø165 mm distance pieces* *• Removable transparent front and rear safety doors*

GENERAL PURPOSE SEMI-AUTOMATIC COMPRESSION TESTING MACHINES WITH Ø300mm LOADING PLATENS FOR CUBES AND CYLINDERS
Models	UTC-4727G.SLP	UTC-4737G.SLP
Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø300 mm	Ø300 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø300 mm	Ø300 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	350 mm	350 mm
Horizontal Clearance (B)	360 mm	415 mm
For Cylinder Specimens Sizes (up to)	Ø160x320 mm	Ø160x320 mm
For Cubes Specimens Sizes (up to)	200 mm (**)	200 mm (**)
*Dimensions (wxlxh) (AxdxF)**	720x453x1144 mm	775x497x1204 mm
Weight	735 kg	960 kg
Pedestal (Optional)	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The machines are supplied complete with;* *• 100 mm, 50 mm and 30 mm x Ø205 mm distance pieces* *• Removable transparent front and rear safety doors*

23. GENERAL PURPOSE and EN 772-1 SEMI-AUTOMATIC Compression Testing Machines for Masonary Units/Blocks, Cubes and Cylinders

Request Catalog

Product Code

UTC-4714GE.SLP	1500 kN General Purpose and EN 772-1 Semi-Automatic Compressıon Testıng Machine for Masonary Units/Blocks, Cubes and Cylinders
UTC-4729GE.SLP	2000 kN General Purpose and EN 772-1 Semi-Automatic Compressıon Testıng Machine for Masonary Units/Blocks, Cubes and Cylinders
UTC-4739GE.SLP	3000 kN General Purpose and EN 772-1 Semi-Automatic Compressıon Testıng Machine for Masonary Units/Blocks, Cubes and Cylinders
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Models for 220-240V 50-60 Hz, 1ph	UTC-4714GE.SLP	UTC-4729GE.SLP	UTC-4739GE.SLP
Models for 110V 60 Hz	UTC-4714GE.SLP-N	UTC-4729GE.SLP-N	UTC-4739GE.SLP-N

UTC-4714GE.SLP, UTC-4729GE.SLP, and UTC-4739GE.SLP model Semi-Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units/blocks, cubes and cylinders by taking into account user requests for general purposes (see below table).

These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

The Machines consist of a welded frame ( see below table) and hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-UTC-4920LP).

UTC-4680A or UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

Main Features

Load Accuracy Class 1 starting from with the 5% of the machine capacity (Special calibration option starting from 1% of the full range with UTC-0210)
1 channel with two different calibration table, test parameters and specimen information (by changing the sensor belong to other frame, the unit can be control for second test frame)
Multi-point calibration
Real time numeric display of load and load pressure
Supplied with factory calibration certificate for load measurement
Welded steel walled frame with lower and upper (shperically-seated) loading platens
Load measurment with a pressure transducer
Hydrolic pump with dual stage for rapid approach
RS232 Serial port for PC or thermal or dot matrix printer
Free of charge Utest software for compression/flexture testing machines(USOFT-4820.SLP) for compression, flexture, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonary units

Safety Features

Maximum pressure valves to avoid machine overloading
Limit switch for piston stroke
Removable transparent front and rear safety doors
The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

GENERAL PURPOSE AND EN 772-1 SEMI-AUTOMATIC COMPRESSION TESTING MACHINE FOR MASONARY UNITS/BLOCKS, CUBES AND CYLINDERS
Models	UTC-4714GE.SLP	UTC-4729GE.SLP	UTC-4739GE.SLP
Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	220x410x50 mm	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	220x410x50 mm	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm	0,05 mm
Piston Diameter	230 mm	250 mm	300 mm
Piston Stroke	50 mm	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm	330 mm	330 mm
Horizontal Clearance (B)	320 mm	360 mm	415 mm
For Masonary Units/Blocks Specimens Sizes (up to)	up to 200x400 mm masonary units/blocks	Ø160x320 mm Ø150x300 mm (Ø6"x12")	Ø160x320 mm Ø150x300 mm (Ø6"x12")
For Cylinder Specimens Sizes (up to)	up to Ø160x320 mm cylinders	up to Ø160x320 mm cylinders	up to Ø160x320 mm cylinders
For Cubes Specimens Sizes (up to)	200 mm	200 mm	200 mm
Power	550 W	550 W	550 W
Oil Capacity	20 L	20 L	20 L
Maximum Working Pressure	370 Bar	410 Bar	410 Bar
*Dimensions (wxlxh) (AxdxF)**	780x451x1104 mm	720x600x1144 mm	775x600x1204 mm
Weight	690 kg	850 kg	1070 kg
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The frames are supplied complete with;* *• 100 mm, 50 mm, 30mm height x Ø205 mm distance pieces (plus 15 mm x Ø165 mm for UTC-4714GE)* **• Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629) • Removable transparent front and rear safety doors**

24. LPI Battery Operated Digital Readout Unit

Request Catalog

Product Code

UTC-4920LP

LPI Battery Operated Digital Readout Unit

UTC-4920LP is used for reading of the applied load on load cells or pressure transducers in different material test applications.

Can operate with 2 x AA batteries or 5V AC adapter
Real time numeric display of load and load pressure
1 channel with two different calibration table (by changing the sensor belong to other frame, the unit can be control for second test frame)
Peak hold property
Multi-point calibration
Easy preload zeroing
8 keys keyboard
RS232 Serial port for PC or thermal or dot matrix printer

The LPI is a very convenient readout unit that can be used to retrofit old compression machines with manometer (gauge).

Dimensions	150x200x200 mm
Weight (approx.)	1 kg

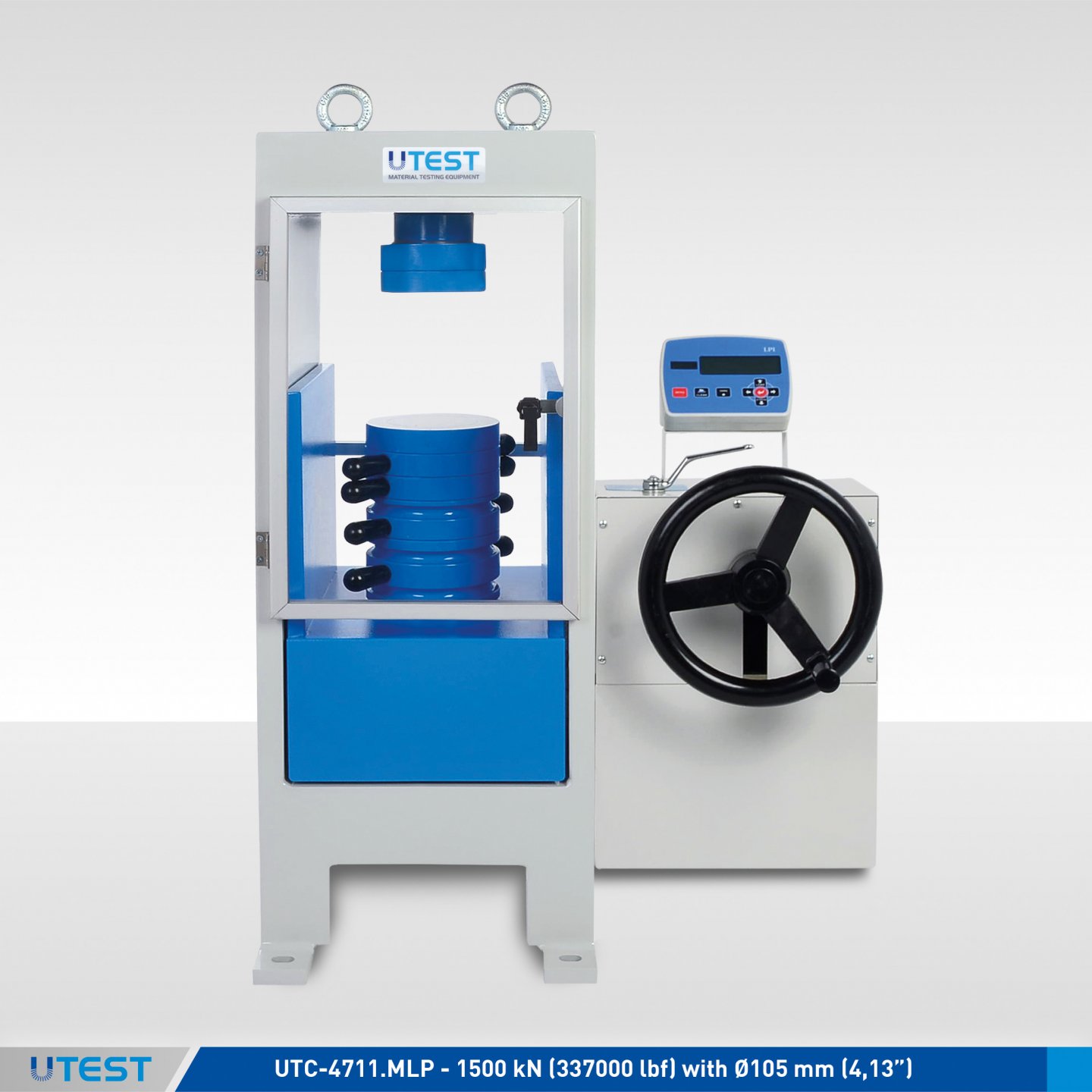

25. ASTM & AASHTO - Manual Compression Testing Machines

Request Catalog

Product Code

UTC-4601.MLP	600 kN (135000 lbf) Manual Compression Testing Machine with Ø105mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4701.MLP	1100 kN (245000 lbf) Manual Compression Testing Machine with Ø105mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4602.MLP	600 kN (135000 lbf) Manual Compression Testing Machine with Ø165mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4702.MLP	1100 kN (245000 lbf) Manual Compression Testing Machine with Ø165mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4712.MLP	1500 kN (335000 lbf) Manual Compression Testing Machine with Ø165mm Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls

Standards

ASTM C39, C42

The UTEST 600 kN, 1100 kN and 1500 kN capacity Manual Compression Testing Machines are designed to perform reliable compression tests on concrete specimens especially suitable for on-site applications when electric power supply is unavailable.

Being a low cost alternative, the UTEST manual testing series combines precision and simplicity with the unique design of the manual power pack which is hand operated and enables even an inexperienced operator to perform excellent compression and flexure tests on-site.

The machines are supplied in Class A starting from with the5 % of the machine capacity.

With their exceptional performance, the machines consist of a heavy duty welded frame and hand operated hydraulic power pack with LPI Battery Operated Digital Readout Unit.

UTC-4680A Pedestal that is made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

ASTM & AASHTO LOW CAPACITY COMPRESSION TESTING FRAMES FOR CYLINDERS
Models	UTC-4601.MLP	UTC-4701.MLP	UTC-4602.MLP	UTC-4702.MLP	UTC-4712.MLP
Product Photo
Capacity	600 kN (135000 lbf)	1100 kN (245000 lbf)	600 kN (135000 lbf)	1100 kN (245000 lbf)	1500 kN (335000 bf)
Frame Type	Welded Steel	Welded Steel	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 105 mm	Ø 105 mm	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 105 mm	Ø 105 mm	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC	55 HRC	55 HRC
Flatness Tolerance	0,02mm 0/150mm (0,001”/6”)	0,02mm 0/150mm (0,001”/6”)	0,02mm 0/150mm (0,001”/6”)	0,02mm 0/150mm (0,001”/6”)	0,02mm 0/150mm (0,001”/6”)
Piston Diameter	150 mm	190 mm (7,48”)	150 mm	190 mm (7,48”)	230 mm
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm (13,4”)	380 mm (15”)	340 mm (13,4”)	380 mm (15”)	380 mm (15”)
Horizontal Clearance (B)	230 mm (9,06”)	270 mm (10,6”)	230 mm (9,06”)	270 mm (10,6”)	320 mm (12,6”)
For Cylinder Specimens Sizes	Ø100x200 mm (4”x8”)	Ø100x200 mm (4”x8”)	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) (**)	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320mm	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320mm
Power	550 W	550 W	550 W	550 W	550 W
Oil Capacity	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)	20 L (0,7 ft³)
Maximum working Pressure	340 Bar	370 Bar	340 Bar	370 Bar	370 Bar
*Dimensions (wxlxh) (AxdxF)**	570x454x922mm 22,44”x17,87”x36,3”	610x454x1042mm 24,02”x17,87”x41,02”	570x454x922mm 22,44”x17,87”x36,3”	610x454x1042mm 24,02”x17,87”x41,02”	680x451x1104mm 26,77”x17,76”x43,86”
Weight	330 kg (728 lbs)	428kg (944 lbs)	330 kg (728 lbs)	439kg (968 lbs)	578kg (1275 lbs)
Pedestal (Optional)	UTC-4680	UTC-4680	UTC-4680	UTC-4680	UTC-4680
(d) depth () Limited by capacity of the frame The Machines are supplied complete with;* **• UTC-4601.MLP and UTC-4602.MLP: 100 mm (3,93”), 50 mm (1,97”), 30 mm (1,2”) height x Ø165 mm (Ø 6,5”) distance pieces. • UTC-4701.MLP, UTC-4702 and UTC-4712.MLP: 100 mm (3,93”), 50 mm (1,97”), 2 pcs. 30 mm (1,2”) height x Ø165 mm (Ø 6,5") distance pieces. • Removable transparent front and rear safety doors • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.**

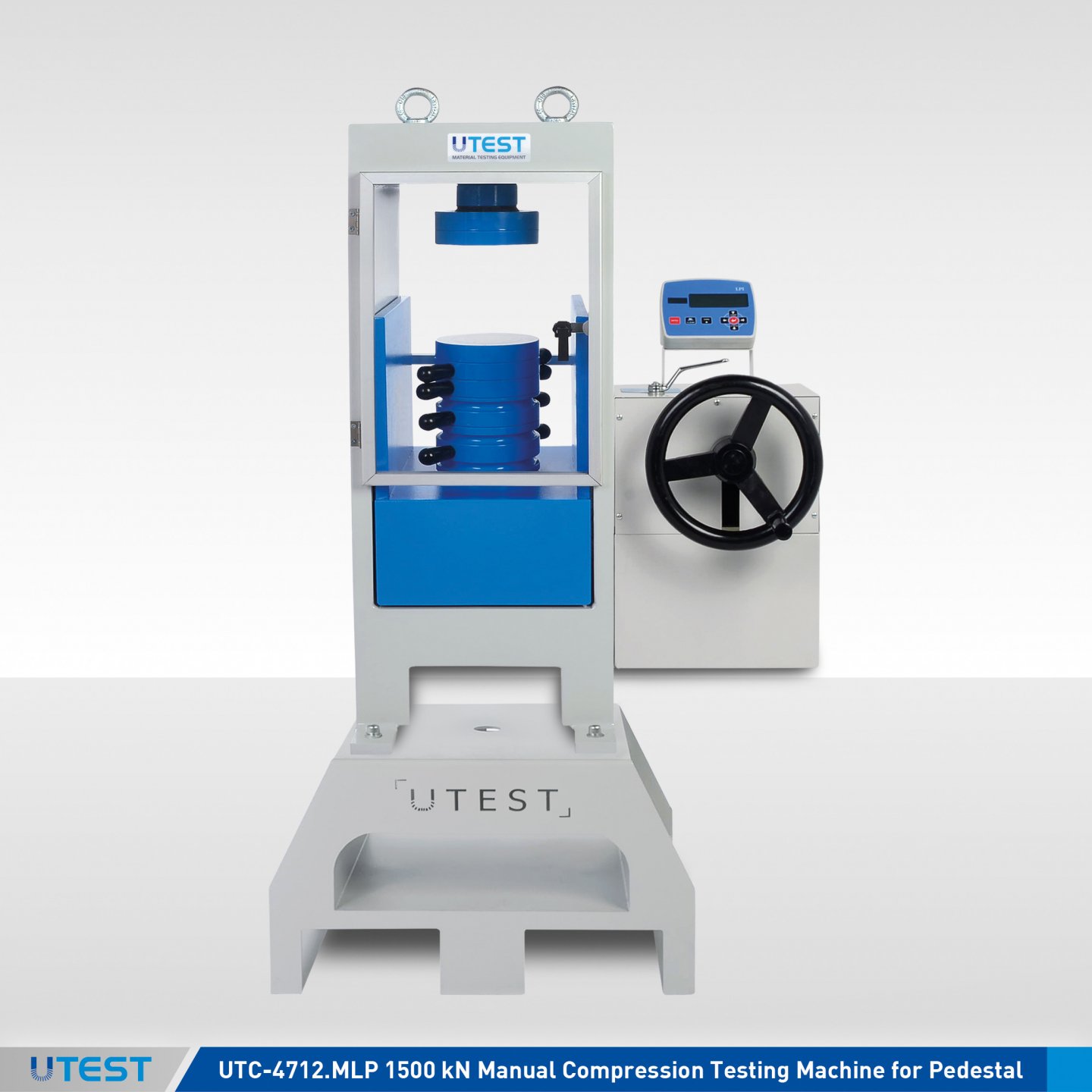

PEDESTAL FOR FRAMES WITH WELDED WALLS

The pedestals make it easier for the user to placement of specimens in the frames for compression test.

UTC-4680 Pedestal

26. GENERAL Purpose Manual Compression Testing Machine for Cubes and Cylinders

Request Catalog

Product Code

UTC-4713G.MLP	1500 kN General Purpose Manual Compression Testing Machine with Ø216mm Loading Platens for Cubes and Cylinders
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls

General Purpose Manual Compression Testing Machine is designed to perform reliable compression tests on concrete specimens especially suitable for on-site applications when electric power supply is unavailable.

The machine is supplied in Class A starting from with the5 % of the machine capacity.

With their exceptional performance, the machine consists of a heavy duty welded frame and hand operated hydraulic power pack with LPI Battery Operated Digital Readout Unit .

UTC-4680A Pedestal that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

GENERAL PURPOSE MANUAL COMPRESSION TESTING MACHINES FOR CUBES AND CYLINDERS
Models	UTC-4713G.MLP
Product Photo
Capacity	1500 kN
Frame Type	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 216 mm (8,5”)
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 216 mm (8,5”)
Surface Hardness of Bearing Blocks	55 HRC
Flatness Tolerance	0,05 mm
Piston Diameter	230 mm
Piston Stroke	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	370 mm
Horizontal Clearance (B)	320 mm
For Cylinder Specimens Sizes (up to)	Ø160x320 mm
For Cubes Specimens Sizes (up to)	150 mm
*Dimensions (wxlxh) (AxdxF)**	680x500x930 mm
Weight	590 kg
Pedestal (Optional)	UTC-4680
*The machine is supplied complete with;* *• 100 mm, 50 mm and 2 pcs. 30 mm xØ 165mm(6,5”) distance pieces* *• Removable transparent front and rear safety doors*

PEDESTAL FOR FRAMES WITH WELDED WALLS

The pedestals make it easier for the user to placement of specimens in the frames for compression test.

UTC-4680 Pedestal

27. ASTM & AASHTO - Compression Testing Frames for Cylinders

Request Catalog

Product Code

UTC-4601	600 kN (135000 lbf) Compression Testing Frame with Ø105mm (4,13”) Upper Bearing Blocks for Cylinders, ASTM & AASHTO
UTC-4701	1100 kN (245000 lbf) Compression Testing Frame with ØØ105mm (4,13”) Upper Bearing Blocks for Cylinders ASTM & AASHTO
UTC-4602	600 kN (135000 lbf) Compression Testing Frame with Ø165mm(6,5”) Bearing Blocks for Cylinders ASTM & AASHTO
UTC-4702	1100 kN (245000 lbf) Compression Testing Frame with Ø165mm(6,5”) Upper Bearing Blocks for Cylinders ASTM & AASHTO
UTC-4712	1500 kN (335000 lbf) Compression Testing Frame with Ø165mm(6,5”) Bearing Blocks for Cylinders ASTM & AASHTO
UTC-4722	2000 kN (450000 lbf) Compression Testing Frame with Ø165mm(6,5”) Bearing Blocks for Cylinders ASTM & AASHTO
UTC-4732	3000 kN (670000 lbf) Compression Testing Frame with Ø165mm(6,5”) Bearing Blocks for Cylinders ASTM & AASHTO
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Standards

ASTM C39; AASHTO T22

ASTM & AASHTO compression testing frames for cylinders consist of a rigid welded steel walls, a loading cylinder assembly and lower and upper (spherically-seated) bearing platens.

The frames provide the stability needed for accurate and repeatable test results over the years of operation.

Any hydraulic power pack with control and read out unit and a pressure transducer for measuring the loads, can be positioned on the right hand side of the load frame for easier accessibility, increased productivity and for safer operations.

UTC-4680A or UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

See the below tables for supplied items with the frames

ASTM & AASHTO COMPRESSION TESTING FRAMES FOR CYLINDERS
Models	UTC-4601	UTC-4701	UTC-4602	UTC-4702
Product Photo
Capacity	600kN (135000 lbf)	1100 kN (245000 lbf)	600kN (135000 lbf)	1100 kN (245000 lbf)
Frame Type	Welded Steel	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø105 mm (4,13”)	Ø105 mm (4,13”)	Ø 165 mm (6,50")	Ø 165 mm (6,50")
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6,50")	Ø 165 mm (6,50")
Surface Hardness of Bearing Blocks	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC
Flatness Tolerance	0,02mm / 150mm (0,001”/6”)	0,02mm / 150mm (0,001”/6”)	0,02mm / 150mm (0,001”/6”)	0,02mm / 150mm (0,001”/6”)
Piston Diameter	150 mm (5,9”)	190 mm (7,48”)	150 mm (5,9”)	190 mm (7,48”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm (13,4”)	380 mm (15”)	340 mm (13,4”)	380 mm (15”)
Horizontal Clearance (B)	230 mm (9,06”)	270 mm (10,6”)	230 mm (9,06”)	270 mm (10,6”)
For Cylinder Specimens Sizes	Ø100x200 mm (4”x8”)	Ø100x200 mm (4”x8”)	Ø100x200 mm (4”x8”) Ø150x300mm(6”x12”) (**)	Ø100x200 mm (4”x8”) Ø150x300mm(6”x12”) Ø160x320mm
*Dimensions (wxlxh) (AxdxF) (d)Depth*	270x454x922mm (10,63”x17,87”x36,3”)	310x454x1042mm (12,2”x17,87”x41,02”)	270x454x922mm (10,63”x17,87”x36,3”)	310x454x1042mm (12,2”x17,87”x41,02”)
Weight	280 kg (620 lbs)	378 kg (835 lbs)	291 kg (640 lbs)	389 kg (860 lbs)
Pedestal (Optional)	UTC-4680	UTC-4680	UTC-4680	UTC-4680
	(d) depth () Limited by capacity of the frame The frames are supplied complete with;* • UTC-4601 and UTC-4602: Ø100 mm (3,93”) 50 mm (1,97”), 30 mm (1,2”) height x Ø165 mm (Ø 6,5”) distance pieces • UTC-4701 and UTC-4702: Ø100 mm (3,93”), 50 mm (1,97”), 2 pcs. 30 mm (1,2”) mm height x Ø165 mm (Ø 6,5”) distance pieces • Removable transparent front and rear safety doors • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

ASTM & AASHTO COMPRESSION TESTING FRAMES FOR CYLINDERS
Models	UTC-4712	UTC-4722	UTC-4732
Product Photo
Capacity	1500 kN (335000 lbf)	2000 kN (450000 lbf)	3000 kN (670000 lbf)
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)	Ø 165 mm (6.5”)
Surface Hardness of Bearing Blocks	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC
Flatness Tolerance	0,02mm/150mm (0,001”/6”)	0,02mm/150mm (0,001”/6”)	0,02mm/150mm (0,001”/6”)
Piston Diameter	230 mm (9,06”)	250 mm (9,84”)	300 mm (11,8”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	380 mm (15”)	380 mm (15”)	380 mm (15”)
Horizontal Clearance (B)	320 mm (12,6”)	360 mm (14,17”)	415 mm (16,34”)
For Cylinder Specimens Sizes	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320mm	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320mm	Ø100x200 mm (4”x8”) Ø150x300 mm (6”x12”) Ø160x320mm
*Dimensions (wxlxh) (AxdxF) (d) depth*	380x451x1104mm (14,96”x17,76”x43,86”)	420x453x1144 mm (16,54”x17,83”x45,04”)	475x497x1204mm (18,7”x19,57”x47,4”)
Weight	528 kg (1165 lbs)	615 kg (1355 lbs)	837 kg (1845 lbs)
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
	*The frames are supplied complete with;* *• 100 mm (3,93”), 50 mm (1,97”), 2 pcs. 30 mm (1,2”) height x Ø165 mm (Ø 6,5”) distance pieces* *• Removable transparent front and rear safety doors* *• The front safety doors have an automatic safety device to stop the machine if the door is opened during a test*

28. ASTM - Compression Testing Frames for Blocks

Request Catalog

Product Code

UTC-4706	1100 kN (245000 lbf) Compression Testing Frame for Blocks, ASTM
UTC-4716	1500 kN (335000 lbf) Compression Testing Frame for Blocks, ASTM
UTC-4726	2000 kN (450000 lbf) Compression Testing Frame for Blocks, ASTM
UTC-4736	3000 kN (670000 lbf) Compression Testing Frame for Blocks, ASTM
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Standards

ASTM C140, C1314

ASTM & AASHTO compression testing frames for blocks consist of a rigid welded steel walls, a loading cylinder assembly and lower and upper (spherically-seated) bearing platens.

The frames provide the stability needed for accurate and repeatable test results over the years of operation.

UTC-4680A or UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the machines for compression test should be ordered separately.

See the below tables for supplied items with the frames.

ASTM COMPRESSION TESTING FRAMES FOR BLOCKS
Models Photo
Models	UTC-4706	UTC-4716	UTC-4726	UTC-4736
Capacity	1100 kN (245000 lbf)	1500 kN (335000 lbf)	2000 kN (450000 lbf)	3000 kN (670000 lbf)
Frame Type	Welded Steel	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)	310x410x90mm (12.2”x16.1”x3.5”)
Surface Hardness of Bearing Blocks	60 HRC	60 HRC	60 HRC	60 HRC
Flatness Tolerance	0,025 mm / 150 mm (0,001”/6”)	0,025 mm / 150 mm (0,001”/6”)	0,025 mm / 150 mm (0,001”/6”)	0,025 mm / 150 mm (0,001”/6”)
Piston Diameter	230 mm (9,06”)	230 mm (9,06”)	250 mm (9,84”)	300 mm (12,2”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)	50 mm (1,97”)
Maximum Vertical Clearance Between Bearing Blocks (E)	250 mm (9,84”)	250 mm (9,84”)	250 mm (9,84”)	250 mm (9,84”)
Horizontal Clearance (B)	320 mm (12,6”)	320 mm (12,6”)	360 mm (14,17”)	415 mm (16,34”)
*Dimensions (wxlxh) (AxdxF) (d)Depth*	380x451x1104 mm (14,96”x17,76”x43,86”)	380x451x1104 mm (14,96”x17,76”x43,86”)	420x453x1144 mm (16,54”x17,83”x45,04”)	475x497x1204 mm (18,7”x19,57”x47,4”)
Weight	723 kg (1595 lbs)	723 kg (1595 lbs)	810 kg (1785 lbs)	1032 kg (2275 lbs)
Pedestal (Optional)	UTC-4680	UTC-4680	UTC-4682	UTC-4682
	*The frames are supplied complete with ;* *• 50 mm (1,97”), 30 mm (1,2”), 15 mm (0,59”) height x Ø 205 mm (Ø8,07”) distance pieces* **• Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629) • Removable transparent front and rear safety doors • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.**

29. ASTM - Compression Testing Frames for Blocks and Cylinders

Request Catalog

Product Code

UTC-4725

2000 kN (450000 lbf) Compression Testing

Frame for Blocks and Cylinders, ASTM

UTC-4735

3000 kN (670000 lbf) Compression Testing

Frame for Blocks and Cylinders, ASTM

UTC-4682A

Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

Standards

ASTM C39, C140, C1314; AASHTO T22

ASTM & AASHTO compression testing frames for blocks and cylinders consist of a rigid welded steel walls, a loading cylinder assembly and lower and upper (spherically-seated) bearing platens.

The frames provide the stability needed for accurate and repeatable test results over the years of operation.

Depending on whether the specimen to be tested is a block or cylinder, the upper bearing platens of the frame can be easily switched with each other by users with the help of UTC-4528 and 4629

UTC-4682A Pedestal that is made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below table for supplied items with the frames.

ASTM & AASHTO COMPRESSION TESTING FRAMES FOR CYLINDERS
Models Photo
Models	UTC-4725	UTC-4735
Capacity	2000 kN (450000 lbf)	3000 kN (670000 lbf)
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Block Platen 310x410x90mm (12.2”x16.1”x3.5”) Circular Platen Ø165 mm (6.5")	Block Platen 310x410x90mm (12.2”x16.1”x3.5”) Circular Platen Ø165 mm (6.5")
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Block Platen 310x410x90mm (12.2”x16.1”x3.5”) Circular Platen Ø165 mm (6.5")	Block Platen 310x410x90mm (12.2”x16.1”x3.5”) Circular Platen Ø165 mm (6.5")
Surface Hardness of Bearing Platens	Block Platen 60 HRC Circular Platen 55 HRC	Block Platen 60 HRC Circular Platen 55 HRC
Flatness Tolerance	Block Platen 0,025mm/150mm (0,001”/6”) Circular Platen 0,02mm/150mm (0,001”/6”)	Block Platen 0,025mm/150mm (0,001”/6”) Circular Platen 0,02mm/150mm (0,001”/6”)
Maximum Vertical Clearance Between Bearing Blocks (E)	Block Platen 250 mm (9,84”) Circular Platen 380 mm (15”)	Block Platen 250 mm (9,84”) Circular Platen 380 mm (15”)
Piston Diameter	250 mm (9,84”)	300 mm (11,8”)
Piston Stroke	50 mm (1,97”)	50 mm (1,97”)
Horizontal Clearance (B)	360 mm (14,17”)	415 mm (16,34”)
*Dimensions (wxlxh) (AxdxF)**	420x453x1144 mm (16,54x17,83”x45,04”)	475x497x1204 mm 18,7”x19,57”x47,4”)
Weight	908 kg (2000 lb)	1129 kg (2490 lb)
Pedestal (Optional)	UTC-4682	UTC-4682
	*(d) depth The frames are supplied complete with ; • 310x410x90 mm (12.2”x16.1”x3.54”) lower and upper (spherically seated) bearing platens (comes with mounted to the frame) • Ø165 mm (6.5") lowerand upper ( spherically seated) bearing blocks • Upper Bearing Platens Replacement Console (UTC-4528) • Scissor Jack for Loading Platens/Bearing Blocks (UTC-4629) • 50 mm (1,97”), 2 pcs. 30 mm (1,2”), 15 mm (0,59”) height x Ø205 mm (Ø8,07”) distance pieces • Removable transparent front and rear safety doors • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.**

30. EN 12390-4 Compression Testing Frames for Cubes and Cylinders

Request Catalog

Product Code

UTC-5727	2000 kN EN 12390-4 Capacity Compression Testing Frame, for Cubes and Cylinders, EN
UTC-5737	3000 kN EN 12390-4 Capacity Compression Testing Frame, for Cubes and Cylinders, EN
UTC-4682E	Pedestal for EN 1550 kN, 2000 kN, 2200 kN and 3000 kN Compression Testing Frames with Welded Walls

Standards

EN 12390-4, EN 12390-3

UTC-5727 and UTC-5737 compression testing frames for cubes and cylinders consist of rigid welded steel walls, a loading cylinder assembly, lower and upper (spherically-seated) loading platens. acc. to EN standards.

EN compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.

The frames are supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4.

All frames have a single acting up stroking ram and also have front and rear protective doors and limit swich for piston stroke for safety. The diameter of the piston is designed to work with the load capacity. There is a low friction coaxial PTFE seal between the cylinder and the piston fitted to the cylinder.

The lower loading platens are provided with concentric centfering lines and fixture for centering specimens

UTC-4682E Pedestal that is made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below table for supplied items with the frames.

EN 12390-4 COMPRESSION TESTING FRAMES WITH WELDED WALLS FOR CUBES AND CYLINDERS
Models	UTC-5727	UTC-5737
Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 300 mm	Ø 300 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	Ø 300 mm	Ø 300 mm
Surface Hardness of Bearing Blocks	53 HRC	53 HRC
Flatness Tolerance	0,03 mm	0,03 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	350 mm	350 mm
Horizontal Clearance (B)	360 mm	415 mm
Sizes of Specimens For Cubes (up to)	200 mm (**)	200 mm (**)
Sizes of Specimens For Cylinders (up to)	Ø160x320 mm	Ø160x320 mm
*Dimensions (wxlxh) (AxdxF)**	440x455x11450 mm	505x550x1205 mm
Weight	755 kg	990 kg
Pedestal (Optional)	UTC-4682	UTC-4682
	*(d) depth () Limited by capacity of the frame *The frames for cubes and cylinders are supplied complete with;* *• 100mm, 50mm and 30mm height Ø205 mm distance pieces* *• UTC-4622E - Fixture for Centering Specimens, compatible with Ø300mm lower loading platen for 100mm and 150mm cubes, Ø100mm and Ø150mm cylinders* *• Removable transparent front and rear safety doors* *• The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.* *Appropriate Distance piece/s for the cylinder and cube specimens with the height of lower than 150mm should be ordered separately.*

31. EN 12390-4 Four Column Compression Testing Frames for Cubes and Cylinders

Request Catalog

Product Code

UTC-6727	2000 kN EN 12390-4 Capacity Four Column Compression Testing Frame, for Cubes and Cylinders
UTC-6737	3000 kN EN 12390-4 Capacity Four Column Compression Testing Frame, for Cubes and Cylinders
UTC-6748	4000 kN EN 12390-4 Capacity Four Column Compression Testing Frame, for Cubes and Cylinders
UTC-6758	5000 kN EN 12390-4 Capacity Four Column Compression Testing Frame, for Cubes and Cylinders
UTC-4684	Pedestal for 2000 kN and 3000 kN Four Column Compression Testing Frames
UTC-4686	Pedestal for 4000 kN and 5000 kN Four Column Compression Testing Frames

Standards

EN 12390-4, EN 12390-3

UTC-6727, UTC-6737, UTC-6748 and UTC-6758 compression testing frames with four column for cubes and cylinders consist of a loading cylinder assembly, lower and upper (spherically-seated) loading platens. acc. to EN standards.

EN four column compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.

The frames are supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4.

All frames have a single acting up stroking ram and also have front and rear protective doors and limit swich for piston stroke for safety. The diameter of the pistons are designed to work with their load capacities. There is a low friction coaxial PTFE seal between the cylinder and the piston fitted to the cylinder.

The lower loading platens are provided with centering lines and fixture for centering specimens.

UTC-4684 and UTC-4686 Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below table for supplied items with the frames.

EN 12390-4 FOUR COLUMN COMPRESSION TESTING FRAMES FOUR CUBES AND CYLINDERS
Models	UTC-6727	UTC-6737	UTC-6748	UTC-6758
Product Photo
Capacity	2000 Kn	3000 kN	4000 kN	5000 kN
Frame Type	Four Column	Four Column	Four Column	Four Column
Lower Platens Dimensions (D)	Ø 300 mm	Ø 300 mm	Ø 360 mm	Ø 360 mm
Upper Platens With Ball Seating Assembly Dimensions (C)	Ø 300 mm	Ø 300 mm	Ø 360 mm	Ø 360 mm
Surface Hardness of Loading Platens	≥ 53 HRC	≥ 53 HRC	≥ 53 HRC	≥ 53 HRC
Flatness Tolerance	0,03 mm	0,03 mm	0,03 mm	0,03 mm
Piston Diameter	300 mm	350 mm	400 mm	450 mm
Piston Stroke	50 mm	50 mm	100 mm	100 mm
Maximum Vertical Clearance Between Platens (E)	350 mm	350 mm	520 mm	520 mm
Sizes of Specimens For Cubes	200 mm (**)	200 mm (**)	200 mm (**)	200 mm (**)
Sizes of Specimens For Cylinders (up to)	Ø160x320 mm	Ø160x320 mm	Ø250x500 mm (**)	Ø250x500 mm (**)
*Dimensions (wxlxh) (AxdxG)**	590x560x1100 mm	680x690x1150 mm	772x825x1540 mm	772x825x1570 mm
Weight	935 kg	1435 kg	2485 kg	2540 kg
Pedestal (Optional)	UTC-4684	UTC-4684	UTC-4686	UTC-4686
	*(d) depth () Limited by capacity of the frame *The machines for cubes and cylinders are supplied complete with;* *• 100 mm, 50 mm, 30 mm height x Ø205 mm distance pieces (two pcs. each for UTC-6748 and UTC-6758)* *• UTC-4622E - Fixture for Centering Specimens, compatible with Ø300 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders(for UTC-6727 and UTC-6737)* *• UTC-4624E - Fixture for centering specimens, compatible with Ø360 mm lower loading platen for 150 mm and 250 mm cubes, Ø150 mm and 250 mm cylinders (for UTC-6748 and UTC-6758)* *• Removable transparent front and rear safety doors.* *• The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.* *Appropriate distance piece/s for the cylinder and cube specimens with the height of lower than 150mm should be ordered separately.*

32. EN 12390-4 and EN 772-1 Compression Testing Frames with Welded Walls for Cubes, Cylinders and Masonary Units

Request Catalog

Product Code

UTC-5729	2000 kN EN 12390-4 and EN 772-1 Compression Testing Frames with Welded Walls for Cubes, Cylinders and Masonary Units
UTC-5739	3000 kN EN 12390-4 and EN 772-1 Compression Testing Frames with Welded Walls for Cubes, Cylinders and Masonary Units
UTC-4682E	Pedestal for EN 1550 kN, 2000 kN, 2200 kN and 3000 kN Compression Testing Frames with Welded Walls

Standards

EN 12390-4, EN 12390-3, EN 772-1

UTC-5729 and UTC-5739 compression testing frames with rigid welded steel walls for masonary unıts, cubes and cylınders consist of a loading cylinder assembly, lower and upper (spherically-seated) loading platens. acc. to EN standards.

The frames are tested and certified for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4 by Utest.

EN compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.

The frames are supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4.

All frames have a single acting up stroking ram and also have front and rear protective doors and limit swich for piston stroke for safety. The diameter of the pistona are designed to work with the load capacity. There is a low friction coaxial PTFE seal between the cylinder and the piston fitted to the cylinder.

The lower loading platens are provided with concentric centering lines and fixture for centering specimens

UTC-4682E Pedestal that is made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below table for supplied items with the frames.

EN 12390-4 and EN 772-1 COMPRESSION TESTING FRAMES WITH WELDED WALLS FOR CONCTERE CUBES AND CYLINDERS AND MASONARY UNITS
Models	UTC-5729	UTC-5739
Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC
Flatness Tolerance	0,03 mm	0,03 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	330 mm	330 mm
Horizontal Clearance (B)	360 mm	415 mm
Sizes of Specimens For Cylinders (up to)	Ø160x320 mm	Ø160x320 mm
Sizes of Specimens For Cubes (up to)	300 mm (**)	300 mm (**)
Sizes of Specimens For Masonary Units (up to)	300x500 mm (**)	300x500 mm (**)
*Dimensions (wxlxh) (AxdxF)**	450x550x1145 mm	505x550x1205 mm
Weight	880 kg	1120 kg
Pedestal (Optional)	UTC-4682	UTC-4682
	*(d) depth () Limited by capacity of the frame *The machines for masonary units, cubes and cylindrs are supplied complete with;* *• 100 mm, 50 mm, 2x30 mm height x Ø205 mm distance pieces.* *• Fixture for Centering Specimens, compatible with 310x510x50 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders.* *• Scissor Jack for Loading Platens/Bearing Blocks (UTC-4629)* *• Removable transparent front and rear safety doors* *• The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.* *Appropriate Distance piece/s for the cylinder and cube specimens with the height of lower than 150 mm should be ordered separately.*

33. EN 12390-4 and EN 772-1 Compression Testing Frames with Four Column for Cubes, Cylinders and Masonary Units

Request Catalog

Product Code

UTC-6729	2000 kN EN 12390-4 and EN 772-1 Compression Testing Frames with Four Column for Cubes, Cylinders and Masonary Units
UTC-6739	3000 kN EN 12390-4 and EN 772-1 Compression Testing Frames with Four Column for Cubes, Cylinders and Masonary Units
UTC-6749	4000 kN EN 12390-4 and EN 772-1 Compression Testing Frames with Four Column for Cubes, Cylinders and Masonary Units
UTC-6759	5000 kN EN 12390-4 and EN 772-1 Compression Testing Frames with Four Column for Cubes, Cylinders and Masonary Units
UTC-4684	Pedestal for 2000 kN and 3000 kN Four Column Compression Testing Frames
UTC-4686	Pedestal for 4000 kN and 5000 kN Four Column Compression Testing Frames

Standards

EN 12390-4, EN 12390-3, EN 772-1

UTC-6729, UTC-6739, UTC-6749 and UTC-6759 compression testing frames with four column for masonary units, cubes and cylinders consist of a loading cylinder assembly, lower and upper (spherically-seated) loading platens. acc. to EN standards.

EN four column compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.

The frames are supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4.

UTC-4684 and UT-4686 Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below table for supplied items with the frames.

EN 12390-4 and EN 772-1 COMPRESSION TESTING FRAMES WITH FOUR COLUMN FOR CONCTERE CUBES AND CYLINDERS AND MASONARY UNITS
Models	UTC-6729	UTC-6739	UTC-6749	UTC-6759
Product Photo
Capacity	2000 kN	3000 kN	4000 kN	5000 kN
Frame Type	Four Column	Four Column	Four Column	Four Column
Lower Platens Dimensions (D)	310x510x50 mm	310x510x50 mm	310x510x50 mm	310x510x50 mm
Upper Platens With Ball Seating Assembly Dimensions (C)	310x510x50 mm	310x510x50 mm	310x510x50 mm	310x510x50 mm
Surface Hardness of Loading Platens	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC
Flatness Tolerance	0,03 mm	0,03 mm	0,03 mm	0,03 mm
Piston Diameter	300 mm	350 mm	400 mm	450 mm
Piston Stroke	50 mm	50 mm	100 mm	100 mm
Maximum Vertical Clearance Between Platens (E)	330 mm	330 mm	520 mm	520 mm
Sizes of Specimens For Cylinders (up to)	Ø150x300 mm	Ø150x300 mm	Ø150x300 mm	Ø150x300 mm
Sizes of Specimens For Cubes (up to)	300 mm (**)	300 mm (**)	300 mm (**)	300 mm (**)
Sizes of Specimens For Masonary Units (up to)	300x500 mm (**)	300x500 mm (**)	300x500 mm (**)	300x500 mm (**)
*Dimensions (wxlxh) (AxdxG)**	590x560x1100 mm	680x690x1150 mm	772x825x1540 mm	865x640x1555mm
Weight	1040 kg	1540 kg	2555 kg	3260 kg
Pedestal (Optional)	UTC-4684	UTC-4684	UTC-4686	UTC-4686
*(d) depth () Limited by capacity of the frame *The frames for masonary units,cubes and cylindrs are supplied complete with;* *• 100 mm, 50 mm, 2x30 mm height x Ø205 mm distance pieces (two pcs. each for UTC-6749 and UTC-6759)* *• UTC-4626E - Fixture for centering specimens, compatible with 310x510x50 mm lower loading platen, for 100 mm and 150mm cubes and Ø100 mm and Ø150 mm cylinders (for UTC-6729 and UTC-6739)* *• UTC-4627E - Fixture for centering specimens, compatible with 310x510x50 mm lower loading platen, for 150mm and 250mm cubes, Ø150mm and Ø250mm cylinders for UTC-6749 and UTC-6759* • Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629) • Removable transparent front and rear safety doors • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test. Appropriate distance piece/s for the cylinder and cube specimens with the height of lower than 150 mm should be ordered separately for UTC-6729.FPR and UTC-6739.FPR

34. EN 772-1 and General Purpose Compression Testing Frame for Masonary Units/ Blocks, Cylinders and Cubes

Request Catalog

Product Code

UTC-4609EG	600 kN EN 772-1 and General Purpose Compression Testing Frame for Masonary Units/ Blocks, Cylinders and Cubes
UTC-4709EG	1100 kN EN 772-1 and General Purpose Compression Testing Frame for Masonary Units/ Blocks, Cylinders And Cubes
UTC-4680E	Pedestal for EN 600 kN and 1000 kN Compression Testing Frames with Welded Walls

UTC-4609EG and UTC-4709EG compression testing frames for masonary units/ blocks, cylinders and cubes consist of a loading cylinder assembly, lower and upper (spherically-seated) loading platens.

The compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.

The lower loading platens are provided with lines for centering specimens

UTC-4680E Pedestal that is made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below table for supplied items with the frames.

EN 772-1 AND GENERAL PURPOSE COMPRESSION TESTING FRAMES FOR MASONARY UNITS/BLOCKS, CUBES AND CYLINDERS
Models	UTC-4609EG	UTC-4709EG
Product Photo
Capacity	600 kN	1100 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C)	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm
Piston Diameter	230 mm	230 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	330 mm	330 mm
Horizontal Clearance (B)	320 mm	320 mm
Specimens Sizes ()**	up to 300x500mm masonary units/blocks
	up to Ø160x320 mm cylinders
	200 mm cubes
*Dimensions (wxlxh) (AxdxF)**	380x550x750 mm	380x550x750 mm
Weight	690 kg	690 kg
Pedestal (Optional)	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The frames are supplied complete with;* *• 100 mm, 50 mm, 30 mm height x Ø205 mm distance pieces* *• Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629)* *• Removable transparent front and rear safety doors* *• The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.*

35. GENERAL Purpose Testing Frames for Cubes and Cylinders

Request Catalog

Product Code

UTC-4713G	1500 kN Capacity General Purpose Compression Testing Frame wıth ø216mm Loading Platens for Cubes and Cylinders
UTC-4723G	2000 kN Capacity General Purpose Compression Testing Frame with Ø216mm Loading Platens for Cubes and Cylinders
UTC-4733G	3000 kN Capacity General Purpose Compression Testing Frame with Ø216mm Loading Platens for Cubes and Cylinders
UTC-4727G	2000 kN Capacity General Purpose Compression Testing Frame with Ø 300 mm Loading Platens for Cubes and Cylinders
UTC-4737G	3000 kN Capacity General Purpose Compression Testing Frame with Ø 300 mm Loading Platens for Cubes and Cylinders
UTC-4680A	Pedestal for ASTM 600 kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf), Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls

General purpose testing frames for cubes and cylinders consist of a rigid welded steel walls, a loading cylinder assembly and Ø 216 mm or Ø 300 mm a lower and an upper (spherically-seated) loading platens by taking into account user requests for general purposes.

The frames have a 380 mm vertical clearance that make possible to perform compression test of cylinders with capping retainers and neopren pads.

The General Purpose compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.

Any hydraulic power pack with control and read out unit and a pressure transducer for measuring the loads, can be positioned on the right hand side of the load frames for easier accessibility, increased productivity and for safer operations.

All frames also have front and rear protective doors and limit swich for piston stroke for safety,

UTC-4680A and UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below tables for supplied items with the frames.

GENERAL PURPOSE COMPRESSION TESTING FRAMES WITH Ø216 mm LOADING PLATENS FOR CUBES AND CYLINDERS
Models	UTC-4713G	UTC-4723G	UTC-4733G
Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 216 mm (8,5”)	Ø 216 mm (8,5”)	Ø 216 mm (8,5”)
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 216 mm (8,5”)	Ø 216 mm (8,5”)	Ø 216 mm (8,5”)
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm	0,05 mm
Piston Diameter	230 mm	250 mm	300 mm
Piston Stroke	50 mm	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm (13,4")	340 mm (13,4")	340 mm (13,4")
Horizontal Clearance (B)	320 mm	360 mm	415 mm
For Cylinder Specimens Sizes (up to)	Ø160x320 mm	Ø160x320 mm	Ø160x320 mm
For Cubes Specimens Sizes (up to)	150 mm (**)	200 mm (**)	200 mm (**)
*Dimensions (wxlxh) (AxdxF)**	380x451x1104 mm	420x453x1144 mm	475x497x1204 mm
Weight	540 kg	630 kg	850 kg
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The frames are supplied complete with;* *• 100 mm, 50 mm and 2 pcs. 30 mm x Ø165 mm distance pieces* *• Removable transparent front and rear safety doors*

GENERAL PURPOSE COMPRESSION TESTING FRAMES WITH Ø 300mm LOADİNG PLATENS FOR CUBES AND CYLİNDERS
Models	UTC-4727G	UTC-4737G
Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 300 mm	Ø 310 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 300 mm	Ø 300 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	350 mm	350 mm
Horizontal Clearance (B)	360 mm	415 mm
For Cylinder Specimens Sizes (up to)	Ø160x320 mm	Ø160x320 mm
For Cubes Specimens Sizes (up to)	200 mm (**)	200 mm (**)
*Dimensions (wxlxh) (AxdxF)**	420x453x1144 mm	475x497x1204 mm
Weight	665 kg	890 kg
Pedestal (Optional)	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The frames are supplied complete with;* *• 100 mm, 50 mm and 30 mm x Ø205 mm distance pieces* *• Removable transparent front and rear safety doors*

36. GENERAL Purpose and EN 772-1 Compression Testing Frames For Masonary UnitsBlocks, Cubes and Cylinders

Request Catalog

Product Code

UTC-4714GE	1500 kN General Purpose and EN 772-1 Compressıon Testıng Frames For Masonary Units/Blocks, Cubes and Cylinders
UTC-4729GE	2000 kN General Purpose and EN 772-1 Compressıon Testıng Frames For Masonary Units/Blocks, Cubes and Cylinders
UTC-4739GE	3000 kN General Purpose and EN 772-1 Compressıon Testıng Frames For Masonary Units/Blocks, Cubes and Cylinders
UTC-4680A	Pedestal for ASTM 1550 kN (348000 lbf), 2000 kN (450000 lbf), 2200 kN (495000lbf) and 3000 kN (670000 lbf) Compression Testing Frames with Welded Walls
UTC-4682A	Pedestal for 2000kN and 3000 kN Compression Testing Frames with Welded Walls

UTC-4714GE, UTC-4729GE nd UTC-4739GE, general purpose testing frames for masonary units/blocks cubes and cylinders consist of a rigid welded steel walls, a loading cylinder assembly and a lower and an upper (spherically-seated) loading platens by taking into account user requests for general purposes.

The frames provide the stability needed for accurate and repeatable test results over the years of operation.

The frames also have front and rear protective doors and limit swich for piston stroke for safety.

UTC-4680A and UTC-4682A Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below tables for supplied items with the frame.

GENERAL PURPOSE AND EN 772-1 COMPRESSION TESTING FRAMES FOR MASONARY UNITS/BLOCKS, CUBES AND CYLINDERS
Models	UTC-4714GE	UTC-4729GE	UTC-4739GE
Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	220x410x50mm	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	220x410x50mm	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC
Flatness Tolerance	0,05 mm	0,05 mm	0,05 mm
Piston Diameter	230 mm	250 mm	300 mm
Piston Stroke	50 mm	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm	330 mm	330 mm
Horizontal Clearance (B)	320 mm	360 mm	415 mm
Specimens Sizes ()**	up to 200x400 mm masonary units/blocks	up to 300x500 mm masonary units/blocks
	up to Ø160x320 mm cylinders
	200 mm cubes
*Dimensions (wxlxh) (AxdxF)**	380x451x1104 mm	420x600x1144 mm	475x600x1204 mm
Weight	620 kg	780 kg	1000 kg
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
*(d) depth () Limited by capacity of the frame *The Frame for blocks, cubes and cylinders is supplied complete with;* **• 100 mm, 50 mm, 30mm height x Ø205 mm distance pieces (plus 15 mm x Ø165 mm for UTC-4714GE) • Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629) • Removable transparent front and rear safety doors • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.**

37. Lower and Upper Platens

Request Catalog

Product Code

UTC-4511	Lower and Upper (spherically seated) Bearing Blocks, Ø105 mm (6,5”), ASTM C39
UTC-4512	Lower and Upper (spherically seated) Bearing Blocks, Ø165mm (6,5”), ASTM C39
UTC-4513	Lower and Upper (spherically seated) Bearing Blocks, Ø216 mm (8,5”), ASTM C39
UTC-4514	Lower and Upper (spherically seated) Loading Platens, (220x410x50) mm (8,66x16,1x1,97”)
UTC-4516	Lower and Upper (spherically seated) Bearing Blocks, (310x410x90) mm (8,66x16,1x1,97”), ASTM C140
UTC-4517	Lower and Upper (spherically seated) Loading Platens, Ø 300 mm, EN 12390-4
UTC-4518	Lower and Upper (spherically seated) Loading Platens, Ø360 mm, EN 12390-4
UTC-4519	Lower and Upper (spherically-seated) Loading Platens, 310x510x50 mm EN 12390-4 and EN 772-1
UTC-4528	Upper Bearing Platens Replacement Console, for UTC-4725 and UTC-4735
UTC-4622E	Fixture for Centering Specimens for Ø300mm Lower Loading Platen
UTC-4624E	Fixture for Centering Specimens for Ø360mm Lower Loading Platen
UTC-4626E	Fixture for Centering Specimens for 310x510x50mm Lower Loading Platen for UTC-5729, UTC-5739, UTC-6729, UTC-6739 UTC-6749 and UTC-6759 frames
UTC-4629	Scissor Jack for Loading Platens/Bearing Blocks for UTC-4514, UTC-4516 and UTC-4519

The platens enable the testing of a wide variety of cylinder, cube, blocks or similar specimens.

Manufactured from high quality steel, which is then hardened, smoothed and finished
The roughness value for the surface texture of the platens are ≤ 3.2 µm
UTC-4512, UTC-4513, UTC-4517 and UTC- 4518 have centering rings on the lower platens for proper centering of 100 mm and 150 mm cube, 100 mm and 150 mm cylinder samples
Ø 300 mm UTC-4517 has an specimen centering apparatus on lower platen as standard for 150 mm cube

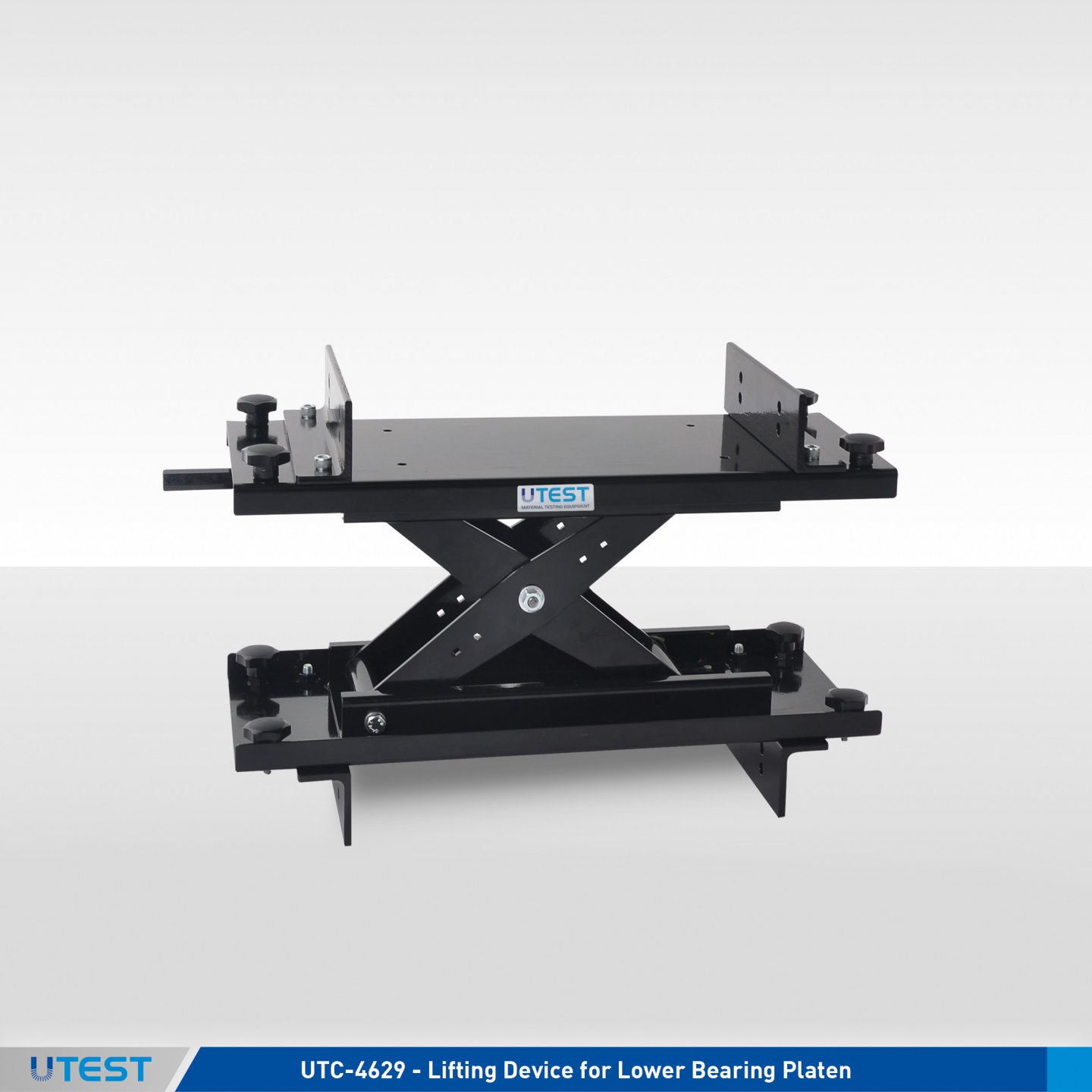

Lifting Device for Lower Loading Platen (UTC-4629) which can be used easy replacement of the distance pieces between the piston and the lower platen for setting the vertical clearence of the frames. The device should be ordered separately for UTC-4514, UTC-4516 and UTC-4519.

UTC-4511 UTC-4512 UTC-4513 UTC-4514

UTC-4516 UTC-4517 UTC-4518 UTC-4519

	UTC-4511	UTC-4512	UTC-4513	UTC-4514	UTC-4516	UTC-4517	UTC-4518	UTC-4519
Sizes of Platens (mm)	Ø105mm (4,13”)Upper Ø165mm (6,5”) Lower	Ø165 mm (6,5”)	Ø216 mm (8,5”)	220x410x50 mm	310x410x90 mm (12,2”x16,1” x3,54”)	Ø300 mm	Ø360 mm	310x510x50 mm
Sizes of Specimens (Can be tested)	2", 3", 4" dia. cylinders	4", 6" dia. cylinders	6" dia. cylinders	Blocks up to 220x410mm	Blocks up to 310x390mm (8,7”x15”,3”)	100, 150, 160, 250 mm dia. cylinders 100, 150, 200 mm cubes	100, 150, 160, 250 mm dia. cylinders 100, 150, 200 mm cubes	Masonary Units up to 310x510 mm
Standards	ASTM C39	ASTM C39	ASTM C39	EN 772-1	ASTM C140 C1314	EN 12390-4	EN 12390-4 For ≥ 4000 kN compression frames.	EN 12390-4 EN 772-1
Hardness	≥ 55 HRC	≥ 55 HRC	≥ 55 HRC	≥ 600 HV	≥ 60 HRC	≥ 53 HRC	≥ 53 HRC	≥ 600 HV
Dimensions (cm)	11x11x13 (4,3”x4,3”x5”)	17x17x13 (6,7”x6,7”x5”)	22x22x13 (8,7”x8,7”x5”)	23x43x15	33x43x15 (13”x17”x6”)	32x32x20 mm	43x43x30 mm	33x50x14 mm
Weight	7 kg (15,4 lbs)	20 kg (44 lbs)	37 kg (82 lbs)	170 kg	200 kg (241 lbs)	75 kg	110 kg	180 kg

38. Distance Pieces and Pedestal

Request Catalog

Product Code

UTC-4630	Distance Pieces, Ø 165x15 mm (Ø6,5”x0,59”)
UTC-4631	Distance Pieces, Ø 165x30 mm (Ø6,5”x1,18”)
UTC-4633	Distance Pieces, Ø 165x50 mm (Ø6,5”x1,97”)
UTC-4634	Distance Pieces, Ø 165x100 mm (Ø6,5”x3,93”)
UTC-4635	Distance Pieces, Ø 205x15 mm (Ø8,07”x0,59”)
UTC-4636	Distance Pieces, Ø 205x30 mm (Ø8,07”x1,18”)
UTC-4638	Distance Pieces, Ø 205x50 mm (Ø8,07”x1,97”)
UTC-4639	Distance Pieces, Ø 205x100 mm (Ø8,07”x3,93”)
UTC-4680	Pedestal for 600kN (135000 lbf), 1100 kN (245000 lbf) and 1500 kN (335000 lbf) Compression Testing Frames
UTC-4682	Pedestal for 2000 kN (450000 lbf) and 3000 kN (670000 lbf) Compression Testing Frames
UTC-4684	Pedestal for Four Column 2000 kN (45000 lbf) and 3000 kN (670000 lbf) Compression Testing Frames
UTC-4686	Pedestal for Four Column 4000 kN (900000 lbf) and 5000 kN (1250000 lbf) Compression Testing Frames

Standards

EN 12390-3, 12390-4; BS 1881; ASTM C39

Distance pieces are used to reduce the amount of vertical clearance between the upper platen and the lower platen. For lowering the minimum distance between upper and lower platens down to required height.

Distance pieces are equipped with handles.

Product Code	Dimensions	Weight (approx.)
UTC-4630	165x165x15 mm (6,5”x6,5”x0,59”)	2,5 kg (5,5 lbs)
UTC-4631	165x165x30 mm (6,5”x6,5”x1,18”)	5 kg (11 lbs)
UTC-4633	165x165x50 mm (6,5”x6,5”x1,97”)	8 kg (17,6 lbs)
UTC-4634	165x165x100 mm (6,5”x6,5”x3,93”)	15,5 kg (34,2 lbs)
UTC-4635	205x205x30 mm (8,07”x8,07”x0,59”)	4 kg (8,8 lbs)
UTC-4636	205x205x30 mm (8,07”x8,07”x1,18”)	8 kg (17,6 lbs)
UTC-4638	205x205x50 mm (8,07”x8,07”x1,97”)	13 kg (28,7 lbs)
UTC-4639	205x205x100 mm (8,07”x8,07”x3,93”)	24,5 kg (54,0 lbs)
UTC-4680	545x540x545 mm	50 kg
UTC-4682	725x540x445 mm	55 kg
UTC-4684	775x580x445 mm	84 kg
UTC-4686	785x580x445 mm	90 kg

LOADING CYLINDER ASSEMBLY

All frames have a single acting up stroking ram. The diameter of the piston is designed to work with the load capacity.

The maximum ram movement is 50 mm. The pressure transducer is used for load measurements. There is a low friction coaxial PTFE seal between the cylinder and the piston fitted to the cylinder.

Loading Cylinder Assembly and Limit Switch

PEDESTAL FOR FRAMES

The pedestals make it easier for the user to placement of specimens in the frames for compression test.

UTC-4680 or UTC-4682 Pedestal

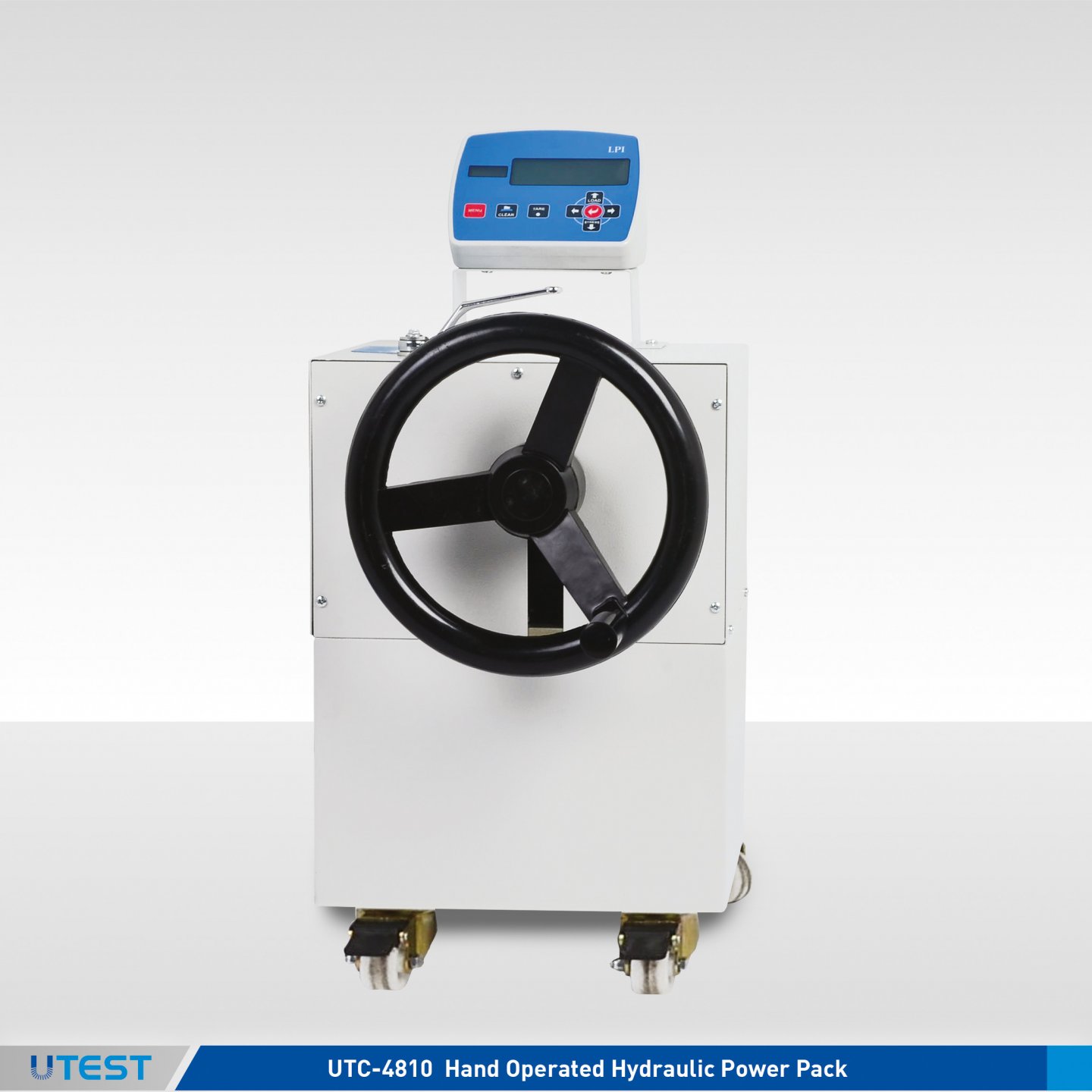

39. Hand Operated Hydraulic Power Pack

Request Catalog

Product Code

UTC-4810MLP	Hand Operated Hydraulic Power Pack with LPI Battery Operated Digital Read-Out Unit
UTC-4810	Hand Operated Hydraulic Power Pack
UTC-4920LP	LPI Battery Operated Digital Read-Out Unit

The UTC-4810MLP Hand Operated (Manual) Hydraulic Power Pack has been designed to be used with range of UTEST compression and flexural frames to use on site and/or where electricity is not available.

The pump is equipped with a radial piston pump so that the loading is continuous as long as the user turns the wheel installed on the pump. The loading is uniform as on an automatic machine. The user can easily load up to 400 bars with minimal effort. Maximum working pressure of system is 400 bar.

UTC-4810MLP consists of UTC-4810 and UTC-4920LP. In this application UTC-4920LP is used for reading the applied load by UTC-4810 in any frame.

The specifaications of the LPI Battery Operated Digital Read-Out Unit can be seen on UTC-4920LP page.

Dimensions	300x250x500 mm
Weight (approx.)	50 kg

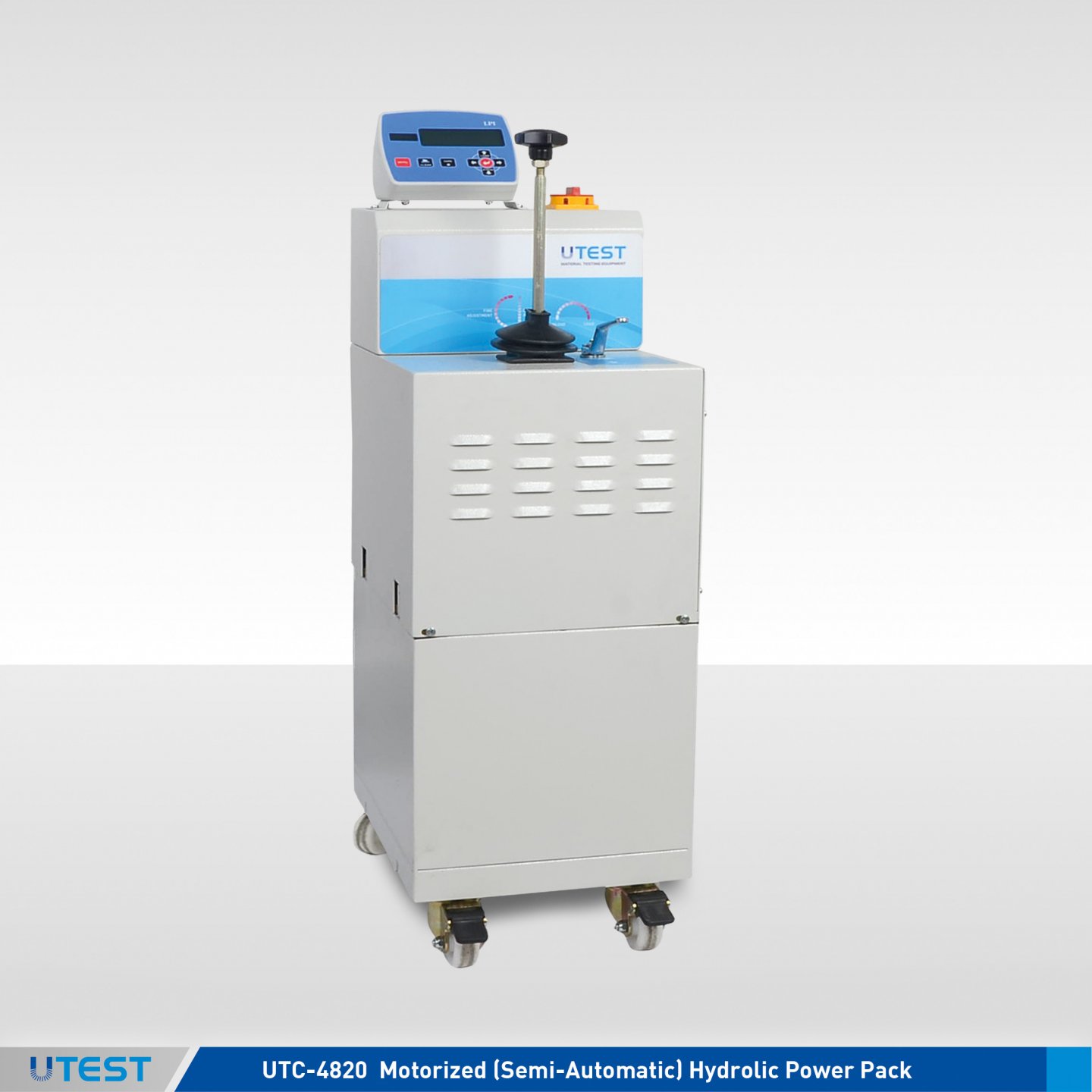

40. Motorized (Semi-Automatic) Power Pack

Request Catalog

Product Code

UTC-4820SLP	Semiautomatic (Motorized) Hydraulic Power Pack With LPI Battery Operated Digital Readout Unit
UTC-4820	Motorized (Semi-Automatic) Hydrolic Power Pack
UTC-4920LP	LPI Battery Operated Digital Read-Out Unit
UTC-4822	Equipment Set to make UTC-4820 and UTC-4820SLP mobile.

Models for 220-240 V 50-60 Hz, 1ph.	UTC-4820
Models for 110-120V 60 Hz, 1ph.	UTC-4820-N

The UTC-4820SLP Motorized (Semi-Automatic) Power Pack, controlled by a pressure rate control valve is designed to supply the required oil to the load frames for loading. The power pack can load different frames with required pace rates. A rapid approach pump is supplied as standard. The power pack is equipped with a safety valve (maximum pressure valve) to avoid machine overloading. Maximum working pressure of the system is 400 bar.

UTC-4920LP is used with UTC-4820 Motorized (Semi-Automatic) Hydrolic Power Pack for reading the applied load during the compression tests. Plase see the page of UTC-4920LP “LPI Battery Operated Digital Read-Out Unit” for details of the properties.

If the UTC-4820SLP is supplied stand-alone, it comes with the UTC-4822 (Equipment Set to make UTC-4820 and UTC-4820SLP mobile).

UTC-4820 and UTC-4920LP should be ordered separately for the supply of UTC-4920.SLP. And also, UTC-4822 should be ordered separately to make the UTC-4820 mobıle.

DUAL STAGE PUMP

Low pressure gear pump
High pressure durable variable output pump

On the dual stage pump, a high delivery low pressure gear pump is used for rapid approach, while a low delivery high pressure durable variable output pump is used for test execution. Rapid approach property of the machine shortens the time interval from when the piston starts moving until the upper platen touches the specimen and helps to save a great amount of time in a busy test laboratory.

MOTOR

Dual pump is driven by an AC motor
220 V (110 V), 50-60 Hz single phase and 550 W

DISTRIBUTION BLOCK

Safety valve (maximum pressure valve)
Pressure relief valve

A distribution block is used to control the oil flow direction supplied by the dual stage pump which has the safety valve and pressure relief valve mounted upon it.

OIL TANK

The tank (20 L capacity) includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil temperature can be seen on the indicator fitted to the tank. Hydraulic motor oil number 46, must be used.

SAFETY FEATURES

Maximum pressure valves to avoid machine overloading

Dimensions	300x420x850 mm
Weight (approx.)	70 kg
Power	550 W

41. Automatic Hydraulic Power Pack with U-Touch PRO Control Unit

Request Catalog

Product Code

UTC-4830.FPR	Automatic Hydraulic Power Pack with U-Touch PRO Control Unit
UTC-4840.FPR	High Oil Capacity Automatic Hydraulic Power Pack with U-Touch PRO Control Unit for the Frames with Double Ended Pistons
UTC-4841.FPR	High Oil Capacity Automatic Hydraulic Power Pack with U-Touch PRO Control Unit for the Frames with Single Ended Pistons
UTC-4832	Equipment Set to make UTC-4830FPR mobile

Models for 220-240V 50-60 Hz, 1ph.	UTC-4830.FPR	UTC-4840.FPR	UTC-4841.FPR
Models for 110-120V 60 Hz, 1ph.	UTC-4830.FPR-N	UTC-4840.FPR-N	UTC-4841.FPR-N

The UTC-4830FPR Automatic Hydraulic Power Pack, dual stage, controlled by U-Touch PRO Control Unit is designed to supply the required oil to the load frames for loading. The power pack is very silent, even at full load A rapid approach pump is supplied as standard. A safety valve (maximum pressure valve) is used to avoid machine overloading.

The UTC-4840FPR and UTC-4841FPR have the same specifications with UTC-4830FPR except for high oil capacity. As the name suggests, UTC-4840FPR is used with the frames with double ended pistons and UTC-4841FPR is used with the frames with single ended pistons.

If the UTC-4830.FPR or UTC-4840.FPR or UTC-4841.FPR is supplied stand-alone, it comes with the UTC-4832 (Equipment Set to make UTC-4830 mobile).

DUAL STAGE PUMP

Low pressure gear pump
High pressure durable variable output pump

On the dual stage pump, a high delivery low pressure gear pump is used for rapid approach, while low delivery high pressure radial piston pump is used for test execution. Rapid approach facility of the machine shortens the time interval from when the piston starts moving until the upper platen touches to the specimen, this facility saves a great amount of time in a busy test laboratory.

MOTOR

The motor which drives the dual pump is a 0.75 kW AC motor which is controlled by an Omron J7 motor inverter. The variation in the oil flow is executed with the variation of the rotation speed of the motor.

DISTRIBUTION BLOCK

Distribution block is used to control the oil flow direction supplied by the dual stage pump and the following hydraulic components are fitted to it:

a - Solenoid valve

b - Safety valve (maximum pressure valve)

c - Transducer

d - Low pressure gear pump

e - High pressure radial piston pump

OIL TANK

The tank includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil temperature can be seen on the indicator fitted to the tank. The oil capacity of the tank is 20 lt. for UTC-4830FPR and and 32 lt. for UTC-4840 FPR. Hydraulic motor oil, number 46, must be used.

PLEASE see the pages of “U-Touch PRO Control Unit UTC-4930.FPR” for details of the properties.

UTC-4830.FPR UTC-4840.FPR

	UTC-4830.FPR	UTC-4840.FPR
Dimensions	370x400x920 mm	605x455x1015 mm
Weight (approx.)	85 kg	150 kg
Power	1000 W	1000 W

42. Flexural Frames Rectangle Type

Request Catalog

Product Code

UTC-5610	100 kN Flexural Testing Frame, Rectangle Type
UTC-5620	200 kN Flexural Testing Frame, Rectangle Type
UTC-5622	200 kN Flexural Testing Frame, TWOFLEX

Standards

EN 1338, 1339, 1340, 1341, 1343, 12390-5, 12390-6; BS 1881;

ASTM C78, C293, C496

The versatile UTEST Flexural Testing Frames are designed for minimum deflection at maximum load resulting in very high accuracy. The load frame is a welded steel fabrication carrying the ram fitted to the upper crosshead. The frames have a single acting down stroking ram.The return of the ram is done by spring to get maximum accuracy on the load measurement. A load cell is used for load measurements on all frames.

Each model is designed to accept all accessories required for flexural, transverse or compression tests.

UTEST Flexural Frames models are designed to allow easy and practical front loading of the specimens.

UTC-5622 TWOFLEX frame provides the advantage of being able to perform flexural tests on longer specimens

The load frame provides the stability needed for accurate and repeatable test results over the years of operation.

All frames can be connected to any UTEST compression machine as a second frame or can be used with any UTEST power pack as an independent Flexural Machine.

The main characteristics are:

High stability/rigidity welded assembly (200 kN/mm stiffness)
Can be used for flextural strength tests of concrete paving flag and natural stone slabs, concrete or natural stone kerbs and tensile splitting test of concrete paving blocks
Safety limit switch for piston stroke
High accuracy load measurement with strain gauge load cells
Can accept wide range of accessories for mentioned standards
Can be connected to any UTEST compression machine or UTEST power pack

Test assemblies such as;

UTC-5501 for flextural strengt test of concrete beam,
UTC-5502 for testing concrete kerb,
UTC-5504 for testing flagstone
UTC-0355 and UTC-8516 for indirect tensile strengt test of paving block,
UTC-0360 and UTC-8516 for splitting tensile strengt test of concrete cubes,
UTC-0350 and UTC-8516 for splitting tensile strengt test of concrete
For ompressive strengt test of any construction material, UTM-8516 and additionally distance pieces suitable for the height of the specimen to be tested (UTC-4630, UTC-4631, UTC-4633 and UTC-4634)

should be ordered separately.

Product Code		UTC-5610	UTC-5620	UTC-5622
Capacity		100 kN	200 kN	200 kN
Ram Travel		120 mm	120 mm	120 mm
Max. Vertical Clearance	with UTC-5501	165 mm	165 mm	165 mm
	with UTC-5502	233 mm	233 mm	233 mm
	with UTC-5504	140 mm	140 mm	140 mm
Max. Horizontal Clearance		820 mm	820 mm	820 mm
Max. Clerance Between Lower Rollers		100 to 720 mm	100 to 720 mm	100 to 720 mm (Parallel to frame) 720 to 1150 mm (perpendicular to frame)
Ram return by		Spring	Spring	Spring
Overall Dimensions		580x960x1270 mm	580x960x1270 mm	1060x1290x1210 mm
Weight (approx.)		200 kg	200 kg	240 kg

43. Flexural Frame C Type

Request Catalog

Product Code

UTC-5630

300 kN Capacity Flexural Testing Frame C Type

Standards

EN 1338, 1339, 1340, 1341, 1343, 12390-5, 12390-6; BS 1881;

ASTM C78, C293, C496

C type Flexural Testing Frame is designed for minimum deflection at maximum load resulting in very high accuracy. The load frame provides the stability needed for accurate and repeatable test results over the years of operation.The frame has a single acting down stroking ram.The return of the ram is done by spring to get maximum accuracy on the load measurement. A load cell is used for load measurements on all frames.

UTC-5630 is designed to accept all accessories required for flexural, transverse or compression tests.

The frame can be connected to any UTEST compression machine as a second frame or can be used with any UTEST power pack as an independent Flexural Machine.

The main characteristics is:

High stability welded assembly
Can be used for flextural strength tests of concrete paving flag and natural stone slabs, concrete or natural stone kerbs and tensile splitting test of concrete paving blocks
Safety limit switch for 100 mm piston stroke
High accuracy load measurement with strain gauge load cells
Can accept wide range of accessories for mentioned standards
Can be connected to any UTEST compression machine or UTEST power pack

Test assemblies such as;

Flextural strengt test of concrete beam (UTC-5501), concrete kerb (UTC-5502) and flagstone (UTC-5504), Indirect tensile strengt test of paving block (UTC-0355 and UTC-5510), Splitting tensile strengt test of concrete cubes (UTC-0360) and cylinders (UTC-0350)
Compression strengt test of any construction material (UTM-8516) and distance pieces UTC-4630, UTC-4631, UTC-4633 and UTC-4634 should be ordered separately.

Product Code		UTC-5630
Capacity		300 kN
Ram Travel		100 mm
Max. Vertical Clearance	with UTC-5501	165 mm
	with UTC-5502	233 mm
	with UTC-5504	140 mm
Max. Clerance Between Lower Rollers		900 mm
The Distance Between The Center of The Piston to The Side of The Frame		320 mm
Ram return by		Spring
Overall Dimensions		1100x900x1250 mm
Weight (approx.)		555 kg

44. Flexural Frame Four Column Type

Request Catalog

Product Code

UTC-5660

600 kN Capacity Flexural Frame Four Column Type

Standard

EN 1338, 1339, 1340, 12390-5, 12390-6; ASTM C78, C293, C496

UTEST 600 kN capacity flexural frame is designed for minimum deflection at maximum load resulting in very high accuracy. The load frame is a four column design carrying the ram fitted to the upper crosshead. The frames has a double acting stroking ram with over travel switch protection to shut the machine down when maximum ram travel is reached. A load cell is used for load measurements on the frame.

The load frame provides the stability needed for accurate and repeatable test results over the years of operation.

The main characteristics are:

High stability four column design
Has the accuracy of Class 1 starting from 2% of the full capacity.
Has special equipment to place the heavy specimens
Can be connected to any Utest hydraulic power unit similar UTC-4840FPR
Safety limit switch for 420 mm piston stroke

Supplied complete with;

Special speciment placement equipment for heavy specimens,
A scissor jack (1,5 ton capacity) for placement of heavy specimens
Flexural testing assembly with 2 upper and 2 lower rollers (Ø40x420 mm)

Capacity	600 kN
Ram Type	Double Acting
Ram Travel	420 mm
Max. Vertical Clearance between upper and lower rollers ((Ø40x420 mm)	430 mm
Max. Horizontal Clearance between the columns of the frame (In the direction of the special specimen placement equipment,)	640 mm
Max. Horizontal Clearance between the columns of the frame (In the other direction)	500 mm
Max. Clerance Between Lower Rollers	2360 mm
Min. Clerance Between Upper Rollers	100 mm
Max. Clerance Between Lower Rollers	400 mm
Overall Dimensions (Frame)	1040x2500x2810 cm
Overall Dimensions (Frame with the special specimen placement equipment)	1040x5620x2810 cm
Weight with the special specimen placement equipment and the scissor jack (approx.)	3000 kg

45. Manual Flexural Testing Machine

Request Catalog

Product Code

UTC-5610.MLP

100 kN Flexural Testing Frame, Rectangle Type

Standard

EN 1338, 1340, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C496

The UTC-5610.MLP 100 kN Capacity Manual Flexure Testing Machines is designed to perform reliable flexure tests on standard concrete beams, concrete or natural stone kerbs, concrete paving flags, and natural stone slabs and tensile splitting test of concrete paving blocks. Especially suitable for on-site applications when electric power supply is not available.

Being a low cost alternative, UTC-5610.MLP testing machine combines precision and simplicity with the unique design of the manual power pack. Hand Operated Hydraulic Power Pack enables even an inexperienced operator to perform the flexure tests on-site.

The UTEST range of flexural machines have the accuracy of Class 1 starting from 2% of the full capacity.

UTC-5610.MLP flexure testing machines consists of a heavy duty welded frame and manuel hydraulic power pack with data acquisition system LPI.

Flextural test assemblies should be ordered separately.

Product Code		UTC-5610.MLP
Capacity		100 kN
Class 1 range		2-100 kN
Resolution		1/65.000
Ram Travel		100 mm
Max. Vertical Clearance	with UTC-5501	165 mm
	with UTC-5502	233 mm
	with UTC-5504	140 mm
Max. Horizontal Clearance		720 mm
Max. Clerance Between Lower Rollers		600 mm
Frame		UTC-5610
Power Pack		UTC-4810
Overall Dimensions	Frame	1170x515x1130 mm
	Power Pack	300x250x850 mm
Weight (approx.)	Frame	170 kg
	Power Pack	70 kg

46. Semi-Automatic Flexural Testing Machine

Request Catalog

Product Code

UTC-5610.SLP

100 kN Semi-Automatic

Flexural Testing Machine

UTC-5620.SLP

200 kN Semi-Automatic

Flexural Testing Machine

Models for 220-240V 50-60 Hz, 1ph	UTC-5610.SLP	UTC-5620.SLP
Models for 110-120V 60 Hz, 1ph	UTC-5610.SLP-N	UTC-5620.SLP-N

Standard

EN 1338, 1339, 1340, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C496

The UTEST Semi-Automatic flexural testing machines have been designed for reliable and consistent testing of flexural test on standard concrete beams, concrete or natural stone kerbs, concrete paving flags and natural stone slabs and tensile splitting test of concrete paving blocks.

These flexure testing machines are the results of continuous research to upgrade testing machines with latest technologies and to conform to the latest standards EN 12390-5, EN 12390-6, EN 1338, EN 1340, BS 1881, ASTM C78, C293 and C496 in terms of its technical properties taking into account client requirements. These testers also meet the requirements of CE norms for health and safety of the operator.

The UTEST Semi-Automatic flexural testing machines allow inexperienced operators to perform the test.

The flexural testing machines consists of a heavy duty welded frame and semi automatic hydraulic power pack and with data acquisition system LPI.

UTC-5610.SLP and UTC-5620.SLP are designed to allow easy and practical front loading of the specimens.

The UTEST range of Flexural Machines have the accuracy of Class 1 starting from 2% of the full capacity.

Safety Features

Max pressure valve to avoid machine overloading
Ram travel switch to prevent excessive piston travel

The test assemblies such as;

UTC-5501 for flextural strengt test of concrete beam,
UTC-5502 for testing concrete kerb,
UTC-5504 for testing flagstone
UTC-0355 and UTC-8516 for indirect tensile strengt test of paving block,
UTC-0360 and UTC-8516 for splitting tensile strengt test of concrete cubes,
UTC-0350 and UTC-8516 for splitting tensile strengt test of concrete
For ompressive strengt test of any construction material, UTM-8516 and additionally distance pieces suitable for the height of the specimen to be tested (UTC-4630, UTC-4631, UTC-4633 and UTC-4634)

should be ordered separately.

Product Code		UTC-5610.SLP	UTC-5620.SLP
Capacity		100 kN	200 kN
Class 1 Range		2-100 kN	2-400 kN
Resolution		1/65.000	1/65.000
Ram Travel		120 mm	120 mm
Max. Vertical Clearance	with UTC-5501	165 mm	165 mm
	with UTC-5502	233 mm	233 mm
	with UTC-5504	140 mm	140 mm
Max. Horizontal Clearance		820 mm	820 mm
Max. Clerance Between Lower Rollers		100 to 720 mm	720 mm
Frame		UTC-5610	UTC-5620
Semi-Automatic Power Pack with LPI Digital Readout Unit		UTC-4820SLP	UTC-4820SLP-N
Overall Dimensions	Frame	580x960x1270 mm	580x960x1270 mm
Overall Dimensions	Power Pack	300x420x850 mm	300x420x850 mm
Weight (approx.)	Frame	200 kg	200 kg
Weight (approx.)	Power Pack	70 kg	70 kg

47. Automatic Flexural Testing Machines Rectangle Type

Request Catalog

Product Code

UTC-5610.FPR	100 kN Automatic Flexural Testing Machine
UTC-5620.FPR	200 kN Automatic Flexural Testing Machine
UTC-5622.FPR	200 kN Automatic Flexural Testing Machine, TWOFLEX

Models for

220-240V 50-60 Hz, 1ph

UTC-5610.FPR

UTC-5620.FPR

UTC-5622.FPR

Models for

110-120V 60 Hz, 1ph

UTC-5610.FPR-N

UTC-5620.FPR-N

UTC-5622.FPR-N

Standard

EN 1338, 1339, 1340, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C496

The UTEST Automatic flexural testing machines have been designed for reliable and consistent testing of flexural test on standard concrete beams, concrete or natural stone kerbs, concrete paving flags, and natural stone slabs and tensile splitting test of concrete paving blocks. These flexure testing machines are the result of continuous research to upgrade the testing machines with latest technologies to conform to the latest standards EN 12390-5, EN 12390- 6, EN 1338, EN 1340, BS 1881, ASTM C78, C293 and C496 in terms of its technical properties taking into account client requirements. These also meet the requirements of CE norms for health and safety of the operator.

Tests can be performed by either on U-Touch PRO Control Unit or on a computer with using free UTEST Software. The advantages of performing tests on computer with using UTEST Software, such as reporting, graphical output, etc.

UTC-5622 TWOFLEX machine provides the advantage of being able to perform flexural tests on longer specimens.

The UTEST Automatic flexural testing machines allow inexperienced to perform the test. Once the machine is switched on and specimen is placed, then the only required operations are;

Setting test parameters, including pace rate only required when the specimen type is changed.
Pressing the START button on the control unit.
The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure.
Automatically saves the test parameters and test results.

The UTEST range of Flexural Machines have the accuracy of Class 1 starting from 2% of the full capacity.

The Machines consist of a rigid steel frame and hydraulic power pack with U-Touch PRO Control Unit (see table).The software (USOFT-4830.FPR) is provided free of charge with the machines.

UTEST Auromatic Flexural Testing Machines are designed to allow easy and practical front loading of the specimens.

The test assemblies such as;

UTC-5501 for flextural strengt test of concrete beam,
UTC-5502 for testing concrete kerb,
UTC-5504 for testing flagstone
UTC-0355 and UTC-8516 for indirect tensile strengt test of paving block,
UTC-0360 and UTC-8516 for splitting tensile strengt test of concrete cubes,
UTC-0350 and UTC-8516 for splitting tensile strengt test of concrete

should be ordered separately.

The main characteristics are:

Closed loop control with automatic test procedure
Supplied with factory calibration certificate for load measurement
Can perform the test with load control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.

Load measurment with a loadcell
Welded steel frame

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties .

UTEST Software for Automatic Compression / Flexure Testing Machines

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

Safety Features

Maximum pressure valves to avoid machine overloading
Piston travel limit switch
Emergency stop button
Software controlled maximum load value

Product Code		UTC-5610.FPR	UTC-5620.FPR	UTC-5622.FPR
Capacity		100 kN	200 kN	200 kN
Class 1 Range		2-100 kN	4-200 kN	4-200 kN
Resolution		1/65.000	1/65.000	1/65.000
Ram Travel		120 mm	120 mm	120 mm
Max. Vertical Clearance	with UTC-5501	165 mm	165 mm	165 mm
	with UTC-5502	233 mm	233 mm	233 mm
	with UTC-5504	140 mm	140 mm	140 mm
Max. Horizontal Clearance		820 mm	820 mm	820 mm
Max. Clerance Between Lower Rollers		100 to 720 mm	100 to 720 mm	100 to 720 mm (Paralel direction to frame) 720 to 1150 mm (vertical direction to frame)
Frame		UTC-5610	UTC-5620	UTC-5620
Automatic Power Pack		UTC-4830FPR	UTC-4830FPR	UTC-4830FPR
Overall Dimensions	Frame	580x960x1270 mm	580x960x1270 mm	1060x1290x1210 mm
Overall Dimensions	Power Pack	300x420x850 mm	300x420x850 mm	300x420x850 mm
Weight (approx.)	Frame	200 kg	200 kg	240 kg
Weight (approx.)	Power Pack	70 kg	70 kg	70 kg

48. Automatic Flexural Testing Machine C Type

Request Catalog

Product Code

UTC-5630.FPR

300 kN Automatic Flexural Testing Machine

C Type

Models for 220-240V 50-60 Hz, 1ph	UTC-5630.FPR
Models for 110-120V 60 Hz, 1ph	UTC-5630.FPR-N

Standard

EN 1338, 1339, 1340, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C496

The Flexural testing machine UTC-5630.FPR has been designed for reliable and consistent testing of flexural test on standard concrete beams, concrete or natural stone kerbs, concrete paving flags, and natural stone slabs and tensile splitting test of concrete paving blocks. taking into account client requirements. These also meet the requirements of CE norms for health and safety of the operator.

UTC-5630.FPR Flexural testing machine allows inexperienced to perform the test. Once the machine is switched on and specimen is placed, then the only required operations are;

Setting test parameters, including pace rate only required when the specimen type is changed.
Pressing the START button on the control unit.
The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure.
Automatically saves the test parameters and test results.

UTC-5630.FPR has the accuracy of Class 1 starting from 2% of the full capacity.

The Machine consists of a rigid steel frame and hydraulic power pack with U-Touch PRO Control Unit(see table).The software (USOFT-4830.FPR) is provided free of charge with the machines.

UTEST Flexural Machine UTC-5630.FPR is designed to allow easy and practical front loading of the specimens.

The test assemblies such as;

UTC-5501 for flextural strengt test of concrete beam,
UTC-5502 for testing concrete kerb,
UTC-5504 for testing flagstone
UTC-0355 and UTC-8516 for indirect tensile strengt test of paving block,
UTC-0360 and UTC-8516 for splitting tensile strengt test of concrete cubes,
UTC-0350 and UTC-8516 for splitting tensile strengt test of concrete
For ompressive strengt test of any construction material, UTM-8516 and additionally distance pieces suitable for the height of the specimen to be tested (UTC-4630, UTC-4631, UTC-4633 and UTC-4634)

should be ordered separately

The main characteristics are:

Closed loop control with automatic test procedure
Supplied with factory calibration certificate for load measurement
Can perform the test with load control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
Load measurment with a loadcell
Welded steel frame

U-Touch PRO Control Unit for Automatic Compression / Flexural Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexural Testing Machines ”for details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

UTEST software USOFT-4830.FPR provides to perform automatically compression, Flexural and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / Flexural testing machines

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

Safety Features

Maximum pressure valves to avoid machine overloading
Piston travel limit switch
Emergency stop button
Software controlled maximum load value

Product Code		UTC-5630.FPR
Capacity		300 kN
Class 1 Range		6-300 kN
Resolution		1/65.000
Ram Travel		100 mm
Max. Vertical Clearance	with UTC-5501	165 mm
	with UTC-5502	233 mm
	with UTC-5504	140 mm
Max. Clerance Between Lower Rollers		900 mm
The Distance Between The Center of The Piston to The Side of The Frame		320 mm
Frame		UTC-5630
Power Pack		UTC-4830FPR
Overall Dimensions	Frame	1000x950x1130 mm
	Power Pack	370x400x920
Weight (approx.)	Frame	555 kg
	Power Pack	85 kg

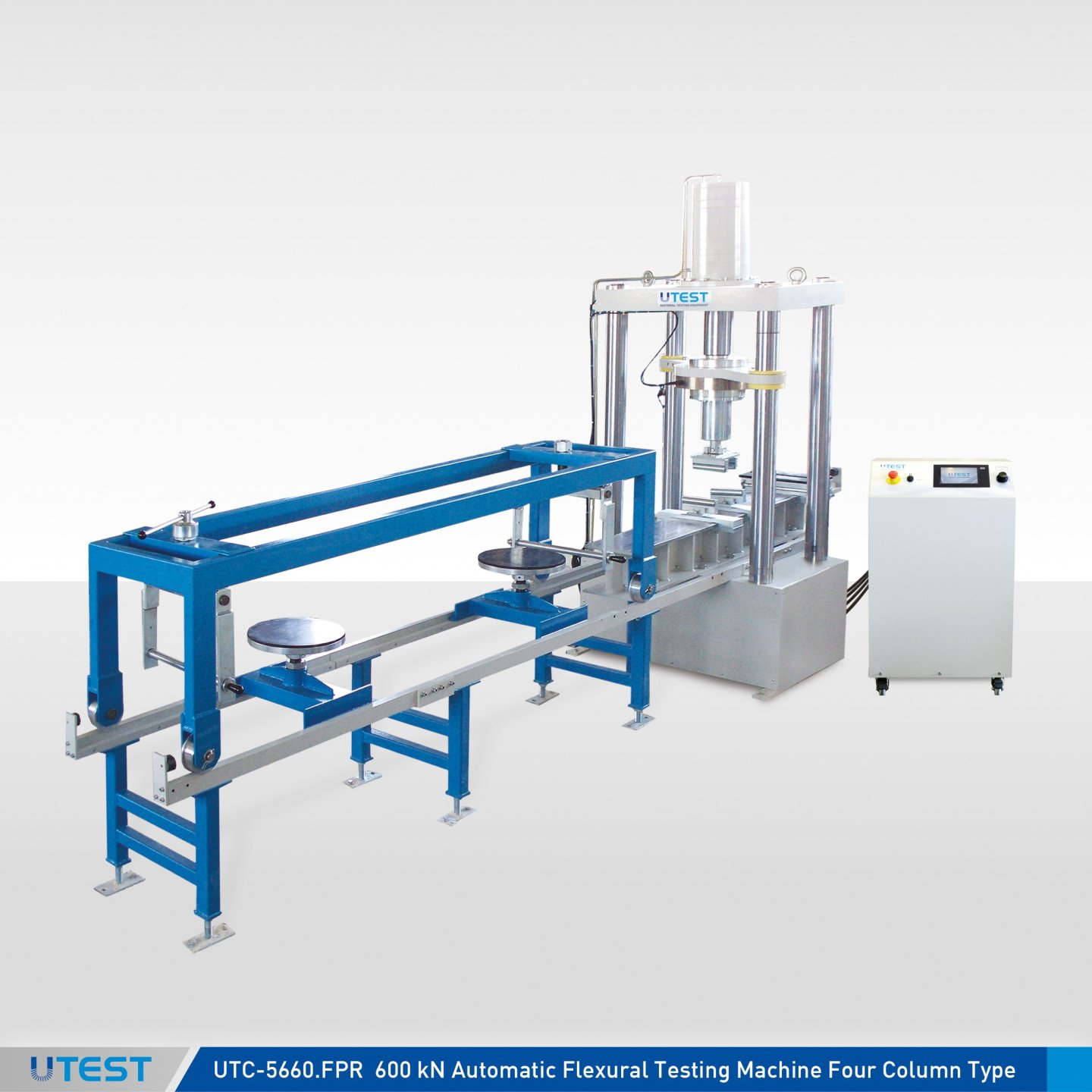

49. Automatic Flexural Testing Machine Four Column Type

Request Catalog

Product Code

UTC-5660.FPR

Automatic Flexural Testing Machine

Four Column Type

Models for 220-240V 50-60 Hz, 1ph	UTC-5660.FPR
Models for 110-120V 60 Hz, 1ph	UTC-5660.FPR-N

UTEST 600 kN capacity flexural testing machines are designed to support specific requirements of clients especially big sized concrete beam specimens.Different sizes of flextural testing machines such as these machines, can be produced to meet customers' specific need.

UTC-5660.FPR Flexural testing machine allows inexperienced to perform the test. Once the machine is switched on and specimen is placed, then the only required operations are;

Setting test parameters, including pace rate only required when the specimen type is changed.
Pressing the START button on the control unit.
The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure.
Automatically saves the test parameters and test results.

The Machines consist of a rigid steel frame and hydraulic power pack with U-Touch PRO Control Unit (see table). The software (USOFT-4830.FPR) is provided free of charge with the machines.

Supplied complete with a load cell, special placement equipment for heavy specimens, flexural testing assembly with 2 upper and 2 lower rollers (Ø40x420 mm) and a scissor jack (1,5 ton capacity)

The main characteristics are:

Closed loop control with automatic test procedure
Has the accuracy of Class 1 starting from 2% of the full capacity.
Supplied with factory calibration certificate for load measurement
Can perform the test with load control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.

Load measurment with a loadcell
Four coumn type frame with high stability

Supplied complete with;

Special sample placement equipment for heavy specimens,
A scissor jack (1,5 ton capacity) for placement of heavy specimens
Flexural testing assembly with 2 upper and 2 lower rollers (Ø40x420 mm)

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines details of the properties.

UTEST Software for Automatic Compression / Flexure Testing Machines

Safety Features

•Maximum pressure valves to avoid machine overloading
•Piston travel limit switch
•Emergency stop button
•Software controlled maximum load value

Capacity		600 kN
Ram Type		Double Acting
Ram Travel		420 mm
Max. Vertical Clearance between upper and lower rollers ((Ø40x420 mm)		430 mm
Max. Horizontal Clearance between the columns of the frame (In the direction of the special specimen placement equipment,)		640 mm
Max. Horizontal Clearance between the columns of the frame (In the other direction)		500 mm
Max. Clerance Between Lower Rollers		2360 mm
Min. Clerance Between Upper Rollers		100 mm
Max. Clerance Between Upper Rollers		400 mm
Overall Dimensions	Frame	1040x2500x2810 cm
	Frame with the special specimen placement equipment	1040x5620x2810 cm
	Power Pack	610x460x1020 cm
Weight (approx.)	with the special specimen placement equipment	3000 kg
	Power Pack	150 kg

50. Special C Type Flexural Testing Machines

Request Catalog

Product Code

UTC-5663.FPR	C Type 600 kN Flexural Testing Machine with 3m Roller Span
UTC-5666.FPR	C Type 600 kN Flexural Testing Machine with 5,8m Roller Span

Models for 220-240V 50-60 Hz, 1ph	UTC-5660.FPR
Models for 110-120V 60 Hz, 1ph	UTC-5660.FPR-N

UTC-5663.FPR and UTC-5666.FPR Flexural testing machines allow inexperienced to perform the test. Once the machine is switched on and specimen is placed, then the only required operations are;

Setting test parameters, including pace rate only required when the specimen type is changed.
Pressing the START button on the control unit.
The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure.
Automatically saves the test parameters and test results.

The Machines consist of a rigid steel frame and hydraulic power pack with U-Touch PRO Control Unit and provide the stability needed for accurate and repeatable test results over the years of operation.

UTC-5663.FPR is supplied complete with Flexural testing assembly with 2 upper and 2 lower rollers (Ø40x520 mm)

UTC-5666.FPR is supplied complete with Flexural testing assembly with 2 upper and 2 lower rollers (Ø68x630 mm)

The main characteristics are:

Closed loop control with automatic test procedure
Has the accuracy of Class 1 starting from 2% of the full capacity.
Supplied with factory calibration certificate for load measurement
Can perform the test with load control
The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.

Load measurment with a loadcell
High stability welded steel frame

Easy loading and unloading specimens

U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines “ for details of the properties

UTEST Software for Automatic Compression / Flexure Testing Machines

Safety Features

Maximum pressure valves to avoid machine overloading
Piston travel limit switch
Emergency stop button
Software controlled maximum load value

Product Code		UTC-5663	UTC-5666
Capacity		600 kN	600 kN
Ram Type		Double Acting	Double Acting
Ram Travel		600 mm	600 mm
Max. Clerance Between Lower Rollers		3 m	5,8 m
Max. Clerance Between Upper Rollers		100 mm	200 mm
Max. Clerance Between Upper Rollers		1000 mm	2000 mm
Max. Vertical Clearance (without accessories)		860 mm	1040 mm
Max. Vertical Clearance between upper and lower rollers		560 mm	660 mm
Distance from the center of the piston to the side of the frame		340 mm	375 mm
Overall Dimensions	Frame	3200x1400x2750 mm	6000x1400x3000 mm
Overall Dimensions	Power Pack	610x460x1020 mm	610x460x1020 mm
Weight (approx.)	with the special specimen placement equipment	3550 kg	4350 kg
Weight (approx.)	Power Pack	150 kg	150 kg

51. Servo Controlled Universal Automatic Bending Test Machine

Request Catalog

Product Code

UTC-5621.SVD2.2

200 kN (45.000 klbf) All Purpose Servo Controlled Bending Test Machine For FRC and Shotcrete. EN, ASTM.

If other capacity is required, do not hesitate contact with our technical team.

UTC-5641.SVD2.2

400 kN (90.000 klbf) All Purpose Servo Controlled Bending Test Machine For FRC and Shotcrete. EN, ASTM.

Models for 220-240V 50-60 Hz, 1ph.	UTC-5621.SVD2.2M	UTC-5641.SVD2.2M
Models for 110-120V 60 Hz, 1ph.	UTC-5621.SVD2.2M-N	UTC-5641.SVD2.2M-N

Standard

EN 12390-5, 1339, 1340, 14651, 14488-3, 14488-5, 14889-1, 14889-2, 14845-2; ASTM C 78, C 293, C 1609, C 1550

Servo Controlled Universal Automatic Bending Test Machine is specially configured for energy absorption capacity tests and also other tests of fibre reinforced sprayed concrete specimens.

The Machine can be used;

for energy absorption capacity test on fibre reinforced sprayed concrete slab
for four point bending strengths ( first peak, ultimate and residual) tests on fibre reinforced concrete beam specimens.
for flexural tensile strength (limit of proportionality (LOP), residual) for metallic fibre concrete
for findout to effect of fibres used in concrete on strength of concrete
for flexural strength test of concrete beams, paving flags and kerbs
for measuring of deflection on concrete beams
for large specimens (slab, flagstones), concrete beams and kerbs

The machines consist of extremly high stiffness frame and servo controlled hydrolic power pack.

The machine is supplied complete with UTM-8516 (Ø:165 mm Lower and spherical seated upper loading platens), distance pieces (15mm - UTCM-4630, 30 mm - UTCM-4631, 50 mm - UTCM-4633 and 100 mm - UTCM-4634). Other suitable accessories should be ordered separately acc. to the test performed.

Load Frames

The frames of machines are designed torsionally stiff up to the maximum capacity with anti-rotation system to prevent the natural tendency to rotate the columns of frame. The four columns of frame are clamped with zero clearance.

Test cylinder mounted on the top crosshead has double-action with long piston stroke in servo slide quality (particularly low friction). The displacement measurement is achieved through the displacement transducer built in piston.

A directly actuated servo valve is mounted on the test cylinder, to ensure a quick and highly precise process during testing.

An anti-rotation device prevents twisting the piston rod from twisting with the top bending beam and the precision load cell.

The test accessories İncluding energy absorption capacity test assemblies on the frame can be easily removed and the test accessories suitable the test to be performed can be installed.

Different sized frames can be availableon request.

Servo Controlled Automatic Power Pack with Servo Valve and Advanced Motion Control Unit

Load and Displacement Controlled. For Two frames. Can work with double acting pistons. A high response 4,3 lt/min. capacity servo valf is used in hydrolic block.

The power pack contains a hydraulic pump and a fine flow oil filter. The hydraulic unit consists of a high-pressure radial piston pump. All operating and control elements are located on the power pack.The powerpack consists of oil level indicator, high temperature indicator, mechanical filter clogged indicator and cooling unit.

Different type tests with automatic test sequence can be performed by help of free software (USOFT-5621.SVD2 or USOFT-5641.SVD2).

Main Features

Pace rate control from 0.01 kN/s to 15 kN/s and 0.05–100 mm/min (depend on the specimen stiffness)
3 analogue channels for displacement transducers, extensometers, etc. built in the system as an addition to frame loadcells
Instrumentation amplifiers for sensor excitation andamplification
1/65.000 resolution and 1.000 Hz control for each channel
Ethernet port for connecting to computer
240x320 pixel LCD display
Touchscreen operator panel
Can execute load, displacement or strain deformation controlled tests for post peak
Free of charge PC software for test control and advanced report printout
Multiple language support
Real time clock and date

Data Acquisition & Control PC Software

Servo Controlled Universal Bending Test Machines can be controlled (Start, Stop commands) by a computer with the Free of Charge software (USOFT-5621.SVD2 or USOFT-5641.SVD2) supplied with the machine. This software provides data acquisition and management for compression, flexure and splitting tensile test throughout the test execution. The engineering values such as modulus, toughness, energy has been supported. The advanced functions for data base management provide an easy navigation of all saved data. The test results certificate includes all descriptive information. Test parameters can be set and details about the test carried out such as customer details, test type, specimen type, user info and other information required can be entered and printed out as well as test report and graph.

Safety Features

Maximum pressure valves to avoid machine overloading
Piston travel limit switch
Emergency stop button
Software controlled maximum load value

Optional Accessories

The optional accessories should be ordered separately acc. to the test performed.

UTC-5508E	Energy absorption capacity test equipment for fiber reinforced sprayed concrete slab specimens, EN 14488-5. Supplied with a rigit square supporting frame, a square loading block and connection attachments for UTGM-0078.One pcs. displacement transducer (UTGM-0078-50mm travel) should be ordered separately
UTC-5508A	Energy absorption capacity test equipment for fiber reinforced sprayed concrete round specimens, ASTM. Consists of a support fixture with three pivots, a loading piston and connection attachments for UTGM-0078.One pcs. displacement transducer UTGM-0078 -50mm travel) should be ordered separately
UTGM-0078	High Accurate Strain Gauge Based Displacement Transducer, 50mm
UTC-5509E	Square Sampling Form for energy absorption test of sprayed concrete. With Rigid Base and Handles. Steel EN
UTC-5509A	Round Sampling Form for energy absorption test of shotcrete. With Rigid Base and Handles. Steel ASTM
UTC-5525E	Sampling Frame for Sampling Sprayed Concrete. Steel. 60x50x15 cm, To obtain a FRC sample from which core specimens will be taken for use in compressive strength testing.
UTC-5525A	Sampling Frame for Shotcrete. Steel, 62x62x10 cm. To obtain a FRC sample from which core specimens will be taken for use in compressive strength testing.
UTC-5507	Auxiliary Testing Frame for The Measurement of Deflection on Concrete Beams.Two or one 10mm High Accurate Displacement Transducer (UTGM-0072L) should be ordered separately.For 100x100x400/500mm and 150x150x500/600mm beams specimens.
UTGM-0072L	High Accurate Strain Gauge Based Displacement Transducer with Elbow Type Connecting Cable.10mm
UTC-5501	Flextural testing asseblies for concrete beams. Set of 2 upper and 2 lower rollers of 38 mm dia and 160 mm lenght
UTC-5514	Crack Mouth Opening Displacement (CMOD) Transducer, measuring range 7mm, gauge length 5mm. Supplied with knife edged plate set 20 pcs.)
UTC-5512	Flexural Testing Assembly. Set of two upper and two lower rollers of 30 mm dia and 220 mm lenght
UTGM-0072PL	High Accurate Strain Gauge Based Displacement Transducer, travel 10 mm.Supplied with with elbow type connecting cable, a plate and fixing device,
UTC-5502	Flextural testing asseblies for concrete kerb. EN 1340. Set of two lower roller of 38 mm dia. x 620 mm lenght and an upper loading arm with 40mm dia. swivel jointed steel pad
UTC-5503	Upper Loading Arm with 40mm dia. Swivel Jointed Steel Pad. EN 1340 (Lower rollers are not included).To be used with lower rollers of UTC-5504
UTC-5504	Flexural Testing Assembly. Set of 2 lower and 1 upper rollers of 38 mm dia. and 620 mm lenght
UTM-8516	Lower and Upper (spherically seated) Loading Platens, Ø165mm. For compressive strenght tests up to the machine capacity

UTC-5621.SVD2.2
Capacity		200 kN
Accuracy Class		Class 1 EN ISO 7500-1 starting from 1% of the capacity
Distance Between The Columns (front/side)		1050 mm
Adjustible distance lower rollers		950 mm
Maximum Vertical Clearance		515 mm (Without accessories)
Piston Diameter		80 mm
Maximum Piston Movement		200 mm
Power		1500 W
Dimensions	Frame 100 kN	1250 x 600 x 1575 mm
	Power Pack	1100x700x1030 mm
Weight	Frame	365 kg
	Power Pack	210 kg

52. Advanced Testing Systems

Request Catalog

UTEST Advanced Testing Systems has been designed to examine the mechanical properties of building materials that require advanced test setups and data acquisition systems. UTEST Advanced Testing systems are ideal systems that can be used by research centers, R&D laboratories and Universities.Those Systems are modular systems that can be build according to the customer requirements and needs. UTEST advanced testing system is user friendly equipment that allow user to rapid test setup and execution.

The main advantage of the UTEST advanced testing system is the modularity. The main item is the UTC-4850, UTC-4860 and UTC-4870 Advanced Servo Controlled Automatic Power Packs with proportional and servo valve. All UTEST compression, flexure or tensile testing frames can be connected to those power pack. Thus any test configuration can be designed to make wide range of applications including, Elastic modulus, Poisson ratio, fracture toughness, post peak residual strength, energy absorption, rock triaxial and also conventional failure tests.

UTEST Advanced Testing systems can do tests under control of Load / Stress, Displacement and Strain Rate depend on power pack used.

You can find the detailed information about frames, power packs and accessories on different section of this catalogue.

The UTC-4850 and UTC-4860 Automatic Power Packs with Proportional Valve and The UTC-4870 Automatic Power Packs with Servo Valve are advanced power packs can be used on any testing system ideal for R&D laboratories and Universities for advanced tests with P.I.D. Closed loop control. It can perform tests under load and displacement controls. The frequency of the P.I.D controller and data acquisition is 1000 Hz. UTC 4850 and 4860 Automatic power packs are designed to supply the required oil to the load frames for loading, unloading or low cycle dynamic testing. All the operations of Data Acquisition and Controls System can be controlled from the touch screen front panel of a 240x320 LCD display or computer.

The UTC-4850 and UTC-4870 can control up to 2 different frames, UTC-4860 and UTC-4880 up to 4 frames. There are an extra 3 analogue channels for other sensors such as load cells, pressure transducers,displacement transducers, extensometers, etc. built in the system as an addition to the loadcell (pressure transducer) or the pressure transducer on the frame selected by the user.

The power pack automatically controls and supplies oil to the frame which is chosen by the user via the touch screen LCD digital control unit or by choosing the test type from the computer software.

The type of displacement transducer can be TTL or analogue ( It must be same type for all frames )

The main specifications of the UTC-4850 and UTC-4860 power packs are

1 litre/minute pump delivery (max) 315 bar, 1.1 kW motor rate
Loading-unloading with ±1 % rate accuracy
Staying at constant load within 0,01% resolution of the maximum load
The control of the load starts from 2% of the maximum load capacity of the system

The main specifications of the UTC-4870 and UTC-4880 power packs are

5 litre/minute pump delivery (max) 280 bar 3 kW motor rate
Loading-unloading with ± 0,5% rate accuracy
Staying at constant load within 0,005% resolution of the maximum load
The control of the load starts from 1 % of the maximum load capacity of the system.

All power packs can be connected to the computer through Ethernet port for advanced test cycles, data acquisition and reporting. The modulus of elasticity, Poisson's Ratio and compressibility parameters is easily and properly evaluated by attaching displacement tranducer or extensometers on to the sample. All the calibration values of the transducers and also all the test parameters for the last test is automatically stored on the control unit. All power packs incorporate a pressure safety valve for each frame separately and a cooling unit.

Main Features of Power Packs

3 analogue channels for displacement transducers, extensometers, etc. built in the system as an addition to frame loadcells%2" cellspacing="0" cellpadding="0">

UTC-0520A

J-Ring with Smooth Roads, ASTM

UTC-0520AR

J-Ring with Rebar Roads, ASTM

UTC-0524

Base Plate, Stainless Steel, for J-Ring

and Slump-Flow Tests

UTC-0402A

Slump Cone, Seemless Spun Metal, ASTM

Standards

ASTM C1611, C1621

The J-Ring Test is used for determining the passing ability of self-consolidation concrete. Exept J ring, the apparatus can be used for performing the slump-flow test.

The UTC-0520A, J-Ring with Smooth Roads, is manufactured from stainless steel.

The UTC-0524 Base Plate is 920x920x3 mm square, made of stainless steel with engraved circles of 200 mm and 500 mm diameter conforming to EN and ASTM.

Product Code	Dimensions	Weight (approx.)
UTC-0520A	330x330x130 mm	7 kg
UTC-0524	920x990x100 mm	21 kg

65. SCC - V Funnel

Request Catalog

Product Code

UTC-0540

V Funnel

Standards

EN 12350-9

The UTC-0540 V Funnel apparatus is used to evaluate the flow time of freshly mixed self-compacting concrete. The test is not suitable when the maximum size of the aggregate exceeds 22.4 mm.

The test set consists of a stainless steel funnel placed vertically on a supporting stand. The discharge orifice is equipped with a lid, which can be momentarily opened.

The L Shape Box Apparatus is supplied complete with;

Filling Hopper
Base

Dimensions	350x520x1020 mm
UTC-1040
Models for 110-120V 60 Hz, 1ph.	UTC-1040-N

Standards

EN 12390-1, 12390-3, 12504-1; ASTM C 31, C39, C42

The UTC-1040 Automatic Grinding Machine provides fast grinding of cylinder specimen ends to obtain plane and parallel surfaces according to EN and ASTM standards.

Three units of Ø38 to 100 mm or two units of Ø150-160 mm concrete cylinders ends and three units of 100 mm or one unit of 150 mm concrete cubes faces can be ground simultaneously with the suitable cradle and water restraint panel. The lenght of the any specimen must be longer than 110 mm.

According to ASTM and EN standards, the planeness accuracy of grinded surfaces of concrete compression test specimens should be 0.05 mm. and also the deviation of perpendicularity of the side with reference to the end faces should be 0,5°.

The equipment has selectable advance grinding time functionality by user from 50 to 400 seconds. Optimum grinding time per end of all type specimens is 90 to 120 seconds.

The cradle which specimens are fixed on has automatic bidirectional radial displacement ability. The safe and ergonomic design prevents the user to exposure to water and dust and provides easy access to the water inlet and outlet. Specimen cradles and water restraint panels can easily be installed without the need for any assembly.

Mobility of the machine is achieved with the help of the integral wheels, and all components of the system can be safely accessed for easy maintenance.

The frame is manufactured from aluminum to obtain a lighter weight and the stainless steel exterior shell assures resistance to corrosion.

UTC-1044 Water Restraint Panel Set for Cylinder consist of panels for Ø150 mm, Ø100 mm and Ø50 mm specimens. For different sized cylindrical specimens, the water restraint panel should be ordered seperately.

Water tank with filtration and circulation system (UTC-1064) which should be oredered separately, is designed to save the amount of water used during the grinding process in the automatic grinding machines.

The cradle and the water restraint panels should be ordered seperately for 100mm and 150mm cubic specimens.

The Automatic Grinding Machine is supplied complete with;

Grinding Wheel for concrete specimens
Cradle for Ø:38mm to100 mm cylindrical specimens
Cradle for Ø:150mm to160 mm cylindrical specimens (connected to the machine)
Water restraint panel set (Consist of panels for Ø150, Ø100 and Ø50 mm specimens)

The Preparation of Concrete

Cylinder Test Specimen for

Compressive Strength Test

EN 12390-1, 12390-3

ASTM C31, C39

The maximum tolerance on the flatness of the potential load bearing surfaces

(the ends of compression test specimens)

is 0.002 in. [0.050 mm]

The deviation of perpendicularity of the side,

with reference to the end faces is 0,5^O

The Preparation of Drilled

Concrete Cores Specimen for

Compressive Strength Test

EN 12504-1, 12390-1,

12390-3 ASTM C42,

C397

Dimensions	680x1100x1600 mm
Weigth (approx.)	260 kg
Power	1850 W

87. Automatic Grinding Machine with Cabinet

Request Catalog

Product Code

UTC-1060	Automatic Grinding Machine with Cabinet
UTC-1042	Grinding Wheel for UTC-1060 and UTC-1040
UTC-1064	Water Tank with Filtration and Circulation System for 1040 and UTC-1060.110-220V, 50-60 Hz, 1ph
UTC-1066	Cradle for Three Units of Ø38mm to Ø70mm cylinderial Specimens for UTC-1060
UTC-1067	Cradle for Three Units of 50mm to 110 mm Cube Specimens for UTC-1060
UTC-1069	Cradle for One Unit of 150 mm Cube Specimens for UTC-1060

Models for 220-240V 50-60 Hz, 1ph.	UTC-1060
Models for 110-120V 60 Hz, 1ph.	UTC-1060-N

Standards

EN 12390-1, 12390-2, 12390-3, 12504-1; ASTM C 31, C39, C42, D4543

The UTC-1060 Automatic Grinding Machine with Cabinet provides fast grinding of concrete, rock, natural stone. etc. specimens to obtain plane and parallel surfaces according to EN and ASTM standards.

With the suitable cradle;

Three units of Ø38 mm to Ø110 mm cylinders ends,
Three units of 50mm to 110 mm cubes faces,
Two units of >Ø110 mm to Ø160 mm cylinders ends,
One unit of 150 mm cubes faces

can be ground simultaneously.The lenght of the any specimen must be ≥50mm

The equipment has selectable advance grinding time functionality by user as seconds. Optimum grinding time per end of all type specimens is 90 to 120 seconds.

The specimens fixed to the any cradle are abraded by the grinding wheel which has bidirectional radial displacement ability.

The safe and ergonomic design prevents the user to exposure to water and dust and provides easy access to the water inlet and outlet.Specimen cradles can easily be installed without the need for any assembly.

Mobility of the machine is achieved with the help of the integral wheels, and all components of the system can be safely accessed for easy maintenance.

The parts exposed to water are made of stainless steel to resist corrosion.

UTC-1064 Filtration and Circulation System Water Tank with 100 liter is designed to save the amount of water used during the grinding process in the automatic grinding machine(UTC-1060).If UTC-1064 is supplied with the grinding machine, it is automatically activated when the grinding process starts and filtration and circulation begin simultaneously.

The cradle for 50mm or 100mm or 150mm cube specimens should be ordered seperately.

The cradle/s for

Ø38mm to Ø70mm cylinder(UTC-1066),
50mm to 110mm cube ( UTC-1067),
150mm cube (UTC-1069),

specimens should be ordered seperately.

The Automatic Grinding Machine is supplied complete with;

Grinding Wheel for concrete specimens
Cradle for Ø70mm to Ø110 mm cylindrical specimens
Cradle for Ø110mm to Ø160 mm cylindrical specimens (connected to the machine)

The preparation of concrete

cylinder test specimen for

compressive strength test

EN 12390-1, 12390-3

ASTM C31, C39, D4543

The maximum tolerance on the flatness of the potential load bearing surfaces

(the ends of compression test specimens)

is 0.002 in. [0.050 mm]

The preparation of drilled

concrete cores specimen for

compressive strength test

EN 12504-1, 12390-1,

12390-3 ASTM C42,

C397

The deviation of perpendicularity of the side,

with reference to the end faces is 0,5^O

Product Code	UTC-1060	UTC-1064
Dimensions	800x1265x1652 mm	559x1043x427
Weight (approx.)	350 kg	40 kg
Power	1850 W	260 W

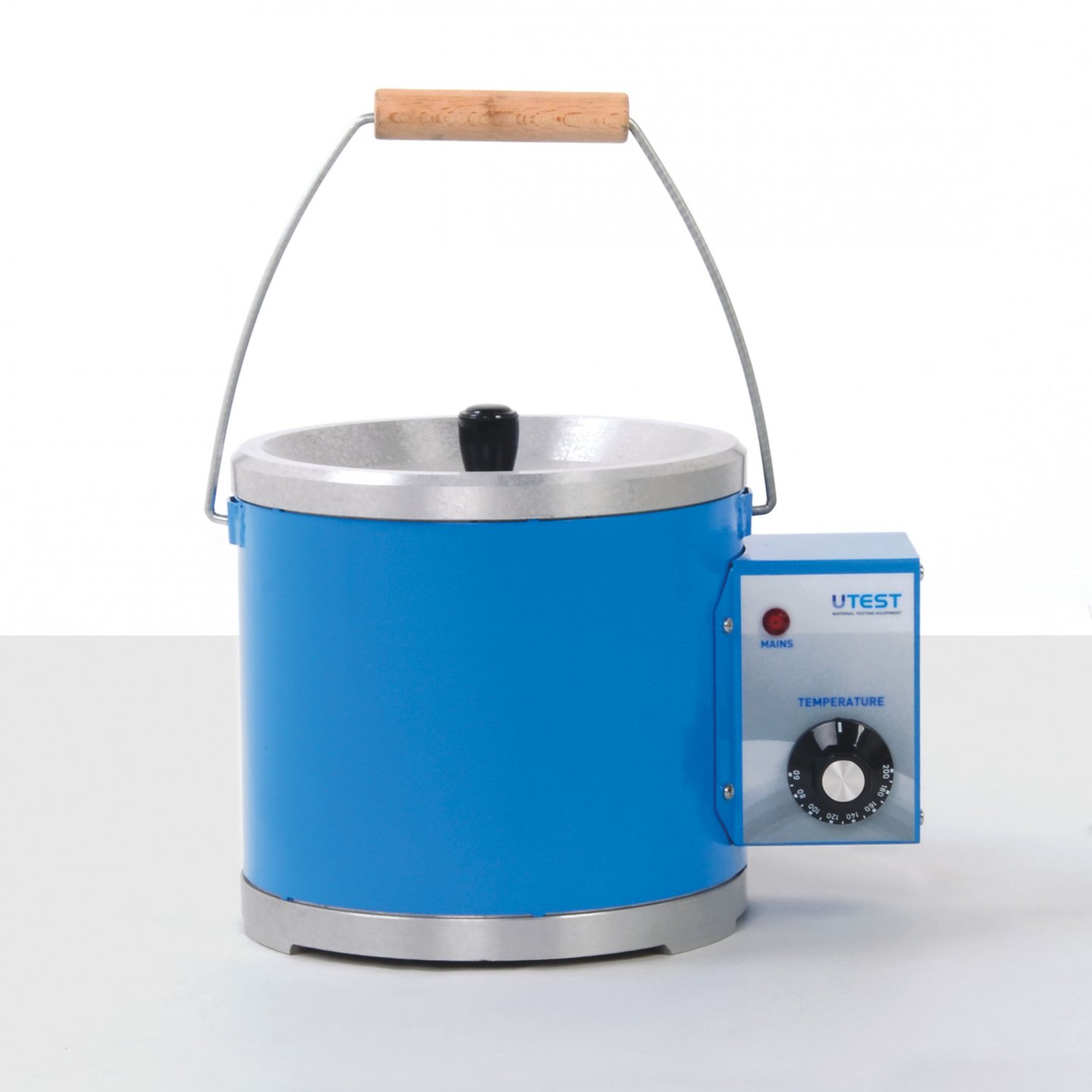

88. Melting Pot

Request Catalog

Product Code

UTC-1070

Melting Pot 3 L Capacity

Models for 220-240V 50-60 Hz, 1ph.	UTC-1070
Models for 110-120V 60 Hz, 1ph.	UTC-1070-N

Standards

CEN ISO/TS 17892-2; EN 12390–3, 12390-1, 12504-1; ASTM C31, C192, C617; AASTHO R100, R39

The Melting Pot is designed for melting capping compound, sulphur, wax and similar materials.

The melted paraffin wax is used to seal soil samples and other materials.

The apparatus consists of a 3 liter capacity aluminum container in a well-lagged steel jacket, cover and a thermostatic control heating system to keep the temperature constant in the range of ambient to 200^°C.

Dimensions	300x340x240 mm
Weight (approx.)	10 kg
Power	600 W

89. Cylinder Capping Frame

Request Catalog

Product Code

UTC-1074

Cylinder Capping Frame

Standards

TS EN 12390–3, 12390-1, 12504-1; ASTM C31, C192, C617, C39, C42; AASTHO R100, R39

The UTC-1074 Cylinder Capping Frame is used to ensure that the planed end surfaces are perpendicular to the axis of the cylinder during the capping process. The frame comprises vertical supports mounted on a steel base. All three type of samples can be capped with this single unit.

The Cylinder Capping Frame is supplied complete with;

Base Plates for 75, 100 and 150 mm dia. cylinder specimen

Dimensions	180x200x320 mm
Weight (approx.)	12 kg

90. Impermeability Test Sets

Request Catalog

Product Code

UTC-1080	Impermeability Test Set with Quantitative Measurement Equipment, 3 Specimen Capacity
UTC-1082	Impermeability Test Set without Quantitative Measurement Equipment, 3 Specimen Capacity
UTC-1090	Impermeability Test Set with Quantitative Measurement Equipment, 6 Specimen Capacity
UTC-1092	Impermeability Test Set without Quantitative Measurement Equipment, 6 Specimen Capacity
UTGE-3705	Laboratory Air Compressor 8 bar/50L 220V 50-60 Hz,1ph

Standards

EN 12390-8

Used for the determination of the depth of penetration of water to hardened concrete specimens under pressure.

3 or 6 specimen capacity models and with and without quantitative measurement equipment of water penetratoion models are available.

The system can test 150 mm and 200 mm cube specimens, Ø100x200 and Ø150x300 mm cylinder specimens.

Up to 10 bar of working pressure is generated on the sample with compressed air applied to the integral water tank and controlled by a pressure regulator with a pressure gauge with 0,2 bar graduations.

The test sets with the quantitative measurement equipment of water penetratoion the penetration of water is measured through the burettes.

The system comprises impermeability gaskets for every cell.

The measurement apparatus is supplied as standard. The apparatus has to be fitted with a suitable air compressor.

The Air Compressor should be ordered separately.

Compressed air controlled by a pressure regulator with a pressure gauge with 0,2 bar graduations.

	Dimensions	Weight (approx.)
UTC-1080	520x1430x1800 mm	144 kg
UTC-1082	520x1430x1320 mm	114 kg
UTC-1090	520x1430x1800 mm	204 kg
UTC-1092	520x1430x1320 mm	174 kg

91. Rapid Chloride Permeability Test

Request Catalog

Product Code

UTC-1200	Rapid Chloride Permeability Test (RCPT) Equipment with Standard Cell, 110-240V 50-60 Hz, 1 ph
UTC-1201	Rapid Chloride Permeability Test (RCPT) Equipment with the Cell with Cooling Fins, 110-240V 50-60 Hz, 1 ph
UTC-1205	RCPT Measurement Unit for UTC-1200 and UTC-1201, 110-240 V 50-60 Hz, 1 ph
UTC-1210	RCPT Standard Cell, for UTC-1200
UTC-1220	RCPT Cell with Cooling Fins, for UTC-1201
UTGE-3530	Vacuum Pump, Dual Stage 128 L/min capacity, 220-240V, 50-60 Hz, 1ph. (Optional)
UTGE-3552	Vacuum Gauge, Analog, Scale Range (-100/0 kPa).(Optional)
UTGE-3560	Vacuum Container with Water Inlet, 4,3 L. (Optional)
UTGE-3570	Air drying Unit/ Water Trap, Vacuum Type (Optional)
UTGG-2016	Filter Flask for Vacuum, 2000 ml (Optional)

Models for 220-240V 50-60 Hz, 1 ph.	UTC-1200	UTC-1201	UTC-1205
Models for 110-120V 60 Hz, 1 ph.	UTC-1200-N	UTC-1201-N	UTC-1205-N

Standards

ASTM C 1202; ASTM C 1760

UTC-1200 and UTC-1201 Rapid Chloride Permeability Test Equipment (RCPT) are used for evaluation the resistance of a concrete sample to the penetration of chloride ions. Test is performed by placing a 100 mm diameter concrete cylinder into the sample cells that contain 3.0 % salt solution and 0.3 N sodium hydroxide solution. A voltage of 60 V DC is maintained across the ends of the sample throughout the test and the charge that passes through the sample is recorded. Based on the charge, a qualitative rating can be made of concrete's permeability.

UTC-1200 and UTC-1201 contain four cells, four PT-100 sensors for temperature monitoring during the test. Utest provides two types of sample cells for RCPT. UTC-1220 has additional cooling fins and can be used when the temperature should be kept constant. Each of UTC-210 and UTC-1220 RCPT Cells include a spacer disks and a rubber gasket.

UTC-1205 RCPT Measurement Unit has 4 measurement channels, 190x64 resolution LCD screen, 60 ± 0.1 V application voltage, 0 – 400 ± 0.1 mA measurement range. Supplied complete with a power cord. Temperature and current measurements on each of the four cells is displayed on the unit.

USOFT-1200 Utest Software for RCPT tests. Using USOFT-1200 temperature and current measurements on each of the four cells can be displayed and final charge passed (Q) can be reported as excel and pdf.

To proper the specimens for the test, vacuum container (UTGE-3560), vacuum pump, vacuum gauge(UTGE-3552), 2 pcs. filter flask (UTGG-2016) or air drying unit / water trap (UTGE-3570) should be ordered separately.

UTGE-3530 Vacuum Pump is supplied with 3m plastic tube (Ø8mm OD) and an oto-nipple.

UTGE-3552 Vacuum Gauge, Analog, Scale Range (-100/0 kPa), Accuracy (1.0 % of scale range), 1 kPa graduated, Ø63mm. Supplied with a valve, 4-way dispenser, muffler, an oto-nipple and its hanger.

Technical Specifications
Measurement Channels	4
Temperature Measurement Range	0-100⁰C
Dimensions	360x830x180 mm
Weight (approx.)	25,50 kg

UTC-1200 Rapid Chloride Permeability Test Equipment is supplied complete with;

RCPT Measurement Unit with a power cord
4 pcs. RCPT cells (UTC-1210 or UTC-1220 acc. to the order)
4 pcs. temperature sensors
4 pair Black&Red cables
USB cable for connection PC
USOFT-1200 software for RCPT testing

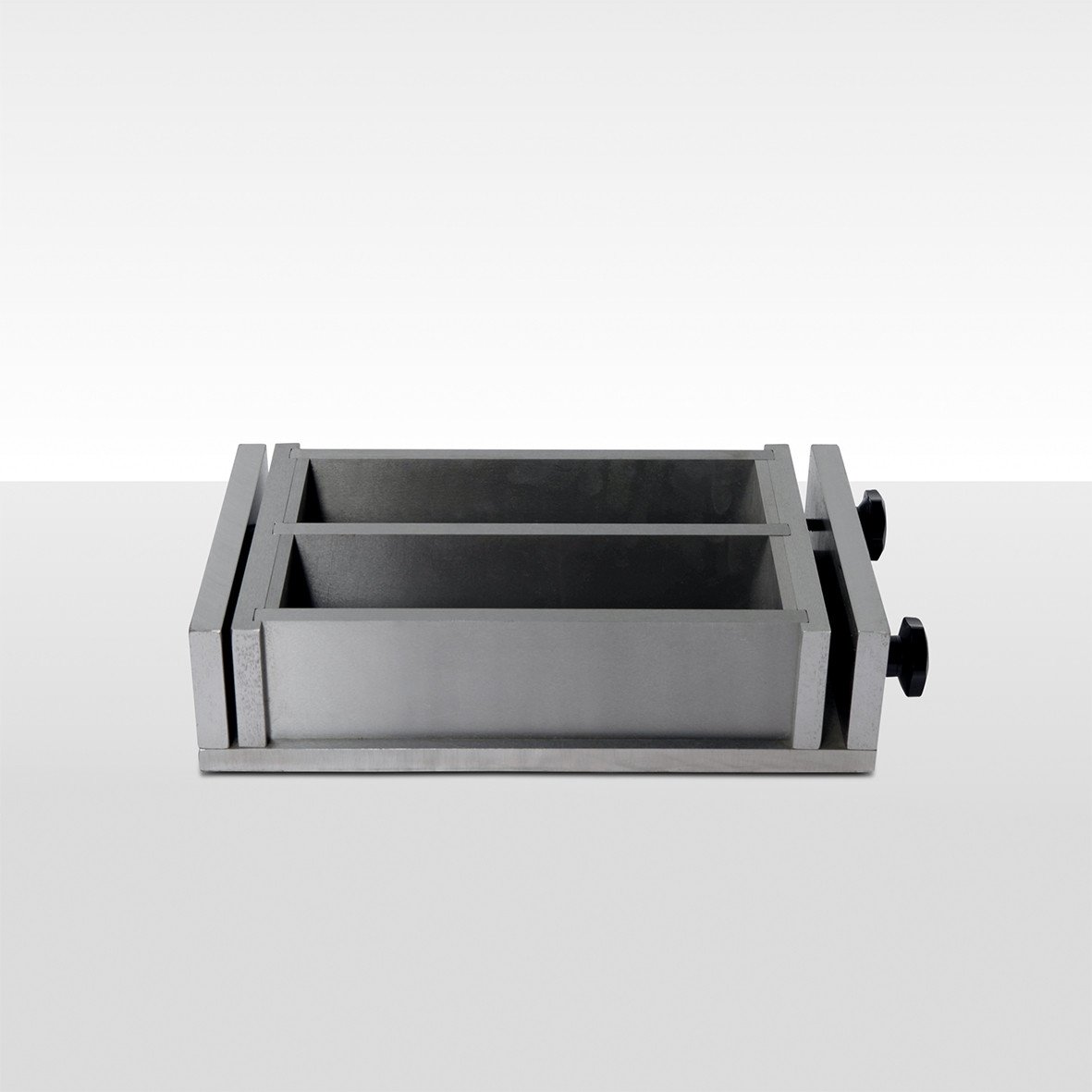

92. Length Change of Hardened Concrete and Hydraulic-Cement Mortar

Request Catalog

Product Code

UTC-1153	One Gang Shrinkage Mould 75x75x285 mm
UTC-1155	Two Gang Shrinkage Mould 75x75x285 mm
UTC-1161	One Gang Shrinkage Mould 100x100x285 mm
UTC-1170	LargeType Digital Length Comparator
UTC-1175	Large Type Length Comparator with Special Heidenhain Readout Unit and Displacement Transducer
UTCM-0034	Spare Steel Insert, pack of 12 pieces
UTCM-0035	Reference Rod, 295 mm long
UTCM-0662A	Tamper, Hardwood 13x25x150 mm
UTC-0410	Tamping Rod Ø:10x300 mm

Standards

ASTM-C157, C1105, C151, C227, C311, C341, C342, C441,C452, C490, C531, C596, C806, C878; EN 1367–4, 12617–4, 12808-4, 12390-16; BS 1881:5, 6073

The moulds are used for preparpmg the specimens for the purpose of determining the length changes (shrinkage/expansion) in hardened concrete and hydraulic cement mortar .

All moulds surfaces are protected with anti-corrosion oil. Also all parts of the moulds are matchmarked.

The moulds are supplied complied with the steel inserts screwed on.

According to all standardized test methods for determinig the length changes under different conditions, the muolds are used together with the any UTEST Length Comparators (UTC-1170 and UTC-1175) fits the specimens sizes.

UTC-1170 and UTC-1175 LargeType Digital Length Comparators can be used cement/concrete prisms up to 100mm width Adjustable beam height (except dial ggauge) is 365mm and 220mm horizontal clearance). UTC-1170 Consists of a 12.7x0.001 mm graduated digital dial gauge which is mounted on a steel frame.

Reference rod and other equipment be should ordered separately.

UTC-1155 UTC-1153 UTC-1161

Product Code	UTC-1153	UTC-1155	UTC-1161	UTC-1170	UTC-1175
Dimensions	100x90x340 mm	190x90x340 mm	250x120x340 mm	285x285x450 mm	285x285x610 mm
Weight (approx.)	7 kg	12 kg	18 kg	15 kg	6 kg

93. Rebar Detector

Request Catalog

Product Code

UTC-2082	Rebar Detector
UTC-2085	X Scan Rebar Detector

UTC-2082 and UTC-2085 Rebar Dedectors are designed for locating reinforcing bars in concrete and other non-ferritic construction materials, and for measuring the cover and estimating the diameter of the topmost layer of the reinforcement. The detecting data can be directly transferred to a PC

Features

Quick, easy scanning of large areas
Individual scans over lengths of up to 30 m
Data transfer from scanner by infrared link for monitor viewing
Cordless scanner for maximum freedom of movement
Immediate high resolution image for clear Picture of the reinforcement

Features for UTC-2082

Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot structural analysis
Smart algorithm helps accurate depth measurements for rebar
Wide sensor area enables quick and easy scan over large areas
Record scan data for documentation and structural analysis

Applications for UTC-2082

Verification and analysis for 1st layer rebar
Checking concrete cover over large areas for structural repair work
Building acceptance inspections and quality control
Generation of structural assessment reports including statistics and visual presentation in 2D/3D views of areas

Features for UTC-2085

Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation
Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan
Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification
Compact all-in-one design offers easy operation, plus unmatched data visualization means hundreds of square meters of concrete can be inspected in a day
Powerful monitor for in-depth, on-site scan analysis plus PC software for subsequent data evaluation and documentation

Applications for UTC-2085

Locating rebars, tendons, metal and plastic conduits, glass-fiber cables, voids and wood in dry concrete structures at depths of up to 300 mm
Minimizing hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work
Rebar extension (post-installed rebar connections) in structural applications
Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings
Detection of voids and cavities

Reporting for UTC-2085

Easy creation of documents for reporting concrete cover, rebar diameter, spacing and localization
Ferroscan data overlay in 2D and 3D for depth calibration and material classification
Placement of drill holes, annotations and snapshots

Applications

Rebar verification and analysis
Checking concrete coverage over large areas for structural repair work
Building acceptance inspections and quality control
Avoid cutting through critical reinforcement or castly rebar hits
Prevent damage to rebars during coring or drilling,
Review and report from the computer receiving the scan analysis

Technical Specifications	UTC-2082	UTC-2085
Maximum depth for measurement of coverage	200 mm	300 mm depending on base material condition (damp or dry) and object class
Localization accuracy	1 % +/- 3 mm	+/- 10 mm
Accuracy of cover measurement to a depth ≤ 50 mm	+/- 1 mm	+/- 10 mm (+/- 1% of length)
Rebar diameter	4 mm to 57 mm	Max. 80 mm
Minimum distance between two neighbouring objects	30 mm	40 mm
Accuracy of depth indication	+/- 1 mm at 40 mm	< 100 mm: +/- 10 mm > 100 mm: +/- 15%
Memory Capacity	3 GB	approx. 200 Scans (SD), approx. 10 scans (internal flash memory)
Battery life	4h	4h
Screen	LCD	LCD
Degree of protection, without battery	IP54	IP54
Working Temperature Range	-10 °C +/- 50 °C	-10 °C +/- 50 °C
Dimensions	284x163x154 mm	318x143x190 mm
Weight (w/batterry)	1.95 kg	2.5 kg

94. Profometer Rebar Diameter & Cover Meter

Request Catalog

Product Code

UTC-2090

Profometer Rebar Diameter & Cover Meter, PM8000 Pro

The world's most compact, versatile and precise cover meter for efficient inspection of concrete structures. The best Profometer yet!

Unrivalled precision thanks to a sophisticated data interpolation & intelligent auto-mode

Superior ergonomics with compact, ultra light-weight and fully wireless sensor

Unmatched productivity with instant availability of data analytics and visualization

Applications:

Quality control of new constructions / Durability & structural resistance assessment of exisiting concrete structures

Mapping concrete cover, rebar spacing & diameter values.
Producing conclusive statistics and informative heat maps.
Provide additional info such as pictures, geolocation

Technical Specifications

Technology	Eddy-current
Connection	Wireless
Cover Measuring depth	Up to 185 mm / 7.3 in
Cover Measuring Accuracy	+/-1 mm / 0.04 in to 4 mm /0.16 in depending on depth
Rebar Diameter Measuring Depth	up to 63 mm / 2.5 in Rebar
Rebar Diameter Measuring Accuracy	+/- rebar size
Encoder Accuracy	+/- 0.5mm / 0.02 in + 0.2% of measured length
Max Scanning Speed	0.5m/s - 1.7 ft / s
Max Line Scan Distance	1km / 0.6 miles
Max Area Scan	10'000m2 / 107'000 ft2
Display	High-contrast OLED screen
Dimensions	250 x 130 x 45 mm / 9.8 x 5.1 x 1.8 in (with cart) 190 x 75 x 45 mm / 7.5 x 3.0 x 1.8 in (without cart)
Weight	690 g / 1.5 lb (with cart) 300 g / 0.7 lb (without cart)
Battery	2 x AA (NiMH) rechargeable or non rechargeable Removable Flight-safe 8 hours autonomy USB-C power bank (not included)

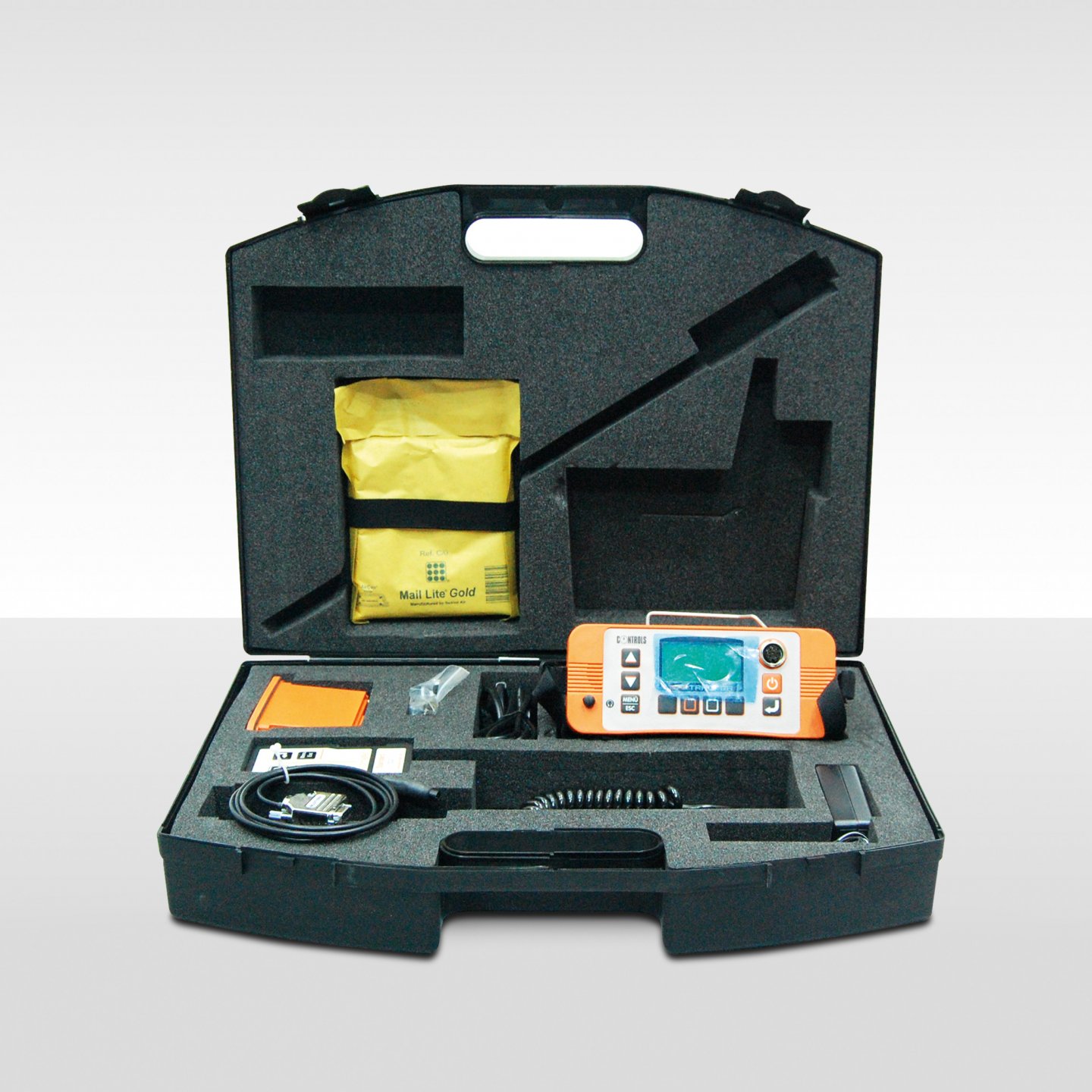

95. Bartracker Concrete Covermeter

Request Catalog

Product Code

UTC-3000

Bartracker Concrete Covermeter

Standards

BS 1881:204

UTC-3000 Bartracker Concrete Covermeter is used to measure the thickness of concrete cover over steel reinforcement bars and metal pipes, furthermore it is also used to identify the location, orientation and diameter of reinforcement bars (rebar). The basic unit can be completed with a number of optional probes for various determinations.

UTC-3000 which uses the Pulse induction technique features a rugged waterproof IP 65 case with probe storage for easy portability. The battery pack can be recharged inside or outside the gauge. The display screen shows you everything you need to know.

UTM-3000 Bartracker Concrete Covermeter is supplied complete with; Main unit, Standard search head to meet most of measurement requirements to identify 40 mm dia. bar up to 95 mm depth (approx.), 8 mm dia. bar up to 70 mm depth (approx.), sensing area 120x60 mm., PC cable, Battery pack and charger, Shoulder strap, Earphone, Carry case and instruction manual.

Main Features

Rebar location
Rebar orientation
Depth of cover
Cover reading thickness mm or inches
Large graphic display with backlight
Multiple language menu structure
Signal strength bar
Interchangeable heads with led and keypad
User selectable bar range sizes and numbers
Autosize mode for quick bar diameter determination
Orthogonal mode for bar diameter determination
Other models of search head available on order for Narrow pitch search, Deep cover search, Borehole. See accessories.

RS 232 output to PC
Data logging
Adjustable beep volume & earphone socket
EDTS MS EXCEL link software

96. Fully integrated Rebar Detector and Covermeter

Request Catalog

Product Code

UTC-3010

Fully integrated Rebar Detector and Covermeter

Standards

BS1881-204, DIN1045, SN 505 262, DGZfP B2

UTC-3010 Fully integrated Rebar Detector and Cover meter is a versatile rebar detector system. This is coupled with rebar-proximity indicators and optical and acoustical locating aids. Rebar diameter can also be estimated within the specified testing range. Rebar Detector combines these unique features in a compact, light device that allows the user to operate this rebar detector with one hand making the task of locating rebars a simple and efficient process.

Features

A rebar detector with real-time visualization of the rebars beneath the instrument
Visual indication of rebars in close proximity
Rebar Detector is a rebar detector with the ability to identify the mid-point between rebars as well as the orientation of rebars

Optical and acoustical indication of rebar location and minimum cover alert
This rebar detector offers neighboring bar correction
Regional settings (metric, imperial)
Cordless and single handed operation
Switchable display backlight for dark environments
A rebar detector with icon-based language independent menus
Start-up test kit allows user to familiarize him/herself with all functions in a comfortable environment, wasting no time on site

Applications

Rebar detector
Measurement of concrete cover
Measurement of rebar diameter
Checking for minimum cover
Map out the rebar grid and cover for corrosion studies
Rebar grid examination for planned load changes on the structure

As optional, The rebar locator can store 49'500 measurements. Please contact us for more information on the Rebar Detector and cover meter.

Technical Specifications

Measuring Range of Cover	Up to 180 mm
Power source	2 x 1.5 V AA (LR6) batteries
Voltage range	3.6 V to 1.8 V
Battery Lifetime Backlight off	50 h
Battery Lifetime Backlight on	15 h
Temperature range	-10º to 60º C (14º to 140º F)
Humidity range	0 to 100% rH

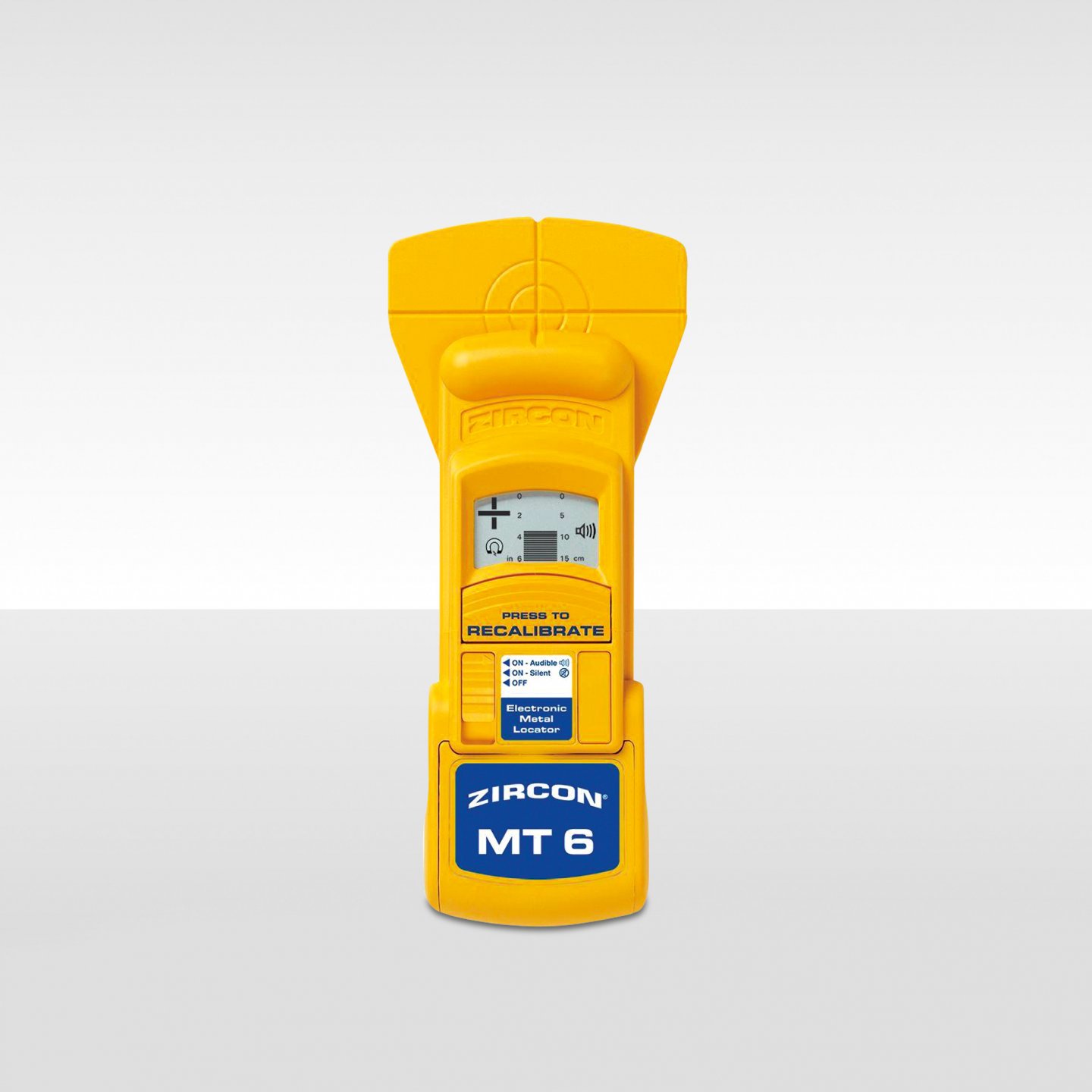

97. Deep Scanning Metal Locator

Request Catalog

Product Code

UTC-3015

Deep Scanning Metal Locator

UTC-3015 Deep Scanning Metal Locator is used to find rebar and metalic pipes, conduit, metal studs, junction boxes and metal framing up to 150 mm deep by scanning through most nonmetallic construction material, including solid concrete.

It scans through solid concrete and pinpoints the location and depth of target and differentiates between steel rebar and copper pipe.

Technical Specifications

Battery	9 V alkaline
Position Accuracy	Rebar/Copper pipe 14 mm dia. at a minimum grid spacing of 152 mm are located typically within 13 mm depth
Depth	Up to 152±25 mm
Water Resistance	Splash and water resistance but not water proof

Dimensions	251x109x63 mm
Weight (approx.)	320 g (incl. battery)

98. Metal Locator

Request Catalog

Product Code

UTC-3025

Metal Locator (BOSCH)

Standards

BS1881-204, DIN1045, SN 505 262, DGZfP B2

The Bosch PDO Multi Digital Detector locates a variety of metal and wooden structures behind walls with the highest precision, ensuring safety before drilling into the wall. Invest in a reliable detector such as the Detector PDO Multi rather than have a water pipe or power cable repaired afterwards.

The PDO Multi's large, easy-to-read display uses a bar display to indicate the detection strength. It displays the charging state of the battery, and also features a zoom function for reliable detection accurate to the millimeter. The function buttons of the PDO Multi make it easy to switch the mode from metal to wood detection. The non-slip soft grip ensures safe and comfortable handling.

When the PDO Multi finds detectable material behind the wall, the LED ring changes color from green to red and alerts the user with an acoustic signal. The result is displayed graphically on a large LCD. The zoom function refines the search even more and locates the detected object within a millimeter range. Use the handy built-in pencil and mark the detected area through the opening in the center of the LED ring.

Digital measuring tools from Bosch impress with precision and extremely easy operation whether when leveling objects, measuring distances or detecting all different kinds of materials and power cables.

Features

Reliable detection up to max. 6 cm detection depth
Immediately ready for use thanks to fully automatic calibration
Locates metals and live power cables
Clear drilling recommendation by means of marking ring illuminated in red /green
Extremely easy operation - only one button
Digital display makes the measurement results easy to read
Soft grip for a better and more comfortable hold

The Metal Locator (Bosch) is supplied complete with;

PDO Multi Detector
Protective case
Battery, 9 V
Marking Pencil and Instruction Manual

Detection Depth, steel (max.)	60 mm
Detection Depth, copper (max.)	50 mm
Calibration	Automatic
Battery	9 V
Weight	0.20 kg

99. Concrete Test Hammer (Schmidt Hammer) N Type

Request Catalog

Product Code

UTC-3028

Concrete Test Hammer (Schmidt Hammer)

N Type

UTC-3040

Calibration Anvil, EN, D 5873

UTC-3041A

Calibration Anvil, ASTM C805

Standards

EN 12504-2, 13791; ASTM C 805; D 5873; BS 1881:202; NF P18-417; DIN 1048; UNI 9189

The quality of concrete is mainly judged by its compressive strength directly affecting the load-bearing capacity and durability of concrete structures.

UTC-3028 Concrete Test Hammer (Schmidt Hammer N Type UTEST) is used to measure the compressive strength characteristics of hardened concrete non-destructively, control uniform concrete quality and detect weak spots in the concrete. The test object should have a minimum thickness of 100 mm (3.9 in).

Product Code	Dimensions	Weight (approx.)
UTC-3028	340x120x120 mm	2 kg
UTC-3040	150x150x230 mm	16 kg
UTC-3041A	150x150x230 mm	16 kg

Measuring Range	10–70 N/mm
Impact Energy	2.207 Nm

100. Concrete Test Hammer (Schmidt Hammer) L Type

Request Catalog

Product Code

UTC-3029

Concrete Test Hammer (Schmidt Hammer)

L Type

UTC-3040

Calibration Anvil, EN, D 5873

UTC-3041A

Calibration Anvil, ASTM D805

Standards

EN 12504-2; ASTM D 805, D 5873

L type hammer concrete test hammer has 1/3 the impact energy of N type hammer.This lower energy, allows for testing and assessment of softer materials, such as low strength concrete, plaster, precast pipes brittle objects, thinner cross-sections less than 4in (100mm) thick.

The impact area of UTC-3040 Calibration Anvil used for the calibration of rock test hammers is hardened min. 52HRC.

UTC-3029 Concrete Test Hammer is supplied complete with plastic carrying case with handle.

Product Code	Dimensions	Weight (approx.)
UTC-3028	300x110x200 mm (in case)	2 kg
UTC-3040	150x150x230 mm	16 kg
UTC-3041A	150x150x230 mm	16 kg

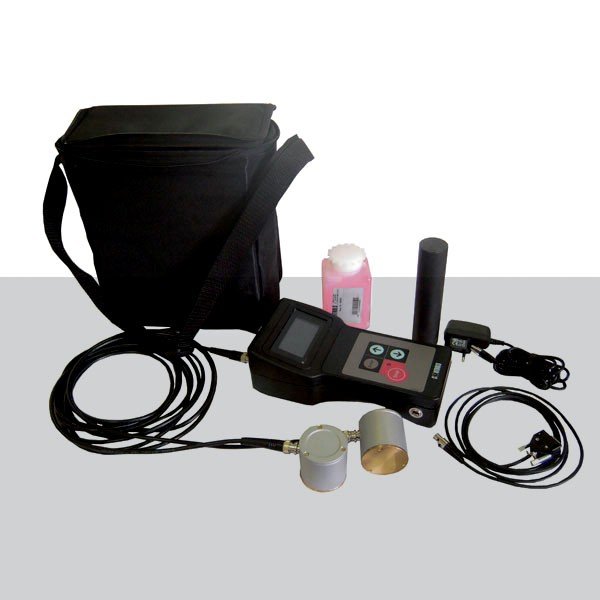

101. Ultrasonic Pulse Velocity Tester

Request Catalog

Product Code

UTC-3034

Ultrasonic Pulse Velocity Tester

Standards

EN 12504-4; ASTM C 597

Ultrasonic Pulse Velocity Tester is used to measure the velocity of propagation of ultrasonic pulses through concrete. A pulse of longitudinal vibrations is produced by an electro-acoustical transducer held in contact with one surface of the concrete under test. After traversing a known path length in the concrete, the pulse of vibrations is converted into an electrical signal by a second transducer and electronic timing circuits enable the transit time of the pulse to be measured.

BS EN 12504-4:2004 gives guidance on testing fresh concrete, hardened concrete and concrete in structures. It specifies a method for the determination of the velocity of propagation of pulses of ultrasonic longitudinal waves in concrete.

UTC-3034 Ultrasonic Pulse Velocity Tester is a microprocessor incorporated equipment which can be connected to a PC through the RS 232 output. It can also be connected to an oscilloscope and can perform transit time measurement from 0.1 to 1999.9 μs with a resolution of 0.1 μs. The battery operated equipment has a transmitter output of 800 V and a battery life of 18 hours of activity.

The Ultrasonic Pulse Velocity Tester is supplied complete with;

Two 54 KHz transducers (Transmitter and Receiver) with 3 m cable
Calibration rod
Coupling agent (250 mm)
Carrying case

Dimensions	240x120x75 mm
Weight (approx.)	1,3 kg

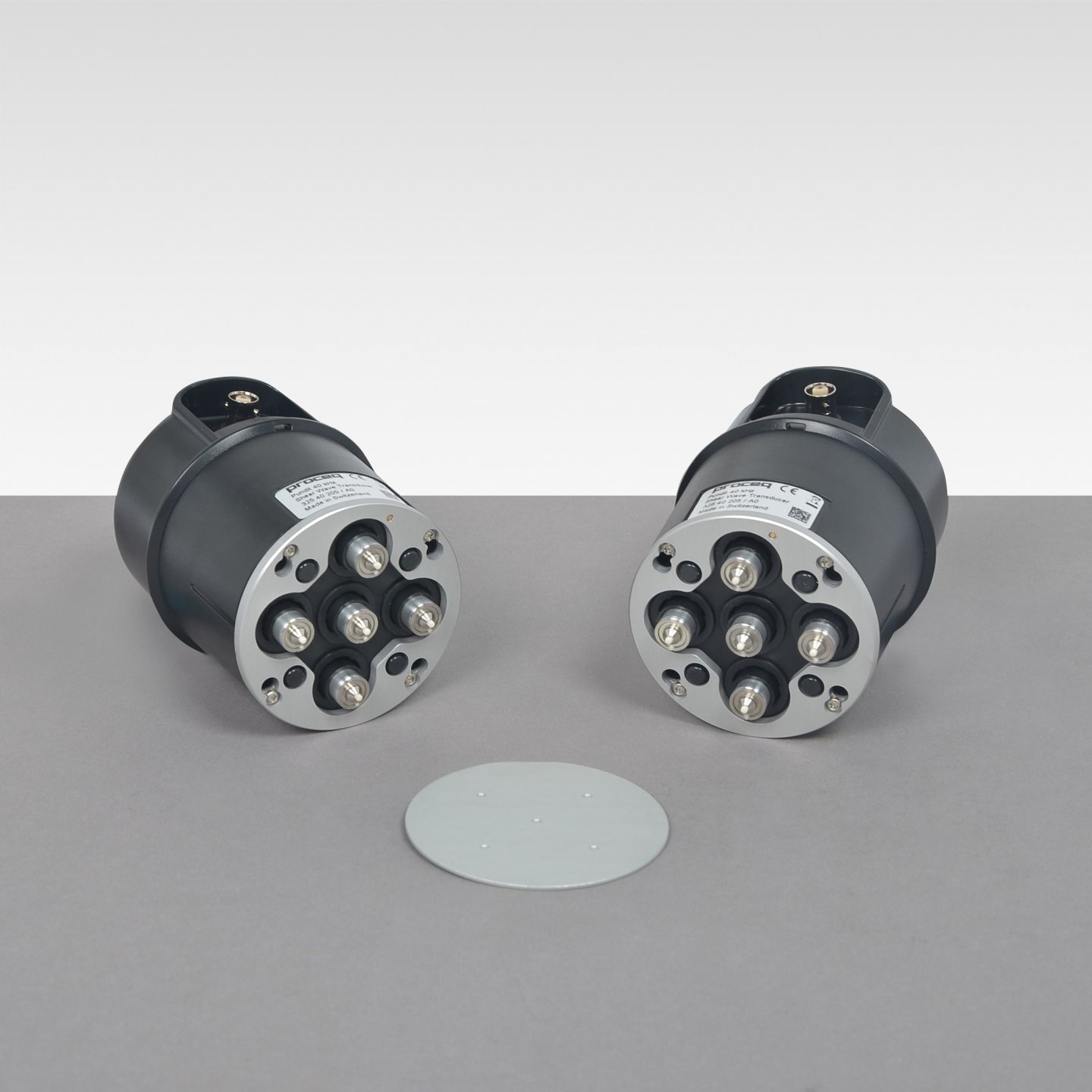

102. Pundit Lab. Ultrasonic Pulse Velocity Tester

Request Catalog

Product Code

UTC-3050	Pundit Lab+ Ultrasonic Pulse Velocity Tester (Proceq)
UTC-3055	S-Wave Transducers, 250 kHz, for UTC-3050 (Proceq)
UTC-3060	Pundit PL-200 Ultrasonic Pulse Velocity Tester (Proceq)
UTC-3065	Pundit PL-200PE Ultrasonic Pulse Velocity Tester (Proceq)

Standards

EN 12504-4; ASTM C 597-02; BS 1881 Part 203; ISO1920-7:2004; IS13311; CECS21

The measurement of pulse velocity can be used for the determination of the uniformity of concrete, the presence of cracks or voids, changes in properties with time and in the determination of dynamic physical properties. EN 12504:4 gives guidance on testing fresh concrete, hardened concrete and concrete in structures. It specifies a method for the determination of the velocity of propagation of pulses of ultrasonic longitudinal waves in concrete.

UTC-3050 is an ultrasonic pulse velocity test instrument which is used to examine the quality of concrete. It features online data acquisition, waveform analysis and full remote control of all transmission parameters. Along with the traditional transit time and pulse velocity measurement, UTC-3050 offers path length measurement, perpendicular crack depth measurement and surface velocity measurement. Optimized pulse shaping gives greater transmission range at lower voltage levels. This, coupled with automated combination of the transmitter voltage and the receiver gain, ensures an optimum received signal level,guaranteeing accurate and stable measurements. An integrated waveform display allows manual triggering of the received waveform. Pundit Lab+ offers other features such as the possibility to estimate compressive strength by Sonreb Method in combination with a rebound hammer value.

The Pundit PL-200 is a best-in-class Ultrasonic pulse velocity (UPV) test instrument to examine the quality of concrete and other materials such as rock, wood and ceramics.

The Pundit PL-200PE employs state-of-the-art pulse echo technology to extend the ultrasonic application to objects where access is restricted to a single side.

Features of PUNDIT LAB+

Integrated wave form display
Remote control; A USB connection and the Pundit Link application allow full remote control of all features of the ultrasonic test equipment

Full remote control of the instrument with a third party software
Direct data logging on the PC
Runs on battery supply, mains supply via AC adaptor and can also be powered from a PC via the USB connection.

Supports a wide range of transducers from 24 kHz up to 500 kHz, making it suitable not only for concrete and rock, but also for other materials such as graphite, ceramics, woods, etc.

Exponential transducers for rough surfaces and shear wave transducers for estimation of dynamic modulus of elasticity complete the portfolio.

Integrated amplifier gain stage
Real time stamp
Direct estimation of compressive strength
Combined ultrasonic pulse velocity / rebound value estimate of compressive strength (SONREB)
Data review list on the instrument

Features of PUNDIT PL SERIES

Single side determination of slab thickness
Detection and localization of voids, pipes, delaminations and honeycombing
Advanced echo tracking technology helps identifying the main echo
Control buttons and optical feedback directly on the probe increase measurement efficiency
Automatic estimation of the Pulse Velocity
Easy B-Scan measuring through center marker and rulers directly on the probe
Dry-contact transducer: no couplant required, suited for measuring on rough surfaces
Lightweight and ergonomical handling
Expandable with Pulse Velocity transducers

Technical Specifications

	Pundit Lab+	Pundit PL Series
Range	0.1 – 9999 μs	0.1 - 7930 μs
Resolution	0.1 μs	0.1 μs (< 793 μs), 1 μs (> 793 μs)
Display	79 x 21 mm passive matrix OLED	7" colour display 800x480 pixels
Memory	Non-volatile, > 500 measured values	Internal 8 GB Flash memory
Power Supply	4x AA batteries (> 20 hours continuous use)	Lithium Polymer, 3.6 V, 14.0 Ah (> 8 hours continuous use)
Operating temperature	-10° to 60°C (0° to 140°F)	0°C - 30°C (Charging, running instrument) 0°C - 40°C (Charging, instrument is off) -10°C - 50°C (Non-charging)
Humidity	< 95% RH, non condensing	< 95 % RH, non condensing
Dimensions	175x55x220 mm (packed)	175x55x220 mm (packed)
Weight (approx.)	1.5 kg (packed)	1.5 kg (packed)

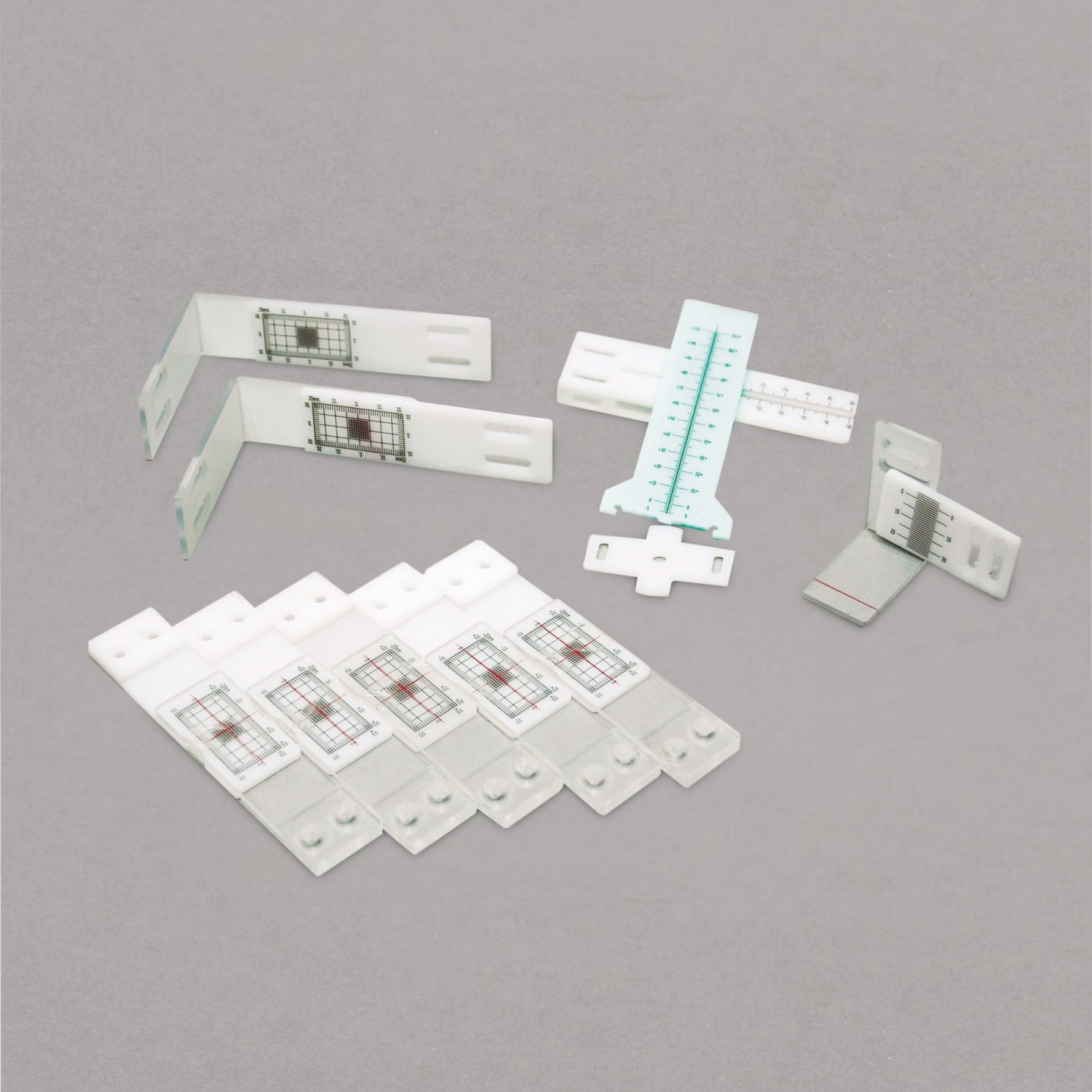

103. Complete Set of Crack Width Gauges

Request Catalog

Product Code

UTC-3100

Complete Set of Crack Width Gauge

Cracks occur in most buildings and civil engineering structures. Monitoring the changes in crack width is an important diagnostic technique for determining the cause and specifying the remedial work.

UTC-3100 Complete Set of Crack Width Gauges is used for measuring the crack widths in different positions. The set consists of; 5 pieces of standard crack width gauge for walls which monitors horizontal and vertical movements across cracks; Crack width gauge for corners which monitors horizontal and vertical movements across cracks in corners; Crack width gauge for floors for monitoring settlement of floors relative to a wall or column and Crack width gauge for level difference for monitoring the movement across a crack when one surface moves out of planet to the other.

Set Consists Of:

Standard crack width gauge for walls, 5 pieces
Crack width gauge for corners
Crack width gauge for floors
Crack width gauge for level difference

Features

Suitable for internal or external use
Monitoring both vertical and horizontal movements
Monitors the opening or closing of cracks with 1 mm accuracy
Crack record cards supplied with each gauge to simplify monitoring

Dimensions	235x200x50 mm (packed)
Weight (approx.)	1 kg (packed)

104. Mechanical Strain Gauge

Request Catalog

Product Code

UTC-3110	Mechanical Strain Gauge 100 mm Measuring Base
UTC-3130	Mechanical Strain Gauge 300 mm Measuring Base
UTGM-0190	Serial Cable for PC Connection
UTC-3122	Datum Discs. Pack of 50 Pieces
UTC-3123	Adhesive Tube, 20 g.

Standards

BS 1881:206

UTC-3110 and UTC-3130 Mechanical Strain Gauges are used for determining the length changes in different parts of a structure. These strain gauges are especially designed to perform measurement on concrete structures but they are also suitable to be used for any other type of structure including steel.

Measurin base for UTC-3110 is 100x5 mm range and for UTC-3130 is 300x5 mm range Suitable model should be chosen according to the standard length to be measured. Digital gauge for both models has 0.001 mm resolution an output for PC connection . Serial cable for PC connection should be ordered seperately.

Each model is supplied as a complete set which consists of extensometer with digital gauge, standard bar, calibration bar, No. 50 datum discs, adhesive compound for datum discs and carrying case.

Dimensions	300x400x110 mm (packed)
Weight (approx.)	2.5 kg

105. Crack Microscope

Request Catalog

Product Code

UTC-3150

Crack Microscope 40x

UTC-4050 Crack Microscope is a high definition device which is used for measuring crack widths both in concrete and other structures like masonry walls. Consists of an adjustable lamp unit and a knob for focusing the image. The 360° turning ability of the eyepiece enables the alignment with the direction of the crack or pitch subject to examination.

The battery operated microscope has 40x magnification and 4 mm measuring range with 0.02 mm subdivisions.

Magnification	40 X
Measuring Range	4 mm
Subdivision	0.02 mm

Dimensions	150x80x45 mm (packed)
Weight (approx.)	550 gr.

106. Carbonation Test Set

Request Catalog

Product Code

UTC-3160

Carbonation Test Set

This simple test set is used for determination of carbonation depth of the carbonated layer near the surface of hardened concrete. It is not suitable for concrete made with calcium aluminate cement. The set consists of two 250 ml washing bottles containing distilled water and phenolphthalein solution, and a ruler for depth of carbonation.

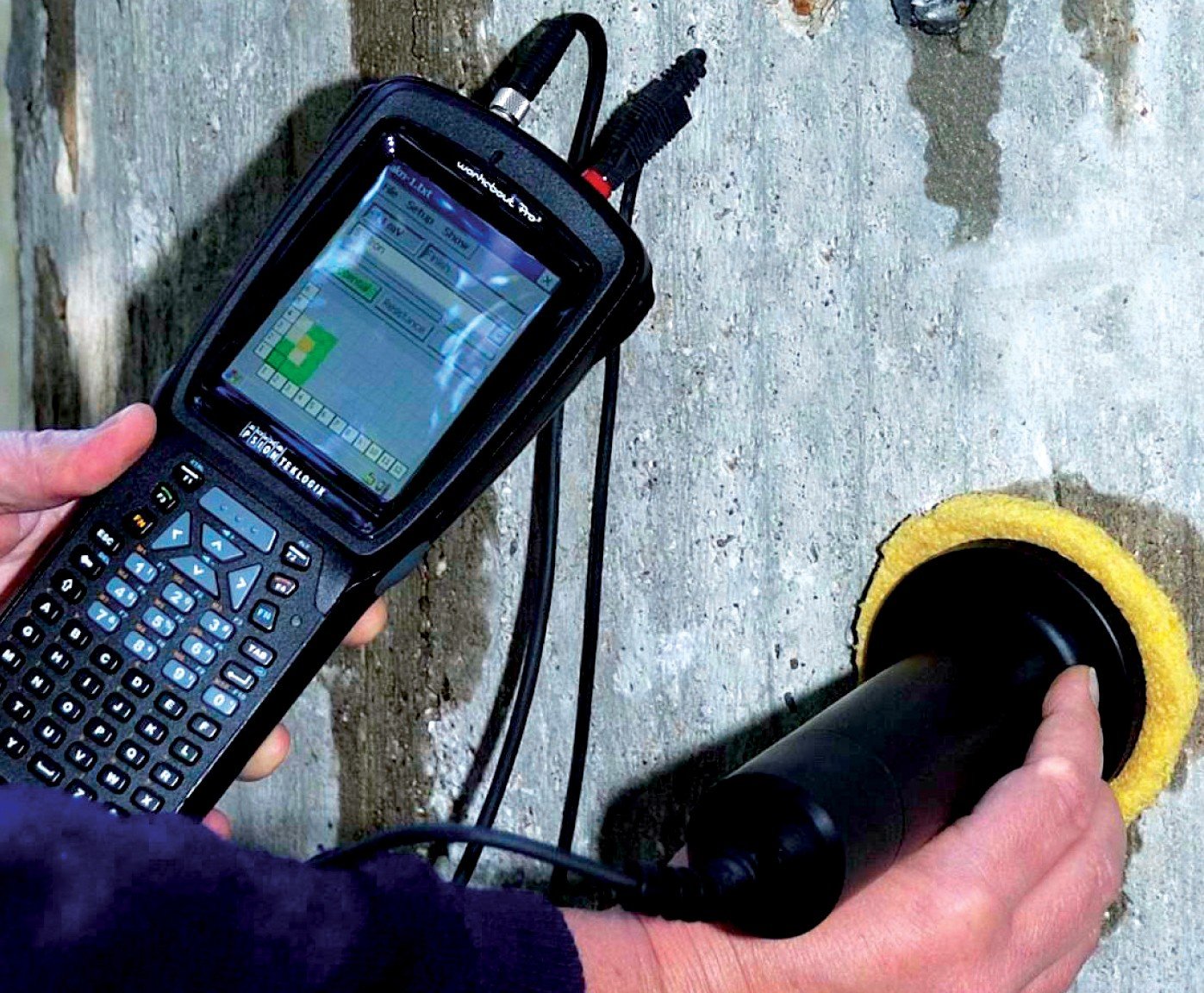

107. Measurement of Reinforcement Corrosion Rate

Request Catalog

Product Code

UTC-3230

Equipment For Measurement of Reinforcement Corrosion Rate in Concrete

CorroMap is developed for measuring related values of corrosion rate, electrochemical potential and electrical resistance and thereby quickly assess the state of corrosion of the embedded reinforcement.

The equipment is based on Psion Work About PC with Windows CE 5.0 with colour ”touch screen”, which provides unique possibilities of fast overview and immediate treatment of data in the field

Special qualities

New handheld Psion Work About PC with Windows CE 5.0 and colour Touch Screen
Protected against dust, rain and snow (IP 65)
Up to 2400 automated measuremets, one-man operated with “auto trigger” and “auto increment” options
Can measure related values of corrosion rate, electrochemical potential and electrical resistance
Estimation of corrosion rate can be carried out in 15 sec.

Overview for evalutation of corrosion condition

On site graphic display - in colour
Each colour represents a measurement interval for corrosion rate, potential and resistance
Zoom function of detail area with display of measurement values
Measuring results in Excel-format are easily transferred to PC for further processing and presentation

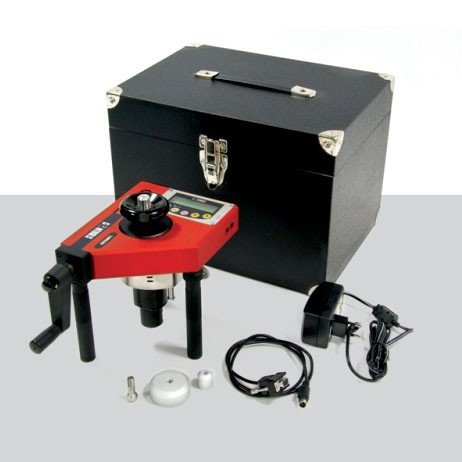

108. Digital Bond Strenght /Pull-off Tester

Request Catalog

Product Code

UTC-3250

Digital Bond Strenght /Pull-off Tester

Standards

EN 1015-12, 1348, 1542, 12616-2, 13963, 14496

16 kN measurement capacity apparatus is used for determining of bond/pull-off strenght of repair mortar, hardened rendering, plastering, etc.

The apparatus is basically a dynamometer fitted with a load cell and high resolution digital display unit. The direct tensile force is applied by rotating the hand wheel.

MAIN FEATURES

Portable equipment for use in any location
High resolution digital display unit
Graphic indication of applied load rate
Serial port for PC connection
Battery operated, complete with AC adapter
Indicator of ram position allowing an estimation of the brittle properties of the test sample
Supplied complete with traceable calibration certificate Supplied complete with carrying case. Each one of the accessories given below should be ordered separately

UTC-3254	Drill bit with centering point to obtain, 50 mm dia. test surface
UTC-3256	Drill bit with centering point to obtain, 20 mm dia. test surface
UTC-3257	Metal ring (dinking die), 50 mm int. dia, 25 mm high, for fresh plaster, to EN 1015-12
UTC-3258	Aluminium Test Disc, 50 mm dia
UTC-3260	Aluminium Test Disc, 20 mm dia.
UTC-3262	Test square plate, aluminium, 50x50mm, conforming to EN 1348
UTC-3264	Serial Cable for PC connection
UTC-3266	Stainless steel test disc 50mm dia. x 20mm thickness. (conforming to EN 1015-12)
UTC-3268	Adhesive Bicomponent. 2x15ml binder and 2x15ml hardener (4 vials)

Technical Specifications

Load capacity	16 kN
Readout unit	Load cell
Resolution	10 N
Working range	0.25 to 16 kN
Accuracy	better than ± 1%
Battery	9 V

Dimensions	340x240x250 mm approx.
Weight	5 kg with carrying case, 3.3 kg tester only

109. Digital Rebar Pull-Out Force Tester

Request Catalog

Product Code

UTC-3190	Digital Rebar Pull-Out Force Tester with Steel Hydrolic Cylinder, 10 tons Capacity
UTC-3210	Digital Rebar Pull-Out Force Tester with Steel Hydrolic Cylinder, 30 tons Capacity

The Apparatus are used for determining the bond strength between anchored reinforcing steel bar (rebar) and concrete and for checking anchorage performance in-situ. LPI Battary Operated Digital Readout Unit connected to a 30 tons capacity hydraulic jack and hand pump provides 1 % sensitive load or tensional strength value readings.

UTC-3190 and UTC-3210 Digital Rebar Pull-Out Force Testers have a steel hydraulic cylinder.

The apparatus are supplied complete with two different jaw sets which allows user to test anchorage rebar with different diameters. These jaws are made of high strength steel.

UTC-3190 is supplied complete with two jaw face sets for 4-8mm, and 8-14mm dia. rebars.

UTC-3210 is supplied complete with two jaw face sets for 8-14mm and 14-28mm dia. rebars. The Jaw Faces Set (UTC-3191) 4-8mm dia. for UTC-3210 should be ordered separately.

	UTC-3190	UTC-3210
Working ability	10 tons	30 tons
Rebar diameters can be tested	Up to 14 mm	Up to 28 (Max. 500 MPa for Ø28mm)
Tension journey (stroke)	50 mm	50 mm
Dimensions	300x1050x300 mm	300x1050x300 mm
Weight (approx.)	30 kg	35 kg

110. General Properties of U-Touch PRO Control Units

Request Catalog

Product Code

General Properties of U-Touch PRO Control Units

U-Touch PRO Control Units with integrated TFT-LCD human machine interface, have been designed with 4 channels for acquisition and processing of data obtained by sensors that produce voltage or current such as load cells, pressure or displacement transducers and also calculation of test results from this data and presentation of test results to users in desired format All the operations are controlled by touch screen display. (Depending on the application type, a number of channels will be configured. Channel names and units can be defined by the user.

The U-Touch PRO Control Units can be set up to perform load controlled tests or displacement controlled tests only by pushing buttons. That means the unit can control the machines for

Bituminous mixtures / Asphalt tests such as Marshall stability, indirect tensile,
Concrete and cement mortar tests such as compressive, flexural and splitting tensile
Soil tests such as uniaxial, triaxial, direct shear, cbr, consoladation
Steel products tests such as yield, tension, elongation and so on

U-Touch PRO Conrtol Units enable simultaneously display machine status, test values, warnings during operation and test graphs such as load-time or load-displacement curves in real time.

U-Touch PRO Control Units provide accurate and precise testing by means of P.I.D. control.U-Touch Pro provides users a specimen-specific autotuning option to determine the PID control parameters. Every analog data channel can be calibrated and digital gain parameters can be defined independently. Specific P.I.D. coefficients can be defined automatically for different samples using U-Touch Pro.

The Control Units integrate a user-friendly interface that shows all the necessary menu options as buttons and tabs. Sample information, test information, test parameters and user information can be modified and saved for later use by operators and input into the HMI for better visualization and storage of test results.

U-Touch PRO Control Units display of necessary warnings and current state of testing instantly on the touchscreen.

A thermal printer can be integrated to U-Touch PRO Control Unit and test results can be printed without the necessity for a personal computer.

U-Touch PRO can be used to retrofit old model equipment to have advanced data acquisition and process electronic.The Units can be also used as a data acquisition unit on any exsisting machine.

Main Features:

4 analog channels for load cell or pressure sensors or displacement sensors.
Can control 2 frames
Can make test with load and displacement control with P.I.D.
Pace rate control (depending on properties of hydraulic unit or electromechanic system used with and the test type to be performed)
Name, units and visibility of every channel can be determined and profiles can be saved by users

Hardware

4 fully customizable analog channels with 24-bit ADC and PGA-FPGA circuit
800x480 pixel and 65535 color resolution TFT-LCD touchscreen
33 Hz control loop
32 Bit, 120 MHz ARM CORTEX M3 micro-PROcessor (CPU) for data acquisition
32 Bit, 400 MHz ARM CORTEX M3 micro-PROcessor (CPU) for data display
Additional memory support up to 32 GB via external USB flash drive
Support for -optionally supplied- integrated thermal printer
Real time display of test graph
LAN connection for instantaneous transfer of test data to PC.
USB port support for transfer of test data to a flash drive

Software

Real-time display of load, loading rate and load/ time curves with automatic resolution adjustment on the touchscreen
Up to 8 point calibration support and adjustable digital gains for every channel
User-customizable load, position limits and test termination conditions
Backup and recall option for device settings
Recalling to factory default settings option.
Storage capacity up to 10.000 test result or 80 hours real time data recording with 1 sample per second recording interval (recording interval is variable).
Graph axes on touchscreen can be configured for different tests and configurations
The axes of the graph drawn on the device can be set to constant maximum values or axes can be automatically scaled according to the data
Easy recall of embedded test parameters for different types of tests and sample sizes
Three different units (kN, kgf, psi)
Real time and adjustable date/ tim.
Multi-language support (English, French, Spanish, Turkish, Russian…)
Password Protection for machine settings, calibration and channel menus
Record of test results in txt and MS excel format on pre-defined intervals
Device settings backup and recall option.
5 different visual themes
Customizable IP

Optional Accessories

Thermal printer integration (at factory) for printing out test results

Dimensions	150x200x200 mm
Weight (Approx.)	1 kg

110-220V 50-60 Hz. 1 ph

111. General Properties of Utest USOFT Softwares

Request Catalog

Product Code

General Properties of Utest USOFT Softwares

Utest USOFT Softwares have been designed for data acquisition, processing, controlling and reporting tests performed with appropriate Utest machines.

USOFT Softwares are capable of retrieving, storing and managing test data and controlling the machines using the data obtained.

The Softwares give the users option to choose from a variety of standardized report formats. All necessary information related to tests can be input into the test report through the software.

Utest Softwares are capable of creating and storing user-defined test methods. These methods can later be recalled or edited.

Utest Softwares can be used to prepare test reports in accordance with user-customizable standard and report formats. On reports prepared by the software, users can input necessary test information and parameters such as company name, laboratory name, test type, sample type, sample size and test dates. Test results and graphs can be printed using the software.

Bituminous mixtures / Asphalt tests such as Marshall stability, indirect tensile, SCB
Concrete and cement, mortar tests such as compressive, flexural and splitting tensile
Soil tests such as uniaxial, triaxial, direct shear, cbr, consoladation
Steel products tests such as yield, tension, elongation and so on.

Multi-Language Support and Customizable User Interface

Test information and sample information can be customized by users. The software has multi-language support.

User Identification and Authorization

Multiple user accounts can be defined with usernames and passwords and these accounts can be authorized on different levels.
Accessibility to menus and tests can be limited to certain authorization levels.

Unlimited Test Result Storage Capacity in One Test File

In one test file an unlimited number of test data containing, test results, graphs and sample information can be stored.
Previous test results can easily be recalled and edited.

Exporting Test Results to Database

If requested, to avoid data loss and increase data traceability, test data can be exported to an existing database.
This option allows the data to be accessed, analyzed and reported from one center.

Advanced Test Graphical Interface

Test graphs can be displayed during testing in real time. High resolution test graphs are updated once in every 100 milliseconds.
All test graphs in the test file can be displayed in one screen with different colors for each graph. Any one of these graphs can be isolated and displayed separately.
Images can be zoomed by dragging the mouse. Peak points on the graphs can be marked.
Load value corresponding to any point in the graph can be read with a high resolution.

Option to Store and Recall Test Information

Test information such as date, operator and sample size can be saved and recalled in the software.

Modification of Test Machine Parameters Using the Software

All the parameters supported by the test machine can be modified using the software. Before starting each test, these parameters are exported to the test machine, overriding current parameters.
This option prevents any error that can arise due to modification of test machine parameters and ensures compliance with the standards.

Exporting Reports and Graphs

Test results can be exported in the following formats: MS Excel, Ms Word, PDF and txt.

Flexible Report and Graph Formats

Graph and report templates for specific needs can be designed easily from the software interface.
The contents of the reports can be modified by the user. Certain information can be omitted from the report template by the user.

Help and User Manual Display

Software is supplied with a user manual and remote access option. If necessary remote access can be established by Utest technical service and users can be guided through any problem they may encounter.

UTEST CONCRETE

1. ASTM & AASTHO - Automatic Compression Testing Machines for Cylinders

77. Cylinder Moulds

2. ASTM - Automatic Compression Testing Machines for Blocks

Login
