THERMOMETER DIGITAL
Thermometer, High-Precision, Calibration

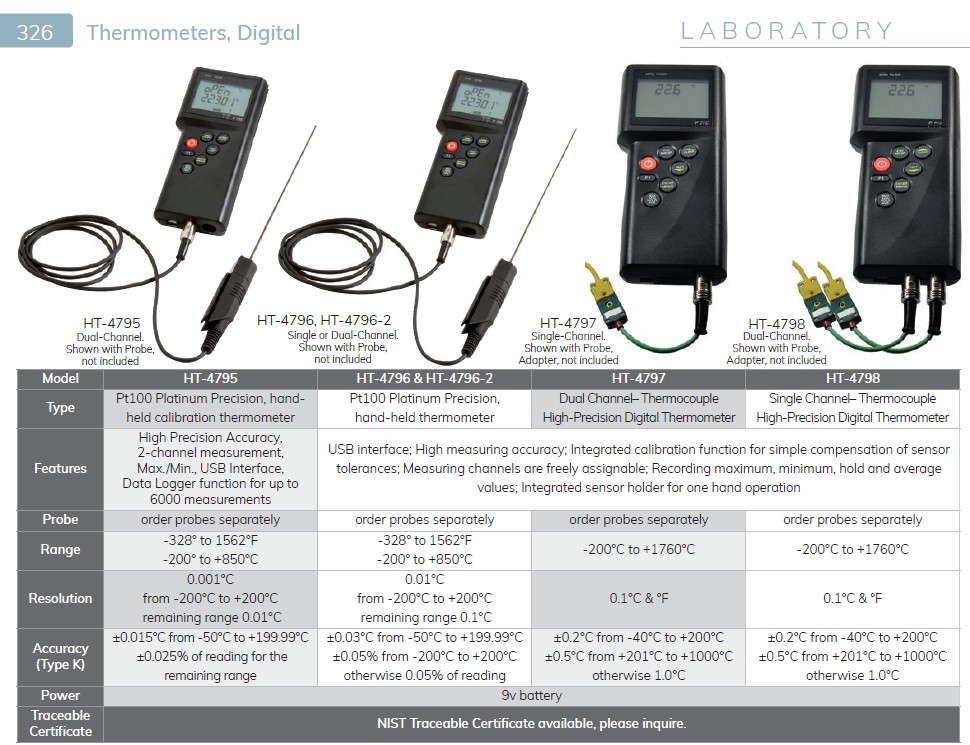

The HT-4795 precision hand-held thermometer is a 2-channel instrument that has a resolution of 0 001°C with a system accuracy of ± 0 015K It provides an excellent calibration reference for your other thermometers or operations requiring highly accurate readings Simultaneous display of two measured values or differential Records minimum, maximum, hold and average values Integrated calibration function (according to EN60751 up to 14 points) Password-protected calibration function Optional DE-Graph Windows Software for graphic and tabular documentation Thermocouple probe not included
Thermometer, High-Precision HT-4795 Thermometer, High-Precision, 3 Pt. Cal. HT-4795C
Thermometer, Pt100 Platinum, Digital

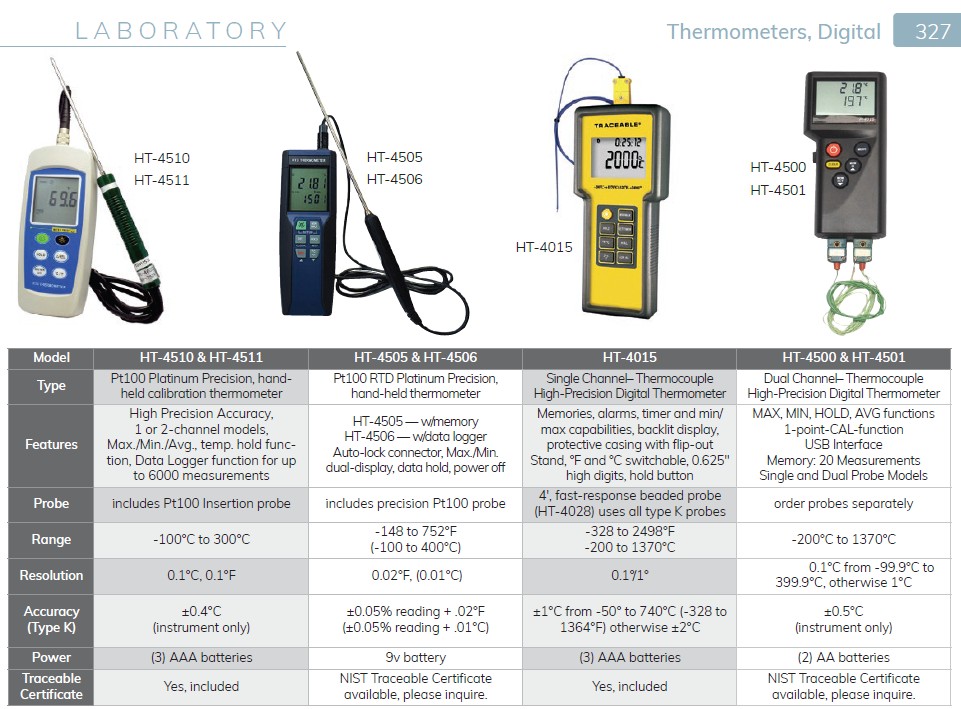

The HT-4510 & HT-4511 Single and Dual-Probe Precision RTD Digital Thermometers can be used as a Laboratory Temperature Standard, for the verification and calibration of liquid-in-glass, digi- tal and dial bi-metal thermometers They can also be used to calibrate laboratory instruments such as freezers, refrigerators, incubators, ovens, etc These precision Pt100 platinum thermometers meet EN 60751 standards and are traceable to NIST Standards, being furnished with a certifi- cate of accuracy The HT-4510 and HT-4511 are loaded with the features requested by most lab- oratories Both models include Pt 100 Insertion probes Battery life is approximately 100 hours
Thermometer, Single, Pt100 Platinum HT-4510 Thermometer, Dual, Pt100 Platinum HT-4511

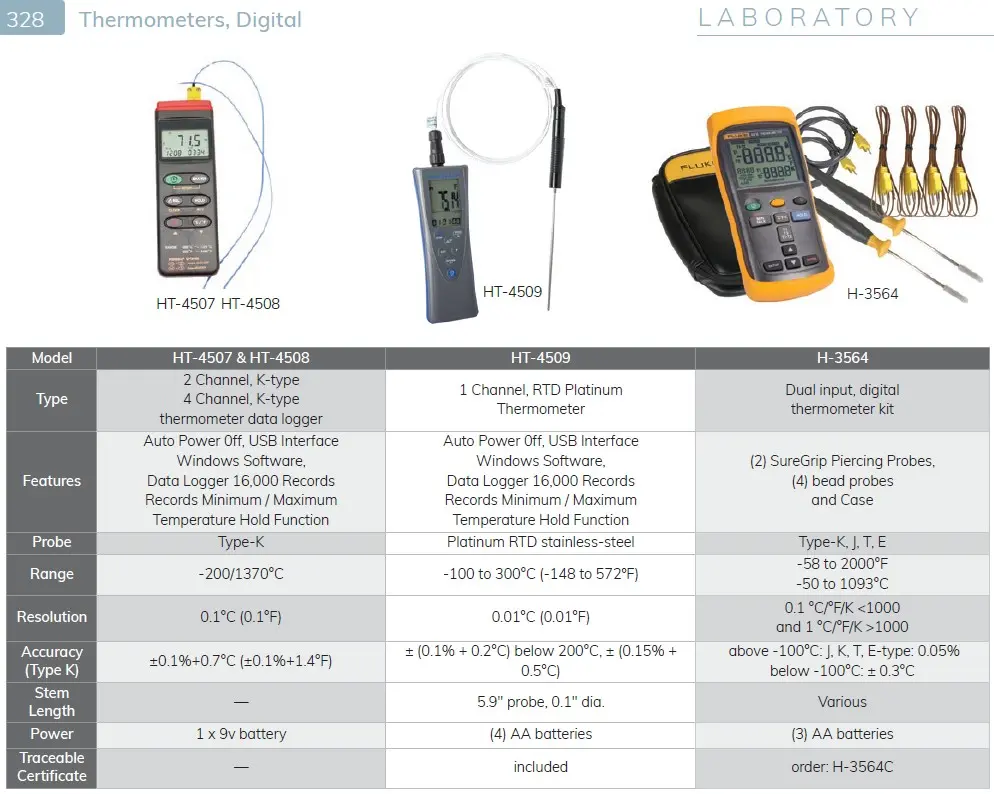

Precision, Handheld, K-Type Data Loggers Precision handheld thermocouple data logger are designed for advanced applications which require accurate temperature data collection over a period of time. The control interface is designed in a very intuitive way so that the user can locate the function by just looking at the panel. A real-time clock, providing your data with a time stamp so that every record can be traced back to the time the event occurred.
Windows Software is included that not only is used to transfer the recorded data, but also provides a virtual panel in the window to fully control the test.
Both models include: Calibration Certificate, Carrying Case, USB Cable, Windows Software, Instruction Manual, 1 9v Battery.
2-Channel, Thermometer Data Logger HT-4507 4-Channel, Thermometer Data Logger HT-4508
Ship wt. 1.4lbs. (.63kg)
Precision RTD Platinum Thermometer
High-precision thermometer is geared specifically for measuring temperatures in soil, ovens, gas systems, water baths, wastewater, incubators, chemical solutions, petroleum products, and extremely cold conditions. Innovative 0.01° resolution digital thermometer developed specifically for lab and plant use is the finest-performing RTD Platinum Thermometer ever designed. Accuracy of ± (0.1% + 0.2°C) below 200°C, ± (0.15% + 0.5°C) otherwise makes it ideal for experimental requirement. Ease of use makes it perfect for routine quality-control needs. One-button operation allows everyone in the lab to report identical readings and eliminates operator technique errors.
• Min/Max reading display
• Hold function to freeze current reading
• Countdown time function included
• Programmable high temperature alarm threshold
Precision RTD Platinum Thermometer HT4509
Ship wt. 1.4lbs. (.63kg)
Thermometer Kit, Digital, Hand-held
Heavy-duty design with 3.5"-digit LCD display. Range from -58 to 2000°F (-50 to 1093°C). Resolution is 1° F/C. Accuracy is ±0.3% +2°F (1°C) from
32 to 2000°F (1093°C) and ±4°F (2°C) from -58 to 32°F (-50 to 0°C). Dual-input jacks for K thermocouples allow operator to monitor two locations.
Other features include hold button, max temperature display and max memory. Supplied complete with removable rubber boot and one type-K 3.5"
(89mm) stainless steel probe w/handle and 2 K wire probes.
Thermometer Kit, Digital, Hand-Held H-3558D Ship wt. 1.4lbs. (.63kg)
Thermometer Kit, Digital, Hand-held
Laboratory accuracy and fast response in a rugged dual-input contact thermometer. Operating range: -58 to 2000°F (-50 to 1093°C). Kit includes the Fluke 52II thermometer, (4) general purpose bead probes and (2) SureGrip™ piercing probes and a case. Can use K, J, T and E probes.
Thermometer Kit, Digital, Hand-Held H-3564
Ship wt. 4.6lbs. (2.1kg)

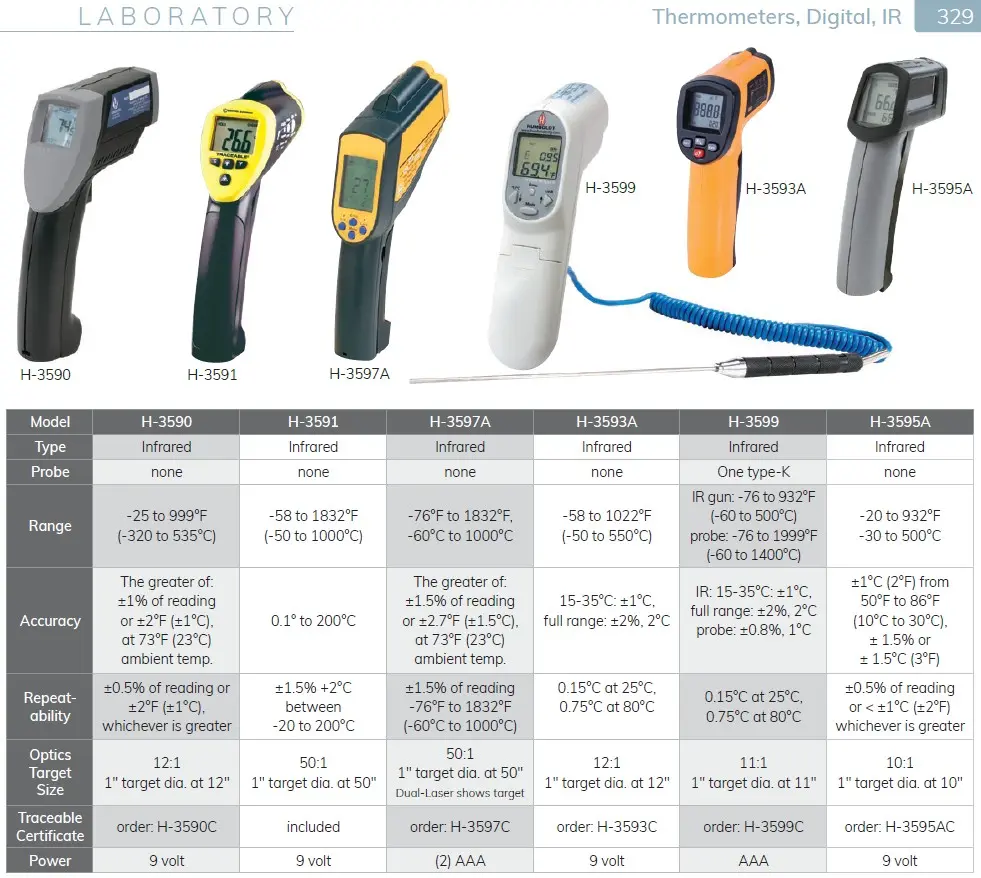

Thermometer, IR Gun, Heavy-Duty
Hand held and portable, the H-3590 infrared thermometer stand up to the day-to-day usage professionals require of their equipment. Feature backlit LCD and extra bright laser pointer, making it more visible in all conditions, especially outdoors. Includes tripod mount, display hold (7 seconds) and is switchable between °F and °C. Uses 9V alkaline or NiCd battery, included.
Thermometer, Wide-range Memory H-3590 - Ship wt. 3lbs. (1.4kg)
Thermometer, Wide-Range IR Gun, Traceable
Hand-held and portable, the H-3591 features 50:1 optics and a range of -58 to 1832°F (-50 to 1000°C). This thermometer features a traceable calibration certificate, back-lighting at the touch of a button, data hold, low battery indicator and °C/°F button.
Thermometer, Wide-Range IR Gun H-3591 - Ship wt. 4lbs. (1.8kg)
Thermometer, Pro IR Gun, Infrared
The professional IR thermometer is packed full of the features you need to make accurate infrared measurements. The H-3597A shows you exactly the size of your target every time. Its unique dual laser design highlights the outer edges of your target eliminating any guesswork or calculations.
With a 50:1 target ratio you can be confident from long distance. It includes data functions like min, max, lock, and hi/low alarms. Includes ABS carrying
case and two AAA batteries.
Thermometer, Pro IR Gun, Infrared H-3597A - Ship wt. 3lbs. (1.4kg)
Thermometer, IR Gun, Infrared
Point and shoot simplicity. IR gun with high-quality 12:1 optics and laser pointer. Reads °C or °F.
Thermometer, Wide-range Memory H-3593A - Ship wt. 1.2lbs. (.54kg)
Thermometer, IR Gun, K Thermocouple Combo
Infrared and type K thermocouple combo gun. High-quality 11:1 optics with laser pointer. Fast response type-K probe is included. You also get max, min, hold, diff, avg, hi/low alarm, backlit display and a °C/°F button.
IR Gun, K Thermocouple Combo H-3599 - Ship wt. 1.9lbs. (.86kg)
Thermometer, Mini-Laser IR Gun, Infrared
Pocket size, high-quality infrared gun with high-quality 10:1 optics and laser pointer. Operation is simple— aim, press trigger and read the backlit display. Reads °C or °F and has ergonomic grip handle. Uses 9V alkaline of NiCd battery, included.
Thermometer, Mini-Laser IR Gun H-3595A - Ship wt. 1.3lbs. (.59kg)
ASPHALT BINDER TESTING-VDO

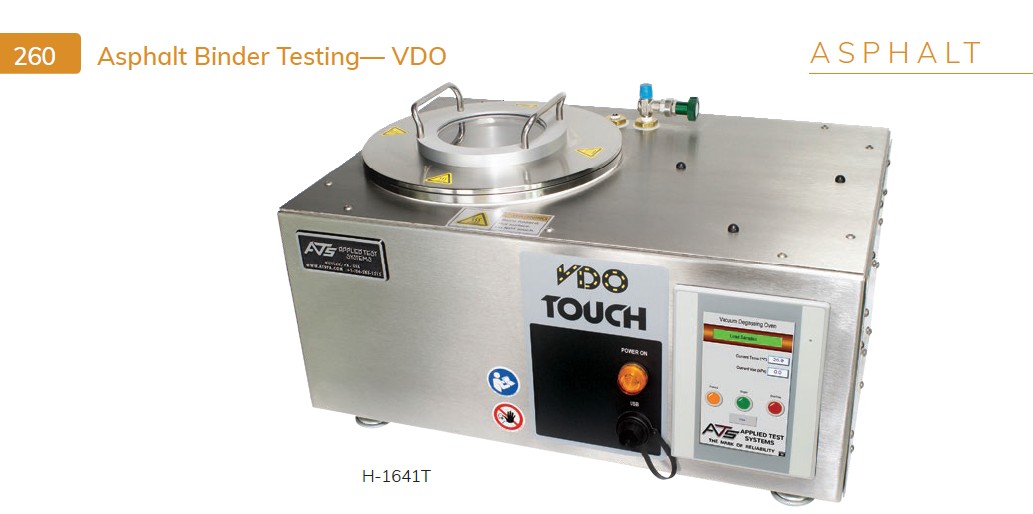

Vacuum Degassing Oven (VDO Touch)
ASTM D6521; AASHTO R28-06: EN 14769
The vacuum degassing oven (VDO touch) is used to precisely and accurately degas pressure-aged binder samples and is designed for rapid removal of entrapped air bubbles in asphalt specimens to the required 15 ±1.0kPa (25.5Hg). The net- work-ready 7in (178mm) touch-screen controller features easy menu-driven operation in multiple language options for fast programming of vac- uum, temperature values and soak times. The controller display indicates time, temperature, and current process stage, with alerts at the end of each test. When connected to a network with an Ethernet cable, the VDO Touch can be operated remotely via smart phones, tablets, or PC’s. USB Ports allow easy software upgrades.
The compact, table-top unit is constructed of stainless steel with a hinged lid to conserve space while allowing easy access to the stainless steel vacuum chamber. The oven holds up to (8) 4 oz. (114ml) or (4) 8 oz. (236ml) sample containers and features a self-contained, automatic vacuum system.
Temperatures in the VDO Touch vacuum cham- ber are measured by a platinum RTD probe with a range from ambient to 200°C with accu- racy to ±5°C. Soak and degassing times are both programmable up to 4,320 minutes. The rugged stainless steel cabinet, chamber and cover are easy to maintain, and the removable cover features a heat-resistant glass view- ing window for monitoring purposes The VDO includes: (4) 8 oz. (236ml) specimen contain- ers, specimen removal tool, stylus and clip. Dimensions: 24" x 16" x 12" (610 x 406 x 304mm).

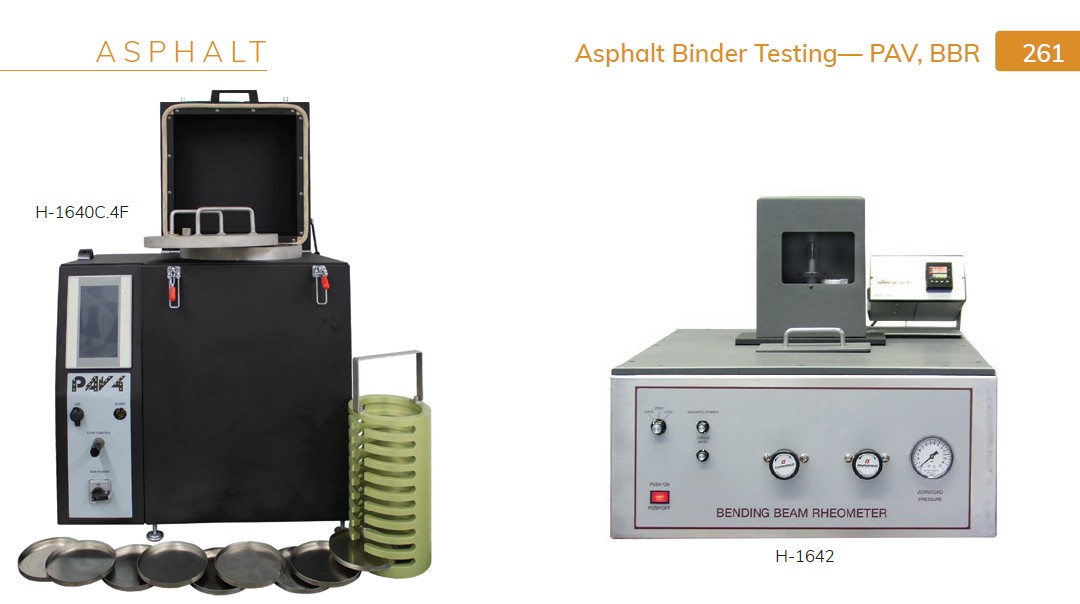

ASPHALT BINDER TESTING-PAV, PBR
The PAV4 sample holder is a one-piece, solid device requiring no assembly and is easy to achieve an accurate level position with the lev- eling ring in the vessel. There is also room for a small bubble level between slots for verification purposes.
The PAV4 includes a network-ready modem, which provides connection to the internet, per- mitting the user to access the PAV3 with a mobile device or PC using a VNC viewer app program. VNC connection enables the user to connect, monitor, and control the PAV4 from a remote loca- tion. The PAV3 can be programmed with a custom IP address, so the number of PAV4s on a single network is essentially endless.
Press. Aging Vessel (PAV4), 230V 50/60Hz
H-1640C.4F

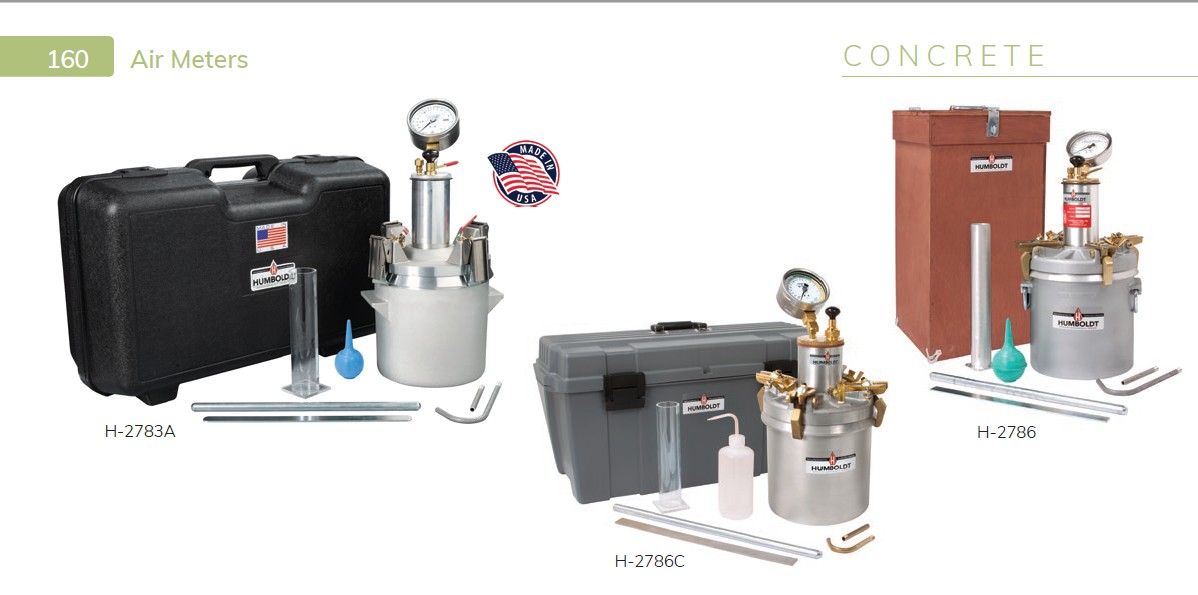

CONCRETE AIR METER
ASTM C231, AASHTO T152
The H-2783A air meter, which exceeds ASTM requirements, features the Humboldt, all-brass super pump, the most reliable and highest qual- ity pump available. The meter’s easy-to-use, and extra durable stainless steel clamping system employs four, one-piece, self-locking clamps that quickly seal the lid to the base with proper tension aided by an o-ring to assure a watertight seal. The large, easy-to-read, 4-inch diameter, heavy- duty, direct percentage gauge with calibration adjustments is accurate to the nearest 0.1%. The bucket, or pressure chamber, features EZ-grip, cast handles, which improve usability. This is especially true when the bucket is also used as a 0.25 cu. ft. unit weight measure. The lid of the pressure meter features a smooth sloped top so water and concrete wipe right off. By eliminating the cavities in the lid that trap and hold concrete, maintenance and repair problems are greatly reduced. The meter also features a machined base, which ensures the meter sets level when conducting tests. The kit includes a durable plastic carrying case; a tamping rod; strike-off bar; rubber bulb syringe; plastic calibration vessel; inside cali- bration tube, outside calibration tube and operat- ing instructions.
Press-Ur-Meter Concrete Air Meter, Plastic Case
ASTM C231, C192, AASHTO T152

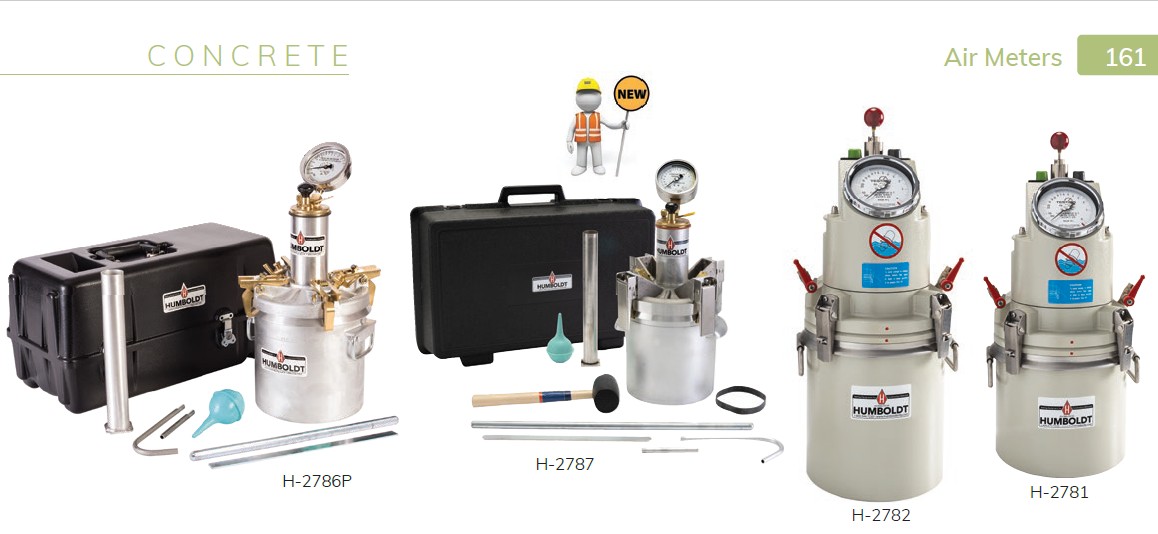

This is the original Press-Ur-Meter for field and laboratory tests. This air meter is designed to pro- vide air content and the determination of specific gravity and free moisture of aggregate. Designed to save time, reduce water use, ensure accuracy and maintain sample integrity (sample may also be used for slump and compression tests). The meter uses brass cover clamps, which can be adjusted for clamping pressure. A large, easy-to-read, 4" diameter, direct percentage gauge with calibra- tion adjustments accurate to the nearest 0.1%. The H-2786 meter also features the Humboldt, all-brass super pump, the most reliable and highest quality pump available. The meter’s base/bucket can be used as a 0.25 cu. ft. unit weight measure. This kit includes a molded-plastic carrying case; tamping rod; strike-off bar; rubber bulb syringe; aluminum calibration vessel; inside calibration tube, outside calibration tube and operating instructions.
Press-Ur-Meter with Horizontal Plastic Case H-2786P
MIXING

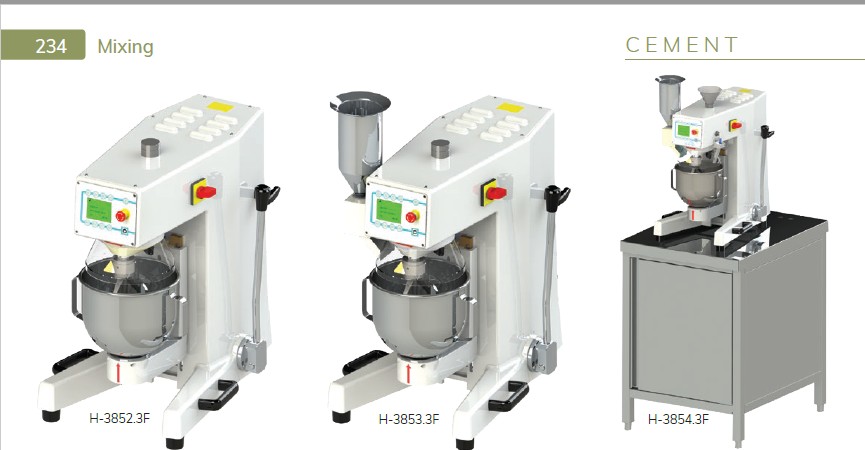

Mortar Mixer, 5L (5.3qt)
ASTM C305; AASHTO T162; EN 196 DIN 1164; BS 3892; ISO 679
Two-speed mixer designed to mix cement mor- tars and pastes. Mixer provides manually-con- trolled cement, water and sand supplies. Mixer features a 5L (5.3qt) stainless steel bowl and ASTM stirrer, and a two-speed motor, which runs at either 140 ±5 rpm or 285 ±10 rpm.
Features control panel, which provides fast, easy control in eight languages. Numerous safety fea- tures are incorporated in the mixer and includes a service program with malfunction messages for operator, including paddle/planetary speed and time monitoring. Heavy-duty construction of aluminum and cast iron provides durability and a long service life. The mixer provides a power- ful motor for quiet and maintenance-free oper- ation aided by the use of planetary gears and a toothed, belt drive. The mixing bowl is connected to the mixer by a quick-release clamping system. The distance between the mixing bowl and the stirrer can be easily and accurately be set.
Mixer design conforms to CE standards, featuring a mixing bowl cover, electronic position monitor- ing of the mixing bowl, emergency stop switch and restart protection.
Mortar Mixer, 5L (5.3qt)
ASTM/EN—110/230V 50/60Hz H-3852.3F
-

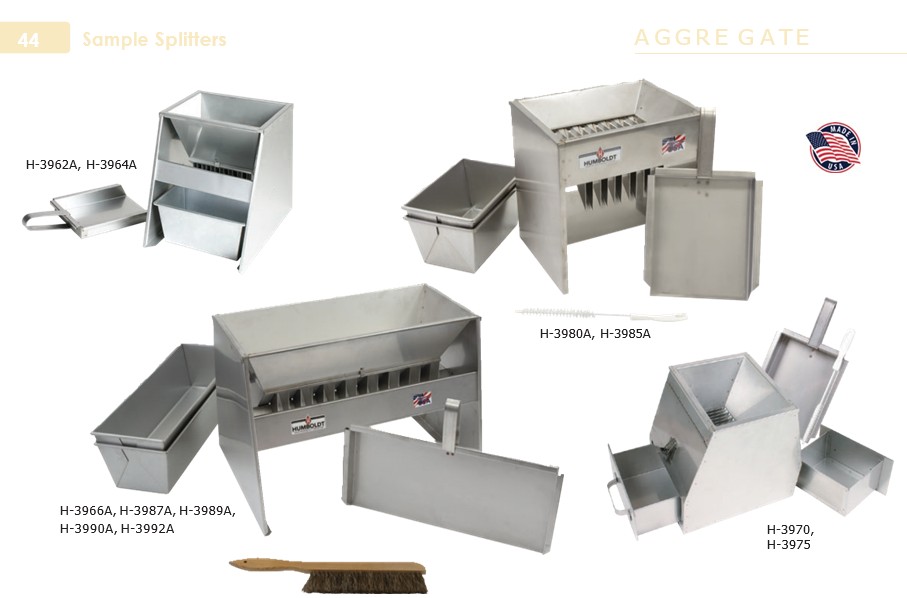

SAMPLE SPLITTER
Humboldt Sample Splitter Specifications
|
Model |
Material Size (max.) |
Chutes Number Width |
Hopper L x W inches (mm) |
Pans (incl.) |
Ship wt. lbs. (kg) |
Steel Pan |
Stainless Steel Pan |
|||
|
Pan Model # |
L x W x H" (mm) |
Pan Model # |
L x W x H" (mm) |
|||||||
|
One-Piece Construction Sample Splitters |
Replacement Pans for Sample Splitters |
|||||||||
|
H-3962A |
0.25" (6.3mm) |
14 |
.375" (9.52mm) |
8" x 6.75" (203 x 171mm) |
2 |
2 lb (0.91 kg) |
H-3981 |
8.0" x 5.25" x 4.25" |
H-3981S |
6.5" x 5.875" x 4.5" (165 x 149 x 114mm) |
|
(133 x 203 x 108mm) |
||||||||||
|
H-3964A |
0.33" (8.4mm) |
14 |
.500" (12.7mm) |
11" x 6.75" (279 x 171mm) |
2 |
2.7 lb (1.2 kg) |
H-3986 |
5.5" x 10.5" x 4.5" (140 x 267 x 114mm) |
H-3986S |
11.25" x 6.5" x 5.5" (286 x 165 x 140mm) |
|
H-3966A |
0.50" (12.7mm) |
14 |
.750" (19mm) |
14.75" x 6.75" (375 x 171mm) |
2 |
3 lb (1.4 kg) |
NA |
NA |
H-3967S |
13.25" x 5.125" x 6.625" (337x 130 x 168mm) |
|
H-3987A |
0.66" (16.9mm) |
16 |
1.00" (25.4mm) |
20" x 9" (508 x 229mm) |
2 |
5.9 lb (2.68 kg) |
H-3988 |
6.375" x 19" x 4.875" |
H-3988AS |
16.375" x 6.5" x 5.25" (416 x 165 x 133mm) |
|
(162 x 483 x 124mm) |
||||||||||
|
H-3989A |
1.33" (33.8mm) |
8 |
2.00" (50.8mm) |
19.5" x 9.5" (495 x 241mm) |
2 |
5.9 lb (2.68 kg) |
H-3988 |
6.375" x 19" x 4.875" |
H-3988AS |
16.375" x 6.5" x 5.25" (416 x 165 x 133mm) |
|
(162 x 483 x 124mm) |
||||||||||
|
H-3990A |
1.00" (25.4mm) |
10 |
1.50" (38.1mm) |
20" x 9" (508 x 229mm) |
2 |
5.9 lb (2.68 kg) |
H-3988 |
6.375" x 19" x 4.875" |
H-3988AS |
16.375" x 6.5" x 5.25" (416 x 165 x 133mm) |
|
(162 x 483 x 124mm) |
||||||||||
|
H-3992A |
1.67" (42.3mm) |
8 |
2.50" (63.5mm) |
24" x 9" (610 x 229mm) |
2 |
4.5 lb (2.04 kg) |
NA |
NA |
H-3993S |
22" x 5.125" x 6.75" (559 x 130 x 171mm) |
|
Removable Hopper Sample Splitters |
|
|||||||||
|
H-3980A |
0.33" (8.4mm) |
12 |
.500" (12.7mm) |
11" x 8.5" ( 279 x 216mm) |
2 |
2 lb (0.91 kg) |
H-3981 |
5.25" x 8.0" x 4.25" |
H-3981S |
6.5" x 5.875" x 4.5" (165 x 149 x 114mm) |
|
(133 x 203 x 108mm) |
||||||||||
|
H-3985A |
0.50" (12.7mm) |
12 |
.75" (19mm) |
14" x 8.5" (356 x 216mm) |
2 |
2.7 lb (1.2 kg) |
H-3986 |
5.5" x 10.5" x 4.5" (140 x 267 x 114mm) |
H-3986S |
11.125 x 6.5 x 5.5" (283 x 165 x 140mm) |
|
Enclosed Sample Splitters |
|
|||||||||
|
H-3970 |
0.25" (6.3mm) |
14 |
.375" (9.52mm) |
8" x 6.5" (203 x 165mm) |
2 |
2.1 lb (.10 kg) |
NA |
NA |
H-3977S |
7" x 5.75" x 3.75" (178 x 146 x 95mm) |
|
H-3975 |
0.25" (6.3mm) |
24 |
.375" (9.52mm) |
11" x 4.5" (279 x 114mm) |
2 |
5.5 lb (2.50 kg) |
NA |
NA |
H-3976S |
11.875" x 5" x 6.125" (302 x 127 x 156mm) |
